Bevarex II - Phoebus 725 clone

Discussion in 'Czech Republic' started by presscall, Dec 8, 2015.

  1. presscall

    presscall United Kingdom Subscriber

    Offline
    Joined:
    Aug 25, 2009
    Messages:
    6,435
    Location:
    UK

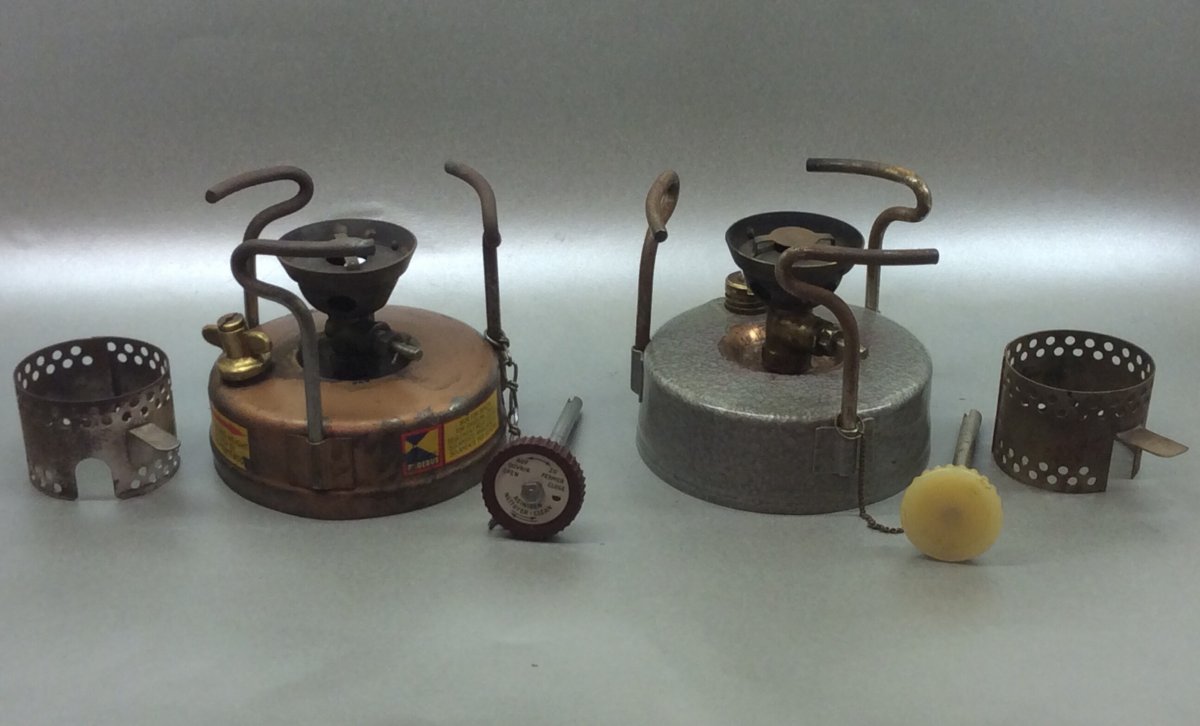

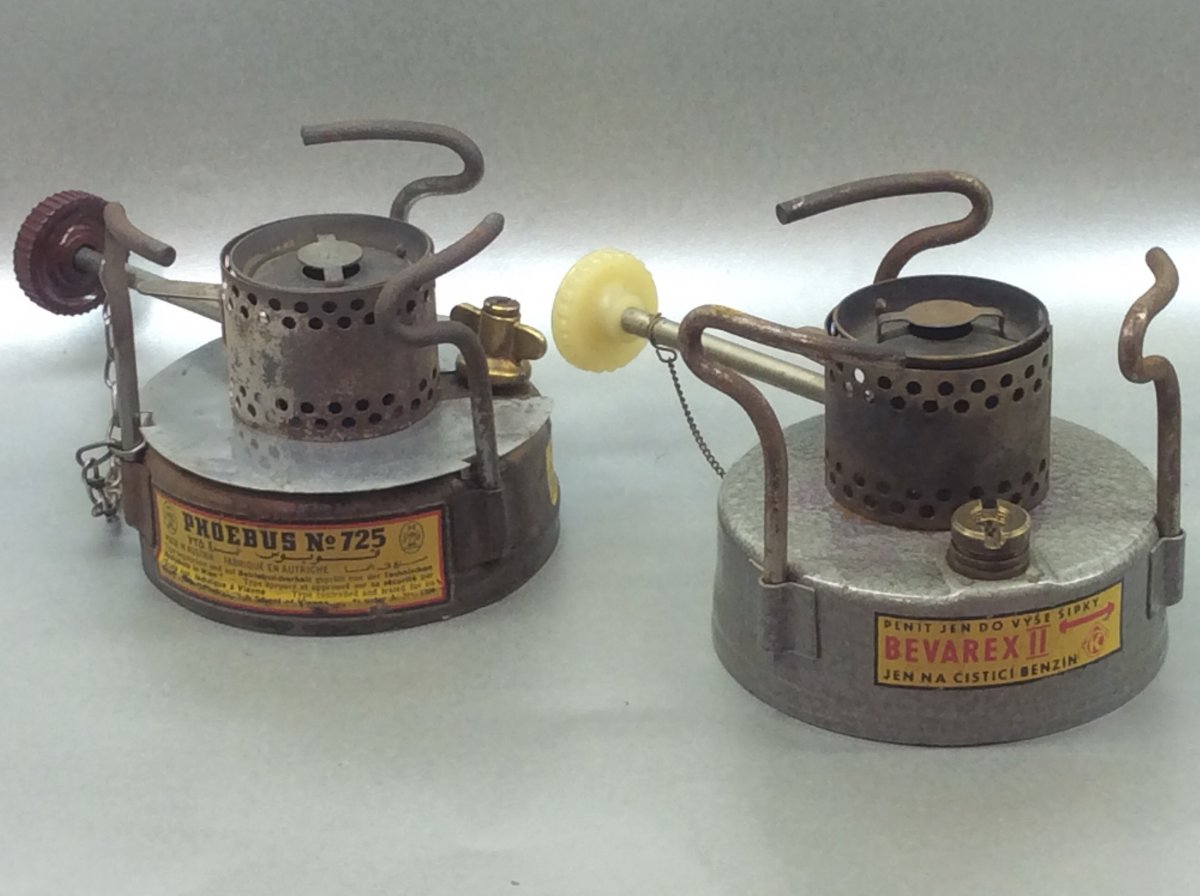

    A very close match, Bevarex on the right

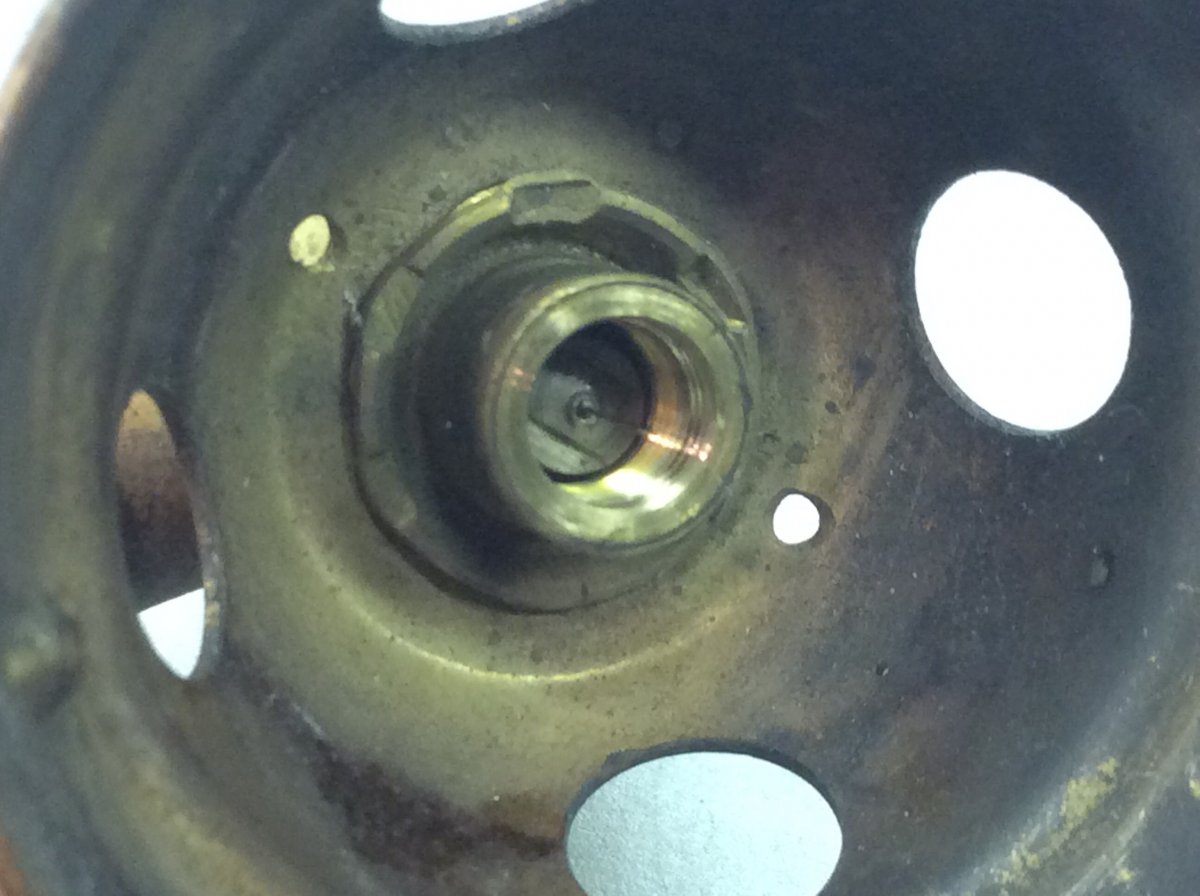

    A tell-tale perhaps that the manufacturer intended the stove to have the stove with the same gold paint finish is the paint finish exposed by the burning away of the top coat in the primer cup

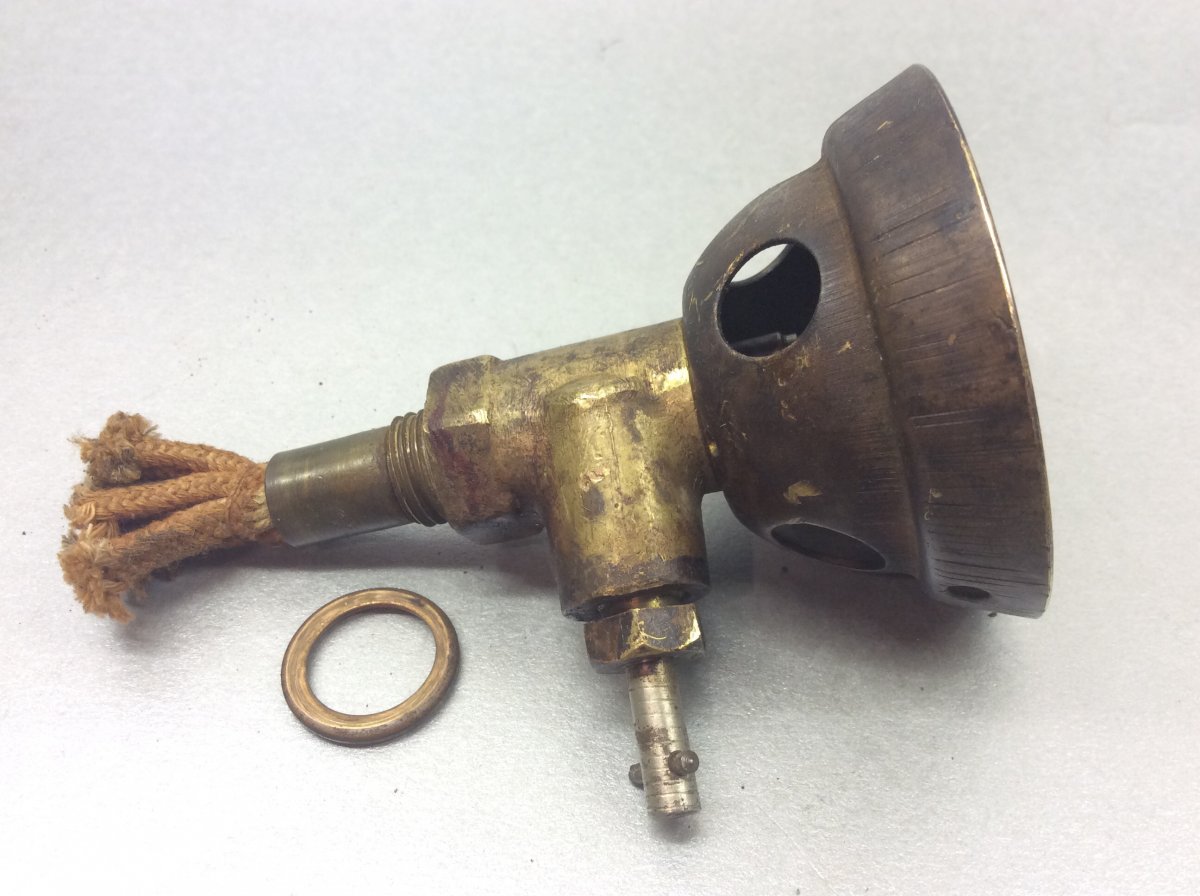

    The Bevarex burner seals to the tank with a crushable brass washer, which I annealed by heating it up to red heat before reassembly

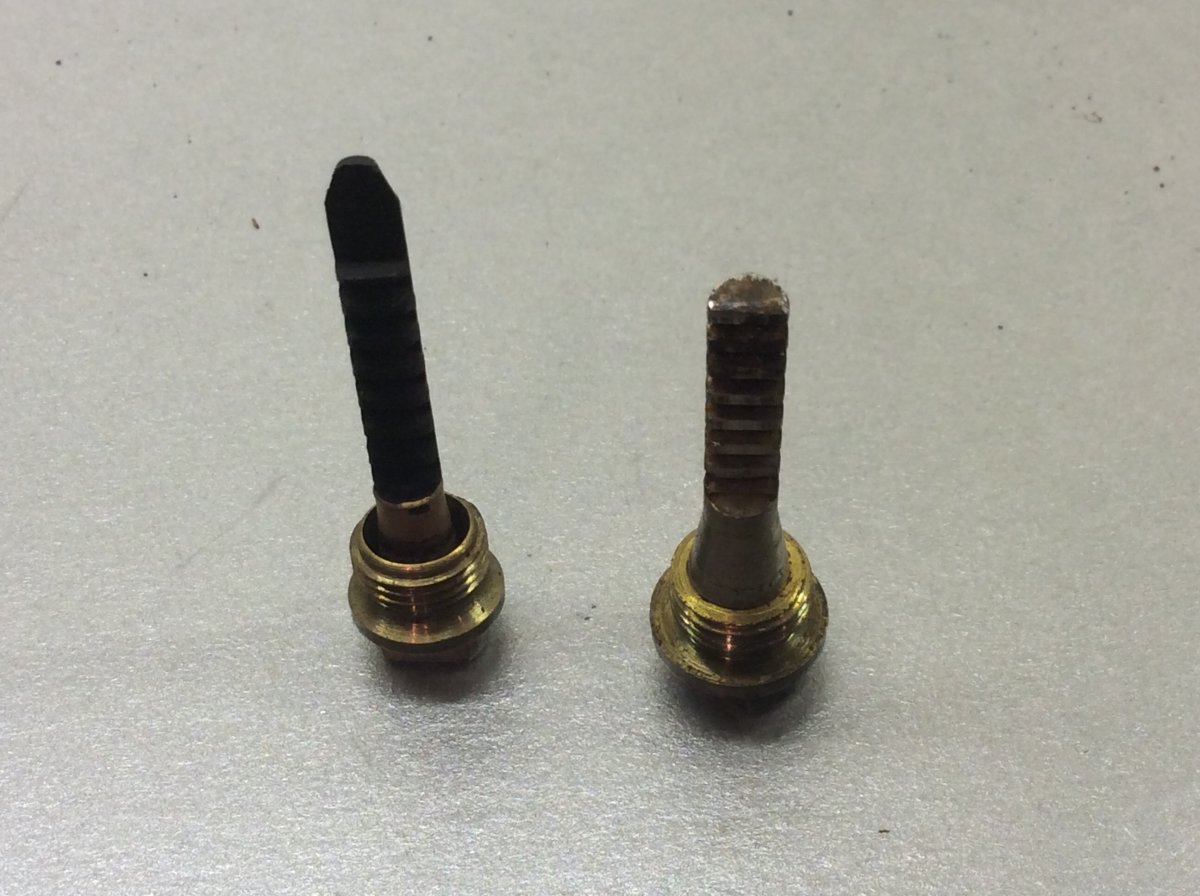

    Some detailed differences between the pricker rack/needle assembly and jet. The Bevarex doesn't have the feature of a replaceable needle as does the Phoebus (on the left)



    On the Bevarex, only the tip of the pricker wire enters the jet and doesn't project through to the other side, but does the job





    Both stoves achieve shut-off by having the tapered shoulder of the pricker mount make a seal against the rim of a constriction in the riser tube, just above the regulator pinion




    The bases

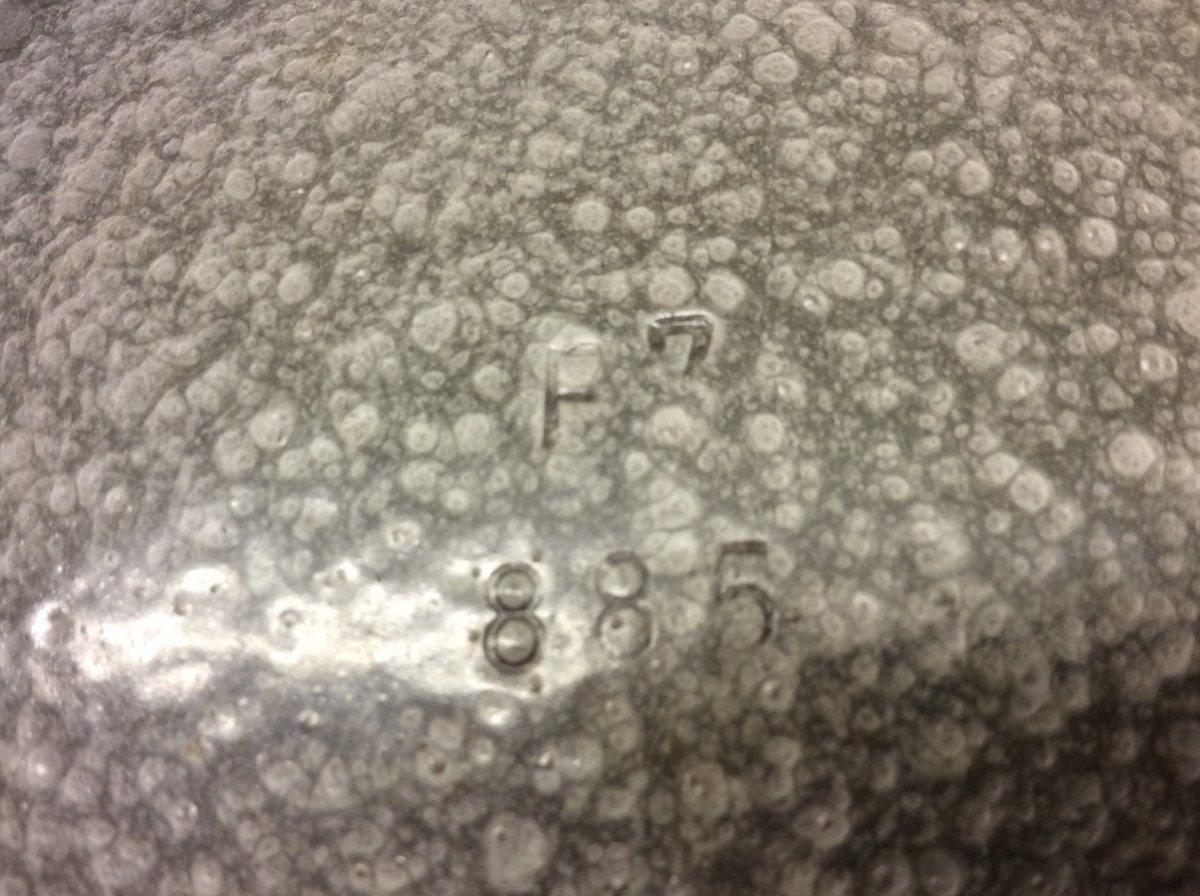

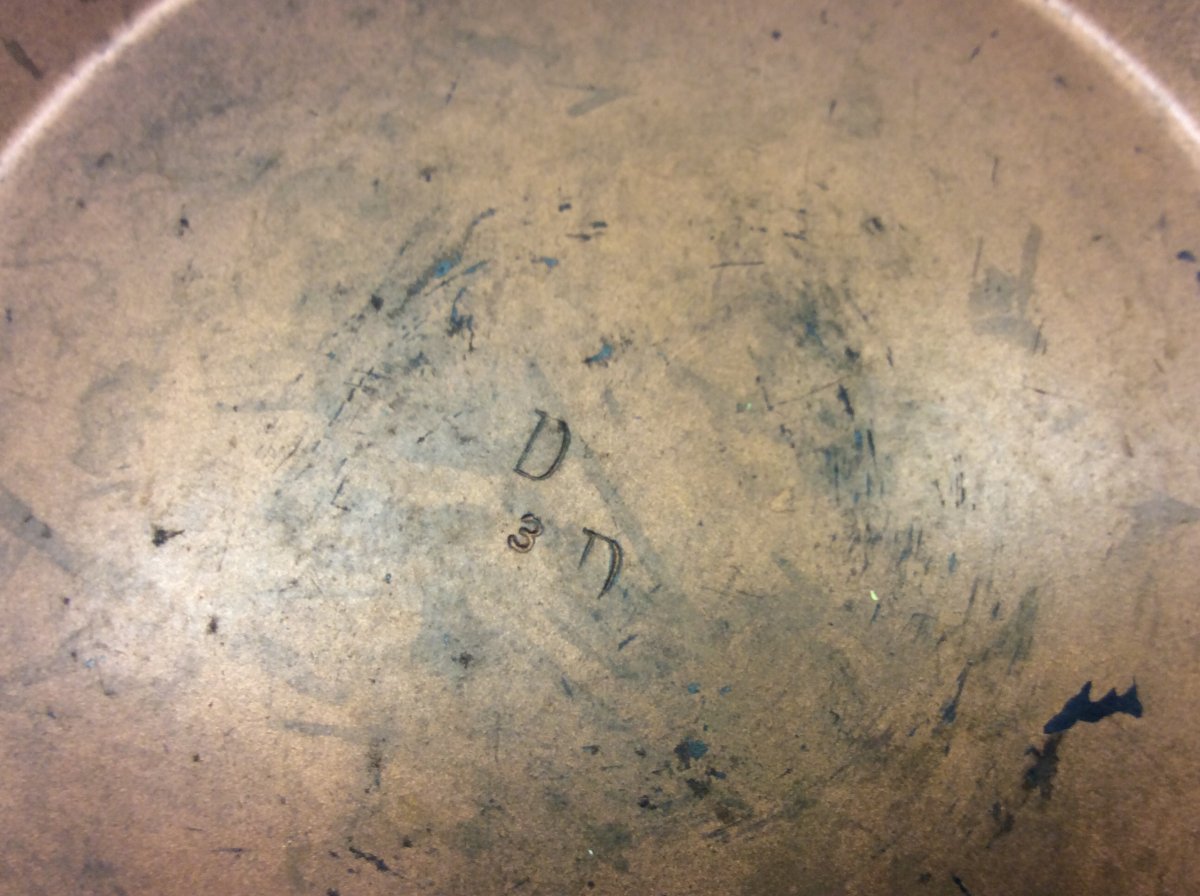

    I'm unable to interpret the stamping at the centre of the base of either stove

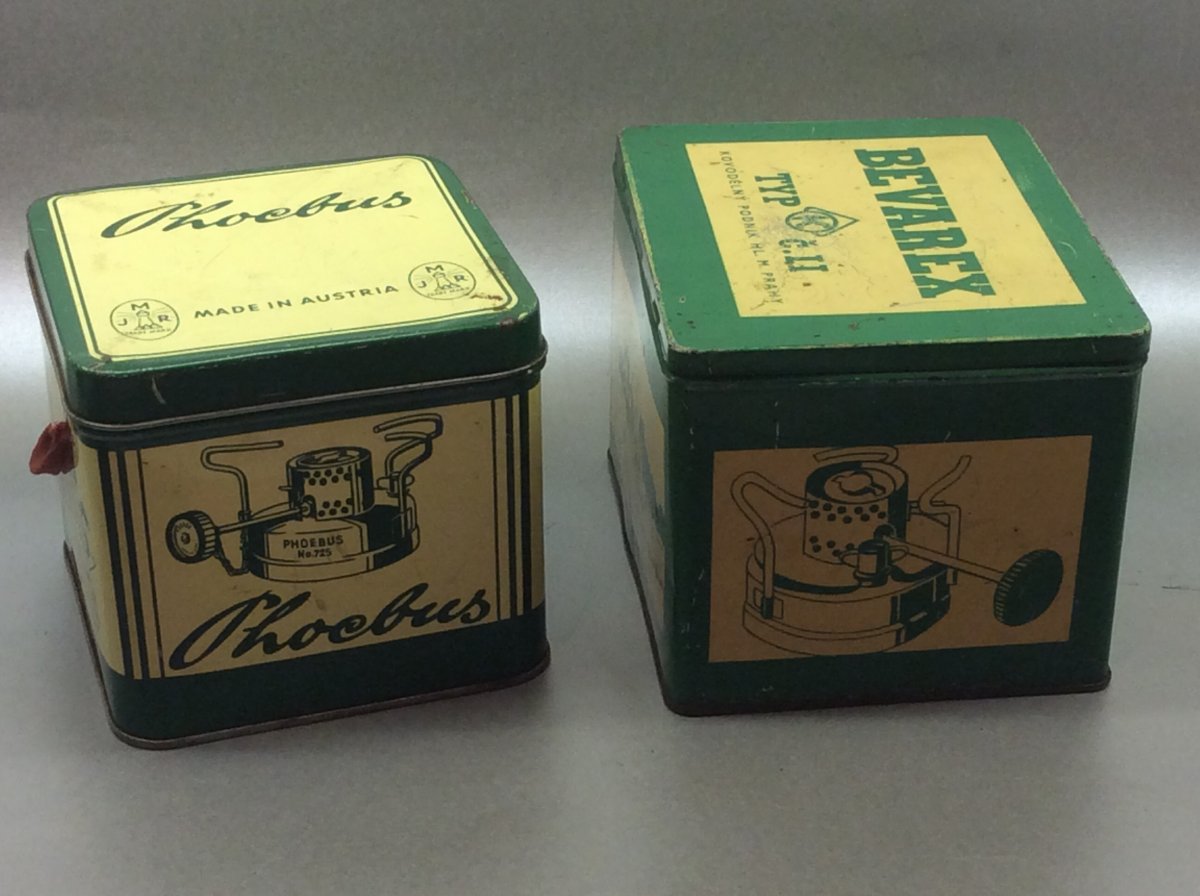

    The boxes. That of the Bevarex is roomier

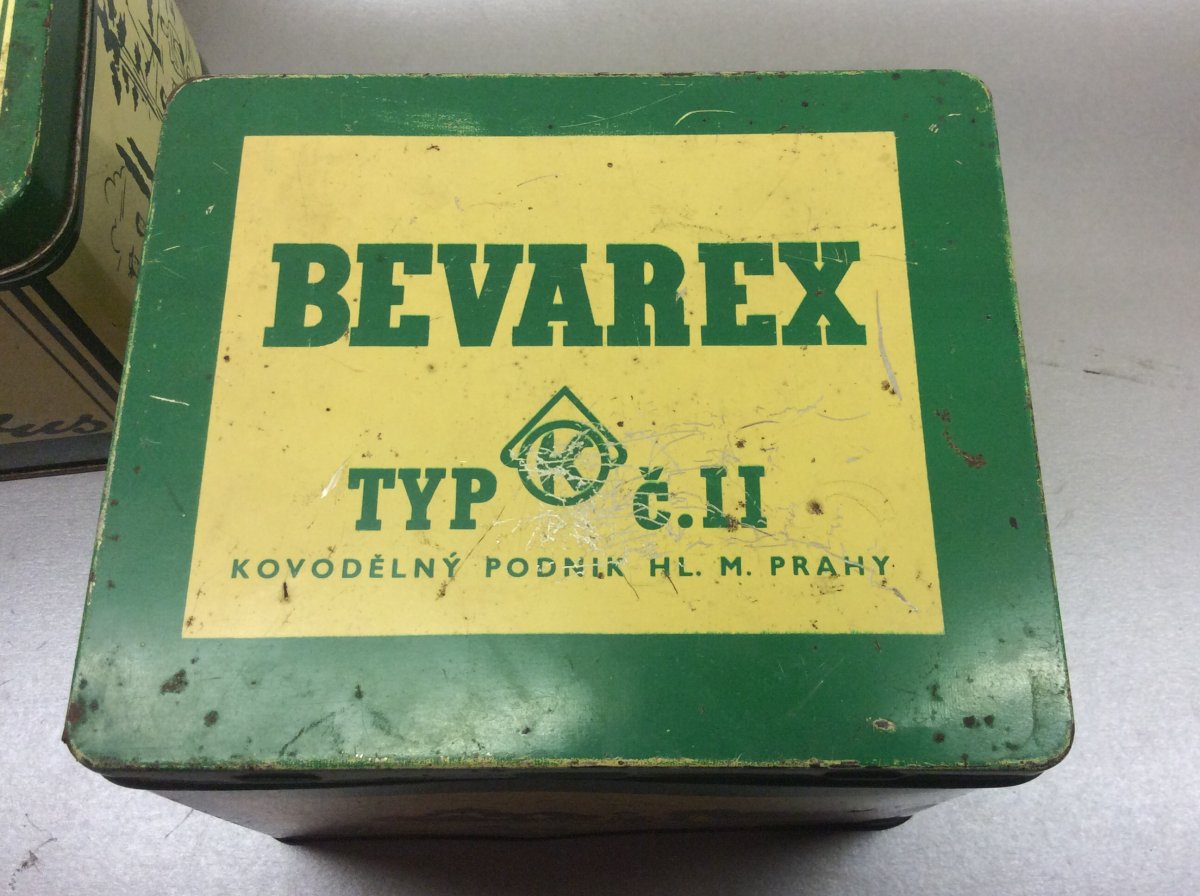

    Bevarex box graphics






    Curious that the illustration of the stove is a clear representation of a Phoebus rather than the Bevarex - filler cap/safety release valve and windshield (separate brazed-on lifter handle on the Phoebus)


    The graphics on the Phoebus tin






    Fuel tank decal on the Bevarex

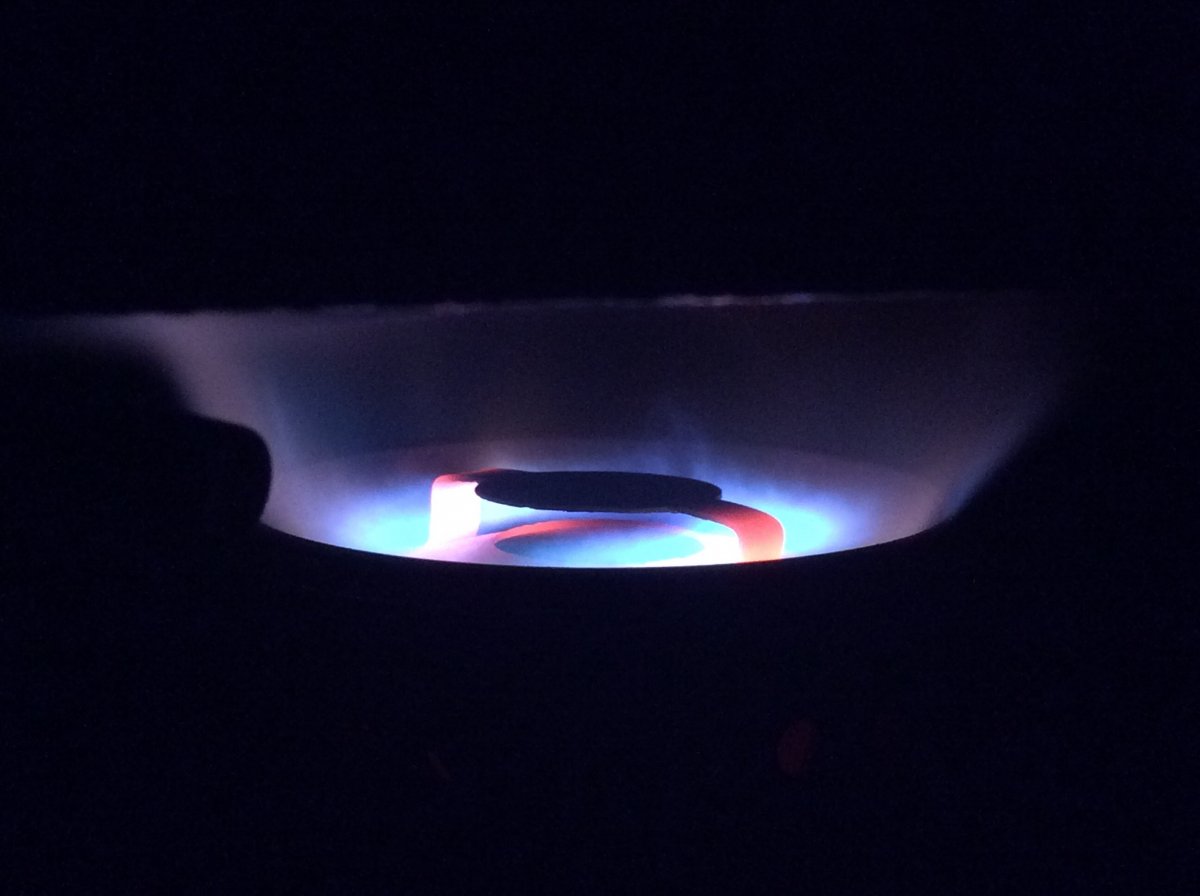

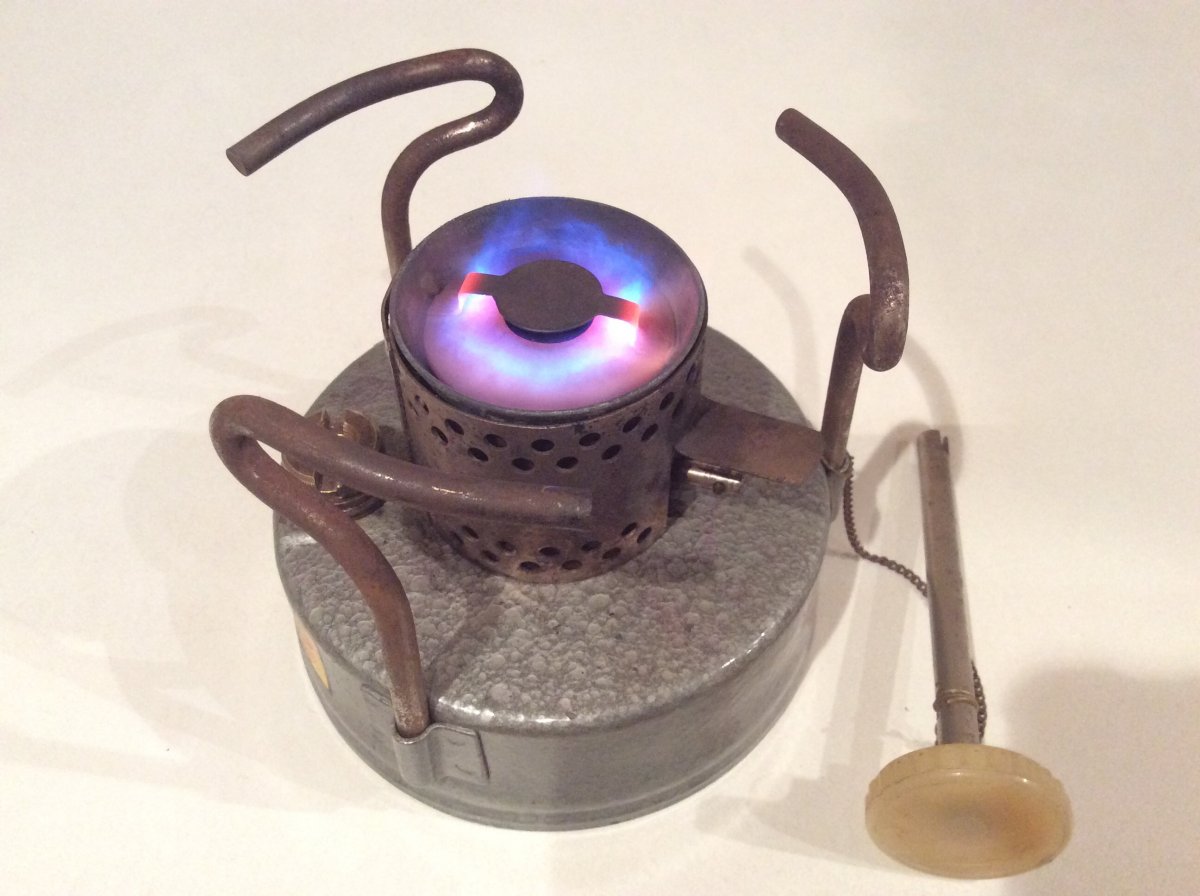

    Filler cap and safety release valve seals replaced, then fuelled up, primed with alcohol and away it went. Indistinguishable performance from that of the Phoebus, unsurprisingly

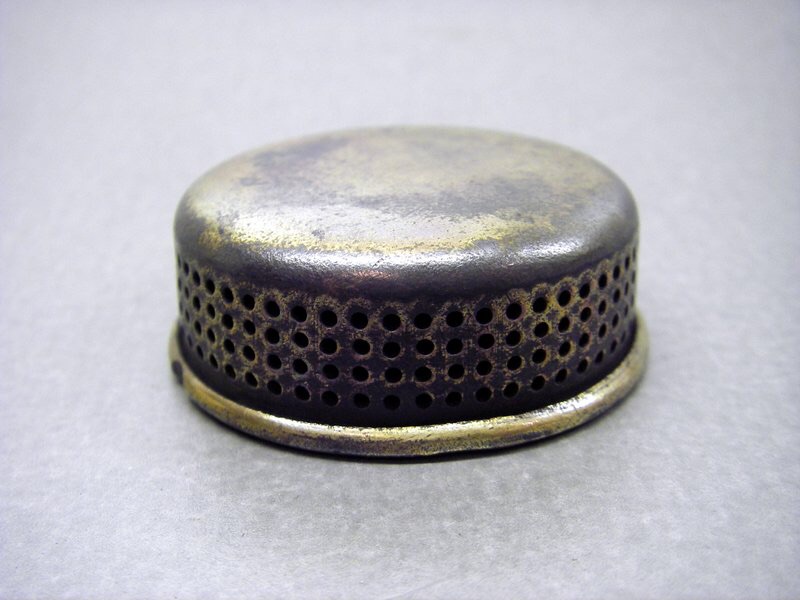

    Good result too with the roarer flame plate replaced with a silent burner converter cap from this Duo-Burn stove





    John

  2. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Jun 8, 2013
    Messages:
    2,676
    Very nice! :thumbup:

  3. Rangie

    Rangie Subscriber

    Offline
    Joined:
    Jul 25, 2012
    Messages:
    1,000
    Location:
    Caithness, Far North of Scotland.
    Lovely stuff John, I must get photos of mine up as well.

    Alec

  4. presscall

    presscall United Kingdom Subscriber

    Offline
    Joined:
    Aug 25, 2009
    Messages:
    6,435
    Location:
    UK
    You've one of these, Alec?

    A BAT's not so far removed from the Phoebus configuration. The BAT's bigger



    John

    Last edited: Dec 8, 2015
  5. Rangie

    Rangie Subscriber

    Offline
    Joined:
    Jul 25, 2012
    Messages:
    1,000
    Location:
    Caithness, Far North of Scotland.
    I have an assortment of eastern-bloc stoves to post John @presscall 8)

    Alec

  6. presscall

    presscall United Kingdom Subscriber

    Offline
    Joined:
    Aug 25, 2009
    Messages:
    6,435
    Location:
    UK
    @Rangie
    Looking forward to seeing them Alec and tales associated with them to rival a John le Carré novel maybe?

    I'm enjoying this stove ...




    John

  7. Krestova Jane Canada

    Offline
    Joined:
    Oct 19, 2015
    Messages:
    77
    Location:
    Canada
    This is so kewl! :thumbup:

  8. Jeopardy

    Jeopardy United Kingdom Subscriber

    Offline
    Joined:
    May 26, 2012
    Messages:
    1,008
    Just putting this out there but did Pheobus have factories in Prague before the war that continued in state ownership once it was behind the iron curtain? Or is it just a blatant copy from the period of the cold war?
    regards
    John

  9. presscall

    presscall United Kingdom Subscriber

    Offline
    Joined:
    Aug 25, 2009
    Messages:
    6,435
    Location:
    UK
    @Jeopardy
    Really good point you raise, John, and something I've dabbled in researching previously - with help from CCS contributor Dusan - in THIS post.

    In that post/thread I said, in respect of the Gerson Boehme and Rosenthal company (Rosenthal was Phoebus brand founder),

    ... and again further down the thread,

    That family connection in the early days doesn't explain how a Phoebus 725 clone arose (the Bevarex) whenever it was produced, I'm guessing 1970's (?). More research needed!

    John

    Last edited: Dec 9, 2015
  10. Big Si

    Big Si Subscriber

    Offline
    Joined:
    Feb 3, 2008
    Messages:
    798
    Location:
    Mansfield, the heart of Sherwood forest.
    John, I presume you are buying from abroad now? Hope fully this might give me chance to get some results from Ebay? Only joking mate! They both look fine stoves, not for me at the moment but never say never and all that!

    Si

  11. presscall

    presscall United Kingdom Subscriber

    Offline
    Joined:
    Aug 25, 2009
    Messages:
    6,435
    Location:
    UK
    Buying from abroad Si?

    I've purchased the occasional item from Yorkshire, I can't deny it ...

    John

  12. Big Si

    Big Si Subscriber

    Offline
    Joined:
    Feb 3, 2008
    Messages:
    798
    Location:
    Mansfield, the heart of Sherwood forest.
    Nice one John :lol::lol::lol:
