Coleman #10 "GYPSY" Gas Camp stove

Discussion in 'Coleman No:10 Gypsy' started by Knight84, Jun 9, 2015.

  1. Knight84 Canada

    Offline
    Joined:
    Jan 21, 2009
    Messages:
    3,236

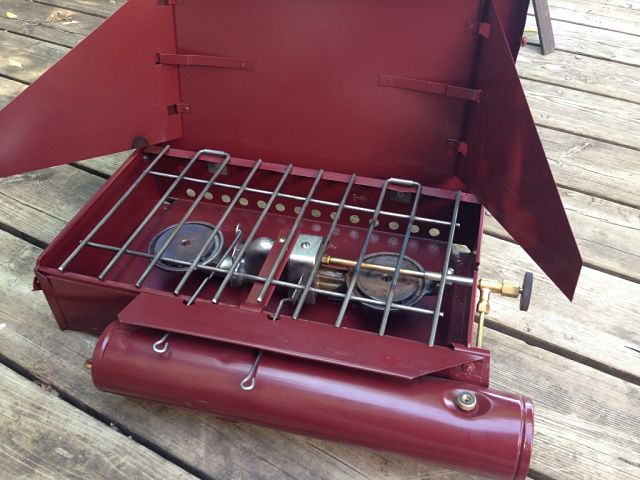

    Coleman Gypsy camp stove. Made for the Gypsy stove Company by Coleman.

    It was Made in Canada circa the early 1930s.
    Size: approx. 17" x 9 1/2" x 4" high (excluding the fuel tank).

    The stove burns white/Coleman gas/fuel. Made of cast iron, brass and steel. The fuel cap has a lead seal. There isn't a oz of rubber on the stove.

    It has a new coat of paint close to the original colour. Tremclad Rust paint - Wild Raspberry.

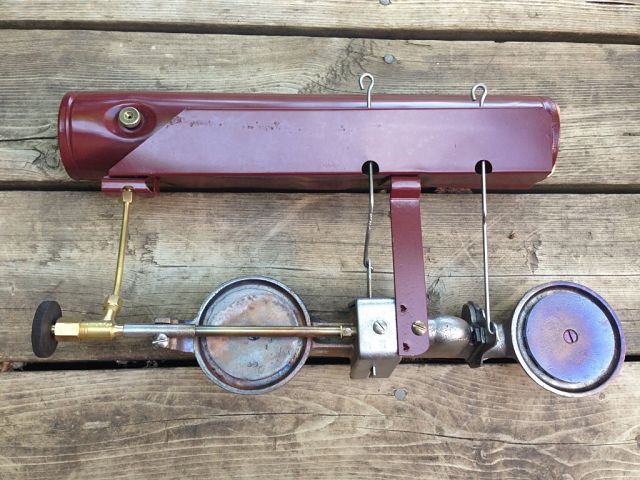

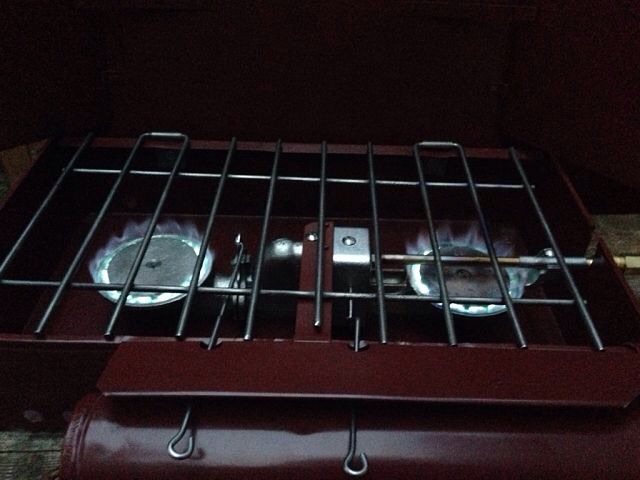

    As you will see later from the pictures the stove is in perfect working order as if new yesterday. There is a main burner and a secondary burner. The stove has no built in pump but relies on a external pump with a check valve on the tank. This system may seem old and unsafe but in fact in practice it is very easy to use and safe. The stove operates on very little pressure. It has a very simple way of preheating. The one lever when pushed in puts a angled funnel in front of the jet. Therefore filling the preheating cup under the jet and generator. I prefer to prime/preheat with alcohol.

    A very enjoyable stove to use.

    Instructions for this stove can be seen via the below link already on the site.

    Spiritburner internal link to stove instructions

    Cheers
    Jeff


    1433888509-IMG_7993_opt.jpg 1433888524-IMG_7992_opt.jpg 1433888551-IMG_7995_opt.jpg 1433888585-IMG_7991_opt.jpg 1433888595-IMG_7990_opt.jpg 1433888605-IMG_7989_opt.jpg 1433888615-IMG_7988_opt.jpg 1433888624-IMG_7987_opt.jpg 1433888645-IMG_7982_opt.jpg

    1433888655-IMG_7983_opt.jpg 1433888664-IMG_7984_opt.jpg 1433888673-IMG_7985_opt.jpg 1433888687-IMG_7986_opt.jpg 1433888718-IMG_7996_opt.jpg 1433888732-IMG_7997_opt.jpg 1433888743-IMG_7998_opt.jpg 1433888760-IMG_7999_opt.jpg 1433888772-IMG_8001_opt.jpg 1433888788-IMG_8002_opt.jpg



    Jeff

    Last edited by a moderator: Jul 1, 2015
  2. snwcmpr United States

    Offline
    Joined:
    Nov 16, 2011
    Messages:
    6,015
    Location:
    USA
    That's real purty Jeff. A nice addition to any collection. An outstanding set of photos.

    Thanks for sharing this,
    Ken in NC

  3. Knight84 Canada

    Offline
    Joined:
    Jan 21, 2009
    Messages:
    3,236
    Thank you Ken for your kind words.

    I don't know the BTU rating for the two burners. The Coleman 500 is rated at 8500 BTU's. I guess based on my experience that the main burner by itself is close to if not 10000 BTU's. With both burners the output is most likely 7000 and 5000 each. The auxiliary burner is no slow burner and almost looks stronger when opened. I'll have to do some tests but I rather not and don't care. They're both fast burners.

    1433904613-IMG_8003_opt.jpg 1433904639-IMG_8004_opt.jpg 1433904660-IMG_8007_opt.jpg 1433904694-IMG_8008_opt.jpg 1433904721-IMG_8010_opt.jpg 1433904748-IMG_8012_opt.jpg

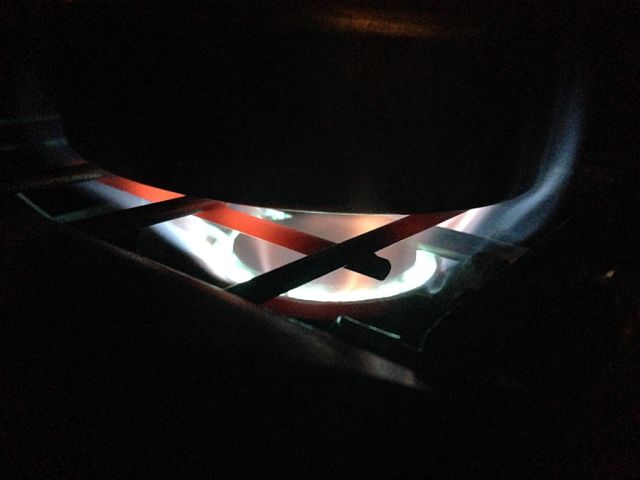

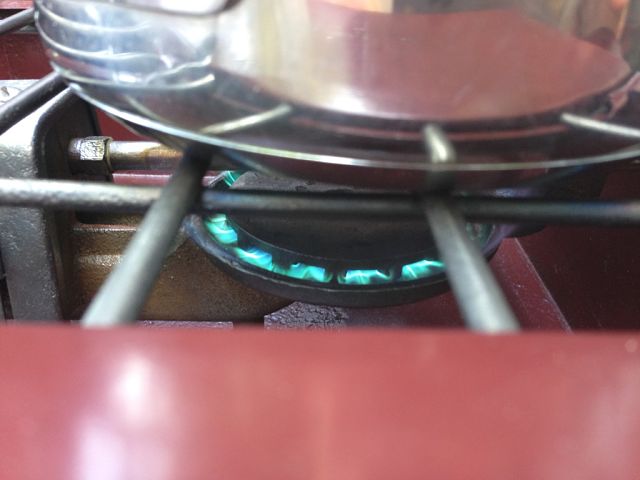

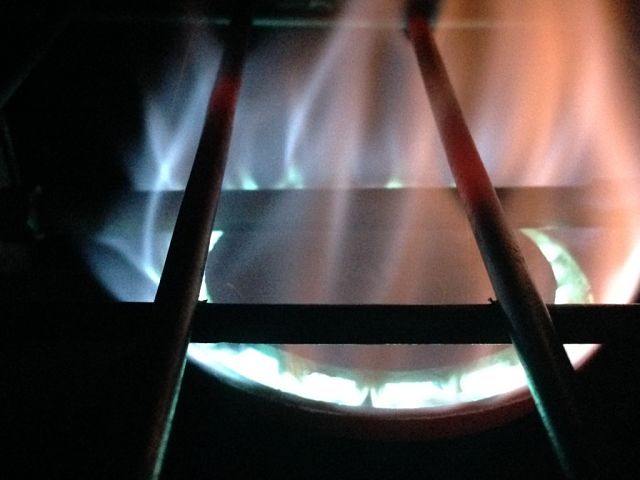

    Trangia 25 kettle on burner above. The burner still made the supports glow with the kettle in place.

    Cheers
    Jeff

    Last edited by a moderator: Jun 27, 2015
  4. Metropolitantrout

    Metropolitantrout United States Subscriber

    Offline
    Joined:
    Feb 3, 2011
    Messages:
    584
    :thumbup: Whoa that's a real stunner. Love that paint job. Really nice job!!! :mrgreen:

  5. 1966dave

    Offline
    Joined:
    Mar 30, 2014
    Messages:
    449
    :clap: :clap: :clap:


    Very nice!!!!!

  6. dsk Norway

    Offline
    Joined:
    Aug 17, 2004
    Messages:
    552
    Fantastic!

    dsk

  7. Knight84 Canada

    Offline
    Joined:
    Jan 21, 2009
    Messages:
    3,236
    Thank you guys.

    I love the paint job too. But sadly I didn't do it. I bought the stove from a fellow Canadian George Rocen which did the world
    I am sorry I meant to write that information in my first post.
    I have taken the whole stove apart and put it back together being a gas stove I like to triple check all seals and connections.

    Cheers
    Jeff

  8. shagratork

    shagratork United Kingdom Moderator Subscriber

    Offline
    Joined:
    Aug 9, 2005
    Messages:
    7,897
    Location:
    Durham City, England
    That is a stunning stove, especially as it is about 85 years old.
    I have only ever seen the number 10 advertised as having black enamel.
    Do you know if it is only the Canadian stoves that had the red colour?

  9. Knight84 Canada

    Offline
    Joined:
    Jan 21, 2009
    Messages:
    3,236
    Hello Trevor,

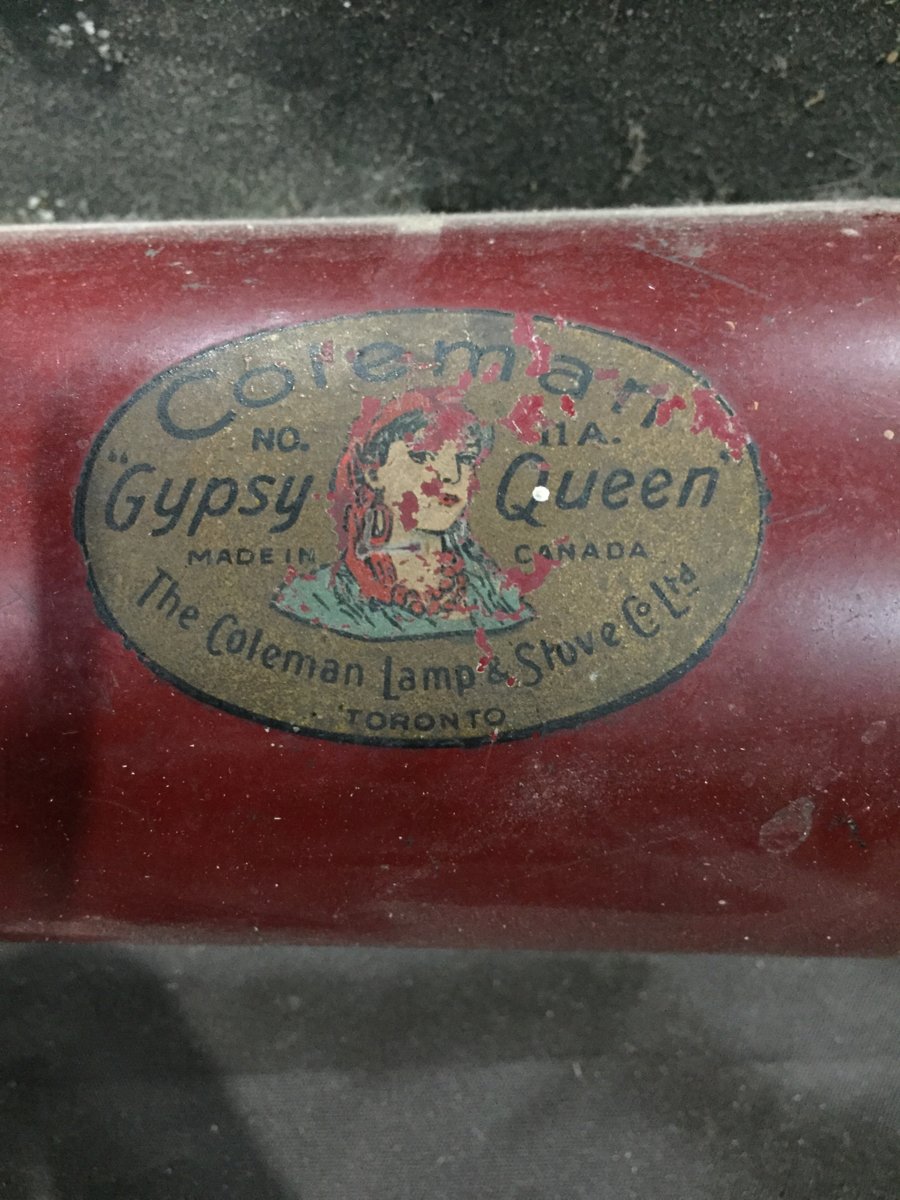

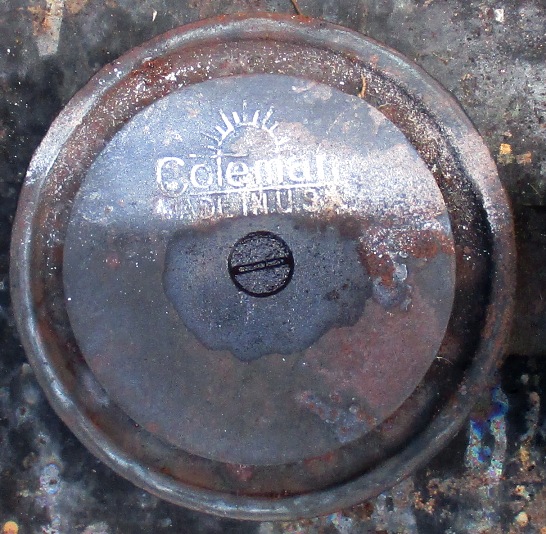

    From my understanding yes only the Canadian models were brown. It lists the colour in the 1932 Coleman advertising. This was the base model. The American made ones were black.
    Costing around $5.95. What would be about 97 dollars today. A gallon of gas costed .10 cents. The average wages per year were $1650.00 so 31.73 a week. Unemployment in Canada reached 27%. 25% in USA and 20-30% in the UK.
    It's amazing anyone bought anything. I believe camp stoves like this served a purpose on long road trips. Also in some situations it might've been the primary stove top for the house.

    Cheers
    Jeff

  10. scouterjan

    scouterjan Canada Subscriber

    Offline
    Joined:
    Mar 24, 2010
    Messages:
    431
    Location:
    Maple Ridge, B.C. Canada
    very nice, I saw it on E Bay, the seller George Rocen is a good friend. Mine was brown, well what was left of the original paint was brown, and when I saw Georges it explained why mine was brown, it was a Canadian version. Yours looks to be burning geat, they do crank out the heat. BTW glad it stayed in Canada and not over seas
    Jan

  11. Knight84 Canada

    Offline
    Joined:
    Jan 21, 2009
    Messages:
    3,236
    Yeah it's an odd colour for Coleman. I want to say they did it to differentiate between these economy models and the higher end models. Perhaps it was cheaper to make this colour.
    Who knows; knowing Coleman there wasn't a reason other than not wanting to waste anything left over.
    I think they put the largest burners in the smallest case they could though.

    I am glad it is staying in Canada too. I have sold many of items overseas already.

    Cheers
    Jeff

  12. Knight84 Canada

    Offline
    Joined:
    Jan 21, 2009
    Messages:
    3,236

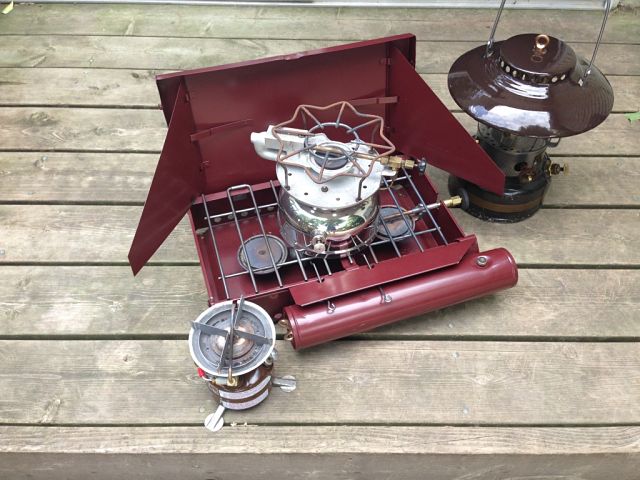

    Someone ask for a size reference for the stove.

    A 1955 Coleman 500 sits on top and a 1982 Coleman 442 in the left front.





    Cheers,
    Jeff

    oops how did that lantern get in there. Damn lanterns and their cameo's.

    Last edited by a moderator: Jun 26, 2015
  13. geeves

    geeves New Zealand Subscriber

    Offline
    Joined:
    Sep 29, 2009
    Messages:
    4,206
    Location:
    Wellington New Zealand
    thats almost small enough to take hiking

  14. Knight84 Canada

    Offline
    Joined:
    Jan 21, 2009
    Messages:
    3,236
    Almost. Might want a jackass to carry it over hills. It's around 10-12 pounds
