IDEAL 1930-38

Discussion in 'Czech Republic' started by dusan, Jan 9, 2015.

  1. dusan Czech Republic

    Offline
    Joined:
    Apr 13, 2014
    Messages:
    144
    Location:
    Brno / CZ

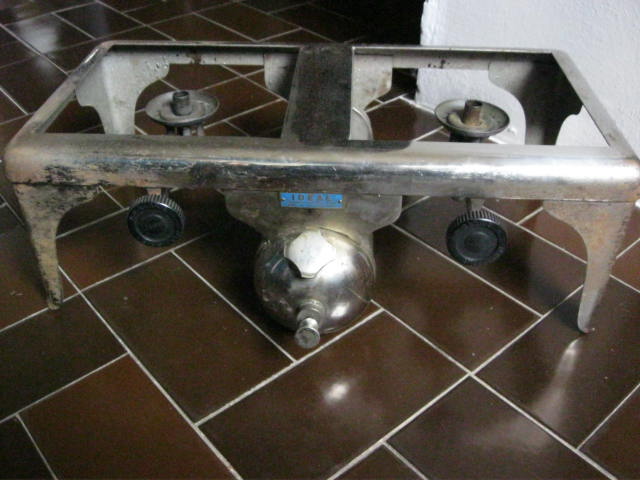

    Petroleumgas stove made in Czechoslovakia by Josef Zeman in the city Chocen.
    Burners : A.B.RADIUS - PATENT - STOCKHOLM


    1420818288-IMG_0701.JPG 1420818325-IMG_0700.JPG 1420818357-IMG_0699.JPG 1420818396-IMG_0698.JPG 1420818426-IMG_0695.JPG 1420818460-IMG_0692.JPG 1420818492-ideal.jpg

    Last edited by a moderator: Jun 27, 2015
  2. dusan Czech Republic

    Offline
    Joined:
    Apr 13, 2014
    Messages:
    144
    Location:
    Brno / CZ

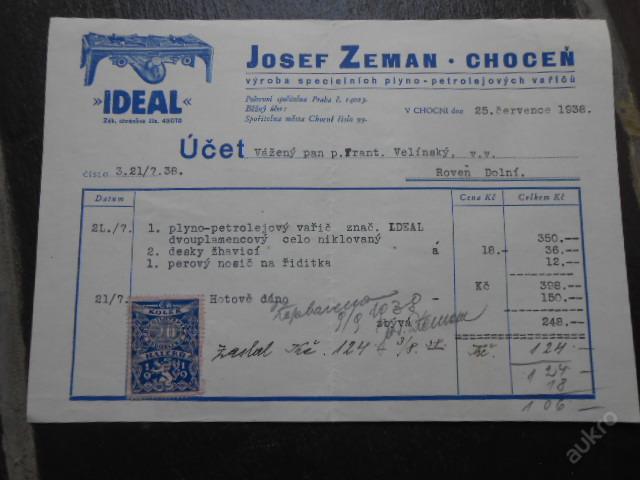

    IDEAL Fa.jpg foto aukro IMG_0886.JPG IMG_0891.JPG

  3. shagratork

    shagratork United Kingdom Moderator Subscriber

    Offline
    Joined:
    Aug 9, 2005
    Messages:
    7,967
    Location:
    Durham City, England

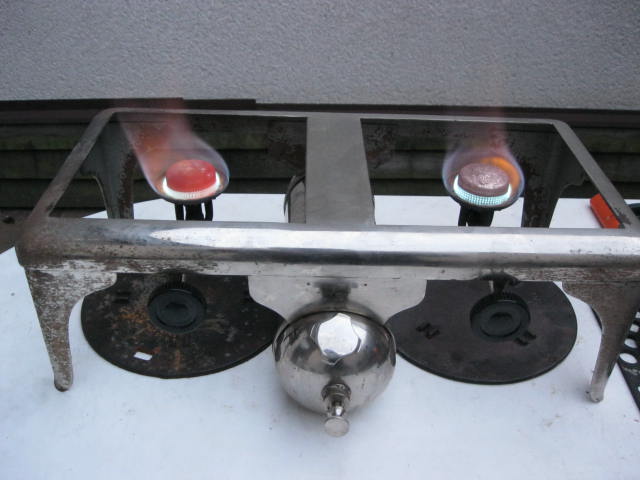

    It is good to see that you have got the stove working, but the left side burner seems to have 'underburn'.

  4. dusan Czech Republic

    Offline
    Joined:
    Apr 13, 2014
    Messages:
    144
    Location:
    Brno / CZ

    Yes, I known. What is to do?
    Burner head changing help not.
    Spare parts are from Meva.

    Dusan.

  5. Wim

    Wim Belgium Subscriber

    Offline
    Joined:
    May 12, 2009
    Messages:
    3,545
    Location:
    Dendermonde, Belgium
    Hi Dusan, a quick way to see what part is to blame, you can try inner and outer caps from the "bad" burner on the "good" burner. First only outer cap, then only inner cap and then both caps. When and if the problem re-occurs it will be easy to determine which cap is faulty. Sometimes it helps to polish the caps (also inside). You can also try both caps from the "good" one on the "bad" one.

    Best regards,

    Wim

  6. shagratork

    shagratork United Kingdom Moderator Subscriber

    Offline
    Joined:
    Aug 9, 2005
    Messages:
    7,967
    Location:
    Durham City, England
    If the underburn still happens after swapping the caps, as Wim has suggested, the you must think of changing the jet on the left burner.
