Juwel No:1

Discussion in 'Juwel No:1' started by kerophile, Nov 4, 2008.

  1. kerophile

    kerophile United Kingdom Subscriber

    Offline
    Joined:
    Sep 23, 2004
    Messages:
    8,721
    Location:
    Far North of Scotland

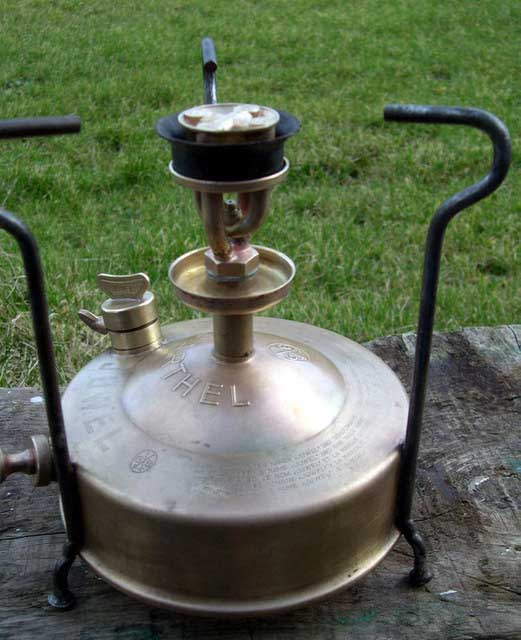

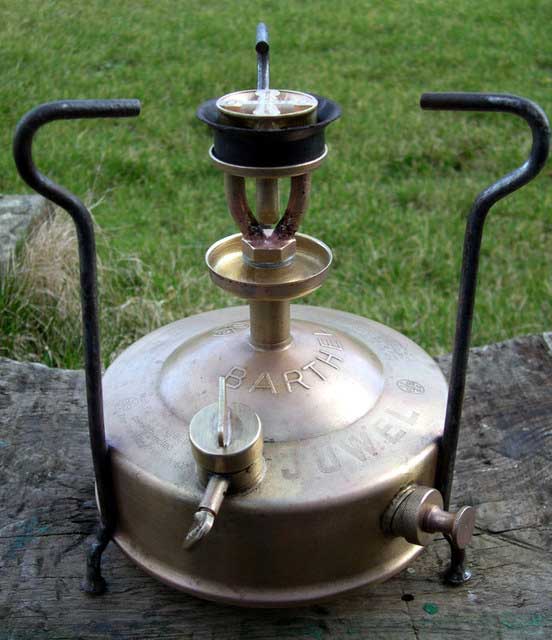

    1225782928-DSCN0185_edited.jpg 1225782934-DSCN0186_edited.jpg 1225782940-DSCN0187_edited.jpg 1225782947-DSCN0192_edited.jpg 1225782966-DSCN0194_edited.jpg 1225782975-DSCN0200_edited.jpg 1225782983-DSCN0007_edited.jpg 1225782993-DSCN0014_edited.jpg

    Last edited by a moderator: Dec 30, 2015
  2. shagratork

    shagratork United Kingdom Moderator Subscriber

    Offline
    Joined:
    Aug 9, 2005
    Messages:
    8,033
    Location:
    Durham City, England
    Hi George

    Great looking stove.

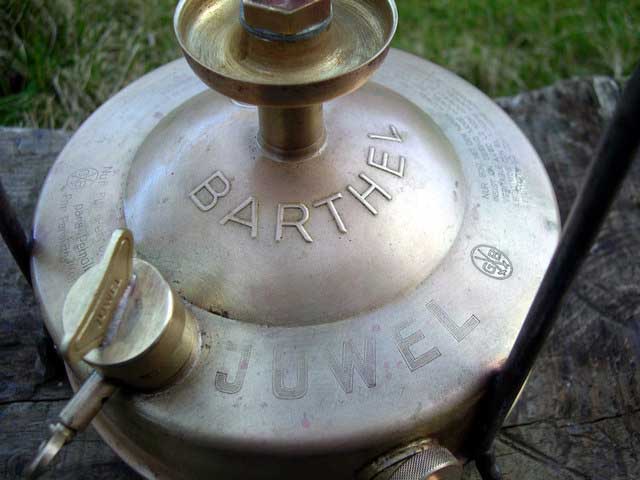

    I just love that raised lettering on the tank - absolutely class!!

    What size tank is it?

  3. kerophile

    kerophile United Kingdom Subscriber

    Offline
    Joined:
    Sep 23, 2004
    Messages:
    8,721
    Location:
    Far North of Scotland
    Hi Trevor, the Juwel No.1 is a classic, two-pint, paraffin-fuelled stove.
    Best Regards,
    George.

  4. kerophile

    kerophile United Kingdom Subscriber

    Offline
    Joined:
    Sep 23, 2004
    Messages:
    8,721
    Location:
    Far North of Scotland

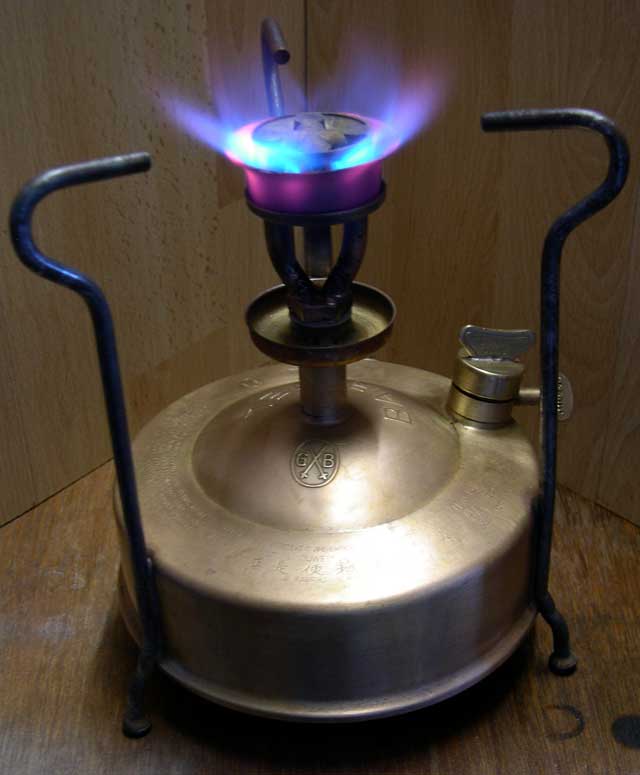

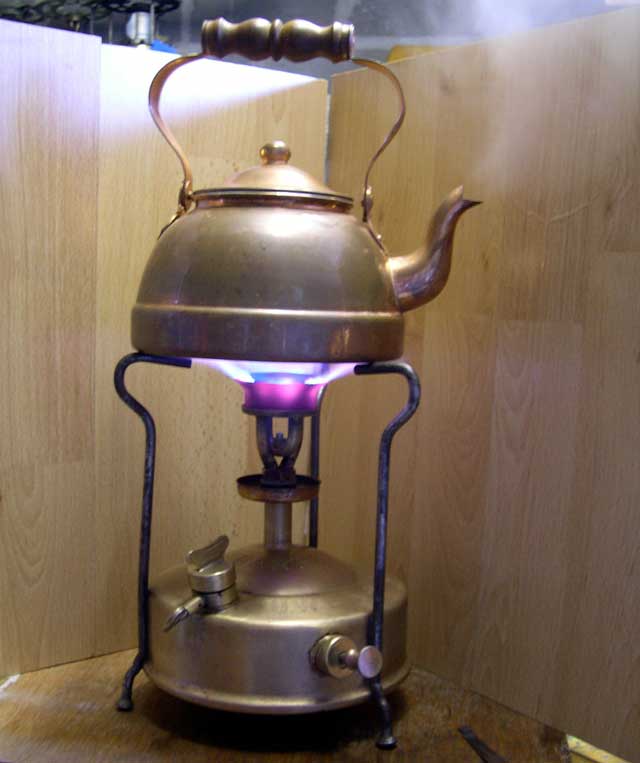

    Hi Here are a few more photos of this 1920/30s Juwel No.1 operating:

    1302936226-Juwel-No.1.-St.263-1.jpg 1302936241-Juwel-No.1.-St.263-3.jpg 1302936258-Juwel-No.1.-St.263-2.jpg 1302936289-Juwel-No.1.-St.263-4.jpg

    Best Regards,
    Kerophile.

    Last edited by a moderator: Jun 26, 2015
  5. Craig Warren

    Craig Warren United States Subscriber

    Offline
    Joined:
    Jan 4, 2016
    Messages:
    14
    Location:
    New Gloucester, Maine USA
    Hi kerophile,

    The Juwel that I just purchased in Canada looks exactly like yours, but does not have the number 1 on it anywhere that I can find. This is a G/B stove with the original G/B burner.
    I can't see a # 1 on your stove either. Am I to assume that no number showing means that my stove is, indeed, a # 1 like yours?
    Craig

  6. snwcmpr United States

    Offline
    Joined:
    Nov 16, 2011
    Messages:
    6,444
    Location:
    USA
  7. Craig Warren

    Craig Warren United States Subscriber

    Offline
    Joined:
    Jan 4, 2016
    Messages:
    14
    Location:
    New Gloucester, Maine USA
    I am trying with no results

  8. kerophile

    kerophile United Kingdom Subscriber

    Offline
    Joined:
    Sep 23, 2004
    Messages:
    8,721
    Location:
    Far North of Scotland
    Hi Craig, My stove is not marked with a number.
    It appears from the Juwel catalogues GB did not always use numbers on their stove models.
    in the case of the 1920s/30s, 2 imperial pint models (1.2 litre) models, the catalogues indicate a number of No.1 models with a letter ascribed indicating the type of burner added.
    The No.1 K had a roarer burner, the No.1 P a silent burner, whilst the No.1R was fitted with a regulated burner:

    http://classiccampstoves.com/attachments/1423652904-juwel_1282a-jpg.14446/

    http://classiccampstoves.com/attachments/1208095917-brochure2a-jpg.132757/

    It would be useful to see some photos of your stove. In the meantime a study of the catalogues would be worthwhile.

    Best Regards,
    Kerophile.

  9. Craig Warren

    Craig Warren United States Subscriber

    Offline
    Joined:
    Jan 4, 2016
    Messages:
    14
    Location:
    New Gloucester, Maine USA
    Hi George,

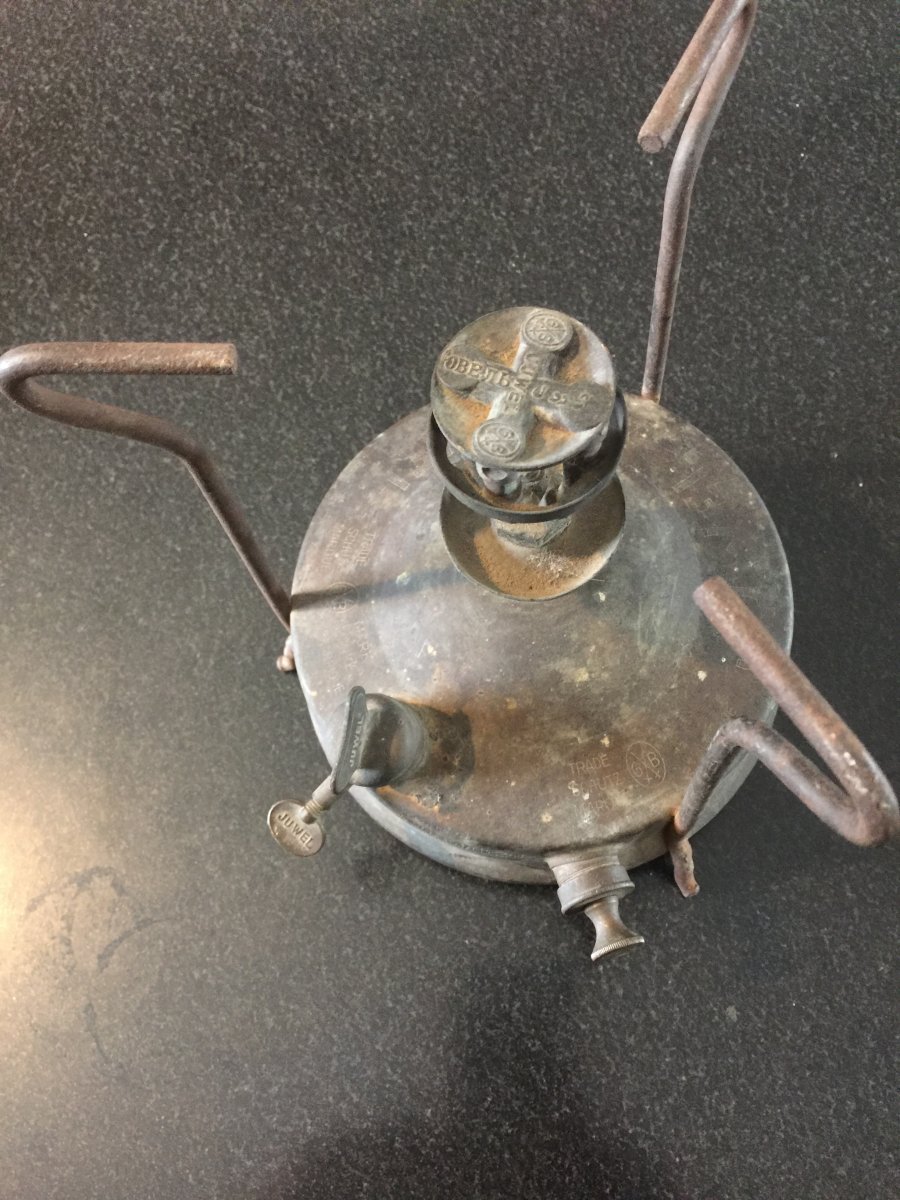

    Thanks for your reply. I would guess that my stove is the exact model as yours as it has no number markings but it does have an original GXB roarer burner which is clogged at the moment. I have a new burner coming from Ross, just in case, but really want to keep it original so I ordered one of the jet tools that has the tiny universal joint in it today and will continue to try to get the original unclogged. I will now try to send some photos. Thanks again.
    Craig

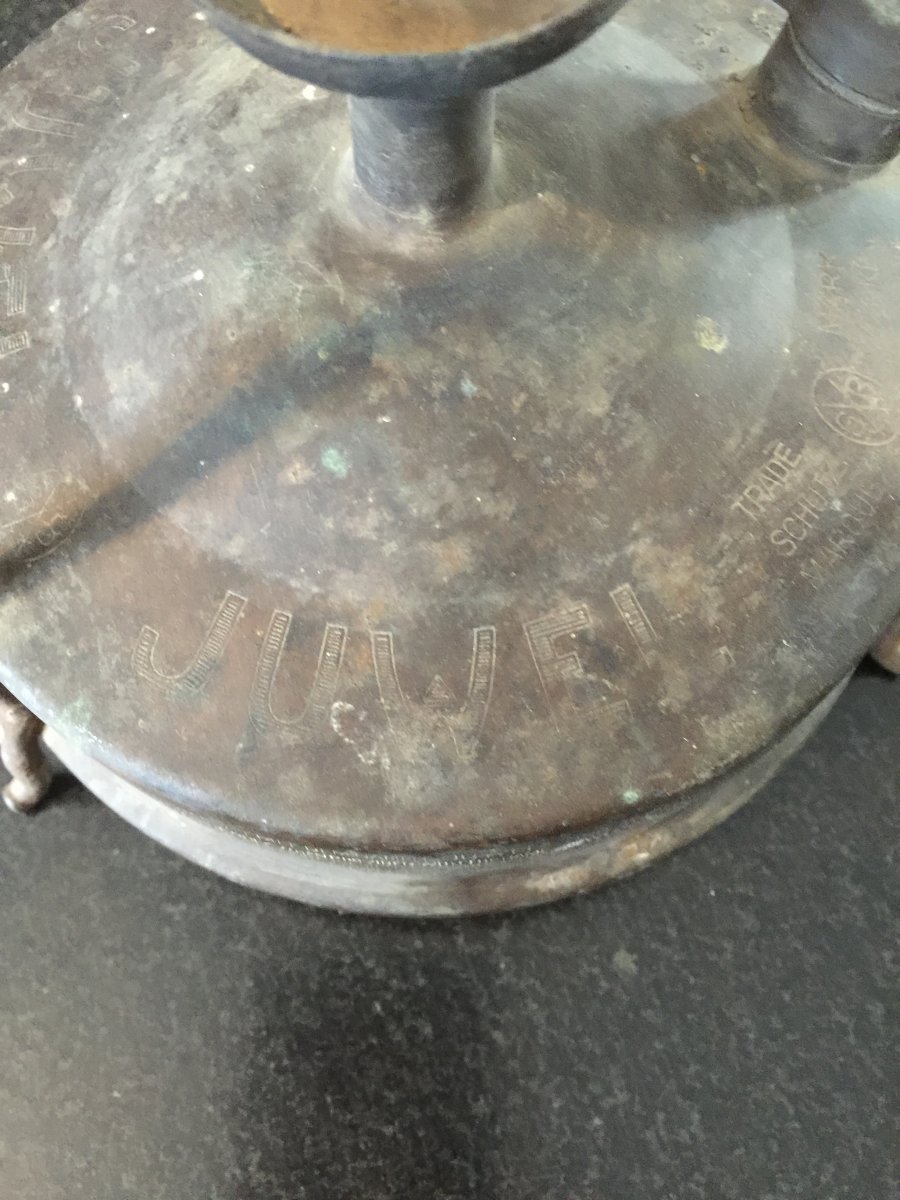

    image.jpeg image.jpeg image.jpeg image.jpeg image.jpeg

  10. kerophile

    kerophile United Kingdom Subscriber

    Offline
    Joined:
    Sep 23, 2004
    Messages:
    8,721
    Location:
    Far North of Scotland
    Hi Craig, our Juwel stoves are certainly sisters, but with some detailed differences, and probably of different ages. However they are both pre-WW2 in my opinion.

    Here is a link to some photos of the fettling of my particular Juwel stove:

    http://classiccampstoves.com/threads/juwel-no1-fettling.7422/

    Some of the differences between our Juwels:

    1. The legs on my stove have pronounced semi-circular bends at their top end.

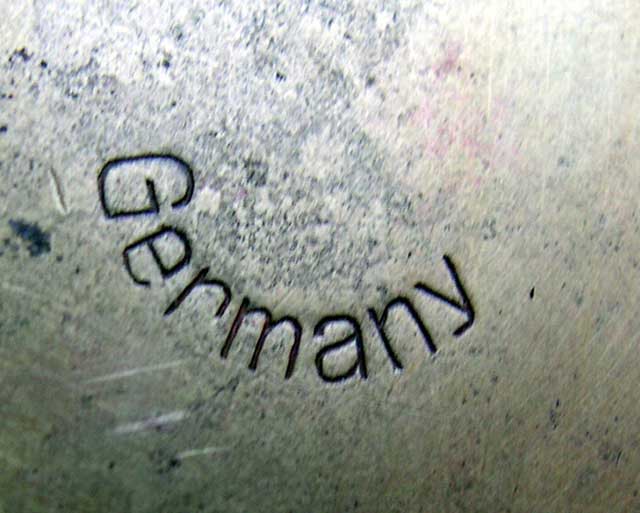

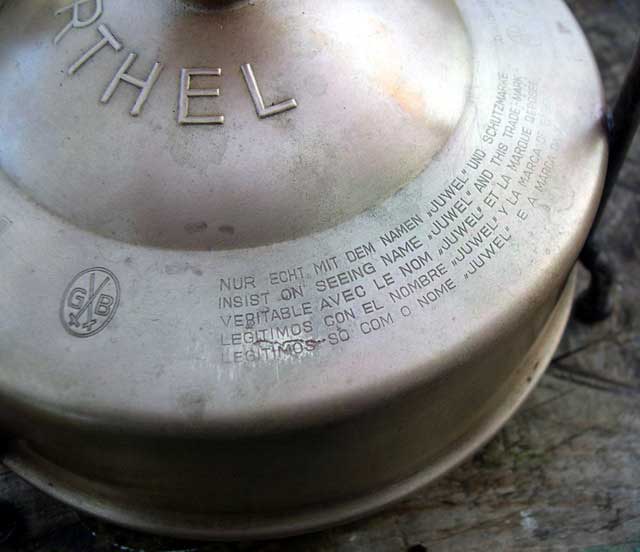

    2. The tank markings on my stove are a mixture of engraving and embossing.

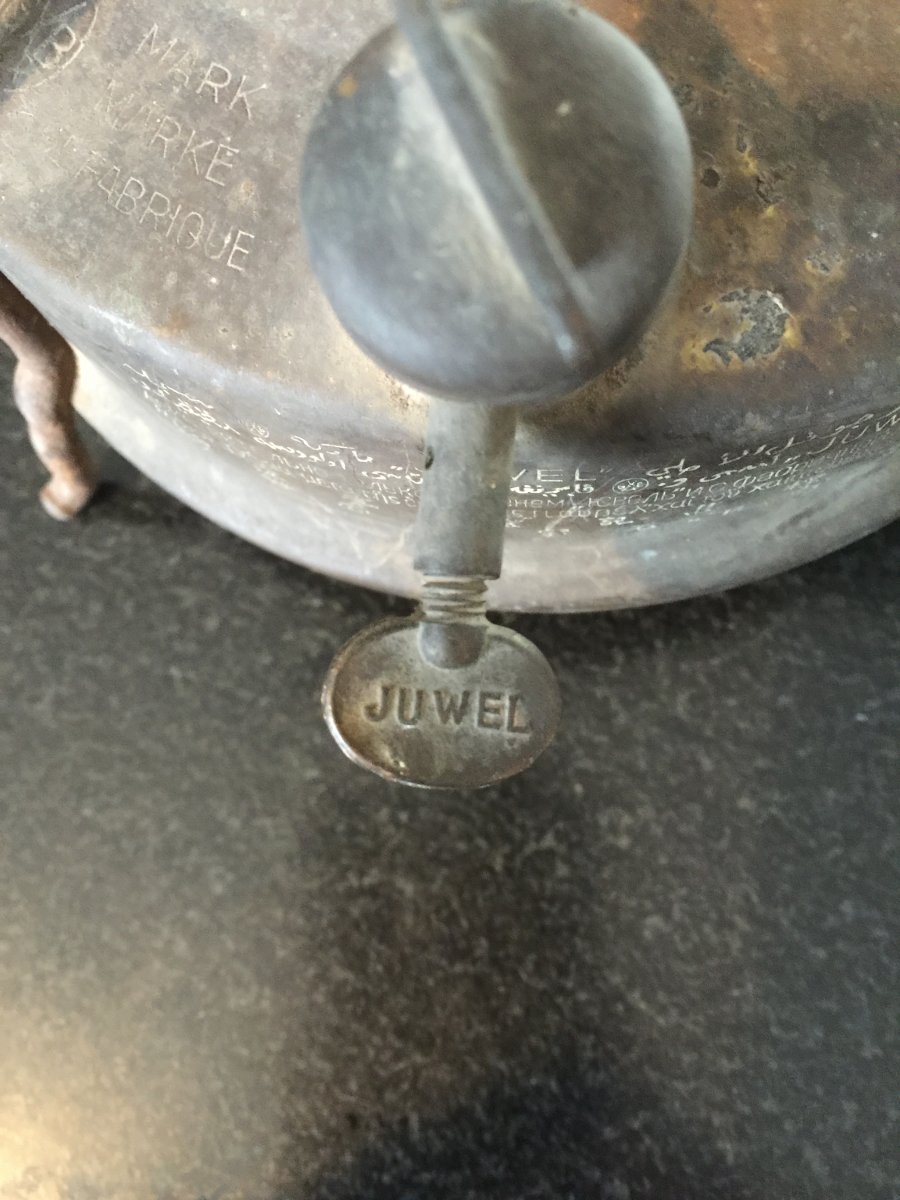

    3. My stove does not have markings on the side of the tank, only on the top. Yours has both.

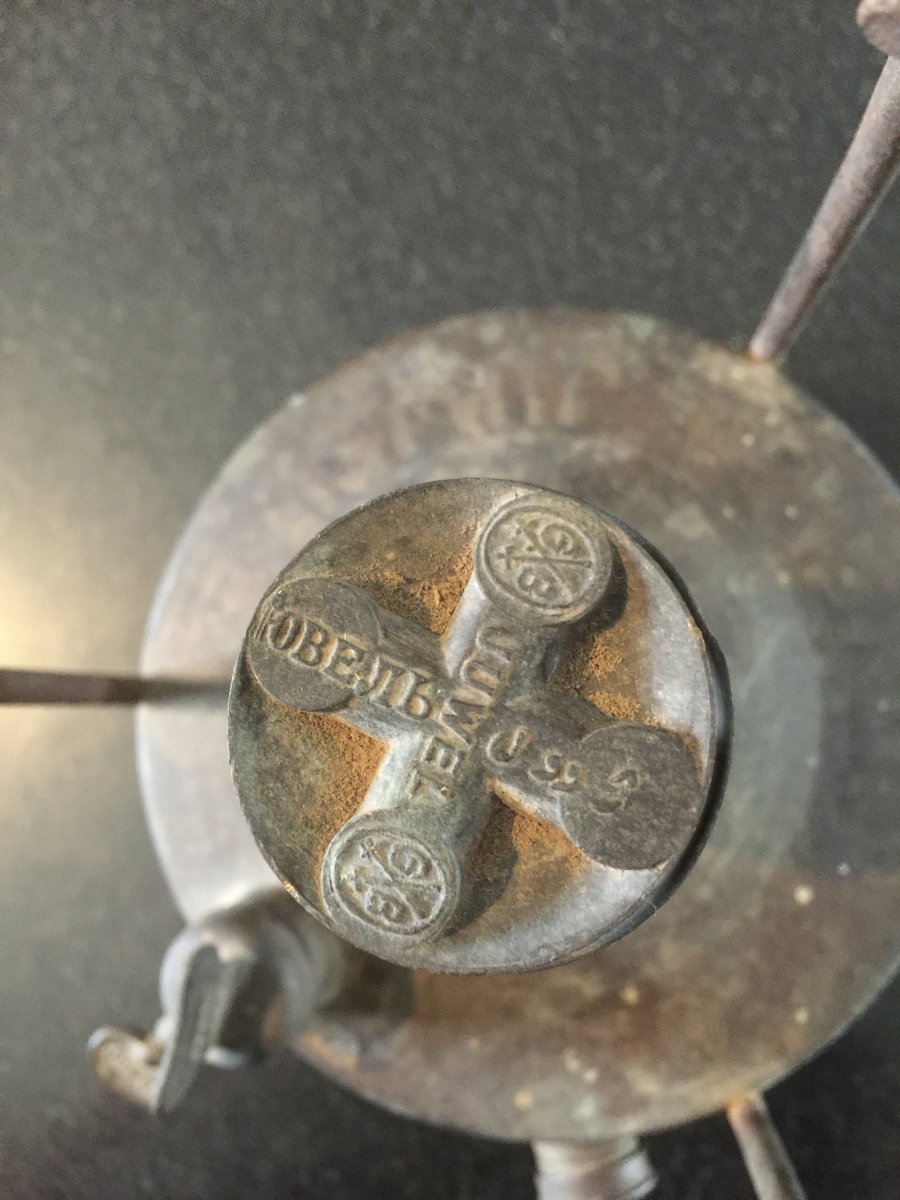

    4. The markings on the top of the burners are also different. On my stove We have "JUWEL", GERMANY, and "old" Russian Cyrillic. On yours there is "JUWEL", the old form of Russian Cyrillic, and also Arabic script.

    It will be good to see some additional photos of the features of your stove once you have it up and running.

    Best Regards,
    Kerophile.
