May 1948 Valor 55 with pressed steel legs

Discussion in 'Valor' started by presscall, Nov 6, 2015.

  1. presscall

    presscall United Kingdom Subscriber

    Offline
    Joined:
    Aug 25, 2009
    Messages:
    6,323
    Location:
    UK



    In his Reference Gallery post igh371 said of his example of this stove,

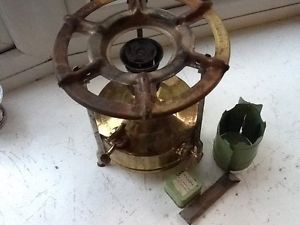

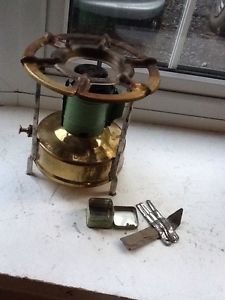

    I believe that's a misconception, probably fostered by the chopped-down pan ring sported on the 1948 Valor 51, also with pressed steel legs featured in this Reference Gallery post by the stovie formerly known as Iani

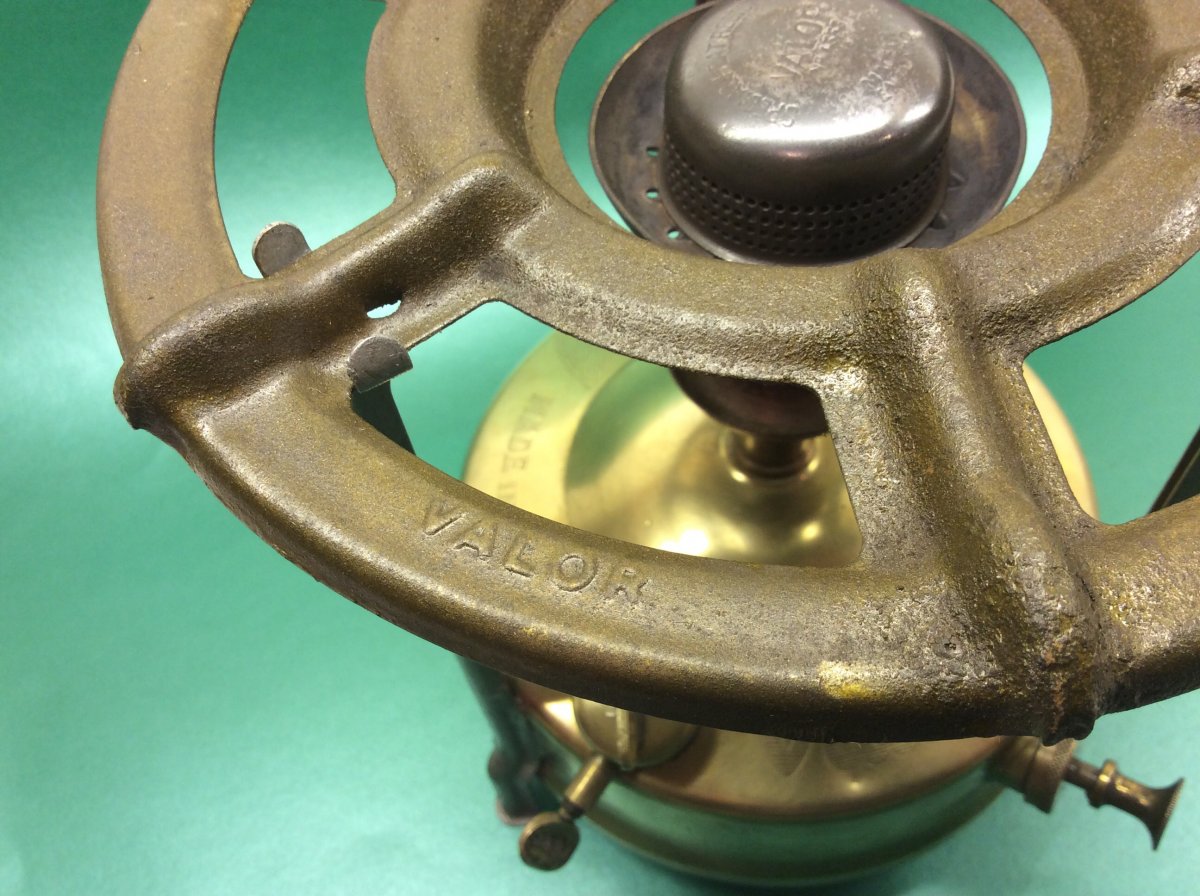

    Quirky modification by an owner in that example, but clearly a regular Valor pan ring is intended for this stove and fits perfectly well without any modification necessary

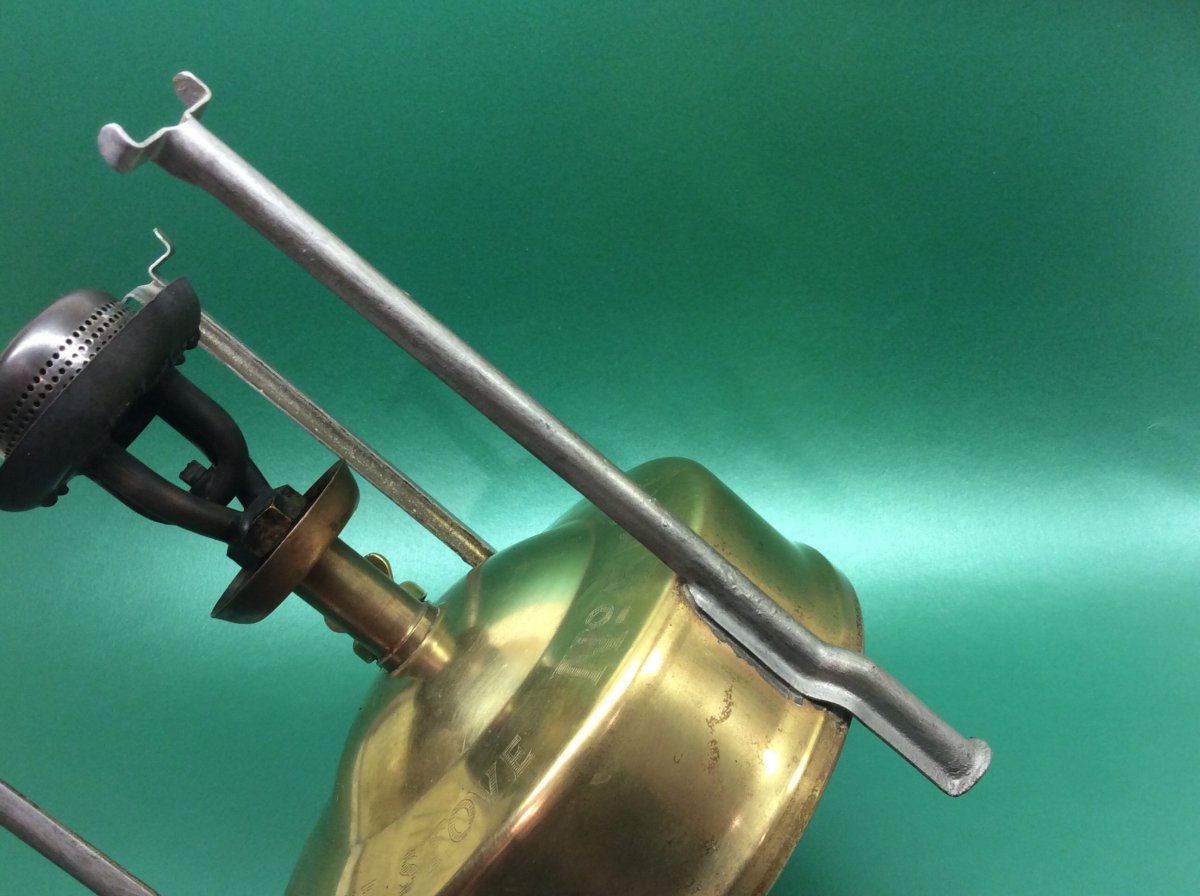

    The question is why Valor briefly (only seems to be on 1948 models produced in May and June of that year) fitted pressed steel legs instead of the usual steel rod stock.

    Igh371 used the word 'utility' to describe them. Certainly they have the look, and doing the maths there's marginally less steel than in a round-sectioned rod. Probably cheaper to fabricate too - taking one stamping operation - whereas I'd have thought the convention of forming a foot on each round-sectioned leg was done separately from the job of putting the bends in the rods. Having said that, new tooling would be required, which would take a lot of sets of legs to recoup costs and it doesn't explain why it didn't last as a Valor feature.





    Apart from the non-original fuel filler cap (from a Radius) ...

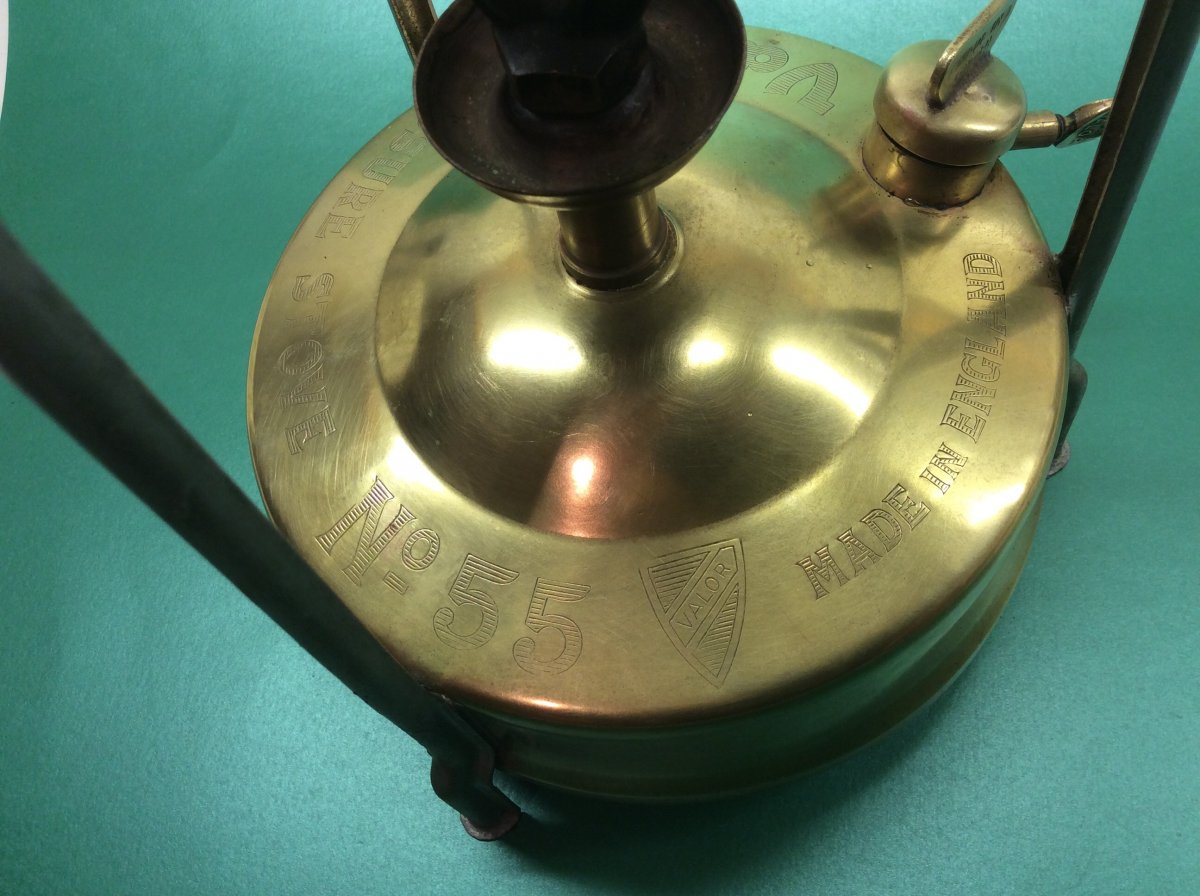

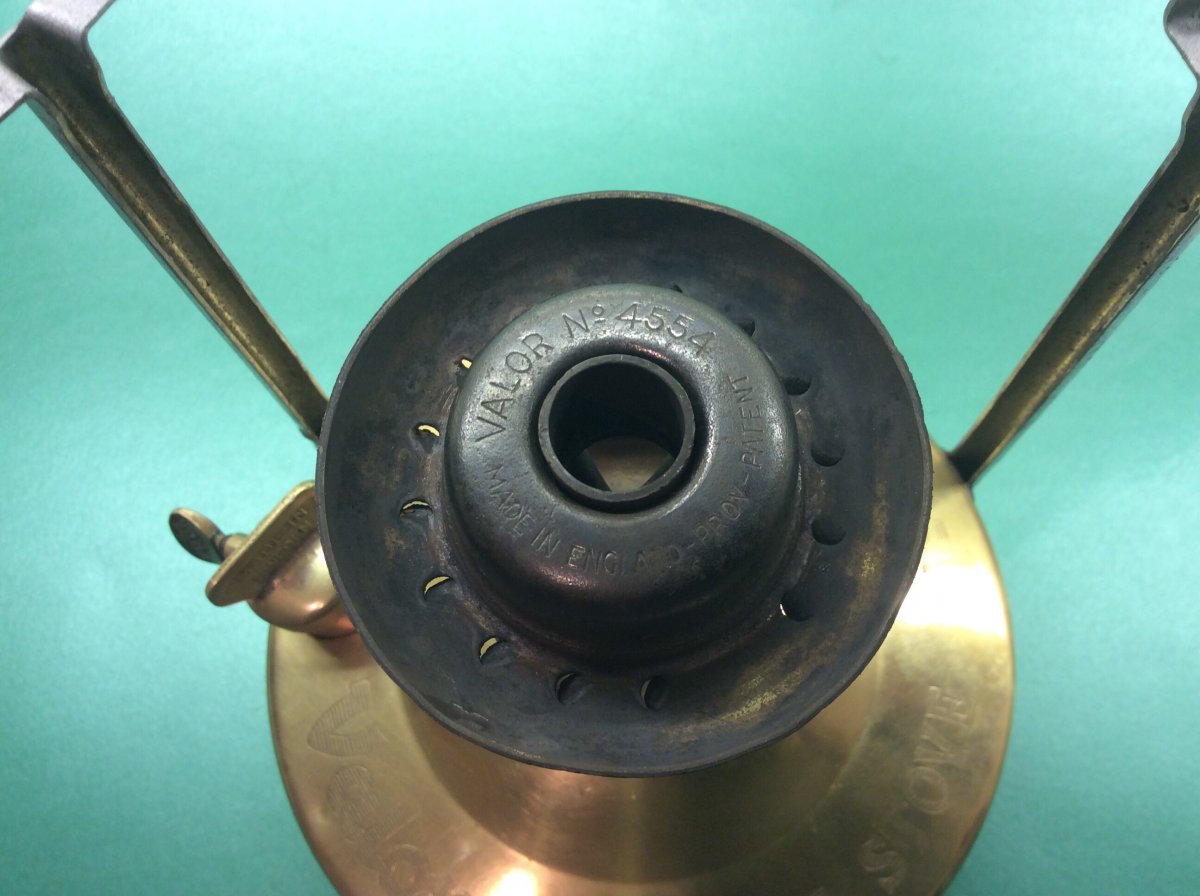

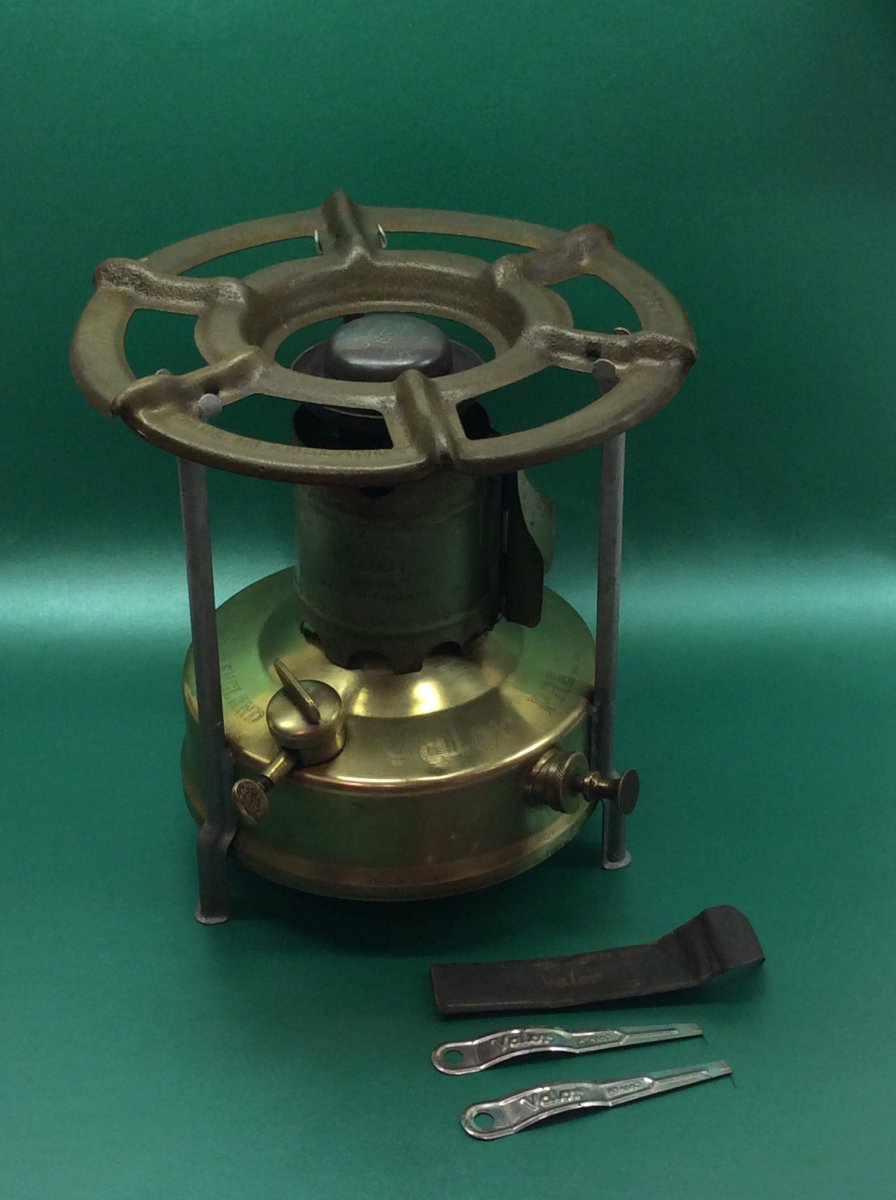

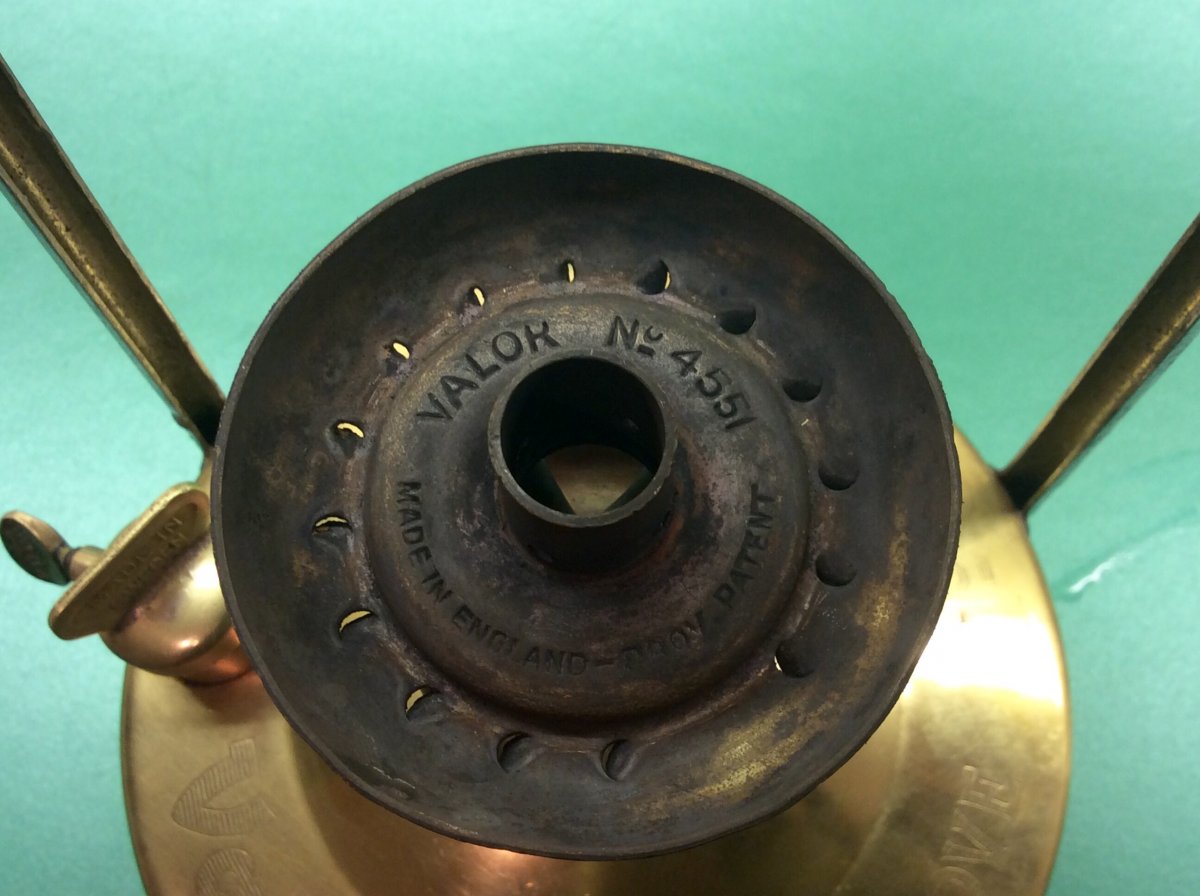

    ... the stove is pretty much complete, with Valor burner and caps ...

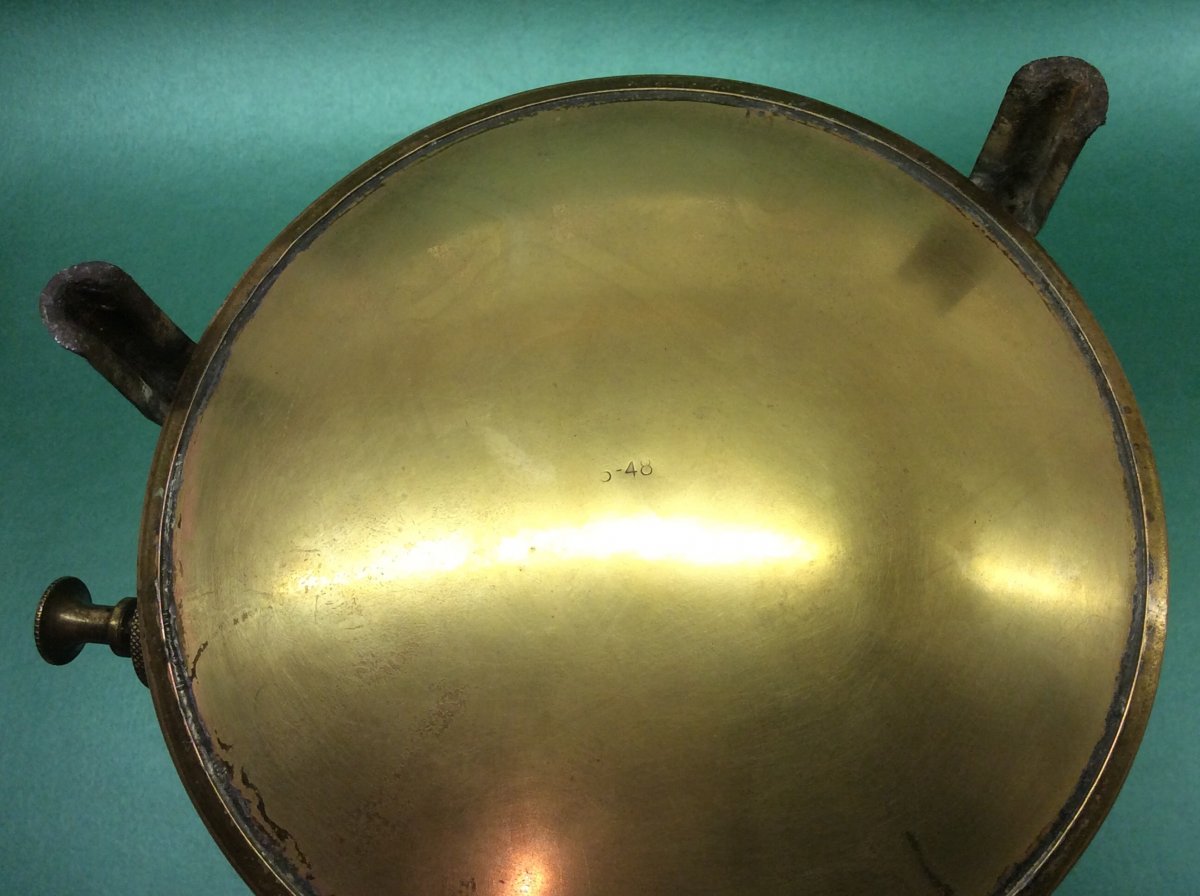

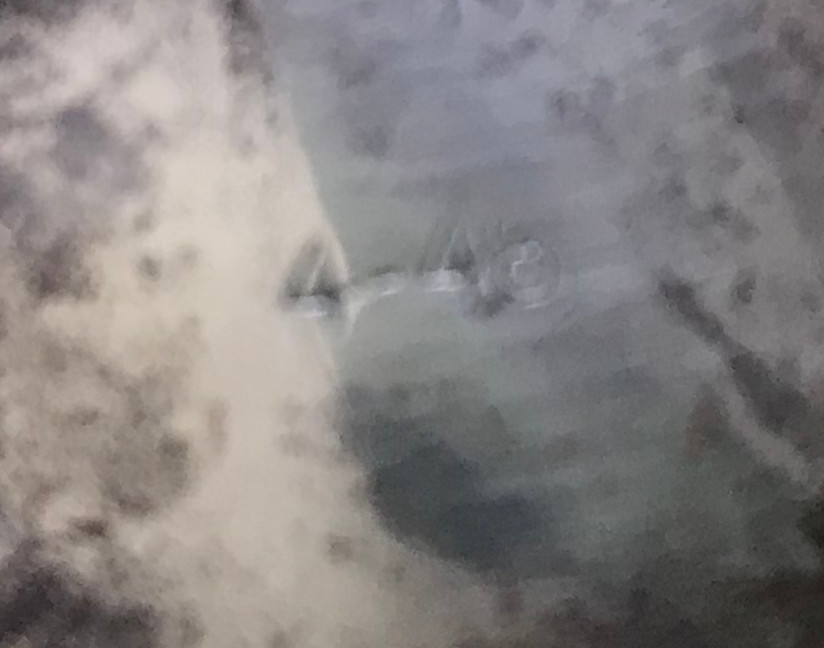

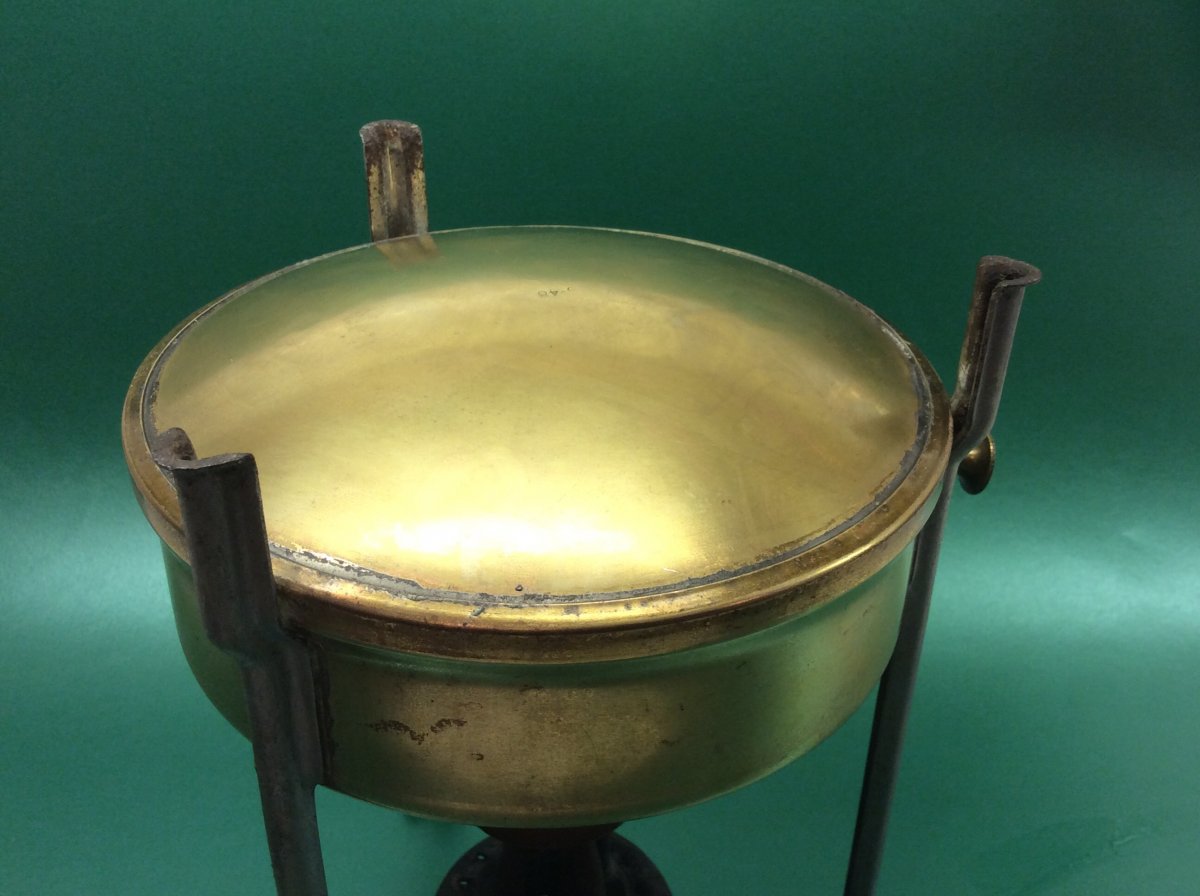

    ... a fuel tank in decent condition (date stamped on the base) with just one small dent beneath the 'a' of Valor

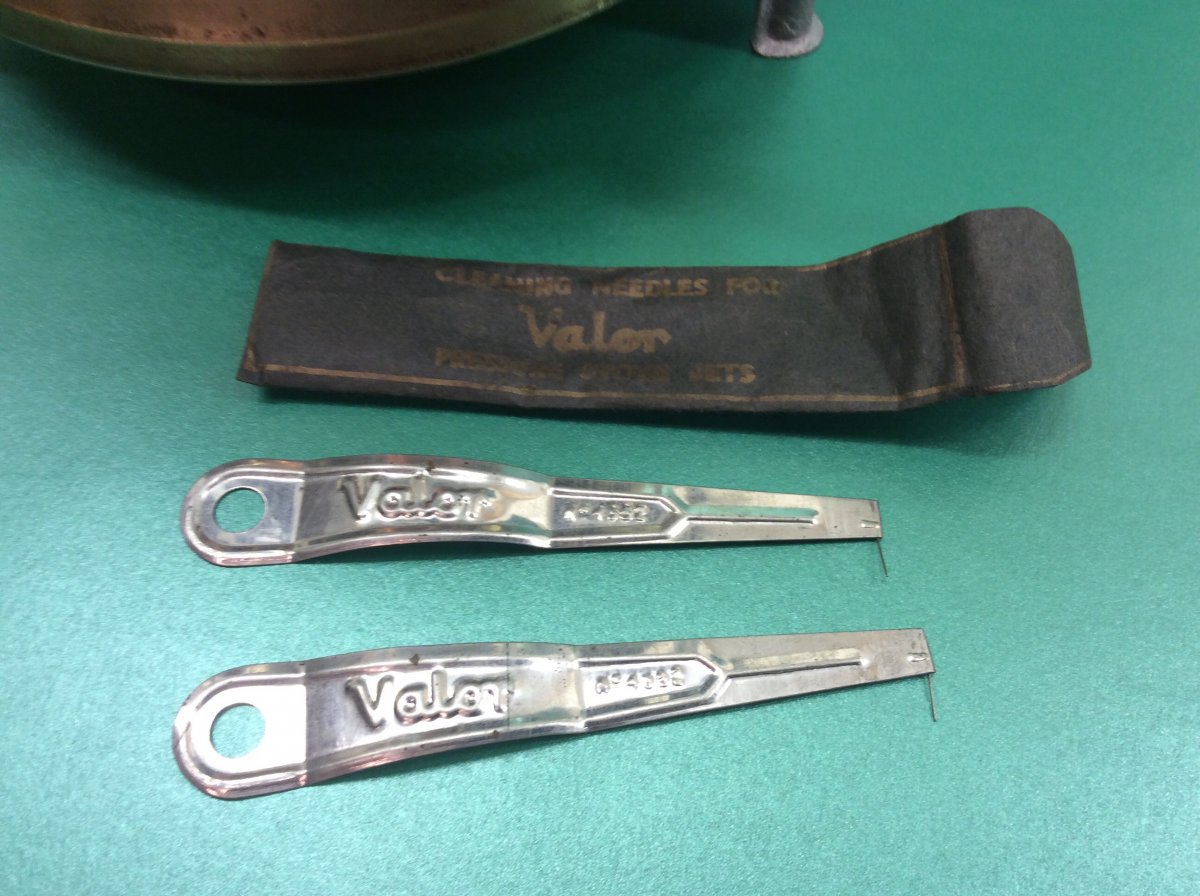

    Unused Valor jet prickers



    Windshield

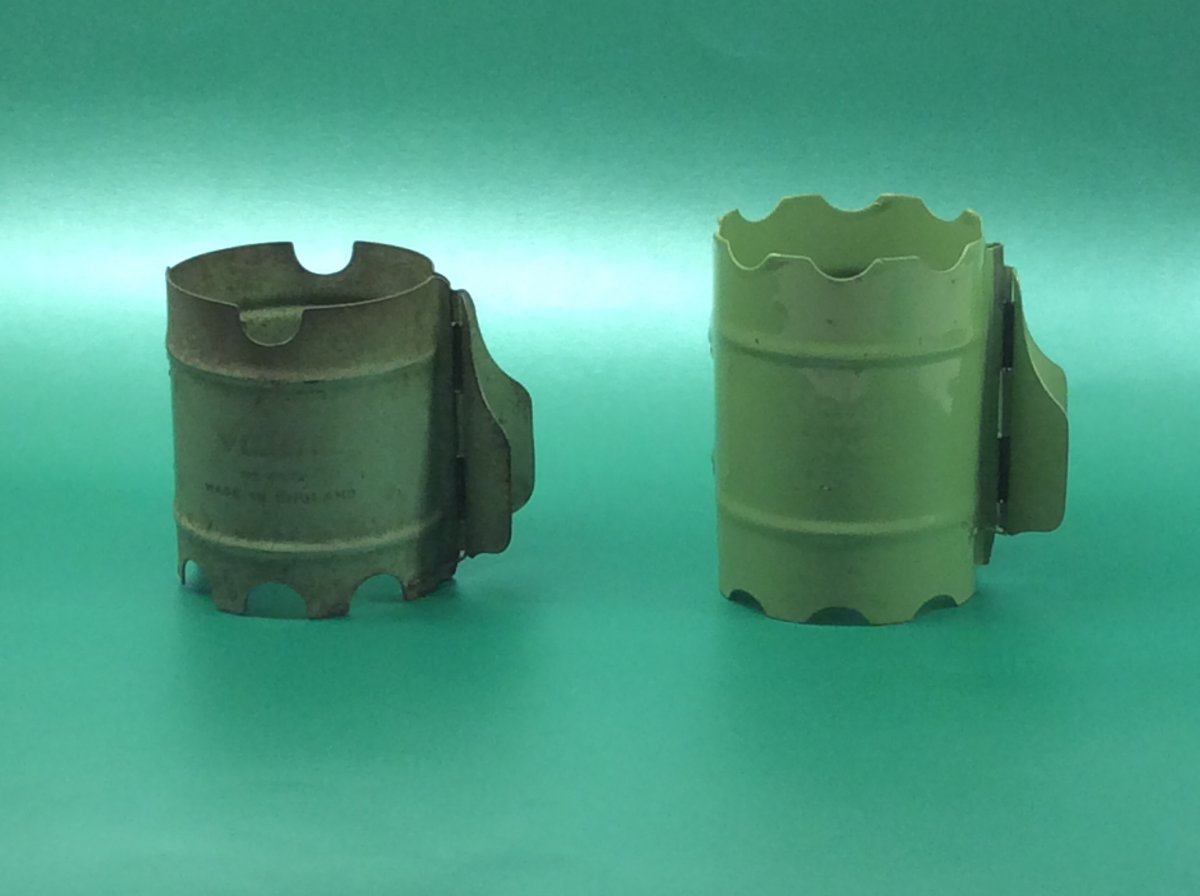

    The one on the left is for this stove, the one on the right's from a mint Valor Packaway

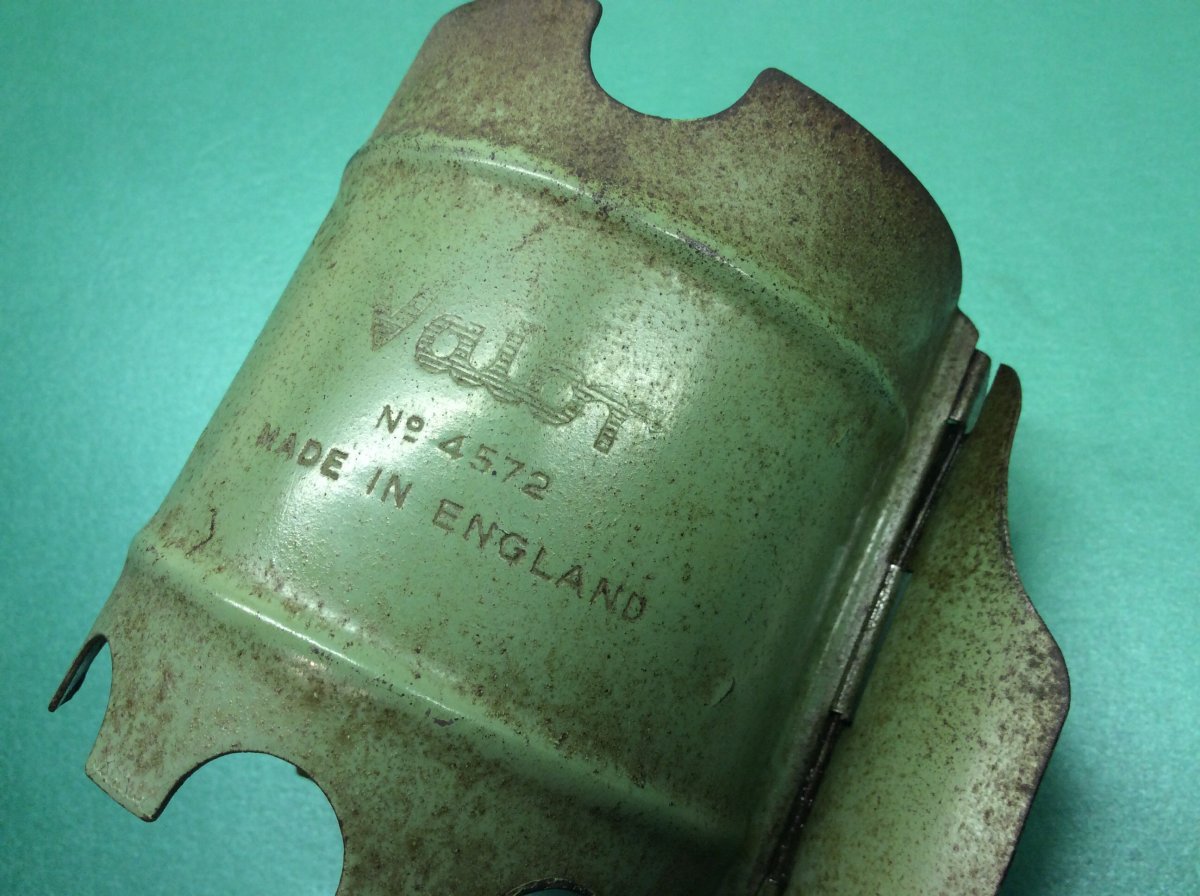

    Though different in height, they share the same part number, 4572

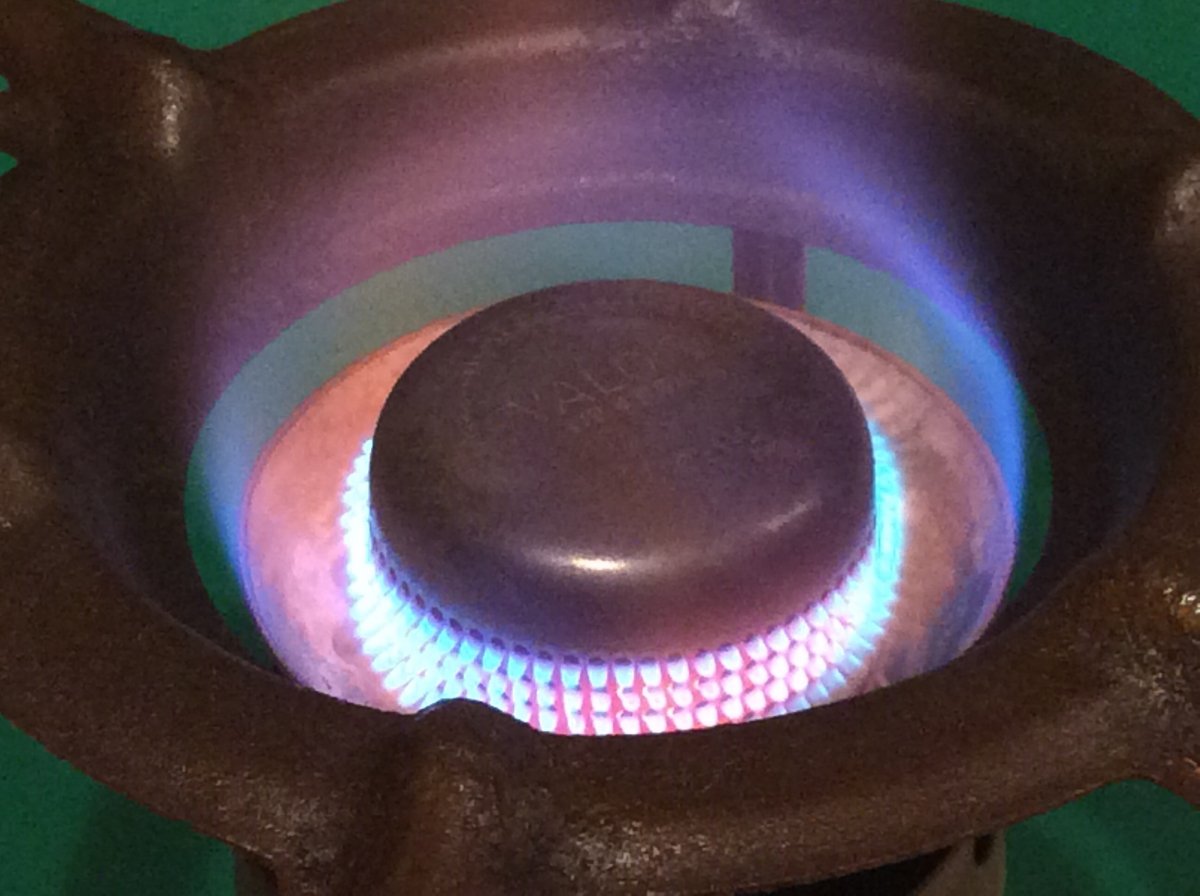

    It just remained to fuel up and fire up



    John

  2. Etherman

    Etherman United States Subscriber

    Offline
    Joined:
    Mar 9, 2015
    Messages:
    364
    Location:
    USA
    Thanks for the post John

    This is a very nice and unique stove. wonder if it was its popularity amongst purchases at the time which caused Valor to produce it for such a brief period?

  3. Longilily

    Longilily United Kingdom Subscriber

    Offline
    Joined:
    Sep 24, 2008
    Messages:
    605
    Location:
    Dungeness
    I got one of those Stoves with the pressed steel legs John, gonna have to dig it out now and have a nosey :thumbup:

    Nowhere near as nice as that one though

  4. igh371

    igh371 United Kingdom Subscriber

    Online
    Joined:
    Jun 23, 2013
    Messages:
    579
    Location:
    North-East England
    The key to this conundrum is the year, 1948. In 1947/8 in Britain it was not a case of trying to save a bit of money on steel costs, the simple fact was that if your firm got on the wrong end of government steel rationing allocations you simply did not have the quantity of steel that you would have wanted, full stop. The Rover Car Company, for example, wanted steel for 15,000 cars per year, and were given steel for 1,100; hence to a large degree why they put so much effort into the new aluminium paneled 'Land Rover' as a supposedly temporary expedient. No-one knew how long the restrictions would last so retooling in order to stay in production sometimes was a price that had to be paid; as exemplified by the Rover case. This all also explains why some pan rests could be made in revised presses without the outer ring. These are pressed in this form, not cut about; look carefully at the way the curtailed ends are formed. Why didn't they last as a Valor feature? My personal opinion is that it would have become all too clear all too quickly that these types of legs were not a satisfactory replacement for traditional legs, they are far too easily twisted and bent.

  5. shagratork

    shagratork United Kingdom Moderator Subscriber

    Offline
    Joined:
    Aug 9, 2005
    Messages:
    8,055
    Location:
    Durham City, England
    igh - very interesting facts and speculation.

  6. presscall

    presscall United Kingdom Subscriber

    Offline
    Joined:
    Aug 25, 2009
    Messages:
    6,323
    Location:
    UK
    Iani wasn't one for offering explanations so the factory-docked-or-not pan ring is down to the evidence of that photo alone. What's left of the pan ring is either scorched or heatproof black painted, which hides many sins.

    Question is why someone would bother, but it's not the first chopped pan ring to have cropped up on CCS as a 'special edition'


    Curiously, apart from mine there's another clean example of this stove on ebay at the moment, also with the 'whole' Valor pan ring.

    image.jpg image.jpg

    Without any Reference Library or other authoritative sources of evidence that a 'special' truncated pan ring was part of the kit, I'm unconvinced.

  7. idahostoveguy

    idahostoveguy Subscriber

    Offline
    Joined:
    Jun 15, 2009
    Messages:
    3,352
    Location:
    Potato Country USA
    I would have to agree that the full pan ring makes sense rather than the truncated one. Even though the truncated ring would still work the full pan ring is more in line with production, where a truncated pan ring is one more step in the process of production, and maybe even a costly one, unless less metal was used to produce. Also, a full pan ring would be something everyone, at the time, would be used to seeing and thus, maybe a little more marketable.


    sam
