Monitor C11 Stove - My first Paraffin Stove

Discussion in 'Monitor' started by MrEd, Jul 12, 2010.

  1. MrEd

    Offline
    Joined:
    Jul 11, 2010
    Messages:
    65
    Got this on the recommendation of Rik, its a great stove and has done me well with cooking for a group when we went camping, we had to use a couple of rubbish gas ones aswell so now im going to get another paraffin stove, prob a half or 1 pint one!

    Any way its a Monitor C11 Stove, ex military with the broad arrow on it and date stamped 1956. It came in a box with laods of spares - just needed a bit of brasso and some matt stove paint on the pot stand and legs as they were a bit rusty and its good as new.

    Filling it up - i now have a period correct metal filler funnel to make this easier

    lets get our prime on

    pump it up now

    and thar she goes!

    Lovely stove, the paraffin smell and the noise bring back memories :D

    hooked now - going to get another stove now :D

    Last edited by a moderator: Jun 27, 2015
  2. Sparky

    Sparky United States Subscriber

    Offline
    Joined:
    Mar 20, 2010
    Messages:
    4,514
    Location:
    Cypress, Texas
    Mr. Ed, looks like a beauty! I found one in an antique shop in Monroe Louisiana, USA but it has seen a hard life. I am still waiting for gaskets and a burner collar. I hope is burns as well as yours!

  3. MrEd

    Offline
    Joined:
    Jul 11, 2010
    Messages:
    65
    i got new gaskets and pump cup thingy from www.base-camp.co.uk
    dunno if they do overseas shipping though, might be worth giving them a ring they sorted me out!

  4. teletim United Kingdom

    Offline
    Joined:
    Jun 4, 2009
    Messages:
    1,211
    Hi MrEd,
    Monitor C11 are great stoves,it took me a while but I did eventually get my hands on a No15 the silent sister to the C11 a stove worth looking out for to add to your new collection :lol:
    Great pictures thanks for showing us your stove.
    Cheers Tim

  5. rik_uk3 United Kingdom

    Offline
    Joined:
    Aug 15, 2004
    Messages:
    8,227
    They will post anywhere, but remember our Turkish member who makes just about the best pump leathers going :)

    Last edited by a moderator: Jul 2, 2015
  6. MrEd

    Offline
    Joined:
    Jul 11, 2010
    Messages:
    65
    yeah i found out about him after i had already done the base camp order, future ones will come from him tho!

    Last edited by a moderator: Jul 2, 2015
  7. Twodogs United Kingdom

    Offline
    Joined:
    Aug 25, 2008
    Messages:
    335
    Nice one Ed ........... :lol:
    Cracking looking stove
    Cliff

  8. madmaxdoom

    Offline
    Joined:
    Apr 14, 2008
    Messages:
    50
    hi yes our Turkish member makes excellent cups i bought off him threw eBay and he told me next time to pm him
    Ive had a go at making them myself but his are much better than i can do

  9. Go Scout

    Go Scout United Kingdom Subscriber

    Offline
    Joined:
    Feb 15, 2016
    Messages:
    231
    Location:
    Bromley, England
    The collapsible C11 roarer stove has a C15 silent burner sister.

    The number 11, fixed legged roarer stove has a fixed legged silent sister, the number 15.

  10. SimonB

    SimonB United Kingdom Subscriber

    Offline
    Joined:
    Mar 6, 2008
    Messages:
    116
    I've got one of these Monitors too and I'd like to try it with a silent burner if possible. I don't have one to fit but the Fettlebox sells silent burners for 2 pint stoves quite cheap. Are they a straight fit?

  11. kerophile

    kerophile United Kingdom Subscriber

    Offline
    Joined:
    Sep 23, 2004
    Messages:
    8,788
    Location:
    Far North of Scotland
    Hi Simon, you can ask Ross at Fettlebox. I believe that he tries these burners on Swedish and British upstands before offering them for sale.
    Don't forget to buy some heat-resistant burner washers at the same time.
    Best Regards,
    Kerophile.

  12. Go Scout

    Go Scout United Kingdom Subscriber

    Offline
    Joined:
    Feb 15, 2016
    Messages:
    231
    Location:
    Bromley, England
    Hi Simon,

    I swapped my silent burner (on my Monitor 15) for a modern 'Liberty' roarer burner, as I'm missing an inner cap for the original silent burner. It is running very nicely indeed in this configuration. The Liberty roarer was a straight swap - no screw thread issues, suggesting to me that a Liberty silent burner would be a straight swap too. Think they came from Parafinalia maybe.

    However, as it happens, any day now I should be getting a couple of Fettlebox silent burners, so I'll do a test fit and report back in a day or two.

    Baz

  13. Go Scout

    Go Scout United Kingdom Subscriber

    Offline
    Joined:
    Feb 15, 2016
    Messages:
    231
    Location:
    Bromley, England
    I have just received two of these silent burners from The Fettlebox. They are 'Liberty' burners and I tried one on my Monitor 15. It fitted like an 'original manufacturers part' and I had no issues with the screw thread. Here are some photo's . . .

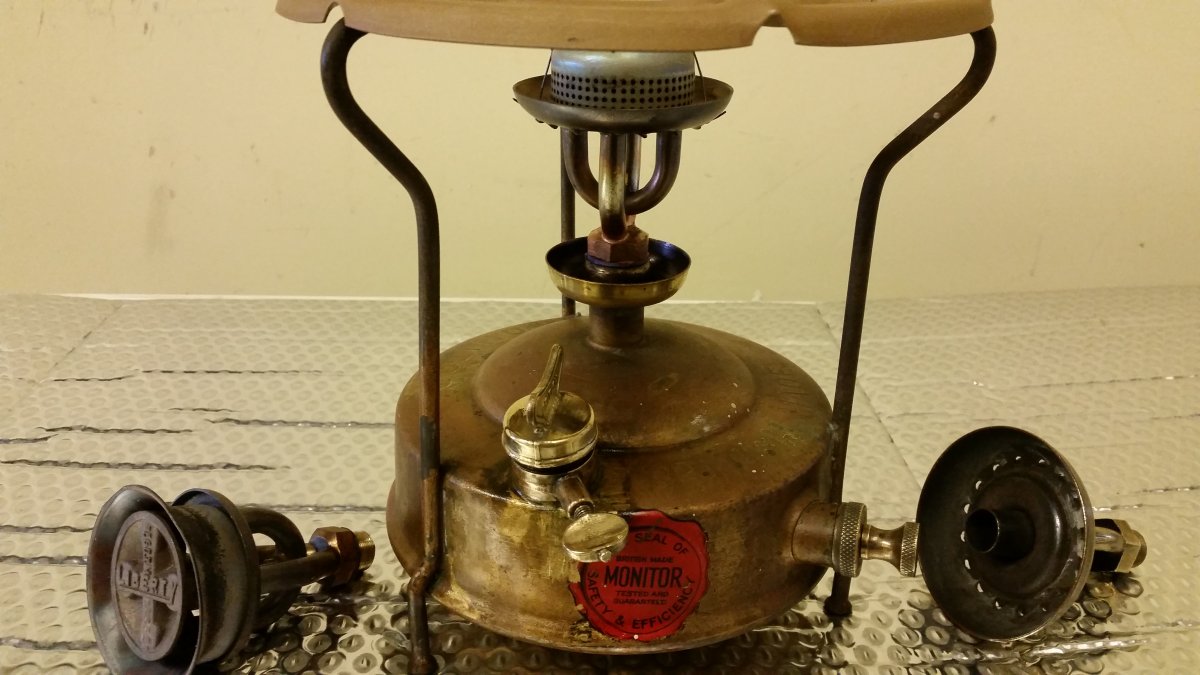

    1. The first shows the Liberty silent burner in place after initial firing. To the left of the stove is the Liberty roarer (also a good fit) that I normally use with this stove. To the right is the original Monitor silent burner that I can't use yet, as it is missing the inner and outer caps.

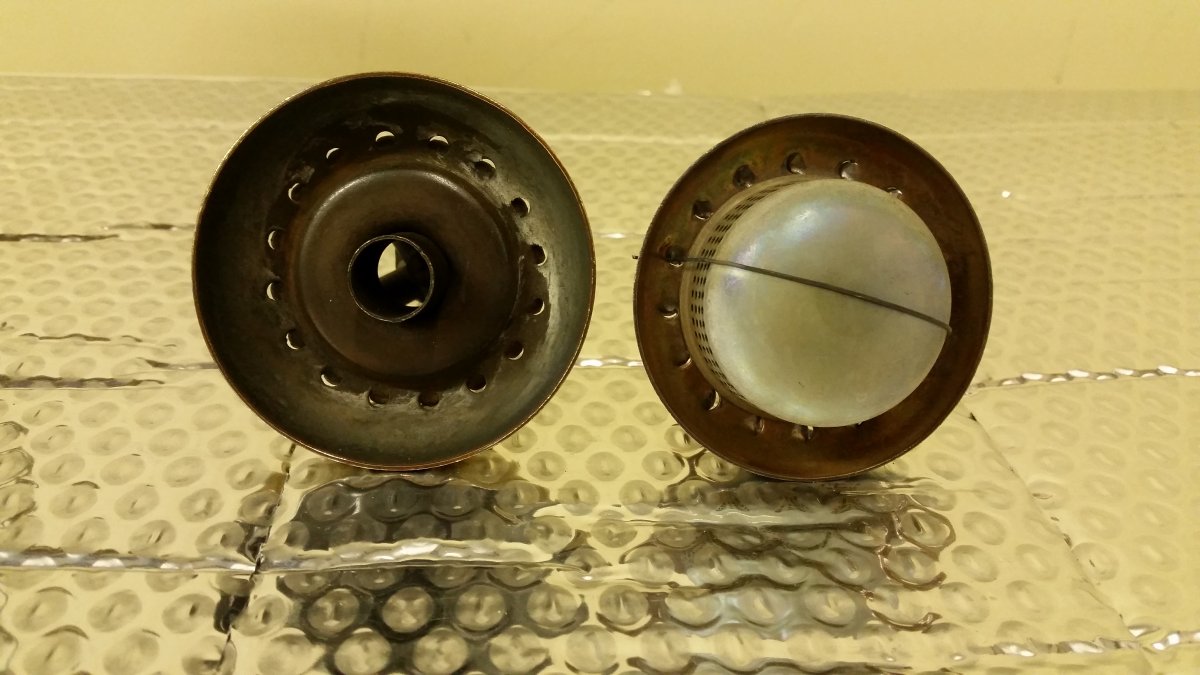

    2. On the left is the original Monitor silent burner and to the right, the new Liberty version.
    3. Meths pre-heat of the new burner
    4. New Liberty silent burner operating on my Monitor 15
    20160426_115041.jpg 20160426_115126.jpg 20160426_112723.jpg 20160426_113037.jpg

    Regards

    Baz

  14. SimonB

    SimonB United Kingdom Subscriber

    Offline
    Joined:
    Mar 6, 2008
    Messages:
    116
    That's good to hear, thanks for reporting back. I think I'll have to draw up a list of bits I need and place an order with the Fettlebox soon.

    Simon.

  15. Toad of the Cape New Zealand

    Offline
    Joined:
    Jan 17, 2017
    Messages:
    7
    Location:
    New Zealand
    Hello folks,
    My first uttering, Have been madly following the mostly excellent advice and the how too's , if that's a word on here and sister forum about lanterns. A question, I have a monitor 405 roarer burner new old stock, what had they been used on.
    Alex

  16. kerophile

    kerophile United Kingdom Subscriber

    Offline
    Joined:
    Sep 23, 2004
    Messages:
    8,788
    Location:
    Far North of Scotland
    Hi @Toad of the Cape . The Monitor 405 roarer pattern burner is listed as a 'No.1 size burner' and is intended for Monitor stoves Nos. 11, 11b, and 19.

    These are basically 2pint capacity kerosene stoves, equivalent to Primus/ Optimus/ Svea No.1 stoves. Your No.405 will likely fit any of these Swedish stoves, or their British equivalents.

    Best Regards,
    Kerophile.

  17. Toad of the Cape New Zealand

    Offline
    Joined:
    Jan 17, 2017
    Messages:
    7
    Location:
    New Zealand
    Thanks Kerophile, what time is it over your way presently, just placed an order for parts, and hoped I haven't woken anybody, he he. I must say again, what an out standing resource here in this forum.
    regards toad

  18. kerophile

    kerophile United Kingdom Subscriber

    Offline
    Joined:
    Sep 23, 2004
    Messages:
    8,788
    Location:
    Far North of Scotland
    Hi, NZ is currently 13 hours ahead of the UK, so it is now 0845h here.
    However, CCS never sleeps.
    Best Regards,
    Kerophile.

  19. Ed Winskill

    Ed Winskill United States Subscriber

    Offline
    Joined:
    Aug 20, 2004
    Messages:
    6,475
    It's a fine stove. When I got started moons ago Basecamp had a big supply of C11 collapsibles, as well as Hipo 1s. One of each were my earliest buys....

  20. Toad of the Cape New Zealand

    Offline
    Joined:
    Jan 17, 2017
    Messages:
    7
    Location:
    New Zealand
    Hello Ed not seen many monitors latterly here in NZ, hope to find a fount for the 405 sometime.
    regards Alex
