One jet alc.stove 1920's ?

Discussion in 'Czech Republic' started by dusan, Jan 5, 2016.

  1. dusan Czech Republic

    Offline
    Joined:
    Apr 13, 2014
    Messages:
    155
    Location:
    Brno / CZ

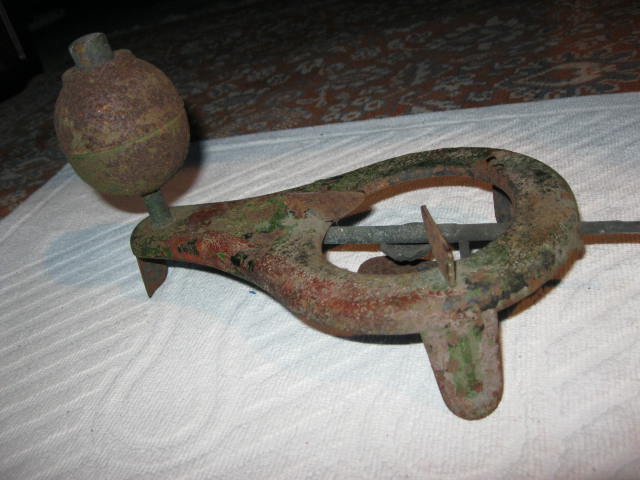

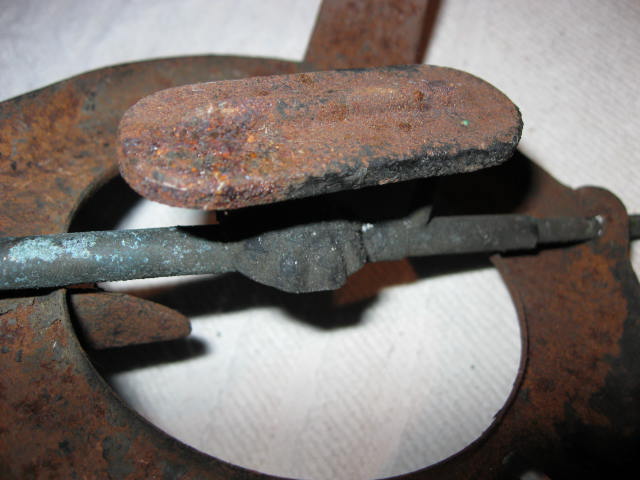

    with rose flamm spreader.Find in the Czech rep.
    Pre Pragus/Meva alc.stove type 444 / 555 ?
    Built way is very simmilar to them.

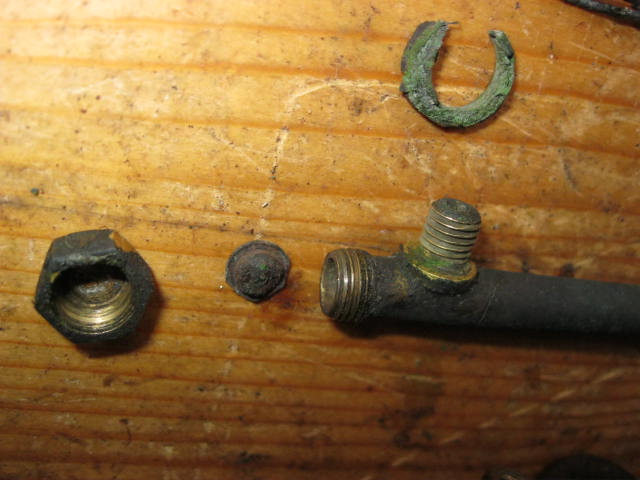

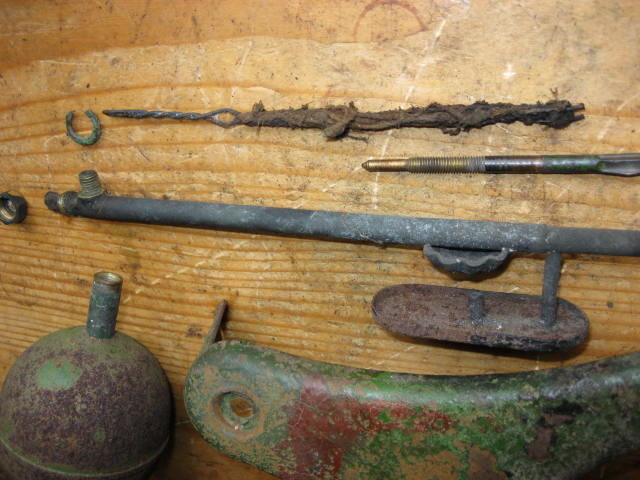

    Tank tread M7 ,reg.spindle M5 , wick lid G1/8" ,also very "modern" treads.
    Hidden wick lid - also before finding hole in the foot.
    Very old stove - or not so old ???
    D.

    IMG_1019.JPG IMG_1029.JPG IMG_1016.JPG IMG_1020.JPG IMG_1024.JPG IMG_1022.JPG IMG_1025.JPG IMG_1026.JPG IMG_1027.JPG IMG_1028.JPG

  2. z1ulike

    z1ulike United States Subscriber

    Offline
    Joined:
    Mar 6, 2010
    Messages:
    1,605
    Location:
    Santa Barbara, CA
    These alcohol stove can really take a beating and keep running. I'm impressed. This is the first one I've seen that has a single jet with a flame spreader above. Most have several jets. Still it looks like a good design judging by the flame it produces.

    Ben

  3. gieorgijewski

    gieorgijewski Poland Subscriber

    Offline
    Joined:
    Apr 19, 2013
    Messages:
    1,097
    I saw that model in Poland
    preheating cup - similar to G.Barthel

  4. dusan Czech Republic

    Offline
    Joined:
    Apr 13, 2014
    Messages:
    155
    Location:
    Brno / CZ
    Now is clear , it's Meva No. 1110 .Other stove by side is No. 777 .
    Boath pre war with wooden reg. knob.
    I think,pre ware with wooden knob are Pragus.
    After war , with bakellite reg.wheel only MEVA .
    Shortly after war are some stoves body with " Pragus " deccalt and with " MEVA " bakellite reg.wheel marked.
    D.

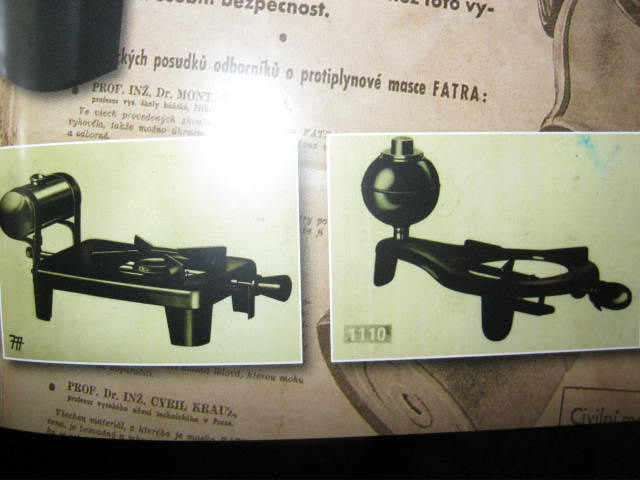

    From MEVA almanach

  5. gieorgijewski

    gieorgijewski Poland Subscriber

    Offline
    Joined:
    Apr 19, 2013
    Messages:
    1,097
    Dusan - You know better
    - but Tank was like lemon or F1 grenade...
    on the photo was "normal ballon"

  6. gieorgijewski

    gieorgijewski Poland Subscriber

    Offline
    Joined:
    Apr 19, 2013
    Messages:
    1,097
    :D/
    [​IMG]
    This is Your Tank
    Eihandgranate 39 !!!
    Not funny - normal "after war" procedure...

  7. dusan Czech Republic

    Offline
    Joined:
    Apr 13, 2014
    Messages:
    155
    Location:
    Brno / CZ
    Tank is realy magnetic and heavy , 50 g .Bras is only tube and lid.
    But my tank is more "balloon" as "eg" and only one side flat.
    Must be after first war .
    D.

  8. dusan Czech Republic

    Offline
    Joined:
    Apr 13, 2014
    Messages:
    155
    Location:
    Brno / CZ

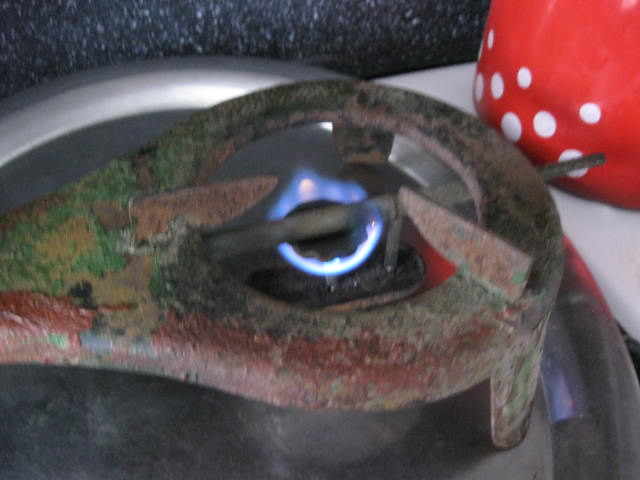

    New picture after time in work.


    D.

  9. z1ulike

    z1ulike United States Subscriber

    Offline
    Joined:
    Mar 6, 2010
    Messages:
    1,605
    Location:
    Santa Barbara, CA
    Nice work. It looks great.

    Ben
