Phoebus No.625. NATO Military Issue.

Discussion in 'Phoebus' started by kerophile, Dec 16, 2008.

  1. kerophile

    kerophile United Kingdom Subscriber

    Offline
    Joined:
    Sep 23, 2004
    Messages:
    8,636
    Location:
    Far North of Scotland

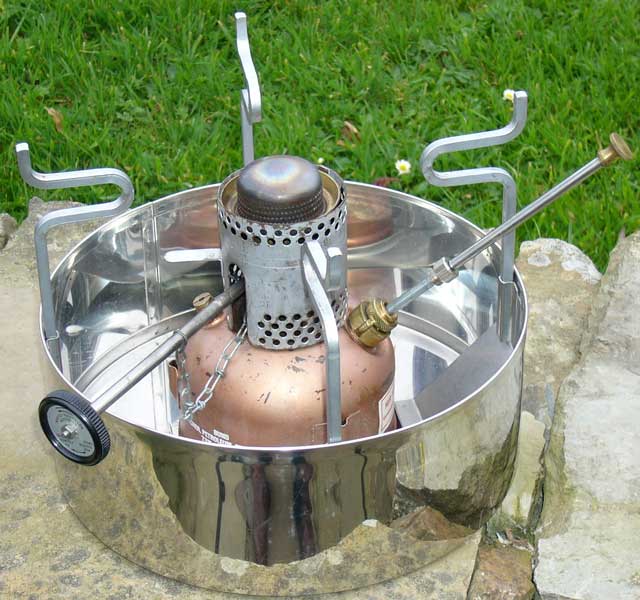

    Hi, here are some photos of a Military Issue Phoebus 625. This particular stove came with an Aluminium canister to hold the stove, spare burner, and selected jets, washers etc.
    This stove has been adapted for use with kerosene (paraffin).
    For some reason the Military issued this stove with the huge unwieldy windscreen/pot support.
    This also entailed the extension pieces for the control knob and pump.

    1229451075-St.166.-Phoebus625Mil-1.jpg 1229451102-St.166.-Phoebus625Mil-2.jpg 1229451128-St.166.-Phoebus625Mil-3.jpg 1229451153-St.166.-Phoebus625Mil-4.jpg

    Best Regards,
    Kerophile.

    Last edited by a moderator: Jun 27, 2015
  2. mr optimus

    mr optimus United Kingdom Subscriber

    Offline
    Joined:
    Oct 4, 2007
    Messages:
    2,113
    Location:
    Harlow Essex
    Hi kerophile what a fantastic stove one of my favourite non sweedish stoves and the design looks ahead of their time in fact im realy surprised thay are no longer in buisness.And thay fetch a good price thanks kero for showing it what a great collection you have

  3. shagratork

    shagratork United Kingdom Moderator Subscriber

    Offline
    Joined:
    Aug 9, 2005
    Messages:
    7,968
    Location:
    Durham City, England
    Here's another one.

    Mint.

    1229456476-Phoebus1.jpg 1229456485-Phoebus2.jpg

    Last edited by a moderator: Jun 27, 2015
  4. Bom Bom Bom Bom

    Offline
    Joined:
    Jun 25, 2008
    Messages:
    2,946
    Here's a variation on a theme, again used I believe by the German Military.


    My understanding is that this is used for an autoclave (pressurised steriliser for medical instruments that enables the water to be heated beyond the normal boiling point). This would have exactly fitted in the rim of the stand. Unfortunately I don't have the autoclave to go with it.

    I have three trains of thoughs about my potential use for this. Either add a circular grill rack to make an extremely stable pot rest for the 625 or any other similar size three legger; find a Dutch oven that fits the rim; or finally this would make an extremely stable base for a Coleman oven. Some foil would also make a cheap and effective windshield.

    A few notes - the stove is the paraffin version (625P). Also, as the stove is in situ, what you can't see is that there is a circular indendation in the base of the stand that exactly fits the 625 making the whole set up even more stable. Finally, the bottom of the legs of the stand flare out at 90 degrees and have a hole in each. This allows the stand to be fixed to a surface or even pegged down on grass. Again, obviously set up for maximum stability and reducing the risk that a pressure vessel containing super heated water is going to end up flying across a field hospital if someone knocks into it.

    Last edited by a moderator: Jun 27, 2015
  5. Motoshi Makino Japan

    Offline
    Joined:
    Jun 1, 2006
    Messages:
    276
    Hello kerophile.

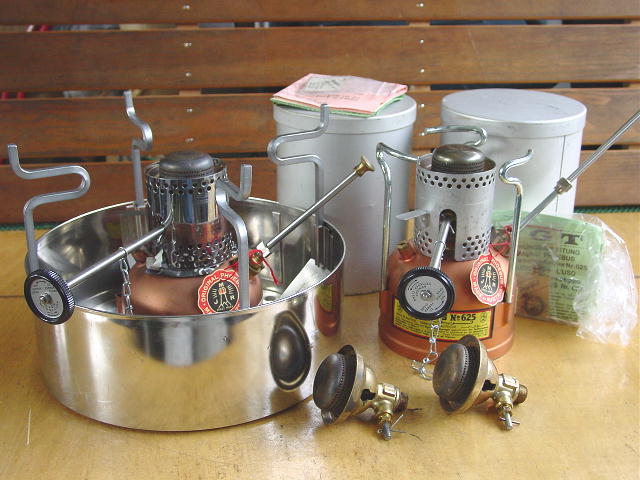

    I also have Phoebus 625 of the same type.

    Best Regards,
    Motoshi


    Last edited by a moderator: Jun 27, 2015
  6. kerophile

    kerophile United Kingdom Subscriber

    Offline
    Joined:
    Sep 23, 2004
    Messages:
    8,636
    Location:
    Far North of Scotland
    Seasons Greetings Motoshi.
    You are too modest. You appear to have two complete stoves in mint condition.
    My NATO 625 is a just a "user".
    Best Regards,
    Kerophile.

  7. kerophile

    kerophile United Kingdom Subscriber

    Offline
    Joined:
    Sep 23, 2004
    Messages:
    8,636
    Location:
    Far North of Scotland

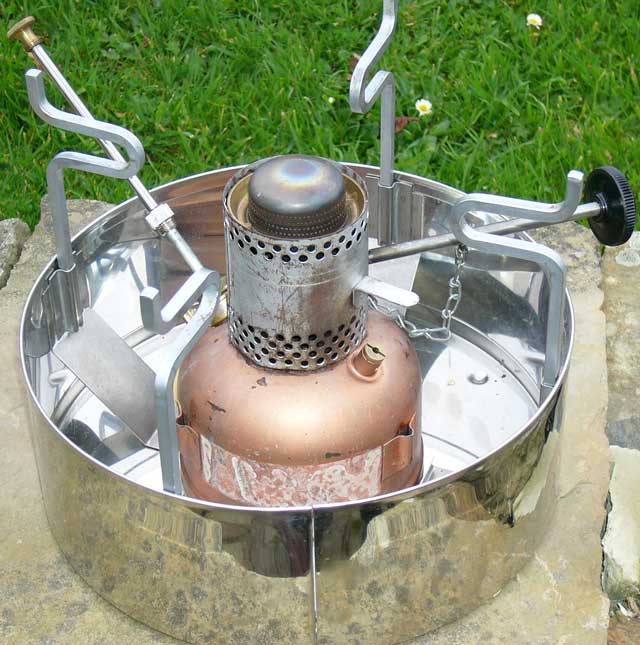

    Hi, I have decided to add some additional detailed photos of this stove, as they might be useful to fellow collectors and restorers:

    1408009976-Phoebus-625-sound.-1.jpg 1408009988-Phoebus-625-sound.-2.jpg 1408009998-Phoebus-625-sound.-3.jpg 1408010010-Phoebus-625-sound.-4.jpg 1408010024-Phoebus-625-sound.-5.jpg 1408010042-Phoebus-625-sound.-6.jpg 1408010068-P1080810.jpg 1408010082-P1080811.jpg 1408010094-P1080814.jpg 1408010108-P1080815.jpg 1408010122-P1080816.jpg 1408010145-P1080818.jpg 1408010170-P1080819.jpg 1408010188-P1080820.jpg 1408010205-P1080821.jpg 1408010279-Phoebus-625-pump-1.jpg 1408010306-Phoebus-625-pump-2.jpg 1408010325-Phoebus-625-pump-3.jpg 1408010339-Phoebus-625-pump-4.jpg

    Best Regards,
    Kerophile.

    Last edited by a moderator: Jun 27, 2015
  8. kerophile

    kerophile United Kingdom Subscriber

    Offline
    Joined:
    Sep 23, 2004
    Messages:
    8,636
    Location:
    Far North of Scotland
    Hi, I made some replacement legs for this stove to allow it to be used "stand alone":

    Link

    Best Regards
    Kerophile.
