Primus Grasshopper butane stove variations

Discussion in 'Other Models' started by presscall, Feb 28, 2013.

  1. presscall

    presscall United Kingdom SotM Winner SotY Winner Subscriber

    Offline
    Joined:
    Aug 25, 2009
    Messages:
    13,057
    Location:
    Lancashire, United Kingdom
    Curiosity got the better of me and I've put together a collection of Primus Grasshopper stoves that demonstrate what I've identified as the four main variations produced during its production life


    Left to right they are: yellow/orange colour scheme, plastic control collar; pale green colour scheme, plastic control collar; pale green colour scheme, painted metal control collar; pale green stove frame, lacquered steel control collar


    There's no date code on stove or box but I'm confident this is the earliest version, since it's mint and was packaged together with a contemporary gas cartridge which had a price sticker on it that was in pre-decimal currency (UK), so purchased before February 1971. (More on this example here: Unwanted Christmas present )



    I know the type below was marketed no later than 1973, since it's clearly the version that appears in the 1975 reprint of the 1973 issue of 'Stoves for mountaineering' here in CCS's Stove Reference Library (Ninth image in this set)

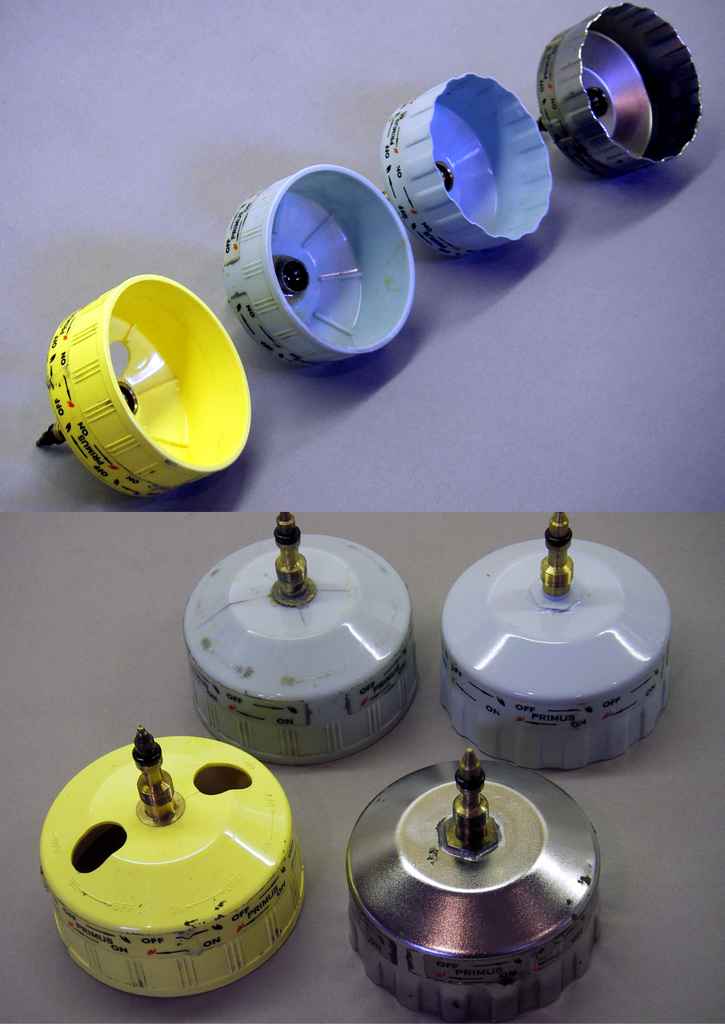

    The control collars provide the main distinguishing feature between the different versions



    The plastic collars have a flaw - they develop cracks and the only other one I've seen had the type of repair a previous owner gave the green one here



    Primus (Bahco earliest version, Primus-Sievert later) must have got themselves pretty confused when delving into their stock bins to assemble individual stoves, as this sticker suggests in referring to a metal control collar when it's got a plastic one



    A few more characteristics.

    Early type, green colour scheme, painted metal control collar, Bahco production with instructions in English only, 'Grasshopper' name appears on box

    1362084067-7.jpg 1362084076-8.jpg


    Bit later type, yellow/orange colour scheme, plastic control collar, Primus-Sievert production with instructions in English and several other languages, Grasshopper name added to box later as a pasted-on label. That gas cartridge is contemporary to the stove incidentally

    1362084086-9.jpg 1362084095-10.jpg 1362084117-12.jpg


    The green colour scheme, plastic control collar type has a box with the Grasshopper name absent and just the model number appears on it



    Detail on the early/later gas cartridges



    Back to the green colour scheme, plastic control collar version, it has an assembly clip that sets it apart from the other versions



    Clip on other versions top, that on the green plastic control collar type below



    What that photo shows is how the heftier gauge clip projects from both sides into the control spindle cavity. Its those two projections that prevent the control spindle from screwing right out



    On the green plastic control collar version with the slenderer gauge assembly clip, the clip doesn't stop the spindle from unscrewing too far and it's left to this rather primitive arrangement of a screw butting up against the control collar, which probably contributed to those cracks developing in the component



    Curiously, on two of the other variations (yellow/orange colour scheme and laquered metal control collar) the assembly clip provides the spindle stop but the stove frame's equipped with a stop screw in the stove frame too. Only the earliest version doesn't have that stop screw in the stove frame

    1362084230-19.jpg 1362084210-18.jpg

    John

    Last edited by a moderator: Jul 2, 2015
  2. RonPH

    Offline
    Joined:
    May 1, 2009
    Messages:
    5,870
    John, I am always amazed at your presentation and it does serve also as a tutorial since the stove is stripped down :thumbup: Makes it easy for newbies to check and compare the model the own with that of your family of stoves.

    :clap: :clap: :clap:

    Lets head to the pub.

    Ron

  3. S Atkins

    Offline
    Joined:
    Aug 18, 2015
    Messages:
    3
    We have one of these grasshopper stoves that we use, purchased in the early 70s. It doesn't have a colored plastic regulator at all. We simply spin the butane tank to control the amount of fuel flow. Do you have information on this variation?

  4. presscall

    presscall United Kingdom SotM Winner SotY Winner Subscriber

    Offline
    Joined:
    Aug 25, 2009
    Messages:
    13,057
    Location:
    Lancashire, United Kingdom
    Hello and welcome to CCS! Your comment makes me realise I didn't describe the operating principle clear in my write-up, but as you've said (rotating the butane tank to regulate the flame) that's how all of those Grasshoppers pictured work.

  5. shagratork

    shagratork United Kingdom Moderator, R.I.P. Subscriber

    Offline
    Joined:
    Aug 9, 2005
    Messages:
    9,636
    Location:
    Durham, N.E. England
    S Atkins, is this the type of Grasshopper you have?

  6. Mark B.

    Offline
    Joined:
    Nov 19, 2015
    Messages:
    4
    S Atkins, I have the Primus Grasshopper model #2255 (yellow collar) but have been unable to find butane cartridges for it. Where do you get your butane fuel cartridges? Greatly appreciate any feedback. Thanks.

  7. shagratork

    shagratork United Kingdom Moderator, R.I.P. Subscriber

    Offline
    Joined:
    Aug 9, 2005
    Messages:
    9,636
    Location:
    Durham, N.E. England
    The simple answer is that the butane cartridges with a screw top are no longer produced.
    However, the current screw top cartridges containing butane and propane work fine.


  8. S Atkins

    Offline
    Joined:
    Aug 18, 2015
    Messages:
    3
    Sorry, we actually run propane on ours. I misspoke.

  9. S Atkins

    Offline
    Joined:
    Aug 18, 2015
    Messages:
    3
    Yes, I believe it is our model. Do you know the years it was manufactured. We've had ours at least since the early 70s.

  10. Mark B.

    Offline
    Joined:
    Nov 19, 2015
    Messages:
    4
    Thanks for the fast response. Where might I purchase these Parasene Gas cartridges in the USA? Our local hardware store (True Value Hardware) does not carry them. I attempted to use the Coleman butane canisters I found at the WalMart, but they do not have a screw top. I'll keep looking.

  11. shagratork

    shagratork United Kingdom Moderator, R.I.P. Subscriber

    Offline
    Joined:
    Aug 9, 2005
    Messages:
    9,636
    Location:
    Durham, N.E. England
    Hi Mark B.

    I have just had a look on US eBay and Amazon and can not find the type of cartridge I showed - though they are common in Europe.
    Actually, I did find some, but they are sold by UK sellers and the shipping costs are huge.

    Instead you could buy the common bayonet-type butane cartridge and use a connector converter.

    Butane like this.

    Converter like this.

  12. Mark B.

    Offline
    Joined:
    Nov 19, 2015
    Messages:
    4
    Thanks, shagratork. I just bought the converter from eBay. Has to ship from Korea, so will likely take a while. Hoping this does the trick. Thanks a bunch for the tip!

  13. presscall

    presscall United Kingdom SotM Winner SotY Winner Subscriber

    Offline
    Joined:
    Aug 25, 2009
    Messages:
    13,057
    Location:
    Lancashire, United Kingdom
    @Mark B.
    Watch how you go using the bayonet fitting cans with an adaptor however.

    In this post ...

  14. Mark B.

    Offline
    Joined:
    Nov 19, 2015
    Messages:
    4
    presscall, oh, wow, thanks for the heads up. Unfortunately, the yellow outer shell is missing so maybe I should not use the stove? Would not wish to go the same learning curve you apparently have already traveled! I will look again for the yellow regulator shell. The stove was purchased back in the early 70s and it was a great little stove for summer backpacking. I have an old Optimus 8R with pressure pump I use for winter and altitude. I've been out of the country for quite some time and others have "borrowed" the Grasshopper. I hope the shell can be located. Thanks again to everyone. You have all been most helpful.

  15. Nbsaad

    Nbsaad Subscriber

    Offline
    Joined:
    Aug 16, 2016
    Messages:
    25
    wonderfull collection .

  16. hikin_jim

    Offline
    Joined:
    Apr 17, 2009
    Messages:
    4,519
    Moderator edit: Resurrection of an old thread

    So, now wait. Are these old Grasshopper stoves, the butane version, compatible with the standard Epi Gas type 7/16ths UNEF threaded canisters of today? For example, the canisters sold today by MSR, Primus, Optimus, Snow Peak, Jetboil, etc.?

    I had it in my mind that they used a different canister type.

    HJ

  17. presscall

    presscall United Kingdom SotM Winner SotY Winner Subscriber

    Offline
    Joined:
    Aug 25, 2009
    Messages:
    13,057
    Location:
    Lancashire, United Kingdom
    @hikin_jim
    The screw fitting thread's the same, but unless the gas cart is this shape ...


    ... it won't fit inside the regulator sleeve, this component ...


  18. hikin_jim

    Offline
    Joined:
    Apr 17, 2009
    Messages:
    4,519
    Aaaah. The light dawns. :content:

    Hmm. Unfortunately, those are not readily available in the US. :(

    HJ

  19. hikin_jim

    Offline
    Joined:
    Apr 17, 2009
    Messages:
    4,519
    But the tip of using an adapter with the restaurant type 100% butane canisters is a good one. With respect to such, I suppose one must turn the adapter, not the canister, to adjust the flame.

    And of course, I thank you.

    HJ

  20. presscall

    presscall United Kingdom SotM Winner SotY Winner Subscriber

    Offline
    Joined:
    Aug 25, 2009
    Messages:
    13,057
    Location:
    Lancashire, United Kingdom
    Not turning the gas canister (but the regulator sleeve) is the safety advice in the stove instruction sheet. True for the screw fitting canisters and for the bayonet ones with adaptor too.

    Those bayonet adaptors are ingenious and well made but I'm disappointed the manufacturers haven't devised a locking tab/pin device to prevent the adaptor disengaging accidentally.

    John
