    This comprehensive write-up on his Sirram Aristocrat by Terry (Trojandog) brings out all the points I could on this example of the Sirram 'Citizen'.

    A bit of a recap of Terry's research is permissable I think though:-

    Democrat in tin plate
    Citizen (aluminium)
    Aristocrat in copper, pot inner tinned and wire handle whipped in cane to insulate it

    Versions of each in different pot capacities. My Citizen takes a pint, but a 1 1/2 pint version was for sale too.

    In the Stove Reference Library are the year 1919 patents for the stove complete, the burner, the spirit container and the simmering 'spoon'.

    I've pictured the main components with their patents - missed out the simmering device because I ran out of printing paper, but the patent for it is HERE

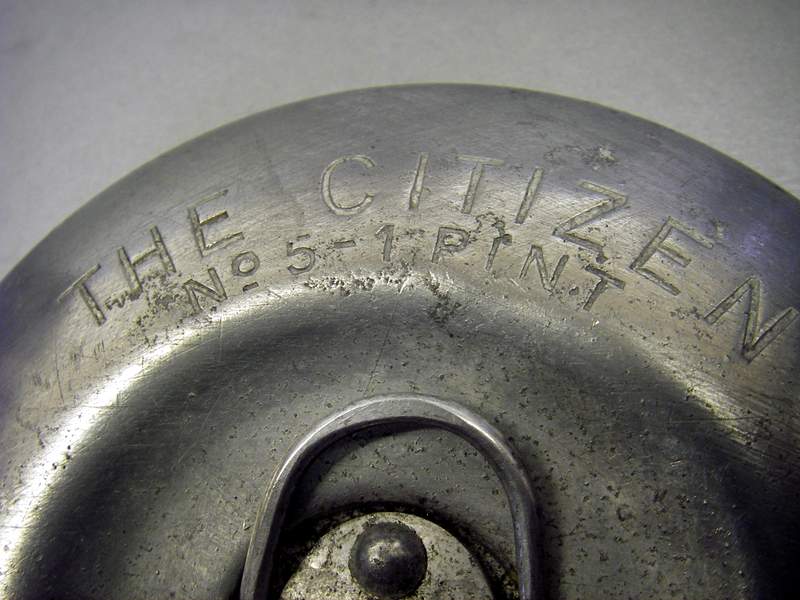

    The components are thoroughly marked with the patent references











    Stowage is cleverly managed, with corresponding dimples and bulges in bases to ensure nothing rattles in transit









    Set up for use, flame on maximum setting ...



    ... and with simmering 'spoon' regulating device in place


    Last edited by a moderator: Jul 1, 2015
  2. presscall

    presscall United Kingdom Subscriber

    Offline
    Joined:
    Aug 25, 2009
    Messages:
    5,990
    Location:
    UK
    A closer look at the simmering device




    ... and removed



    It's stamped with a reminder of what it's for



    Simmering



    ... and without the device in place



    Burner's not the fastest to get up to speed. Just getting underway here



    Got into its stride here



    It works well. I daresay the 'Democrat' in tin plate could be a rarer find since tinworm must have taken its toll on many. The burners on all three types are brass with a tinplate base and I notice Terry's was holed. Mine's not, but it's a weak spot in what is in every other respect a well thought-out and well-engineered stove.

    John

    Last edited by a moderator: Jun 26, 2015
  3. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Jun 8, 2013
    Messages:
    2,334
    :thumbup: I like the Sirram spirit stoves. Anf=d thats a very fine presentation.

    Cheers

    Tony

  4. 1966dave

    Offline
    Joined:
    Mar 30, 2014
    Messages:
    449
    That is simply beautiful! I love meths burners, but the "Russian Doll" aspect and simplicity of the engineering is what really gets me. Everything you need in one small package....wish I could find things like that on my side of the pond.


    :thumbup: :thumbup:


    Dave

  5. Normo

    Normo Australia Subscriber

    Offline
    Joined:
    Feb 25, 2013
    Messages:
    560
    Location:
    Melbourne, Australia
    Great photos and presentation - thanks.

    Nice to see manufacturing that goes beyond the basic / functional.

    Norm

  6. snwcmpr United States

    Offline
    Joined:
    Nov 16, 2011
    Messages:
    6,015
    Location:
    USA
    Wow, beautiful, and such a great design of fit.

    Ken in NC

  7. anlrolfe

    anlrolfe Subscriber

    Offline
    Joined:
    Jun 9, 2009
    Messages:
    1,875
    Location:
    Kentucky
    I'd like to see a side-by-side with an MSR Titan Kettle.

    Is it just me or do they have a striking resemblance?

    PC, thanks for sharing. Always great photo expose'

    AR

  8. tekkster United States

    Offline
    Joined:
    Dec 5, 2014
    Messages:
    129
    Stunning piece of gear!

  9. shagratork

    shagratork United Kingdom Moderator Subscriber

    Offline
    Joined:
    Aug 9, 2005
    Messages:
    7,897
    Location:
    Durham City, England
    John, this is yet another visual treat for us all.

  10. snwcmpr United States

    Offline
    Joined:
    Nov 16, 2011
    Messages:
    6,015
    Location:
    USA
    I'd like to see it in my collection.

    Ken in NC

  11. 1966dave

    Offline
    Joined:
    Mar 30, 2014
    Messages:
    449
    :) Right you are Ken!!!

  12. anlrolfe

    anlrolfe Subscriber

    Offline
    Joined:
    Jun 9, 2009
    Messages:
    1,875
    Location:
    Kentucky
    Me too but I think that's highly unlikely.

    Last edited by a moderator: Jun 27, 2015
  13. junior trangia master United Kingdom

    Offline
    Joined:
    May 14, 2013
    Messages:
    109
    Location:
    UK
    i've always liked the siram spirit stoves,
    yours, reminds me of an esbit.
    archie
