    Charles Twigg & Co of Perry Bar, Birmingham, were light engineering manufacturers during the 40's and 50's and went into receivership in 1957.

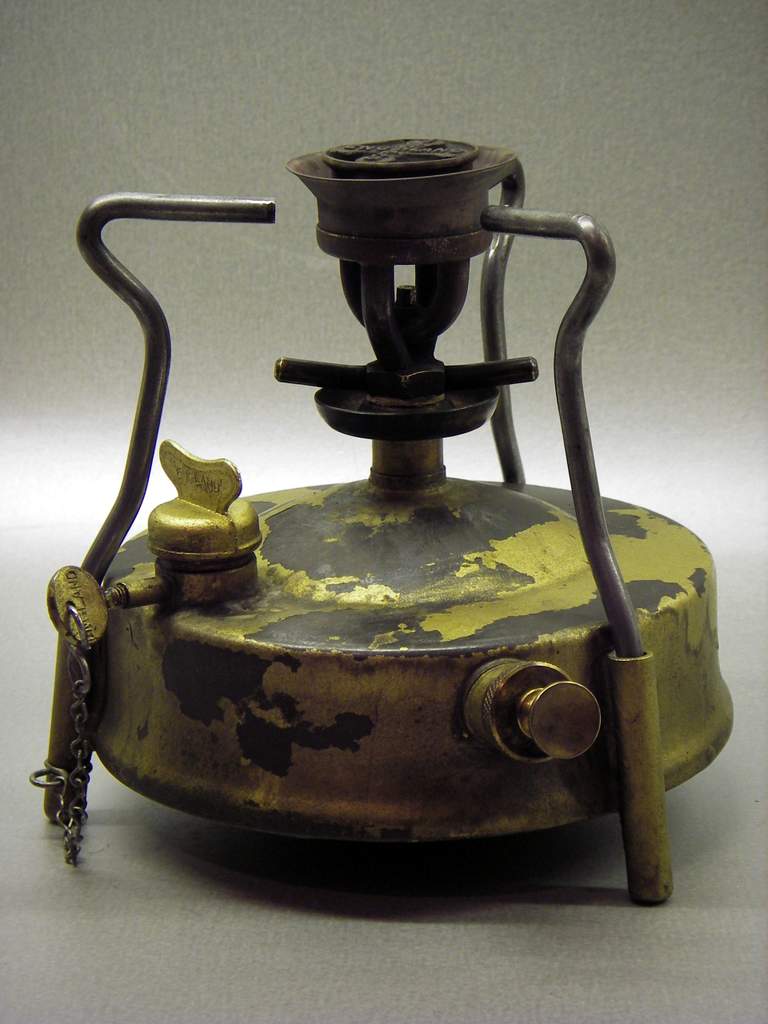

    Odd one this with some unusual features. The fuel tank is steel and the camouflage effect is unintentional, the gold paint having largely flaked off, revealing an olive drab finish beneath



    Unlike a conventional collapsible stove, the pot rest supports obviously can't be used without the pot rest



    The pot rest was missing one of the support mounting lugs ...



    ... so I'd to make one out of strip steel and braze it in place

    1355867264-4.JPG 1355867272-5.JPG 1355867283-6.JPG 1355867292-7.JPG 1355867305-8.JPG


    The burner has a built-in tommy bar to enable it to be fitted and unscrewed from the burner riser tube without the use of a spanner (wrench). I replaced the heat-proof washers

    1355867316-9.JPG 1355867336-10.JPG 1355867346-11.JPG


    Unconventional, more obviously so when set alongside an Optimus 45



    Assembly of the pot rest has to be in this sequence, so no fitting the pot rest supports to the fuel tank first

    1355867376-13.JPG 1355867388-14.JPG 1355867437-15.JPG


    The pot rest, in painted, pressed steel, is an obvious legacy from Twigg's 'Buflam' line of wick stoves



    No sense in fixing a securing chain to the air screw!!!. It would be understandable if the keeper cap (which the stove has) was attached to the chain, but there's no obvious way of attaching the keeper cap to the chain ...



    The steel tank is perfectly sound, with no rust. Note the fact that the leg tubes to take the pot rest supports have stopped and rounded ends - a refinement that prevents bringing home soil samples, though I'd be surprised if that was the intention



    I've seen this pattern of non-return valve before, with the seal cup 'tail'. The cork seal was discarded in favour of a nitrile 'pip'




    TO BE CONTINUED

    John

    Last edited by a moderator: Jun 27, 2015
  2. presscall

    presscall United Kingdom Subscriber

    Offline
    Joined:
    Aug 25, 2009
    Messages:
    6,436
    Location:
    UK
    Military precision is required to pack the stove away. The tank has to be orientated just as illustrated or it won't fit in the box.

    It becomes clear why there's that large hole in the pot rest - fits over the filler cap when packed

    1355869100-21.JPG 1355869114-22.JPG 1355869124-23.JPG 1355869152-24.JPG 1355869174-25.JPG 1355869186-26.JPG 1355869196-27.JPG 1355869212-28.JPG 1355869228-29.JPG 1355869244-30.JPG 1355869257-31.JPG


    Fibre seal in the filler cap was ripe for replacement with a nitrile disc



    Priming flames licking around the burner tommy-bar



    Powerful and loud





    Nearest I could get to a simmer without the flame yellowing up


    John

    Last edited by a moderator: Jun 27, 2015
  3. shagratork

    shagratork United Kingdom Moderator Subscriber

    Offline
    Joined:
    Aug 9, 2005
    Messages:
    8,136
    Location:
    Durham City, England
    A fascinating stove John.

    I've not seen one like it.
    The first time I have seen a stove like this that needs the pot rest before a pot/pan can be used.
    Yet again, a great bit of fettling with that clip.

    Great photos suitable for an archive.

    Have you an idea of its age?

  4. presscall

    presscall United Kingdom Subscriber

    Offline
    Joined:
    Aug 25, 2009
    Messages:
    6,436
    Location:
    UK
    Hi Trevor. Well, as I said at the outset, Twigg weren't in business for as long as some.

    They made kid's bicycles too apparently and a shipment of 85 intended for Costa Rica made a legal precedent (Carlos Federspiel & Co. vs Charles Twigg and Co. Ltd. - 1957) when the buyer of the bikes lost the money he'd paid to Chas Twigg because the court held that since the crates containing the goods were still on the dockside at Liverpool and hadn't been loaded onto the ship, they belonged to the receiver and not the buyer.

    An aside - pardon. So, as to the age of the stove. Intriguing. Apart from the burner, filler cap and the air screw, there's no manufacturer's mark and in spite of the 'military' look about it, no War Dept broad arrow either.

    Could have been a prototype for a hoped-for army contract maybe?

    I don't know and a literature search hasn't come up with anything as yet.

    John

  5. Doug L

    Doug L United States Subscriber

    Offline
    Joined:
    Oct 1, 2010
    Messages:
    964
    Location:
    New York
    Very unique.I like the diversity in design we see again and again. I love those flame pics John.My camera can't seem to catch the detail you have on those close-ups.
    Thanks for sharing.

  6. Spiritburner

    Spiritburner United Kingdom Admin Subscriber

    Offline
    Joined:
    Jul 23, 2004
    Messages:
    9,461
    Location:
    N.E. England
    Great to see John. A first for me too.

  7. Ed Winskill

    Ed Winskill United States Subscriber

    Offline
    Joined:
    Aug 20, 2004
    Messages:
    6,477
    After years here, along comes a completely new and different one that we haven't seen before! Great post; amazing.

  8. gunsoo

    gunsoo Korea, Republic of Subscriber

    Offline
    Joined:
    Feb 26, 2010
    Messages:
    317
    Hi John.

    very expecially burner and stove.
    and nice fettling John :clap:
    thanks


    Gunsoo

  9. teletim United Kingdom

    Offline
    Joined:
    Jun 4, 2009
    Messages:
    1,211
    Wing nuts and Tommy bars,why did they change this method of fixing the burners to to the tank?
    Nice Stove

  10. Trojandog

    Trojandog United Kingdom Subscriber

    Offline
    Joined:
    Feb 7, 2011
    Messages:
    2,012
    Location:
    East Sussex, UK
    Hi John. Another great post and another 'conundrum' stove.

    The green tank and case do suggest a military role rather than civvy. Perhaps the gold on the tank was a later addition? It doesn't seem to have taken very well.

    The tommy bar is interesting. The bars are attached to a hex nut. Why produce a hex nut if you are then going to attach the bars preventing the hex nut from being used?

    The fact that the stove can't be used without a pot rest may have been it's downfall. Squaddies the world over are experts at losing things, and the loss of the pot rest would have rendered the stove unusable.

    I wonder why they went with the shorter supports and a pot rest with raised lugs. What was wrong with the tried and tested long supports and stamped flat pot rest? That pot rest must have cost more to produce that a flat one.

    It's amazing what must be out there in the big wide world waiting to be re-discovered.

    I remember watching Antiques Roadshow many years ago when a very old lady turned up with some cloth in an old carrier bag. It had hung for years on a rail behind her front door as a draught excluder. Turned out to a a Jacobean tapestry worth more than her house!

    Terry

  11. Bom Bom Bom Bom

    Offline
    Joined:
    Jun 25, 2008
    Messages:
    2,946
    Lovely stove and a nice conundrum.

    The whole pan rest thing seems very curious. Close examination of the pictures shows that each of the four pan rests have a square cut out on their outside top corner. As if something might sit over the top? Possibly some sort of heater conversion/option? I can't work out any other obvious manufacturing need for those cutouts. And why four rests when three producing the well known tripod effct would be more stable?

    My opinion is its got to be part of some bigger modular design otherwise it just doesn't make sense, especially given the steel tank pointing to it being produced during a period of general materials shortage.

    Cheers, Graham.

  12. presscall

    presscall United Kingdom Subscriber

    Offline
    Joined:
    Aug 25, 2009
    Messages:
    6,436
    Location:
    UK
    Thanks all, some interesting feedback there.

    I'm assuming it's original to the stove, but this travelling/keeper cap wasn't well thought out. Although the burner has that useful tommy bar, a spanner (wrench) would have to be packed with the stove just to remove and replace the cap

    1355954940-38.JPG 1355954979-39.JPG 1355955000-40.JPG


    I'll keep the cap with the stove as a curiosity, but I'll be using this - made up from a short length of brass rod and a remnant from a junked silent burner - to use with the stove. Far more in keeping with the spanner-free concept

    1355955012-41.JPG 1355955022-42.JPG 1355955032-43.JPG 1355955059-45.JPG






    Handy too for lifting out and lowering the stove into the box



    Next job is to sort out an arrangement to attach a longer chain from the stove leg to the cap in place of the existing chain affixed to the air screw.

    John

    Last edited by a moderator: Jun 27, 2015
  13. teletim United Kingdom

    Offline
    Joined:
    Jun 4, 2009
    Messages:
    1,211
    Good Job,well done :thumbup:
