Unknown make of spirit stove

Discussion in 'Other Brands' started by presscall, Aug 20, 2016.

  1. presscall

    presscall United Kingdom Subscriber

    Offline
    Joined:
    Aug 25, 2009
    Messages:
    6,442
    Location:
    UK

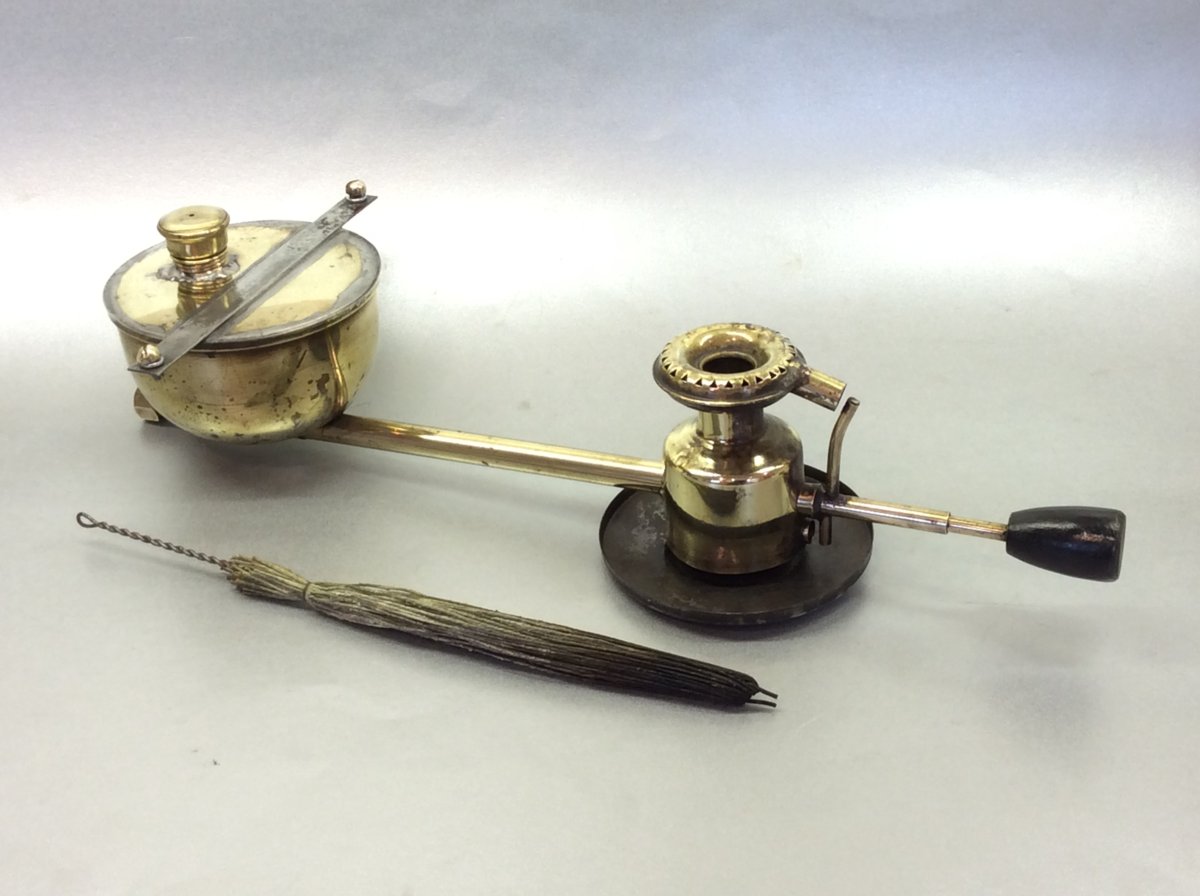

    Absolutely no manufacturer's markings, just the warning (in German) stamped on it to use only alcohol fuel.



    I've not come across this type of burner before. Wick is in good condition.

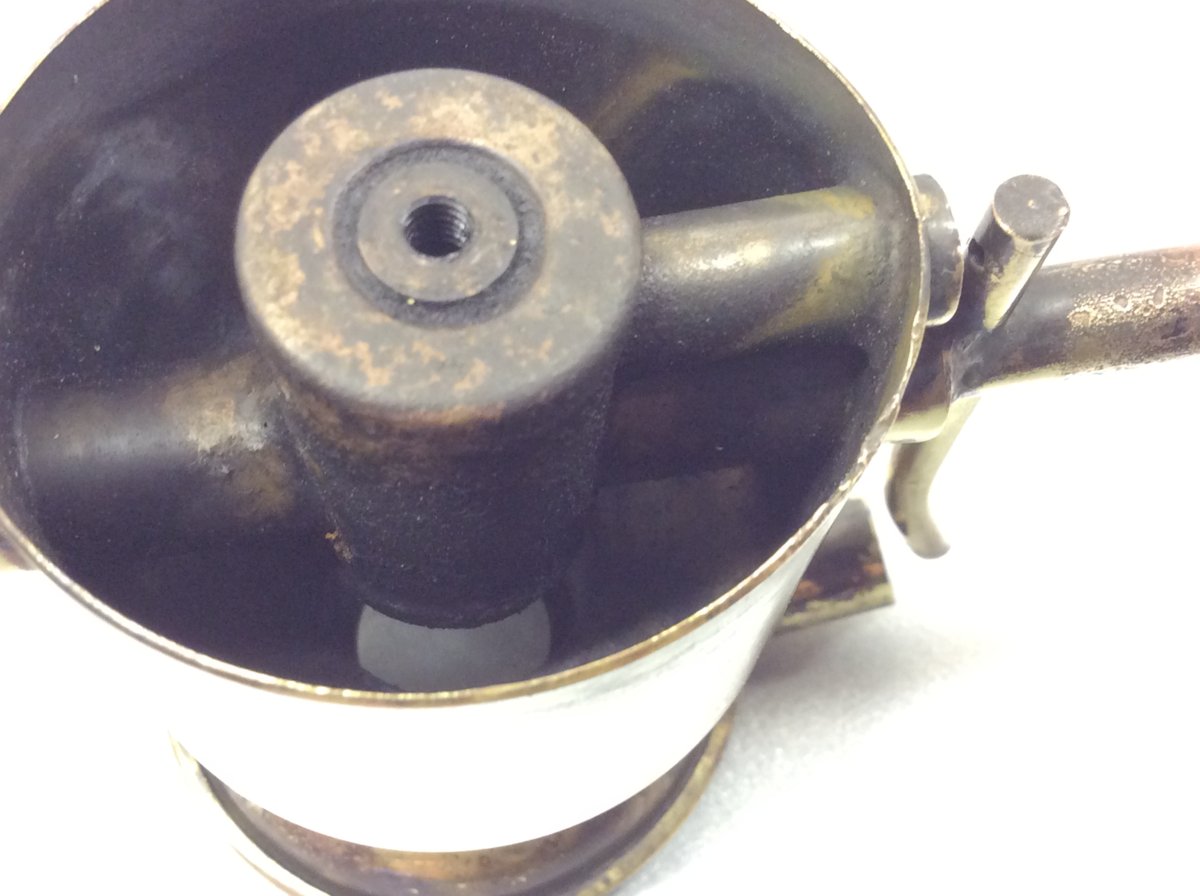

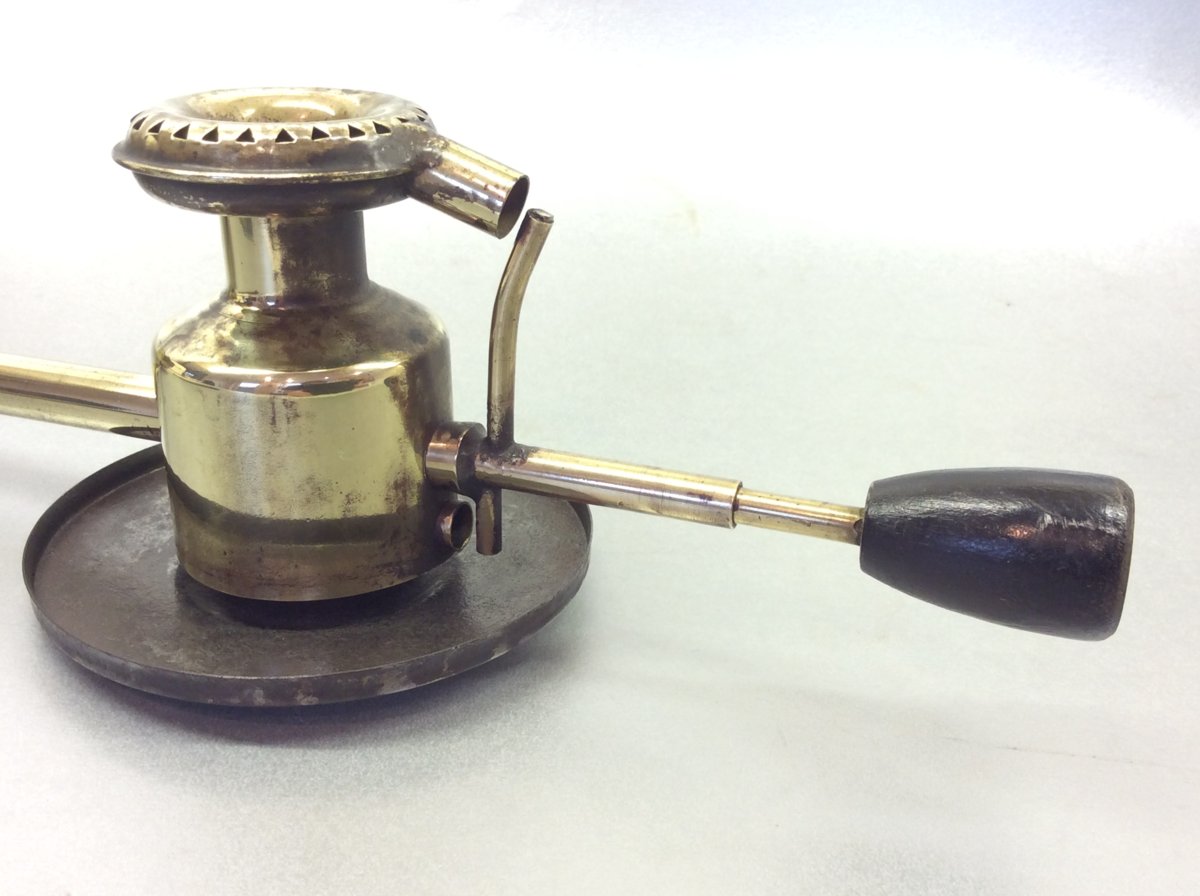

    Not visible are four radial holes in the inner tubular component and the heat from those jets, contained by the outer brass sleeve, maintains vapourisation.



    The fuel tank has an elegant shape to it. It's made of brass plated steel. I think that's to avoid the possible stress cracks that might have arisen if that shape were done in brass sheet. Well, as good a theory as any.



    Re-inserting the wick.

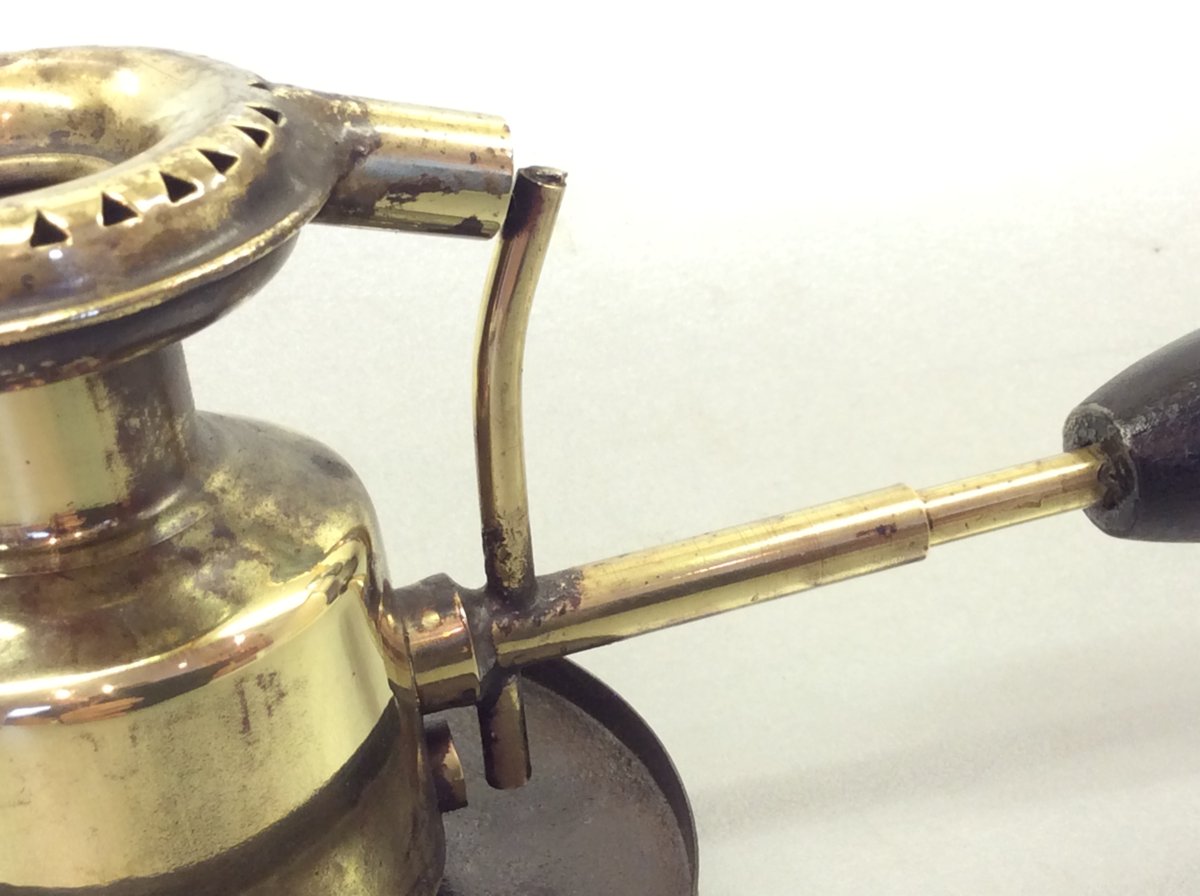

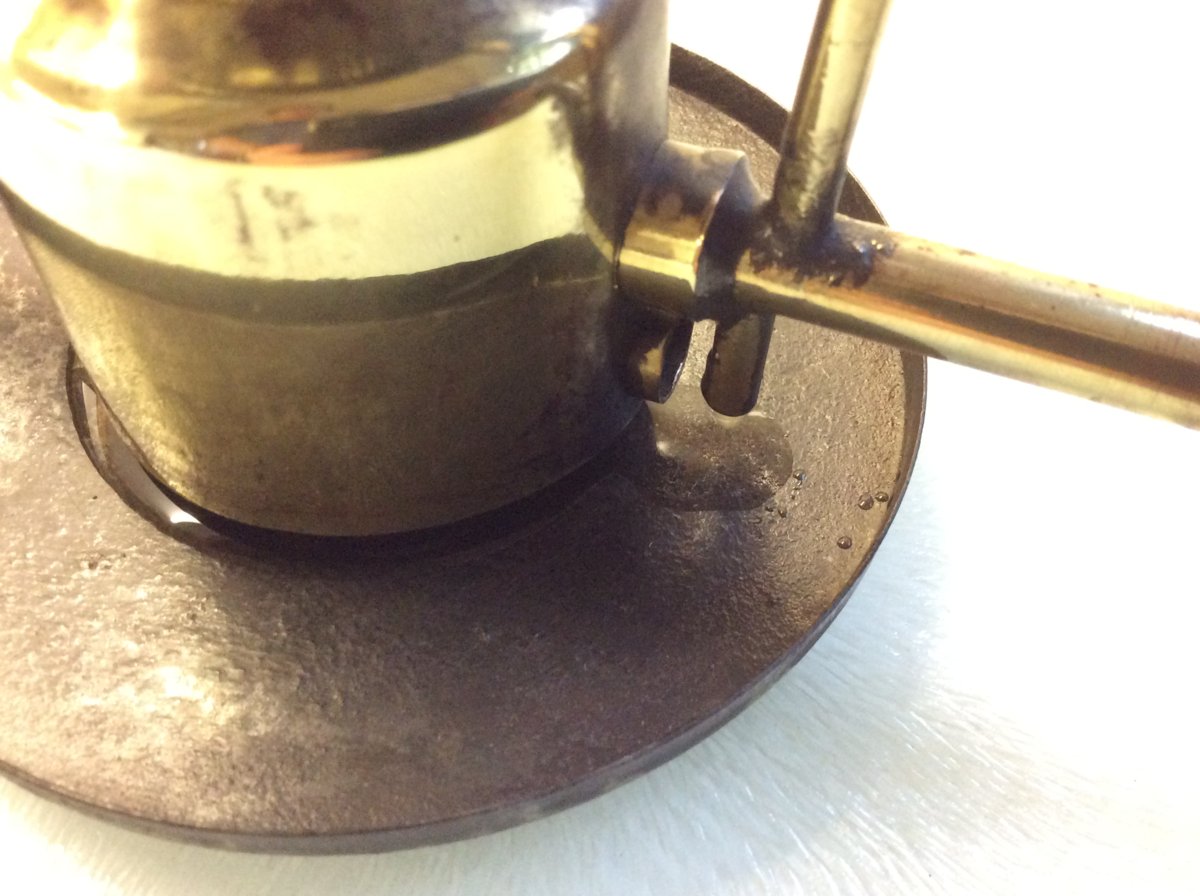

    Fuel in the tank, control valve opened to trickle some fuel into the priming pan.



    Priming.

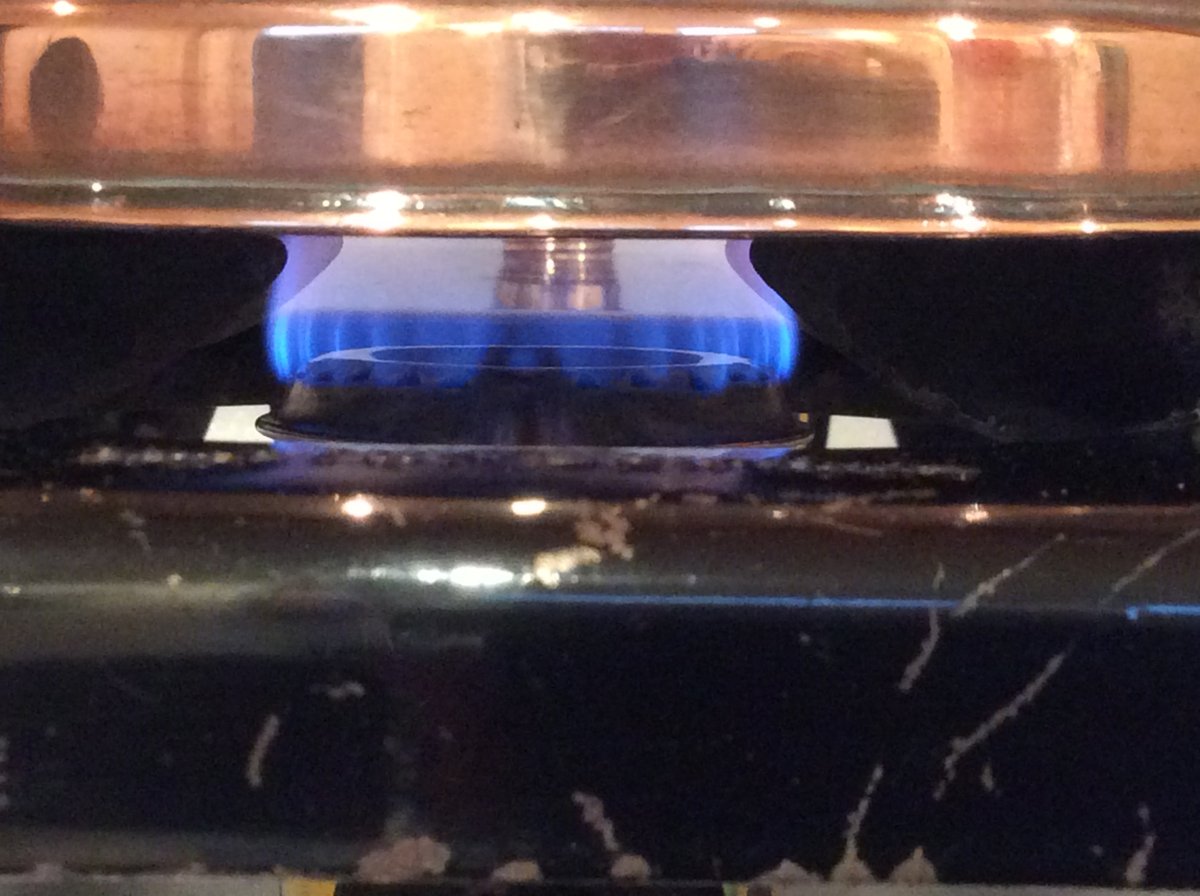

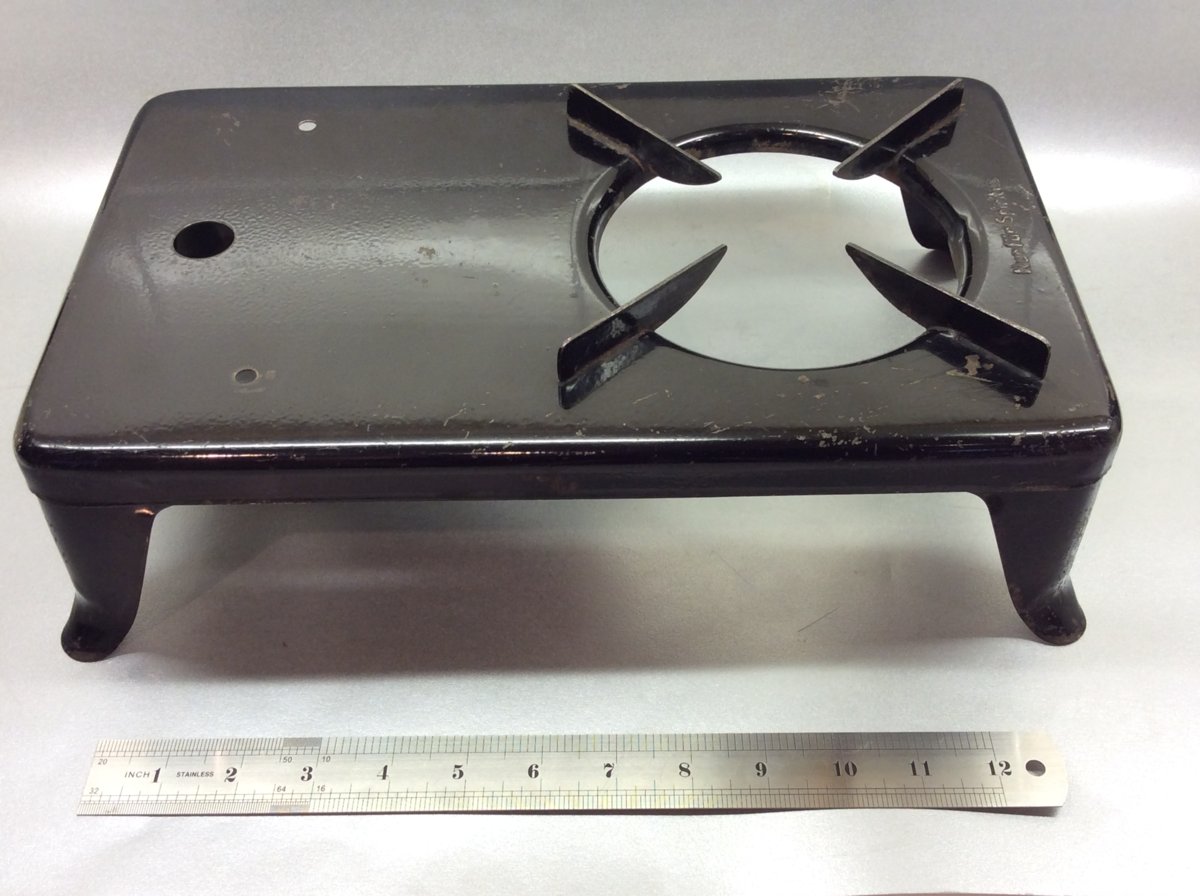

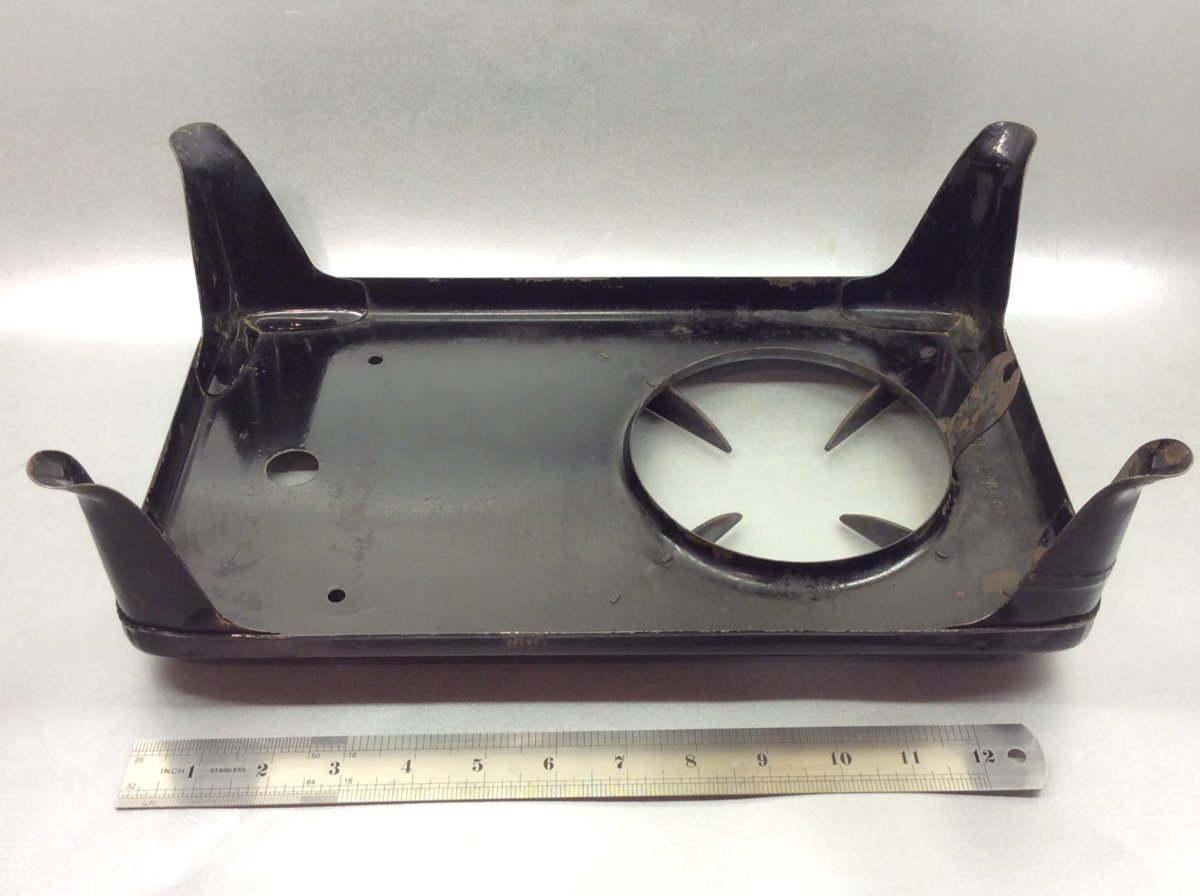

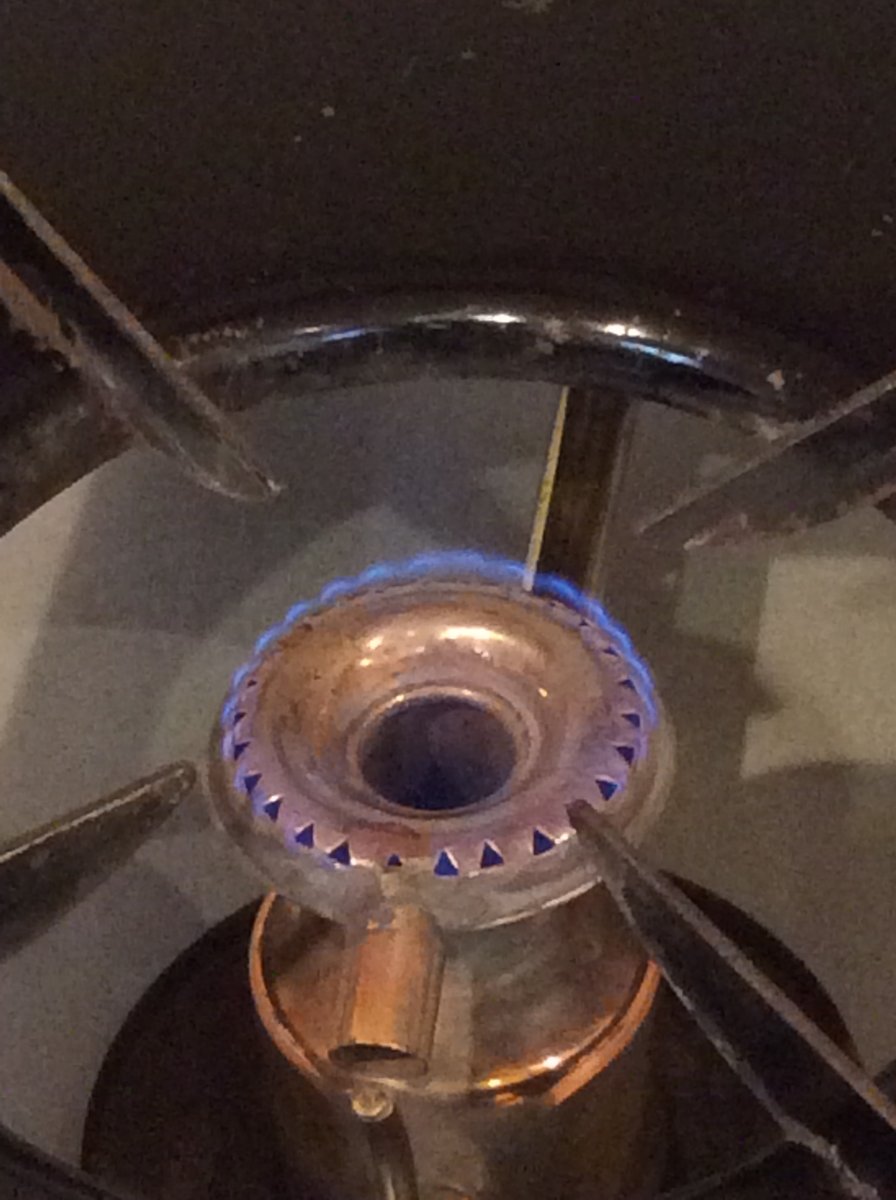

    A test firing went well - pics to follow. A few shots of the stove frame. Sizeable, making a sturdy base for full pots, so a practical kitchen stove.





    Burner/tank assembly reinstalled in the frame. The burner is powerful and very controllable.

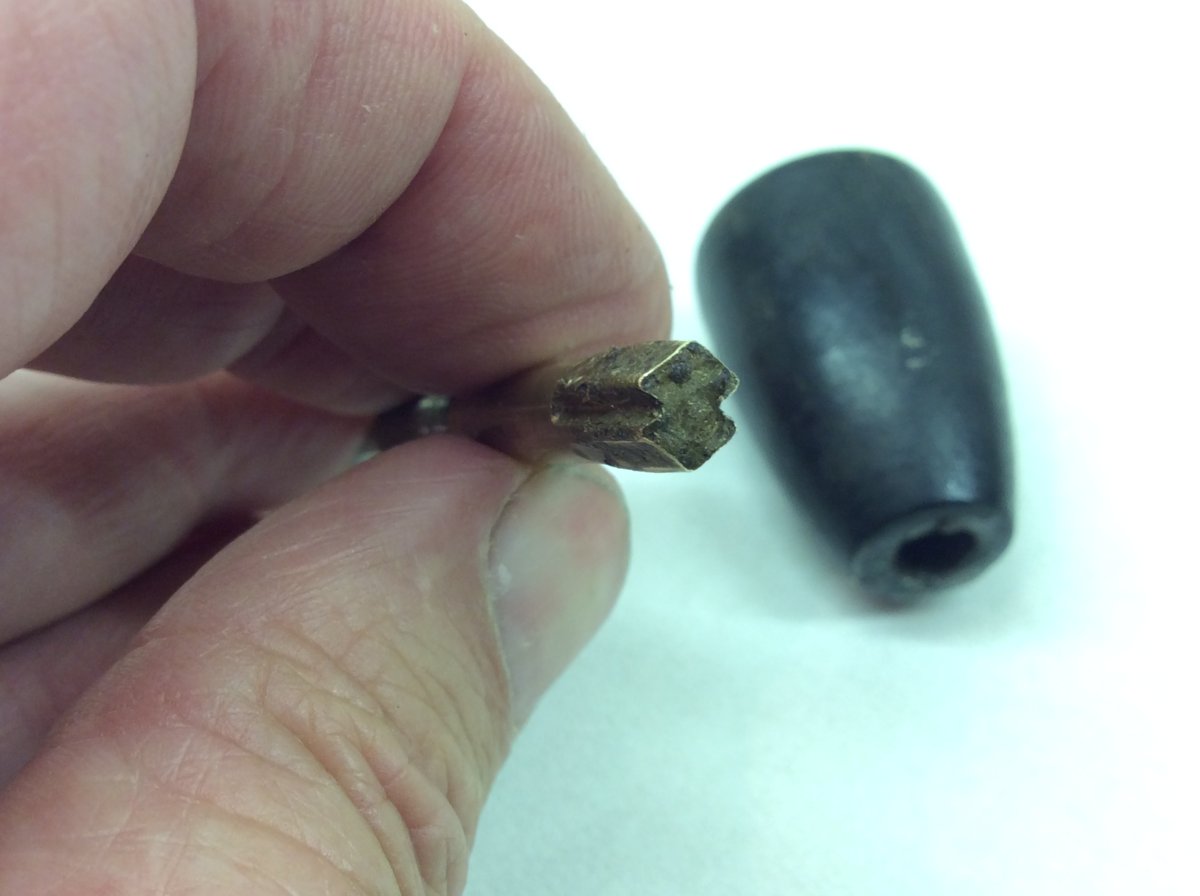

    Conducted heat softened the glue holding the control knob to the spindle (after all the years the stove has been around) but before I re-glued it - with epoxy adhesive - I took these pics to record the spindle cross-sectional shape that provides a key for the adhesive.




    I've been working through the catalogues in the Stove Reference Library but can't nail the manufacturer as yet.

    John

  2. teckguy_58

    teckguy_58 United States Subscriber

    Offline
    Joined:
    Mar 20, 2011
    Messages:
    627
    Location:
    Spokane, WA
    @presscall

    Hi John,

    You always seem to find the most interesting stoves. I'm not into alcohol stoves, but I'm starting to get into them.

    Cheers,
    Norman

  3. Etherman

    Etherman United States Subscriber

    Offline
    Joined:
    Mar 9, 2015
    Messages:
    367
    Location:
    USA
    Looks very similar to a Norma Gustav Barthel make. Although it seems to be missing the Proudly made makers marks.

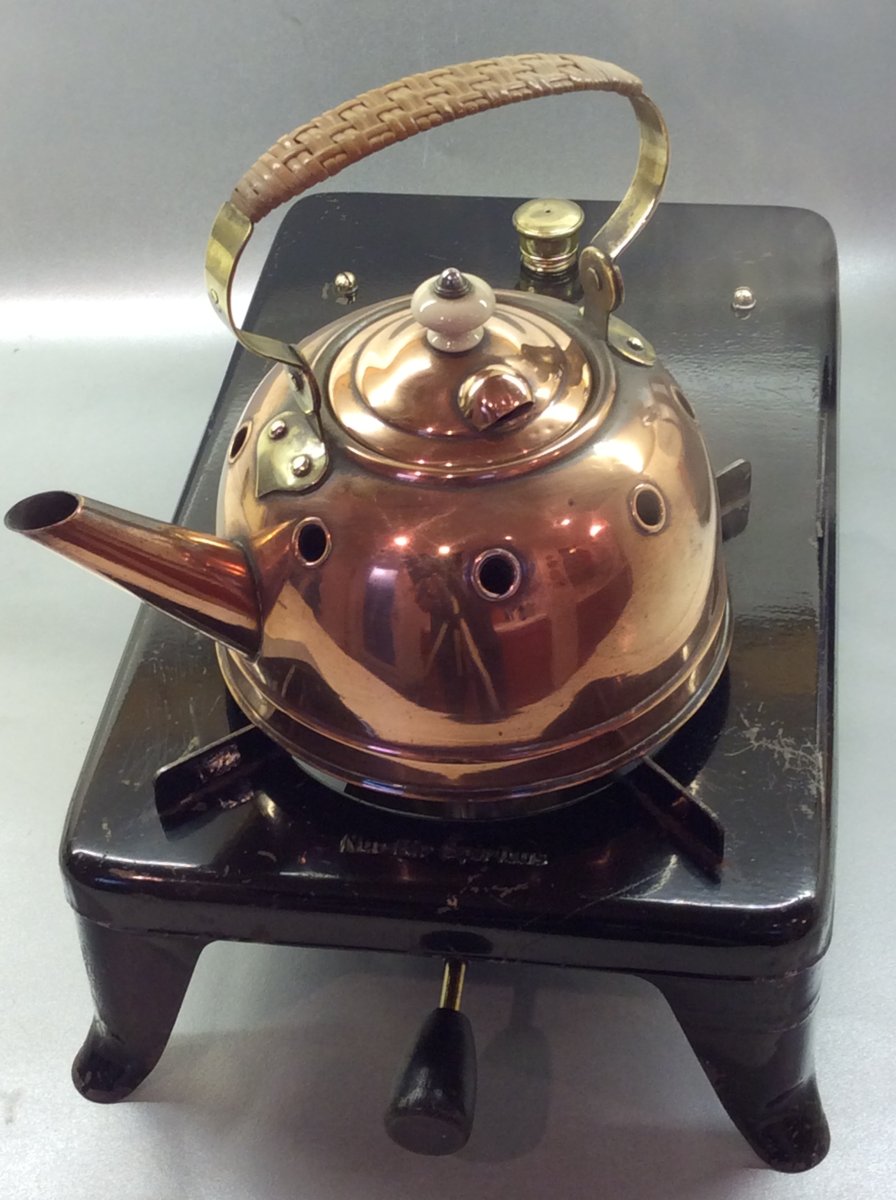

    Um bytheway your Kettle with the flue pass through tubes is amazing!!

    Ren

  4. Ray123

    Ray123 United States Subscriber

    Offline
    Joined:
    Mar 18, 2012
    Messages:
    838
    Location:
    New Hampshire, USA
    Hard to tell by the old catalogues but could it be Arara? I'm going by the shape of the control knob and general appearance. Of course many other brands look similar.

  5. gieorgijewski

    gieorgijewski Poland Subscriber

    Online
    Joined:
    Apr 19, 2013
    Messages:
    1,180

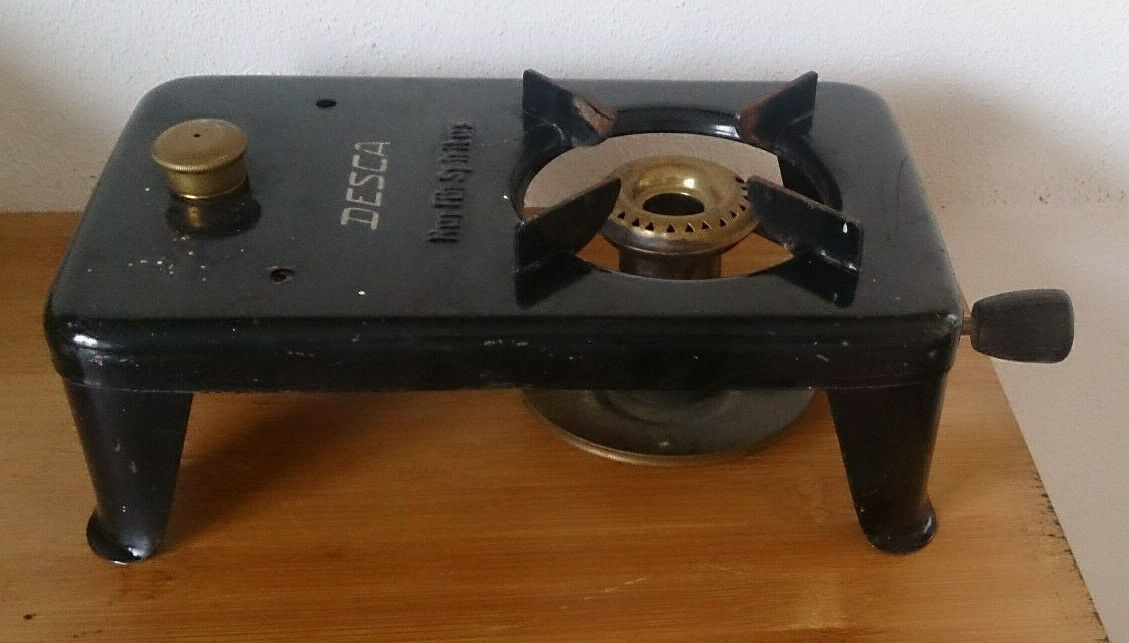

    TRESOR
    All The Best...
    :)

  6. presscall

    presscall United Kingdom Subscriber

    Offline
    Joined:
    Aug 25, 2009
    Messages:
    6,442
    Location:
    UK
    Well hunted @gieorgijewski! Thank you.

    I have no information on the manufacturer, Tresor. Sounds Spanish.

    John

  7. gieorgijewski

    gieorgijewski Poland Subscriber

    Online
    Joined:
    Apr 19, 2013
    Messages:
    1,180

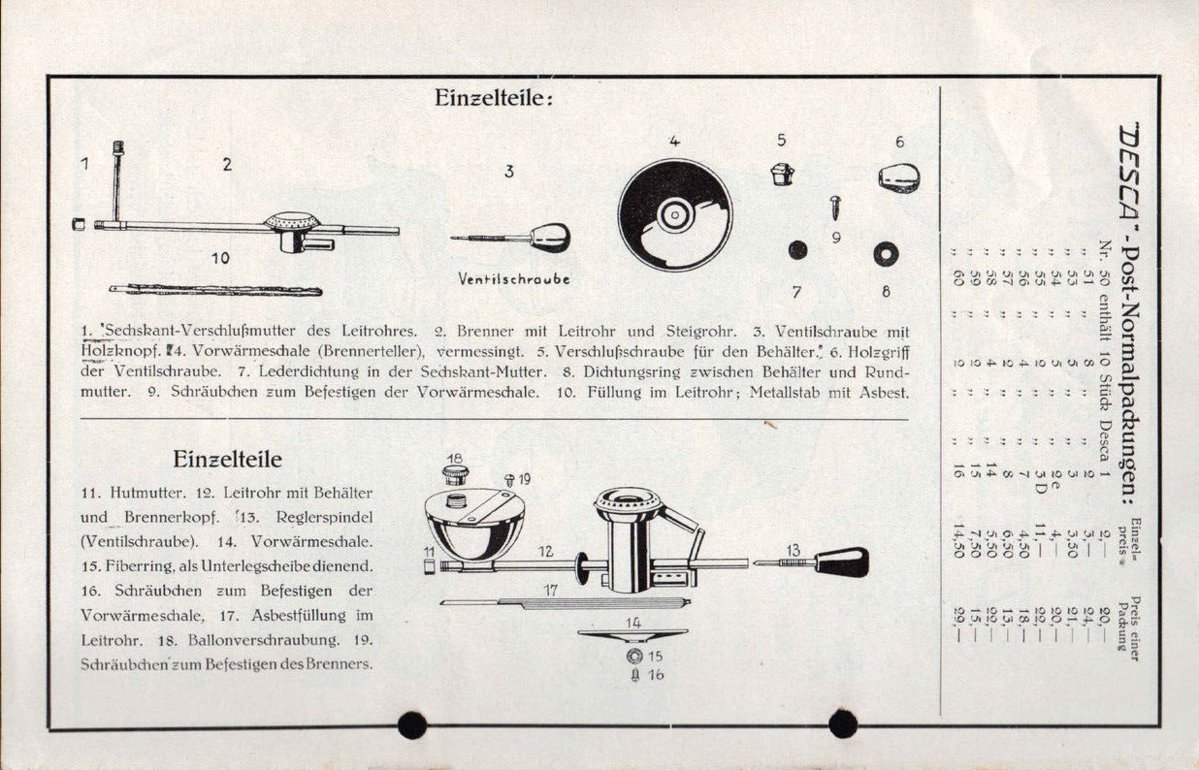

    last seen VI. 2016 in Austria auction
    that time - second example to - like Yours - without name

  8. presscall

    presscall United Kingdom Subscriber

    Offline
    Joined:
    Aug 25, 2009
    Messages:
    6,442
    Location:
    UK
    Thanks again.
