8R "Optimus" embossed

Discussion in 'Optimus No:8R' started by Metropolitantrout, Apr 30, 2018.

  1. Metropolitantrout

    Metropolitantrout SotM Winner Subscriber

    Offline
    Joined:
    Feb 3, 2011
    Messages:
    1,216
    Location:
    Santa Cruz, CA

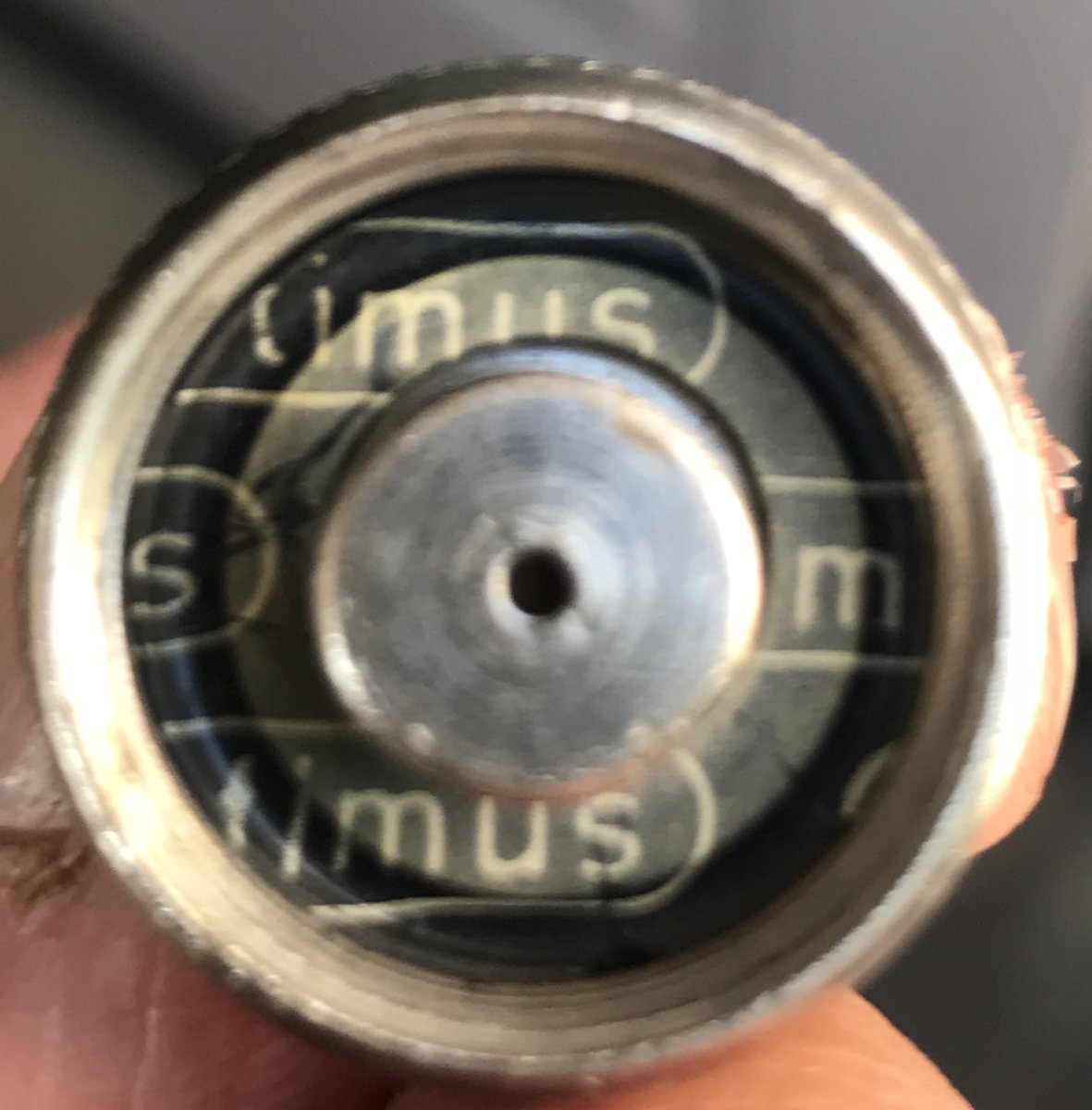

    I like these early 8Rs with the embossed Optimus logo.



    I've read that these debuted in '59 and since this one has a nickel tank (probably left over stock from model 8 stock) I'm guessing this is in that timeframe.

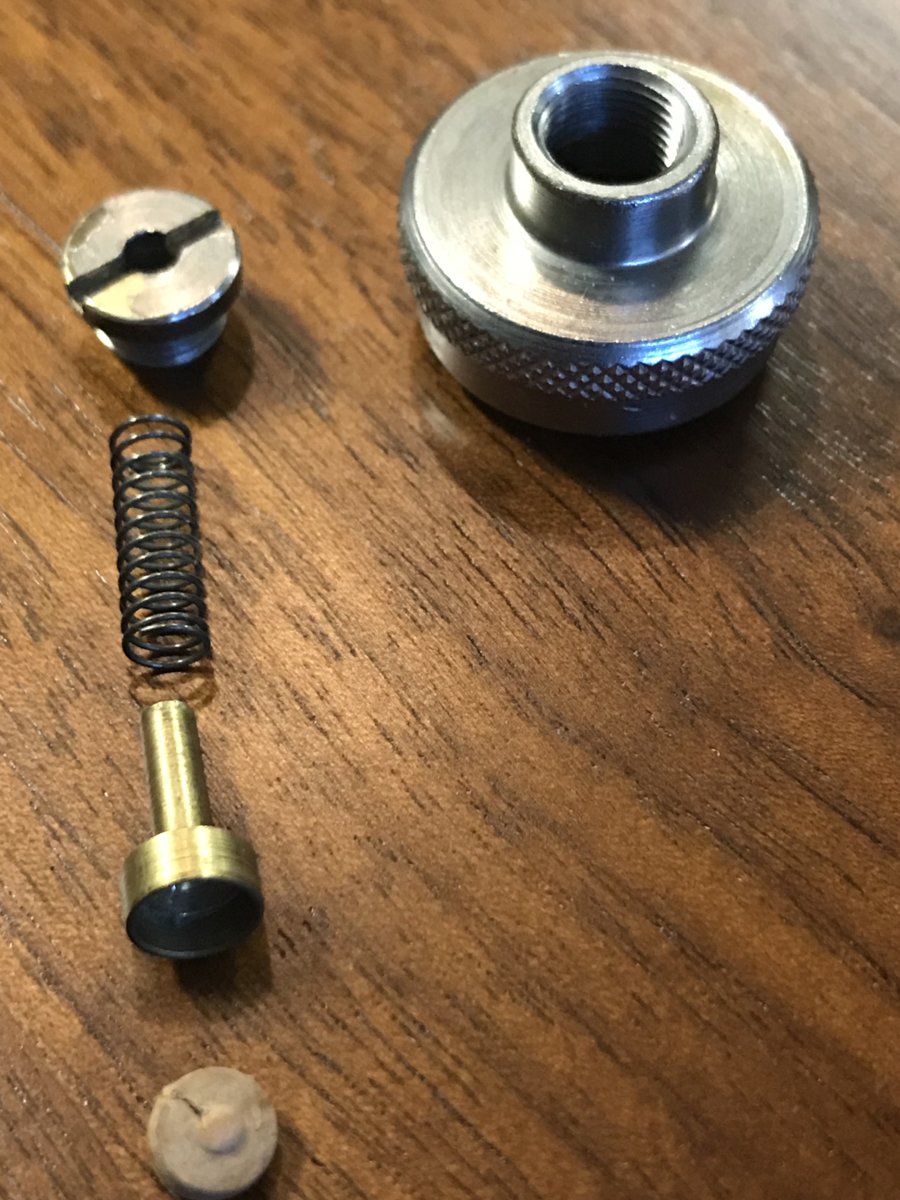

    Unique SRV assembly with it's long shafted PIP cup. A two day soak in acetone broke up the thread lock and it came apart easily. The pip cup accepts a pip of 5.5mm. A bit larger than most which run 4 or 4.5mm. This cork pip was in good shape and since I don't have a 5.5mm punch I decided to put it back in.



    The original cap seal was replaced with one from the Fettlebox.

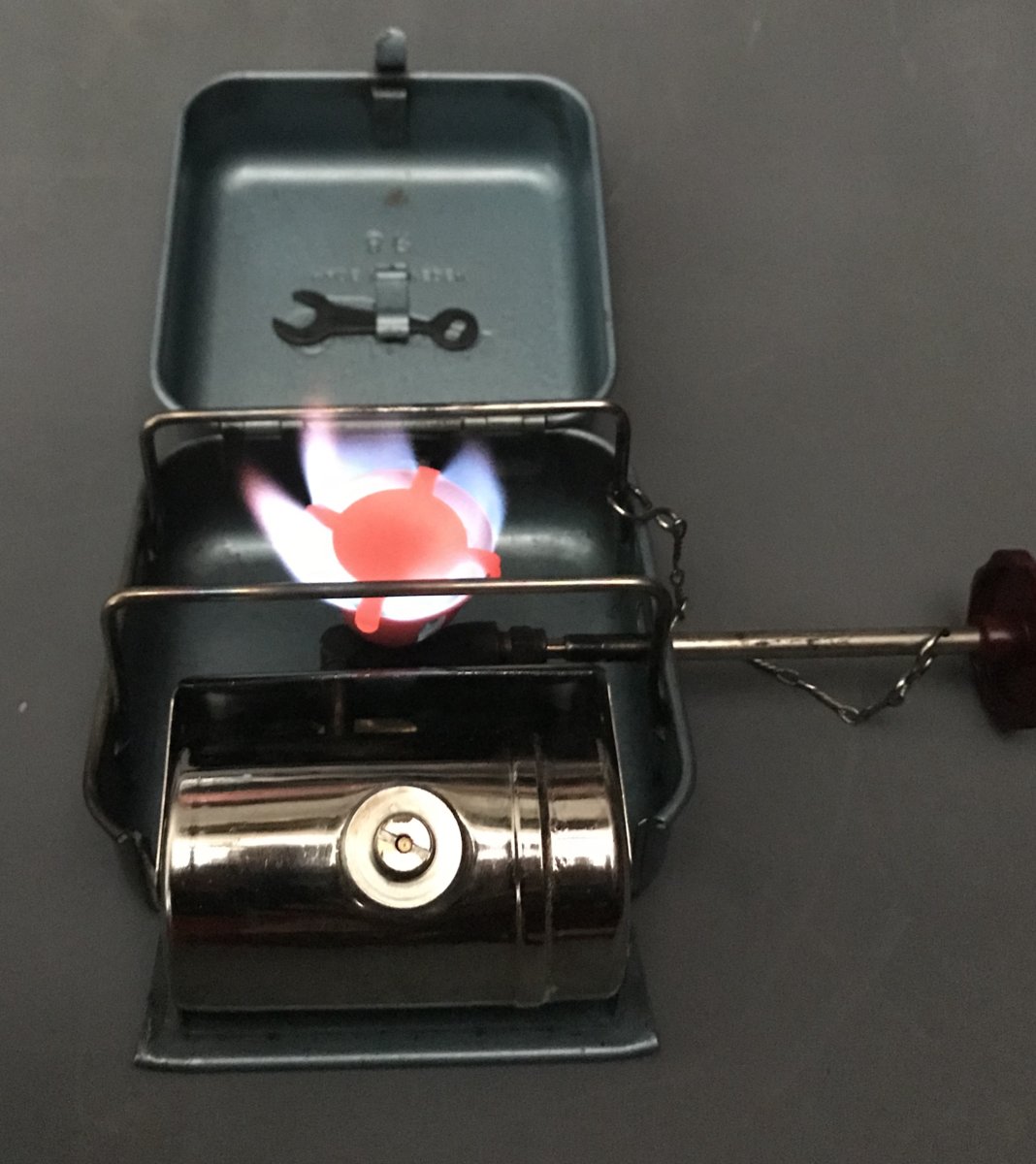

    Runs great, cork PIP and all. Jerry

  2. goldwinger11

    goldwinger11 United States Subscriber

    Offline
    Joined:
    Aug 15, 2017
    Messages:
    303
    Location:
    Merlin, Oregon, USA
    Good looking one.

  3. threedots New Zealand

    Offline
    Joined:
    Sep 2, 2006
    Messages:
    793
    Hello Jerry. Very nice example. I prefer the cork pips. They work well.
    Put a drip of fine oil into the hole on the underside of the tank cap to keep the cork moist and so it doesn't stick to the safety valve seat.
    John

  4. Metropolitantrout

    Metropolitantrout SotM Winner Subscriber

    Offline
    Joined:
    Feb 3, 2011
    Messages:
    1,216
    Location:
    Santa Cruz, CA
    Thanks guys!
    I’ll try that John, good idea.

    Jerry

  5. SimonFoxxx

    SimonFoxxx Subscriber

    Offline
    Joined:
    Dec 17, 2011
    Messages:
    392
    Location:
    New Zealand
    Any one know when Optimus and/or Primus stopped using cork as pips their SRV's?

    Cheers
    Simon Foxxx
    New Zealand

  6. kerophile

    kerophile United Kingdom SotM Winner Subscriber

    Offline
    Joined:
    Sep 23, 2004
    Messages:
    13,044
    Location:
    Far North of Scotland
    Hi @SimonFoxxx . I wrote this about the Optimus change-over date from cork to rubber for NRVs:





    From this thread:
    https://classiccampstoves.com/threa...ptimus-no-45-and-48-stoves.28117/#post-286793

    Best Regards,
    Kerophile.

  7. SimonFoxxx

    SimonFoxxx Subscriber

    Offline
    Joined:
    Dec 17, 2011
    Messages:
    392
    Location:
    New Zealand
    Hiya Mr Kerophile,

    This matches my understanding for the 111B I have, it has a priming fluid bottle and rag supplied when new. It had a cork SRV pip, and one piece rubber "cone" pip. My belief always was that it was early 1960's. Your information is helpful. Thanks.

    Cheers
    Simon Foxxx

  8. kerophile

    kerophile United Kingdom SotM Winner Subscriber

    Offline
    Joined:
    Sep 23, 2004
    Messages:
    13,044
    Location:
    Far North of Scotland
    Hi @SimonFoxxx . Unfortunately my research only refers to Optimus NRVs, as the SRV is designed to be tamper-proof for the user, so only the complete cap, or rubber packing or seal are listed in the parts lists of the catalogues.
    Best Regards,
    Kerophile.

  9. kerophile

    kerophile United Kingdom SotM Winner Subscriber

    Offline
    Joined:
    Sep 23, 2004
    Messages:
    13,044
    Location:
    Far North of Scotland
    Hi @SimonFoxxx , It is interesting that you recieved the spirit can with your early Op.111b. This is not to be expected:

    From this thread:

    https://classiccampstoves.com/threads/optimus-111-from-1950s.26581/

    Best Regards,
    Kerophile.

  10. SimonFoxxx

    SimonFoxxx Subscriber

    Offline
    Joined:
    Dec 17, 2011
    Messages:
    392
    Location:
    New Zealand
    Cork pips can't have been used too much past 1962, do you think?

  11. kerophile

    kerophile United Kingdom SotM Winner Subscriber

    Offline
    Joined:
    Sep 23, 2004
    Messages:
    13,044
    Location:
    Far North of Scotland
    Hi @SimonFoxxx I have no direct evidence, but think it likely that Optimus standardised on “rubber” compound washers for NRVs and SRVs in the early 1960s.
    Best Regards,

  12. SimonFoxxx

    SimonFoxxx Subscriber

    Offline
    Joined:
    Dec 17, 2011
    Messages:
    392
    Location:
    New Zealand
    All good, thanks for advice

  13. Mark Layman

    Offline
    Joined:
    Feb 20, 2018
    Messages:
    423
    Location:
    USA West Virginia
    Very nice. I have one also. Embossed is boss.
