Barthel Bunsen Burner 'Korall'

Discussion in 'Other Barthel Brands' started by pietpararrafien1, Apr 1, 2008.

  1. pietpararrafien1

    Offline
    Joined:
    Mar 16, 2008
    Messages:
    1
    Hello Everyone

    I recently acquired an paraffin item, that I can't find any information on. The Stove/Lamp id labeled "G. Barthel":



    I have no idea what this is used for. Any information would be much appreciated, particularly regarding whatever items were attached to the "arm". If anyone could add some pictures detailing this item, it would be a great help.

    Thanks in advance!

    Last edited by a moderator: Jun 26, 2015
  2. shagratork

    shagratork United Kingdom Moderator, R.I.P. Subscriber

    Offline
    Joined:
    Aug 9, 2005
    Messages:
    9,641
    Location:
    Durham, N.E. England
    Hi pietpararrafien1

    Such a nice, unusual stove!!

  3. Spiritburner

    Spiritburner Admin Subscriber

    Offline
    Joined:
    Jul 23, 2004
    Messages:
    10,479
    Location:
    N.E. England
    What you have there was classified as a laboratory burner - this model is the 'Korall'


    Last edited by a moderator: Jun 26, 2015
  4. gieorgijewski

    gieorgijewski Subscriber

    Offline
    Joined:
    Apr 19, 2013
    Messages:
    2,284
  5. Brassmonkey

    Brassmonkey United Kingdom Subscriber

    Offline
    Joined:
    Aug 21, 2019
    Messages:
    25
    Location:
    Yate, Bristol
    Hi pietpararrafien1,

    I have recently started to restore a G. Barthel Bunsen Burner 'Korall'. See attached picture.

    I would be grateful for advice on what fuel to use and any tips on how to operate?

    Do you still have yours and is it running?

    Thanks,

    Brassmonkey.




    Last edited by a moderator: Mar 30, 2020
  6. Wim

    Wim Subscriber

    Offline
    Joined:
    May 12, 2009
    Messages:
    4,221
    Location:
    Dendermonde, Belgium
    Hi @Brassmonkey , Piet has made a single post on april 1th, 2008 and has not come back since.

  7. Brassmonkey

    Brassmonkey United Kingdom Subscriber

    Offline
    Joined:
    Aug 21, 2019
    Messages:
    25
    Location:
    Yate, Bristol
    Thank you for the feedback Wim.

    I hope that Piet has not had a misadventure with his G. Barthel Bunsen Burner 'Korall'!

    I guess I will have to wait and hope that one of the members has some information or experience and can help.

    Regards

    Brassmonkey

  8. kerophile

    kerophile United Kingdom SotM Winner Subscriber

    Offline
    Joined:
    Sep 23, 2004
    Messages:
    11,638
    Location:
    Far North of Scotland
    The Bartel Korall Bunsen Burner is designed to run on Paraffin/ Kerosene.
    If you chose to become a subscriber you will have access to the Catalogues in the Library section.
    Highly recommended and excellent value.
    Best Regards,
    Kerophile.

  9. Brassmonkey

    Brassmonkey United Kingdom Subscriber

    Offline
    Joined:
    Aug 21, 2019
    Messages:
    25
    Location:
    Yate, Bristol
    Great! Thank you for the response Kerophile.

    Subscription now paid so here we go......!!!!

    Regards,

    Brassmonkey

  10. kerophile

    kerophile United Kingdom SotM Winner Subscriber

    Offline
    Joined:
    Sep 23, 2004
    Messages:
    11,638
    Location:
    Far North of Scotland
  11. Brassmonkey

    Brassmonkey United Kingdom Subscriber

    Offline
    Joined:
    Aug 21, 2019
    Messages:
    25
    Location:
    Yate, Bristol
    Thank you Kerophile! Fantastic information links. Appreciated!

    Now in the process of sorting a new rubber or cup for the pump and hope to have it running soon.

    I will video the first lighting and share on the forum.

    Kind regards,

    Brassmonkey

  12. Brassmonkey

    Brassmonkey United Kingdom Subscriber

    Offline
    Joined:
    Aug 21, 2019
    Messages:
    25
    Location:
    Yate, Bristol
    Can anyone help?

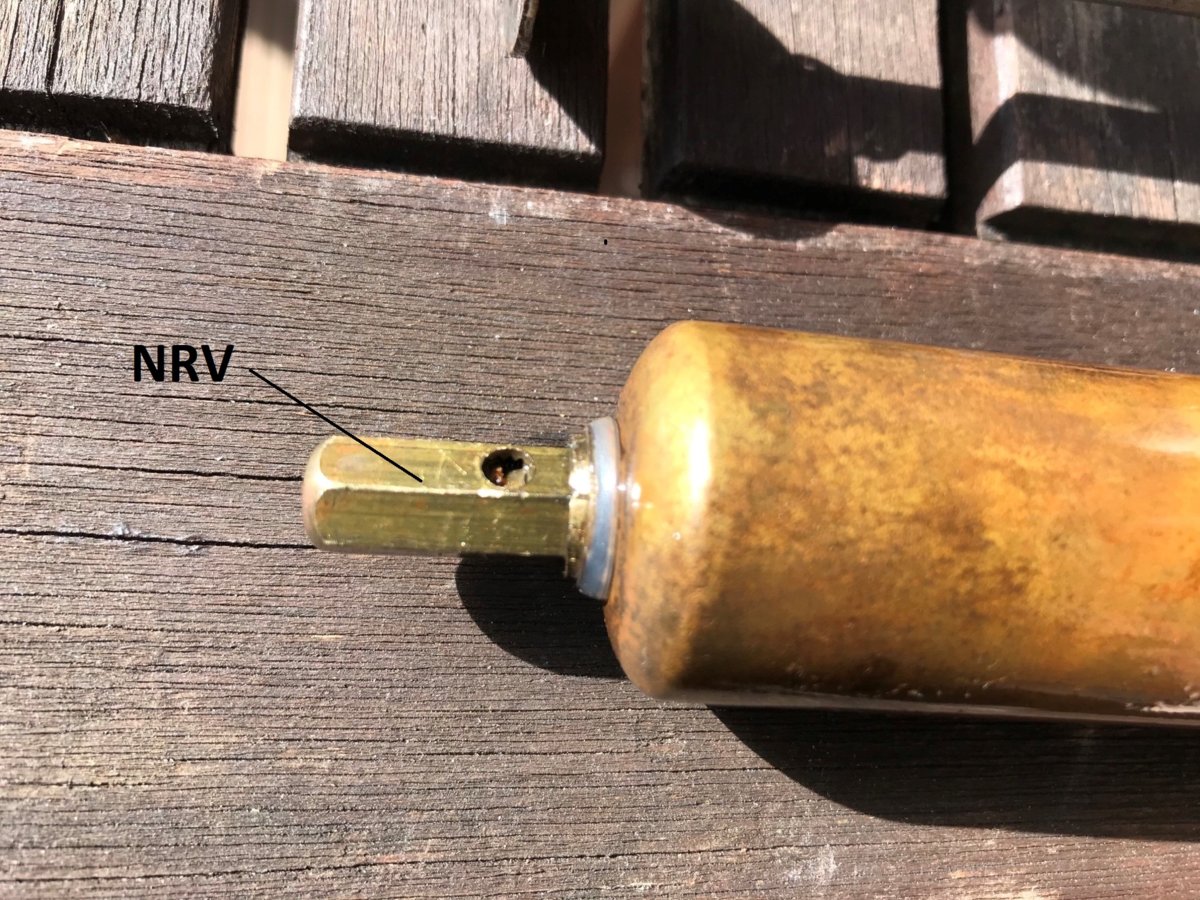

    Tried to get the G.Barthel running today with little success. I had trouble with a leaky NRV. I have attached a picture of the NRV in the hope someone can suggest a suitable replacement or where I can get one made.

    Followed the Lighting procedure for a Paraffin stove and particularly Additional notes for stoves with a flame control tap supplied by Kerophile, but had a problem controlling the flame. I believe there may be a jet missing in the vapoursing tube see attached photo.

    Also need a leather cup or fuel resistant washer for the pump - 25mm diameter with 6mm central hole. Can anyone suggest where I may be able to locate one?

    Any suggestions on how to renovate, light and control the burner would be gratefully received.

    Cheers!

    Brassmonkey.

    G. Barthel - NRV. Labelled..jpg G.Barthel - Burner jet. With labels..jpg G.Barthel - Flame spreader openening from bottom..jpg G.Barthel - pump body and rod..jpg G.Barthel complete..jpg

    Last edited by a moderator: Mar 30, 2020
  13. Simes

    Simes Subscriber

    Offline
    Joined:
    Jul 26, 2004
    Messages:
    4,506
    Location:
    I'm on the way....
    Under different circumstances I' pop over, would be nice to see it in the flesh. I'm inly 40 mins from you.

  14. gieorgijewski

    gieorgijewski Subscriber

    Offline
    Joined:
    Apr 19, 2013
    Messages:
    2,284
    1 oring is not good choice for seal pump on flat surface
    ...The pump seals to the tank with a fibre washer with a thin lead washer behind...
    Juwel No:6


    [​IMG]
    2 NRV "body" seal
    best seal is thin lead
    3 NRV
    - just use fresh vitton
    - clean internal surface - to preserve "spring hanging"
    4 leather washer for the pump
    - easy to be done
    6 missing jet
    what is "mount" diameter?

    Juwel No:6
    that is similar construction

  15. Brassmonkey

    Brassmonkey United Kingdom Subscriber

    Offline
    Joined:
    Aug 21, 2019
    Messages:
    25
    Location:
    Yate, Bristol
    Thank you Christpher for sorting photos to thread.

    Hi gieorgijewski thank you for the advice and response.

    1 O ring - I agree with your comments. O ring is temporary whilst I source fibre washer with correct diameter.
    2 I have now found thin lead washer for NRV and will fit it shortly.
    3 I have tried to separate NRV to gauge diameter of Vitton pip. It is stubborn and I do not want to damage it in my haste to renovate, so will try non destructive methods to free up and dismantle. Does anyone know where I might locate Vitton to make one or buy pip readymade?
    Will check internal surfaces as you advise and make sure spring is free.
    4 I was hoping to cheat and buy a leather washer but can make my own as you advise. I have watched the brilliant vidoes on forum on how to do this.
    6 missing jet. - "mount" diameter is 5mm and has a thread. See photo.
