Bat 2/607 Collapsible (post 1974)

Discussion in 'Bat' started by ROBBO55, Dec 21, 2016.

  1. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 27, 2014
    Messages:
    1,215
    Location:
    Somersby, New South Wales, Australia

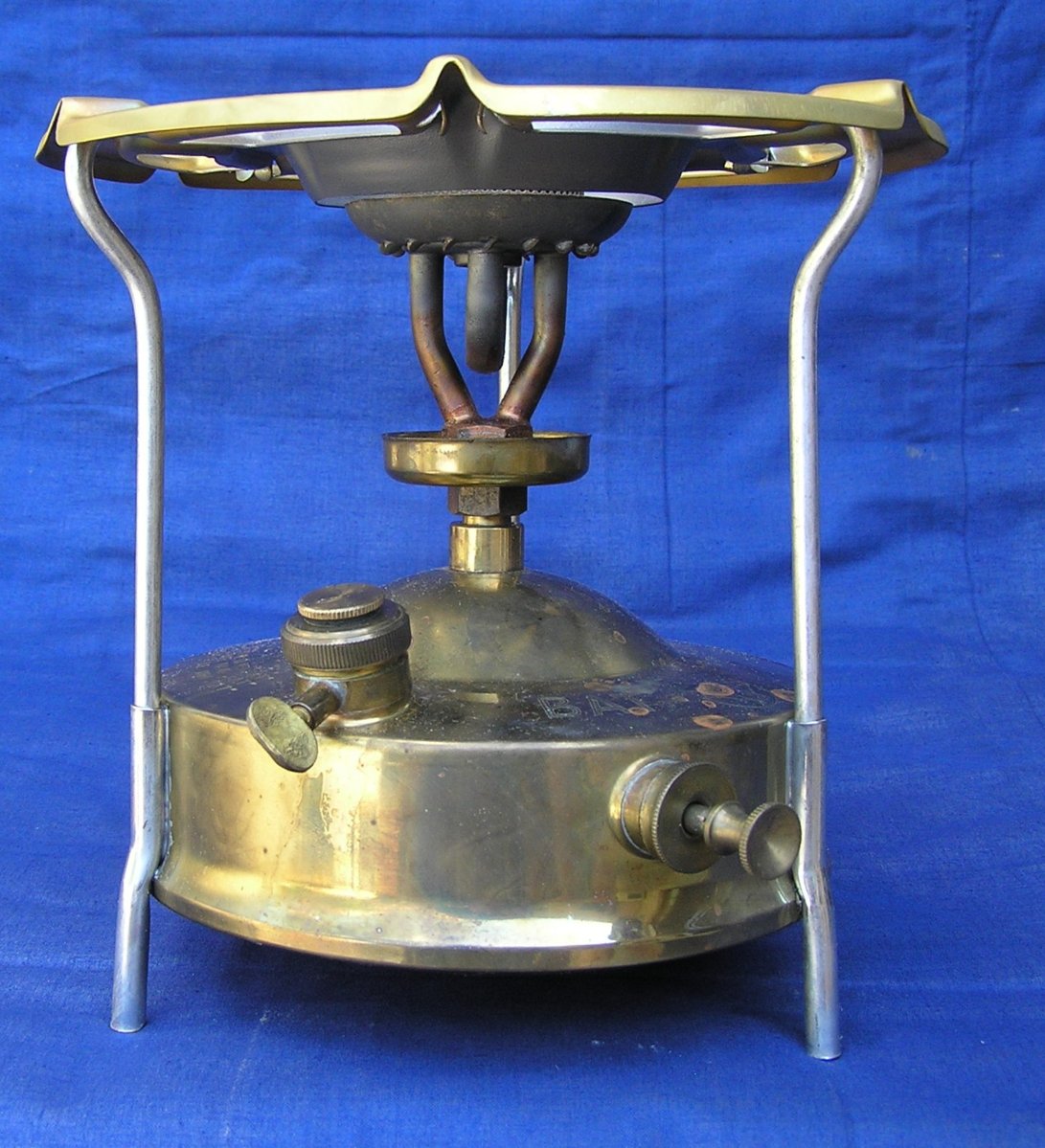

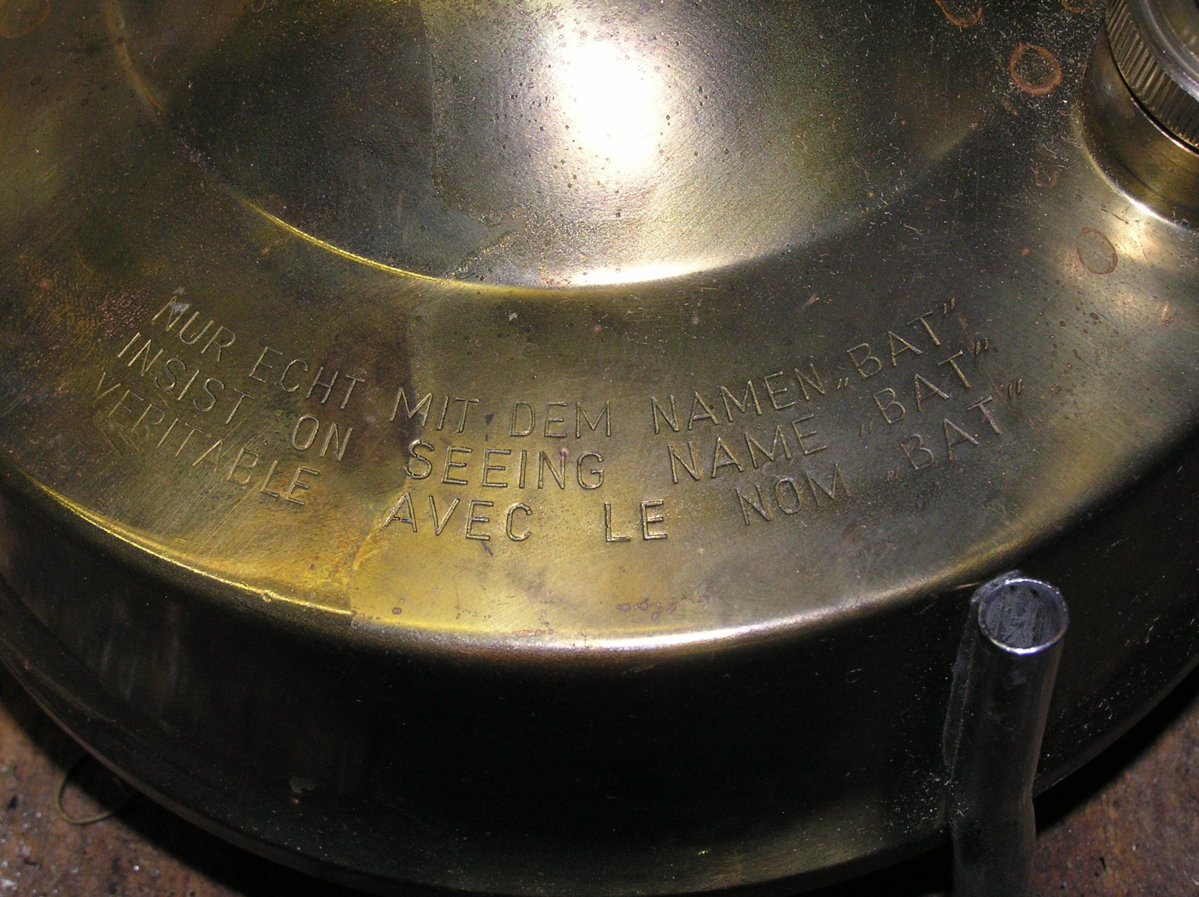

    I believe this is one of the variations of the 2/607 collapsible stove.

    2 pint kerosene / paraffin stove.
    Silent burner
    Made in GDR (German Democratic Republic)

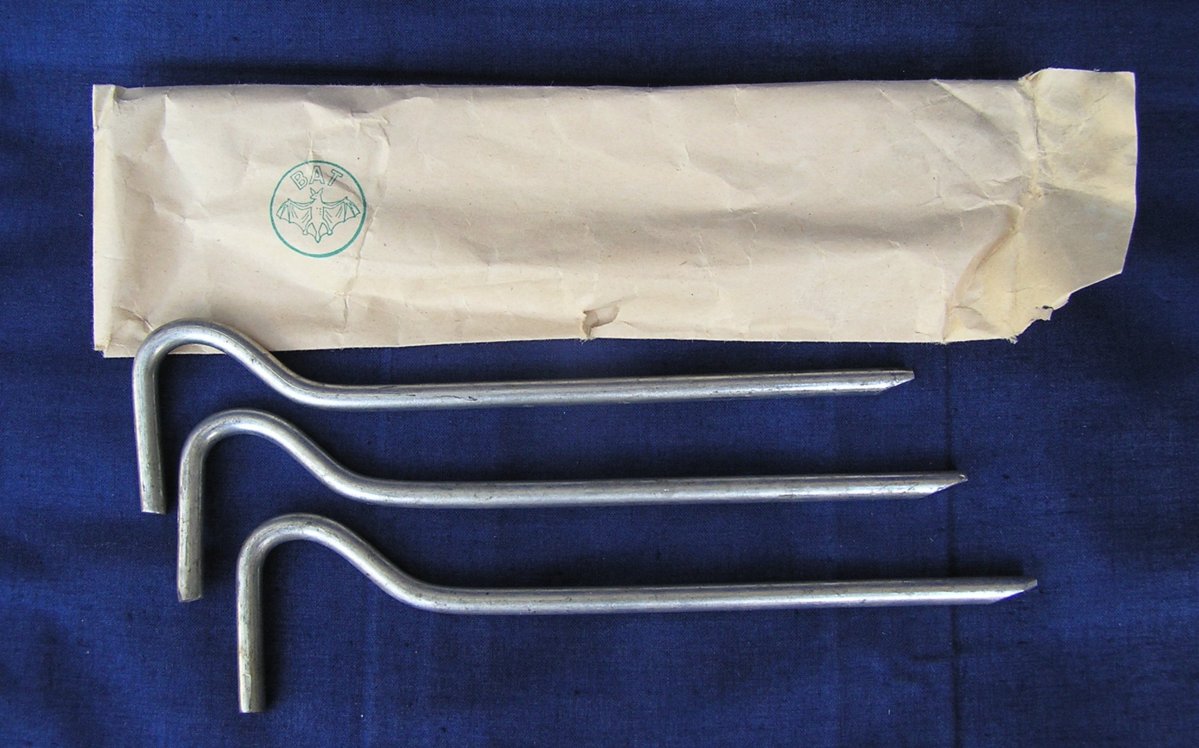

    Steel feet made from split tube.
    It has a short riser tube.
    The burner to tank (riser tube) connection has a 13mm diameter thread.

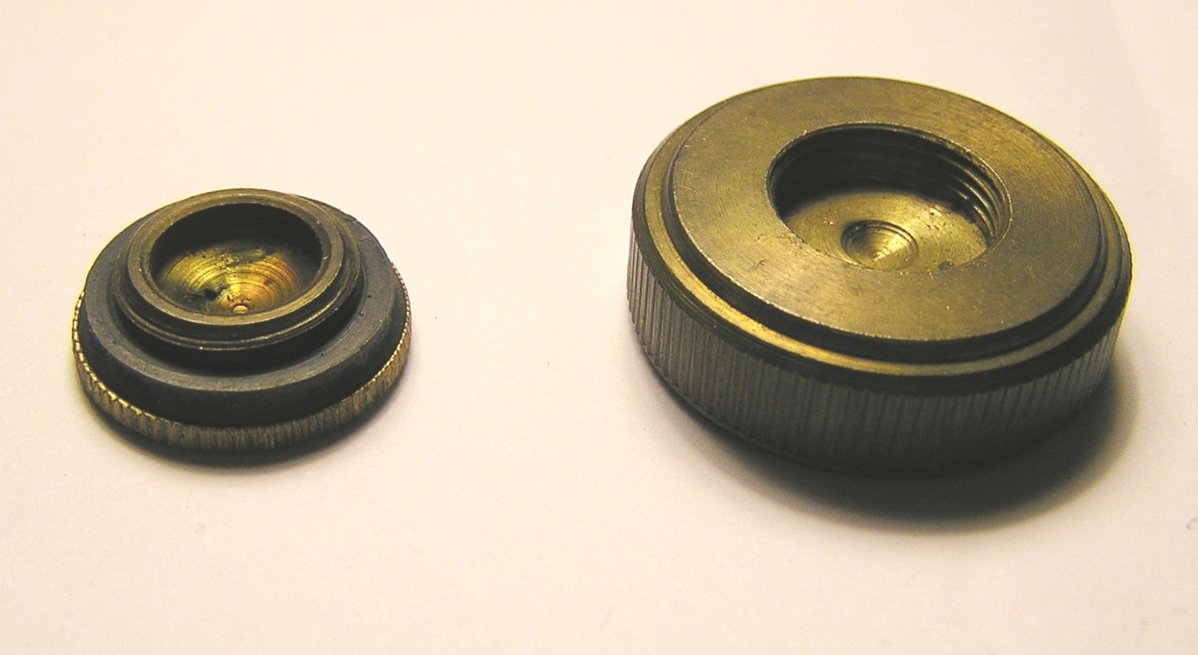

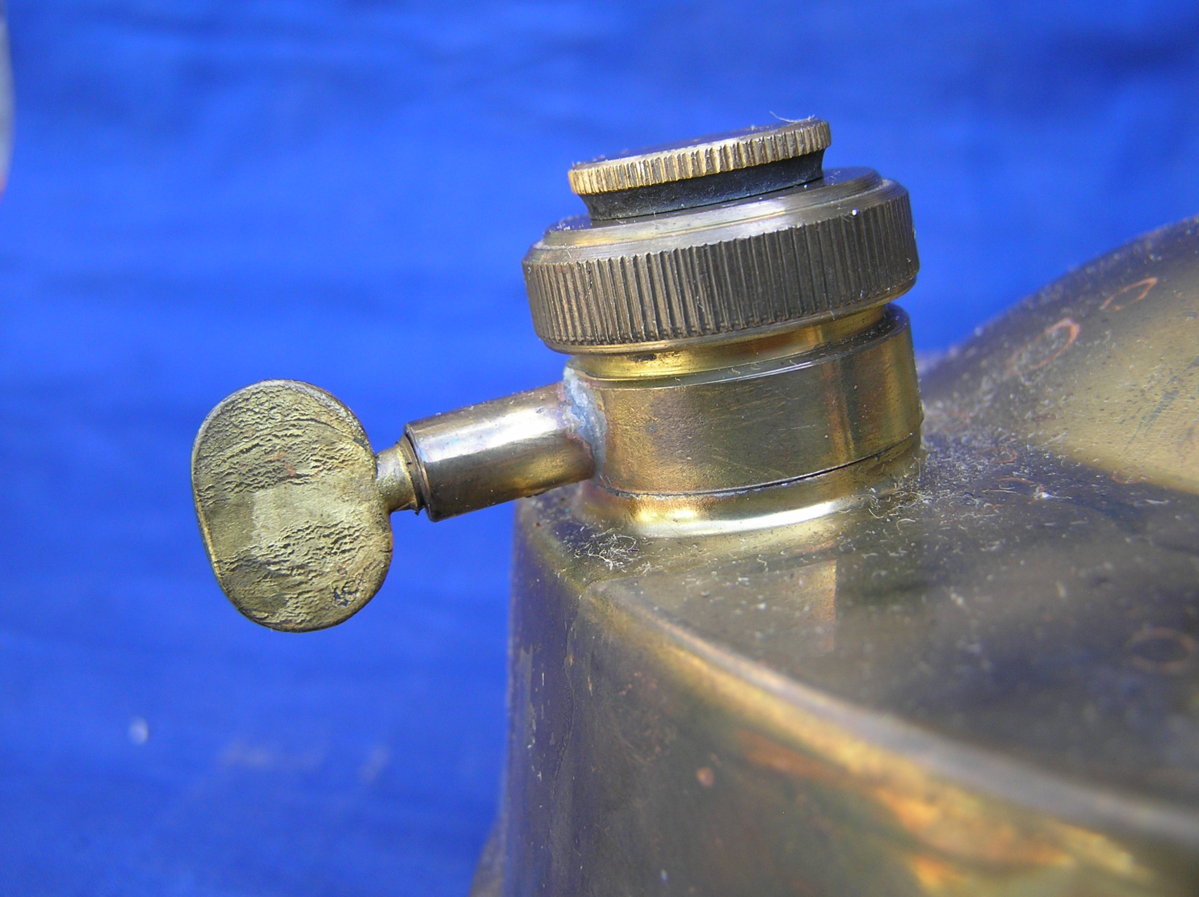

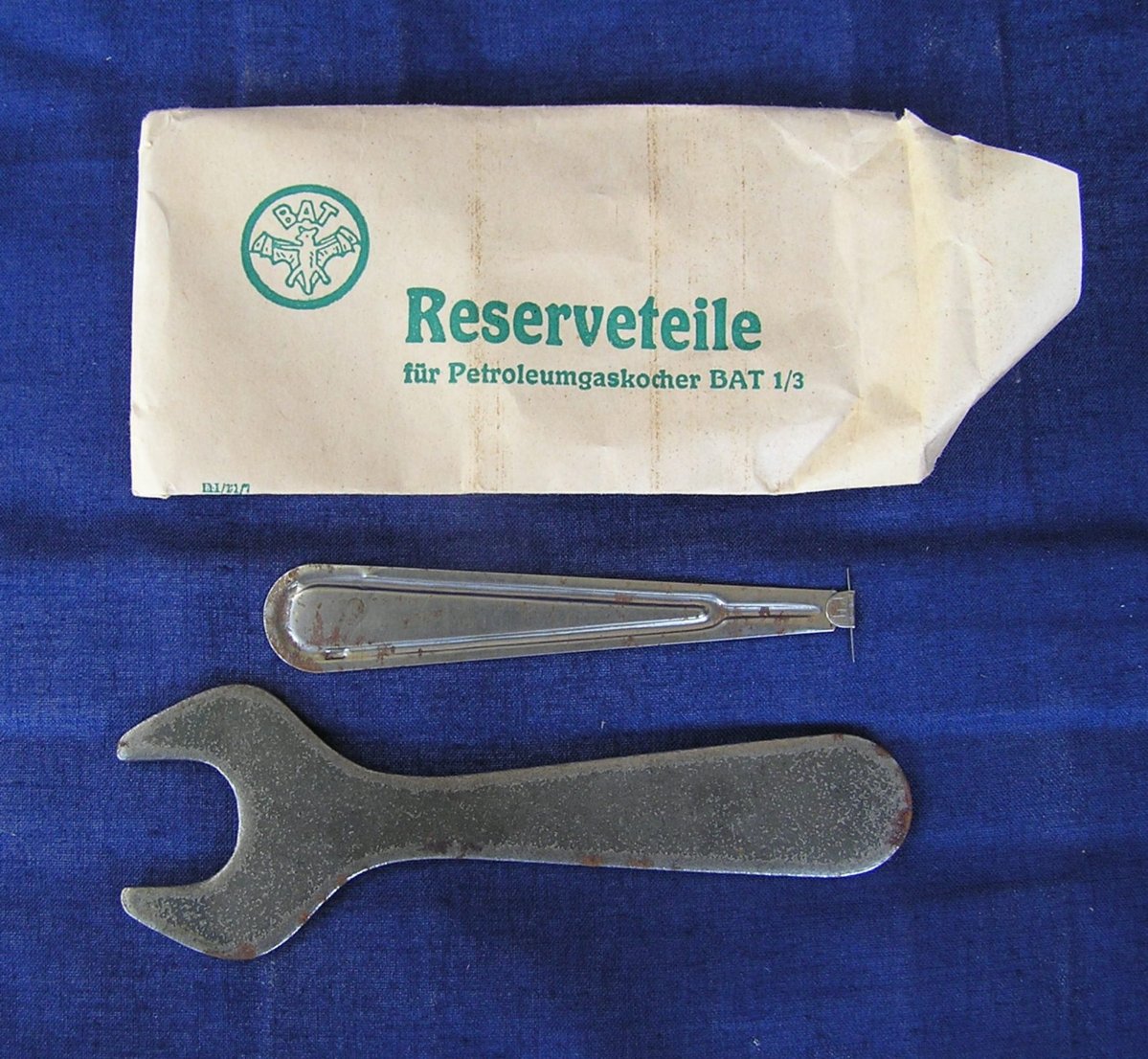

    Reserve lid with 13mm. thread.

    The operating instructions that came with the stove are from 1974
    Print reference: 111-6-15 310-73 KqG 014-03-74

    Link to document:https://classiccampstoves.com/threads/instructions-for-the-use-of-“bat”-pressure-stoves.34423/


    1.JPG 2.JPG


    3.JPG 4.JPG 5.JPG 6.JPG 7.JPG 8.JPG 9.JPG 10.JPG 11.JPG 12.JPG 13.JPG 14.JPG 15.JPG 16.JPG

  2. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 27, 2014
    Messages:
    1,215
    Location:
    Somersby, New South Wales, Australia
    A little more detail.

    On this stove the burner assembly has an adaptor fitted below the spirit cup with a 13mm mounting thread.

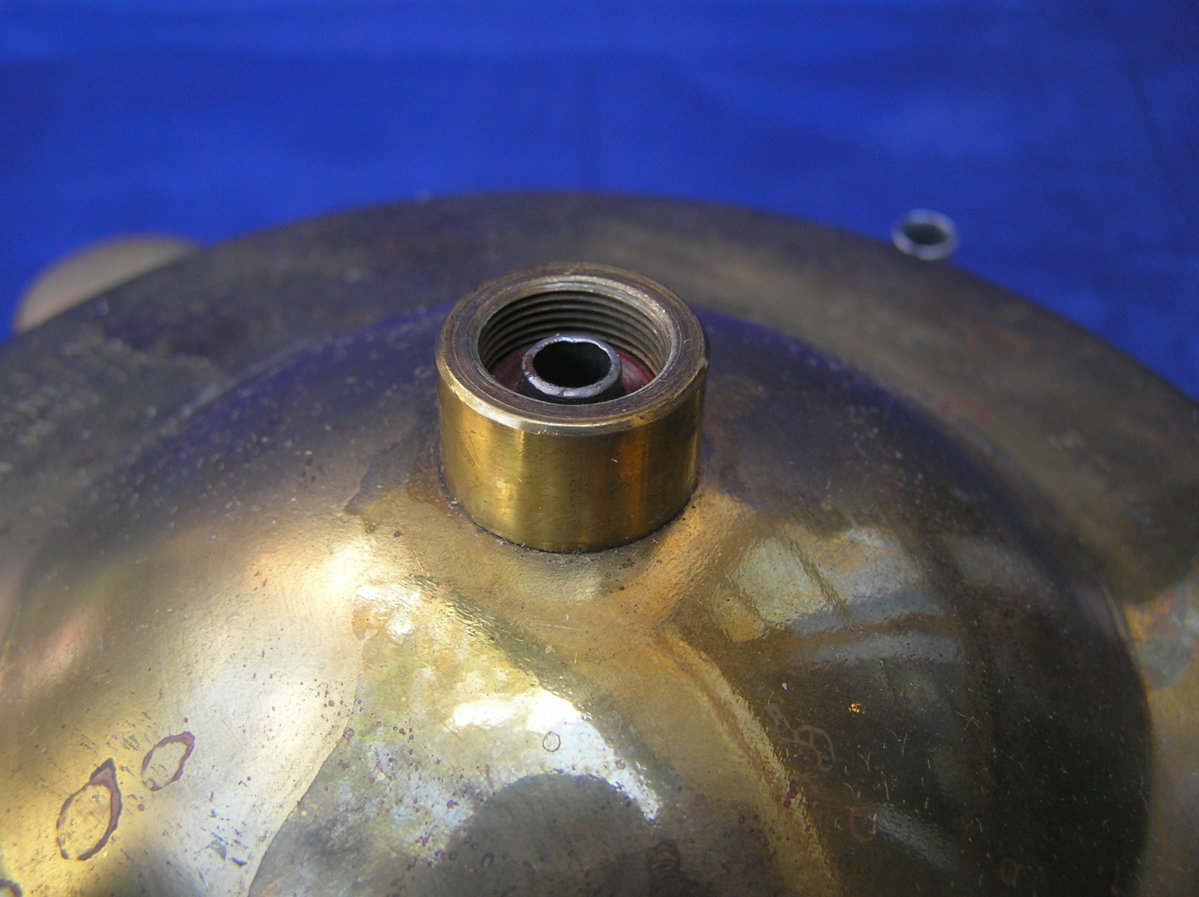

    The fixed riser tube is 11mm long with an OD of 18mm and tapped to take the 13 mm burner assembly thread.
    The tank is all brass (including the bottom)

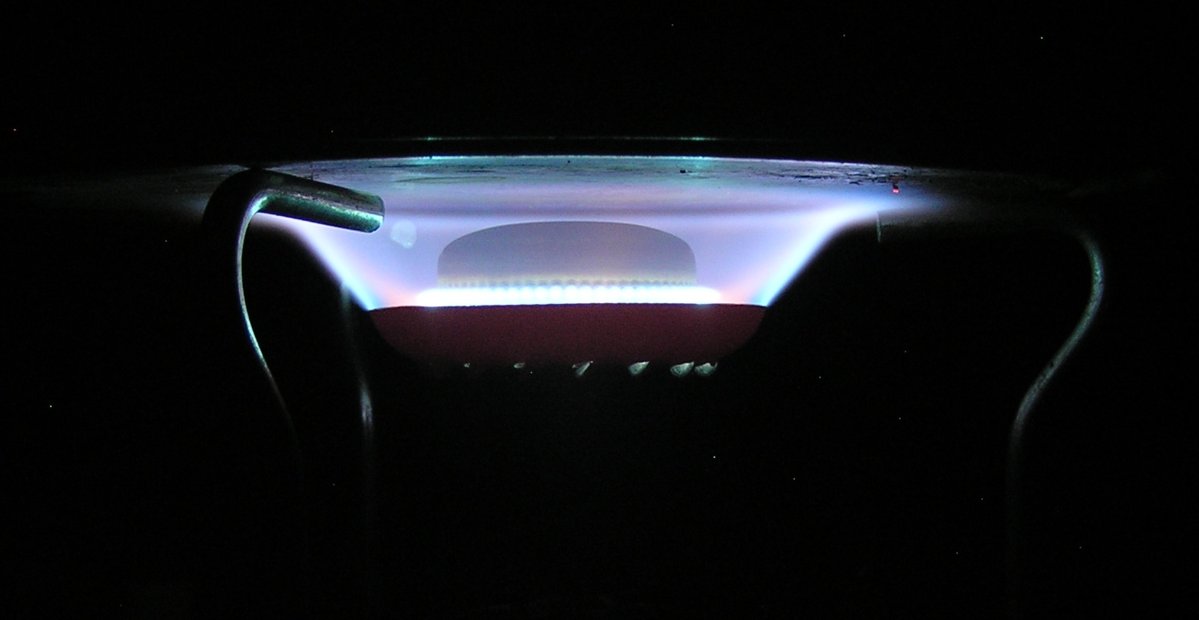

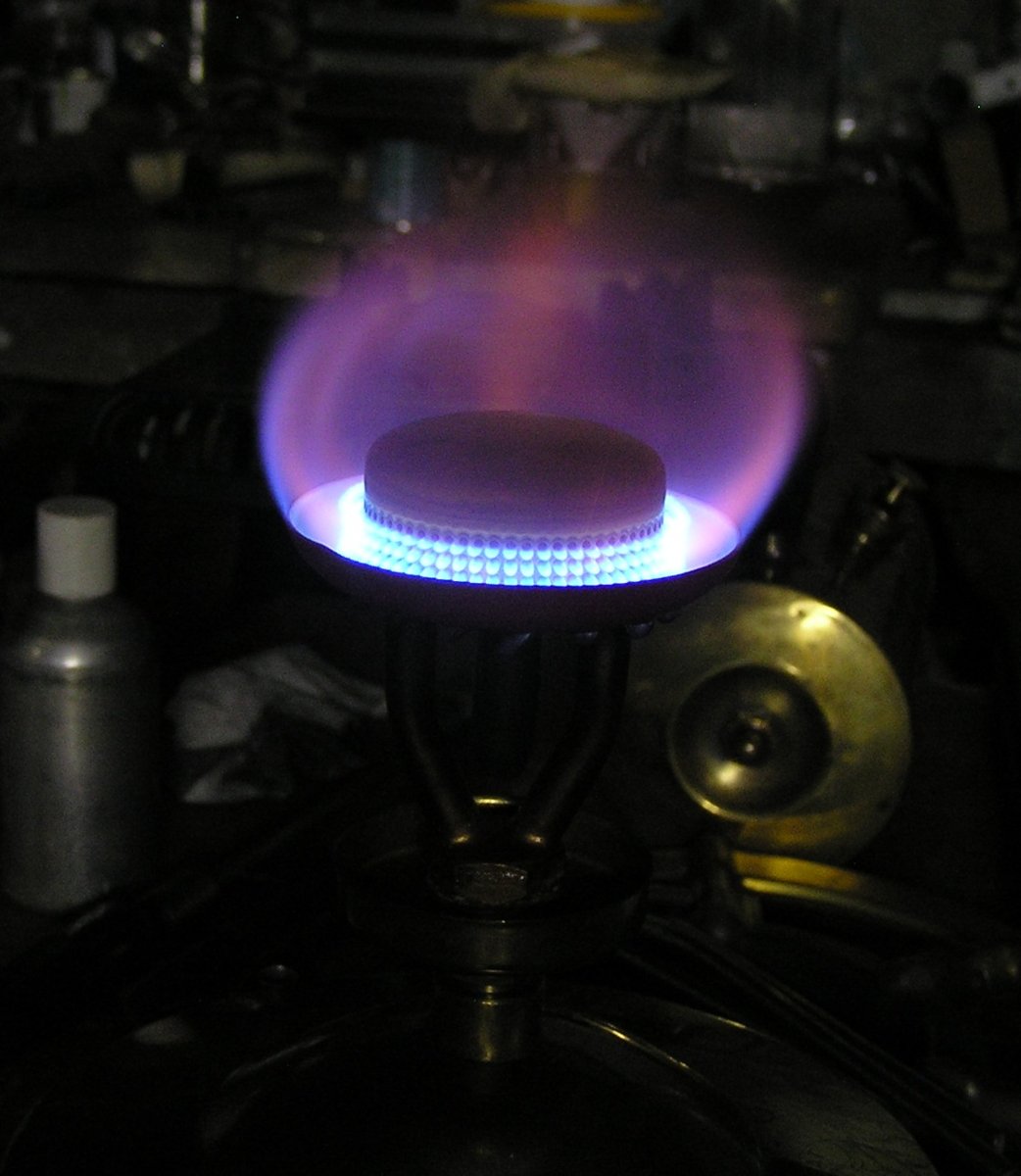

    Some flame shots. Started off a little orange but settled down to a good strong blue flame.

    17.JPG 18.JPG 19.JPG

    Last edited: Dec 21, 2016
