Brs-12

Discussion in 'China' started by Li Ding, Oct 5, 2010.

  1. Li Ding

    Offline
    Joined:
    Oct 5, 2010
    Messages:
    71
    brs-12 cost:350rmb Empty weight: about460-500g









    Burns auto gas well.

  2. DAVE GIBSON

    DAVE GIBSON Subscriber

    Offline
    Joined:
    Aug 6, 2004
    Messages:
    4,219
    the guys on the survival site would be interested in a stove that burned auto gas.looks like a mash up of a M1950 military stove.

  3. Wim

    Wim Subscriber

    Offline
    Joined:
    May 12, 2009
    Messages:
    4,221
    Location:
    Dendermonde, Belgium
    Nice flames! The stove design seems to be influenced by the Coleman line of stoves.

    Regards,

    Wim

  4. linux_author

    Offline
    Joined:
    Mar 15, 2009
    Messages:
    1,855
    i really wish my Coleman Exponent Multi-fuel (550B) had a nice red valve knob like this stove!

  5. yonadav

    yonadav Subscriber

    Offline
    Joined:
    Mar 3, 2010
    Messages:
    2,342
    Where can I buy one?

  6. ajvuik

    ajvuik Subscriber

    Offline
    Joined:
    Aug 4, 2007
    Messages:
    607
    Location:
    Netherlands

    E-bay is you best chance of getting one I guess.

    Last edited by a moderator: Jul 2, 2015
  7. edelske

    Offline
    Joined:
    Oct 27, 2010
    Messages:
    6
    I bought a BRS-12 on Eport. It cost $65 including shipping! LI's pictures are better than the ones I can take, but I would add that I think he was burning Kero as with Coleman it's a nice blue with the slightest hint of orange only at the tips. The box arrived is "not so great" condition but the stove was unharmed. Oddly they mention the spec's for Kero in BTU and Coleman in Kcal - my unit conversion tool image might help..... As a first impression - the pump is actually comfortable to use, no more mashed knuckles! It's very light, and the simmer control works well. I have only used it with Coleman fuel. An interesting tip on the box is to blow out the flame just as it's about to go out? Perhaps that helps to keep the soot down? Looks like an asbestos pad is used for priming and it holds A LOT of spirits. I use about 1/4 of an ounce and it seems happy. More when I learn more. Excuse poor pic of the round carry case, it's a simple nylon round case with a zipper on top, stove and tool fit inside.
    1289864701-brs-12-BoxFront.jpg 1289864739-brs12-BoxRear.jpg 1289864768-brs-12-Instructions.jpg 1289864795-brs-12-CarryCase.jpg 1289864824-brs-12-ColemanVsKero.jpg 1289864851-brs-12-Specifications.jpg

    Last edited by a moderator: Jun 26, 2015
  8. edelske

    Offline
    Joined:
    Oct 27, 2010
    Messages:
    6

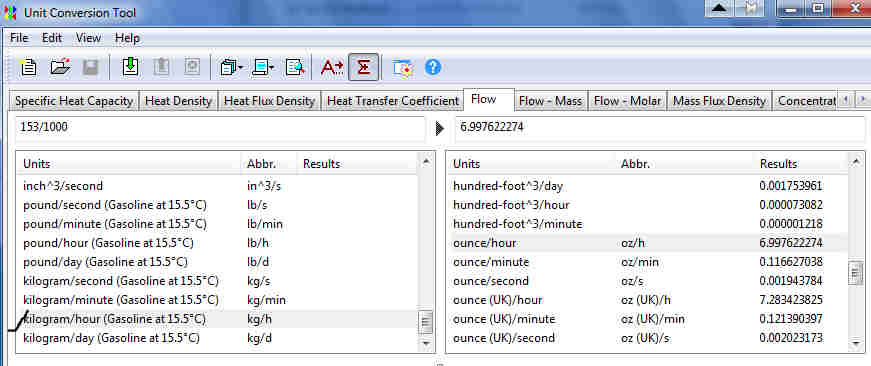

    Two more tables will help with the somewhat unusual units used 1289874938-brs-12-capacity.jpg 1289874980-brs-12-FuelUsage.jpg

    Last edited by a moderator: Jun 26, 2015
  9. cook

    Offline
    Joined:
    Dec 27, 2010
    Messages:
    25
    Last edited by a moderator: Jul 2, 2015
  10. bajabum

    bajabum R.I.P.

    Offline
    Joined:
    Dec 23, 2005
    Messages:
    7,368
    Not enough preheat, he should use more alcohol!

  11. Li Ding

    Offline
    Joined:
    Oct 5, 2010
    Messages:
    71
    1334057648-66a578b5jw1dqs7ptt7ioj.jpg 1334057648-66a578b5jw1dqs7ptt7ioj.jpg 1334057673-66a578b5jw1dqs7t9y4i4j.jpg 1334057687-66a578b5jw1dqs7hban55j.jpg

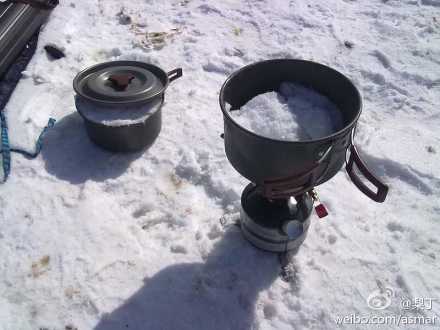

    cold environments works well

    Last edited by a moderator: Jun 26, 2015
  12. Wim

    Wim Subscriber

    Offline
    Joined:
    May 12, 2009
    Messages:
    4,221
    Location:
    Dendermonde, Belgium
    Hi Li Ding, nice photo's!
    Are you practising target shooting or bow hunting?

    Best regards,

    Wim

  13. idahostoveguy

    Offline
    Joined:
    Jun 15, 2009
    Messages:
    3,374
    He's practicing for the hunger games. :D :oops: :D

    sam

  14. davidcolter

    Offline
    Joined:
    Apr 29, 2010
    Messages:
    1,042
    It is very nice to see a traditional style bow being used. Do you shoot with a thumb ring or with the fingertips?

  15. Li Ding

    Offline
    Joined:
    Oct 5, 2010
    Messages:
    71
    hi Wim
    just practising target shooting :mrgreen:


    Chinese traditional bow useing thumb ring draw

    Last edited by a moderator: Jun 26, 2015
  16. Rickybob United Kingdom Banned

    Offline
    Joined:
    Mar 25, 2015
    Messages:
    860
    for 30 notes including postage from China I thought why not - and here it is


    initial thoughts are - it feels very light compared to a 442 which it strongly resembles
    it arrives with a rubbery funnel - a primus looking multi tool - a non padded vinyl case and a bulin looking cardboard box and a msr looking fuel valve lever but no rubber lanyard on the filler cap! i'm sending it back! in pieces!

    and the fuel cap has a safety valve built in but a different thread to a coleman
    time for coffee then I am taking it apart

  17. Rickybob United Kingdom Banned

    Offline
    Joined:
    Mar 25, 2015
    Messages:
    860

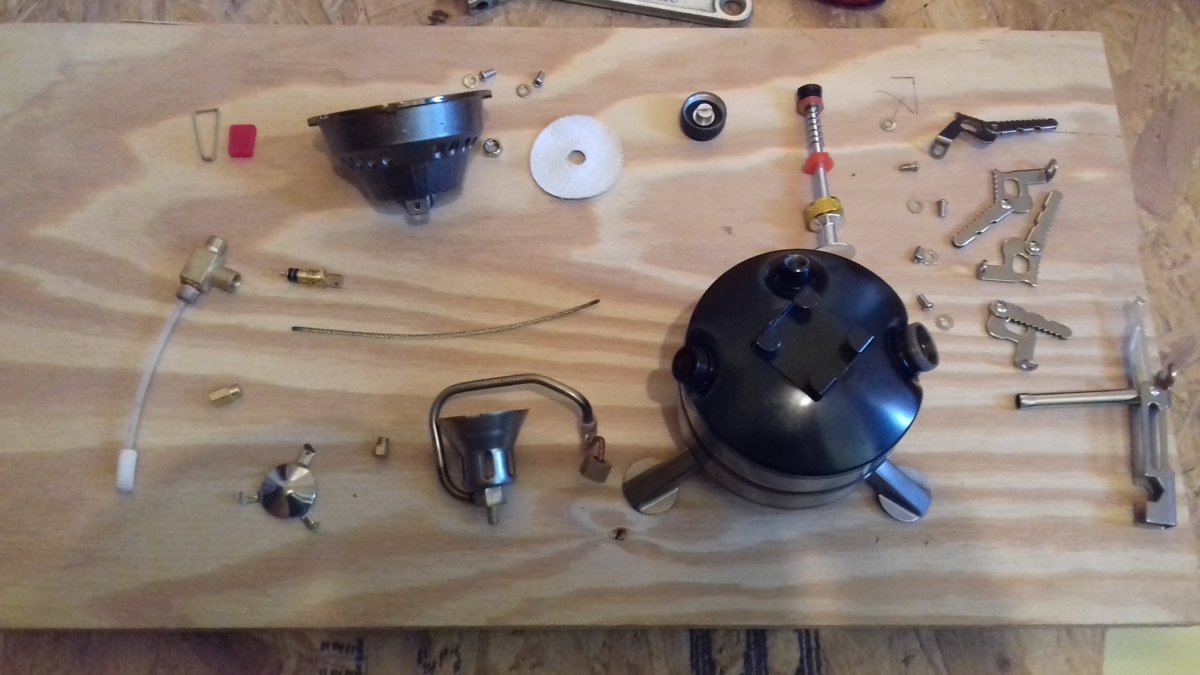

    breaks down very easily

    supplied with one jet it is claimed to burn kerosene or gasoline - no shaker widget under the jet but there might be room to fit one
    no coleman style self prime on this - just a simple fuel pick up with an msr looking filter and a needle valve with 2 o rings
    a thin cleaning wire in the generator and a primus looking burner bell
    bulin looking pump
    but what of the nrv?

  18. Rickybob United Kingdom Banned

    Offline
    Joined:
    Mar 25, 2015
    Messages:
    860
    I roughly filed down an old screwdriver to get the nrv out - might grind a bit more off before I put it back


    I wish coleman nrvs came out that easy
    it has been said that this nrv is suitable only for kerosene and I am inclined to agree - so how can I transplant a coleman locking nrv into this stove so I can run it on white gas?
    I forgot to mention that the priming pad looks suspiciously like woven asbestos - so that's getting double wrapped in plastic and built in to a doorway I am bricking up tomorrow

  19. Rickybob United Kingdom Banned

    Offline
    Joined:
    Mar 25, 2015
    Messages:
    860
    so - a possible fix for the nrv issue


    I intend to transplant the burner on to a coleman tank with the coleman nrv in it

    I have chosen a 442 with a bolted on burner mount rather than the older welded on type
    I will need to make a burner bracket and an adapter for the valve top fuel connecter as the generator gland nuts have different threads
    will report back next week when I have done the deed

  20. Rickybob United Kingdom Banned

    Offline
    Joined:
    Mar 25, 2015
    Messages:
    860
    had a rethink on a metal burner bracket - Li Ding's original post shows this burner runs very hot - I want to reduce heat transmission to the tank and perhaps form a heat shield between the tank and the burner
    looking around the shed I have found the very thing to do it
