Campus 3

Discussion in 'Campus No:3' started by anfeng, Oct 19, 2019.

  1. anfeng

    anfeng Subscriber

    Offline
    Joined:
    Oct 2, 2016
    Messages:
    97

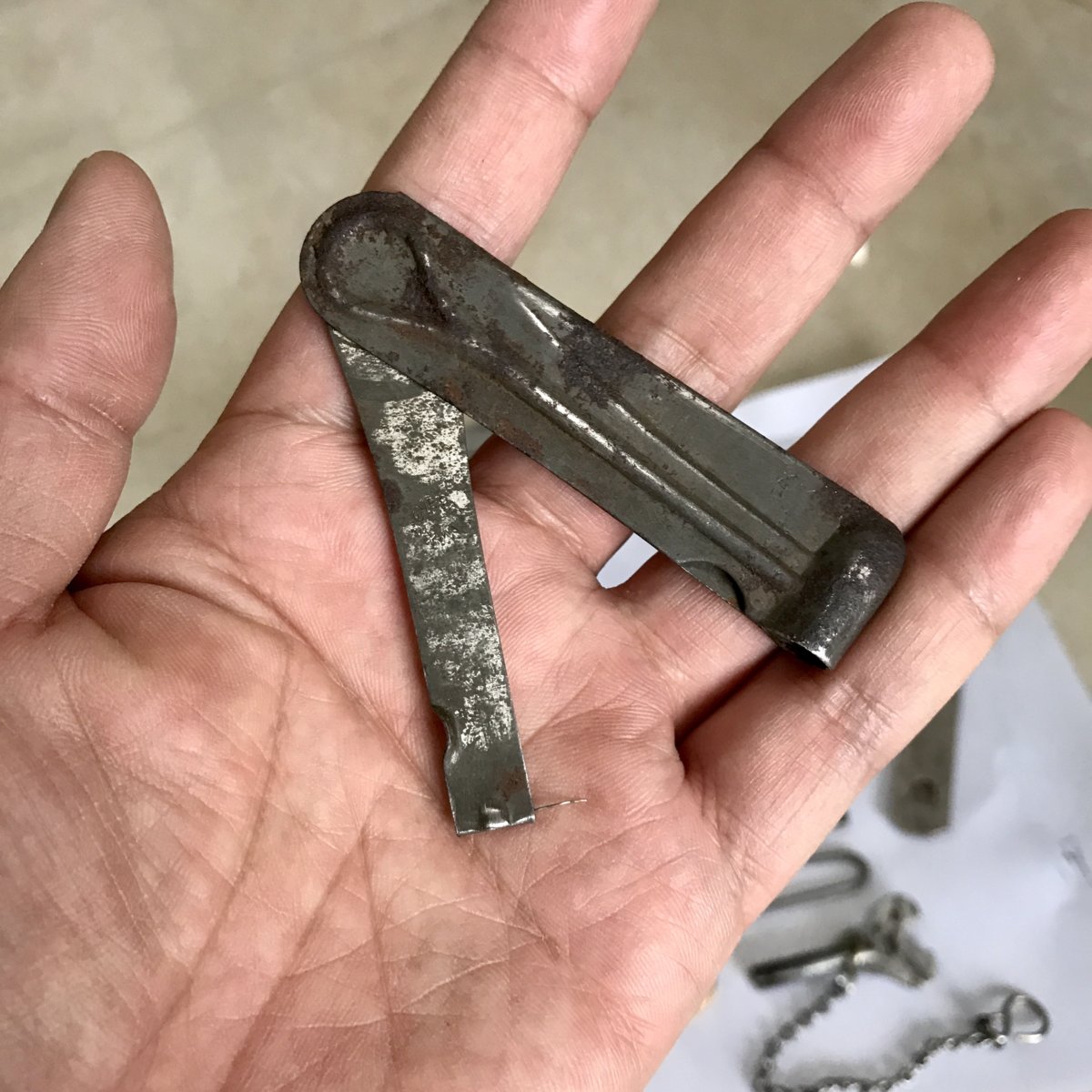

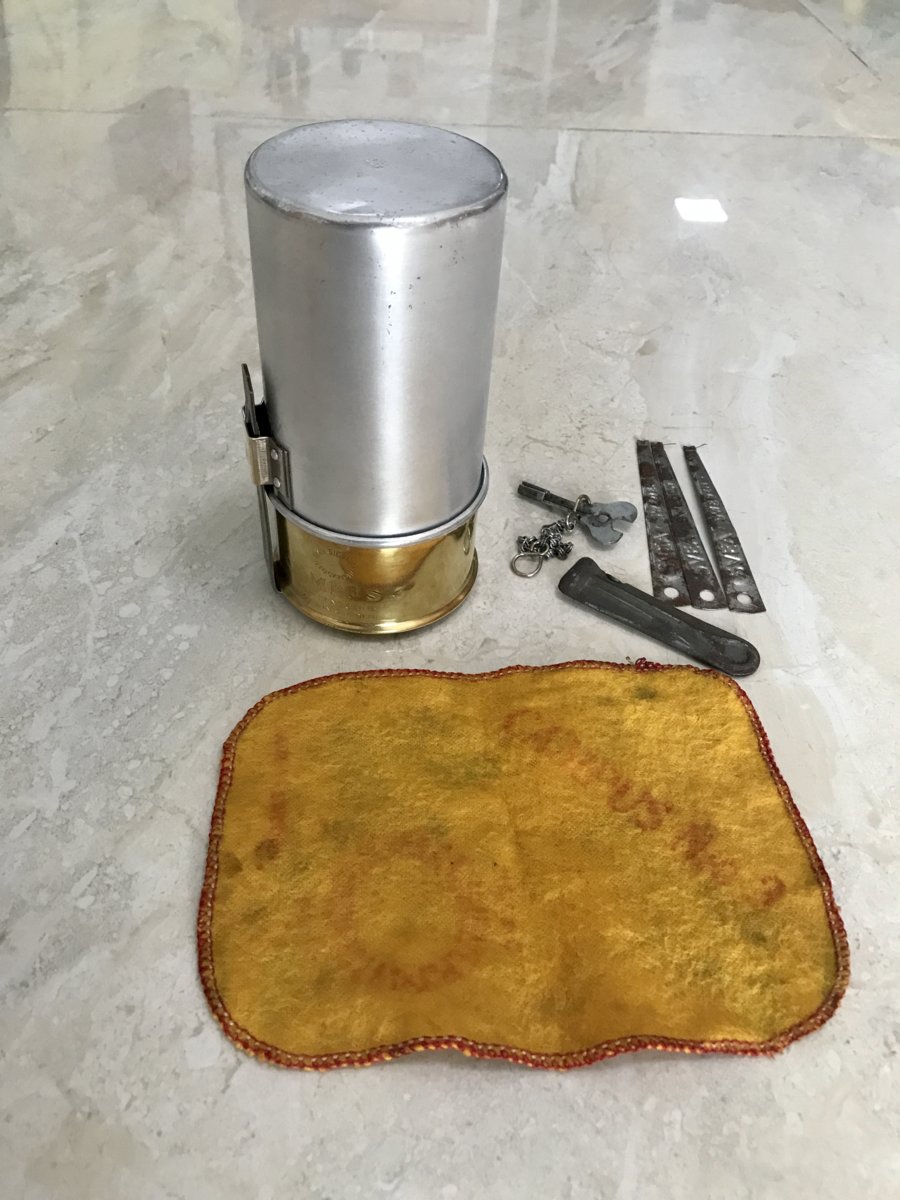

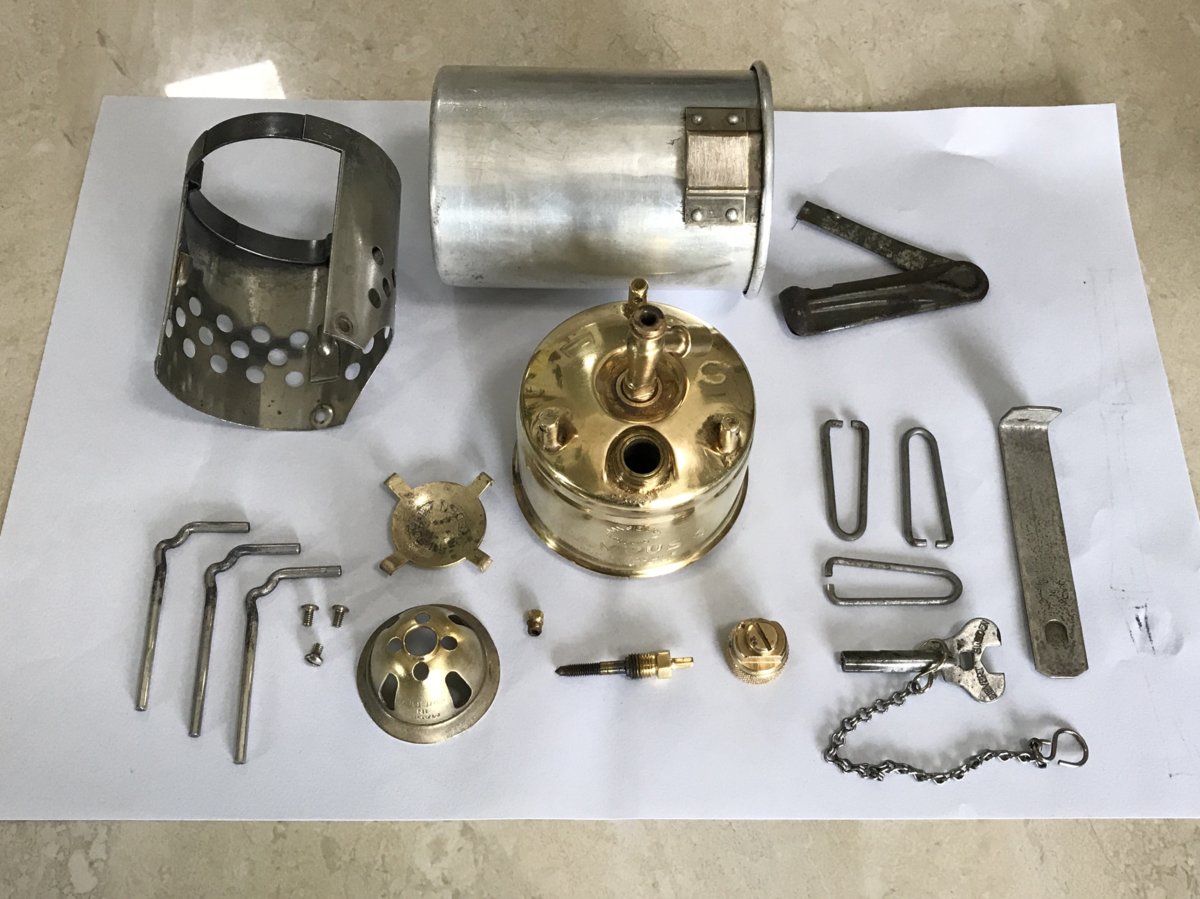

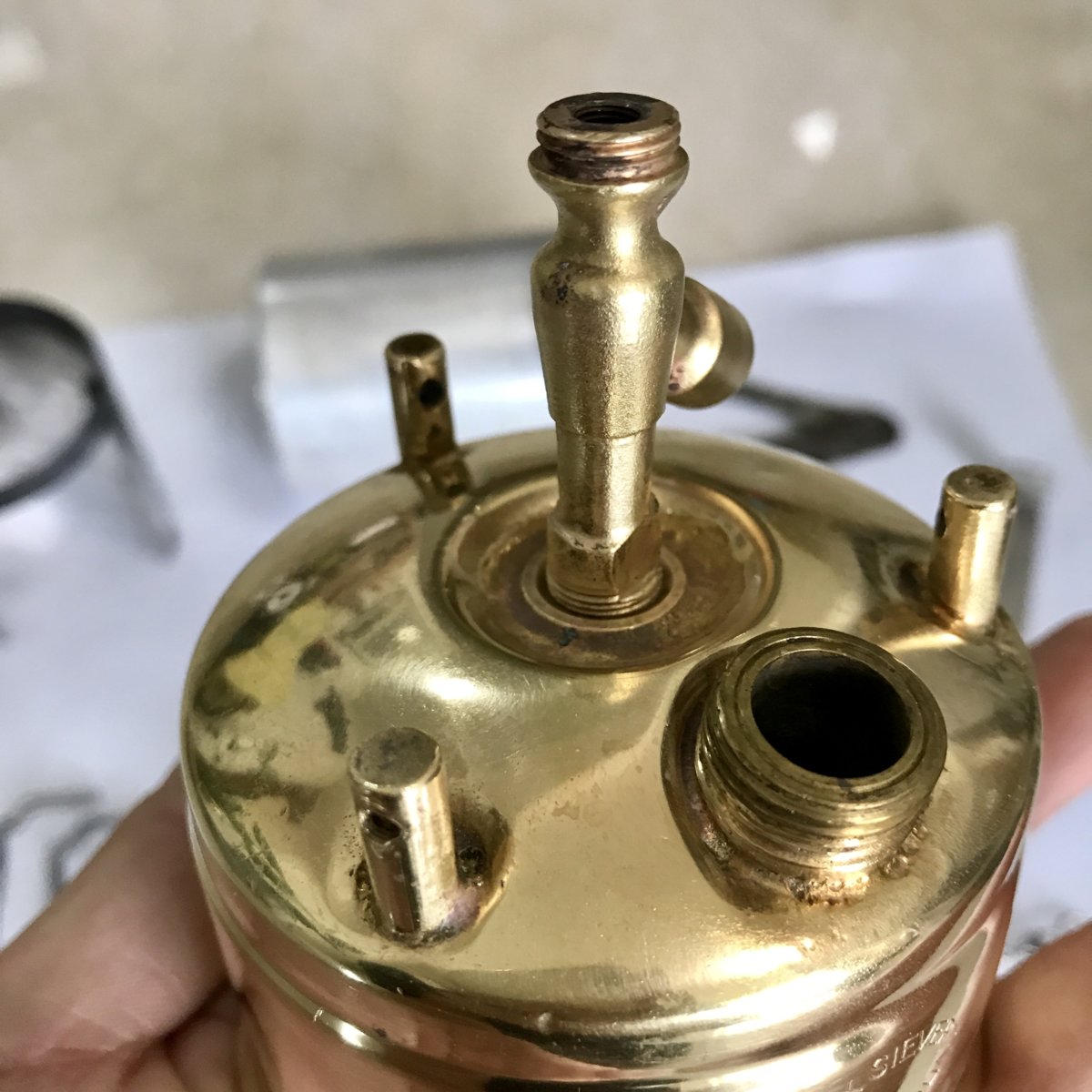

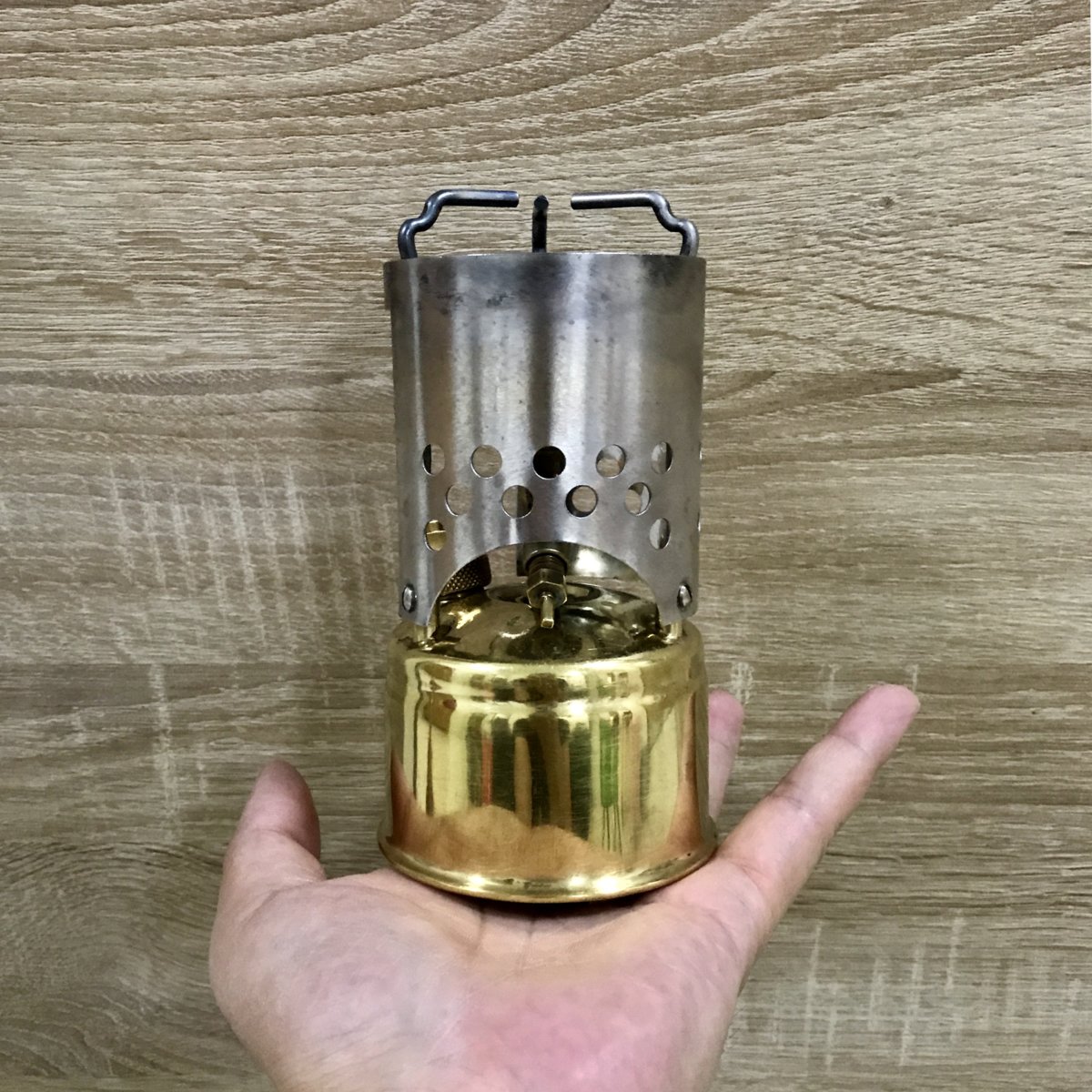

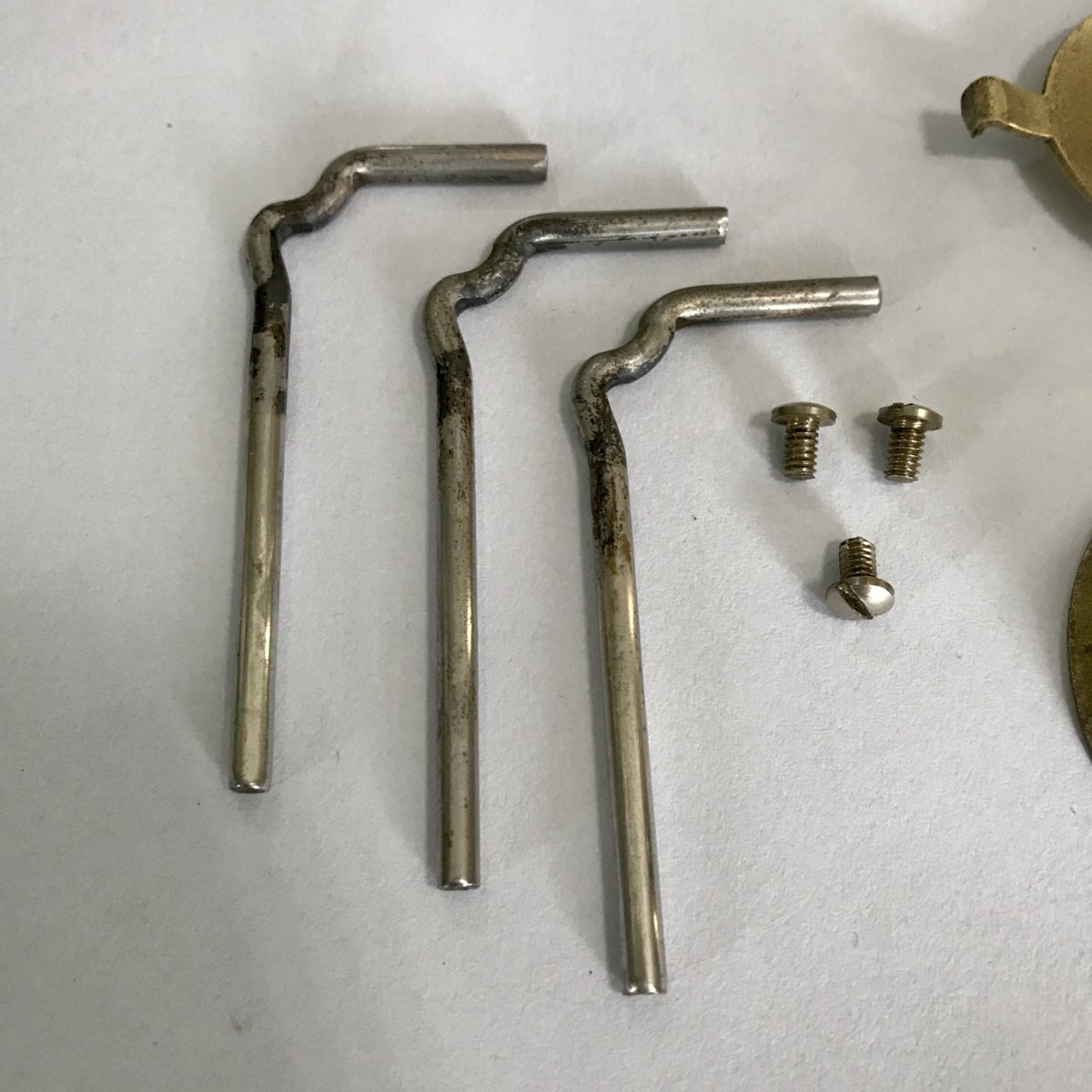

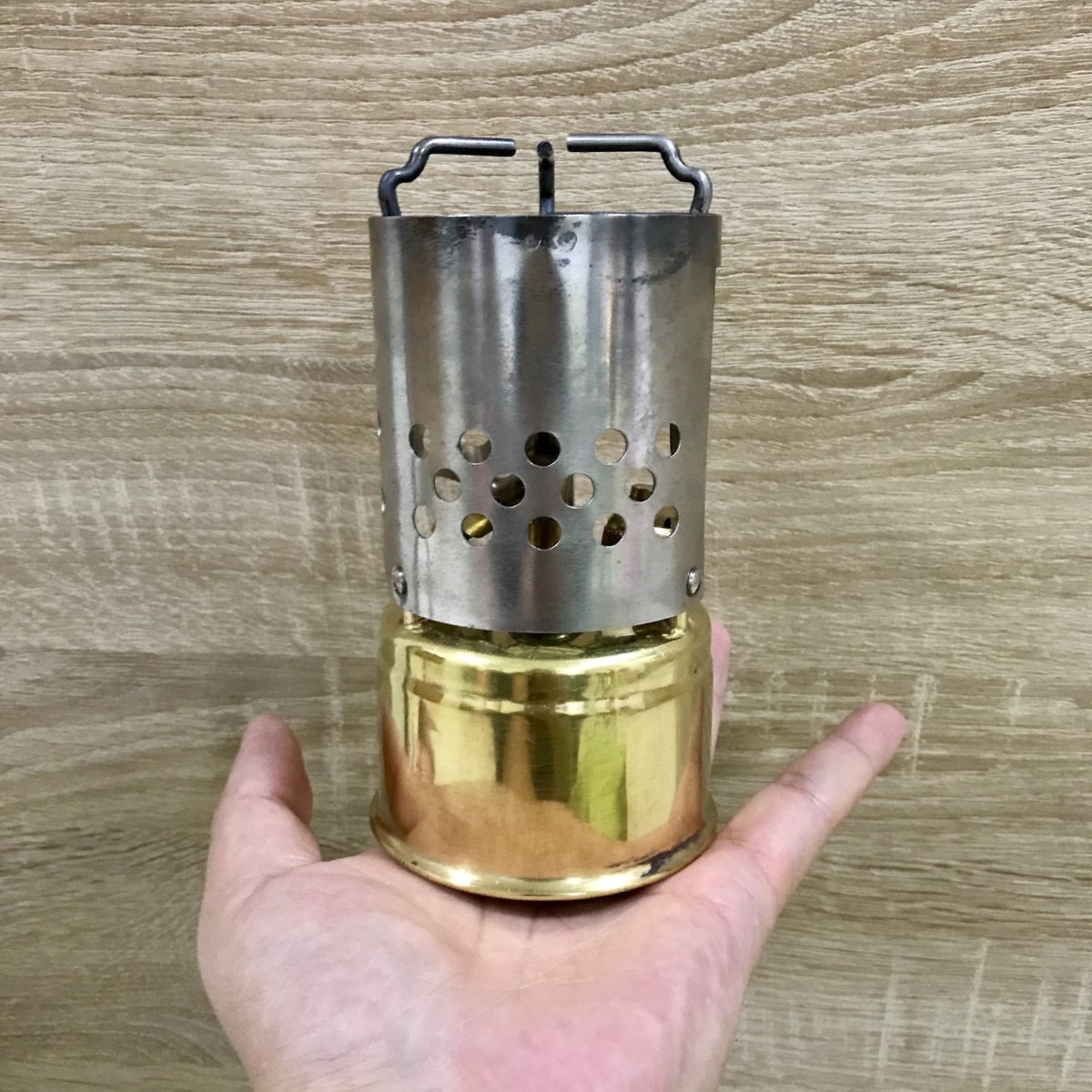

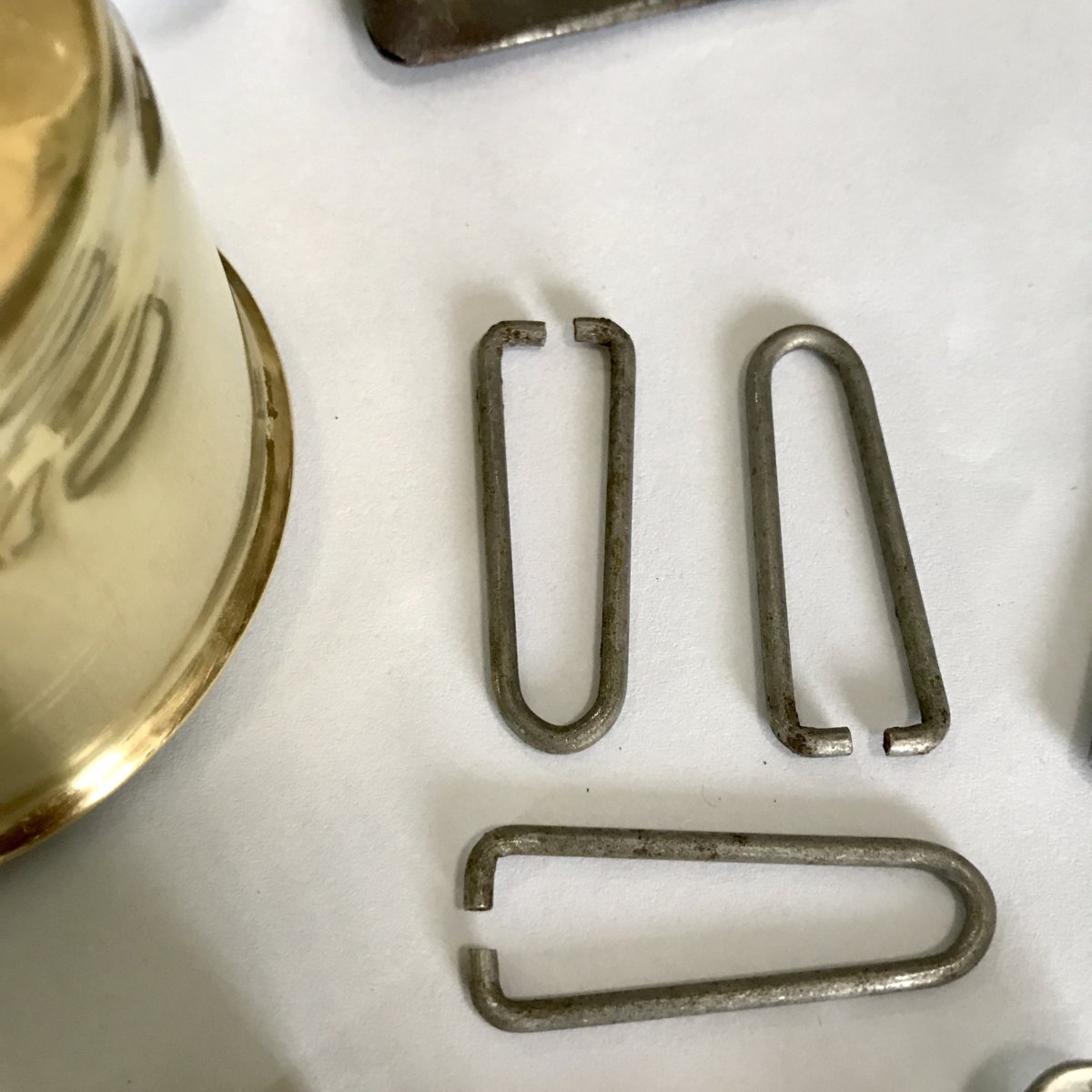

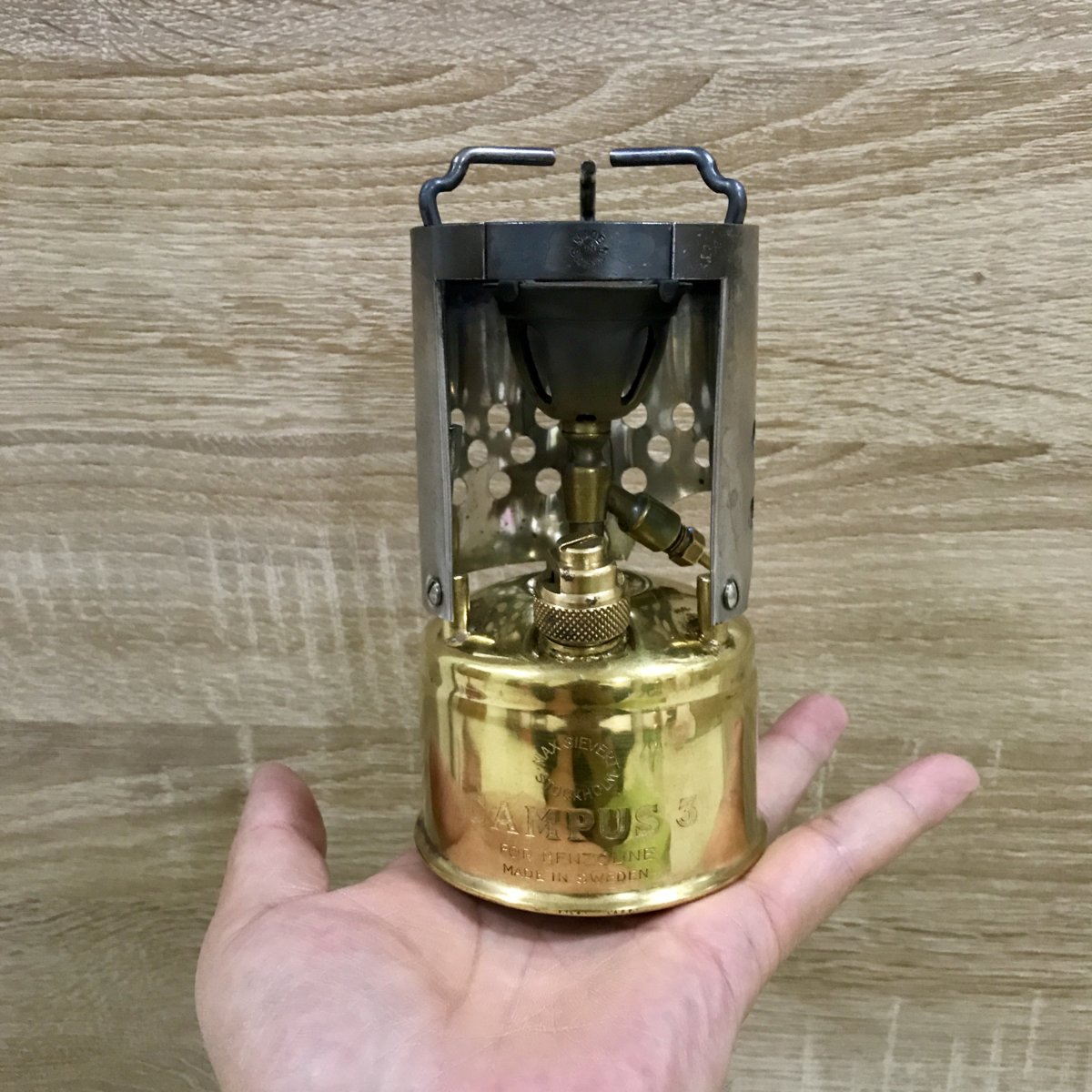

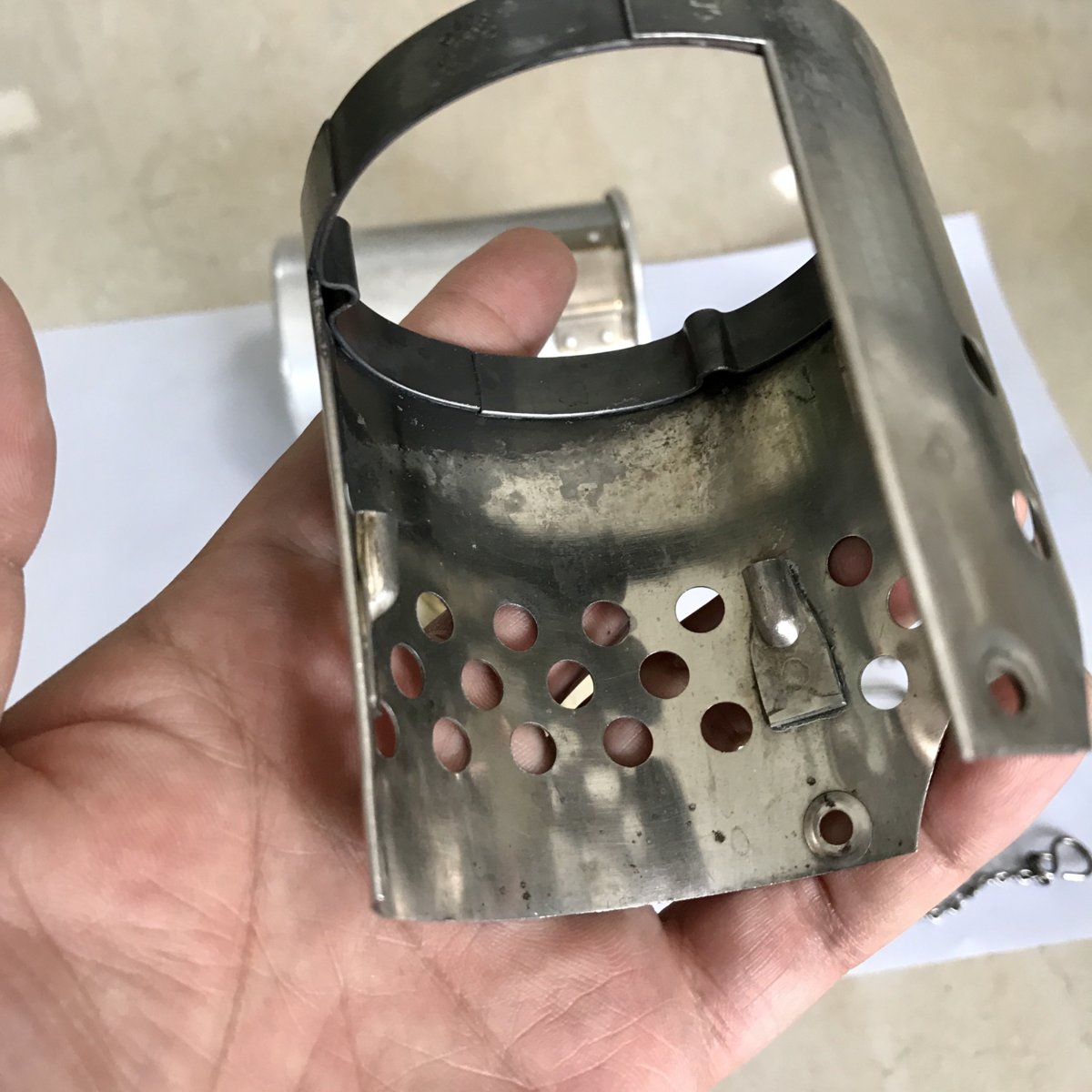

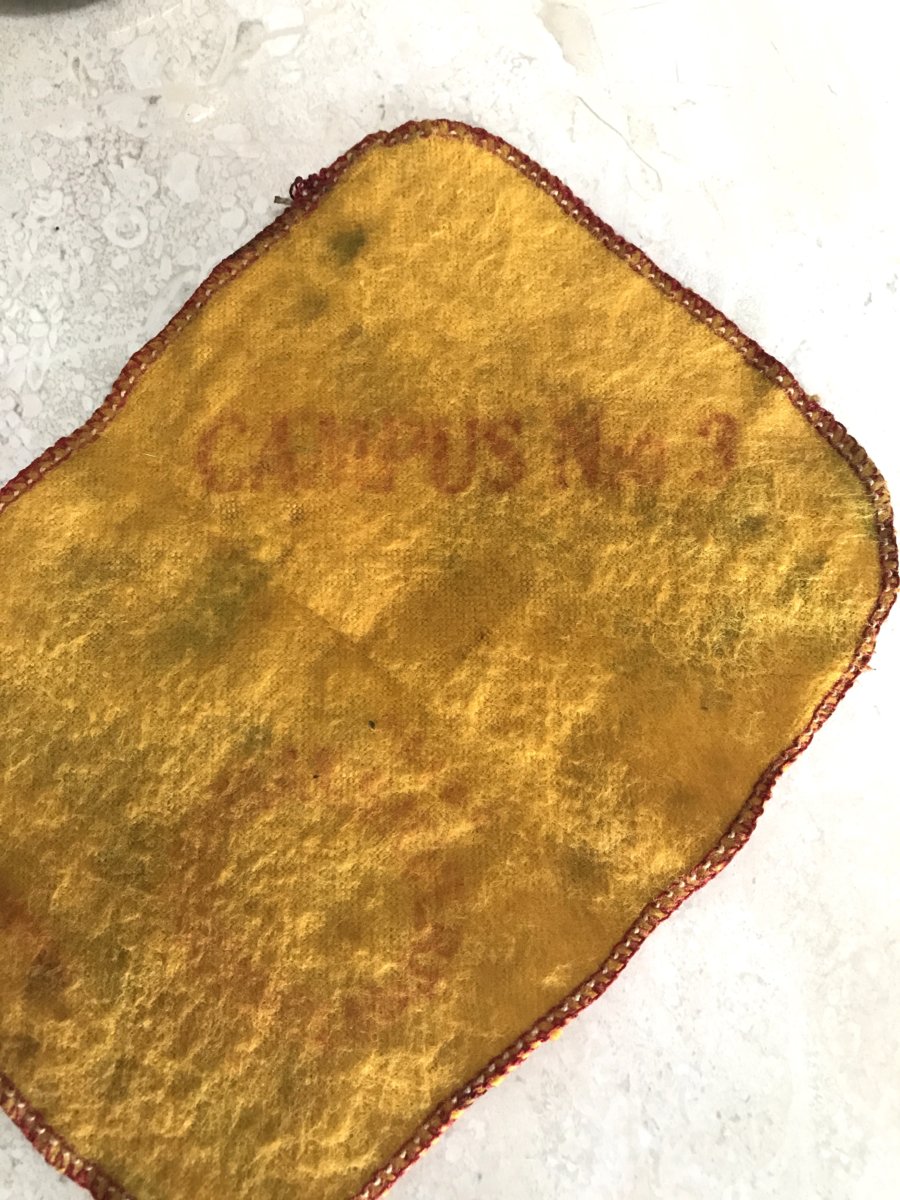

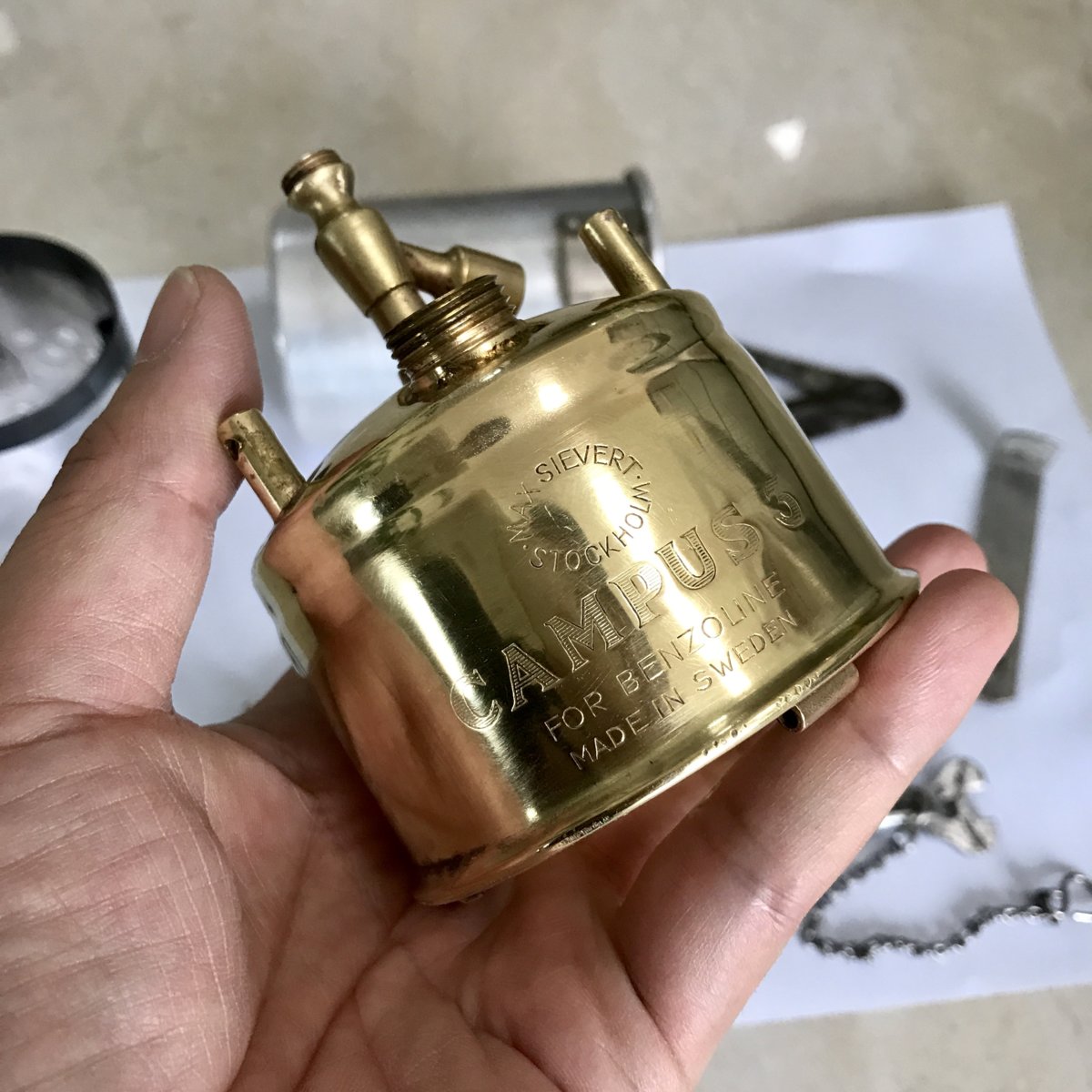

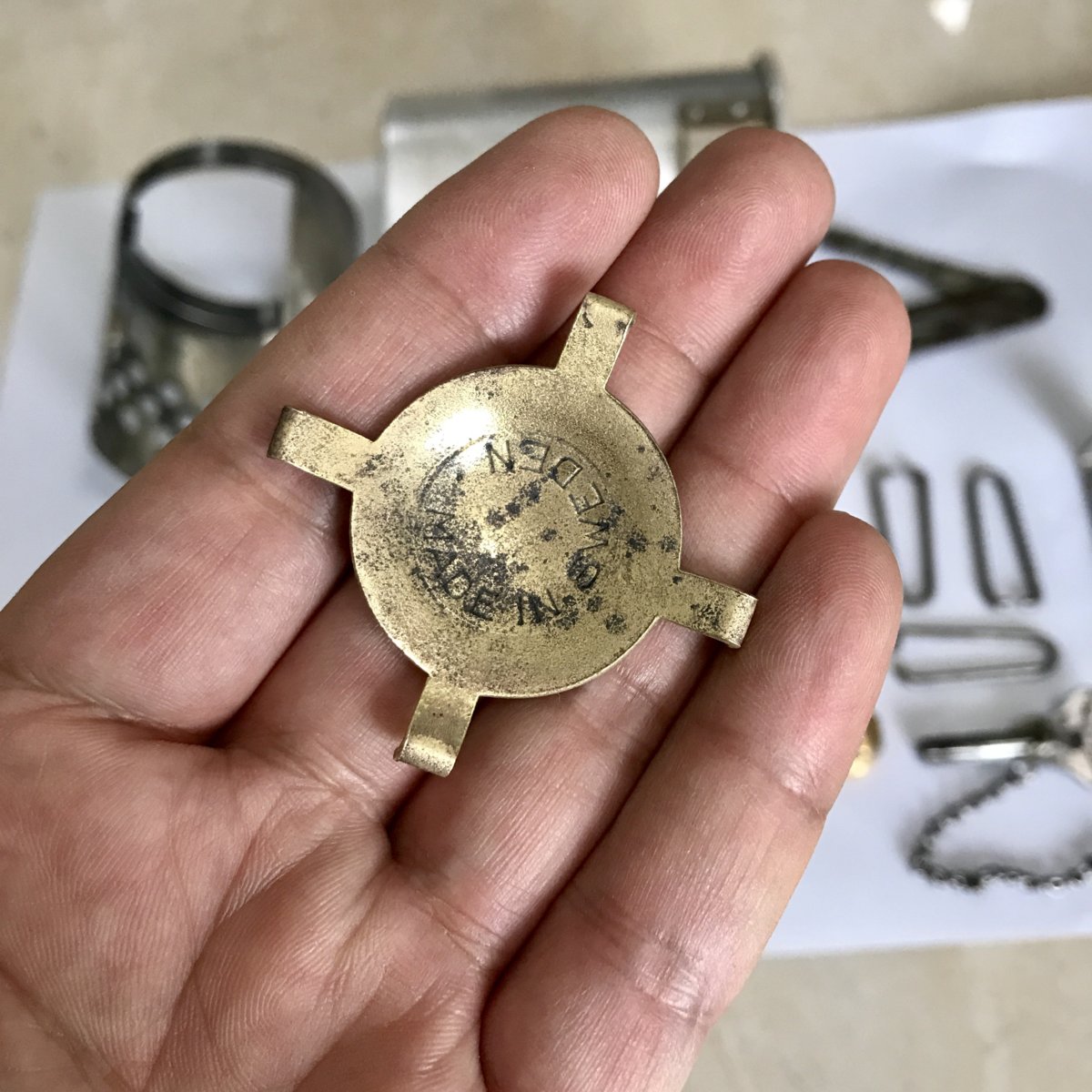

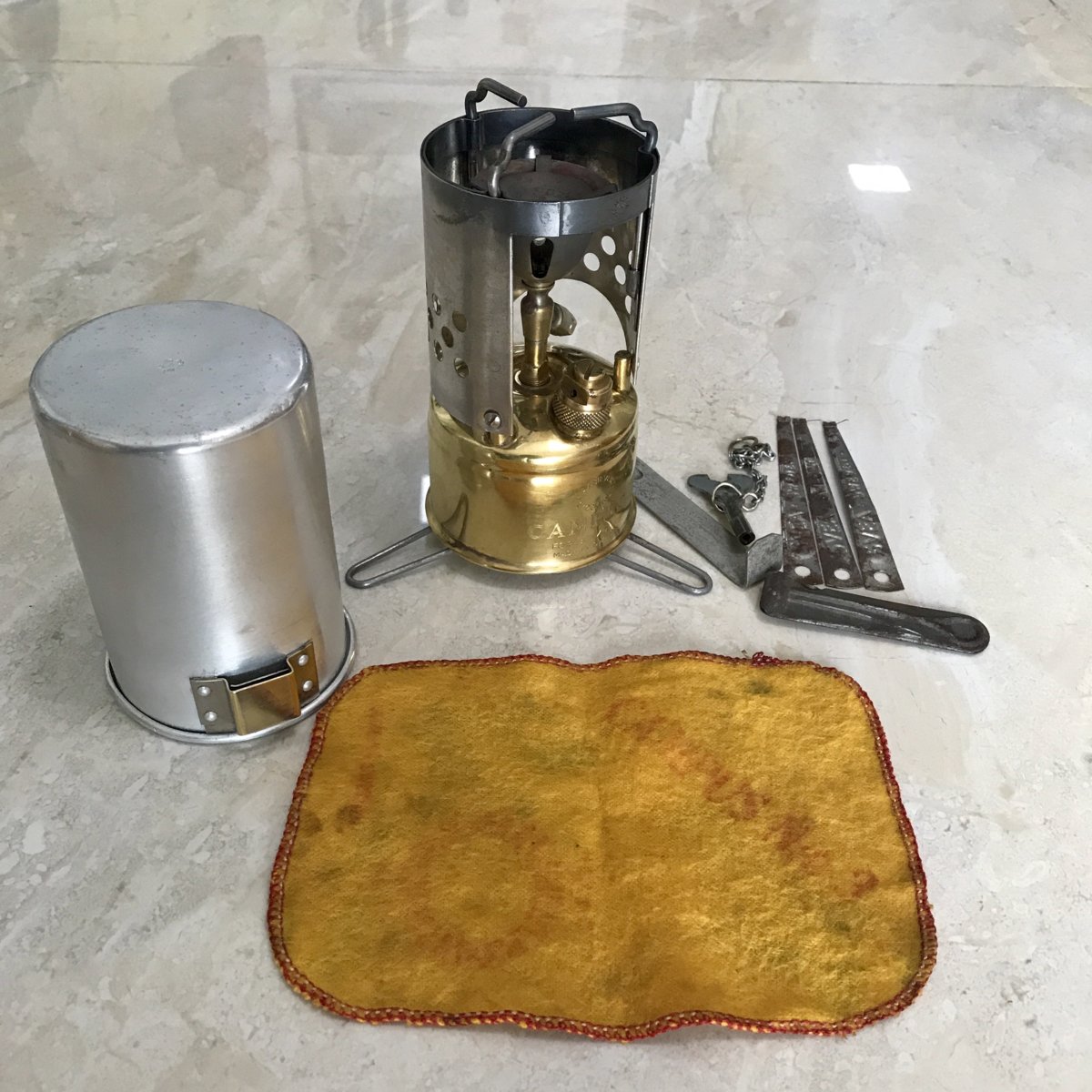

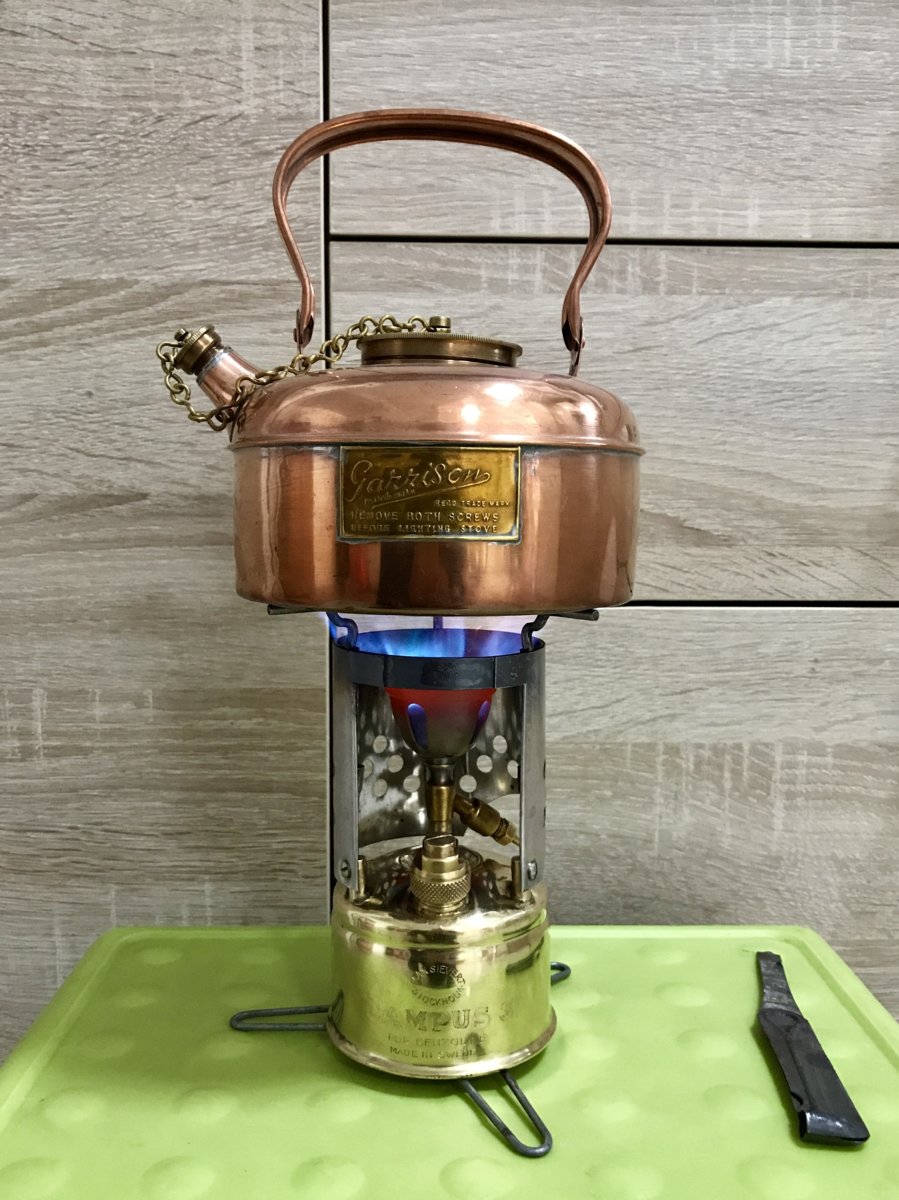

    This is my other Campus 3, I think this should be the last version of Campus 3. 10036F87-D24D-4992-96C5-D35535A30388.jpeg 43B81F31-9A47-4CB9-83DC-D39CCDCB5CB2.jpeg F6D3B902-A050-4CFD-B97A-8B97EA578AAB.jpeg 85812E09-09FF-4177-BD9B-7BCB2227460B.jpeg 55C360B7-BA5A-44BB-8E8A-0987FF810AD6.jpeg 42C5C19D-F259-4D7A-B738-9D0008401A88.jpeg 4B954FF6-342A-4279-BA3B-38C4E6F6D968.jpeg 76D4860F-3B6B-4CF9-852B-A2B5A2EF6233.jpeg EB8831B2-6E9C-4BEE-8929-3CF4879406DA.jpeg 67A0A126-2BC9-47C4-B587-7256766DF8CC.jpeg 6E068C0C-1024-4CC2-AB40-F8896582EA93.jpeg C44943CC-0372-4E67-A9CB-3C0F48249219.jpeg 99756CD4-8683-4304-818B-057302904564.jpeg 46D5435C-17D6-4F1E-BB40-5BE13DA4C8FB.jpeg A1C513F1-F08B-4FD9-B5BC-5168AC266D99.jpeg 634BA5DB-4E54-40CB-B712-BC480E68448D.jpeg 1BDCE7C8-81ED-4649-AB9F-DBA6D32224C9.jpeg 38E51ED3-0144-43C8-ADF6-73D7314283D4.jpeg 0C28179C-C09F-44EA-96B3-C41027F5F175.jpeg A7B4EA2E-34E0-4C98-974D-271419C4076F.jpeg

  2. anfeng

    anfeng Subscriber

    Offline
    Joined:
    Oct 2, 2016
    Messages:
    97

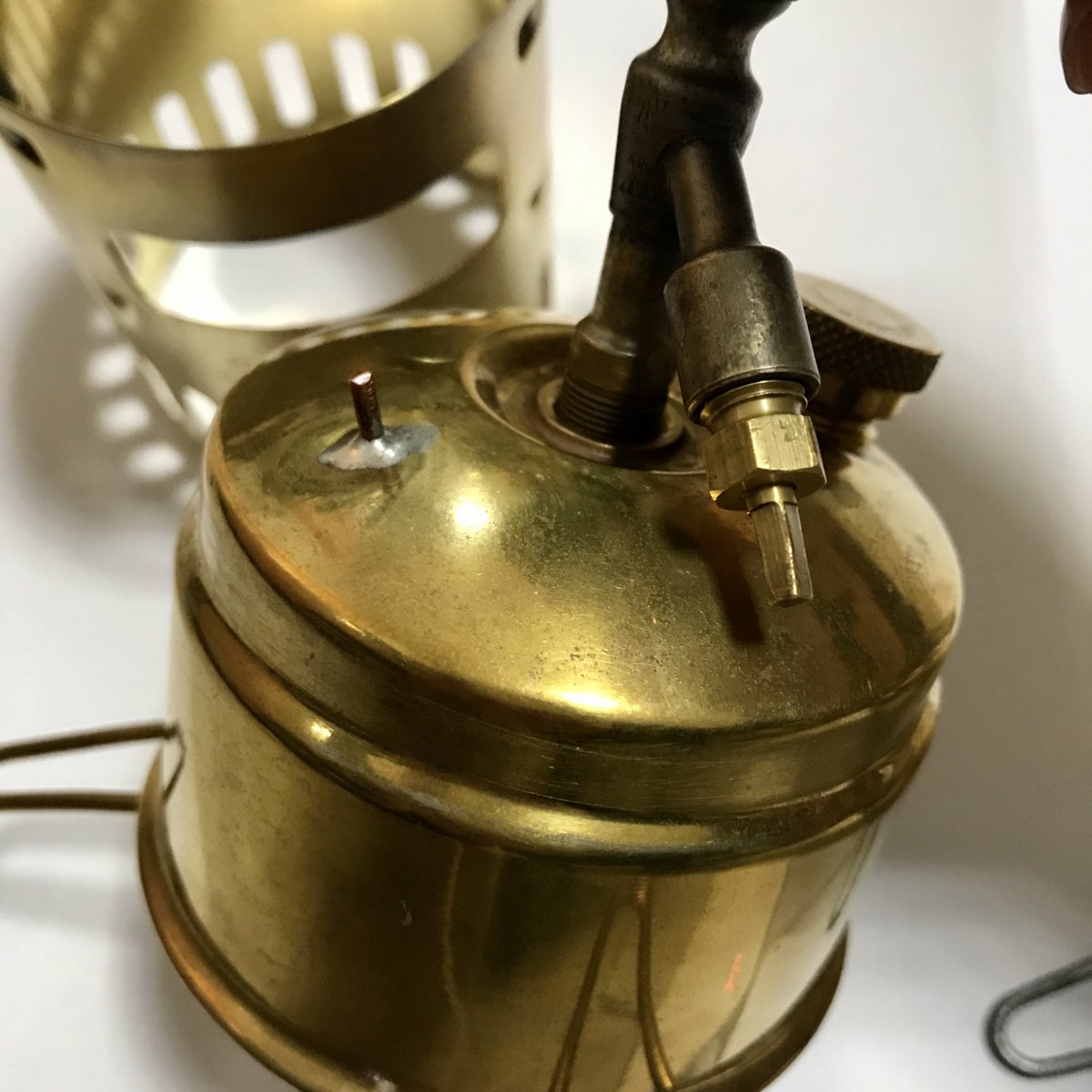

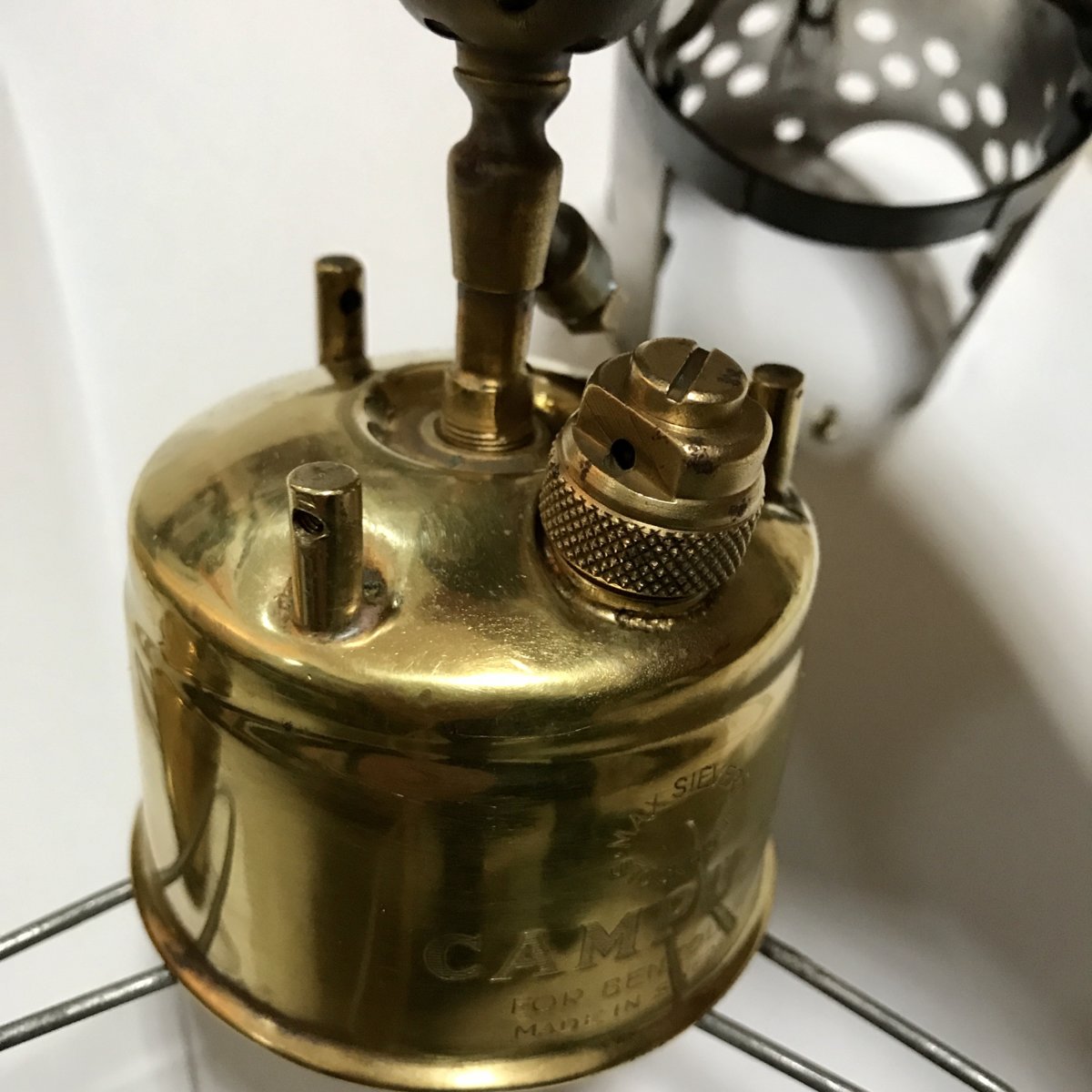

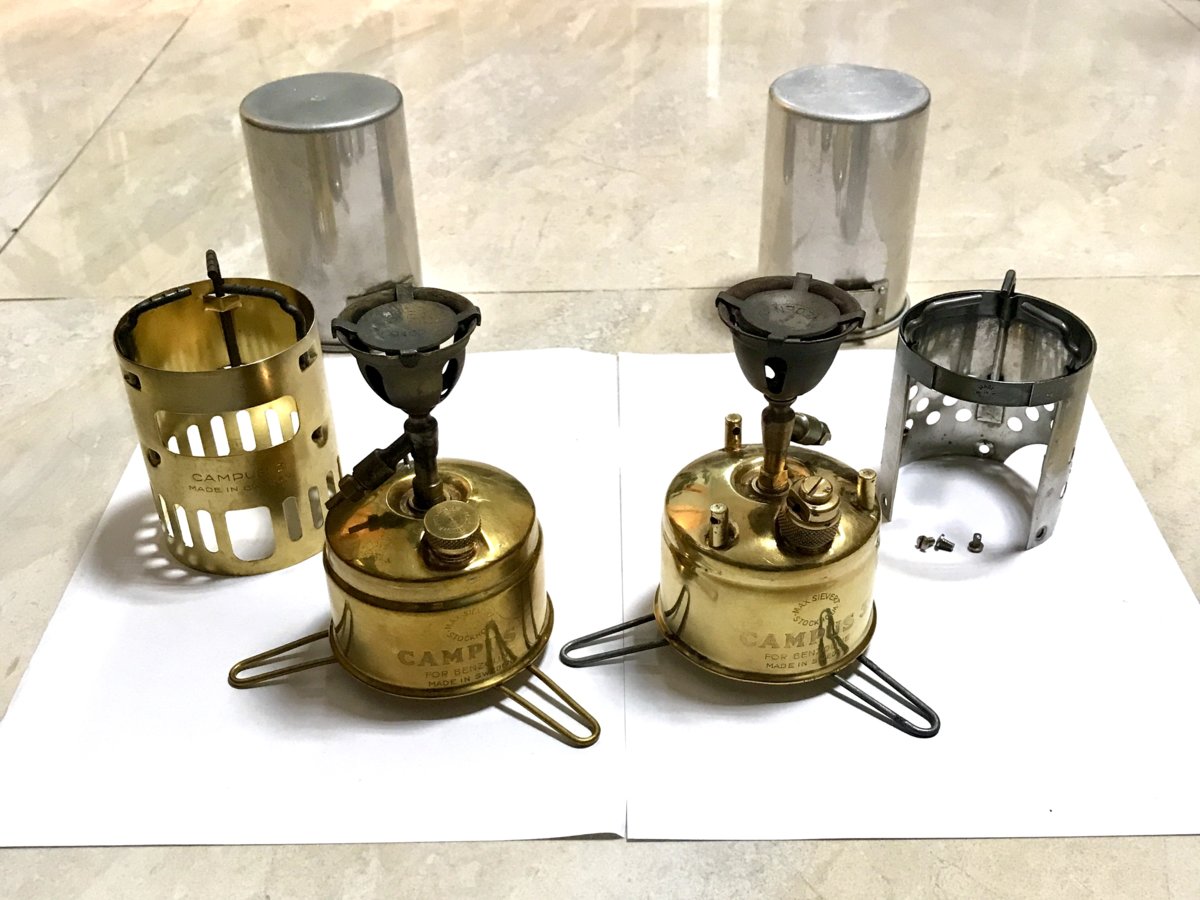

    Due to the lack of evidence in the catalogue, there are some controversies in the order of production date of the Campus 3 copper windshield version and the steel windshield version. Before the direct evidence is found, everything is just a discussion. Let me combine my observations and I found some of my own opinions. 4E0A94CA-4E2B-4AFA-8AC7-EEDA7DC55A4B.jpeg I think the copper windshield version on the left side of the photo should be the first version in the early days, and the steel windshield version on the right side is the improved version. 0793BEEE-867F-4BE8-8B3A-930B6F123BBC.jpeg The copper windshield version uses a relatively primitive soldered copper wire, which is a common safety measure for early stoves. 43D24806-970D-4B70-A3D5-5BF3A62178E4.jpeg Equipped with a tank cover with automatic pressure relief on the steel windshield version, the upgrade of the safety device illustrates the evolutionary process

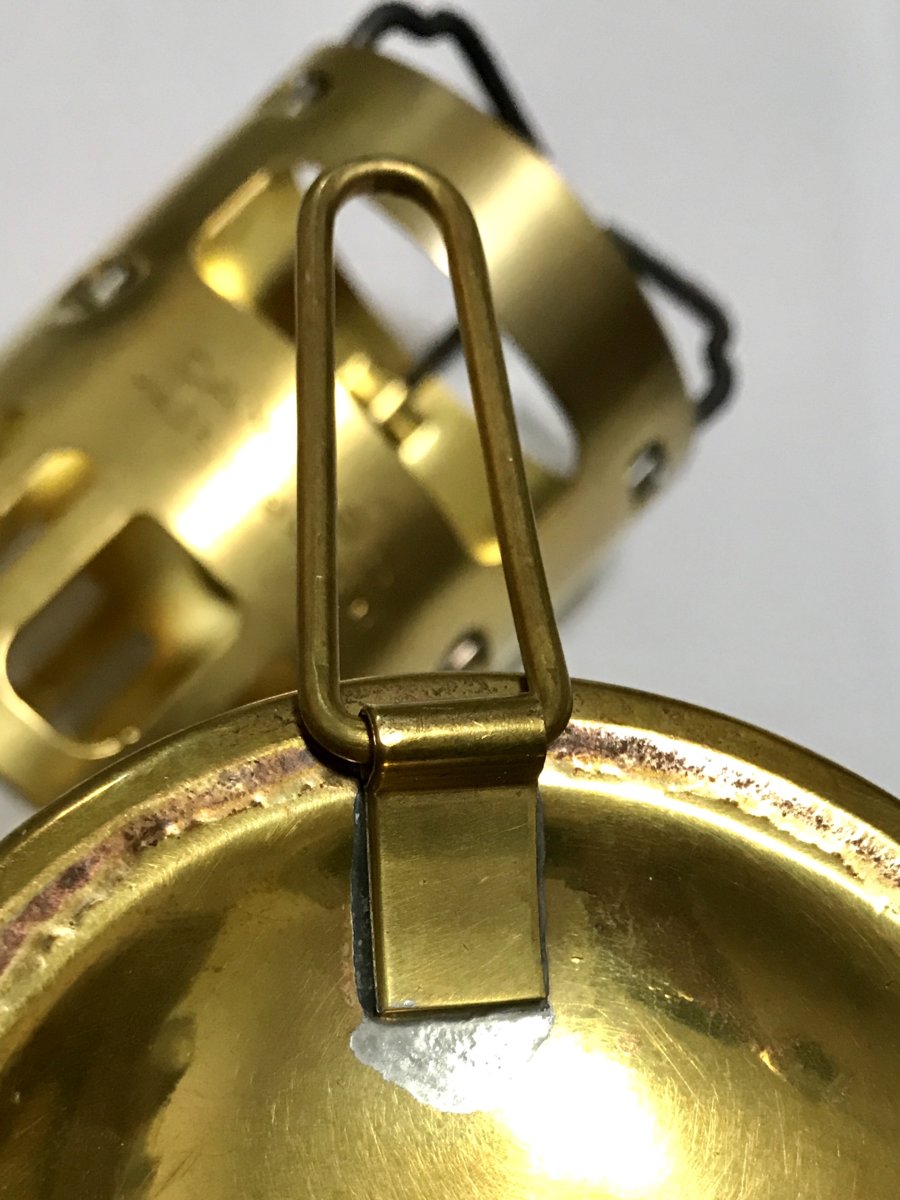

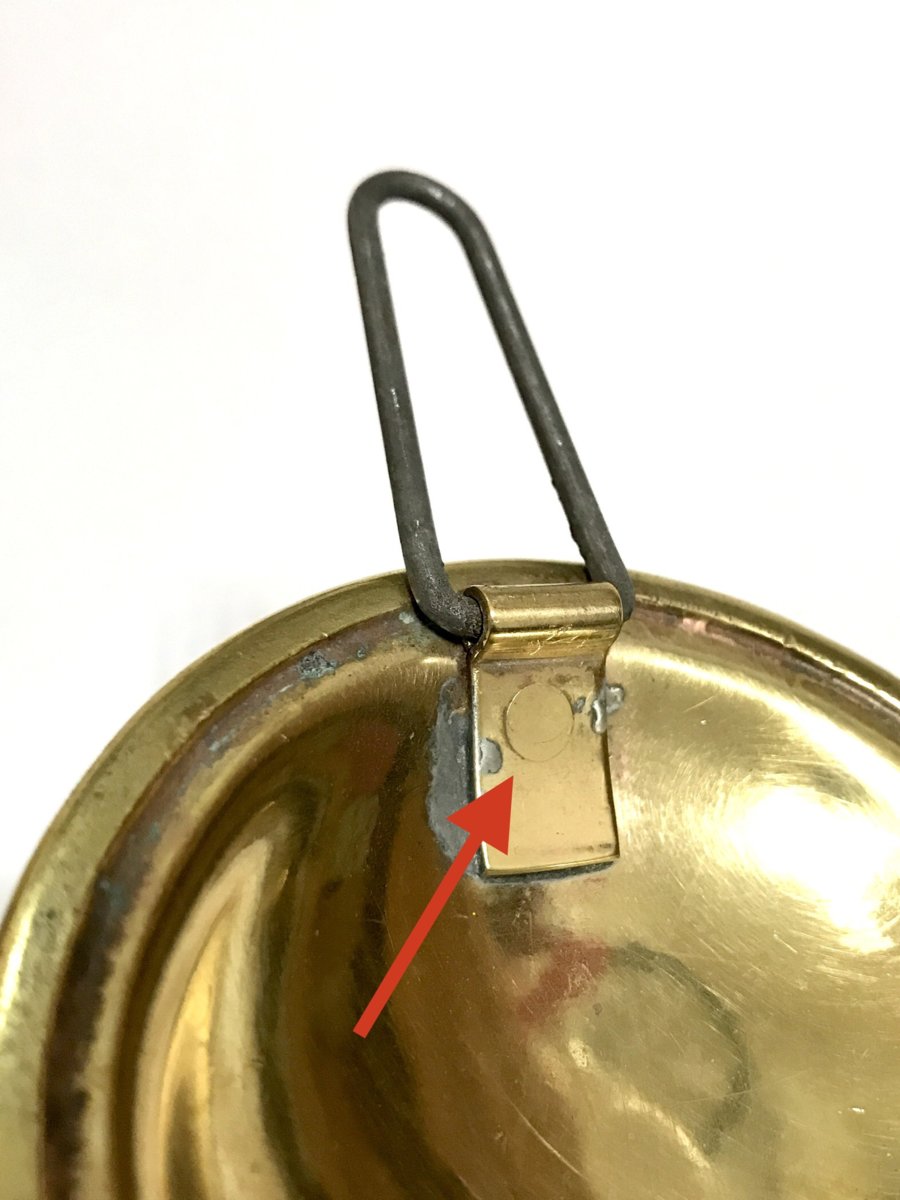

    In addition, I also found some differences between the two versions of the support feet. 3CA2DDD4-3F05-4AE8-94F1-53835581C17A.jpeg This is a copper windshield version. The support legs are connected directly to the fuel tank. 4BCA1240-D678-44FF-A876-191EFB6A6095.jpeg This is a version of the steel windshield. The middle of the support foot connecting the copper piece adds a circular positioning design. Is this also the result of evolution?

    Last edited by a moderator: Oct 19, 2019
  3. Doc Mark

    Doc Mark Subscriber

    Offline
    Joined:
    Dec 12, 2004
    Messages:
    16,834
    Greetings, @anfeng ,

    WOW!! What lovely showpieces you have in those two Campus stoves!! We seldom see then on our side of The Pond. So, seeing yours is a real treat!! Unfortunately, I don't know much about this model of stove, but your thoughts sound logical, to me! Thank you for sharing your comments, and your excellent photos of these lovely Swedish stoves. Wonderful stuff!!! Thanks, again, and God Bless!

    Every Good Wish,
    Doc

  4. hikerduane

    hikerduane Subscriber

    Offline
    Joined:
    Mar 1, 2010
    Messages:
    5,773
    Nice work, I'm glad to have the nickel tank model.
    Duane

  5. anfeng

    anfeng Subscriber

    Offline
    Joined:
    Oct 2, 2016
    Messages:
    97
    @Doc Mark
    Hello DOC, you are right, they are not common, but they are my favorite self-pressurizing oil stove, its shape is easy to store in a backpack, like a water glass.
    best regards!
    An Feng

  6. anfeng

    anfeng Subscriber

    Offline
    Joined:
    Oct 2, 2016
    Messages:
    97
    @hikerduane
    Hello Duane nickel-plated tank is very beautiful.
    best regards
    An Feng 5E5F9445-E35C-49DB-B9F7-EC5E85105EFE.jpeg

  7. Paul B

    Paul B Subscriber

    Offline
    Joined:
    Nov 15, 2005
    Messages:
    191
    Wow! Jealousy raises its ugly head. Congratulations to you!
