Captain B201

Discussion in 'Hyup Seung Precision Co' started by Archivist2, Jul 15, 2008.

  1. Archivist2 Pre-launch content poster

    Offline
    Joined:
    Nov 29, 2007
    Messages:
    139
    Courtesy Park Soo Tae

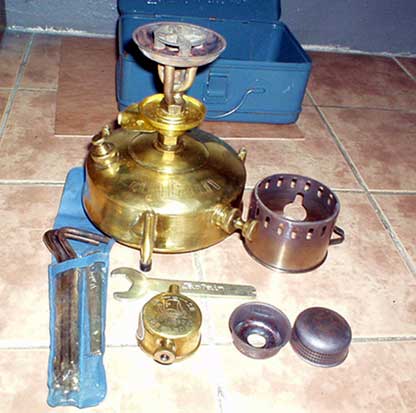

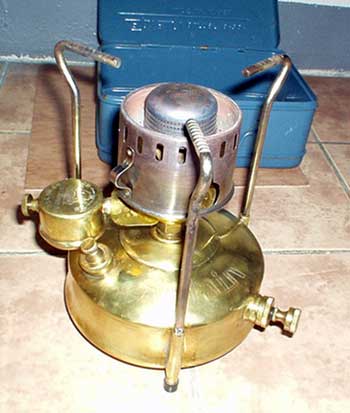

    1 pint paraffin stove with silent & roarer burner caps. Has a pre-heater device fuelled by lighter fuel.

    1216154958-captain_b201_04.jpg 1216154966-captain_b201_03.jpg 1216154977-captain_b201_02.jpg 1216154986-captain_b201_01.jpg

    Last edited by a moderator: Jun 27, 2015
  2. Vince.S Canada

    Offline
    Joined:
    Jul 11, 2019
    Messages:
    14
    Location:
    Vancouver Canada
    Very nice stove. Does it burn white gas?

  3. Marc

    Marc Subscriber

    Offline
    Joined:
    Nov 4, 2015
    Messages:
    4,305
    Location:
    Oregon, USA
    Paraffin = kerosene

    Lighter fuel = white gas

    So, the preheater runs on white gas and the stove itself on kerosene. I believe that "lighter fuel" can be different things in different parts of the world, though.

  4. Vince.S Canada

    Offline
    Joined:
    Jul 11, 2019
    Messages:
    14
    Location:
    Vancouver Canada
    How do you fill up the pre-heat device? How do you light up this stove?

  5. kerophile

    kerophile United Kingdom SotM Winner Subscriber

    Offline
    Joined:
    Sep 23, 2004
    Messages:
    11,821
    Location:
    Far North of Scotland
    Hi @Vince.S. Here is a link to the instructions for lighting a similar S.Korean stove:

    https://classiccampstoves.com/threads/annby-no-l747-from-daelim-gas-co.9063/

    Annby No.L747 from 1980s.

    The Annby stove has a rapid igniter but is is fed from the main tank of this kerosene powered stove. The rapid igniter receives fuel and compressed air from the main tank. It produces a jet of atomised fuel/air which when lit burns like a blowlamp flame aimed at the main burner for a minute or so to pre-heat this burner.

    The Captain B 201 is slightly different. It has a small dedicated fuel tank with its own small pump and rapid igniter aimed at the main burner. This small tank is pressurised to ignite and run the rapid igniter. This pre-heats the main burner while the main fuel tank is pressurised using the main pump, and the main burner lit in turn.

    Best Regards,
    Kerophile.

  6. Vince.S Canada

    Offline
    Joined:
    Jul 11, 2019
    Messages:
    14
    Location:
    Vancouver Canada
    Thanks a lot for your information.

  7. Vince.S Canada

    Offline
    Joined:
    Jul 11, 2019
    Messages:
    14
    Location:
    Vancouver Canada
    Mine only has a screw type of control vale on the pre-heater. I don't even know how to fill it up lighting fluid because I can't find a way to open the little fuel container.

  8. Vince.S Canada

    Offline
    Joined:
    Jul 11, 2019
    Messages:
    14
    Location:
    Vancouver Canada
    I believe that you have to fill the little container with Butane and use it to warm up your main burnner. They have Piezo Ignitor for the Captain B301 as well. It is very cool. However, you can always use alcohol if you are in a pinch.

  9. kerophile

    kerophile United Kingdom SotM Winner Subscriber

    Offline
    Joined:
    Sep 23, 2004
    Messages:
    11,821
    Location:
    Far North of Scotland
    Hi @Vince.S you could well be correct. I do not have a Captain stove so have no direct knowledge of the fuel used for the pre-heater.

    Ross has a BRO 202 from the same manufacturer and says:


    “Comes with one piece silent cap & roarer burner plate for the adjustable burner. The spiritcup can be used conventionally but includes a lighter-gas powered pre-heater with piezo ignition which slots into the vented spiritcup for easy priming - very neat!”

    From this thread:

    Captain BRO-202


    Best Regards,
    Kerophile.

    Last edited: Jul 18, 2019
  10. kerophile

    kerophile United Kingdom SotM Winner Subscriber

    Offline
    Joined:
    Sep 23, 2004
    Messages:
    11,821
    Location:
    Far North of Scotland
  11. kerophile

    kerophile United Kingdom SotM Winner Subscriber

    Offline
    Joined:
    Sep 23, 2004
    Messages:
    11,821
    Location:
    Far North of Scotland
    Of course Primus used the same principle as early as the 1920s for pre-heating their kerosene stoves:

    Primus 1205 (next to a 801)

    Best Regards,
    Kerophile.

  12. Vince.S Canada

    Offline
    Joined:
    Jul 11, 2019
    Messages:
    14
    Location:
    Vancouver Canada
    Thanks a lot for all the information.
