Coleman 1941 B Stove

Discussion in 'Coleman No:500' started by roby03, Mar 3, 2016.

  1. roby03

    Offline
    Joined:
    Mar 18, 2015
    Messages:
    62

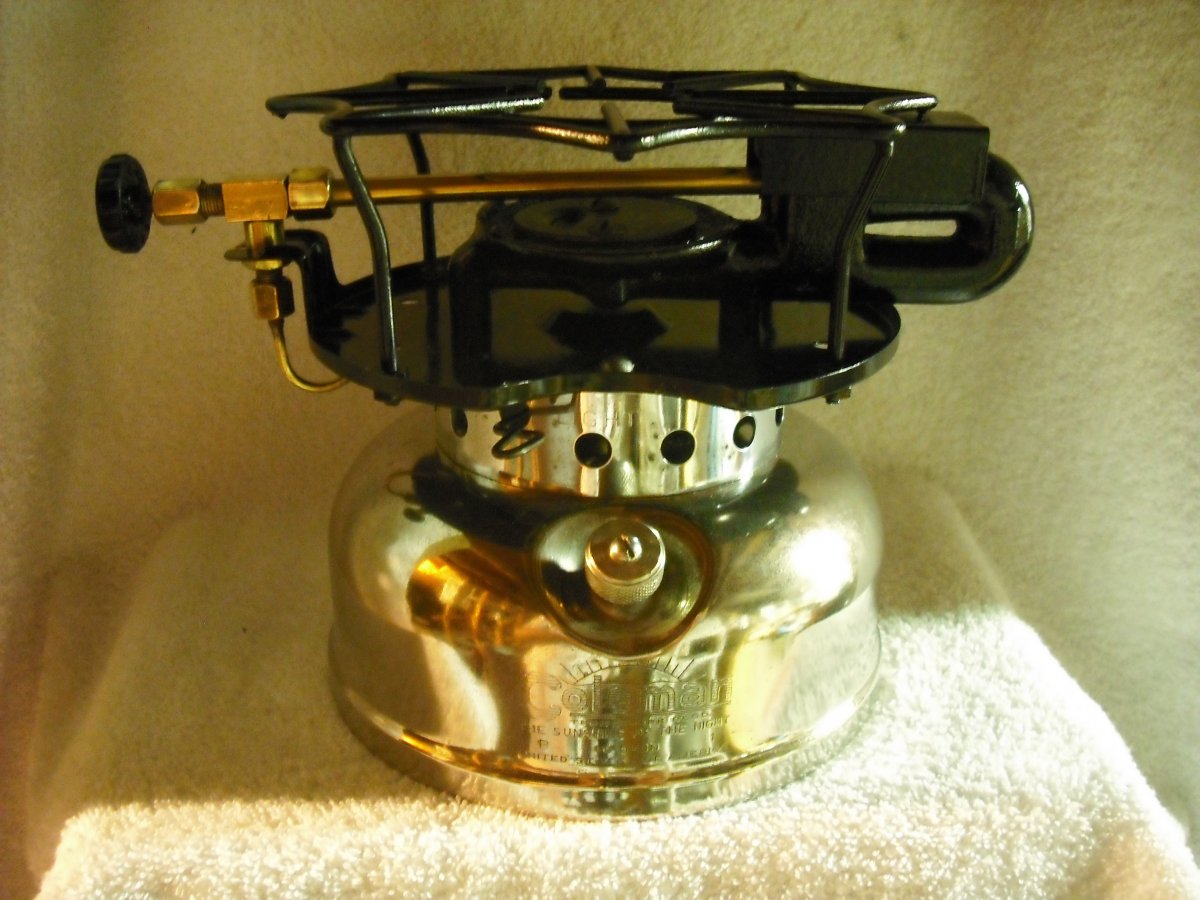

    My new acquired project, a 1941 B Coleman 500 stove.
    I passed this stove by 3 times, over a period of 2 weeks
    at a indoor flea market. It looked really terrible, not
    worth even the $13.50 that I paid for it. I could kick
    myself for not taking before pictures. I was really
    amazed that it cleaned up as well as it did. The bolts,
    nuts and fittings came loose easily. There was only a
    couple of specks of rust in the tank. I think this stove
    was used very little, then shelved for many years. It
    just looked bad. DSCF1130.JPG

  2. roby03

    Offline
    Joined:
    Mar 18, 2015
    Messages:
    62
    I replaced the pump leather, fuel cap seal and repacked
    spindle and light and burn control with new graphite
    ribbon. Cleaned out the tank a bit with Coleman fuel.
    Surprisingly the generator was really clean. I wanted
    to keep orginial colors the same, black grate, base
    plate and burner. What does not show up in the pictures
    is the many specks on the nickel plated font.
    I only cleaned so much, as not to damage the finish.
    I guess being almost 75 years old I should be happy
    with the way it is.

  3. roby03

    Offline
    Joined:
    Mar 18, 2015
    Messages:
    62
  4. Billyboy

    Offline
    Joined:
    Oct 23, 2014
    Messages:
    676
    Beauty!

  5. roby03

    Offline
    Joined:
    Mar 18, 2015
    Messages:
    62

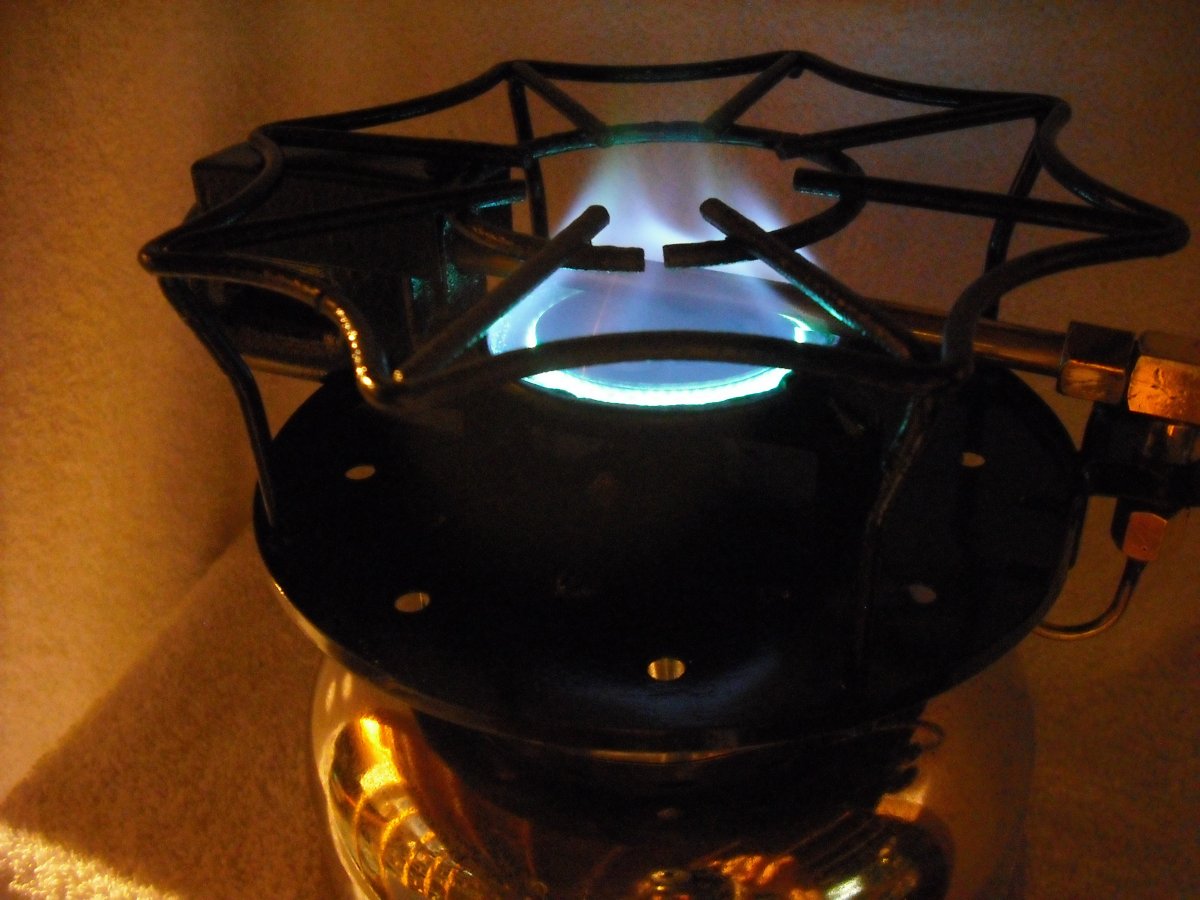

    DSCF1136.JPG Here is the flame shot first time being lite after many
    years. It fired up right away. I knew the black paint
    would burn off the grate. I will probably use this stove,
    many times this year, alternating with others.

    Last edited: Mar 3, 2016
  6. roby03

    Offline
    Joined:
    Mar 18, 2015
    Messages:
    62
    The date stamp for the year, the number 4, is a little
    light. I read that some other stoves have the same look.
    Now maybe I will keep a lookout for a Coleman 500A stove.

  7. Doug L

    Doug L Subscriber

    Offline
    Joined:
    Oct 1, 2010
    Messages:
    1,021
    Location:
    USA
    Nice work and a nice price. What type paint did you use?

  8. patatwin

    Offline
    Joined:
    May 11, 2015
    Messages:
    227
    Nice stove !
    Well done !

  9. roby03

    Offline
    Joined:
    Mar 18, 2015
    Messages:
    62
    Hello Doug

    Thanks for looking. The paint is Dupli-Color engine black enamel.
    Code DE 1613 Gloss Black. Its rated at 500 Deg. F.
    Nothing works on the grates, but for the rest, it will hold up just
    fine. Any auto parts store carry a line of engine ceramic paints.

    ....roby

  10. jrs08

    jrs08 Subscriber

    Offline
    Joined:
    Apr 16, 2009
    Messages:
    107
    It's a real beauty! I'll bet your glad you finally decided to grab it. Job well done!

  11. Etherman

    Offline
    Joined:
    Mar 9, 2015
    Messages:
    367
    Finish looks great, nice work :thumbup:

  12. scouterjan

    scouterjan Subscriber

    Offline
    Joined:
    Mar 24, 2010
    Messages:
    621
    very nice, a great stove, I have a couple as well, all but 1 are Canadian
    Jan

  13. hobby 123

    Offline
    Joined:
    Oct 31, 2015
    Messages:
    30
    roby03 you did a splendid job,be realy proud of yourself,what a wonderful stove,congratulations.
    Regards
    Willie

  14. roby03

    Offline
    Joined:
    Mar 18, 2015
    Messages:
    62
    Hello To All,

    Thanks for all the nice comments

    Roby
