Coleman Canada 976-D camp stove

Discussion in 'Other Models' started by Blueflame, Oct 5, 2016.

  1. Blueflame Canada

    Offline
    Joined:
    Jul 11, 2015
    Messages:
    106
    Location:
    Montreal Canada

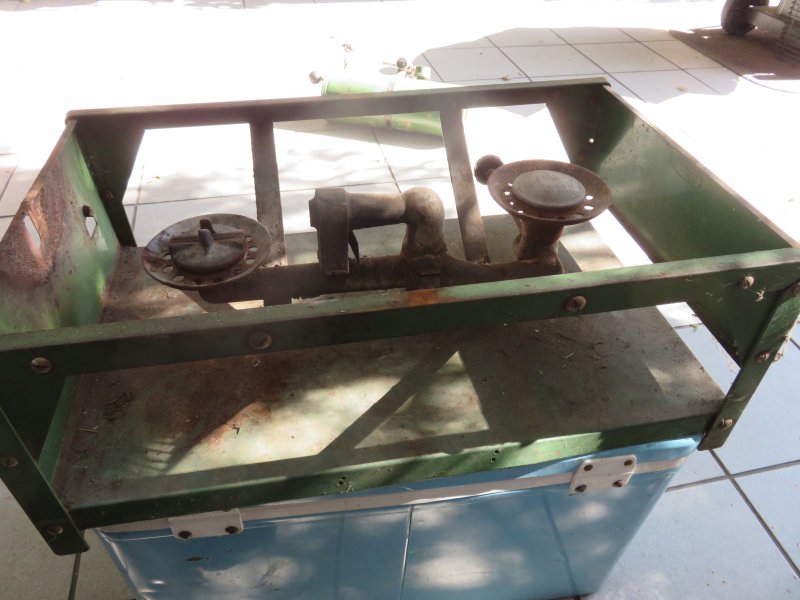

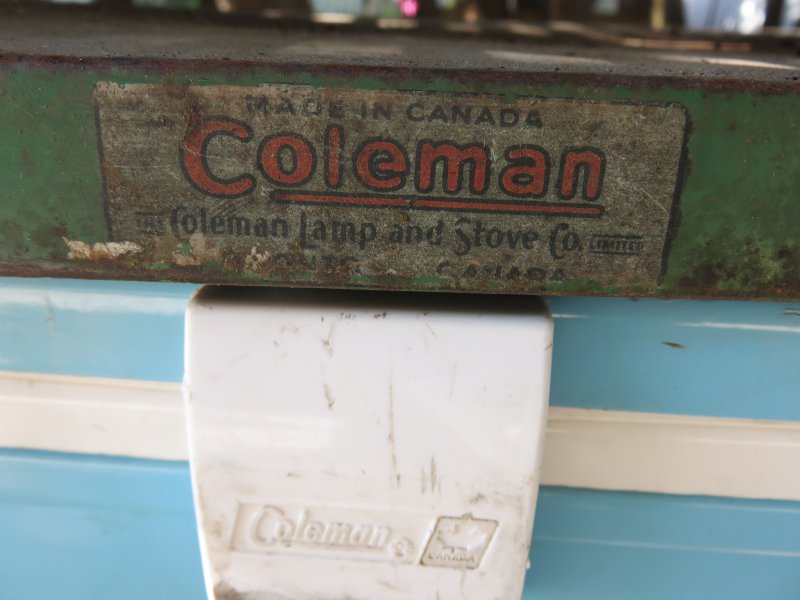

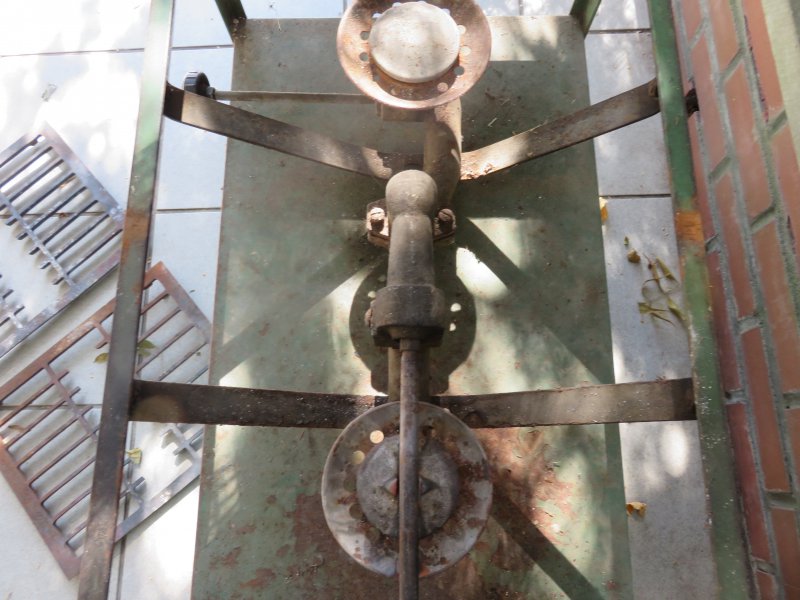

    We scored an old cabin stove today. Old but perfectly functional. Even has original paint and decals.
    Canada is big, our stoves were huge. Flame shot to come.


    IMG_2233__1475687543_64822.jpg IMG_2234__1475687602_39658.jpg IMG_2235__1475687666_33675.jpg IMG_2237__1475687799_52427.jpg IMG_2239__1475687930_99246.jpg IMG_2243__1475688193_37434.jpg IMG_2249__1475688687_35906.jpg IMG_2252__1475689115_77346.jpg IMG_2245__1475688356_88009.jpg IMG_2236__1475687730_89885.jpg IMG_2246__1475688428_80307.jpg IMG_2248__1475688573_47465.jpg

  2. presscall

    presscall United Kingdom Subscriber

    Offline
    Joined:
    Aug 25, 2009
    Messages:
    6,625
    Location:
    UK
    @Blueflame
    That's grand.

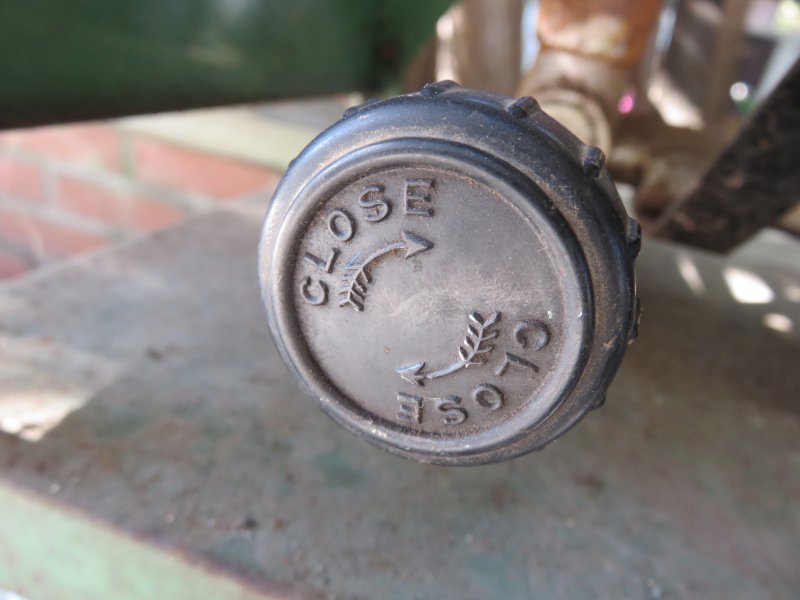

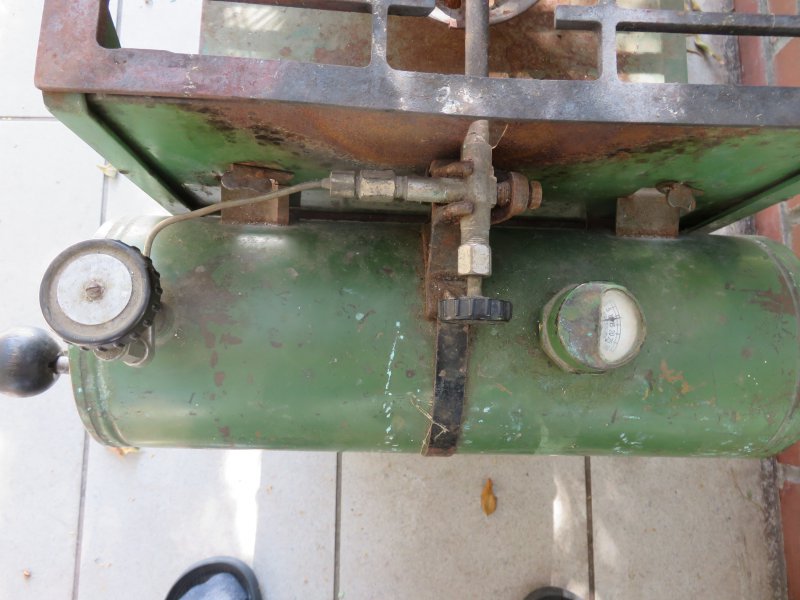

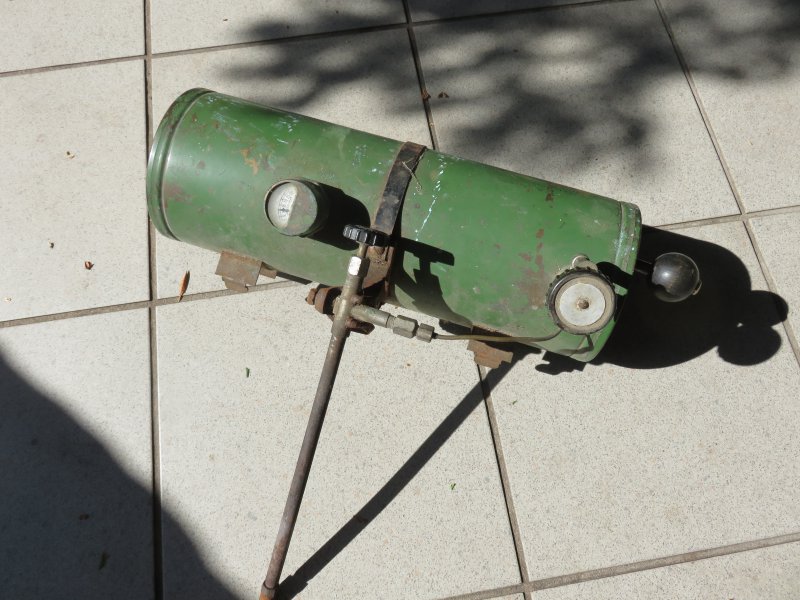

    When you fire it up talk us through the lighting procedure please. I see a fuel valve resembling one on a Handy Gas Plant mounted on the fuel tank, then there are the two other control wheels on generator and secondary burner.

    Pump 'ball' is handsome, but does that rule out the usual Coleman check valve 'thumb over the pump knob hole to pump' procedure or is there still a hollow pump rod there?

    Apologies for the questions but you've presented something of great interest and out of the ordinary.

    John

    Edit
    On closer inspection of the relevant photo (excellent photos) I can see the hole in the brass centre boss on the pump knob, so I believe that's answered that question.

    Last edited: Oct 5, 2016
  3. Blueflame Canada

    Offline
    Joined:
    Jul 11, 2015
    Messages:
    106
    Location:
    Montreal Canada
    I lit this puppy according to these instructions:

    "It's pretty easy to light. The large valve on the tank should be opened 1/4 for lighting. That gives an air fuel mix for lighting. The gen valve works just like any other you have used. Once it's lit and warmed up, you push the detent down to allow the tank valve to be opened all the way. This takes it of instant light mode, and delivers fuel only to the gen."




  4. Tony Press

    Tony Press Australia Subscriber

    Online
    Joined:
    Jun 8, 2013
    Messages:
    2,895
    @Blueflame

    That's an impressive piece of machinery.

    I gather from your discussion that it has been in use relatively recently. Is this correct?

    I hope you've got a big cabin to put it in.

    Cheers

    Tony

  5. Blueflame Canada

    Offline
    Joined:
    Jul 11, 2015
    Messages:
    106
    Location:
    Montreal Canada
    Actually the person who sold it to me was keen on firing it up before I paid him but no one had fuel at the moment. But I trusted him as he seemed like an outdoorsman who had been through a few hunting camps.

  6. Blueflame Canada

    Offline
    Joined:
    Jul 11, 2015
    Messages:
    106
    Location:
    Montreal Canada

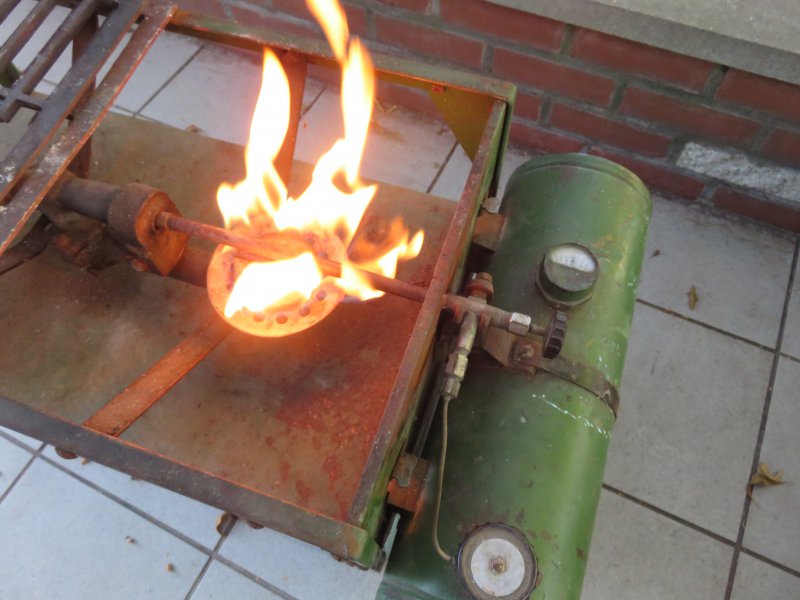

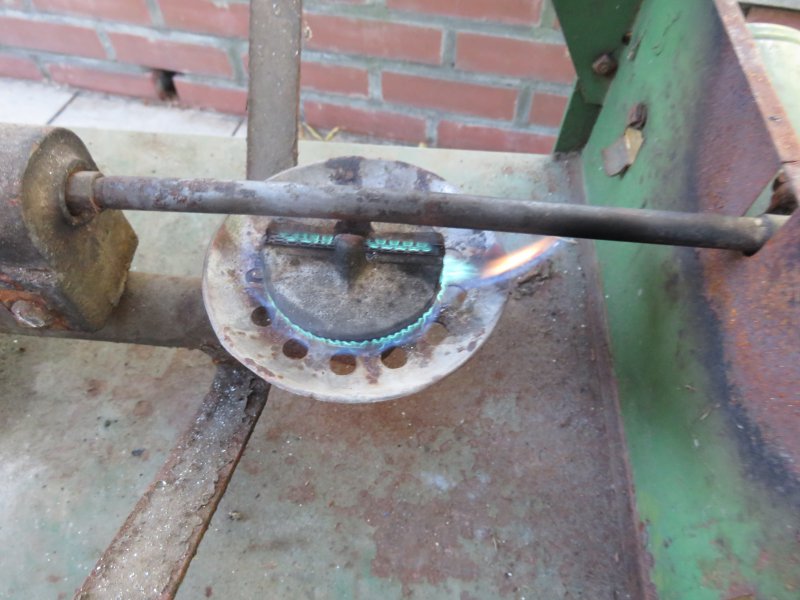

    Flame shot this evening.Last pic is @ full throttle.First pic seems to show primary burner flame is directed to the generator. But I am not comfortable with the flame shooting at the hand wheel. IMG_2261__1475716070_49021.jpg IMG_2262__1475716119_72322.jpg IMG_2263__1475716167_27979.jpg IMG_2264__1475716216_93603.jpg

  7. fyrwokr

    fyrwokr United States Subscriber

    Offline
    Joined:
    Dec 4, 2011
    Messages:
    169
    Location:
    Bitterroot Valley Montana
    Great find !

  8. scouterjan

    scouterjan Canada Subscriber

    Offline
    Joined:
    Mar 24, 2010
    Messages:
    478
    Location:
    Maple Ridge, B.C. Canada
    thats a beauty EH!!!!!!!!!!!!
    Jan
