Coleman Denali, model 9790

Discussion in 'Denali' started by SMolson, Jun 29, 2013.

  1. SMolson

    SMolson Subscriber

    Offline
    Joined:
    Feb 24, 2009
    Messages:
    1,048
    A Coleman Denali Mutli-fuel camp stove, used once (now twice), purchased in 2010 from New York, USA. Missing her windshield and original box. Runs on Coleman Fuel (Outputs 11 000 BTU/hr) with default jet (one slot); Kerosene (10 000 BTU/hr) with double slotted spare jet or LPG Canister (14 500 BTU/hr) with default jet.


    Includes 26 page Coleman Denali exponent Instructions for use paper manual, in English only.

    '10' paged Service Parts Kit leaflet in English, French and Spanish

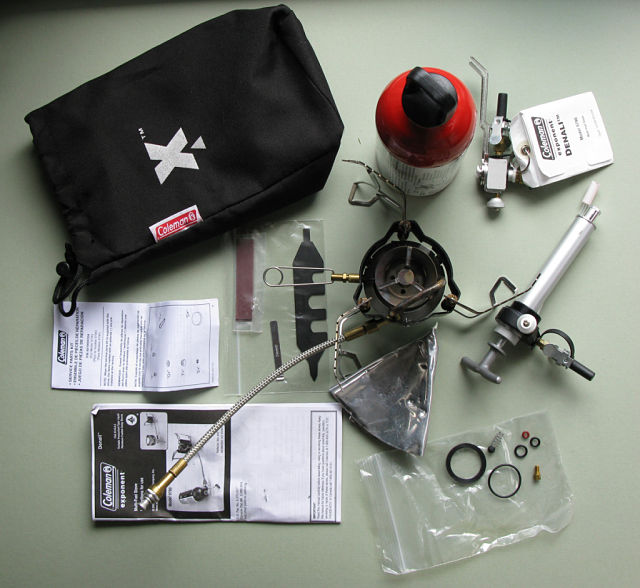

    Component Identification (Page 5 of Instructions manual):

    Spare o-rings/gaskets, NRV components (spring/ball) and kerosene jet.

    Multi-tool and pricker ('Tip Cleaning Tool'). The stove comes with a 'clean out wire' inside the burner to clean the jet, so the tip cleaning tool is there in case the 'clean out wire' breaks?

    Pump assembly with aluminum t-grip handle, rod, block and pump cylinder.

    Nice grey-leather pump cup on this one.

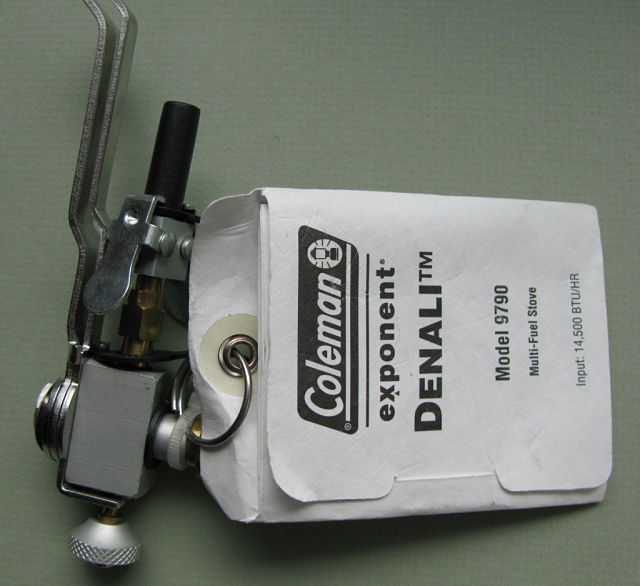

    Model 9790 LPG Canister support for use with Coleman 3250 Butane/Propane fuel canisters

    French/English Operating Instructions

    Continued...

    Last edited by a moderator: Jun 26, 2015
  2. SMolson

    SMolson Subscriber

    Offline
    Joined:
    Feb 24, 2009
    Messages:
    1,048
    Burner in her packed position, the legs fold in tight and extend when required.

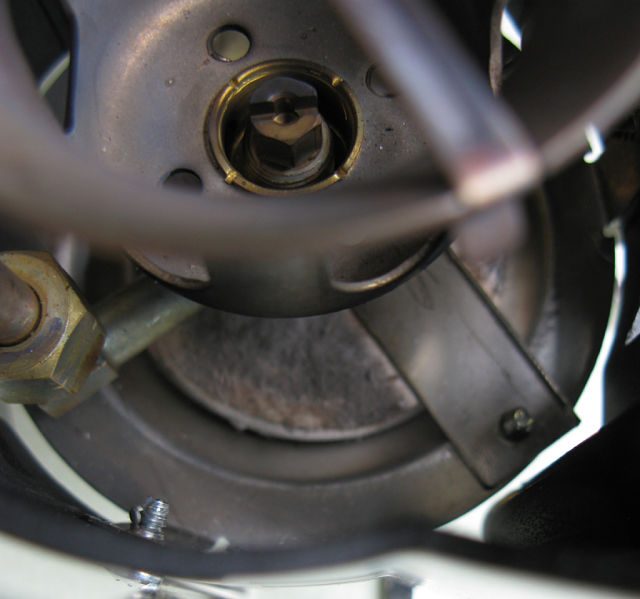

    Absorbent pad at burner base for priming. Note the single-slotted jet used for Coleman Fuel and Canister.

    Wire Flame Adjuster handle on side of burner.

    Fuel control valve on pump.

    Connecting assembly - pump to fuel line. An aluminum plug fits into the female end of the fuel line when not in use, to keep it debris-free.

    Stove setup

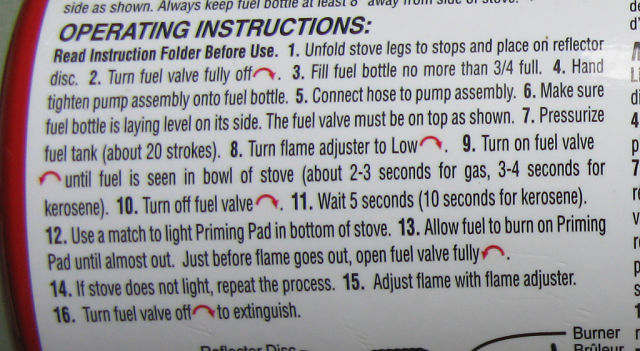

    Operating instructions on side of Coleman aluminum fuel bottle


    Stove lit and running with coleman fuel. She runs VERY hot and fairly loud. She was easy to light after a prime with alcohol (they suggest coleman fuel or kerosene) if using either for fuel.

    'Low' output, colorful but still outputs too much heat. The 'Flame Adjuster' did nothing to regulate the amount of heat - I'm thinking the 'clean out wire' is broken or missing on this stove.

    I never saw any sign of the internal wire through the jet hole, regardless of how the flame adjuster was turned. The Flame Adjuster also rotates 360 in any direction, there is no point reached where she still didn't come to a stop so that's another reason me thinks the 'wire' is broken off. As it stands, it does nothing to help regulate or control the flame. The flame in this case was controlled by the fuel valve, turning it CW to help reduce the amount of fuel reaching the burner, which controlled the output/intensity. So it looks like the 'Tip Cleaning Tool' (aka Pricker) will be used after all. Otherwise she ran fine and seems to be well designed and built. She has a large single burner with long and sturdy pot supports that should do well in large groups using large pots/pans.

    Last edited by a moderator: Jun 26, 2015
  3. junior trangia master

    Offline
    Joined:
    May 14, 2013
    Messages:
    109
    Nice stove you've got there!! :thumbup:

  4. Eddie

    Offline
    Joined:
    Jan 6, 2015
    Messages:
    15
    Does the coleman fuel bottle have proprietary threads? It seems very metric (tighter spacing of the threads) unlike say MSR or even Primus.
