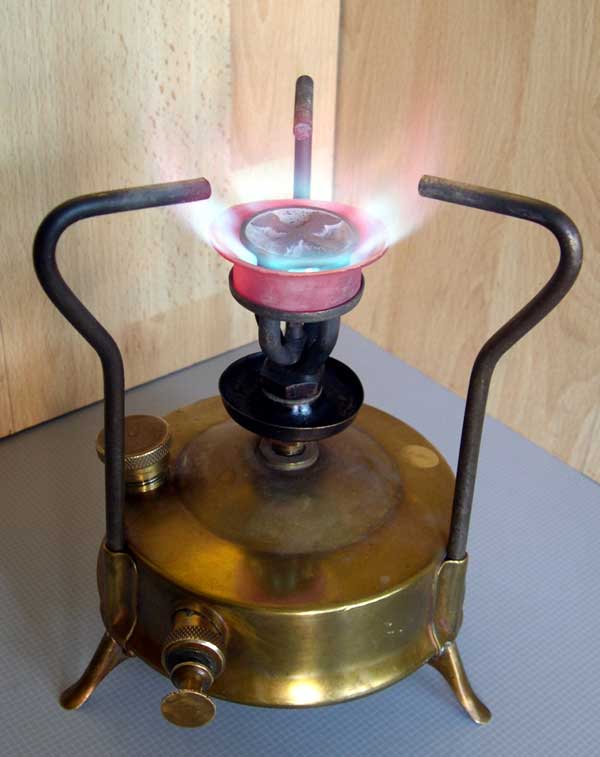

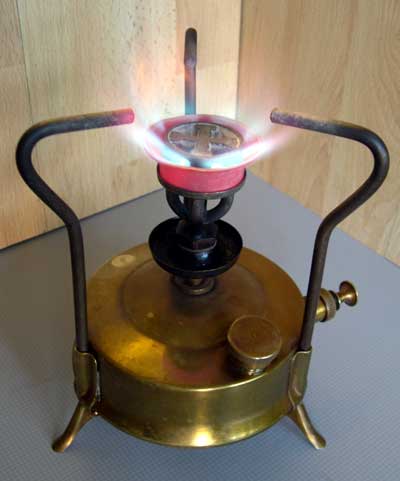

    I bought a stove out of curiosity... as one does.

    It was listed as a Svea 825, but although a one pint, classic brass-tank paraffin stove it looked nothing like a Svea 121.
    I received the stove a few weeks ago.

    I installed a filler cap washer, leather pump washer, cleaned the burner, gave it burner washers, and put in a new jet.
    I cleaned out the tank, and got it going.

    This stove had not been used for many, many years.

    What is this mystery stove?

    1, There is absolutely no lettering on the tank or burner....It is however fitted with a Svea 825 flame ring.

    2. It has feet like a Primus 210 or Thermidor/ RM/ Veritas.

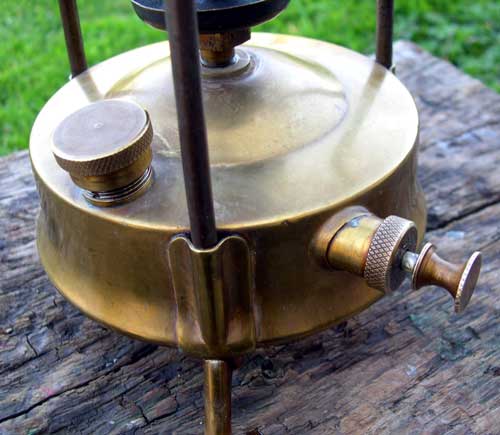

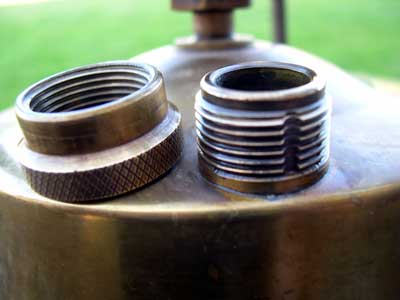

    3. It has no air release valve, instead there is a round-bottomed vertical slot in the threads of the long filler nozzle and you use the filler cap to release pressure.

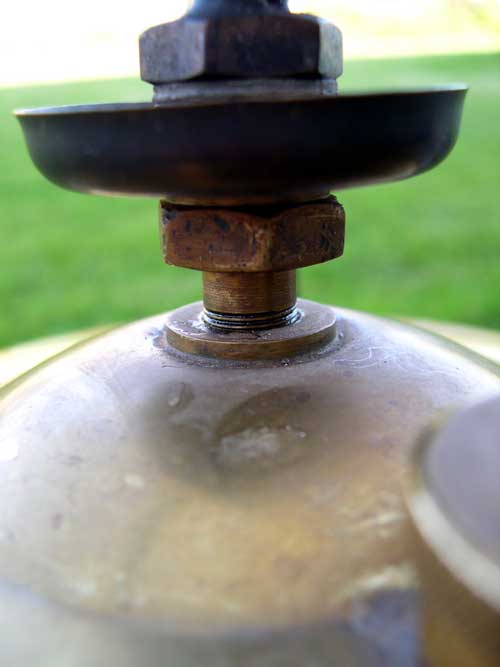

    4. It has a tapered thread upstand, but will not accept a Thermidor replacement.

    5. There is no reserve cap

    6. The pump and filler nozzle are in separate quadrants of the tank....unlike a one-pint Thermidor, where the pump and filler share the same quadrant.

    7. The pump does not have a floating piston on the brass shaft. Instead the piston is fixed on the shaft and relies on simple by-pass flow on the up-stroke.

    8. The legs could be a later addition, I think, but are well made.

    9. It is a well manufactured, powerful stove.

    10. I would guess that it is British from the 1950s or earlier.

    Any suggestions?

    1220039237-Mystery-stove-1.jpg 1220039249-Mystery-stove-2.jpg 1220039261-Mystery-stove-3.jpg 1220039274-Mystery-stove-4.jpg 1220039290-Mystery-stove-5.jpg 1220039304-Mystery-stove-6.jpg

    Best Regards,
    Kerophile.

    Last edited by a moderator: Jun 27, 2015
  2. brassnipplekey

    Offline
    Joined:
    Aug 20, 2005
    Messages:
    1,347
    Haven't a clue :) .... But, George , you've met me .. & that should be patently obvious .
    Pic 4 of 6 is the best clue ... Find a manufacture who made fill/pressure release caps & spigots like that (External slot pressure escape route) .. British ??
    Its a 'Bitsa' :lol: ?? .. Bits of this ?? bits of that ??

    Who made a fill release like that ??
    Inspector Clouseau ??
    Im Clueless .
    Bloody stoves , B'strd Tinternet ..

    Regards , Respect .

    Nick

  3. hobowonkanobe

    Offline
    Joined:
    Aug 18, 2004
    Messages:
    1,835
    If a tapered thread and wont take Thermador/RM, try a burner from a 210, it's alot more forgiving.
    I was able to put my 210 burner in the RM w/out problems, the other way? nope.

  4. steveo333

    Offline
    Joined:
    Jun 24, 2009
    Messages:
    77
    Looks the same as my one see my filler cap has air release valve.


    Last edited by a moderator: Jun 27, 2015
  5. igh371

    igh371 SotM Winner Subscriber

    Offline
    Joined:
    Jun 23, 2013
    Messages:
    1,333
    @kerophile this looks very similar to the 1½pt Falk stove I posted here. But what size is this stove? By the look of the burner/riser assembly I'm thinking this might be 1pt? Maybe a version of the Veritas 9688?
    Ian:thumbup:

  6. kerophile

    kerophile United Kingdom SotM Winner Subscriber

    Offline
    Joined:
    Sep 23, 2004
    Messages:
    11,558
    Location:
    Far North of Scotland
    Hi Ian, see second line of initial post:

    “although a one pint, classic brass-tank paraffin stove”

    This post is now almost 11 years old and I agree with you, that my mystery stove is almost certainly from the Falk Stadelmann company.

    The form of combined filler cap/air release is almost as good as a fingerprint.

    Best Regards,
    Kerophile.

  7. Matukat

    Matukat Subscriber

    Offline
    Joined:
    Jan 7, 2008
    Messages:
    4,690
    Location:
    Pueblo West, Colorado, U. S.
    Wow... just wow.

  8. igh371

    igh371 SotM Winner Subscriber

    Offline
    Joined:
    Jun 23, 2013
    Messages:
    1,333
    Hi George,
    All we need now is to have some kind hearted moderator move this old 'Mystery' post to the Great Britain Falk Stadelmann gallery section, and maybe amend the title appropriately too:whistle:
