Hipolito S-36 kerosene silent burner

Discussion in 'Stove Paraffinalia' started by presscall, Aug 31, 2020.

  1. presscall

    presscall United Kingdom SotM Winner SotY Winner Subscriber

    Offline
    Joined:
    Aug 25, 2009
    Messages:
    9,959
    Location:
    Blackburn, Lancashire, United Kingdom

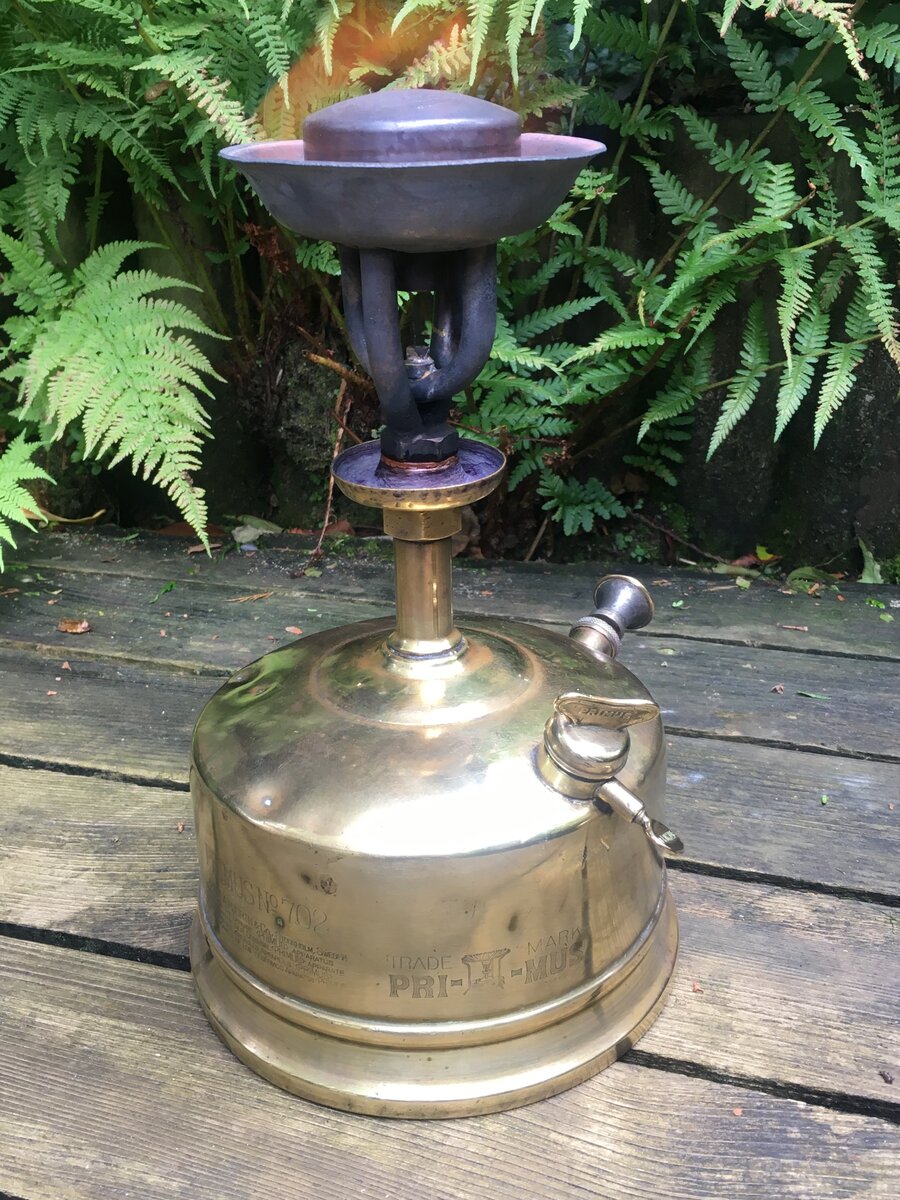

    A large silent burner. That’s the smallest of the breed, from a Primus No.4, in my hand.

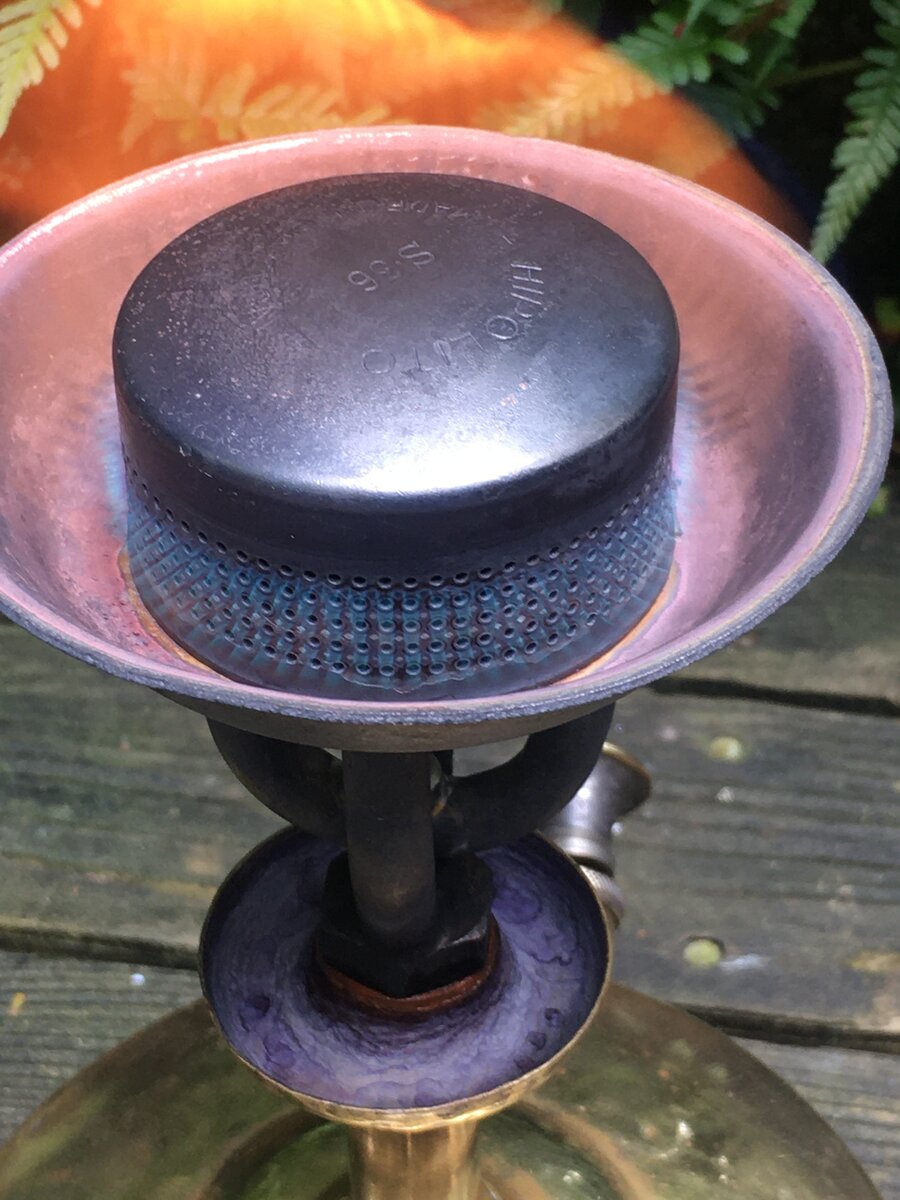

    Marked on the burner ...



    ... and on the outer cap



    Inner cap.



    Cap measurements. Jet orifice is 0.5mm.



    Could lose a pencil down those bore-holes.



    12 inches (305mm) length of fine brass gauze is rolled up and acts as a filter/fuel surge preventer.





    For test firing I used this Primus 702 furnace (AN date letters -1949).



    Mmm, not quite right.




    Outer cap was afflicted with metal scale around the outlet holes, which I removed.



    Better, getting into its stride.




    Settled down nicely.




    My pot stand.



    6-pint (3.4 litre) kettle, nearly full.



    About the time a smaller burner takes to boil a litre of water.



    My thoughts on this burner? It requires a lot of priming (all that metal!) and more so than smaller silent burners, needs to only gradually be brought up to maximum output.

    It’s more sensitive to draughts too, which send it into underburn and that’s consistent with its probable application, heating large volumes of water indoors in a domestic setting where silent running was an asset.

    A footnote.

    Six years ago I had work to do to get an Indian burner of the same size as the Hipolito to work properly. On the left, one of those burners as purchased and on the right, the same type of burner with my addition of a tube to reduce the gap between jet and burner bell. Without that, the burner flipped into underburn constantly.



    Hipolito had realised a tube/riser in that location is a crucial component.

    John

    Last edited: Aug 31, 2020
  2. The Warrior

    The Warrior United States Subscriber

    Offline
    Joined:
    Dec 5, 2019
    Messages:
    1,306
    Location:
    the 'Nois man.
    Nice work as always sir.

  3. presscall

    presscall United Kingdom SotM Winner SotY Winner Subscriber

    Offline
    Joined:
    Aug 25, 2009
    Messages:
    9,959
    Location:
    Blackburn, Lancashire, United Kingdom
    Couple of vids.




    A fair mass of metal to be glowing red (the burner shroud).

  4. shueilung.2008

    shueilung.2008 Subscriber

    Offline
    Joined:
    Aug 6, 2015
    Messages:
    531
    Location:
    Uruguay
    @presscall :shock:

    Amazing!

    May I ask which model of Hipolito's stove was that burner created for?

    Cheers

    Enrique

  5. Jose Venezuela

    Offline
    Joined:
    Jul 26, 2016
    Messages:
    25
    Location:
    Venezuela
    WOW! Nice stuffs! :D/

  6. Yun¹²⁴ Korea, Republic of

    Offline
    Joined:
    Aug 11, 2020
    Messages:
    35
    Location:
    Gangnam, Seoul in Korea
    Nice, thanks for this posting.

  7. presscall

    presscall United Kingdom SotM Winner SotY Winner Subscriber

    Offline
    Joined:
    Aug 25, 2009
    Messages:
    9,959
    Location:
    Blackburn, Lancashire, United Kingdom
    I think THIS Hipolito in the Stove Reference Gallery Enrique but with the silent burner I have.

    I saw this in an online search too, also with a caption ‘Hipolito S-36’ but with no other information. It’s a design of water heater that was popular in Portugal in the 1950’s I’ve noticed.



    John

  8. kerophile

    kerophile United Kingdom SotM Winner Subscriber

    Online
    Joined:
    Sep 23, 2004
    Messages:
    12,326
    Location:
    Far North of Scotland
  9. presscall

    presscall United Kingdom SotM Winner SotY Winner Subscriber

    Offline
    Joined:
    Aug 25, 2009
    Messages:
    9,959
    Location:
    Blackburn, Lancashire, United Kingdom
  10. shueilung.2008

    shueilung.2008 Subscriber

    Offline
    Joined:
    Aug 6, 2015
    Messages:
    531
    Location:
    Uruguay
  11. gideon

    Offline
    Joined:
    Oct 9, 2013
    Messages:
    309
    i have a couple of hipolito-36 stoves but unfortunately don't have a silent burner like this...

  12. shueilung.2008

    shueilung.2008 Subscriber

    Offline
    Joined:
    Aug 6, 2015
    Messages:
    531
    Location:
    Uruguay
    @presscall

    I knew I have seen this stove somewhere!
    [​IMG]

    But with a roarer burner and some different construction...
    Duchero Instantaneo-Algarve Portugal_00.jpeg Duchero Instantaneo-Algarve Portugal_02.jpeg

    The images are from a fellow CCS member from his tour at Algarve, Portugal!

    Instant water heater.

    Regards

    Enrique

  13. shueilung.2008

    shueilung.2008 Subscriber

    Offline
    Joined:
    Aug 6, 2015
    Messages:
    531
    Location:
    Uruguay
  14. presscall

    presscall United Kingdom SotM Winner SotY Winner Subscriber

    Offline
    Joined:
    Aug 25, 2009
    Messages:
    9,959
    Location:
    Blackburn, Lancashire, United Kingdom
    @shueilung.2008 Well found Enrique! I see I contributed to that thread originally, so some bit of memory of it must have remained.

    So that example with the Prince replacement burner was underpowered and the Hipolito S-36 original would have been the right specification for plenty of hot water quickly.

    Well, I’ve now got the burner ...

    John
