Juwel 3B c.1903

Discussion in 'Juwel No:3' started by igh371, Dec 29, 2015.

  1. igh371

    igh371 United Kingdom Subscriber

    Offline
    Joined:
    Jun 23, 2013
    Messages:
    615
    Location:
    North-East England

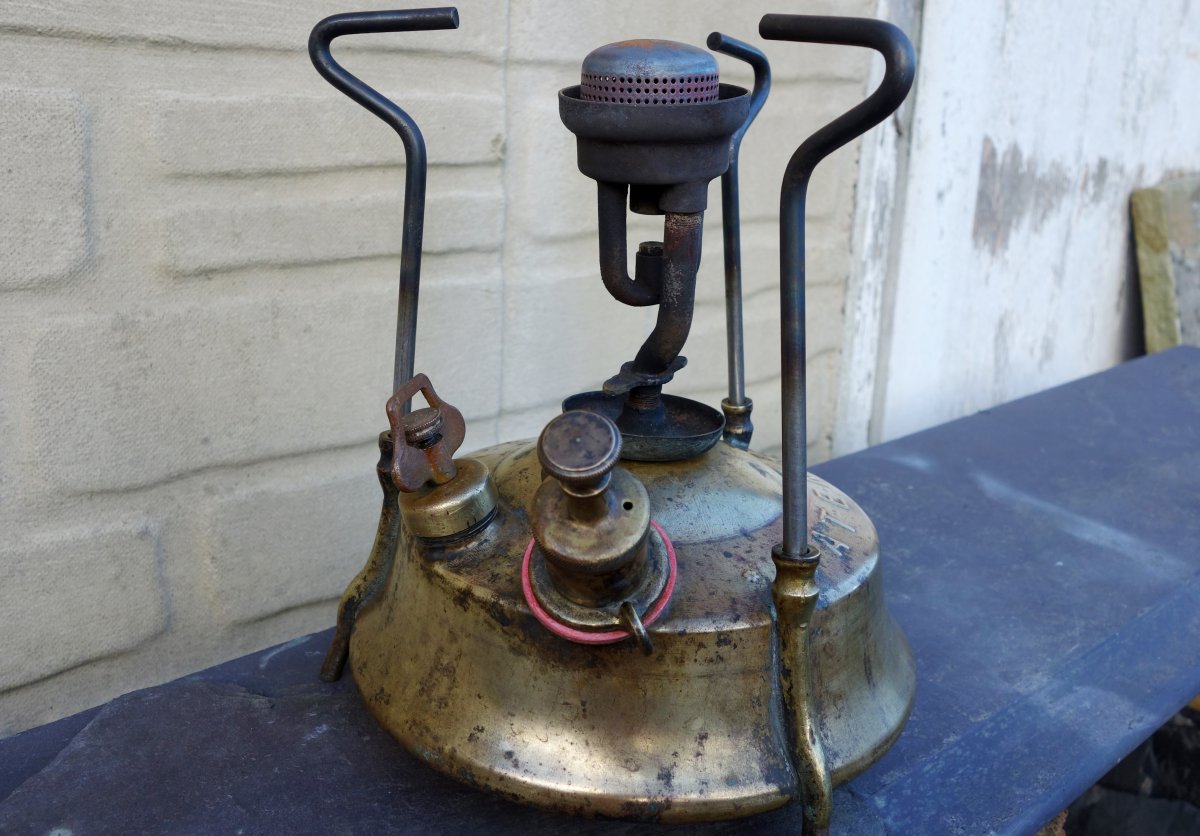

    Juwel 3B stove, current in 1903, a slightly earlier incarnation of what became the Juwel 6B by 1908. Some reference to this stove also appears in this gallery thread by multi-cho link.

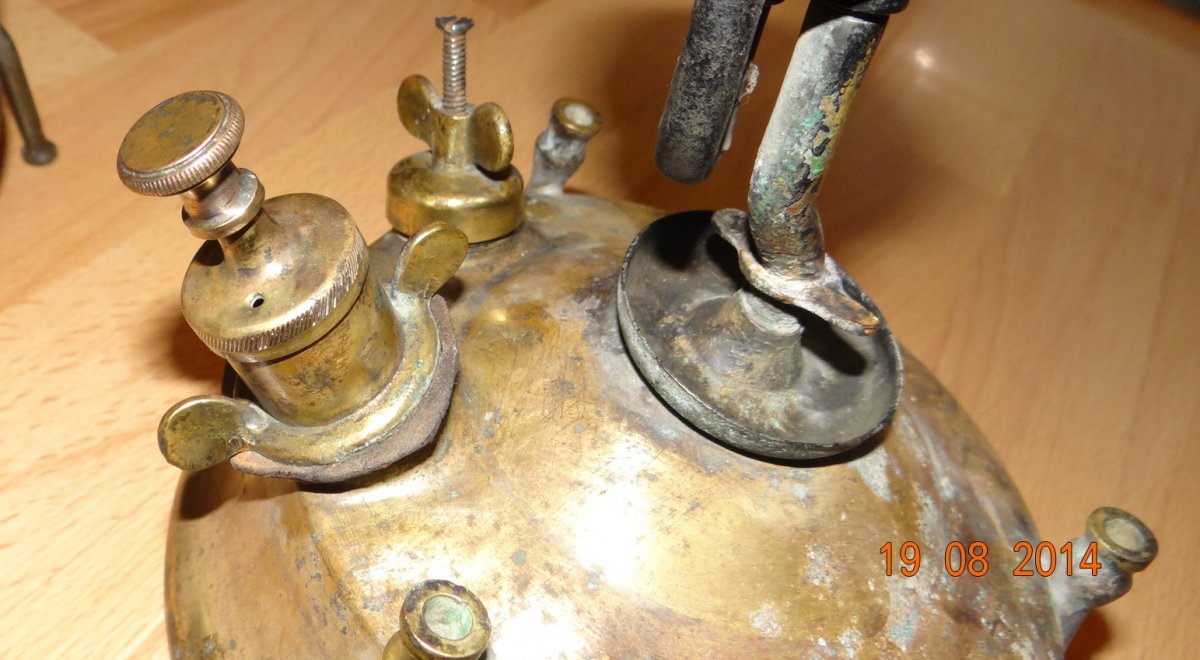

    The only difference I can see between this and the later 6B is the 3B is the form of the leg sockets. The design of the pressure release also changes later to the one shown in most of these photos for operating reasons (i.e. getting a decent seal with the release key). This is the original pressure release cap minus original key, it is still with the stove:

    Juwel 3B pic.1`.JPG

    The pump tube caps I have also discovered are not interchangeable, the later ones being for a very slightly smaller diameter o/d thread.

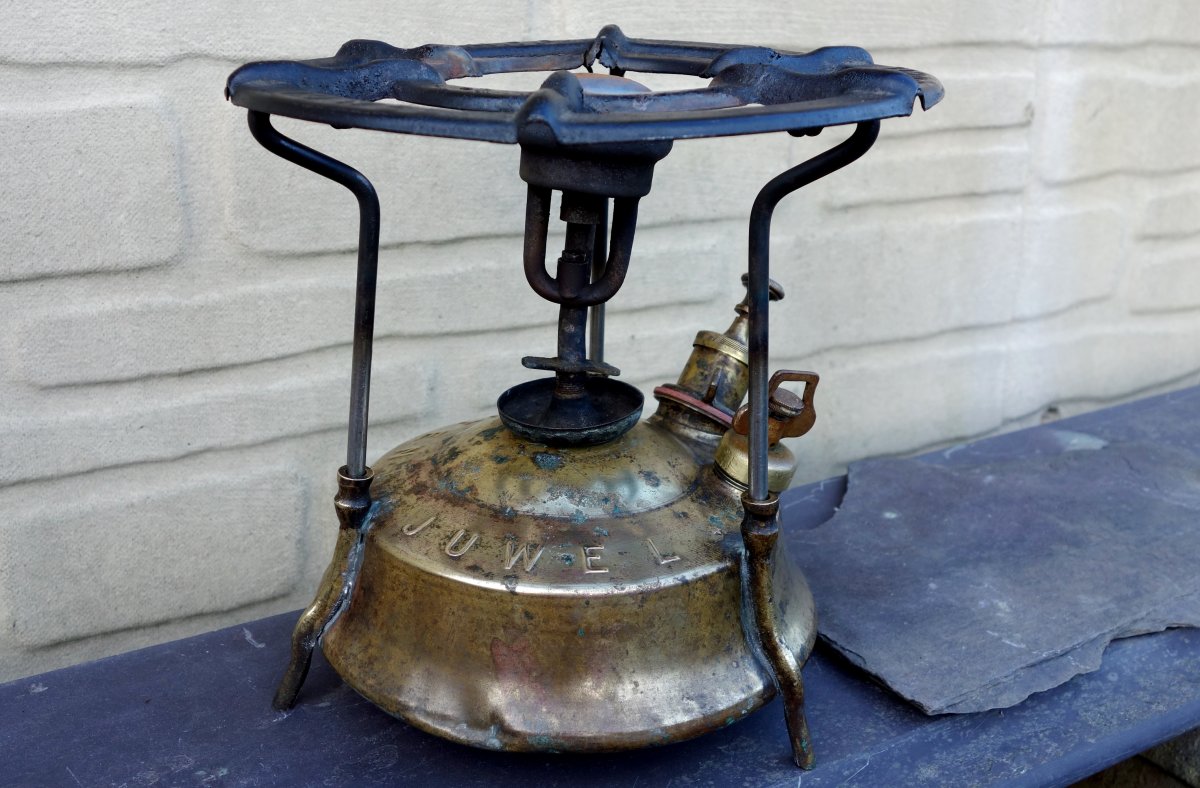

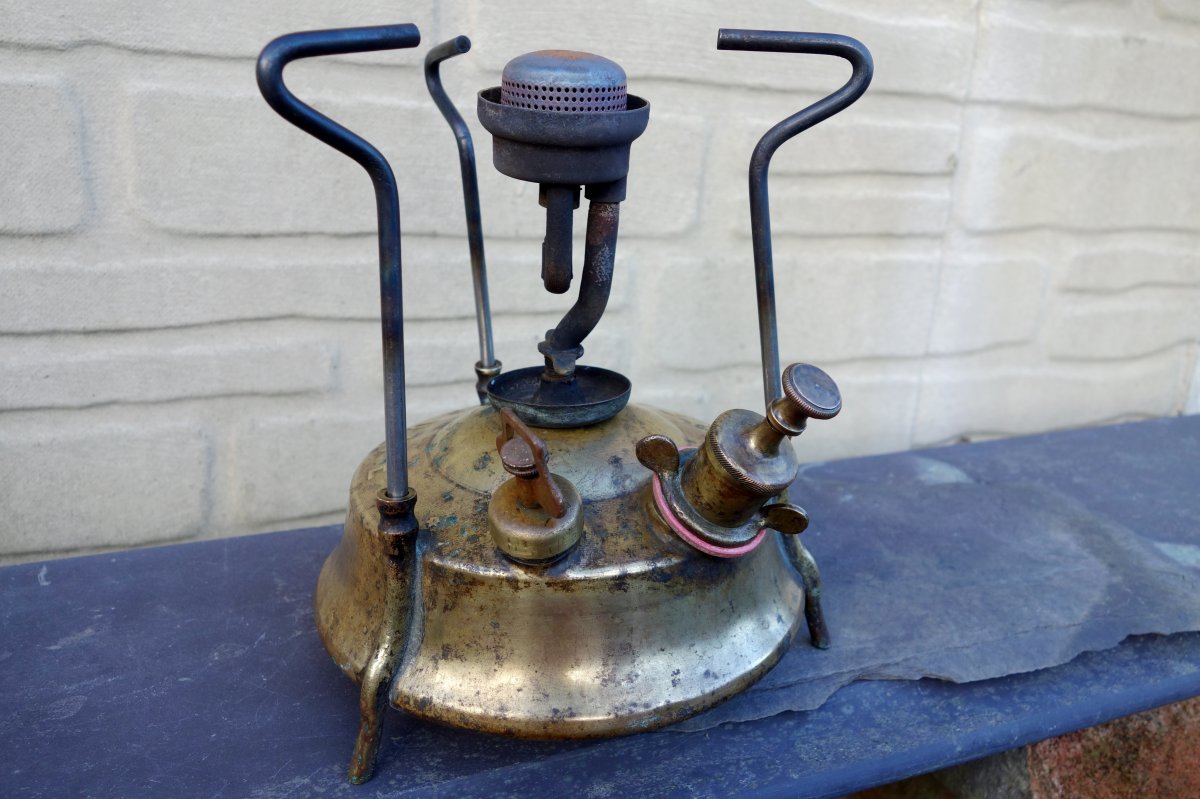

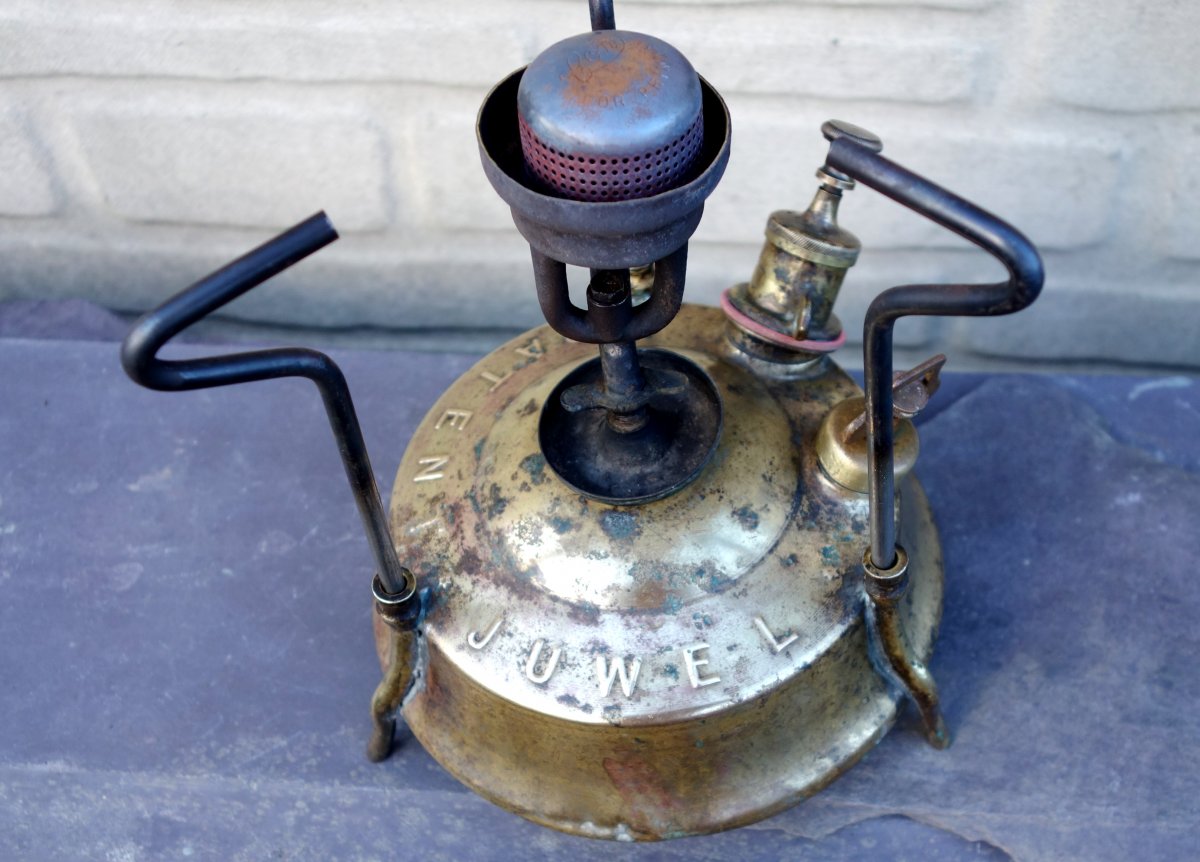

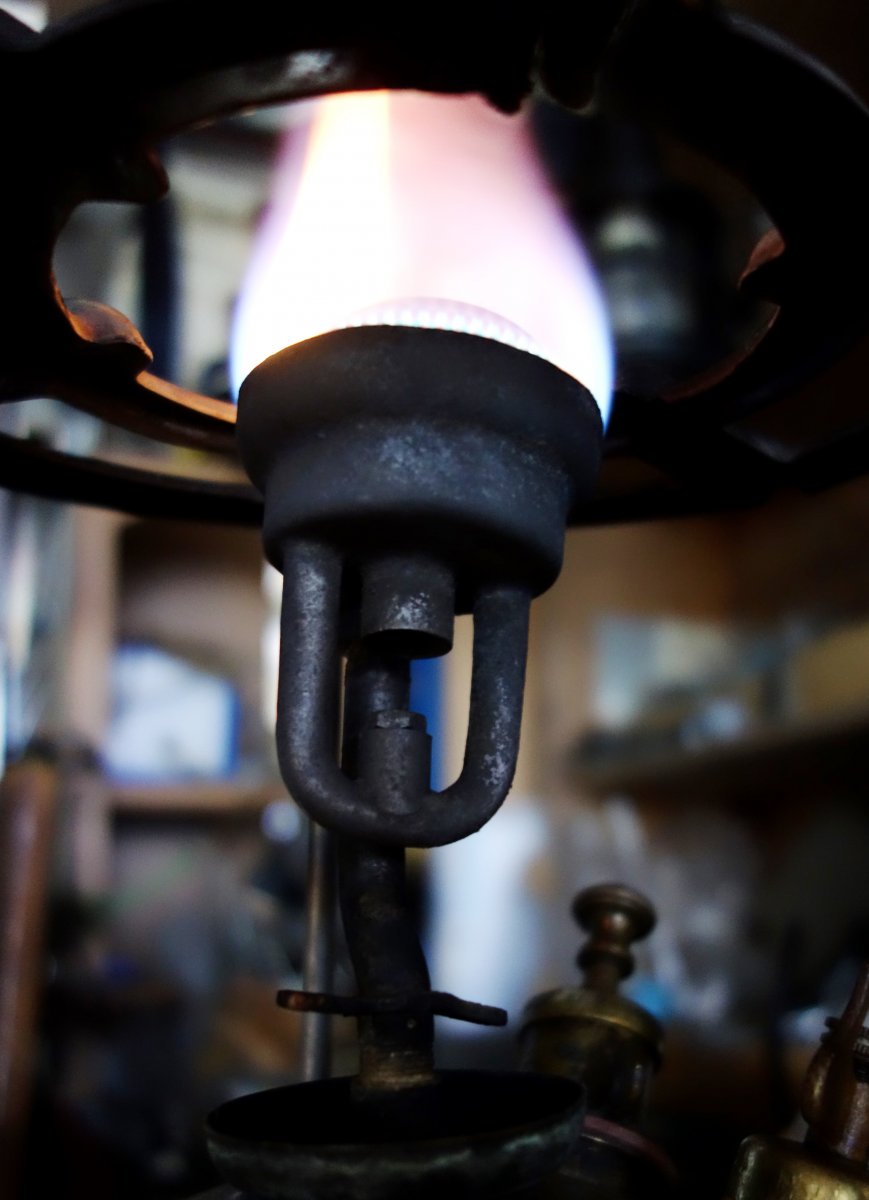

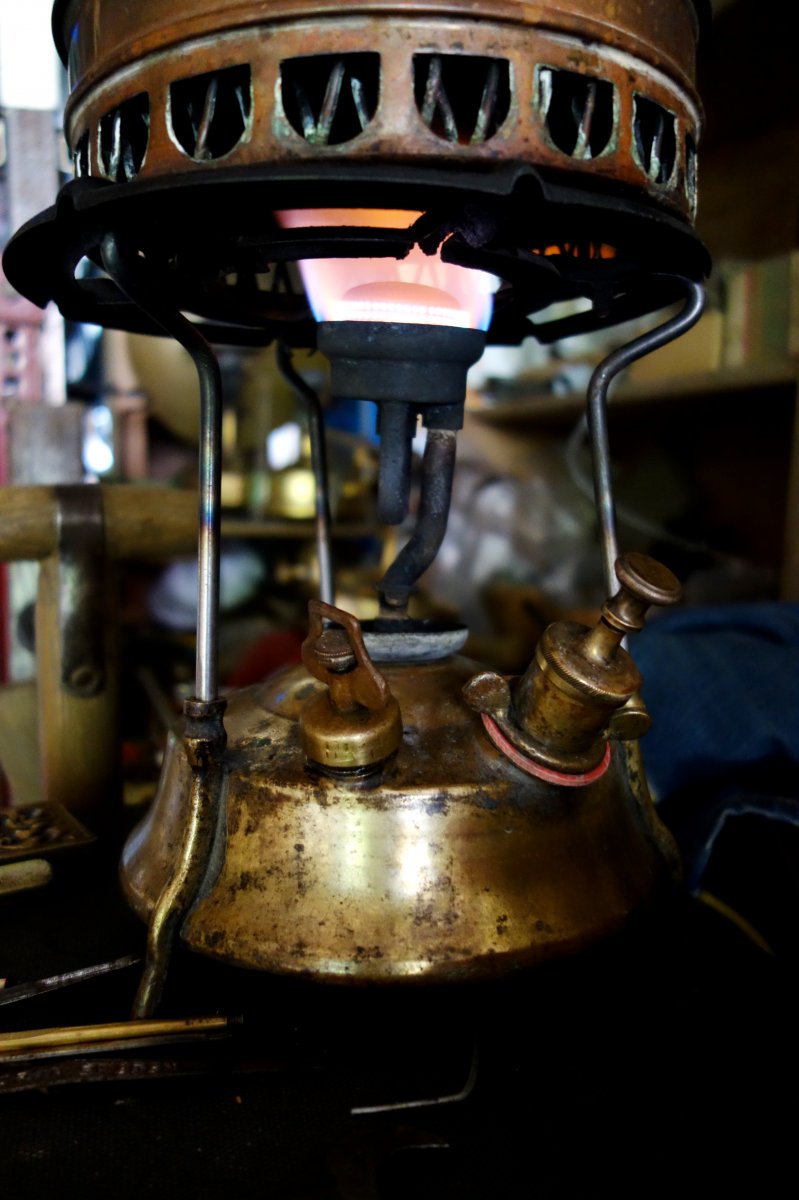

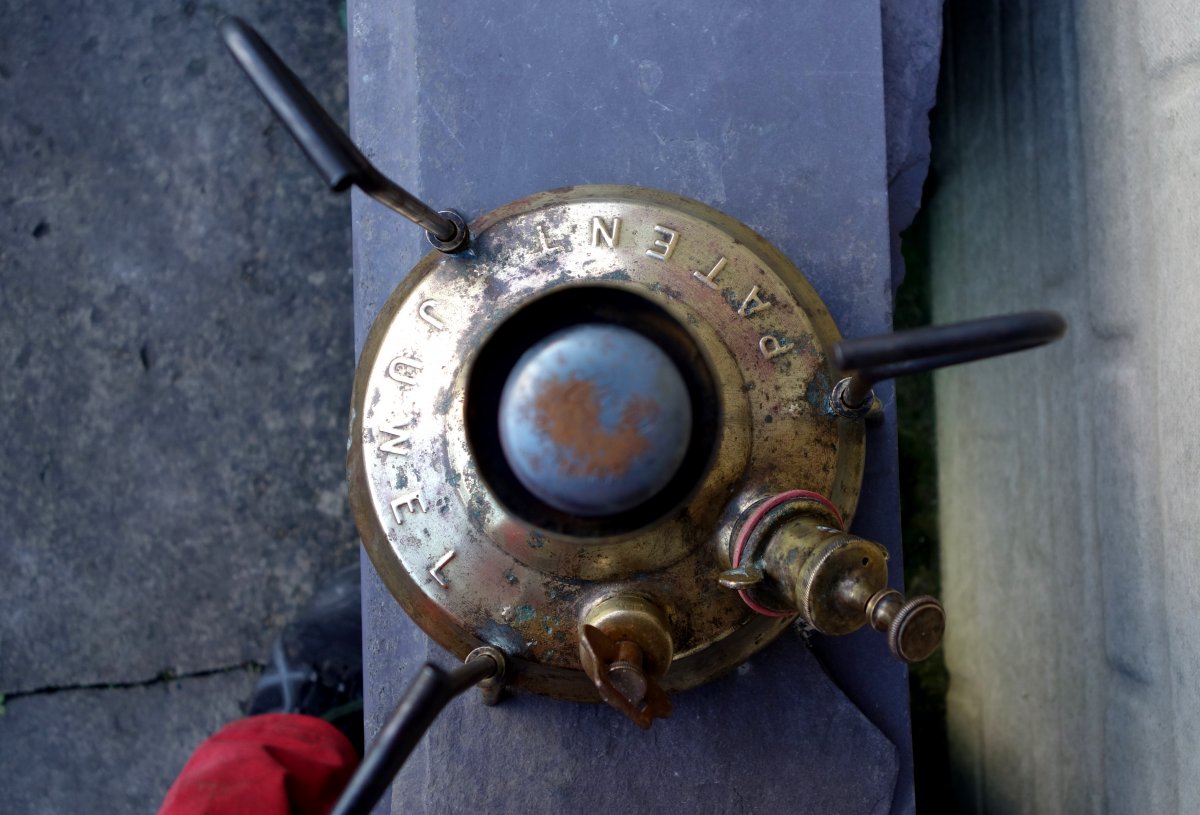

    The legs in the photos are newly reproductions, the pan ring from a later date, and the burner caps from a Primus No.4 (but fit and work perfectly well with only an additional inner sleeve to aid positioning). But at least it is now in working order (just): No less than 4 brass mesh pellets are now inserted into the single riser tube to cure dreadful pulsing and flooding which had previously been extinguishing the burner within 20 seconds of lighting regardless of the amount of pre-heating. An over-size worn jet, now peened, had also been contributary to these problems. The burner is horridly bent too but I'm not going to tempt fate by doing anything more to it. This is never going to be a 'looker'!

    DSC03578.JPG DSC03579.JPG DSC03582.JPG DSC03584.JPG DSC03585.JPG DSC03587.JPG DSC03589.JPG DSC03588.JPG DSC03590.JPG DSC03592.JPG


  2. gieorgijewski

    gieorgijewski Poland Subscriber

    Offline
    Joined:
    Apr 19, 2013
    Messages:
    1,247
    Could You take a photo "what is the burner internal constructions"
    - just what is under the outer (and inner if exists) cap?

  3. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 27, 2014
    Messages:
    286
    Location:
    Somersby, New South Wales, Australia
    Excellent fettle and post of this unusual stove. :clap::clap::clap:

  4. igh371

    igh371 United Kingdom Subscriber

    Offline
    Joined:
    Jun 23, 2013
    Messages:
    615
    Location:
    North-East England

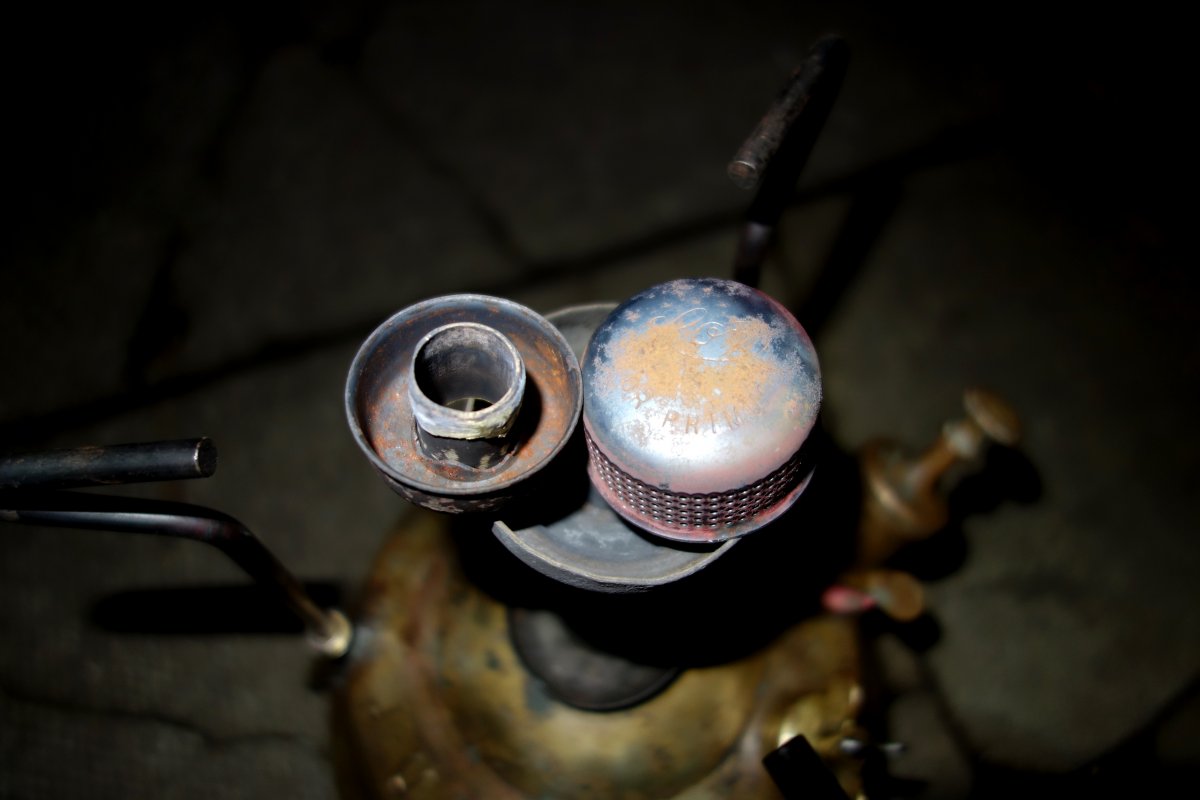

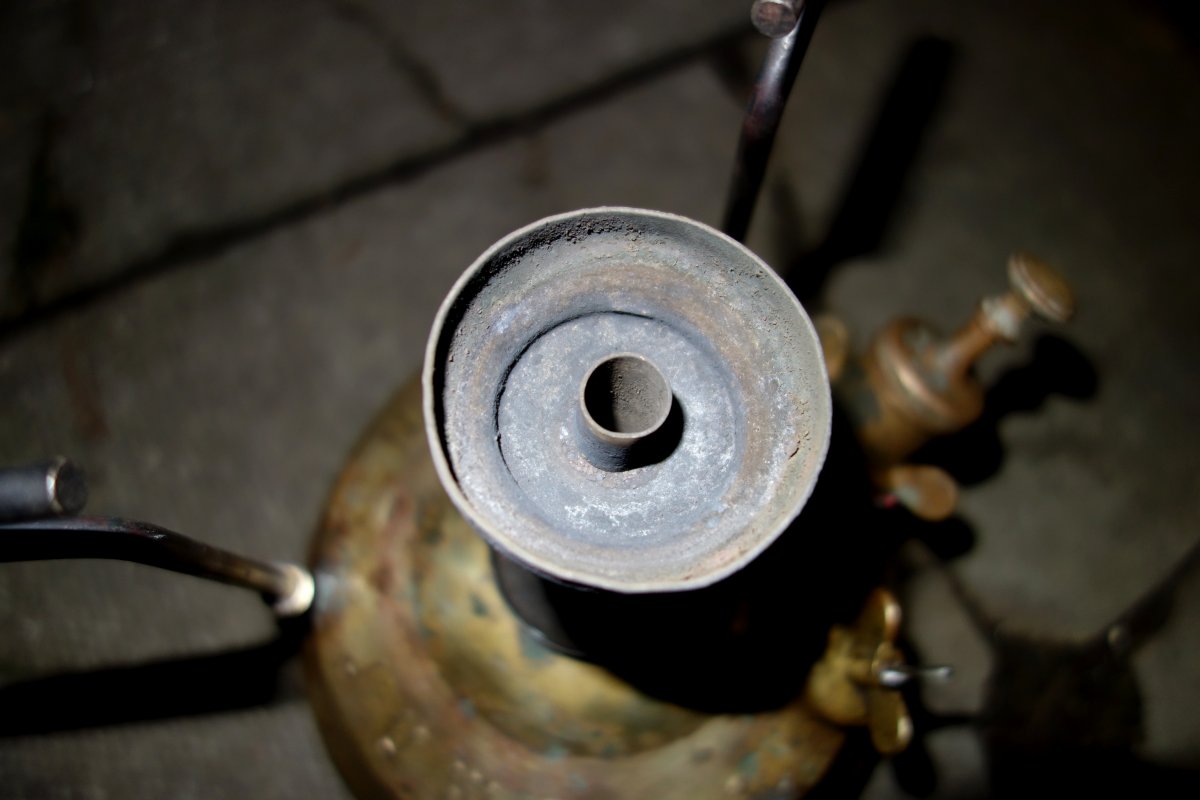

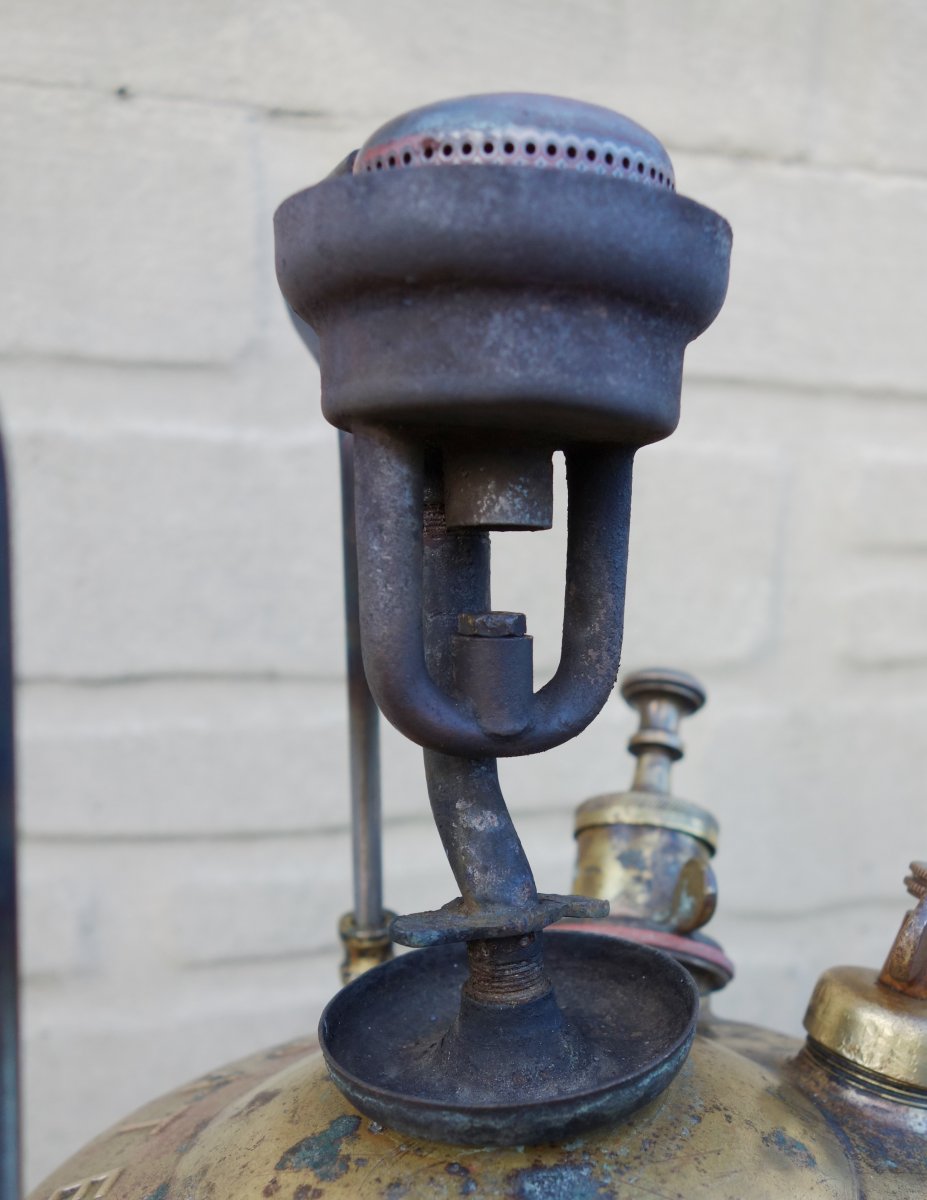

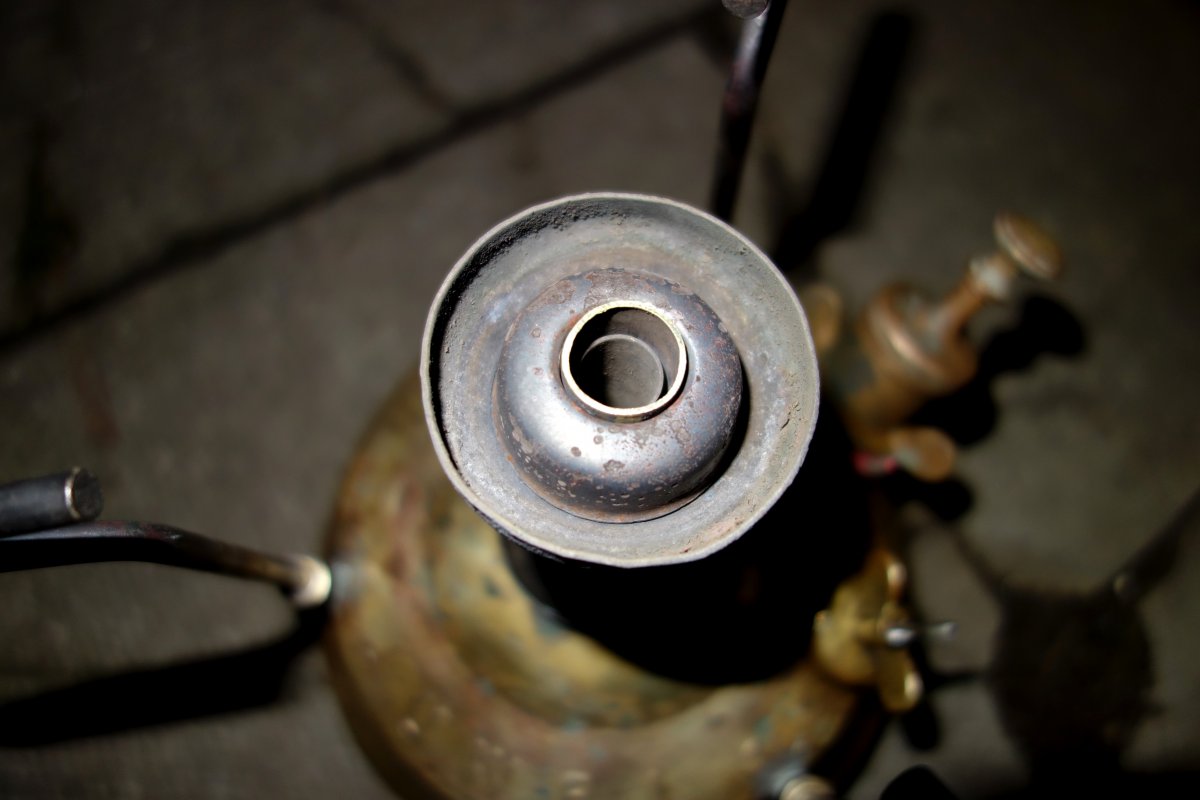

    @gieorgijewski - there you go, inside views of the burner cap set up. Nothing special, just a very small bore original fixed feed tube, standard No.4 inner cap with sleeve added to locate over the fixed feed, and a standard No.4 outer. The original inner and outer would have been only very slightly smaller, but cone shaped.

    DSC03601.JPG DSC03600.JPG DSC03602.JPG 1411693395-__________1903____2.jpg

  5. z1ulike

    z1ulike United States Subscriber

    Offline
    Joined:
    Mar 6, 2010
    Messages:
    1,661
    Location:
    Santa Barbara, CA
    Beautiful stove beautifully presented. Thanks!

    Ben

  6. Tony Press

    Tony Press Australia Subscriber

    Online
    Joined:
    Jun 8, 2013
    Messages:
    2,910
    :thumbup:. A very interesting stove. Great to see it working.

    Cheers

    Tony

  7. Rangie

    Rangie Subscriber

    Offline
    Joined:
    Jul 25, 2012
    Messages:
    1,038
    Location:
    Caithness, Far North of Scotland.
    Tremendous Ian! What a cracking early silent! :thumbup: :content:

    Alec

  8. igh371

    igh371 United Kingdom Subscriber

    Offline
    Joined:
    Jun 23, 2013
    Messages:
    615
    Location:
    North-East England

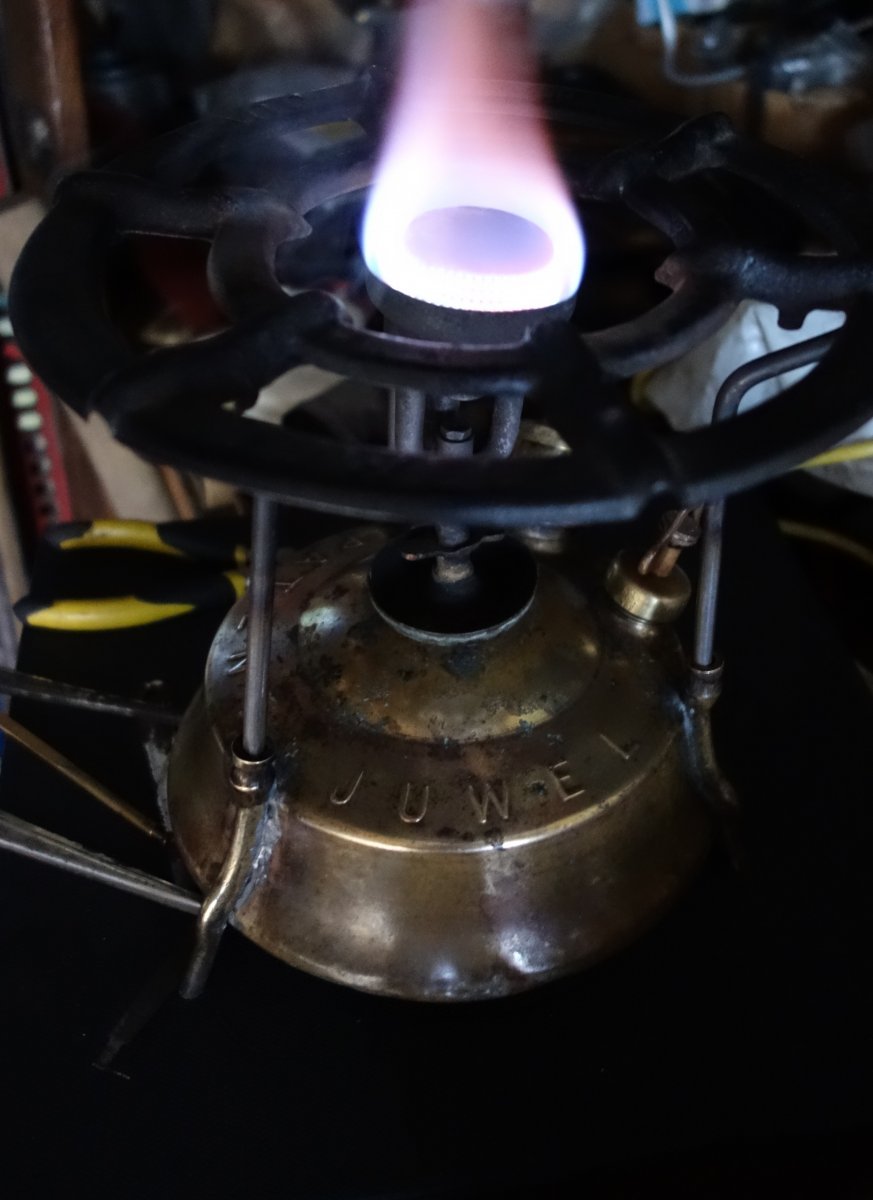

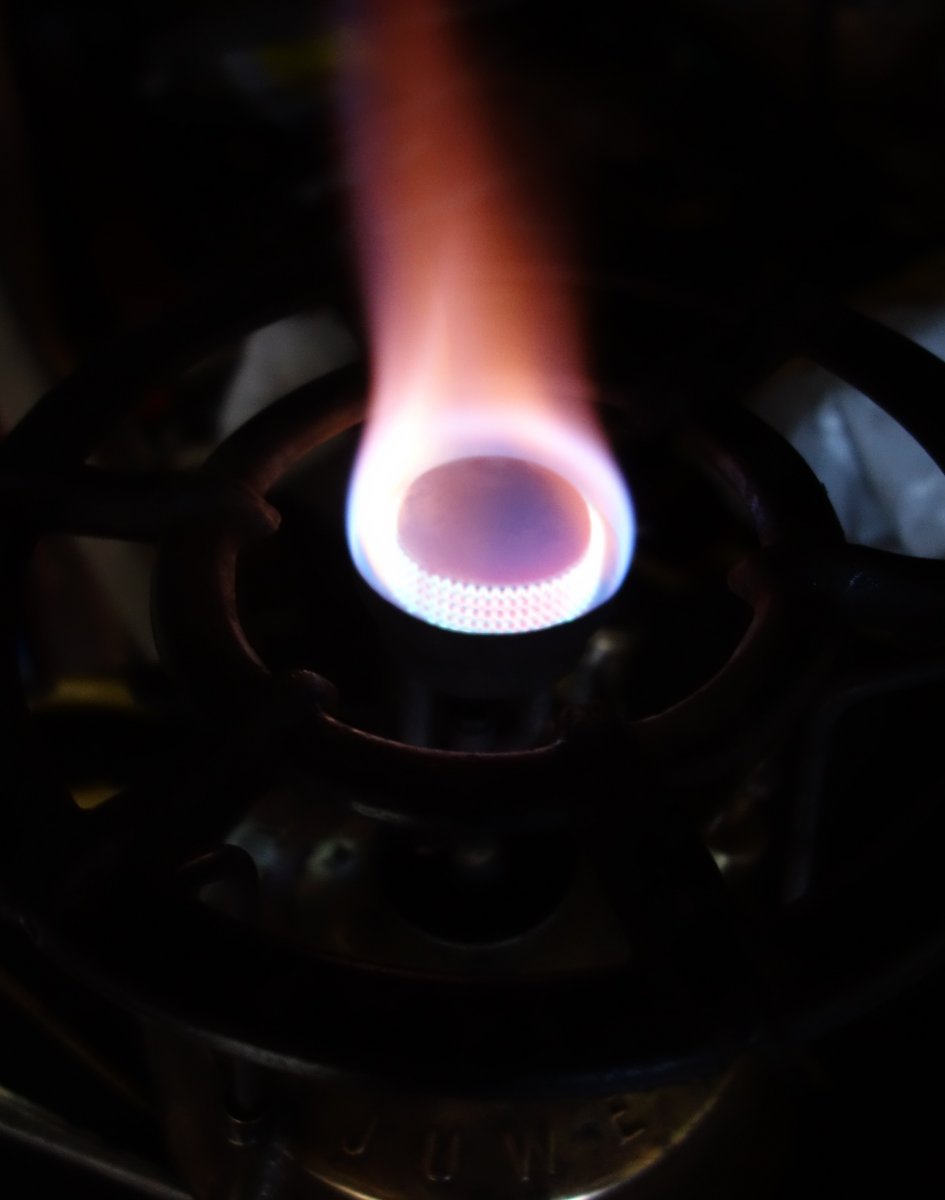

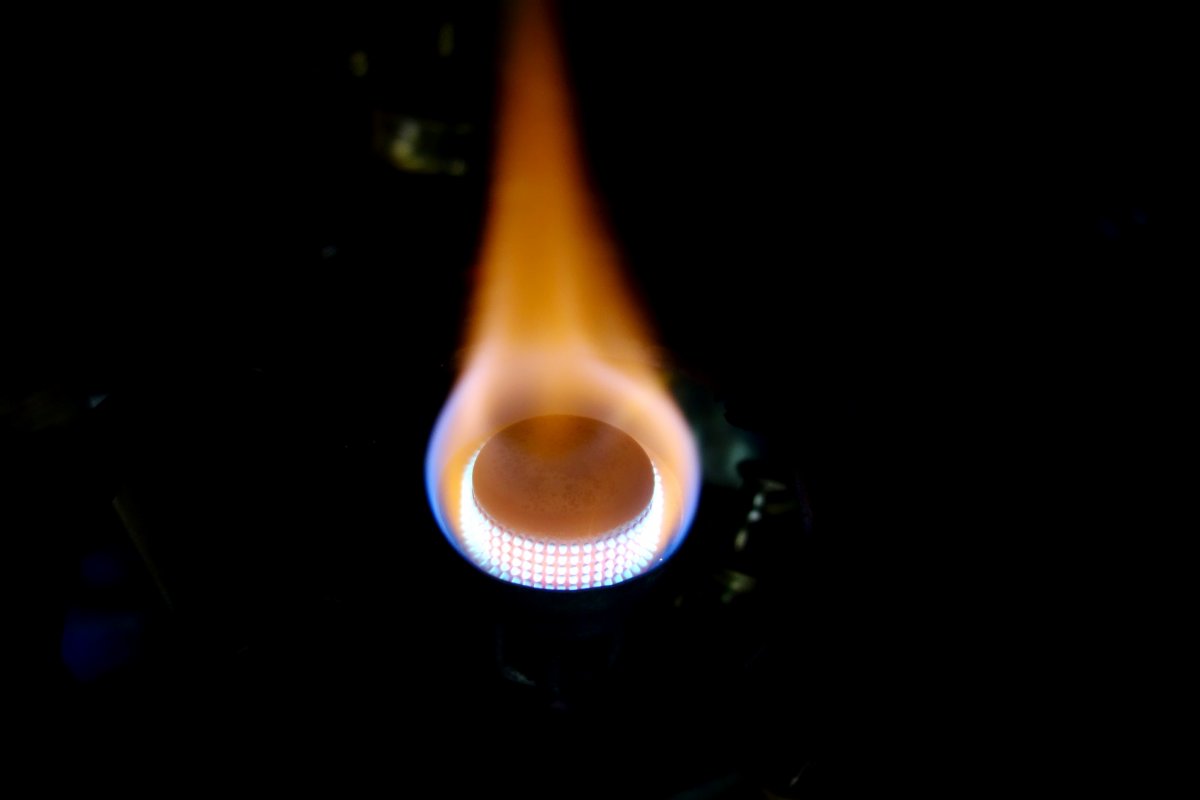

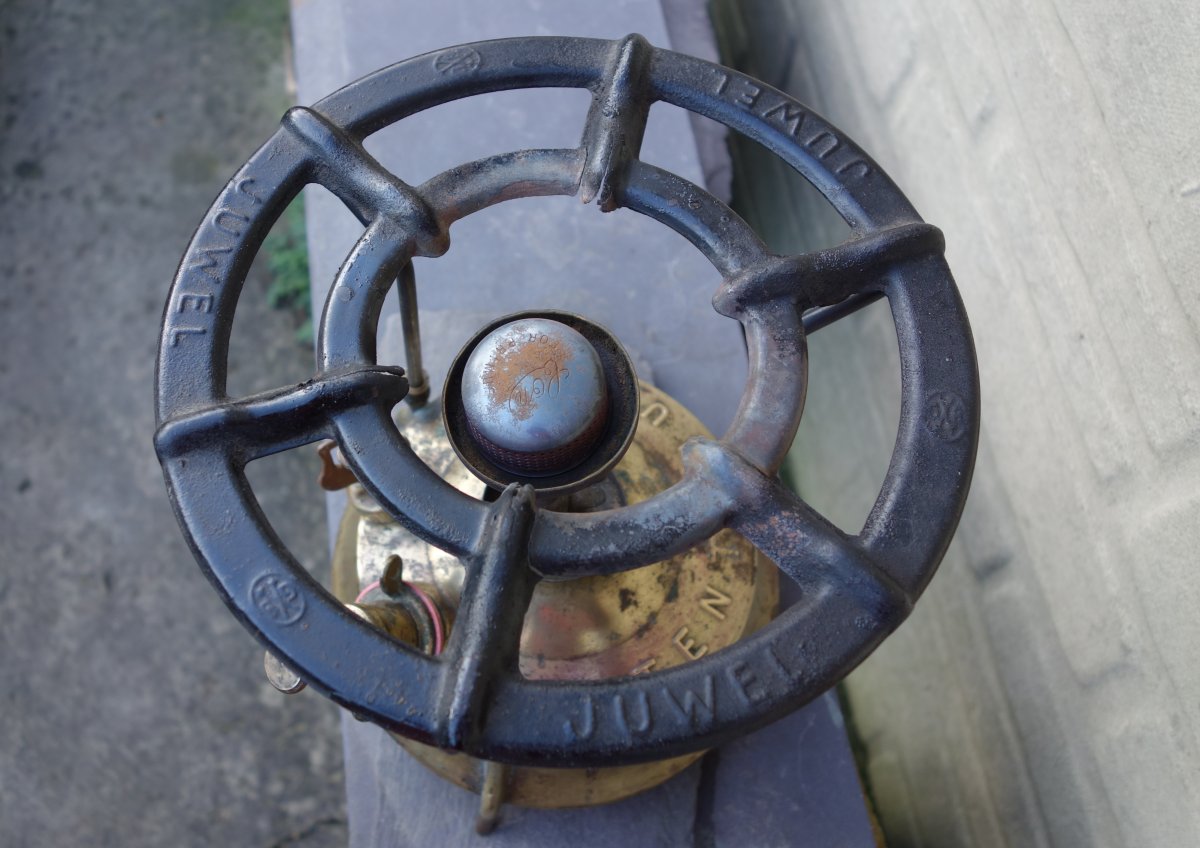

    The old Juwel out for a rare firing to make a coffee and try out slightly smaller diameter copper inner cap.
    DSC04167.JPG DSC04175.JPG
    Still can't decide if this has made any worthwhile difference to the burn or not.

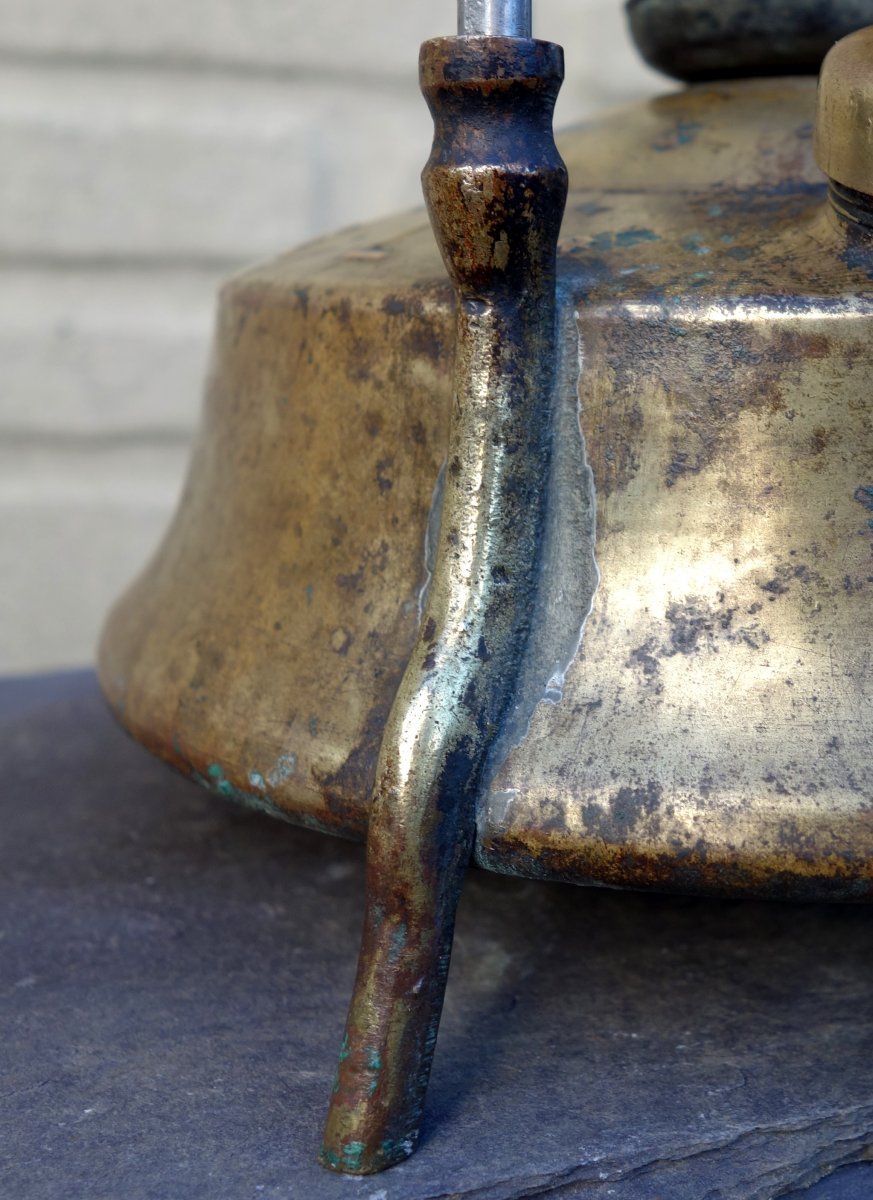

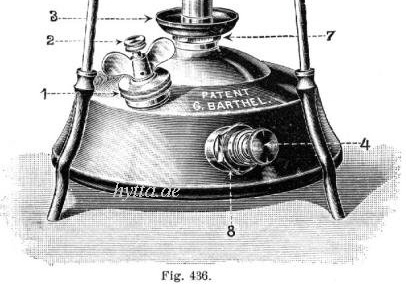

    The distinctive tank and leg detail from a 1903 catalogue:
    Tank&leg detail.jpg

    Last edited: May 21, 2016
