Lane's Thermil Blue Flame No. 50 (wick stove)

Discussion in 'Other Brands' started by Tony Press, Mar 5, 2016.

  1. Tony Press

    Tony Press Australia Subscriber

    Online
    Joined:
    Jun 8, 2013
    Messages:
    2,900
    Here is another example of the Australian-made Lane's "Thermil" - a blue flame, kerosene wick stove. It was a free addition - along with two hurricane lanterns - to a Primus 210 I bought:






    It works on the centre-draft principle whereby air is drawn through the centre of the wick and flame;

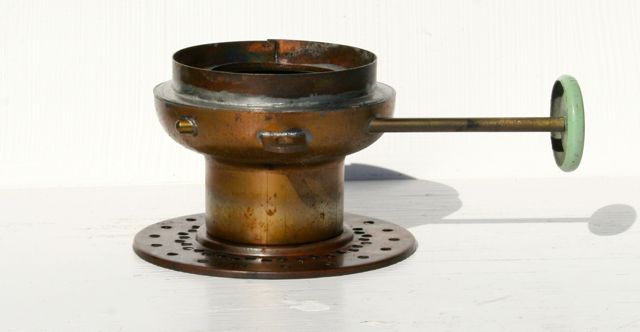

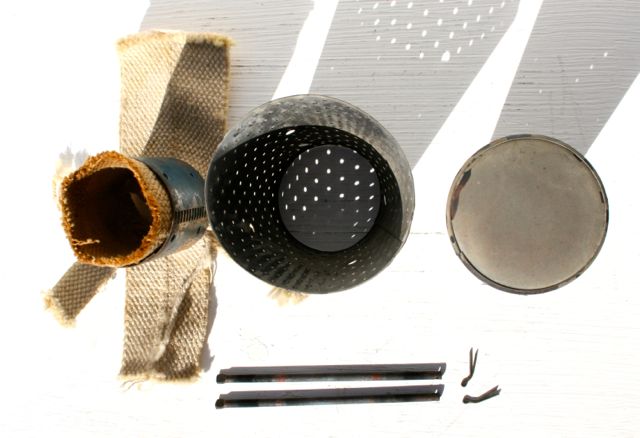

    The wick and burner components:




    IMG_9319.jpg IMG_9320.jpg

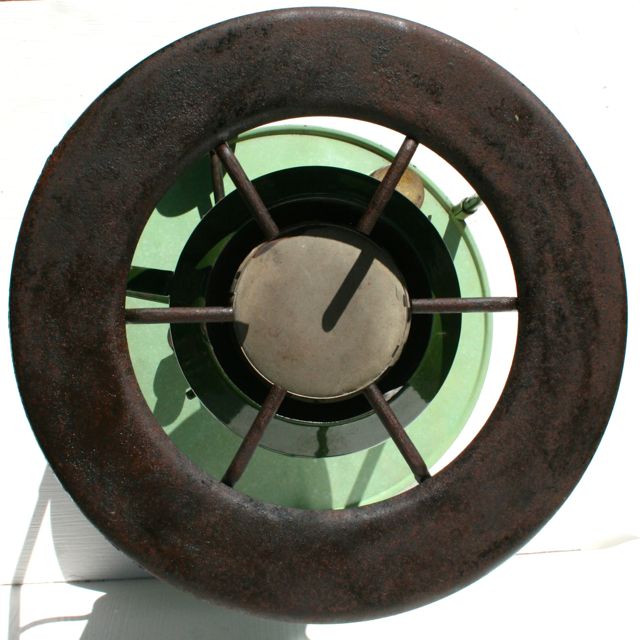

    The trivet is clamped to the three upright legs with spring clips:

    IMG_9326.jpg IMG_9327.jpg

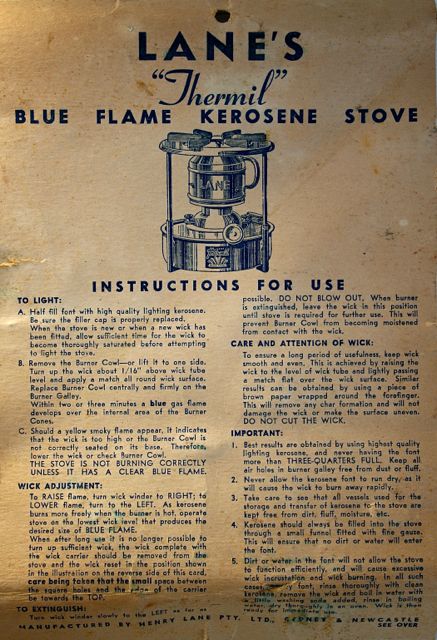

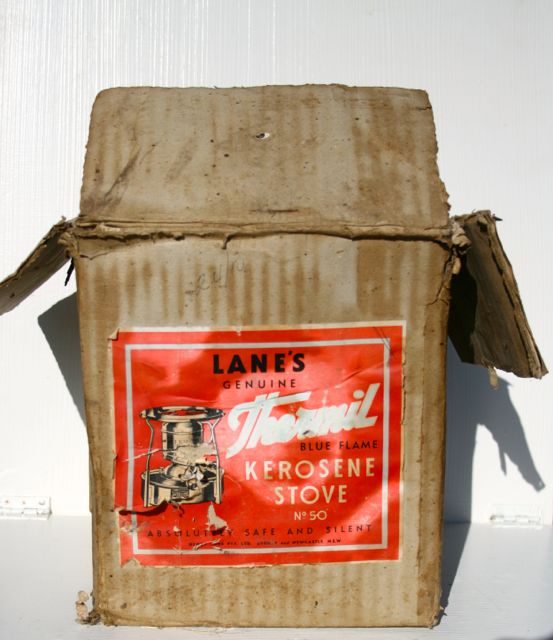

    The stove came in its original carton along with instructions and a wick trimmer:







    The stove was bought originally in 1951 for 24 shillings and ten pence. The pieces of paper in the carton also indicate that a suburban house block could be bought in Liverpool (an outer suburb of Sydney, Australia, now a major centre in its own right) for 25pounds!




    The trick to this stove is to allow the heating cones to get hot for 2 or three minutes - it really pumps out the heat, without any soot.

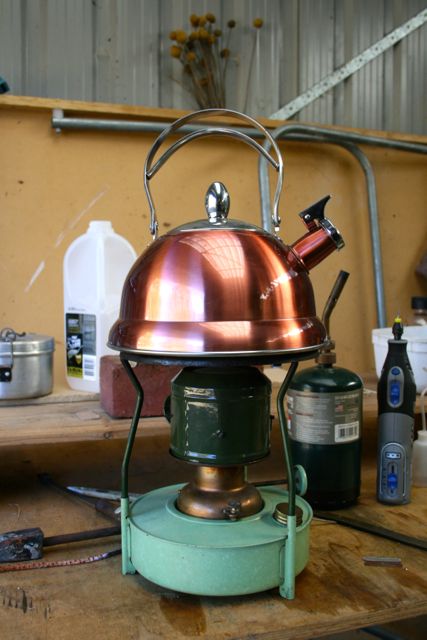

    ... and it passed the tea test.



    Cheers

    Tony

  2. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 27, 2014
    Messages:
    285
    Location:
    Somersby, New South Wales, Australia
    It's in good condition and all the extras are a real bonus. Especially for the price. :clap::clap::clap:

  3. ArchMc

    ArchMc United States Subscriber

    Offline
    Joined:
    Jul 25, 2004
    Messages:
    1,562
    Location:
    Mojave Desert
    Very nice!

    ....Arch

  4. presscall

    presscall United Kingdom Subscriber

    Offline
    Joined:
    Aug 25, 2009
    Messages:
    6,636
    Location:
    UK
    A Primus 210 is rightly viewed as a classic but that Thermil would have been the focus of my attention for a while, package filler to the Primus or not. I guess that's exactly what you've done by featuring it here, Tony.

    Glad you did. Stacks of information there, much appreciated.

    I nearly bought a Turm that was a dead ringer but the seller wanted too much.

    Jihn

  5. shagratork

    shagratork United Kingdom Moderator Subscriber

    Offline
    Joined:
    Aug 9, 2005
    Messages:
    8,251
    Location:
    Durham City, England
    A very nice stove and an excellent set of photos.

  6. Canuman United States

    Offline
    Joined:
    Mar 14, 2016
    Messages:
    94
    Location:
    Vermont, USA
    That's a very nifty design. It is much more compact than others of the breed I've seen. Thanks!

  7. Tree_fella Australia

    Offline
    Joined:
    Jun 6, 2015
    Messages:
    2

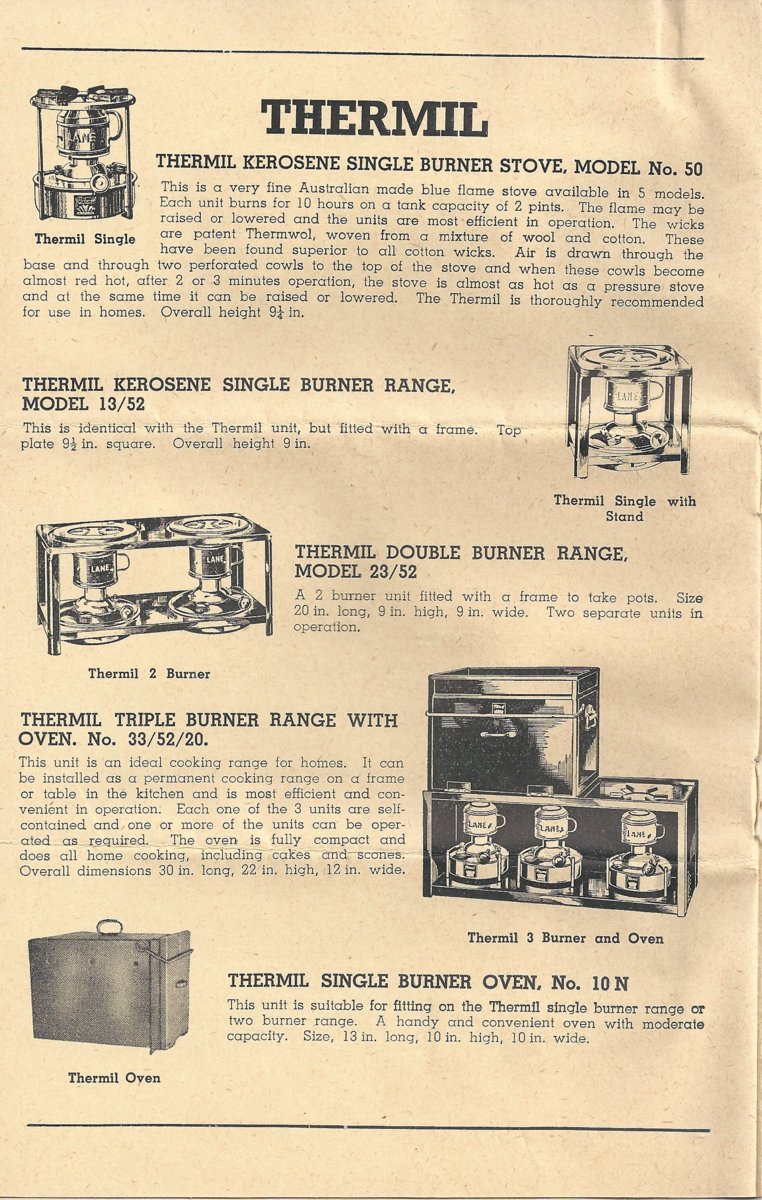

    This is from a 1951 Kopsen catalogue.


  8. Tony Press

    Tony Press Australia Subscriber

    Online
    Joined:
    Jun 8, 2013
    Messages:
    2,900
    @Tree_fella

    Thanks.

    So you're moonlighting over here, eh... :lol:

    Cheers

    Tony

  9. Tree_fella Australia

    Offline
    Joined:
    Jun 6, 2015
    Messages:
    2
    Just spying on the neighbours Tony :)
