Lux-Köket stove

Discussion in 'Lux' started by Afterburner, Oct 22, 2014.

  1. Afterburner

    Offline
    Joined:
    Mar 13, 2014
    Messages:
    2,095

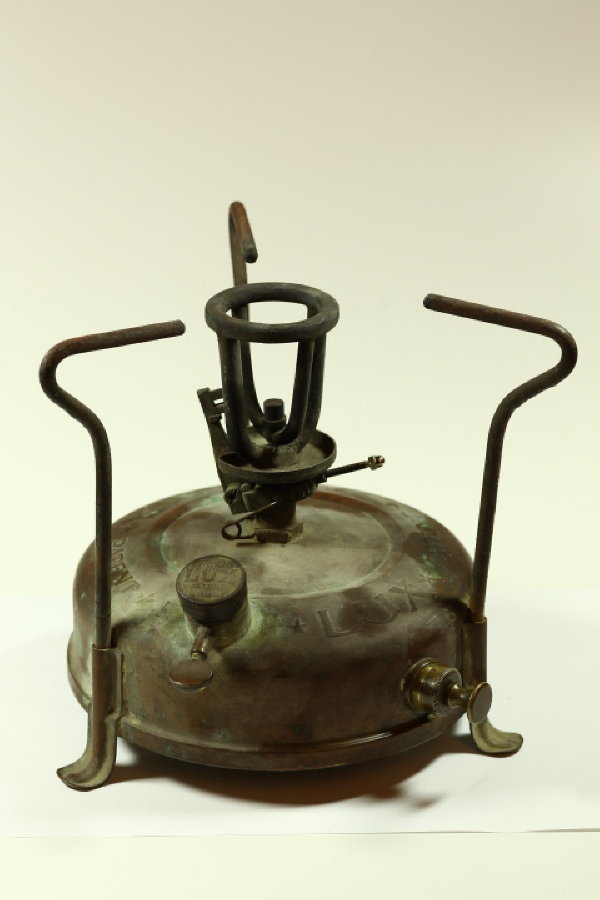

    Here are few pictures from early LUX stove without model number.


    1414001432-Lux0002.jpg 1414001445-Lux0003.jpg 1414001465-Lux0004.jpg

    Last edited by a moderator: Jun 27, 2015
  2. Doug L

    Doug L Subscriber

    Offline
    Joined:
    Oct 1, 2010
    Messages:
    1,043
    Location:
    USA
    Very nice.I hope your able to make the burner.

  3. gunsoo

    Offline
    Joined:
    Feb 26, 2010
    Messages:
    343
    very detail picture.!!

    thank you sharing ,Afterburner .





    Gunsoo

  4. DAVE GIBSON

    DAVE GIBSON Subscriber

    Offline
    Joined:
    Aug 6, 2004
    Messages:
    4,238
    what are all those levers and adjustment things by the jet for?? thats a new one for me.

  5. multi-cho

    Offline
    Joined:
    Sep 12, 2014
    Messages:
    27
    ah.....it is lux patent no:1 brass
    very nice!!
    to congratulations............... ^_^

  6. Christer Carlsson

    Christer Carlsson Moderator SotM Winner

    Offline
    Joined:
    Nov 12, 2005
    Messages:
    3,436
    That is the mechanism for operating the cleaning needle.
    Typical Lux.
    More information on that detail in this thread.

    Last edited by a moderator: Jul 2, 2015
  7. Afterburner

    Offline
    Joined:
    Mar 13, 2014
    Messages:
    2,095
    Thank's! Do you have same stove or do some of your friend have the same stove? You have sent these pictures: https://classiccampstoves.com/threads/28144

    Here I am asking pictures and measures from the burner cap/head: https://classiccampstoves.com/threads/28332

    Would you be able to help with burner cap/head pictures and also get some measures? [-o<
