Möller 'Comet No.5' c.1912

Discussion in 'Hugo Möller & Co' started by igh371, Apr 9, 2021.

  1. igh371

    igh371 SotM Winner Subscriber

    Offline
    Joined:
    Jun 23, 2013
    Messages:
    1,872
    Location:
    Durham
    A Comet No.5, on the right above, which has been subject to an extensive rebuild the story of which can be found in this thread in the Fettling Forum. At first sight almost identical to its small collapsible little brother, the more famous No.6, the huge difference in the sheer size of the No.5 is more than clear in the photo above.

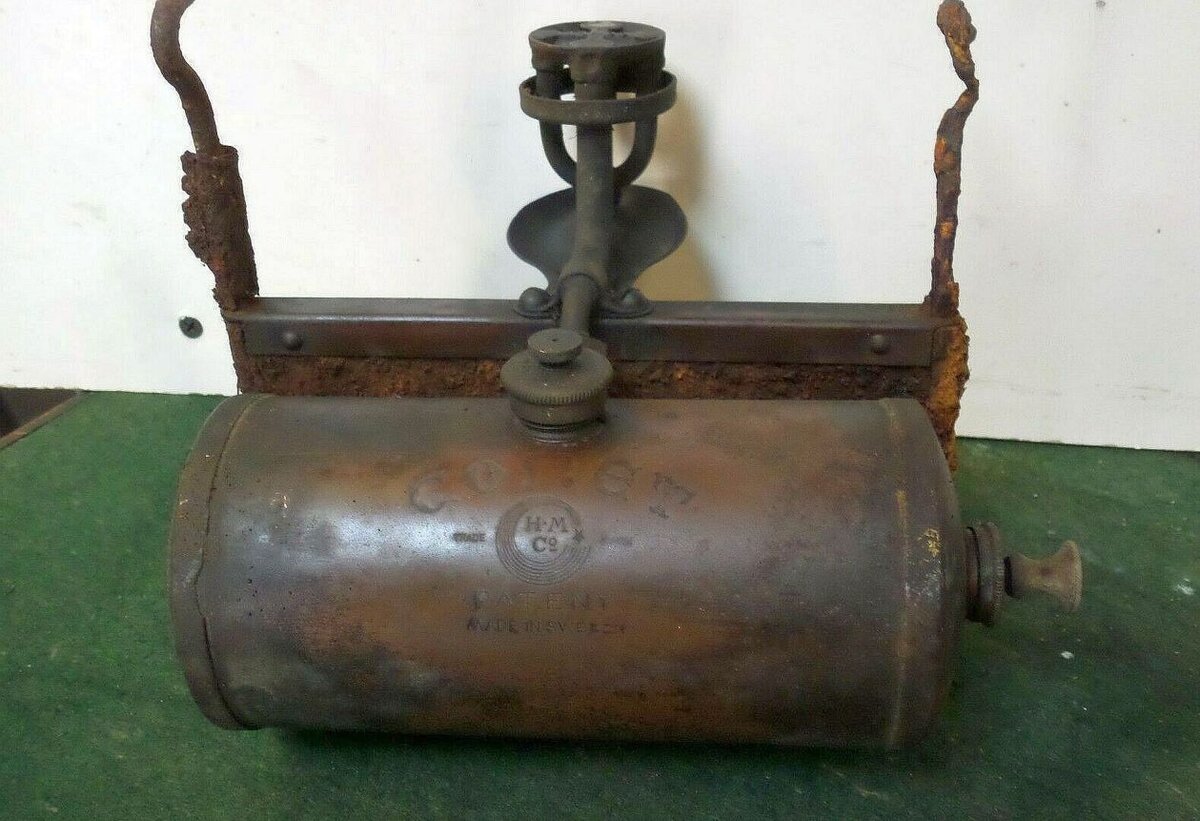

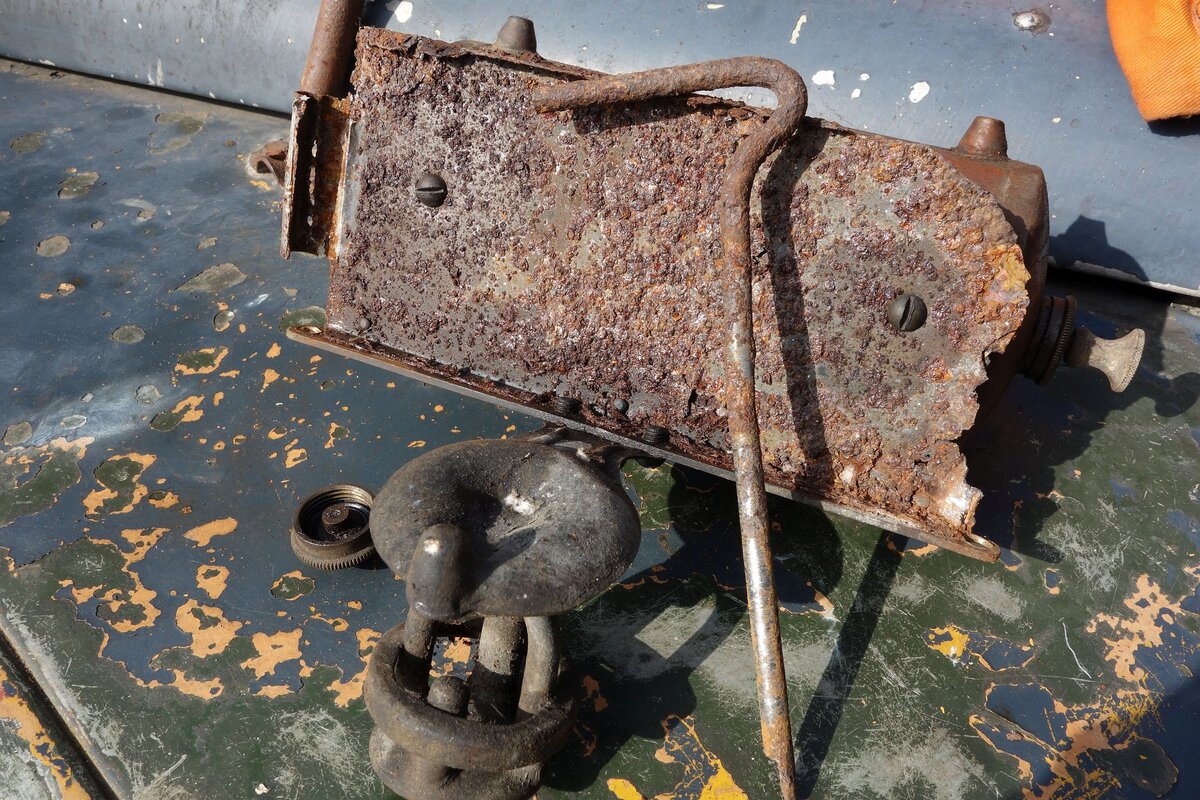

    The stove was saved from scrap but was in a really dreadful state:
    Comet 5 a 3.2.jpg Comet 5 c.jpg Comet 5 d 3.2.jpg DSC00626.JPG

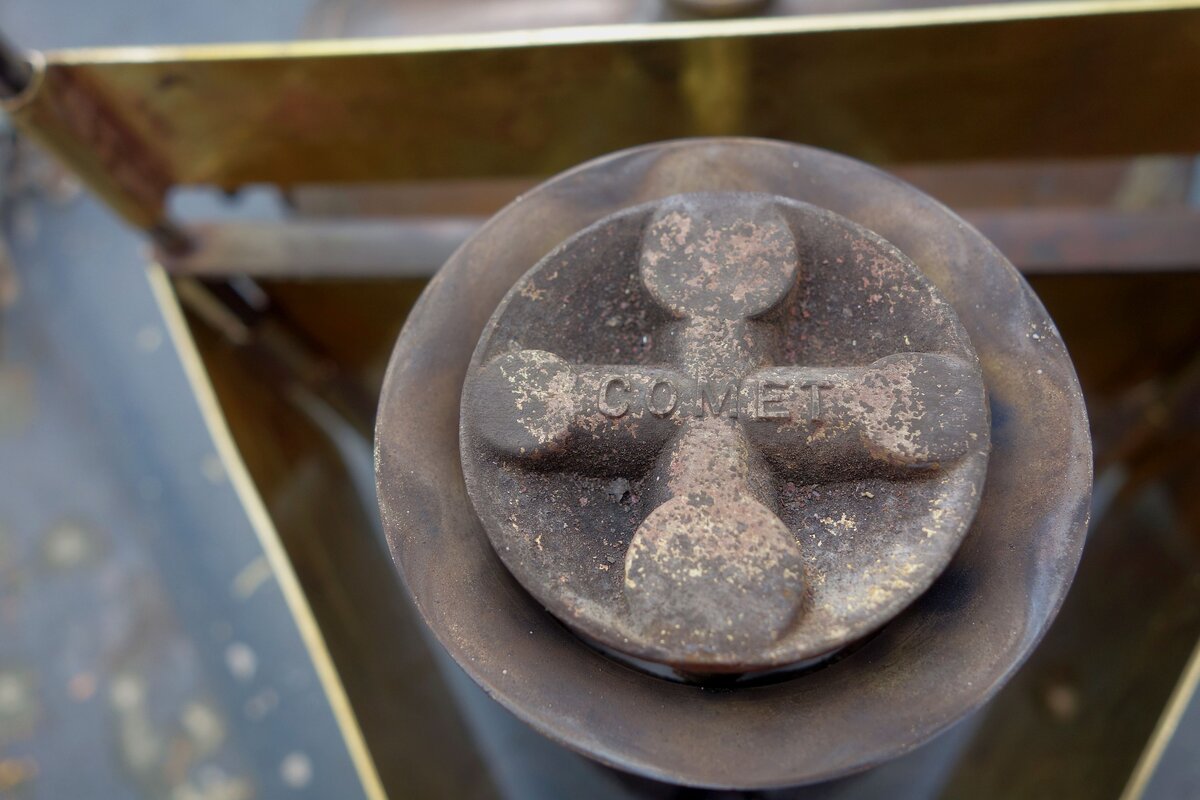

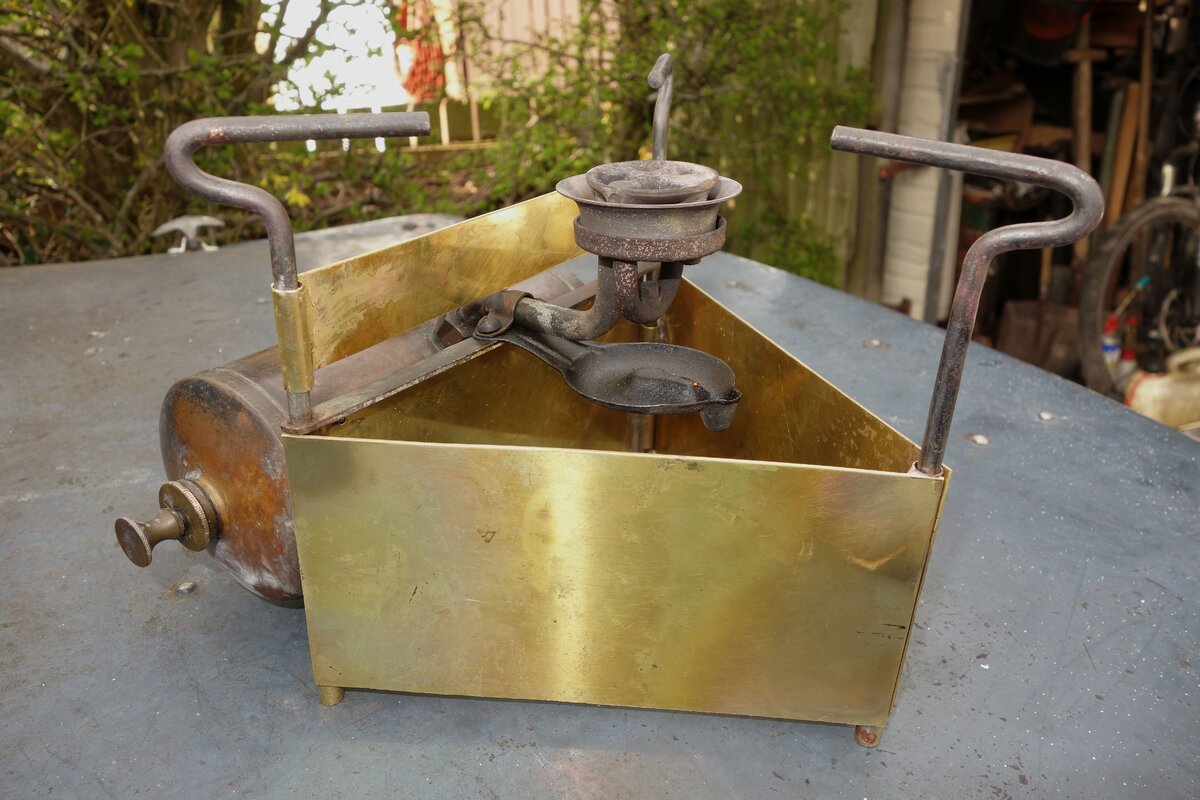

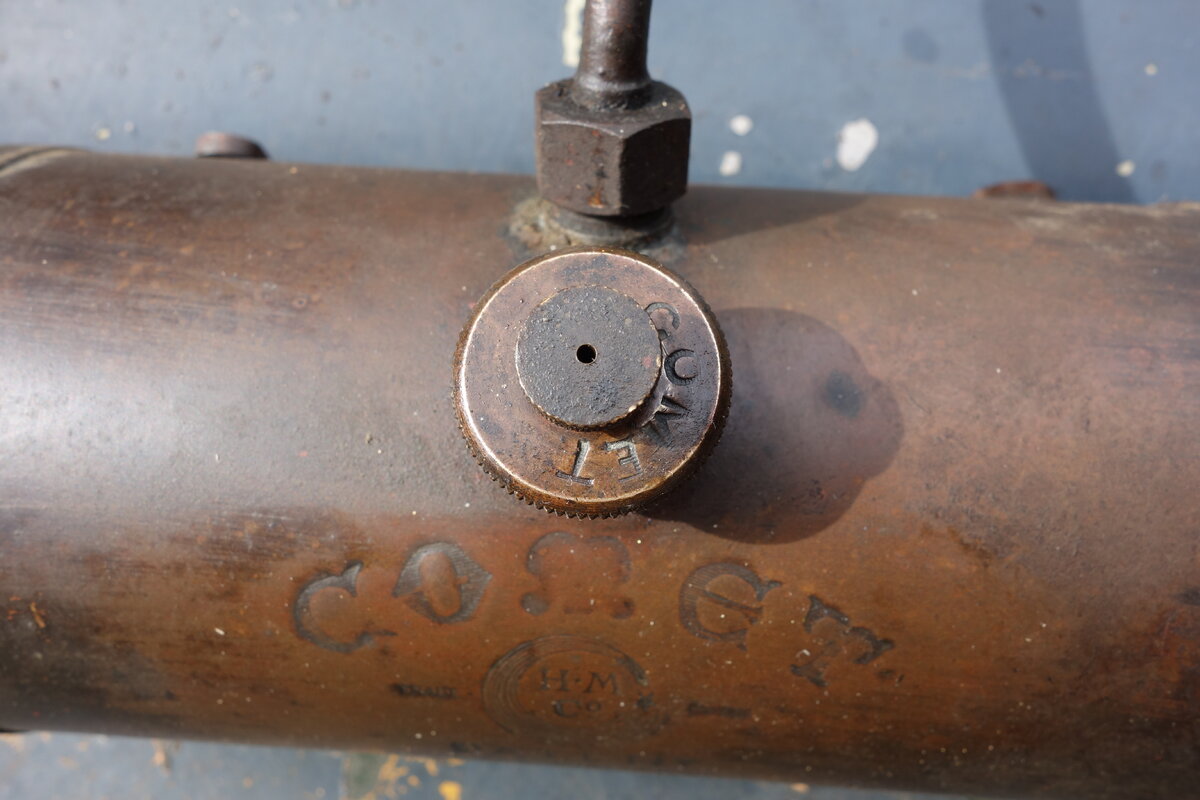

    So as seen here now the only remaining original parts are the tank and burner. All of the rest, the 3 side panels, legs, and heat shield have all been fabricated to replace parts which were either missing or beyond repair. The fact that pure brass sheet has been used for the replica frame pieces almost certainly means that the whole assembly must now weight considerably more than the original which would have been made from fairly thin brass-plated steel sheet. Completely hidden from view one of the most challenging parts of the rebuild was refurbishing the NRV internals which had been damaged by past use of an incorrect size steel spring, the remains of which which were themselves largely rusted away.

    DSC00689.JPG DSC00688.JPG DSC00691.JPG DSC00695.JPG DSC00662.JPG DSC00663.JPG DSC00692.JPG DSC00693.JPG DSC00694.JPG DSC00697.JPG DSC00696.JPG DSC00704.JPG DSC00699.JPG DSC00715.JPG And finally, boiling up the first kettle in who knows how many years:


    Last edited: Apr 9, 2021
  2. Optimust

    Optimust United Kingdom Subscriber

    Online
    Joined:
    Feb 17, 2014
    Messages:
    318
    Location:
    N.E. England
    @igh371

    Hi Ian, That fettle was a hell of a challenge, & you prevailed, bringing it back
    to a very good functioning stove again. My
    Hat is off to you Sir, a really good job, &
    Thank you for posting. My BEST to you.
    Optimust.

  3. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 27, 2014
    Messages:
    1,533
    Location:
    Somersby, New South Wales, Australia
  4. MartyJ

    MartyJ Subscriber

    Offline
    Joined:
    Feb 15, 2016
    Messages:
    159
    The graphics of the tank are outstanding. I am glad you did not polish it.

  5. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Jun 8, 2013
    Messages:
    7,730
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    Excellent! It’s good to see this restored and placed in the Reference Gallery.

    Cheers

    Tony

  6. The Warrior

    The Warrior United States Subscriber

    Offline
    Joined:
    Dec 5, 2019
    Messages:
    1,514
    Location:
    the 'Nois man.
    Awesome man.

  7. JP2

    JP2 Subscriber

    Offline
    Joined:
    Jun 26, 2018
    Messages:
    831
    Location:
    Canada
    WOW !!!
    Bravo

  8. ArchMc

    ArchMc SotM Winner Subscriber

    Offline
    Joined:
    Jul 25, 2004
    Messages:
    3,592
    Location:
    Mojave Desert, California
    Fantastic job resurrecting a rare classic! :thumbup::thumbup:

    ....Arch

  9. Robert Bruce

    Robert Bruce SotM Winner Subscriber

    Offline
    Joined:
    Jul 22, 2007
    Messages:
    1,591
    Location:
    Springrange NSW Australia
    An unusual stove, well done. Good to see it working again.
    Cheers
    Rob
