Motor Sich PT-3 lightly fettled

Discussion in 'Other Countries' started by Blueflame, Jun 7, 2018.

  1. Blueflame

    Blueflame Canada Subscriber

    Offline
    Joined:
    Jul 11, 2015
    Messages:
    498
    Location:
    Montreal Canada

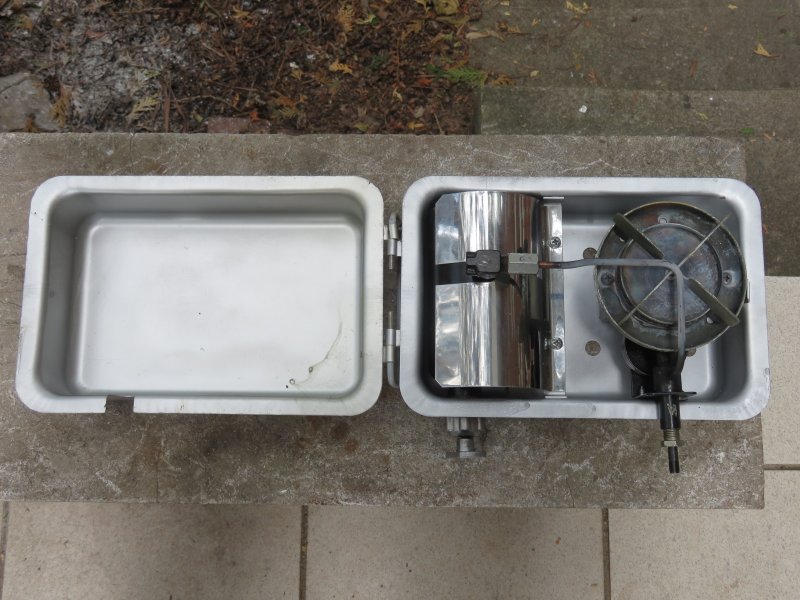

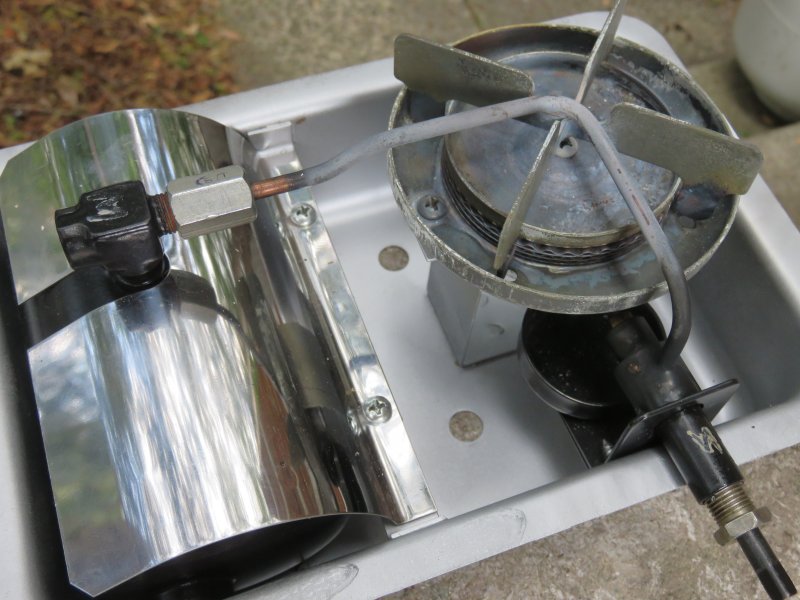

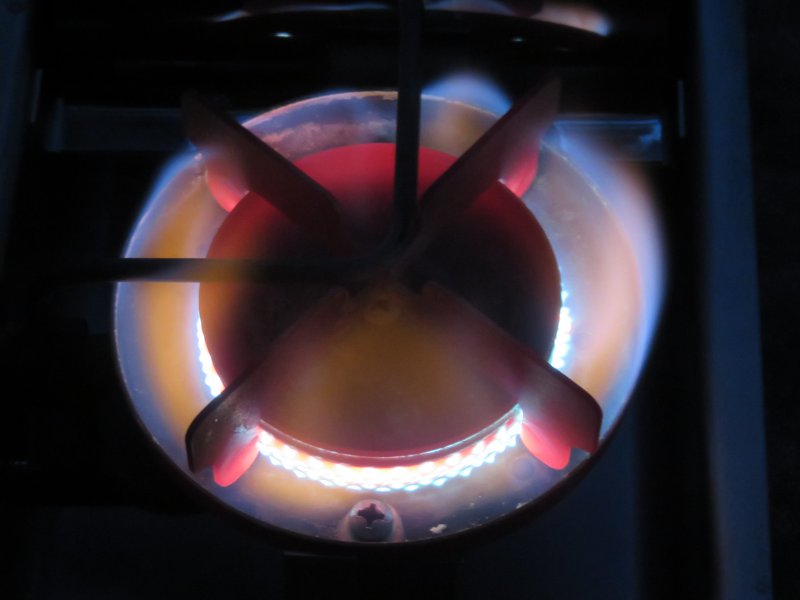

    I was disappointed at the esthetics of this stove when I received it so I decided to "beautify" it a bit. The paint was a disaster so I stripped everything, soaked it in warm citric acid and repainted with VHT brake caliper aluminum paint (450degC/900degF). A 20ga steel wire was inserted into the fuel line, approx. 10cm.to improve performance. A small washer was needed to align the jet to the burner inlet as it was noticeably crooked.Repacked the valve gland with graphite cord. Copied the Company logo and made a decal. Now it looks presentable and works very well.








  2. presscall

    presscall United Kingdom SotM Winner SotY Winner Subscriber

    Offline
    Joined:
    Aug 25, 2009
    Messages:
    9,959
    Location:
    Blackburn, Lancashire, United Kingdom
    You’re too modest, you transformed it and my compliments on improving not just the looks but its functionality too. It deserves the attention and clearly responds well to the TLC. Bravo.

    John

  3. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 27, 2014
    Messages:
    1,226
    Location:
    Somersby, New South Wales, Australia
    It's looking good. :clap:

  4. Andi

    Offline
    Joined:
    Feb 9, 2018
    Messages:
    50
    Location:
    Україна місто Львів
    Дуже хороша робота.

  5. Blueflame

    Blueflame Canada Subscriber

    Offline
    Joined:
    Jul 11, 2015
    Messages:
    498
    Location:
    Montreal Canada
  6. Aleks-S

    Offline
    Joined:
    Sep 9, 2016
    Messages:
    56
    A bundle of thin copper wires (electric wire) would be better IMO. They are more flexible and have better thermal conductivity.
    Exactly! Now this is a completely different stove than before.

    Regarding the design - I never understood why the preheating cap is placed under the jet.
    Is it enough for effective priming? Or you use the top of flame spreader?

  7. Blueflame

    Blueflame Canada Subscriber

    Offline
    Joined:
    Jul 11, 2015
    Messages:
    498
    Location:
    Montreal Canada
    I use a torch to preheat.... I am not a purist, I use what works.
