My Coleman Model 530 "A46"

Discussion in 'Coleman No:530 'GI'' started by Stovost, Jan 11, 2016.

  1. Stovost United States

    Offline
    Joined:
    Jul 29, 2012
    Messages:
    185

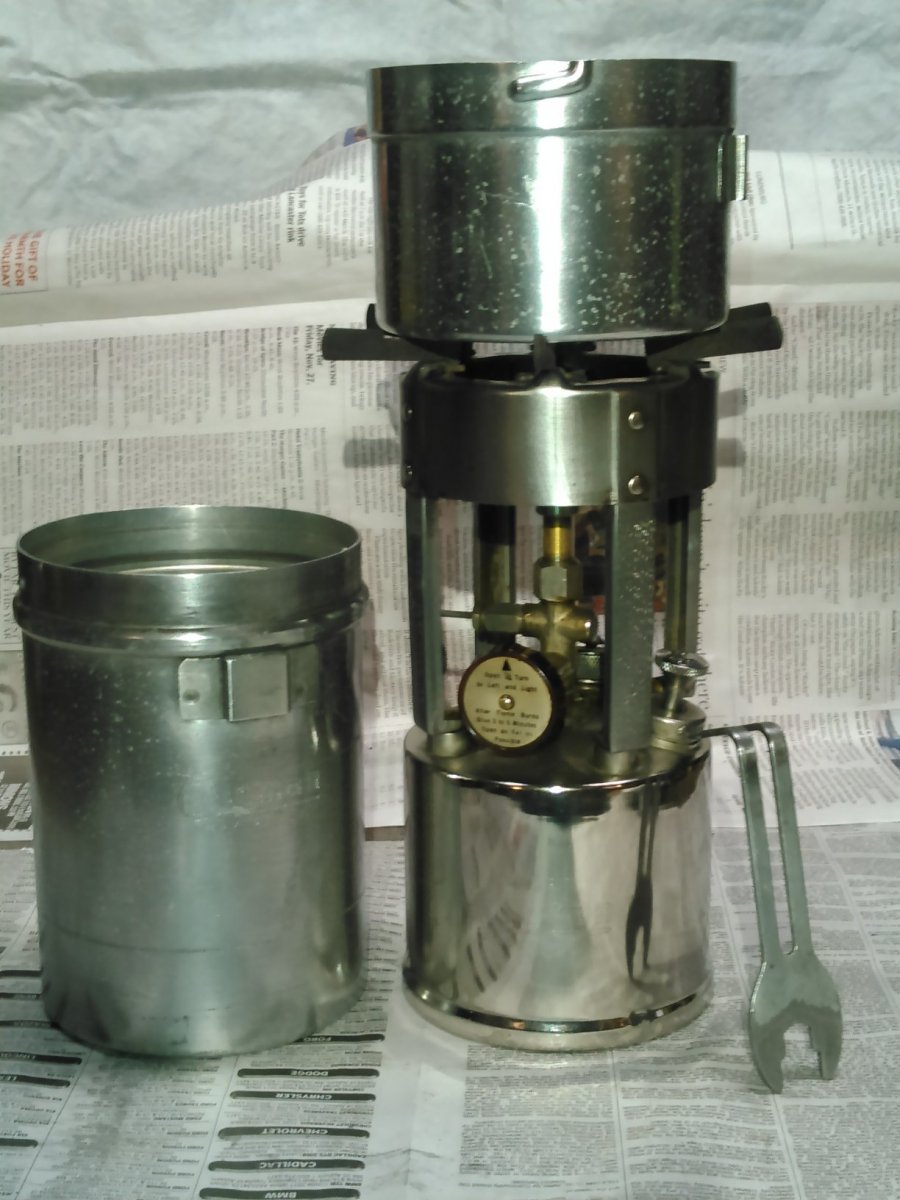

    After a complete teardown and very enjoyable and educational Fettle, this is the latest Coleman Model 530 "A46", burning fuel, as William C. Coleman intended it to! Great little stove! Bullet Proof construction. Amazingly simple Engineering, but built Battleship tough! Coleman Model 530 A46 Completed with Case.jpg

  2. HercL4D2

    HercL4D2 Subscriber

    Offline
    Joined:
    Dec 4, 2014
    Messages:
    529
    Yes Nice!!! Very NICE!!!. Grand old American Stainless Steel. It doesn't get any better. When "Made in America" meant something.

  3. Murph

    Murph United States Subscriber

    Offline
    Joined:
    May 14, 2010
    Messages:
    2,557
    Location:
    Milwaukee WI, USA
    Those were built to last, stainless and brass tank, it's amazing how many of those survive to this day, and run like the day they were made, given good fuel.

    I gave one of these to my son-in-law for his paintball re-enacatmant games, make for interesting meals out in the field!

    Murph

  4. HercL4D2

    HercL4D2 Subscriber

    Offline
    Joined:
    Dec 4, 2014
    Messages:
    529
    Stainless Tank or nickel plated on a brass tank and polished correct?

  5. shagratork

    shagratork United Kingdom Moderator, R.I.P. Subscriber

    Offline
    Joined:
    Aug 9, 2005
    Messages:
    9,636
    Location:
    Durham, N.E. England
    Tank is nickel on brass (though the base is steel) and upper structure is stainless steel.

  6. Murph

    Murph United States Subscriber

    Offline
    Joined:
    May 14, 2010
    Messages:
    2,557
    Location:
    Milwaukee WI, USA
  7. anlrolfe

    Offline
    Joined:
    Jun 9, 2009
    Messages:
    2,331
    Location:
    Louisville Kentucky, USA
    @Murph ,

    Just went back and read the old post again. Good for another laugh

    @Stovost ,

    Excellent stove

    AR

  8. QDanT

    Offline
    Joined:
    Jun 1, 2007
    Messages:
    72
    An 'A' and a 'B'

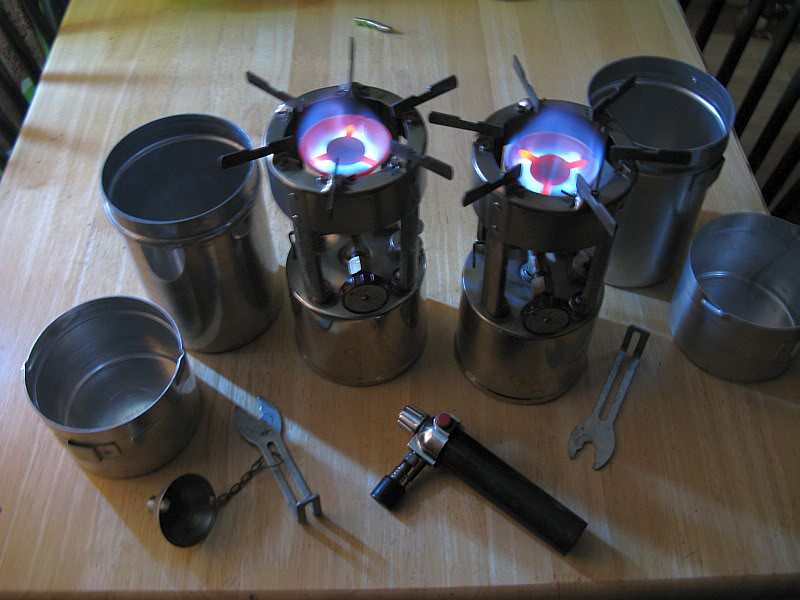

    coleman dark.jpg

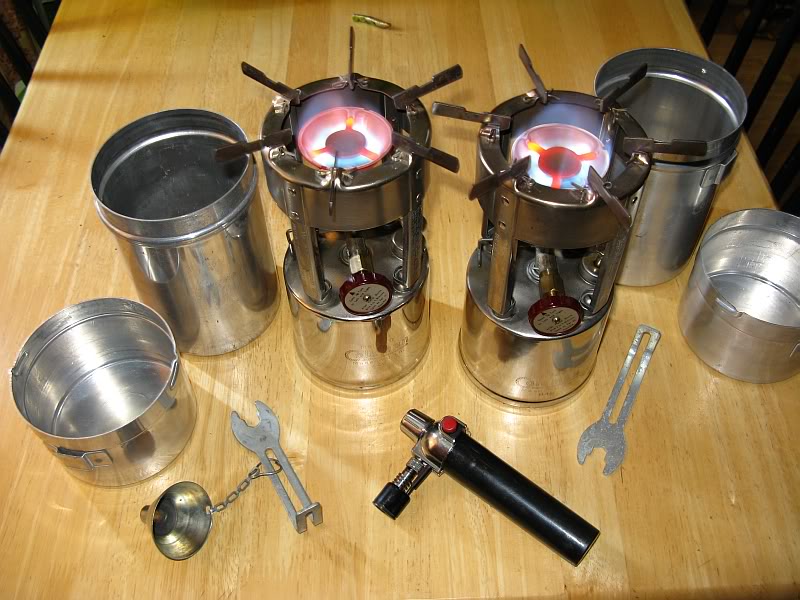

    coleman light.jpg


    and in the 'field' well the Bothy at Top Withens

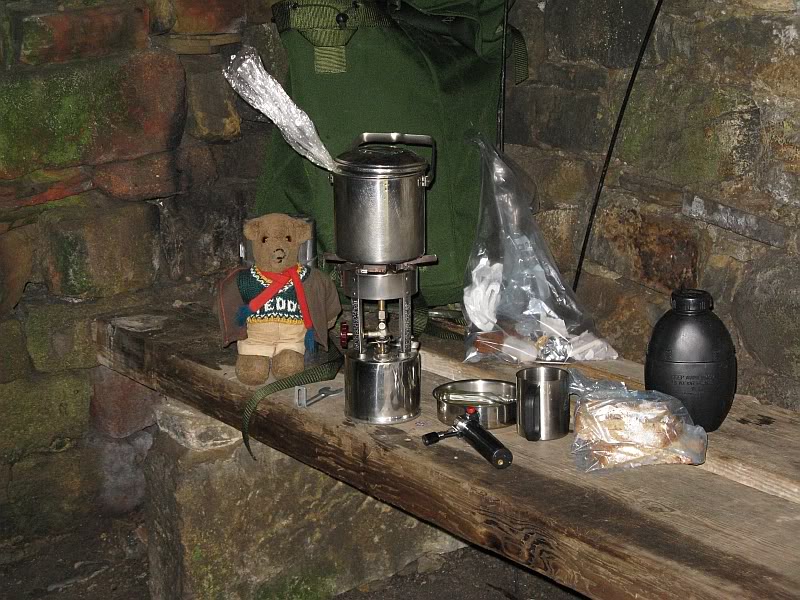

    coleman cooking.jpg
    cooks blowtorch to pre-heat instead of a fuel prime

  9. Stovost United States

    Offline
    Joined:
    Jul 29, 2012
    Messages:
    185
    Nice QDanT! VERY NICE!

    Last edited: Jan 11, 2016
  10. Murph

    Murph United States Subscriber

    Offline
    Joined:
    May 14, 2010
    Messages:
    2,557
    Location:
    Milwaukee WI, USA
    Here's a nice trick to make a good stove even better: Replace the generator nut with the one from a M1950 stove, same nut with a preheat cup and wick attached! Makes the stove real easy to fire up in very cold weather, and the preheat with alcohol works better then the belches of yellow flames while the stove warms up without a preheat, IMO.

    Murph

  11. Stovost United States

    Offline
    Joined:
    Jul 29, 2012
    Messages:
    185
    Have you got a picture of that Murph?

  12. anlrolfe

    Offline
    Joined:
    Jun 9, 2009
    Messages:
    2,331
    Location:
    Louisville Kentucky, USA
    I think the same vaporizer nut is used on a wide range of stoves in this series.
    Here is a pic from my 2-burner 523. I have added fiberglass material to "soften" the pre-heat
    I'll see if I can find some other pics.

    Found it via https://www.oldcolemanparts.com/resources/man.php part # 520-359 used on both the 520 and 523

    AR

    [​IMG]

    Last edited: Jan 12, 2016
  13. Murph

    Murph United States Subscriber

    Offline
    Joined:
    May 14, 2010
    Messages:
    2,557
    Location:
    Milwaukee WI, USA
    The M1950 cup comes with a piece of glass fiber rope in it already, makes it much easier. Many of the parts interchange between the 520, 530, and M1950 AKA 536 or EX 50-1

  14. Stovost United States

    Offline
    Joined:
    Jul 29, 2012
    Messages:
    185
    Is this nut/preheat cup part, something one can purchase somewhere, or do you have to be lucky enough to find it on another stove?

  15. anlrolfe

    Offline
    Joined:
    Jun 9, 2009
    Messages:
    2,331
    Location:
    Louisville Kentucky, USA
  16. Stovost United States

    Offline
    Joined:
    Jul 29, 2012
    Messages:
    185
  17. Stovost United States

    Offline
    Joined:
    Jul 29, 2012
    Messages:
    185
    Anlrolfe,

    Will that fit my 530 "A46" and "B46"?

  18. anlrolfe

    Offline
    Joined:
    Jun 9, 2009
    Messages:
    2,331
    Location:
    Louisville Kentucky, USA
    I've got a salvaged valve assembly somewhere that I can try to find. My understanding is that the valve is the same on this entire series of stoves.
