Norma E22

Discussion in 'Other Norma Models' started by Blueflame, Mar 26, 2020.

  1. Blueflame

    Blueflame Canada Subscriber

    Offline
    Joined:
    Jul 11, 2015
    Messages:
    608
    Location:
    Montreal Canada
  2. shueilung.2008

    shueilung.2008 Subscriber

    Offline
    Joined:
    Aug 6, 2015
    Messages:
    574
    Location:
    Uruguay
    @Blueflame She is cute an beautifull

    Would be a nice addition!

    Enrique

  3. Harder D. Soerensen

    Harder D. Soerensen Denmark Subscriber

    Offline
    Joined:
    Oct 24, 2017
    Messages:
    1,661
    Location:
    Denmark
    Very nice - I like the style on these old well-made dual meth-burners

  4. MrAlexxx

    MrAlexxx SotM Winner Subscriber

    Offline
    Joined:
    Oct 21, 2015
    Messages:
    1,343
    Yeah, that is a beauty!
    Tempted? Shipping cost is really the killer on the bigger stoves. If that was local to me there would be NO tempted. There would be acquisition and ownership. :)

    Alex

  5. The Warrior

    The Warrior United States Subscriber

    Offline
    Joined:
    Dec 5, 2019
    Messages:
    1,514
    Location:
    the 'Nois man.
    Beautiful stove.

  6. Simes

    Simes Subscriber

    Offline
    Joined:
    Jul 26, 2004
    Messages:
    4,541
    Location:
    I'm on the way....
    Those images really shouldn't be available publicly.

    Very nice.

  7. Blueflame

    Blueflame Canada Subscriber

    Offline
    Joined:
    Jul 11, 2015
    Messages:
    608
    Location:
    Montreal Canada
    Well I finally negotiated a good price and have it now in my hot little hands. Is there a tutorial in how to fettle the burners? I have one apart and am intrigued by the wicking device in the feed tube. Does this look reuseable, if not what are my options?. With all the innards removed from the burner should I be able to blow through from tank side right through the burner...not happening now.

    IMG_3932__1592011023_30767.jpg IMG_3933__1592011117_10790.jpg IMG_3934__1592011193_73171.jpg

    Last edited by a moderator: Jul 23, 2020
  8. Twoberth

    Twoberth United Kingdom Subscriber

    Offline
    Joined:
    Feb 21, 2017
    Messages:
    1,221
    Location:
    England
    That is a beautiful stove.
    That wick looks reusable to me. It looks like a cotton string wick wound on a thin long wire shuttle. If it were mine I would examine the wick closely until I understood its construction, take photographs of the wick from all angles, take measurements and then put it back. Then at your leisure you can practice making a replacement for when needed.

  9. z1ulike

    z1ulike United States SotM Winner Subscriber

    Offline
    Joined:
    Mar 6, 2010
    Messages:
    3,474
    Location:
    Santa Barbara, CA
    It looks reusable to me as well. I don't think it's a wick however. Fuel reaches the burner by gravity not by capillary action. Rather it is to keep the flame from pulsing. I have a gravity fed alcohol stove that uses metal rods instead of string for the same purpose. That rail makes me think the stove might be meant for a boat.

    Ben

  10. Blueflame

    Blueflame Canada Subscriber

    Offline
    Joined:
    Jul 11, 2015
    Messages:
    608
    Location:
    Montreal Canada

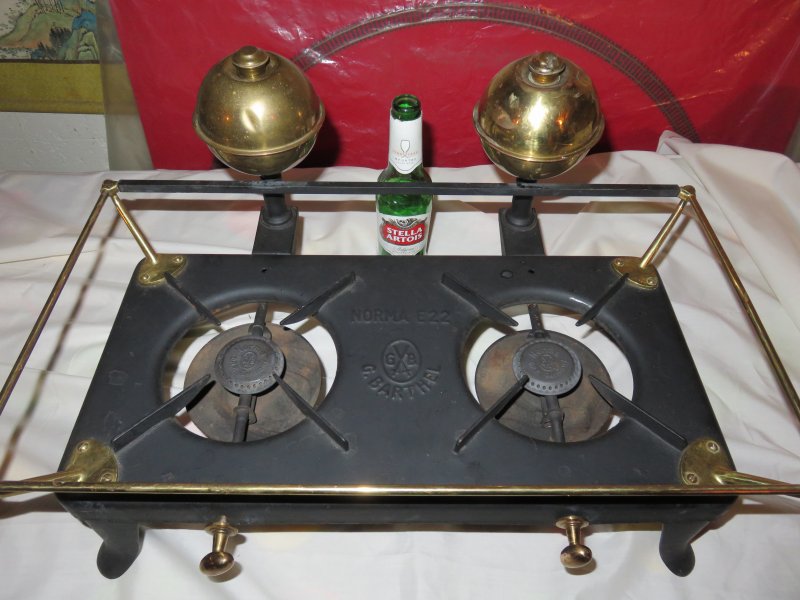

    I have Googled the model number...NOW E22 NOT S22...and have seen no others with the rail. Also noticed others have wooden knobs..this one has brass. No numbers stamped on the parts anywhere. Would like to know the vintage of this. Pre WW2 or later? Everything is sheet metal. Tubes are copper. Meths tanks are brass with some kind of clear coating. And what is D.R.P ? I have heard of D.D.R so not E.Germany but something of the mfg? Full fettle in progress, possibly flame shots later.
    My first alcohol stove of this type, it was a learning experience to say the least but I am confident of success.
    IMG_3937__1592072354_33392.jpg IMG_3936__1592072522_52679.jpg IMG_3938__1592072255_48517.jpg IMG_3935__1592072180_31474.jpg

  11. Wim

    Wim Subscriber

    Offline
    Joined:
    May 12, 2009
    Messages:
    4,529
    Location:
    Dendermonde, Belgium
    DDR; Deutsche Democratische Republic (so, anything DDR is post WW2)

    D.R.P.;Deutsches Reichs Patent.(anything D.R.P. is pre WW2)

  12. Wim

    Wim Subscriber

    Offline
    Joined:
    May 12, 2009
    Messages:
    4,529
    Location:
    Dendermonde, Belgium
    Forgot to add, I think the strands in the "wick" are asbestos. As long as it is inside the tube it is perfectly harmless. Be careful not to create any dust. The finer the dust, the more dangerous it is.

  13. Blueflame

    Blueflame Canada Subscriber

    Offline
    Joined:
    Jul 11, 2015
    Messages:
    608
    Location:
    Montreal Canada

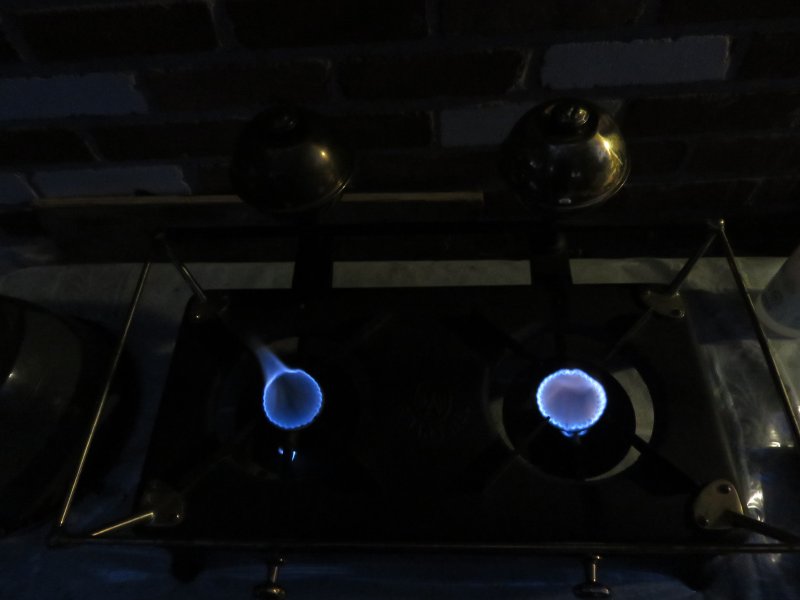

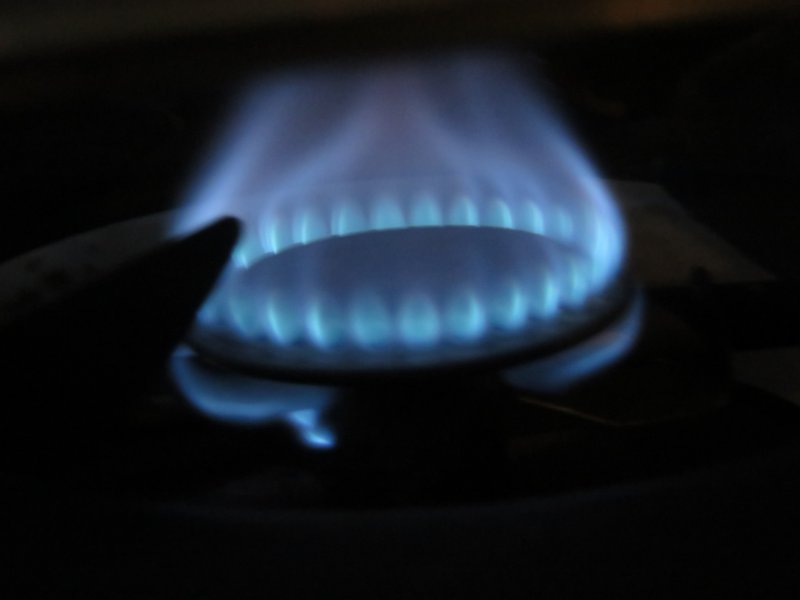

    So I finally reassembled it and it needed only a few repairs. One of the valve needles was broken off and lodged in the fuel tube completely blocking it. This was repaired by pushing out the obstruction from the opposite end. I then had to shape a new needle on the remaining shaft end. I have posted a few flame shots. After this I will try to beautify the beast because I like shiny things.
    I now understand why other models have wooden knobs...the brass ones get very hot.
    IMG_3942__1592098436_59314.jpg IMG_3940__1592098299_53087.jpg IMG_3939__1592098223_75238.jpg

  14. Blueflame

    Blueflame Canada Subscriber

    Offline
    Joined:
    Jul 11, 2015
    Messages:
    608
    Location:
    Montreal Canada
    Today I tried methyl Hydrate (methanol) as a fuel for this stove.....complete failure. It is still sold as a fuel for alcohol stoves so what is my problem? Will light but goes out after a minute . The flame shots you see above were with DNA, denatured alcohol...that works fine. I am perplexed. Works fine in my cheap Chinese alcohol burner though.

  15. z1ulike

    z1ulike United States SotM Winner Subscriber

    Offline
    Joined:
    Mar 6, 2010
    Messages:
    3,474
    Location:
    Santa Barbara, CA
    Try bio-ethanol. It's basically ethanol with some denaturing agents so it can't be consumed by alcoholics.

    Ben
