Olaf Spirit Stove

Discussion in 'Other Brands' started by StephanE, Jun 6, 2017.

  1. StephanE

    StephanE Subscriber

    Offline
    Joined:
    Sep 1, 2011
    Messages:
    8
    Hi fellow collectors,

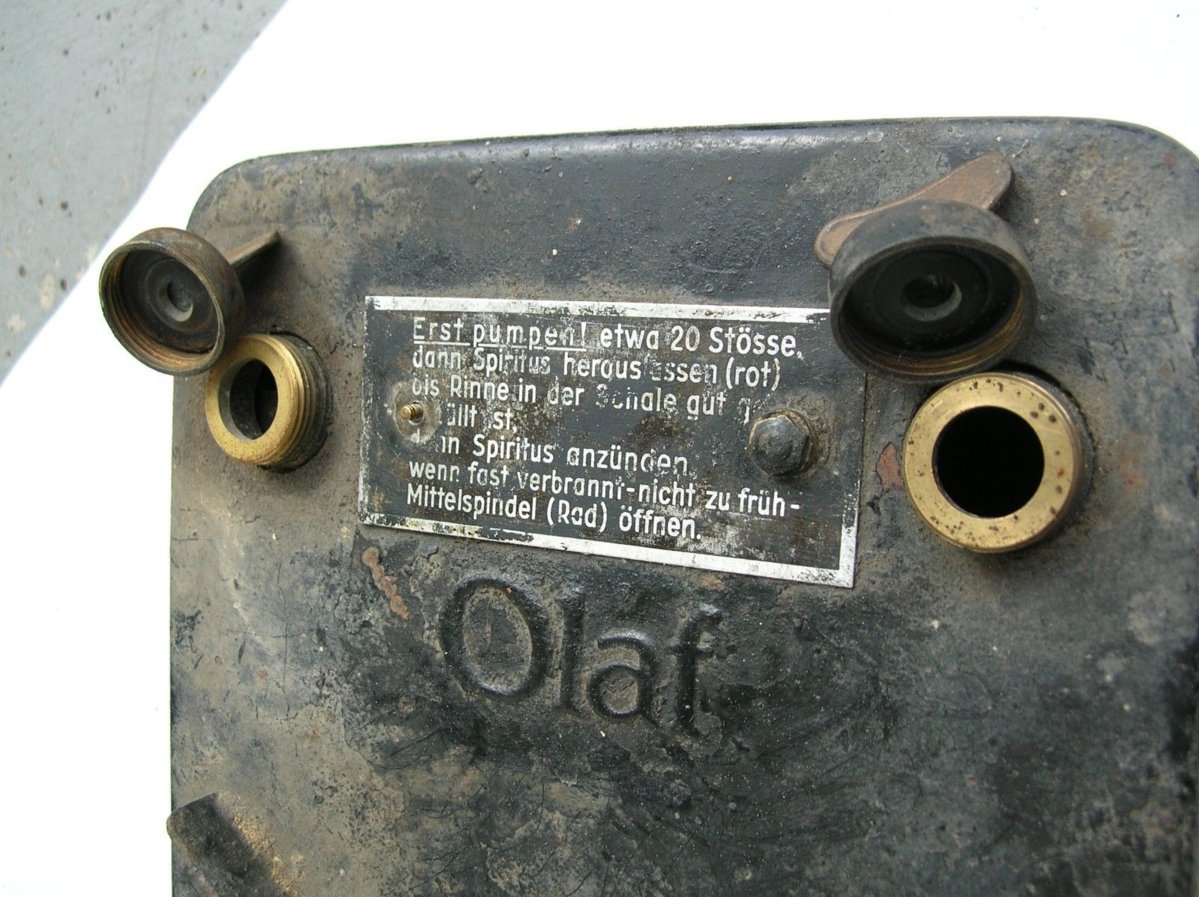

    A few days ago I got this stove from Czech republic. It is very special because it has two separate spirit reservoirs for pre heating and for running the stove. The pump has two valves, one is connected to a tube that pressurizes the small reservoir separately. Once pressurized you have to open the red handle to fill the pre heating dish. The black handle on the left is the pump. I will take some photos once restored. The following photos are courtesy of the seller.


    Olaf_02.jpg Olaf_03.jpg Olaf_04.jpg Olaf_05.jpg Olaf_06.jpg Olaf_07.jpg Olaf_08.jpg Olaf_09.jpg Olaf_10.jpg Olaf_11.jpg Olaf_12.jpg

  2. Nsiripunz

    Offline
    Joined:
    Apr 15, 2017
    Messages:
    13
    Whoa nice! have fun fettling!:clap:

  3. StephanE

    StephanE Subscriber

    Offline
    Joined:
    Sep 1, 2011
    Messages:
    8
    As promised some photos of the restored stove:

    Fully assembled

    The parts after sanding, polishing and two fresh coats of satin black paint.

    The fount. The round bottoms are made of brass plated steel and had some rust spots, so I sanded them and used a metallic brass paint and a clear coat to protect them.

    The small chamber of the fount containing the methylated spirit for preheating. Have a look at the air tube for pressurizing the fuel.

    The larger chamber on the left side containing the methylated spirit sourcing the burner. Note the two pipes coming from the pump tube.

    Another point of view.

    Watch the two pump valves that unfortunately seem to be soldered in place.

    The burner unit.

    The burner cap on the right.

    The original instructions label, one nut with a cardboard washer for fixing the fount/label and the fixing screw for the preheating dish. Below are the new replacements. The label is etched from a piece of white copper (Neusilber) and was made by a etching technology business, I got three of them because of the standard size of the metal sheet used in production.

    Only the preheating dish missing.

    Photo from above, the small nickel plated brass nuts are used in modelmaking, regular DIN sized nuts were too big in outer diameter.

    Close up of the label:

    Pump first! about 20 strokes,
    then let out methylated spirit (red)
    until groove in the dish is well filled,
    then light methylated spirit,
    when almost burned - not too early -
    open mandrel in the middle (wheel).

  4. salan3

    salan3 United Kingdom Subscriber

    Offline
    Joined:
    May 9, 2007
    Messages:
    989
    Location:
    Cheshire UK
    Outstanding!

  5. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Jun 8, 2013
    Messages:
    5,783
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @StephanE

    Very nice restoration!

    Cheers

    Tony

  6. z1ulike

    z1ulike United States SotM Winner Subscriber

    Offline
    Joined:
    Mar 6, 2010
    Messages:
    2,504
    Location:
    Santa Barbara, CA
    That is an absolutely beautiful restoration job. Having a new label professionally etched was well worth the effort and expense. It really sets the stove off and makes it look new rather than restored. I'm always amazed at the talent around here.

    Ben

  7. StephanE

    StephanE Subscriber

    Offline
    Joined:
    Sep 1, 2011
    Messages:
    8
    Thank you all!

    The photos don't show everything. If you have a closer look you still see the corrosion pits although I used a satin black heavy-bodied paint. Especially the preheating dish has a lot of them.

    The paint I used is named Brantho Korrux 3 in 1, you don't need a primer, it is primer, rust protection and finish in one and absolutely not harmful. Since last year available in spray cans, it sticks even on flash rust or zinc plated surfaces and has approval to be used for kids toys or at the inside of food containers as well as on pipelines or oil platforms. It can be painted over itself at every time. Very good stuff.

    My intention was to conserve such an unusual and scarce stove for the decades to come but the label that was originally made from aluminium was badly corroded and could not be saved. So I scanned it and used Inkscape software to make a drawing for the etching process.

    In the end I am satisfied with the result, there is another stove already sitting in the shelves waiting for restoration :D

  8. geneislucky

    Offline
    Joined:
    Jan 4, 2013
    Messages:
    307
    Beautiful restoration of an interesting stove.
