Optimus 00 Pre 1914?

Discussion in 'Optimus No:00' started by Neil B, Mar 26, 2009.

  1. Neil B

    Offline
    Joined:
    Jul 10, 2008
    Messages:
    308
    Got this off ebay a couple of weeks ago.
    None of you from here must have spotted it, cos I got it for a steal :D/

    Reading the 00 patent features post (thanks for all the hard research mainly Bryan & Ross)
    Bun foot, early. Outside pump nrv, pre 1921.

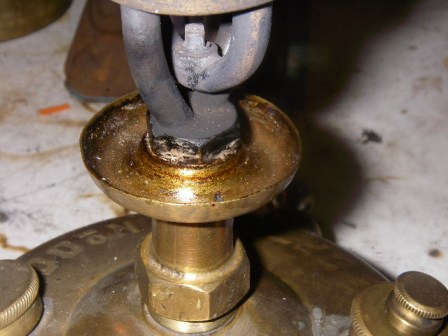

    No dimple in spirit cup, pre 1914.
    I could not get the burner, spirit cup and riser to seal, because the threads in the top of the riser were stripped at the top. If I lost the sealing washers it would all tighten. So I used a smear of fireproof sealant [-X I'm not too happy about that, so this is not going to be a user, unless I can find a hundred year old riser tube :roll:

    1238107411-00_01.JPG 1238107422-00_02.JPG 1238107434-00_03.JPG 1238107442-00_04.JPG 1238107456-00_05.JPG 1238107464-00_06.JPG 1238107474-00_07.JPG 1238107494-00_08.JPG 1238107504-00_09.JPG

    Neil

    Last edited by a moderator: Jun 27, 2015
  2. Spiritburner

    Spiritburner Admin Subscriber

    Offline
    Joined:
    Jul 23, 2004
    Messages:
    10,479
    Location:
    N.E. England
  3. Dutchmike

    Offline
    Joined:
    Feb 25, 2007
    Messages:
    717
    Location:
    Netherlands
    Hello Neil, have that riser turned. Should be straightforward and payable. This stove certainly warrants it! Good find, especially with the knowledge there are many (of us) looking for such an early Optimus. Regards, Mike

  4. Bom Bom Bom Bom

    Offline
    Joined:
    Jun 25, 2008
    Messages:
    2,946
    Hi Neil,

    Great spot, and well done. I did go to the Optician's last weekend so when I get my new glases you won't have it so easy next time round :lol:

  5. redspeedster

    redspeedster Subscriber

    Offline
    Joined:
    Jan 1, 2006
    Messages:
    2,587
    Location:
    County Durham
    Hi Neil

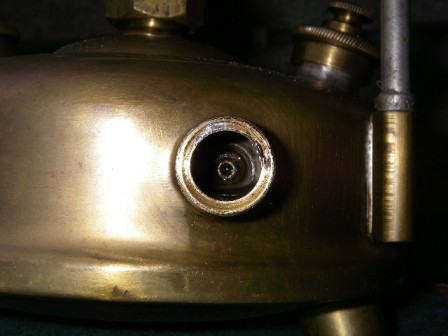

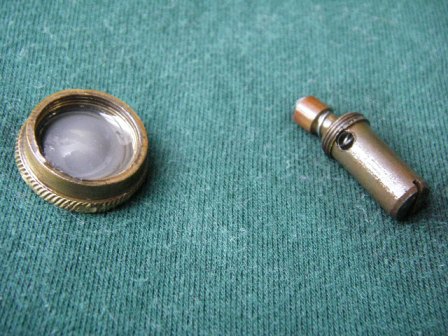

    Thanks for the pictures of the external NRV access.
    I haven't got any stoves that old and always wondered how it went together.

  6. Neil B

    Offline
    Joined:
    Jul 10, 2008
    Messages:
    308
    This is the photo from the ebay listing, you can only just see the external nrv. I was just lucky :whistle: :D/

    Neil

  7. kaw550red

    kaw550red RIP

    Offline
    Joined:
    Aug 22, 2004
    Messages:
    2,350
    Hi Neil

    There are manufacturing tolerances on the rising tubes and burners. If the threads have been cut too deep on both parts the threads will initially grip however with the removal of the tarnish they will not then grip even though there appears to be no obvious damage to the threads.

    If you have another patent 00 try swopping the burners. You may then find that the swopped burners work on the other rising tubes.

    I threw a perfectly good burner out before I discovered that the problem was in the threads of the rising tube. When I tried a different burner initially I had the same problem however when I tried another it fitted perfectly.

    It may not work but it is worth a try

    Regards Bryan

  8. Neil B

    Offline
    Joined:
    Jul 10, 2008
    Messages:
    308
    Thanks Bryan, I don't have anothe patent 00, but I always have my eyes open, I'll just have to be patient. It will just for display purposes until I can find another or I can get a riser made. One of my mates is a toolmaker with access to lathes etc. I'll ask a favour I think.

    Neil

  9. igh371

    igh371 SotM Winner Subscriber

    Offline
    Joined:
    Jun 23, 2013
    Messages:
    1,364
    Coming back to this thread in the light of further examples and discussions over the years I am drawn to comment on the burner/riser thread problem mentioned above. I have found this problem with old Optimus stoves and blowlamps to be very common in a way I have not encountered with any other manufacturer. Maybe this says something about the quality of Optimus production at that time compared to Primus? Early Optimus 'Nobel' blowlamps are notorious for pump tubes that simply fall through the threads in the tanks too!
