Optimus 111 embossed, early, with blue cookie cutter

Discussion in 'Optimus No:111 (all variants) + later Hiker & Hike' started by Staffan Rönn, May 9, 2021.

  1. Staffan Rönn

    Staffan Rönn SotM Winner SotY Winner Subscriber

    Offline
    Joined:
    Oct 21, 2018
    Messages:
    654
    Location:
    Stockholm, Sweden

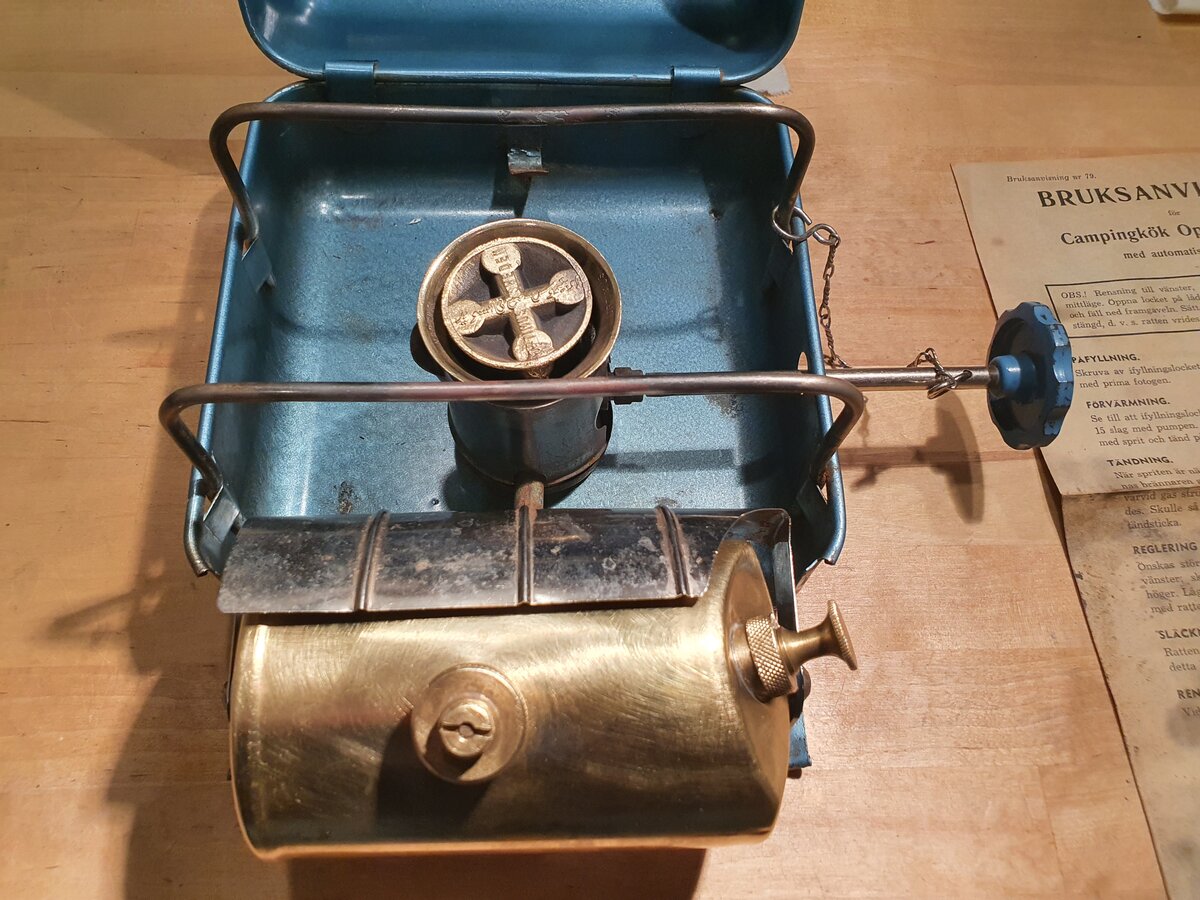

    Here is an early 111, probably 1953/54-ish. Except for color on steel case and cookie cutter, it is very similar to this unit: Optimus 111 embossed probably 1953/54-ish.

    I thought that I had all color versions of the "newer" type of cookie cutter with sunken lettering in contrasting color (white, green and burgundy red). I have somewhere here on CCS seen a blue version being mentioned, but I had never seen one myself. When this one passed by I just had to get it.

    The blue cookie cutter is made of a black material, and then coated in blue color (unlike the other ones).



    The time markers are among other things:
    • Old style case hinges.
    • Old style clip inside case to hold burner in place when stove is folded/closed.
    • Maintenance tool with open keys.
    • No cut-out for the closure of the case.

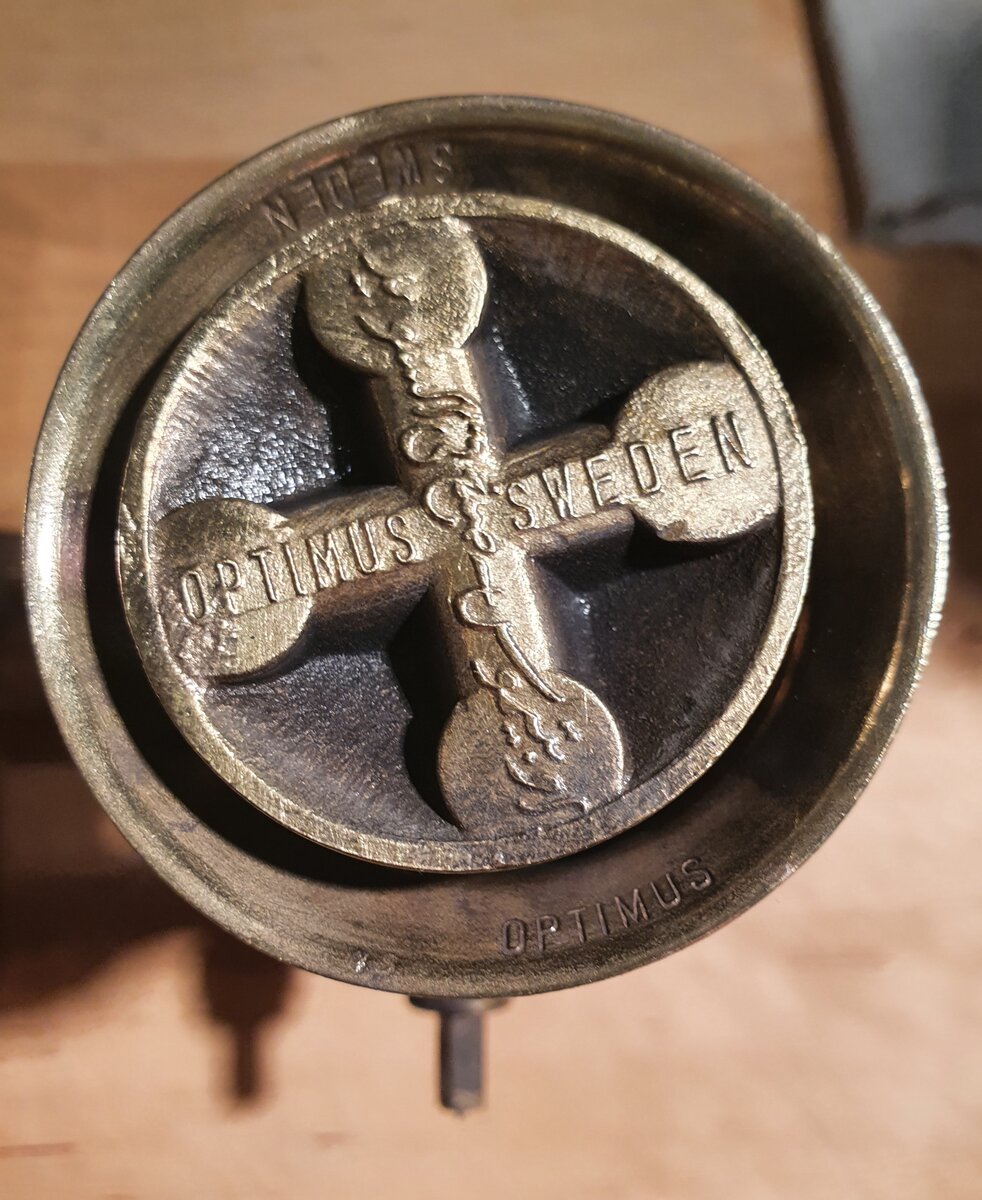

    • Burner with hexagonal base.
    • Burner without hole for pouring down preheating fuel.
    • Burner wind shield with scoop opening for pouring preheating fuel.
    • Blue cookie cutter handle on control spindle.
    • Instructions manual no. 79 that only covers the 111. Later manuals cover both 111 and the 22 double burner range. The 22 was introduced around 1955, and manual no. 79 was then edited to also cover the 22 and the spirit can no. 69.
    All in all my guess is that this one is later than the first version (1952) but prior to the launch of the 22 (1955) thus estimating it to 1953/54.

    I'ts raining right now, so I'll test it and hopefully post flame shots later.

    20210509_140428.jpg 20210509_140042.jpg 20210509_140118.jpg 20210509_140440.jpg 20210509_140452.jpg 20210509_140521.jpg 20210509_140634.jpg 20210509_140647.jpg 20210509_140727.jpg

    Last edited: May 9, 2021
  2. Paul B

    Paul B Subscriber

    Offline
    Joined:
    Nov 15, 2005
    Messages:
    256
    Very nice! I would have noticed the double open ended wrench and the blue adjusting handle. The other differences you mentioned were a real lesson for me.

  3. BradB

    BradB United States Subscriber

    Offline
    Joined:
    Aug 21, 2013
    Messages:
    1,459
    Location:
    Central North Carolina USA
    Once again you have found and documented a beautiful 111. Thanks for sharing. Brad

  4. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Jun 8, 2013
    Messages:
    7,481
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    Thanks for the very informative post, Staffan.


    Cheers

    Tony

  5. kerophile

    kerophile United Kingdom SotM Winner Subscriber

    Offline
    Joined:
    Sep 23, 2004
    Messages:
    12,801
    Location:
    Far North of Scotland
    Great post on a lovely stove.
    Best Regards,
    Kerophile.

  6. hikerduane

    hikerduane Subscriber

    Online
    Joined:
    Mar 1, 2010
    Messages:
    7,026
    Nice. I think I have enough 111's. Slowing my collecting way down, just need a couple more 96's.
    Duane

  7. anfeng

    anfeng SotM Winner Subscriber

    Offline
    Joined:
    Oct 2, 2016
    Messages:
    157

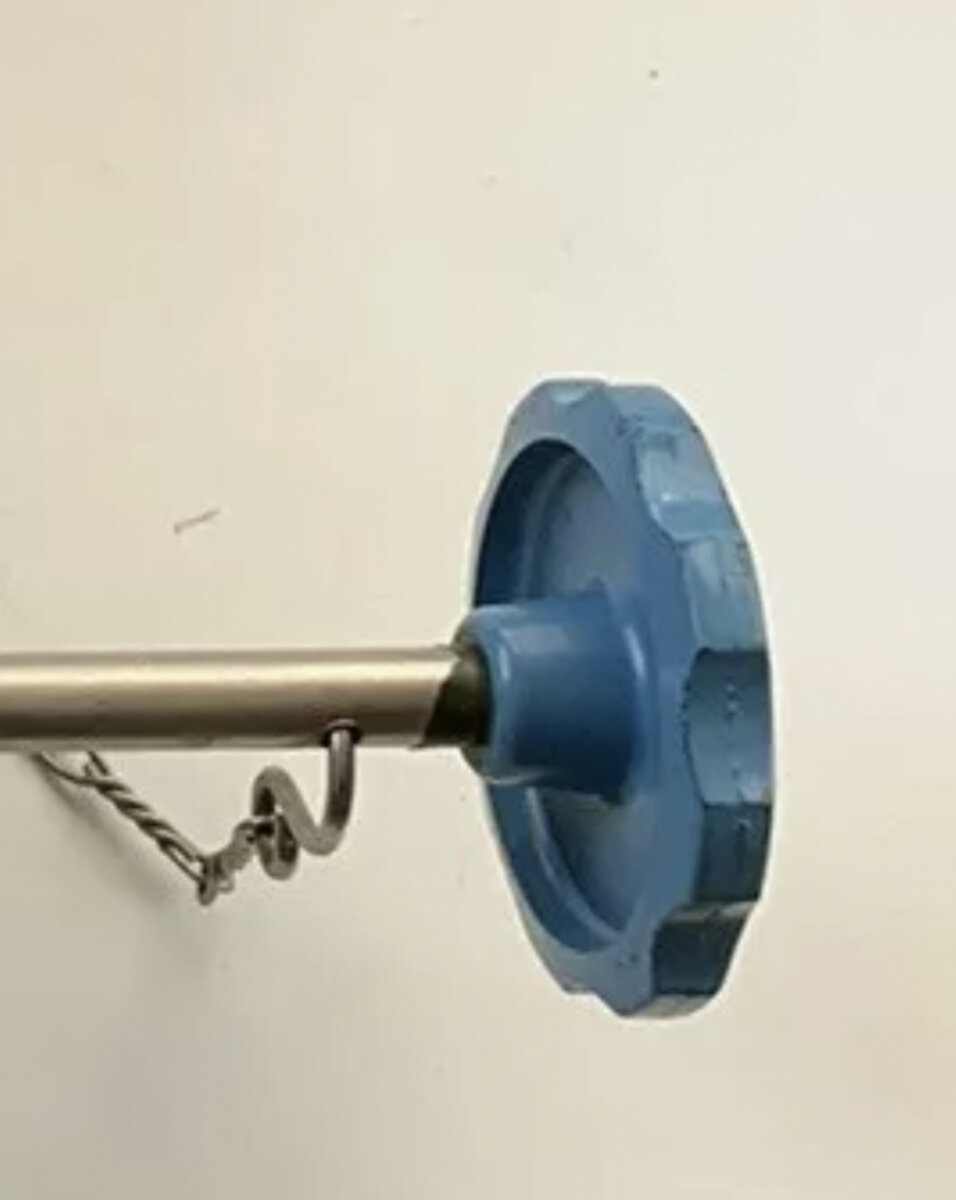

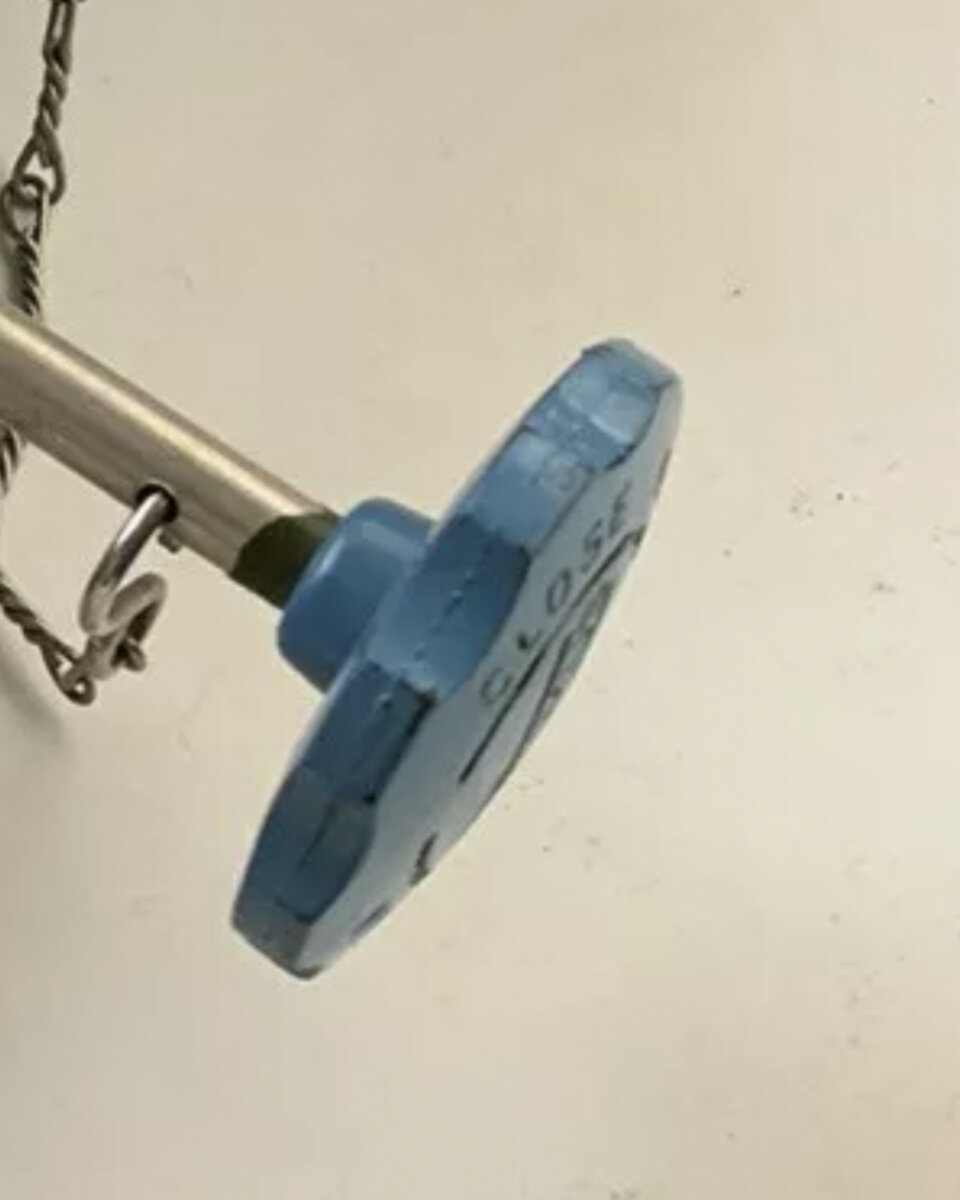

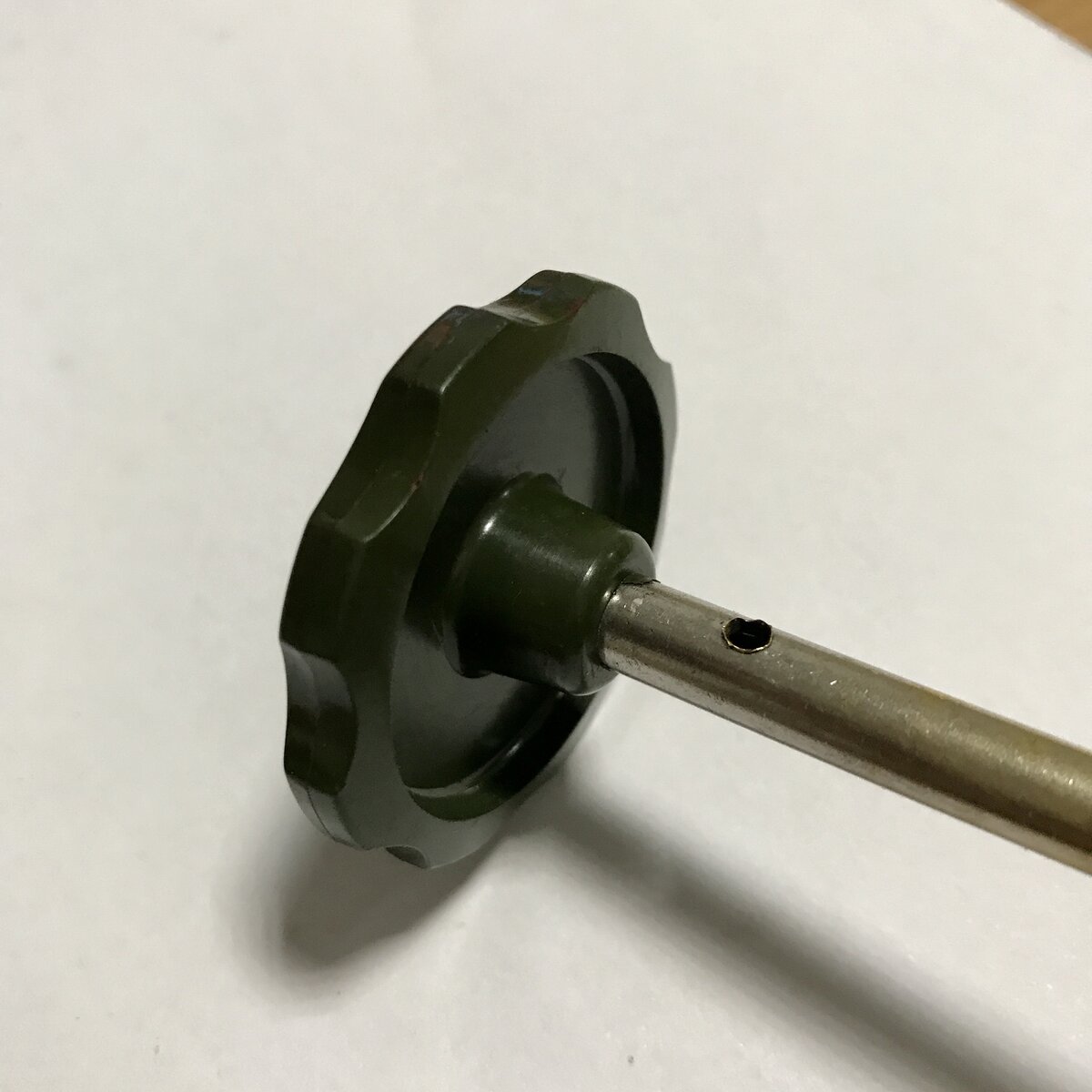

    This blue biscuit should exist between the black and white biscuit F1CA1805-6A9A-45AF-B93F-F9D385368166.jpeg 67848F93-7859-40B7-A247-B45871E98B6D.jpeg 4EF122AA-14EC-4D16-B62E-E360DCE46E32.jpeg They are usually painted with blue paint on the surface of the green biscuits. I suspect that they are customized products by a certain government department. 05C436E6-A9A6-456D-834A-2B9D405A0A46.jpeg D14DC725-4BEB-498D-BC53-C1D5628273DF.jpeg 290C1F63-A6AD-4D3A-A99B-ECD7152580FC.jpeg B8021EFE-23EB-4F7E-8AFB-156E981E7506.jpeg

  8. z1ulike

    z1ulike United States SotM Winner Subscriber

    Offline
    Joined:
    Mar 6, 2010
    Messages:
    3,392
    Location:
    Santa Barbara, CA
    Wow, just wow!

    Ben

  9. Staffan Rönn

    Staffan Rönn SotM Winner SotY Winner Subscriber

    Offline
    Joined:
    Oct 21, 2018
    Messages:
    654
    Location:
    Stockholm, Sweden
    Thanks for nice comments everyone!

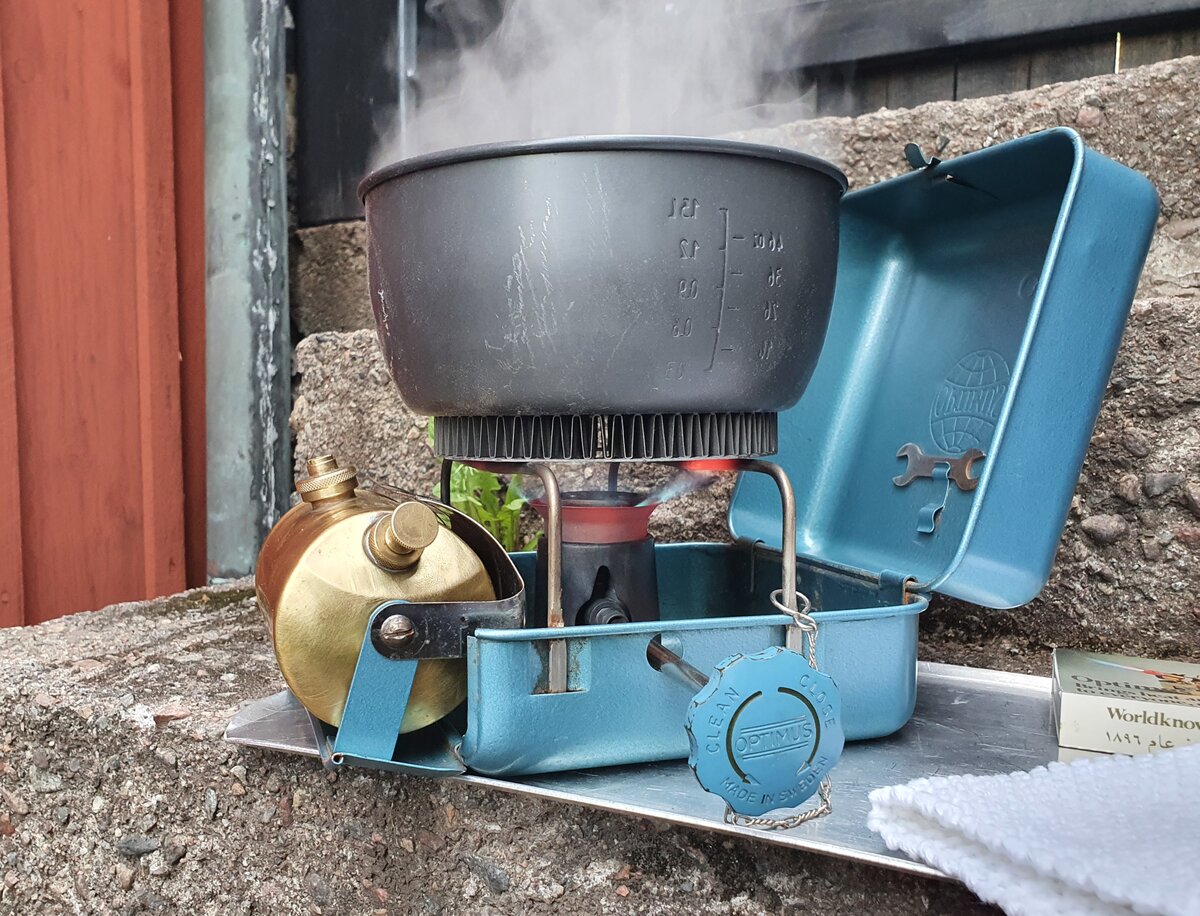

    Today it was nice outside, time for necessary fettle and burn test. Pump NRV, tank lid packing and burner wear parts needed replacement. So here we go: Flame blue as a cookie cutter!

    20210511_183933_2.jpg 20210511_183800.jpg 20210511_184411.jpg

    @anfeng - It looks as if the blue knob is a color coated green knob. It first seemed to be black but it could very well be the dark green one. My wild guess is that it's just an aesthetic thing to better match the blue steel case, but I have no proof of anything.

    It seems however that the color scheme with both blue steel case and cookie cutter is quite rare for these early 111's. The light green cases seem to be more common.

  10. Jaime Massang

    Jaime Massang Australia Subscriber

    Offline
    Joined:
    Sep 24, 2015
    Messages:
    104
    Thank you Staffan.

    Beautiful! (Are you going to buff up the tank?-lol.) I am also admiring your heat-exchanger pot.
    The important hints at the bottom of the instruction sheet are very informative for all petrol(gasoline) stoves.
    Certainly explains why many generators/vaporizers, etc got clogged up.

    Regards, Jaime.

  11. Staffan Rönn

    Staffan Rönn SotM Winner SotY Winner Subscriber

    Offline
    Joined:
    Oct 21, 2018
    Messages:
    654
    Location:
    Stockholm, Sweden
    Hi @Jaime Massang

    Ha ha... I can assure you that the stove came with tank and other parts already buffed up... This unit has passed the hands of a true stove klutz before reaching me. I suspect failed attempts to get it running properly, only badly sooted up and with a spindle twisted beyond recognition. Then someone has used a lot of force to clean it up prior to selling it. If you enlarge the images, you can clearly see plenty of scratch marks from steel wool on both tank, burner and the wrench. Quite brutal treatment...

    But I could not resist the blue cookie cutter, just had to get it. :content:
