Optimus 8 plated case

Discussion in 'Optimus No:8 (version prior to the 8R)' started by Knight84, Mar 12, 2015.

  1. Knight84

    Offline
    Joined:
    Jan 21, 2009
    Messages:
    3,234















    Cheers,
    Jeff

    Last edited by a moderator: Jun 26, 2015
  2. hikerduane

    hikerduane Subscriber

    Offline
    Joined:
    Mar 1, 2010
    Messages:
    5,737
    I've wondered if one of mine had the factory rivet for the clip, or was attached by a previous owner. But then another stove doesn't have it, very confusing. Nice clean models you have. The old 8's sure vary. I've asked Alexander what the coating was on those early 8's, he did not know. Also, not sure the fat fuel line was before the 8F's or a 8F. The 8's are all still pretty neat anyway.
    Duane

  3. snwcmpr

    snwcmpr Subscriber

    Offline
    Joined:
    Nov 16, 2011
    Messages:
    12,251
    Location:
    North Carolina
    Sweet!!!
    Is there a wick in one, and not in the other? I seem to remember reading that the fuel line from the bottom of the tank did not have a wick.

    I only have (1) 8, and I really like them. 8R just isn't the same.

    Ken in NC

  4. Admin

    Admin Courtesy of Iani

    Offline
    Joined:
    Aug 22, 2008
    Messages:
    1,350
    Picture 13 - shows the right hand tank burner assembly, with a hexagon nut - you don't say which 8 this is from Steel or Aluminium - does the other tank have the same ?

    And yes, the rivet is original.

  5. Knight84

    Offline
    Joined:
    Jan 21, 2009
    Messages:
    3,234
    [quotePicture 13 - shows the right hand tank burner assembly, with a hexagon nut - you don't say which 8 this is from Steel or Aluminium - does the other tank have the same ?
    ][/quote]

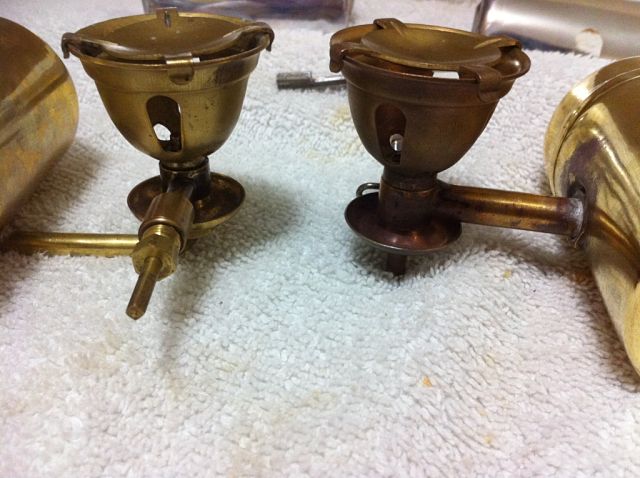

    The plated one (earlier model) is on the left and the Alumiumn is on the right. Which is a later model made for the French market.

    Note the difference of the heat shield and the feed tube. The earlier one is brazed in place. The later model is threaded but almost looks brazed. Both have wicks. There should be a rivit in the lid. The clip holds a pricker and a wrench/key. Note that the 8r would later be modified since it didn't need to hold a pricker

  6. hikerduane

    hikerduane Subscriber

    Offline
    Joined:
    Mar 1, 2010
    Messages:
    5,737
    Seems I'm away from home at work, so can never check my stoves for details when pointed out or asked of me until the weekend. :(
    Glad to know the brass colored rivet is original.
    Duane

  7. Rangie

    Rangie Subscriber

    Offline
    Joined:
    Jul 25, 2012
    Messages:
    1,420
    Location:
    Caithness, Far North of Scotland
    Hi Folks,

    There is no wick in the earlier ones which have the feed brazed into the very bottom of the tank (the left one in the above pics)

    I'm sure its possible with a pair of shaped forceps though.....

    Alec.

  8. Knight84

    Offline
    Joined:
    Jan 21, 2009
    Messages:
    3,234
    Mine had a old wick. I removed it with the optimus hook tool. I did try it without a wick but it pulsed. So installed a new one and 5 minutes later no pulse.

    It's also a little safer to have a wick in these kind of stoves. Stop any potential flame into the tank
