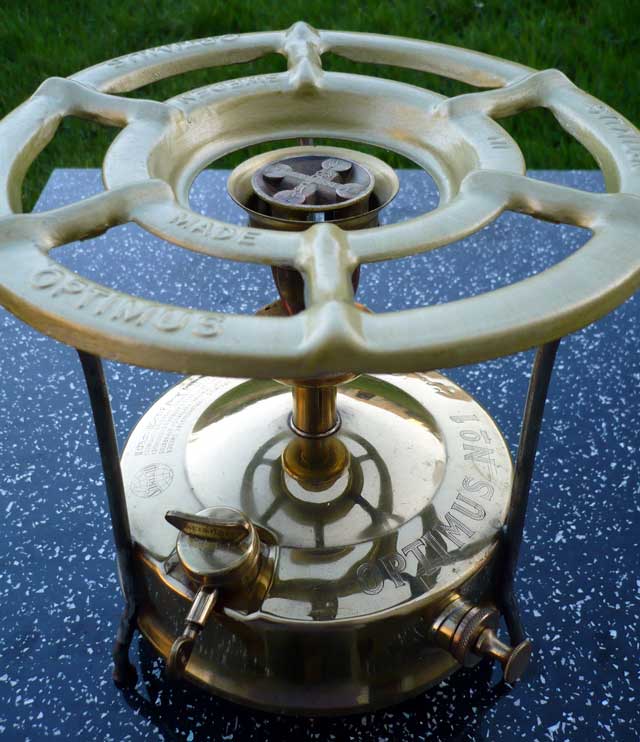

    Hi, here are a group of photos of an Optimus No.1 stove:


    1258986250-Opt.1.-Stove-59-2.jpg 1258986288-Opt.1.-Stove-59-3..jpg 1258986313-Opt.1.-Stove-59-4..jpg 1258986358-Opt.1.-Stove-59-5..jpg 1258986673-Opt.1.-Stove-59-6..jpg 1258986388-Opt.1.-Stove-59-7..jpg 1258986408-Opt.1.-Stove-59-8..jpg 1258986444-Opt.1.-Stove-59-9..jpg 1258986459-Opt.1.-Stove-59-10..jpg 1258986474-Opt.1.-Stove-59-11..jpg 1258986488-Opt.1.-Stove-59-12..jpg

    Last edited by a moderator: Jun 27, 2015
  2. kerophile

    kerophile United Kingdom SotM Winner Subscriber

    Offline
    Joined:
    Sep 23, 2004
    Messages:
    12,880
    Location:
    Far North of Scotland
    On the upper surface of the the tank, the multi-language markings indicate this is an Upplands-Vasby made stove.

    The top of the burner is marked "OPTIMUS-SWEDEN"

    This Optimus No.1 stove is fitted with a recessed/sunken filler tube, a feature that Optimus introduced to this particular model in 1957/58.

    The above observations suggest that this particular stove was manufactured after 1957/8 but before 1962 and the formation of the Primus Trading Co.

  3. igh371

    igh371 SotM Winner Subscriber

    Offline
    Joined:
    Jun 23, 2013
    Messages:
    1,830
    Location:
    Durham
    Nice to have such clear detailing of the changes to these stoves either side of the formation of the PTC.
    Ian:thumbup:

  4. kerophile

    kerophile United Kingdom SotM Winner Subscriber

    Offline
    Joined:
    Sep 23, 2004
    Messages:
    12,880
    Location:
    Far North of Scotland

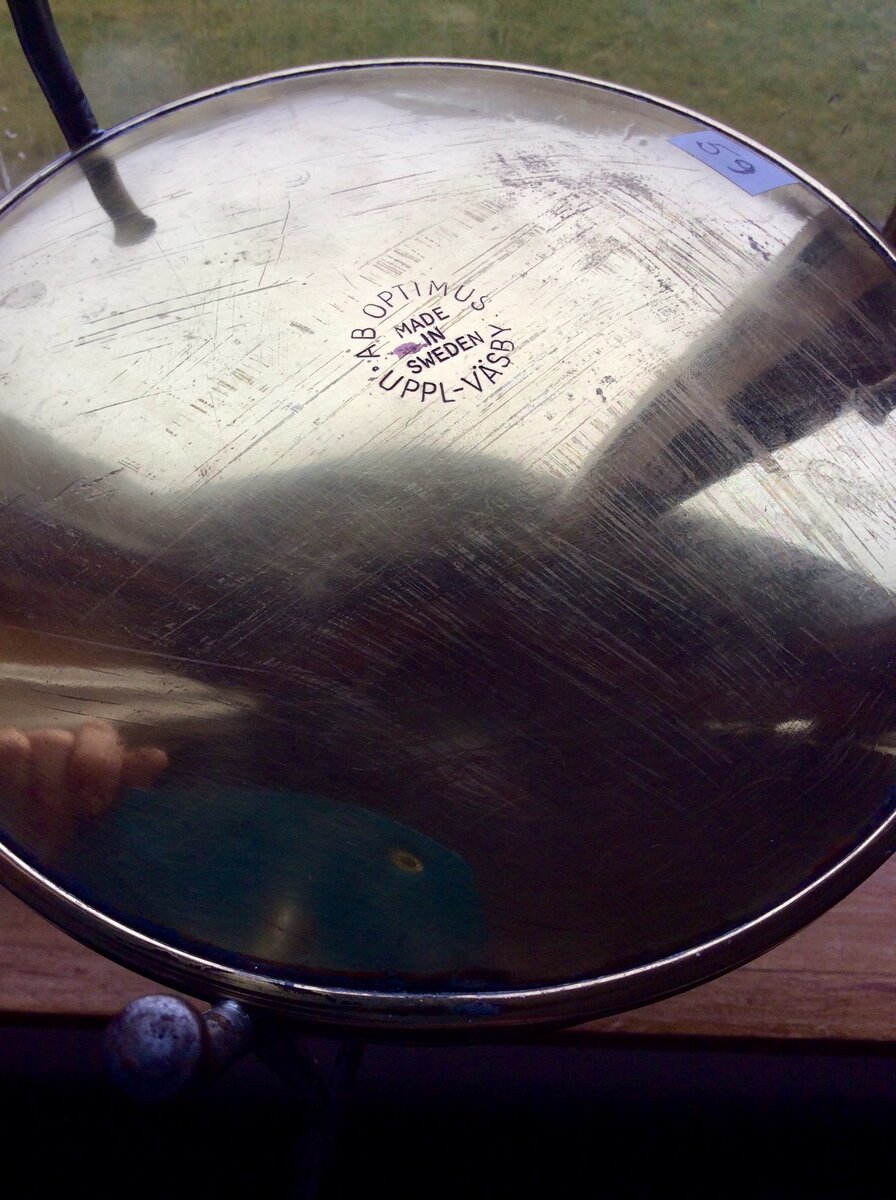

    Hi, I was asked @OMC about the marking on the tank base of this stove. I took an additional photo:


    Best Regards,
    Kerophile.

  5. kerophile

    kerophile United Kingdom SotM Winner Subscriber

    Offline
    Joined:
    Sep 23, 2004
    Messages:
    12,880
    Location:
    Far North of Scotland
    Hi, the winged filler cap on this stove is marked "Optimus" on one side and "SWEDEN" on the other.

    Likewise, the airscrew is marked "Optimus" and "SWEDEN" on opposing faces.

    Best Regards,
    Kerophile.
