Phoebus No. 5 silent burner

Discussion in 'Phoebus' started by attb2, Nov 29, 2015.

  1. attb2

    Offline
    Joined:
    Oct 27, 2015
    Messages:
    11
    Location:
    Hungary
    I found this stove in my grandmother's house: Phoebus No. 5 MJR
    It was not in working condition, so I ordered missing parts from fettlebox: inner + outer cap and nipple.

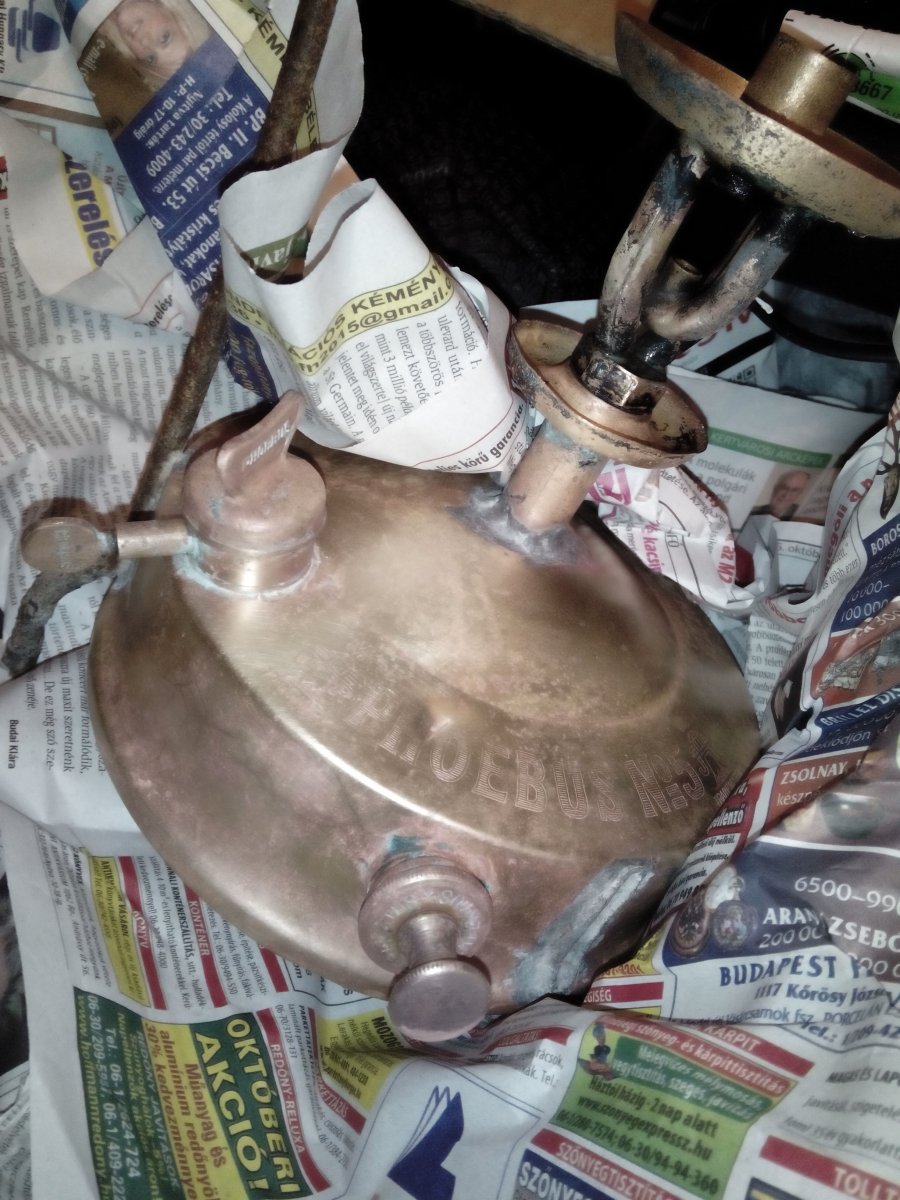

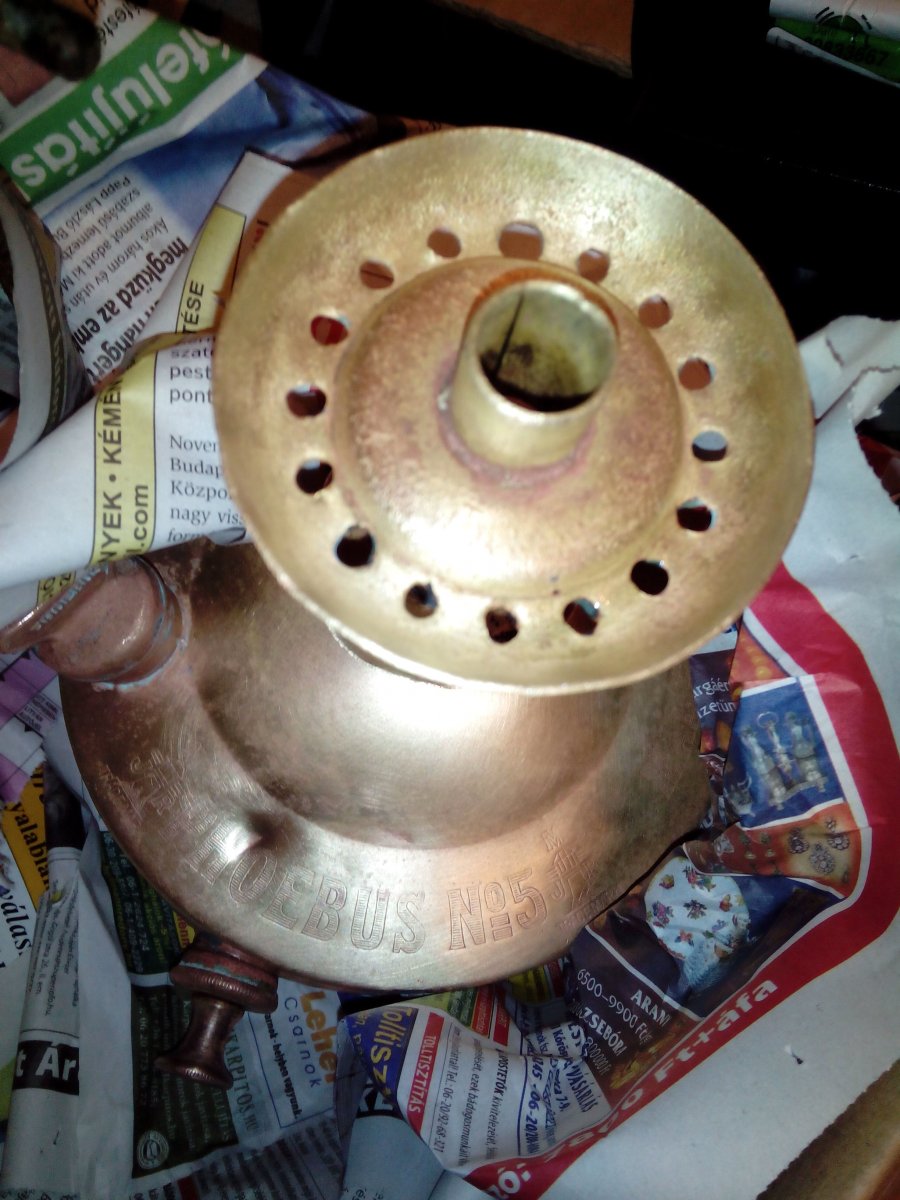

    IMG_20151025_190114.jpg IMG_20151025_190130.jpg
    Replaced pump-leather, and tried to open the burner screw but it is stucked.

    There was no leak on the tank and intensive pumping can pressurize the hole system. Today I found some fuel and want to start it. After a few tries it has enough pressure to keep continuous burning.

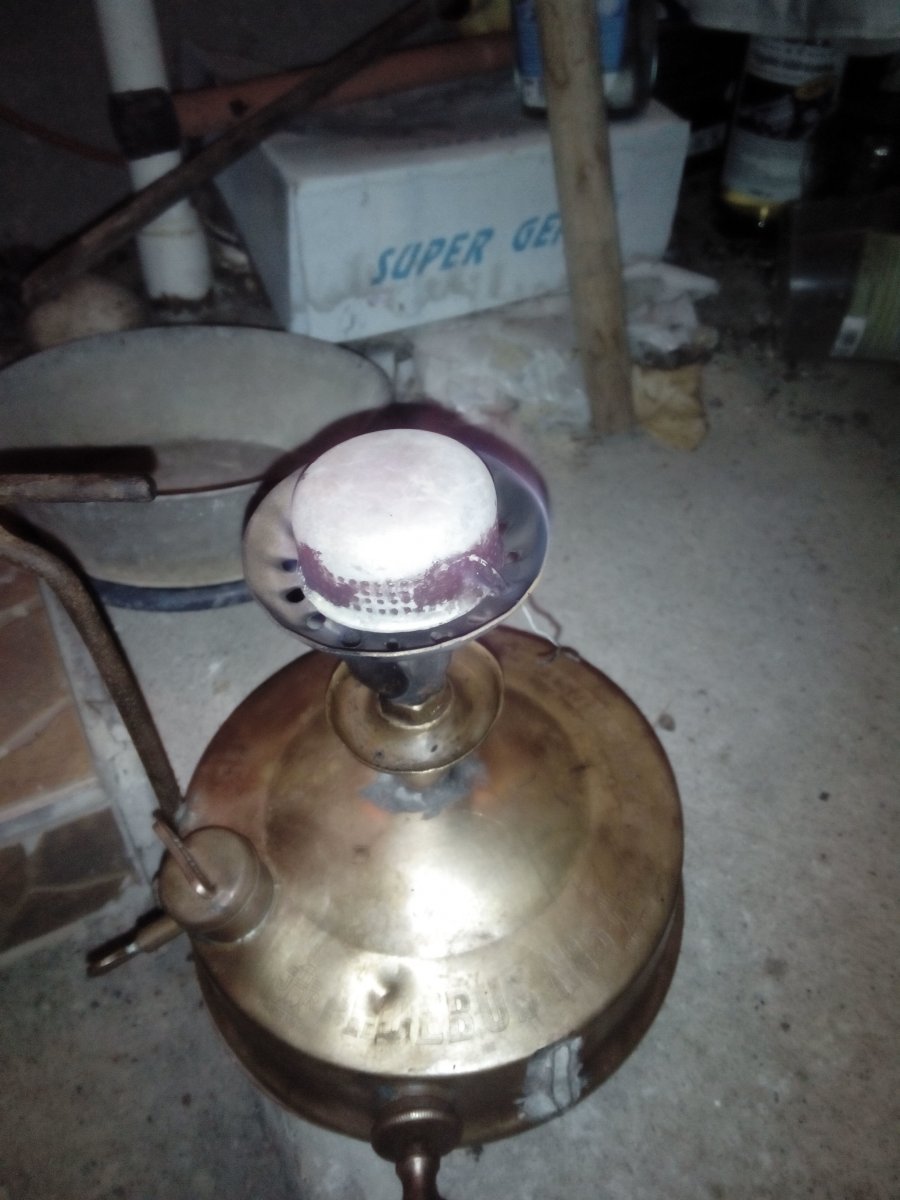

    IMG_20151129_195039.jpg IMG_20151129_195048.jpg

    Nice to see the stove is still working!

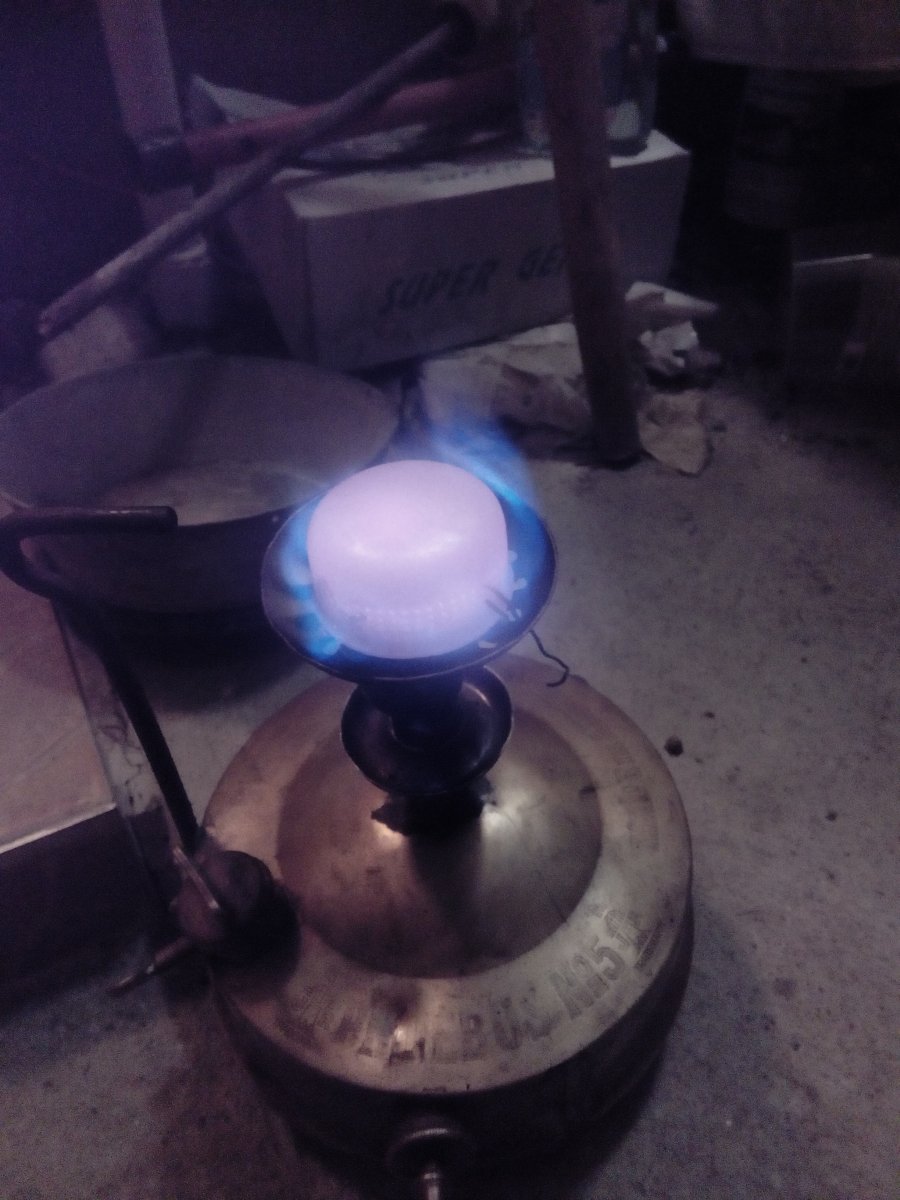

    IMG_20151129_195153.jpg IMG_20151129_195202.jpg
    (Small wire only holds outer cap. Do not want to loose it. :-))

  2. presscall

    presscall United Kingdom SotM Winner SotY Winner Subscriber

    Online
    Joined:
    Aug 25, 2009
    Messages:
    9,085
  3. attb2

    Offline
    Joined:
    Oct 27, 2015
    Messages:
    11
    Location:
    Hungary
    Thanks! If understand you right, something is wrong with my nipple? It is a brand new item, but I have no tool to tighten it. (used a small pliers)

  4. Tony Press

    Tony Press Australia Subscriber

    Online
    Joined:
    Jun 8, 2013
    Messages:
    6,233
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @attb2

    There are many causes of underburn. Sometimes it's a matter of swapping a few inner and outer caps around until you get it right. Sometimes your outer cap isn't sitting flush on the burner and needs to be 'polished' on a sharpening stone.

    Looking at the photos, though, the outer cap looks crooked. Is it sitting flat on the burner?

    Tony

  5. attb2

    Offline
    Joined:
    Oct 27, 2015
    Messages:
    11
    Location:
    Hungary
    Thanks Tony! I did not realize the outer cap position!

  6. Wonho Kim

    Offline
    Joined:
    Oct 11, 2016
    Messages:
    12
    Thanks.
    What fuel you use it?
    Gasoline or Paraffin(kerosene)

  7. ArchMc

    ArchMc Subscriber

    Offline
    Joined:
    Jul 25, 2004
    Messages:
    2,825
    Location:
    Mojave Desert, California
    Kerosene only. Gasoline is really dangerous in a non-regulated burner. The only way to lower the flame is to open the air screw, which would release gasoline fumes a couple inches from the burner. Kerosene has much lower vapor pressure, so you're releasing air.

    ....Arch

  8. attb2

    Offline
    Joined:
    Oct 27, 2015
    Messages:
    11
    Location:
    Hungary
    Uhm, oh! I used it with gasoline... So that was the main problem...
    In our country kerosene called petroleum and gasoline called benzin. 3 year ago I did not know the difference. :content:

  9. cmb56

    cmb56 Sweden Subscriber

    Offline
    Joined:
    Oct 4, 2008
    Messages:
    411
    Location:
    Norrköping, Sweden
    @attb2
    Welcome back.
    Better late than never.

    Michael

  10. shagratork

    shagratork United Kingdom Moderator, R.I.P. Subscriber

    Offline
    Joined:
    Aug 9, 2005
    Messages:
    9,641
    Location:
    Durham, N.E. England
    @attb2

    Yes, fuel names can be very confusing.
    Click here and scroll down to the table.

  11. threedots New Zealand

    Offline
    Joined:
    Sep 2, 2006
    Messages:
    762
    Hello @attb2 .
    You must get the correct tool to do up the jet firmly(not too tight) to seal it, otherwise the joint will leak fuel gas giving you a yellowish flame and that promotes under burning.

    Cheers, John
