Primus 1892-3

Discussion in 'Primus Early Models (un-numbered)' started by igh371, May 1, 2018.

  1. igh371

    igh371 SotM Winner Subscriber

    Offline
    Joined:
    Jun 23, 2013
    Messages:
    1,830
    Location:
    Durham

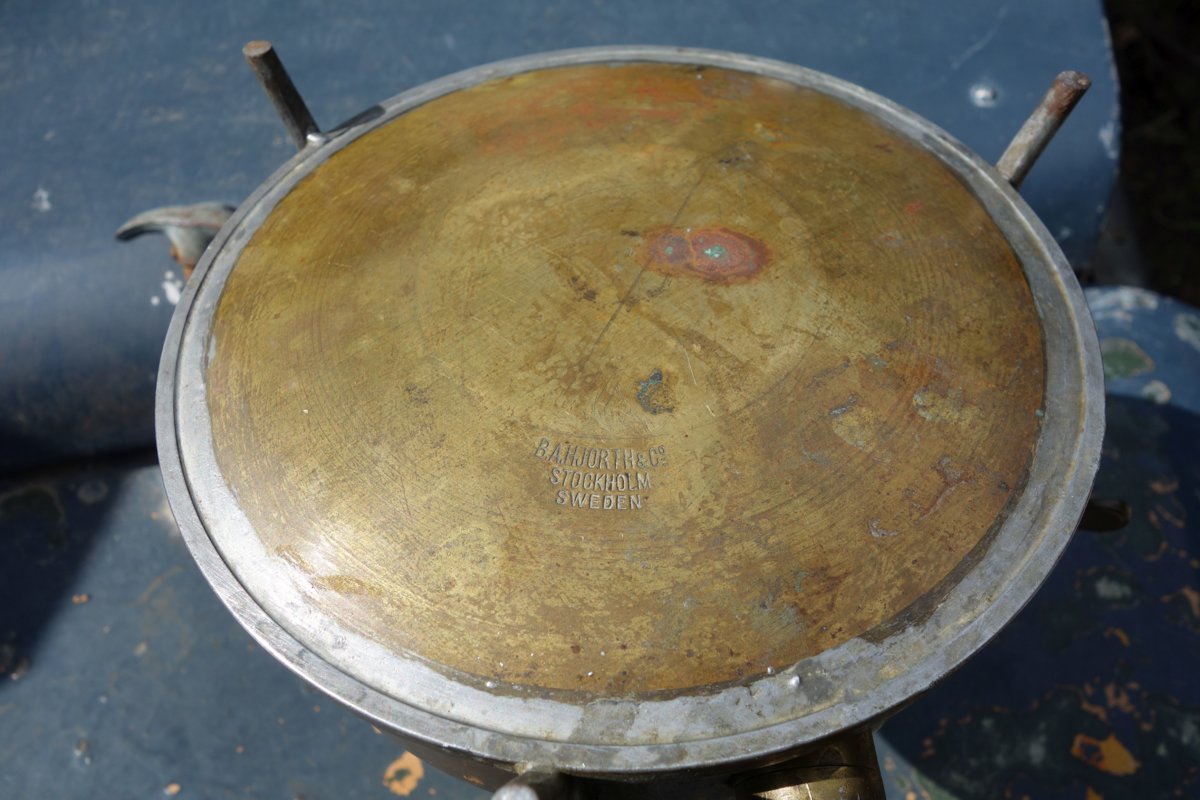

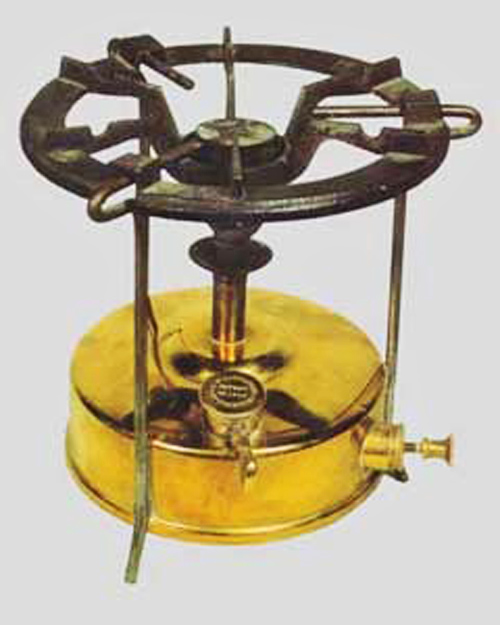

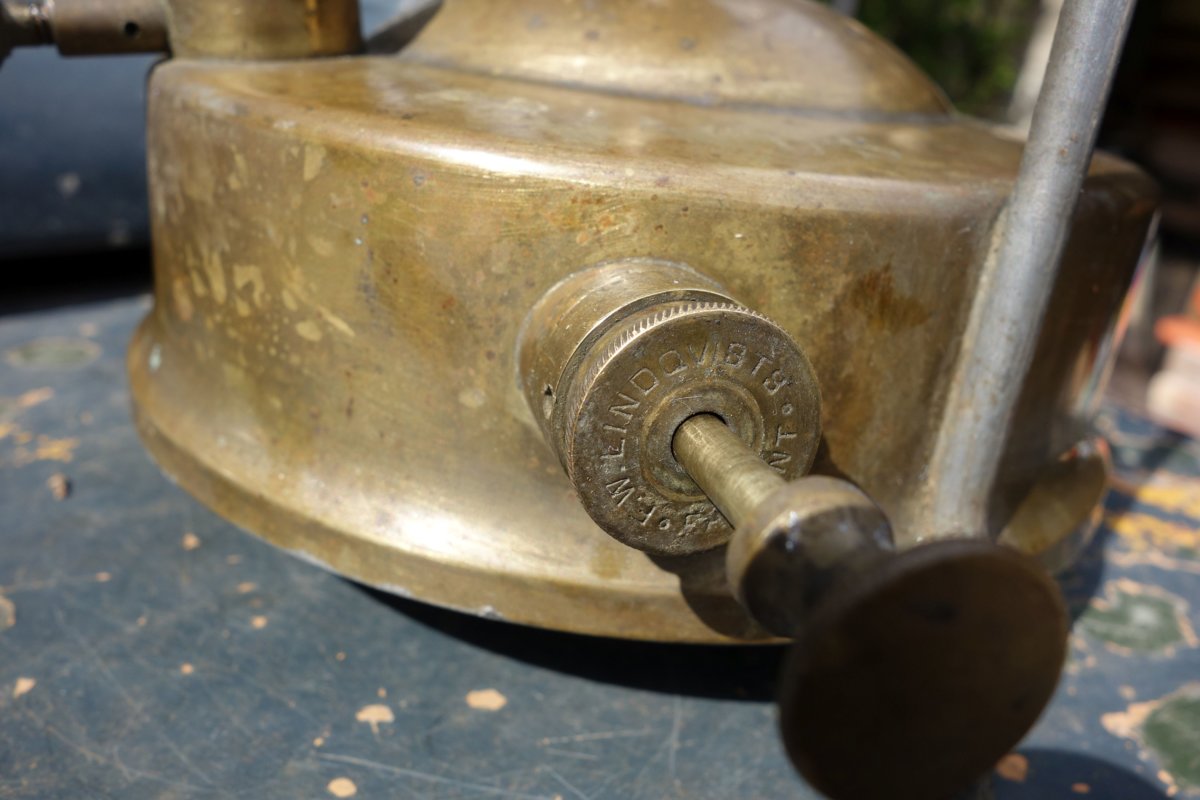

    This old Primus shares almost all of the features seen on the examples from "1892 or earlier '', and on the 1891 illustration in Primus' official history published in 1929. On the other hand it is clearly marked B.A.Hjorth on the filler, the trivet and tank base and so cannot have been produced any earlier than May 1892 when Hjorth took over the marketing of the stoves. The tank base has been spun with a flat central area and has a folded over seam at the sides. The only markings on the base are the Hjorth company mark and a tiny single letter 'Z'. The only markings anywhere else on the stove are the words 'PRIMUS' and 'PATENT ' on the tank top. The removable pump is of the peg spanner installation form which was later replaced by a hexagon fitting type either at the same time, or just before(c/f), the adoption of model numbering sometime in 1894 or '5.

    DSC07121.JPG DSC07122.JPG DSC07123.JPG DSC07125.JPG DSC07126.JPG DSC07128.JPG DSC07130.JPG DSC07134.JPG

    The burner has no hex at the base for fitting and removal as one would expect from this early date:
    DSC07132.JPG but as can be seen it does have a gallery ring to hold a flame spreader. This seems to raise questions about whether or not the special trivet really was intended to be used without a flame spreader, especially given how loose a fit the drop ring integral to the trivet actually is:
    A further comment on the trivet is to note that the casting is of notably lighter construction than later cast trivets:
    DSC07116.JPG DSC07117.JPG DSC07120.JPG DSC07127.JPG

    For comparison here is this stove beside one dating from 1894/5:
    DSC07136 (2).JPG DSC07139 (2).JPG

    No flame shots yet while attempts are made to revive and retain the original cork NRV block and original pump leather.



    Many thanks are due to @gieorgijewski for putting me on the trail of this stove, and an even greater debt of gratitude is owed to @Radler for his invaluable role in its acquisition and transportation.
    Ian:thumbup:

  2. gieorgijewski

    gieorgijewski Subscriber

    Offline
    Joined:
    Apr 19, 2013
    Messages:
    2,659
  3. Tony Press

    Tony Press Australia Subscriber

    Online
    Joined:
    Jun 8, 2013
    Messages:
    7,627
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @igh371

    What a find! Excellent indeed. :thumbup::thumbup::thumbup:!

    Cheers

    Tony

  4. Spiritburner

    Spiritburner Admin SotM Winner Subscriber

    Offline
    Joined:
    Jul 23, 2004
    Messages:
    10,900
    Location:
    N.E. England
    Congratulations Ian! That just oozes history!

  5. Metropolitantrout

    Metropolitantrout SotM Winner Subscriber

    Offline
    Joined:
    Feb 3, 2011
    Messages:
    1,217
    Location:
    Santa Cruz, CA
    :shock::shock::shock: Incredible find, congrats! Jerry

  6. z1ulike

    z1ulike United States SotM Winner Subscriber

    Offline
    Joined:
    Mar 6, 2010
    Messages:
    3,422
    Location:
    Santa Barbara, CA
    @igh371 What is your address? If I'm ever in England I'd like to stop by and steal visit your stove.

    Ben

  7. Christer Carlsson

    Christer Carlsson Moderator SotM Winner

    Offline
    Joined:
    Nov 12, 2005
    Messages:
    3,539
    Ah, Ian! What a delight to see :content:

    I have wondered a bit about that myself.
    It started when I saw how large the recessed hole on the supposed flamespreader was on my Victoria with a similar trivet (As you can see in Gieorgijewskis post above).
    And checking those few illustrations from the time show a similar look as yours, giving it all a bit too much space between the burner/vapouriser and the part from the trivet.
    It is hard to tell, but in the dark part between burner and trivet, it has what might look like a regular loose flamespreader too.:-k


  8. optipri

    optipri Subscriber

    Offline
    Joined:
    Oct 28, 2005
    Messages:
    616
    Congratulations Ian, a stunning stove of the earliest models. And with original burner, that is unusual.

    Bo

  9. hikerduane

    hikerduane Subscriber

    Online
    Joined:
    Mar 1, 2010
    Messages:
    7,207
    Way nice, thank you for sharing.
    Duane

  10. MrAlexxx

    MrAlexxx SotM Winner Subscriber

    Offline
    Joined:
    Oct 21, 2015
    Messages:
    1,343
    WOW! That's all. :)

    Alex

  11. threedots New Zealand

    Offline
    Joined:
    Sep 2, 2006
    Messages:
    793
    What a rare beauty Ian!
    Shows that some might still be out there.

    I wonder about the trivet and how it fits around the burner. It may be possible that this stove did have a flame ring and the trivet design is there to help shelter the hottest part of the burner from wind.
    John

  12. Northern Light

    Offline
    Joined:
    Feb 20, 2015
    Messages:
    88
    There are a few out there :-)


    Last edited by a moderator: May 3, 2018
  13. igh371

    igh371 SotM Winner Subscriber

    Offline
    Joined:
    Jun 23, 2013
    Messages:
    1,830
    Location:
    Durham
    Excellent @Northern Light :thumbup:
    ... and interesting to see that you are running yours with a flame spreader nestled very comfortably inside the trivet centre drop ring.
    Ian:D

    Last edited: May 3, 2018
  14. Christer Carlsson

    Christer Carlsson Moderator SotM Winner

    Offline
    Joined:
    Nov 12, 2005
    Messages:
    3,539
    Another possibility is that it has a practical function out of manufacturing needs. Casting iron is a process of its own. As you know many old flywheels have curved spokes, and it was not primarily made like that to make them look good. It was to prevent breaking during the contraction phase.
    This shape of the trivet could have a similar origin. Perhaps combined with aesthetics.
    Not that I really believe it...Just tossed in to confuse further :lol:
    ...but it is a possibility.

  15. Northern Light

    Offline
    Joined:
    Feb 20, 2015
    Messages:
    88
    :lol:

    Last edited: May 3, 2018
  16. igh371

    igh371 SotM Winner Subscriber

    Offline
    Joined:
    Jun 23, 2013
    Messages:
    1,830
    Location:
    Durham
    Will it or won't it? After a week or so of careful treatment to the original pump leather and special NRV cork block, and pricking out the burner too of course ... will it or won't it?

    The first priming and 3 strokes of the pump:

    Ok; so now gently does it[-o<, and the real moment of truth:
    DSC07141.JPG DSC07142.JPG DSC07143.JPG DSC07144.JPG

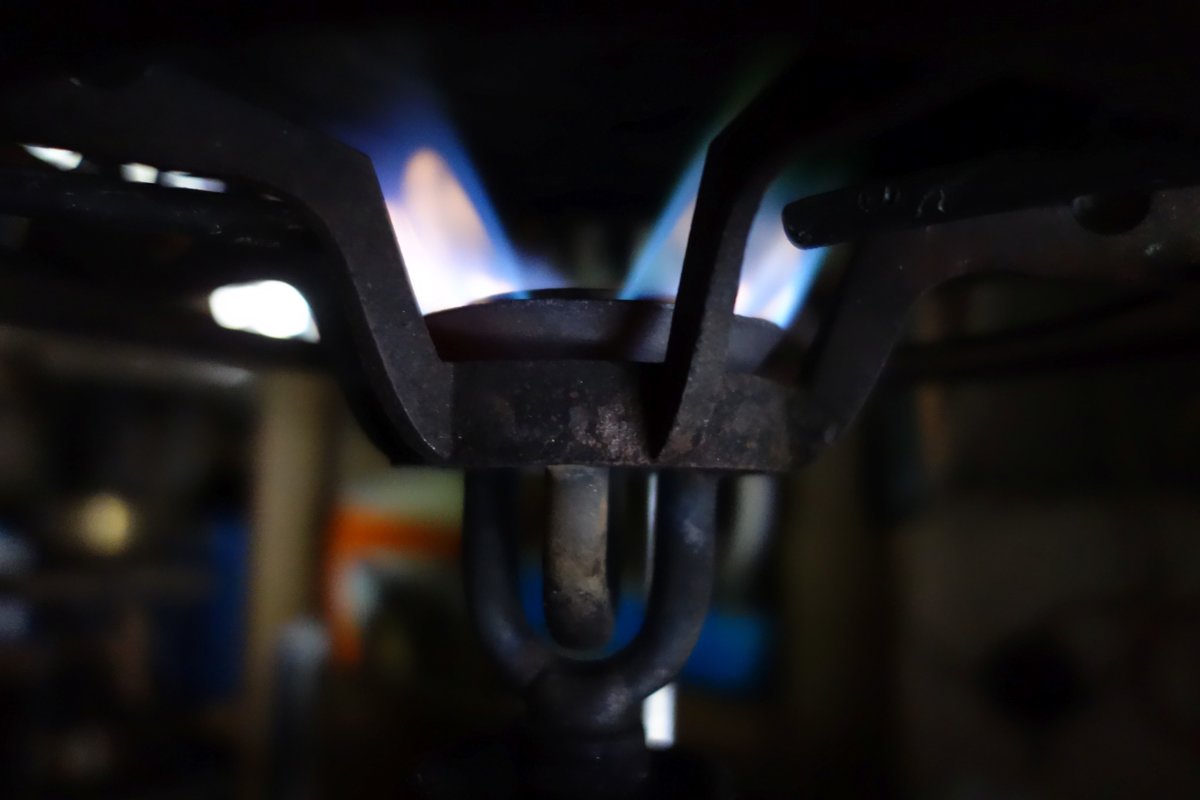

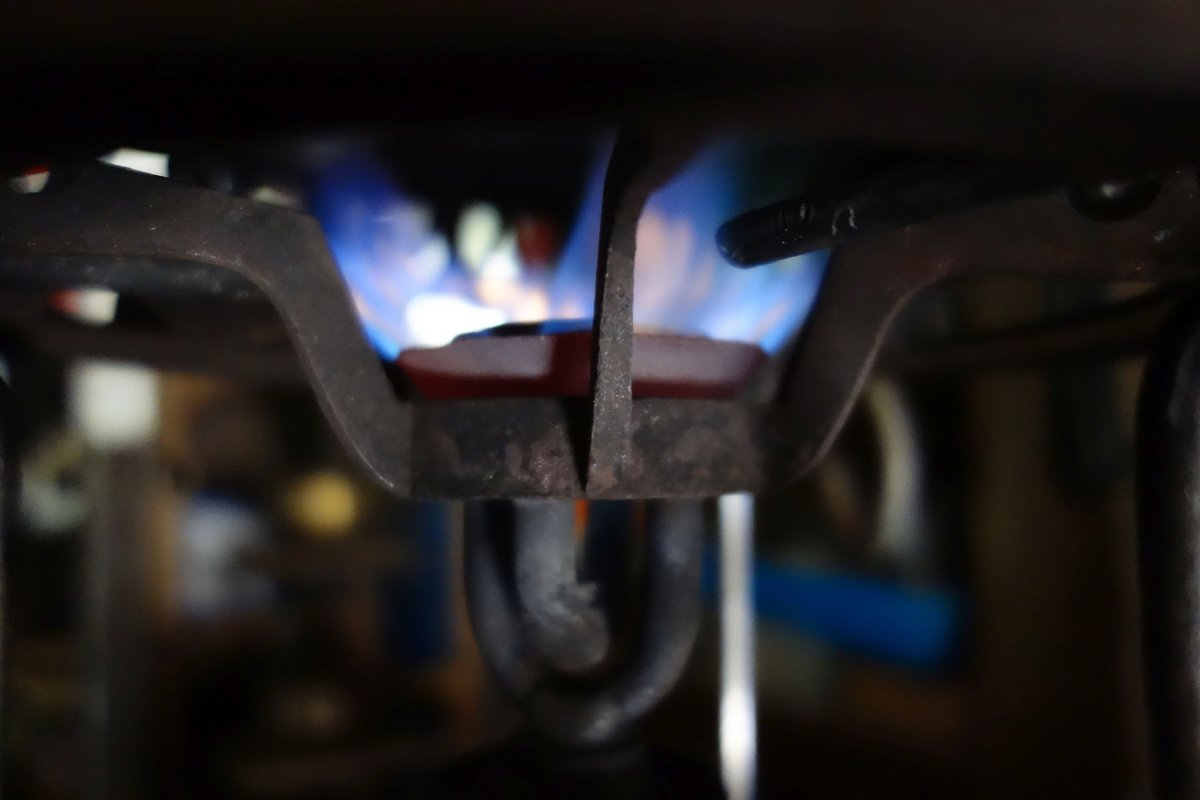

    So far so good, the trivet center drop ring is shielded from the flame by the spreader:idea: And the flame is then directed up just inside the open cone left clear by the clever shape of the trivet spokes. So now for a kettle and a bit more welly:


    Disclaimer: in deference to age and irreplaceability, there are no plans to make this a regular user (but the odd fire-up, sure, after all these stoves were made to be used;)).


    @OMC @Christer Carlsson

  17. goldwinger11

    goldwinger11 United States Subscriber

    Offline
    Joined:
    Aug 15, 2017
    Messages:
    298
    Location:
    Merlin, Oregon, USA
    Perfect Nice job

  18. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 27, 2014
    Messages:
    1,490
    Location:
    Somersby, New South Wales, Australia
    looks good. :thumbup::thumbup::thumbup:

  19. Tony Press

    Tony Press Australia Subscriber

    Online
    Joined:
    Jun 8, 2013
    Messages:
    7,627
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    Excellent!!! That’s a good flame.

    Cheers

    Tony

  20. igh371

    igh371 SotM Winner Subscriber

    Offline
    Joined:
    Jun 23, 2013
    Messages:
    1,830
    Location:
    Durham
    3rd day of cautious use. Only using the coil base kettles as these are much kinder on cast trivets than flat bottom pans:
