Radius 19

Discussion in 'Other Models' started by joshua, Aug 13, 2020.

  1. joshua

    joshua Subscriber

    Offline
    Joined:
    Dec 27, 2015
    Messages:
    17
    Location:
    Heerlen Netherlands
    Hallo heren.

    ik heb hier al een tijdje een radius 19.
    vooral die voetjes vind ik nergens. die brander is niet compleet,weet zelfs niet of die orgeneel is.

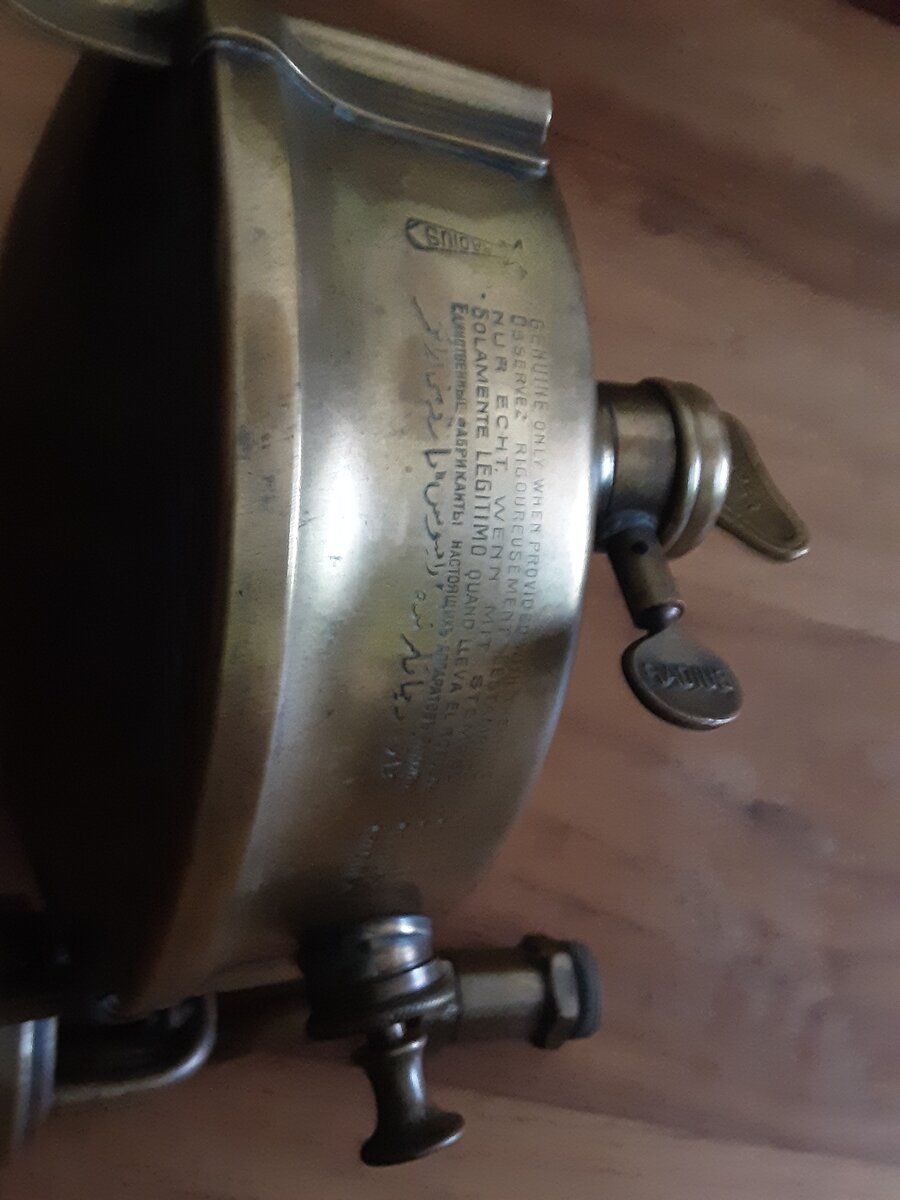

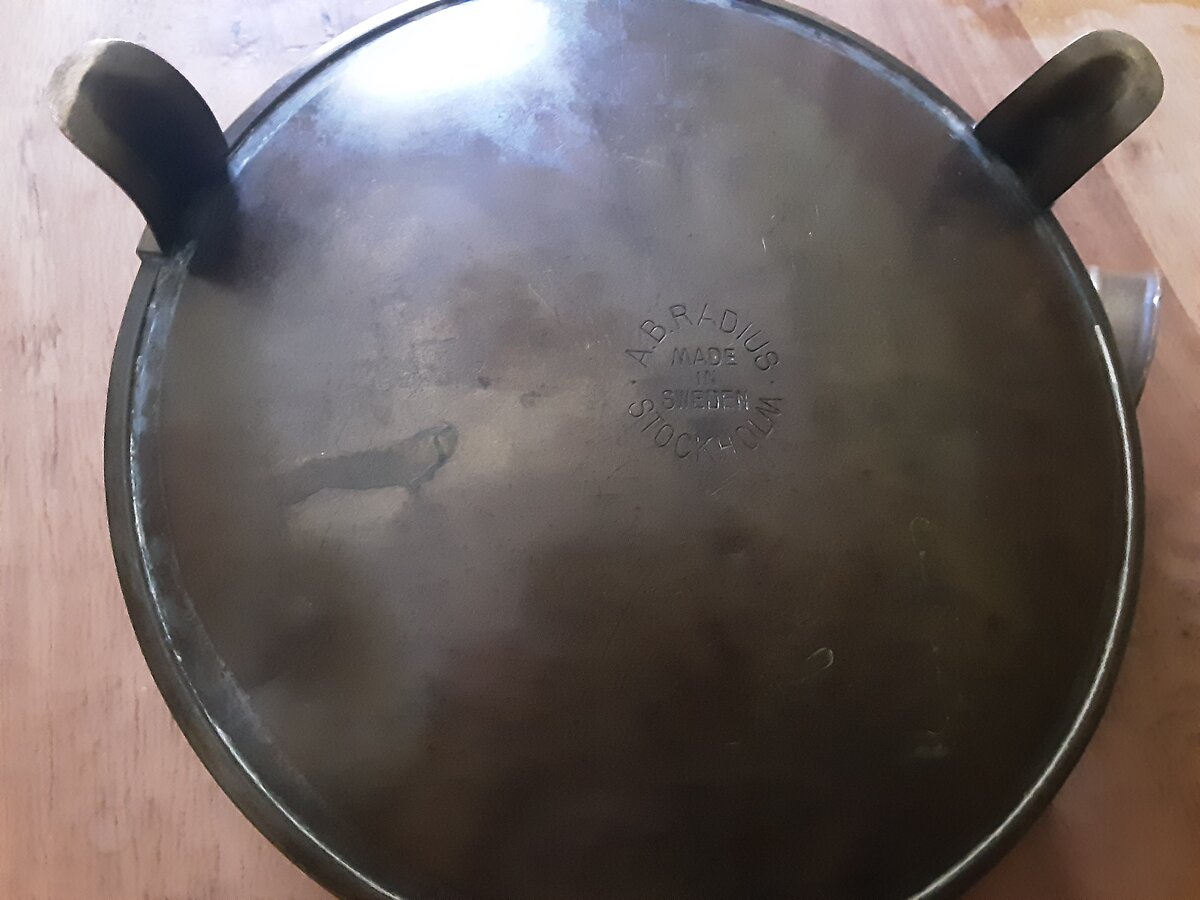

    15973107547831679889101829033677.jpg 15973107934676320325693210377102.jpg 15973109766828905059254998329498.jpg 15973110493365388088542169457684.jpg 15973111697942269465619334554110.jpg 15973111697942269465619334554110.jpg

  2. janders

    janders Subscriber

    Offline
    Joined:
    Aug 11, 2014
    Messages:
    683
    Hi,

    You are right about the burner. It is a German Juwel "L" burner as shown e..g. here.
    Very nice stove!!

  3. kerophile

    kerophile United Kingdom SotM Winner Subscriber

    Offline
    Joined:
    Sep 23, 2004
    Messages:
    12,171
    Location:
    Far North of Scotland
    The feet on your Radius No.19 look very much like those on this Lux No.9 stove:

    pre-1914 Lux #9

    Best Regards,
    Kerophile.

  4. joshua

    joshua Subscriber

    Offline
    Joined:
    Dec 27, 2015
    Messages:
    17
    Location:
    Heerlen Netherlands
    Dank U Janders.
    inderdaad daar staat ook die brander op.
    Fijn om te weten, ga ik maar zoeken voor die brander onderdelen.

    Groet. Jos

  5. joshua

    joshua Subscriber

    Offline
    Joined:
    Dec 27, 2015
    Messages:
    17
    Location:
    Heerlen Netherlands
    dank U Kerofiel.
    In feite de zelfde pootjes.
    Onder bij die naam, staat een 8.zal wel niet veel voorstellen.
    Groet. Jos

  6. Lennart F Sweden

    Offline
    Joined:
    Jun 24, 2017
    Messages:
    890
    Location:
    Vänersborg, Sweden
    A small 8 is found on many Radius tanks and seem to be made in the production.

  7. janders

    janders Subscriber

    Offline
    Joined:
    Aug 11, 2014
    Messages:
    683
    Yeah..... I wouldn't get my hopes up very high. I have not seen any available last 4 years...

    Besides, that burner is too high - would require very long potrests, which in turn gives you an unstable stove...

  8. OMC

    OMC Subscriber

    Offline
    Joined:
    Sep 13, 2013
    Messages:
    3,570
    Location:
    ILLINOIS, USA
    Hallo @joshua ,
    An interesting No.19 you share with us today (a collapsible with fixed feet) and the only example like it in the gallery :thumbup::thumbup:. I'm pleased you posted it and doubly pleased you are a subscriber and can refer to catalogs, thank you, thank you.

    The Radius model #s and model development can be confusing incl. the 19.

    I can "try" to maybe make sense of 1920 models (re the collapsible w/folding feet), the 1920 catalog models No.s :
    roarers ........... .55 L ~ .7L ~ 1L, 1.2L = No.s 11 ~ 12 ~ 13 ~ 14
    roarers in a tin: .55 L ~ .7L ~ 1L, 1.2L = No.s 21 ~ 22 ~ 23 ~ 24

    silents ............ .55 L ~ .7L ~ 1L, 1.2L = No.s 16 ~~ 17 ~~ 18 ~~ 19
    silent burners .. .55 L ~ .7L ~ 1L, 1.2L = No.s D437~D437~D537~D537
    re silents: Radius "UFO"s are popular, the 437 -and- 537 (537 on yours). Here is but one thread on topic credit boknasild.

    Note the 1920 No. 19 listed above, check it in the catalog, does it seem that the only difference between your 19 and that one are your fixed feet?

    With focus only on: that the type of feet changed ... the design development of your model... now consider what happens next, by the time Radius published the 1925 catalog they adopted the use of your type of feet.
    I did mention Radius models are confusing... the 1925 catalog does not offer your model No. 19.
    That 1925 catalog does not offer that entire line of silent models: No.s 16 ~ 17 ~ 18 ~ nor 19 .

    I will stop there.
    If my speculation holds, that is where your version of Radius No. 19 belongs,
    Your version of no.19 may be pre 1925 catalog? (circa 1921 - 1924)

    We do know for sure it is pre 1932, by then Radius offered a very different (discus) version of the No. 17 & 19 (albeit the 19 still a collapsible silent w/UFO burner).
    ----------------------------------------------------

    PS caveat, it is not 100% certainty, i go by what we can ref. in the library. In future maybe it's possible we see your exact 19 illustrated in another catalog (c.1925-1931) although that does not seem likely to me.

    Last edited: Aug 13, 2020
  9. joshua

    joshua Subscriber

    Offline
    Joined:
    Dec 27, 2015
    Messages:
    17
    Location:
    Heerlen Netherlands
    Hallo @ OMC
    dat is een heel interessant stuk.heel erg bedankt er voor.
    Ik ga de 19 maar beter even rusten,tot ik een goede brander er voor vind.

    Groet Joshua

  10. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Jun 8, 2013
    Messages:
    6,747
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @joshua said

    Hi @ OMC
    that's a very interesting piece. thank you very much for it.
    I'd better rest the 19 until I find a good burner for it.
