Radius No. 46 stove

Discussion in 'Radius No:46' started by Leslie Legg, Jun 5, 2020.

  1. Leslie Legg United Kingdom

    Offline
    Joined:
    Jun 5, 2020
    Messages:
    8
    Location:
    Dorset UK
    Hi! Have just joined you as I have several vintage stoves of different types and would like to share the interest and information.
    May I ask an initial question (partly to find my way in your fascinating group) which is - is it OK to use unleaded petrol in my Radius 46 please. So far in my searches it seems that paraffin is NOT to be used in this particular stove unlike many that are similar.

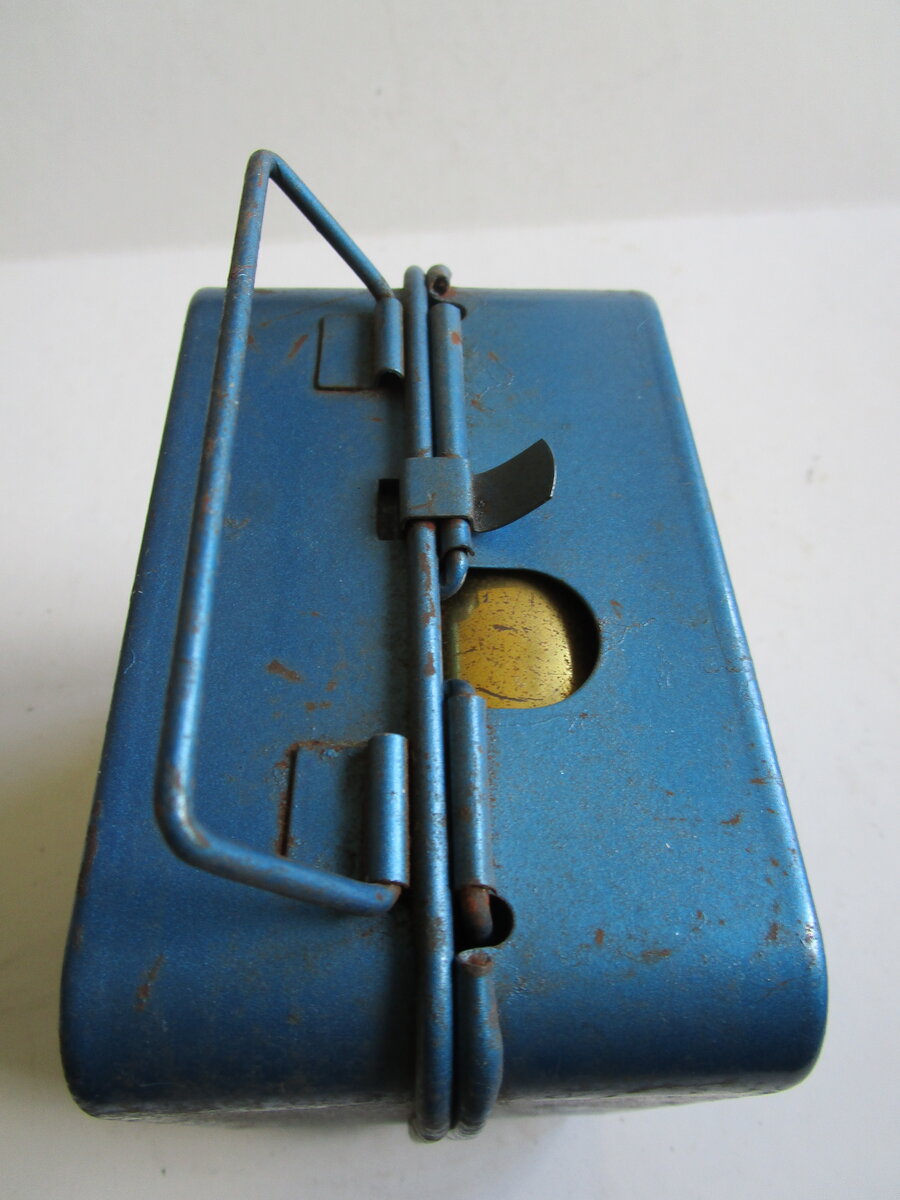

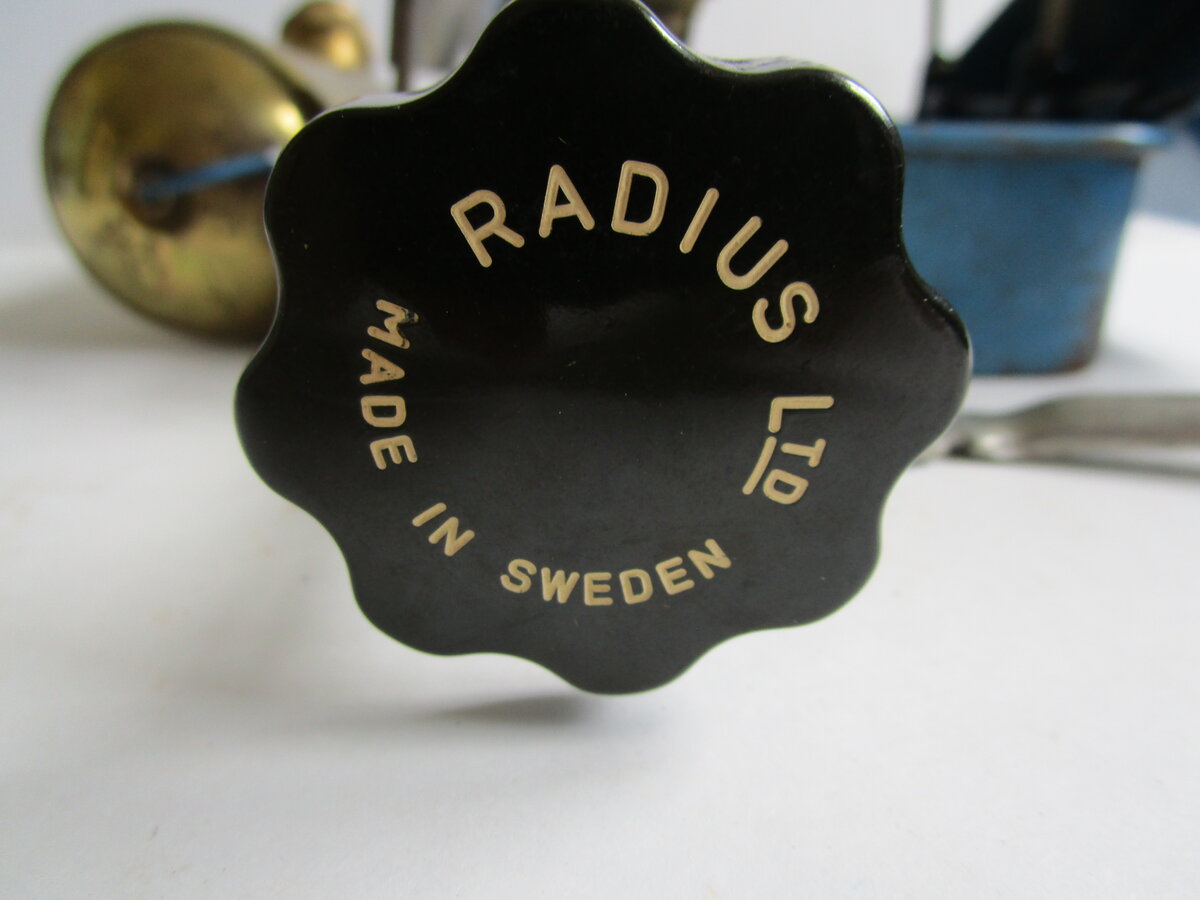

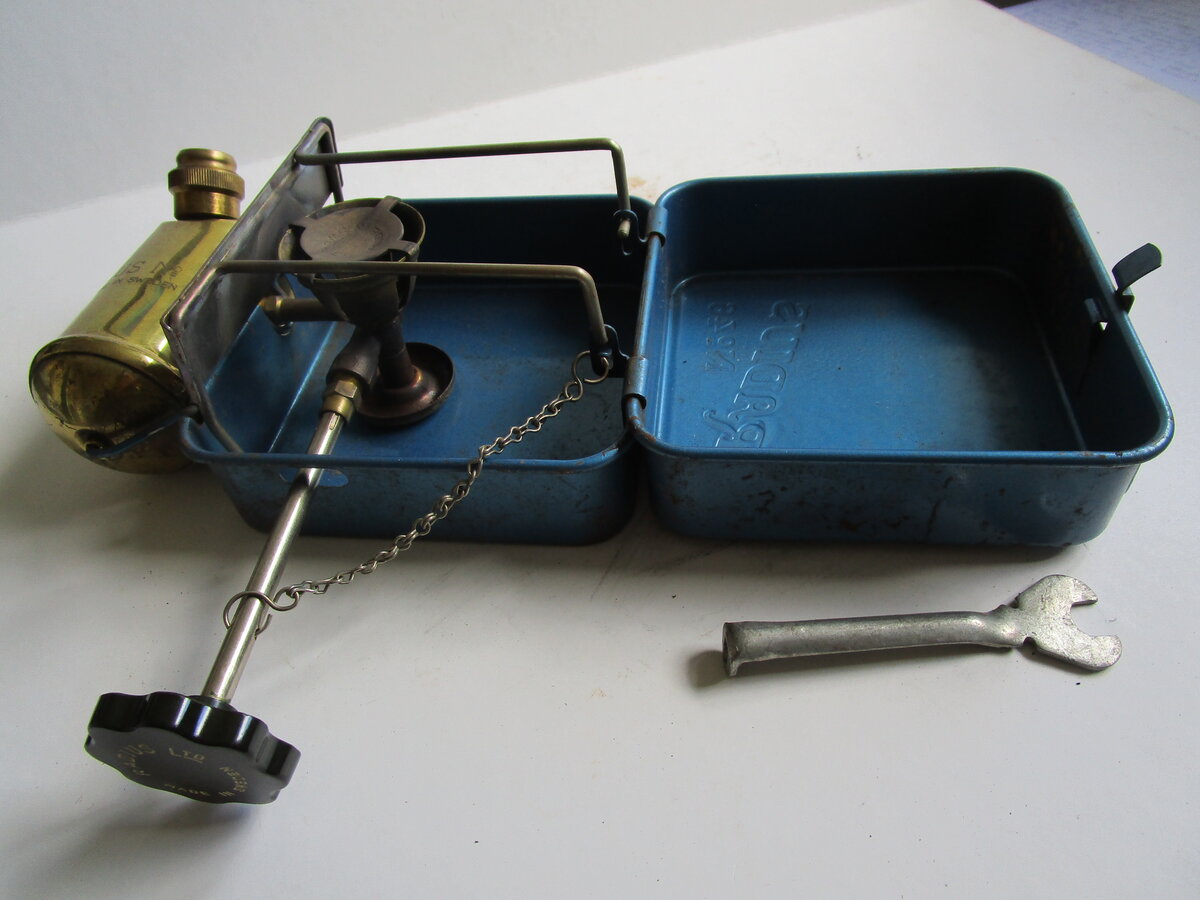

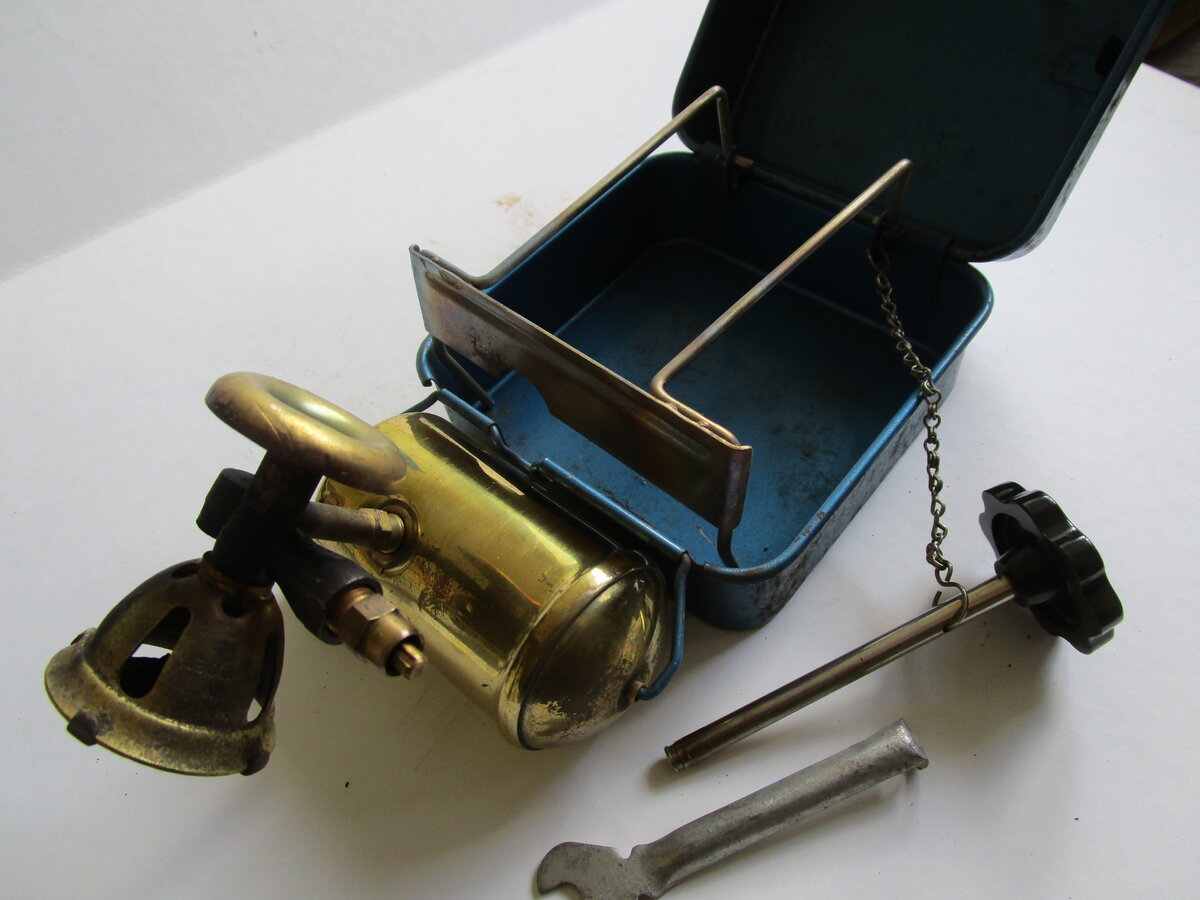

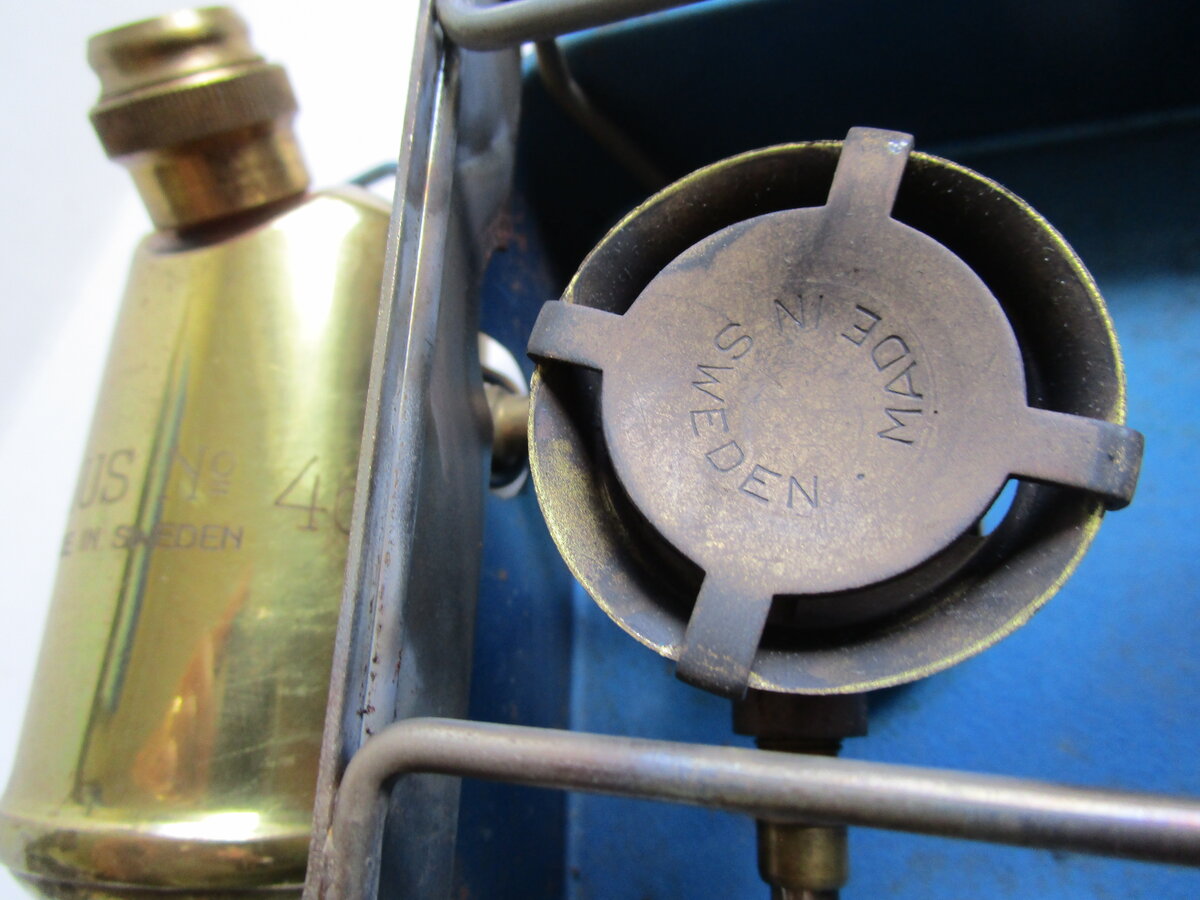

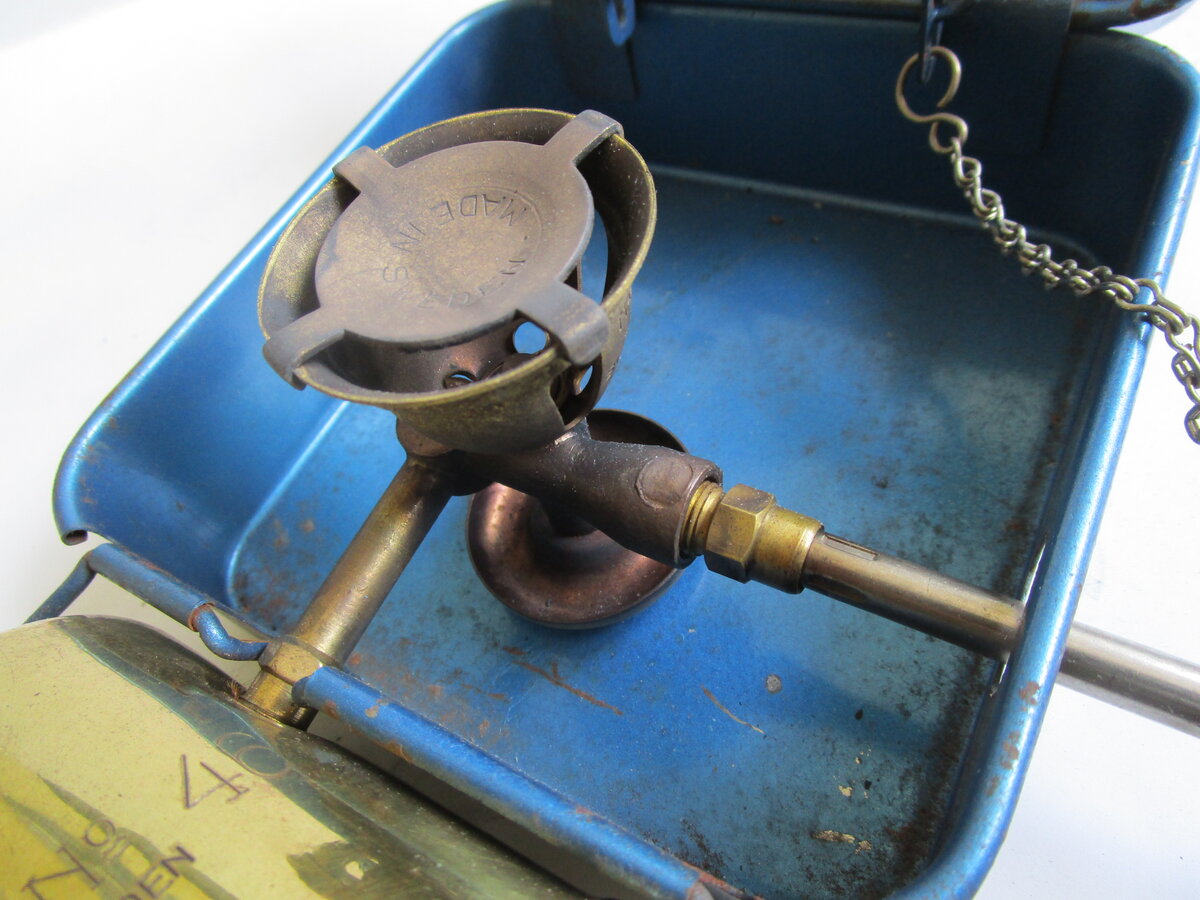

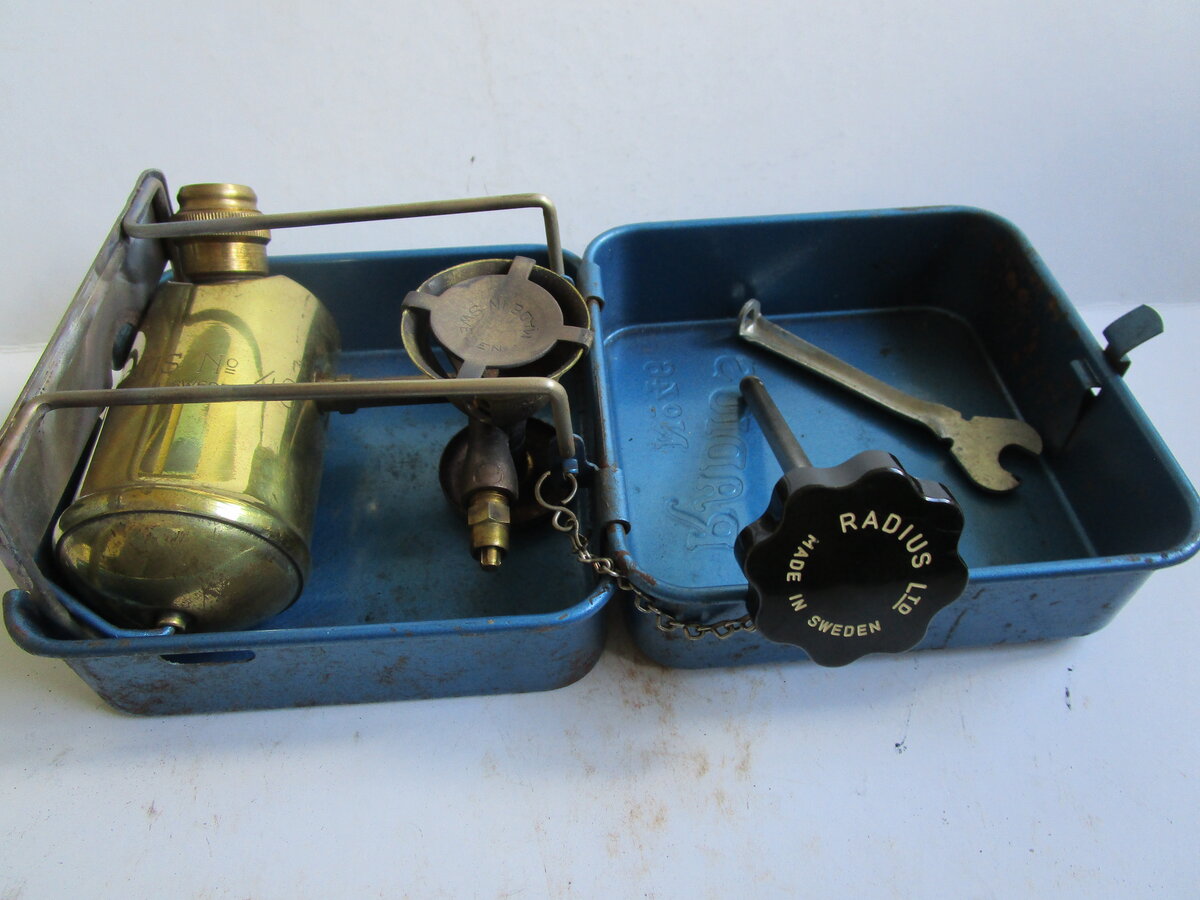

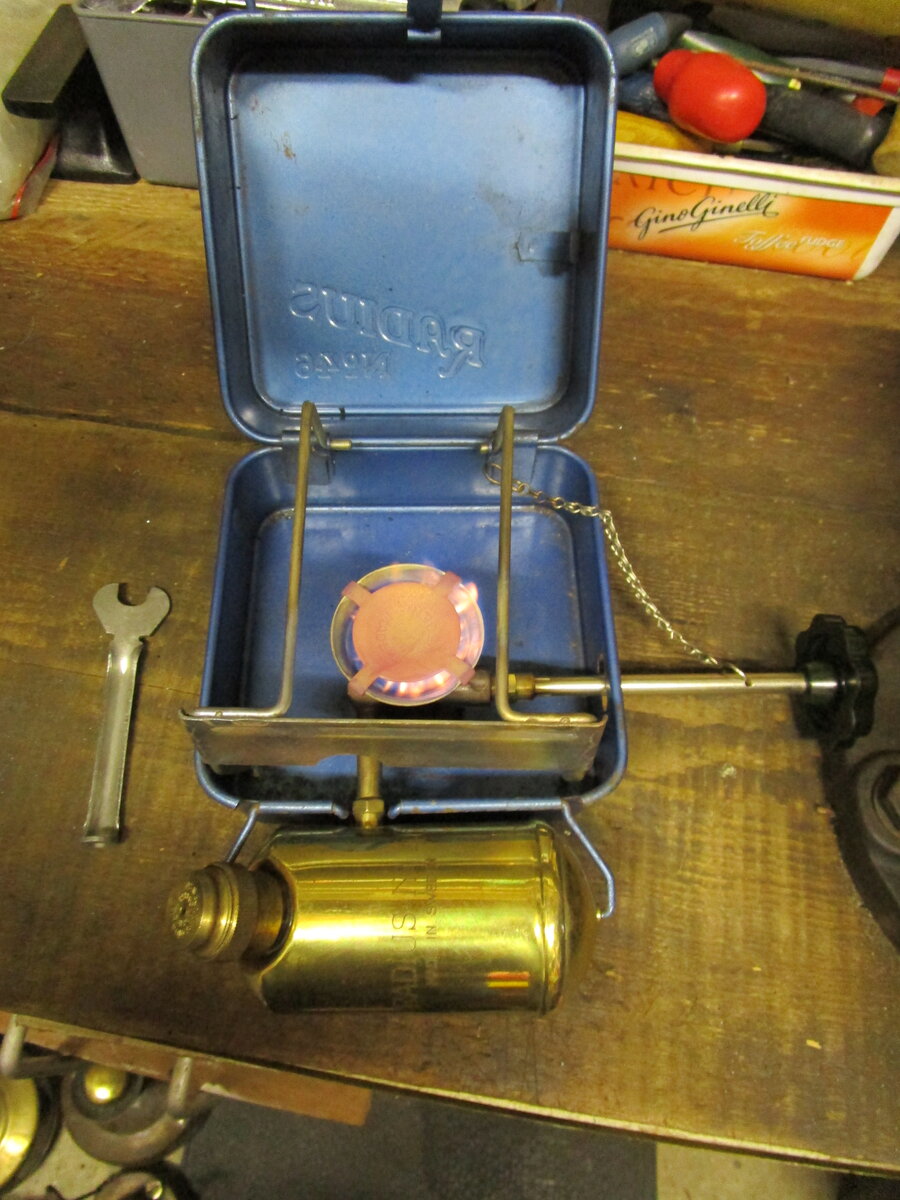

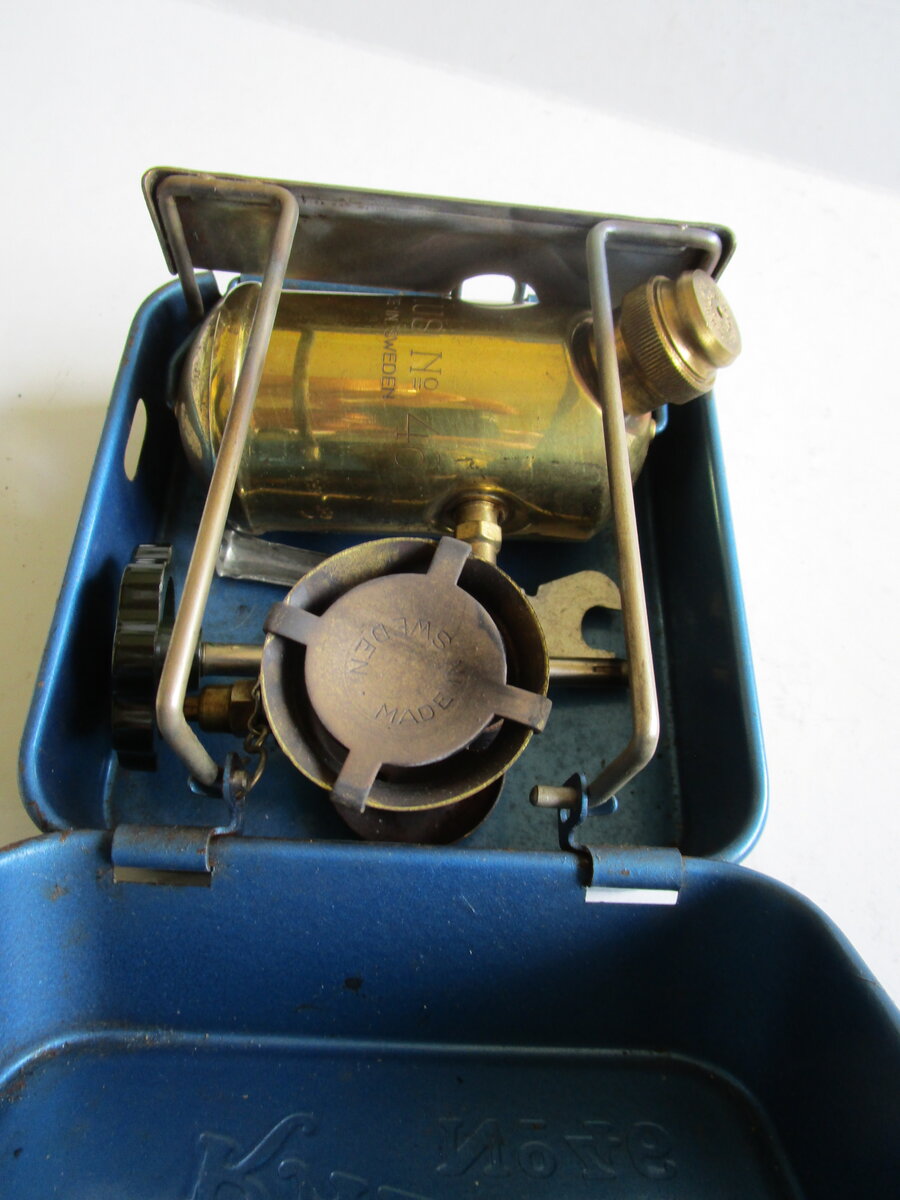

    My 46 seems to have had little use and appears to be complete and in good order. Moreover it seems to be a fairly rare item. Have attached some pics.
    Am hoping that I'm doing this correctly.
    IMG_2124.JPG IMG_2124.JPG IMG_2123.JPG IMG_2119.JPG IMG_2132.JPG IMG_2126.JPG IMG_2118.JPG IMG_2127.JPG IMG_2130.JPG IMG_2121.JPG IMG_2131.JPG IMG_2115.JPG IMG_2129.JPG IMG_2128.JPG IMG_2120.JPG IMG_2125.JPG IMG_2122.JPG IMG_2116.JPG IMG_2117.JPG

  2. Harder D. Soerensen

    Harder D. Soerensen Denmark Subscriber

    Online
    Joined:
    Oct 24, 2017
    Messages:
    1,378
    Location:
    Denmark
    Hi and a warm welcome here.
    Its a nice little stove - It can be run on regular pump petrol but I won’t recommend it as modern fuel has a lot of additives which will clog up your burner inside. Better to use White Spirit/Coleman Fuel or Alcylate/Aspen 4 petrol (Benzine).
    Two small advices:
    1) Don’t let it run dry of fuel as you may scorch the wick inside the burner.
    2) Be sure that the safety mechanism in the filler lid closes completely as that black holed rubber disc will turn hard over times with a lack of pressure and a potential flame as the fumes might ignite from here.
    You can check the safety mechanism while the stove is running - put some soapy bubble water on your finger and lay it over the small hole in the filler cap. No bubbles and youre good. If it bubbles you need to fettle it tight again ;-)

  3. Leslie Legg United Kingdom

    Offline
    Joined:
    Jun 5, 2020
    Messages:
    8
    Location:
    Dorset UK
    Hello Harder!
    Thank you for your prompt response - just the stuff I needed to know. All my other stoves run on paraffin so this one was a bit of a concern since petrol had been mentioned somewhere.
    Thank you too for taking the trouble to add the extra advice and for sharing your experience.

  4. Ed Winskill

    Ed Winskill United States Subscriber

    Offline
    Joined:
    Aug 20, 2004
    Messages:
    10,161
    Location:
    Tacoma, Washinghton, USA
    Welcome to CCS.

    There have been countless threads here over time about these fuel issues. A few casual searches will yield full information. Lots of Brits here who can tell you the local types of pure naptha-type petrol, free of the bad additives of pump gasoline.

  5. z1ulike

    z1ulike United States SotM Winner Subscriber

    Offline
    Joined:
    Mar 6, 2010
    Messages:
    3,040
    Location:
    Santa Barbara, CA
    Just what we need, another great photographer with sexy subjects. Welcome indeed!

    Ben

  6. Harder D. Soerensen

    Harder D. Soerensen Denmark Subscriber

    Online
    Joined:
    Oct 24, 2017
    Messages:
    1,378
    Location:
    Denmark
    @Leslie Legg
    Anytime - I had one earlier and liked it quite a lot.

  7. Lighthouse

    Lighthouse Sweden Subscriber

    Offline
    Joined:
    Jan 28, 2011
    Messages:
    315
    Location:
    Sweden
    Welcome to CCS!
    You've been given plenty of helpful tips and tricks already, as is usual over here.

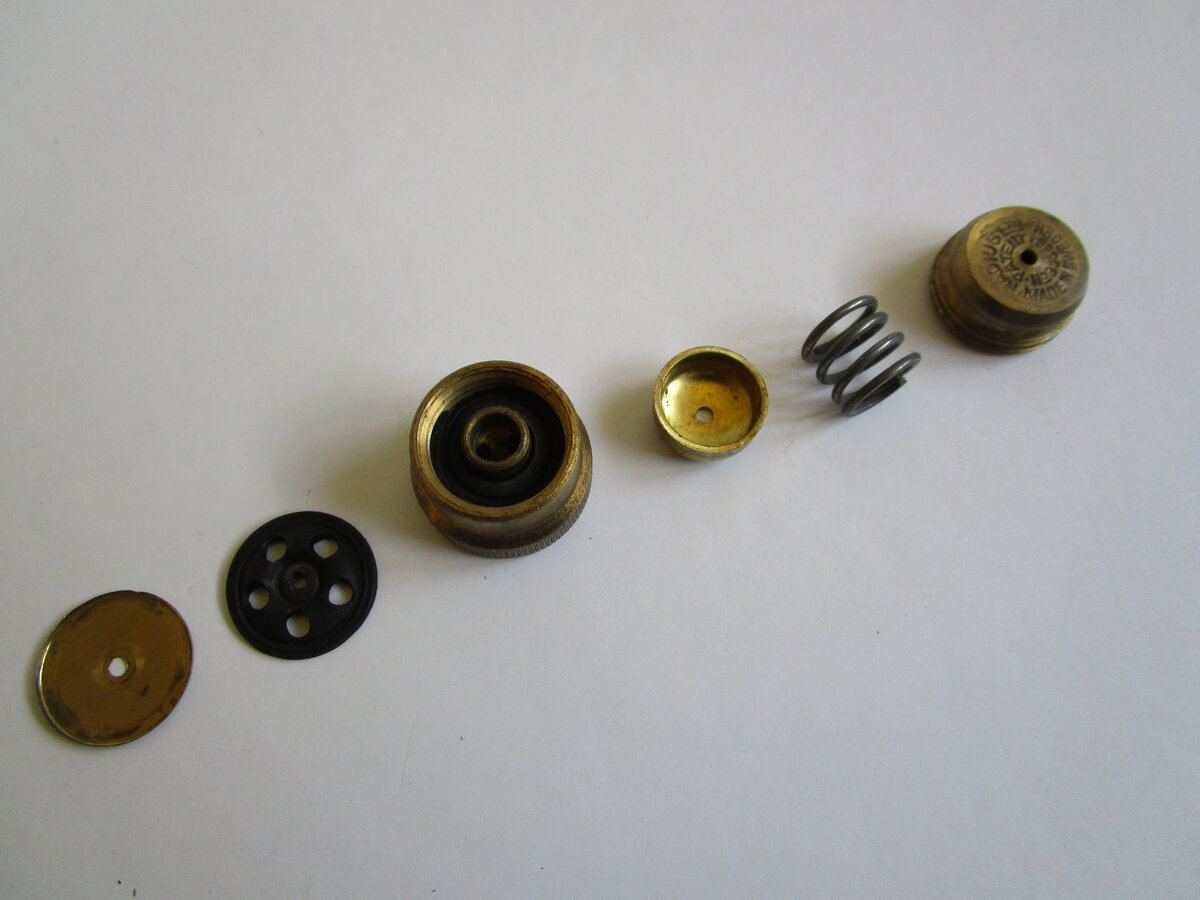

    Before trying to light it, make sure the brass disc (pictured on the far left in the twelfth picture) is not damaged or has cracks in it.
    Happy fettling & we're all looking forward to the money shot.

  8. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 27, 2014
    Messages:
    1,089
    Location:
    Somersby, New South Wales, Australia
    Welcome to CCS @Leslie Legg

    Your No. 46 is in great condition. :thumbup:

  9. Lennart F Sweden

    Offline
    Joined:
    Jun 24, 2017
    Messages:
    822
    Location:
    Vänersborg, Sweden

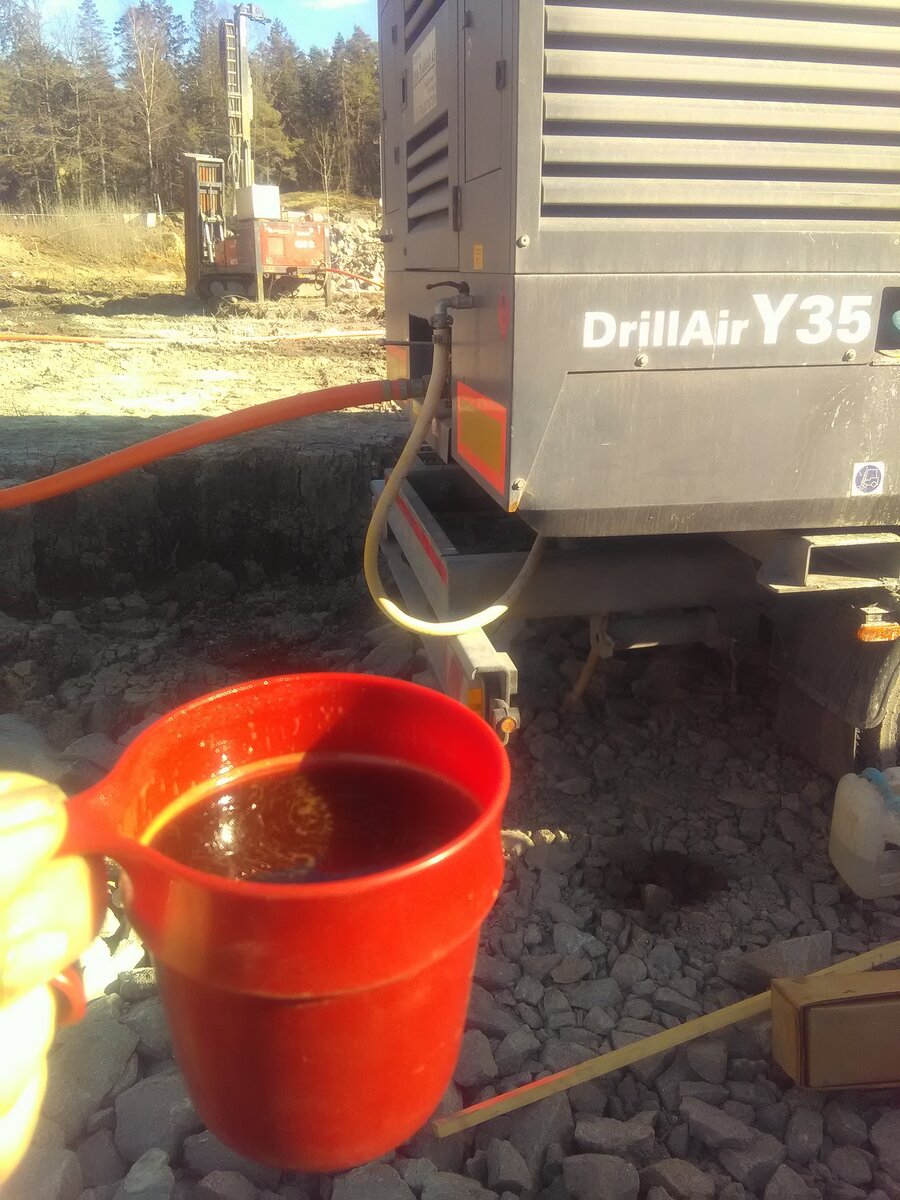

    I use my 46 at work as it is small, nice and handy - the safety valve seal is very easy to make from any thin fuel resistant rubber if needed.

    IMG_20200331_155456.jpg IMG_20200331_160244.jpg IMG_20200331_160752.jpg

  10. Leslie Legg United Kingdom

    Offline
    Joined:
    Jun 5, 2020
    Messages:
    8
    Location:
    Dorset UK
    Thanks to all for the kind welcome and great advice.

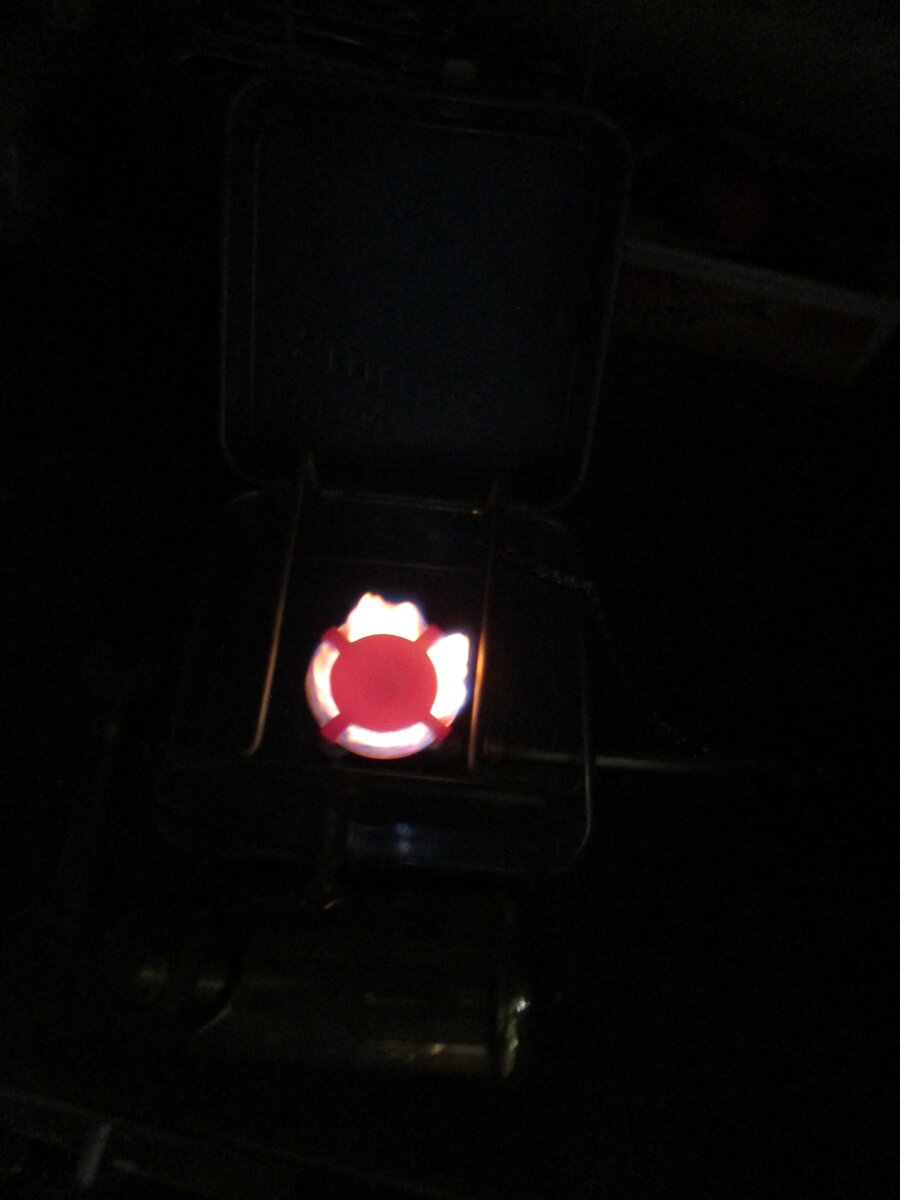

    Thought I would try to bring you the ‘money shot’ as ‘Lighthouse’ neatly put it. Having fuelled it with white spirit, it lit first time and produced a good ‘Bunsen’ type flame (as per the pics) steadily for a minute or two before ‘stuttering’ and ‘popping’ for another minute and then going out. Clearly a problem and some fettling needed.

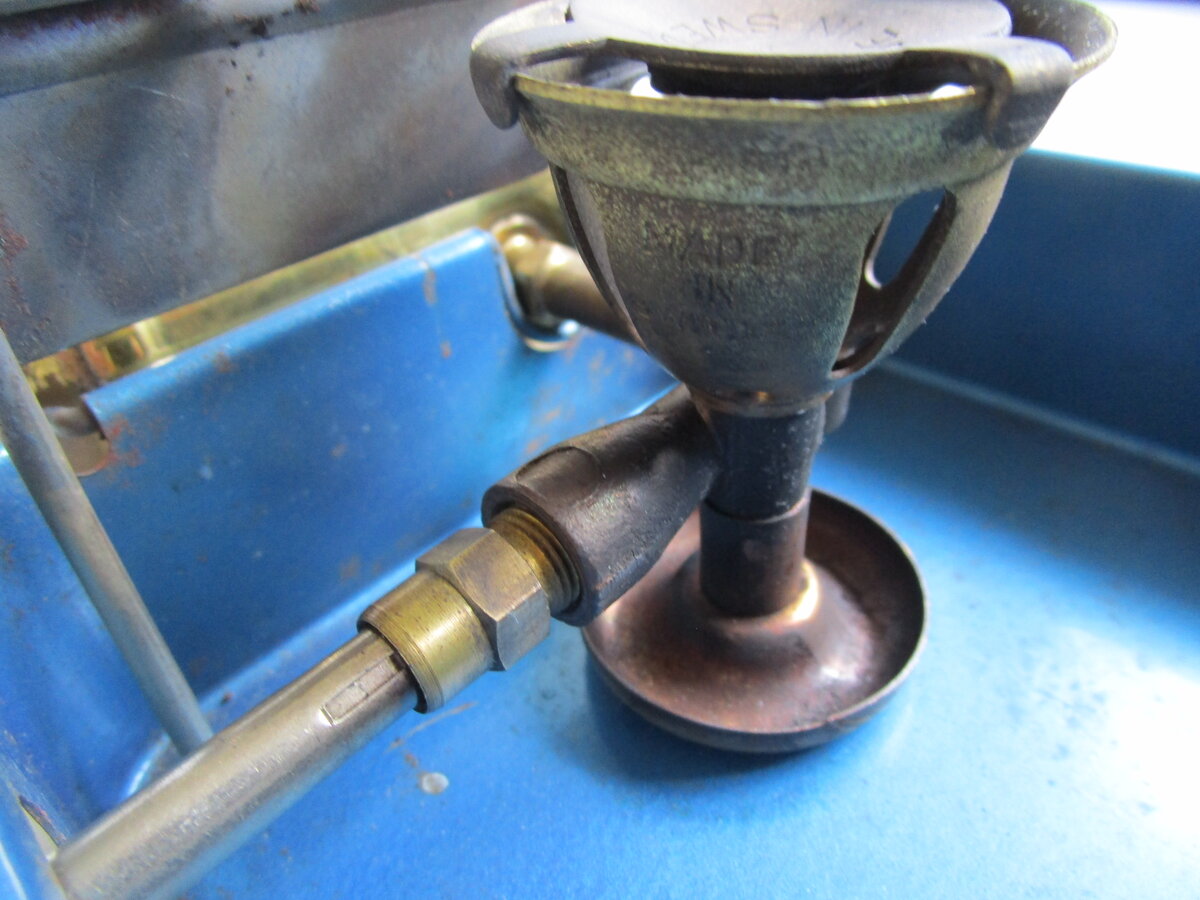

    I had already checked the rubber tank cap washers and put on a new ring washer. The flexible brass washer is in good condition. The cap washer with all the holes appeared to be intact and still flexible enough and I coated this with silicone lubricant to help it along. No obvious signs of loss of pressure meanwhile. I also tried to access the wick but found that the clamp nut that connects the burner assembly to the tank would not budge even with a decent spanner and modest force. With no visible signs of damage it is time to ask for some advice once more please. In particular has anyone any advice for dislodging the stubborn pipe-to-tank clamp nut without causing damage.
    IMG_2133.JPG IMG_2134.JPG

  11. Lennart F Sweden

    Offline
    Joined:
    Jun 24, 2017
    Messages:
    822
    Location:
    Vänersborg, Sweden
    Some of those "automatic cleaning" burners tend to fill the cavity inside the burner jet with coke when starting a burner that has been off duty for a long time - sometimes it helps to turn full left for cleaning freqently, other times the jet needs to be removed to clean out the deposits - if this doesn't help you may need to check the wick and only then it is a real need to separate burner from tank.

  12. Harder D. Soerensen

    Harder D. Soerensen Denmark Subscriber

    Online
    Joined:
    Oct 24, 2017
    Messages:
    1,378
    Location:
    Denmark
    +1 on @Lennart F remarks.
    If it comes to disassemble the burner from the tank - be aware not to over-torque it as it’ll break or turn into a sad looking Cork screw.
    You can use a 50/50 mixture of Acetone and transmission Fluid (often referred to in here as just “ATF”), or some other thin penetrating oil.
    Apply it several times during a couple of days on the thread - while giving it a careful bit of excercise with the right sized key. (See NB: below)

    Make sure the tank is completely clean of fuel(!) on the inside and out - maybe flush it with a bit of water and leave it without filler cap on - then take a small sharp pen torch and apply some heat to the threads - and then give it a go while threads are hot.
    NB: Its best to fixate your key in a vice and the hold the tank in your hands - while trying to unscrew.

  13. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 27, 2014
    Messages:
    1,089
    Location:
    Somersby, New South Wales, Australia
    Leslie Legg,
    It can take a while for the fuel to soak a dry wick. Clean the jet and try again.
    These are a self pressureising stove and needs the fuel to warm up before they will run properly.
    Also remember to open the filler cap and close it again before starting. This equalizes the pressure inside the fount.

  14. Simes

    Simes Subscriber

    Offline
    Joined:
    Jul 26, 2004
    Messages:
    4,541
    Location:
    I'm on the way....
    Welcome @Leslie Legg.

    You mentioned you have used 'white spirit'. When discussing fuel terms you have to be aware that identical oil fractions have a very wide variety of names globally.

    Our white spirit in the uk is close to kerosene for carbon chains and is heavier than the naptha types the 46 and other self pressurising stoves use. Apologies bit I'm unable to link to the International fuel names table at the moment.

    Your best bet for compatible fuel is either Aspen 4 as already suggested or Slow Panel Wipe. Panel wipe available from Eurocarparts or any vehicle repairers that do spraying.

    if you have used decorating white spirit you may be lucky and a rinse through with a lighter fraction and a burn off will clean out the wick.

    Dismantling the burner from the tank should only be considered as a last resort and extreme caution taken. Think trying to break very old thread lock.
