Soto Muka gasoline stove

Discussion in 'Japan' started by presscall, Oct 10, 2014.

  1. presscall

    presscall United Kingdom SotM Winner SotY Winner Subscriber

    Offline
    Joined:
    Aug 25, 2009
    Messages:
    9,374
    Doc Mark's video tests of this model caught my attention and inspired me to try one out myself but not being too eager to fork out the full market price for a new one I held out for a good used example.

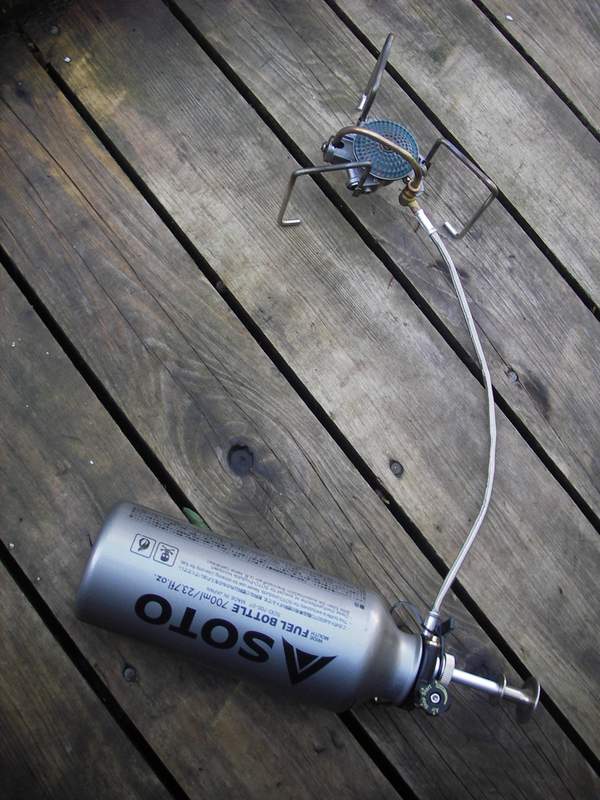

    Eventually one came my way, barely used, with stuff sack, instructions and box and with an unmarked, undented 700cc fuel bottle, sold separately when the stove is bought new




    The instructions warn that the burner vapouriser's performance worsens over forty or so fuel bottle-fulls of burning time, so I stripped the generator to see what might degrade.

    Here are the component parts. That up-tilt of the jet-end of the vapouriser is an intentional offset to induce fuel/air mixture swirl in the combustion chamber and isn't due to my heavy-handedness during dismantling

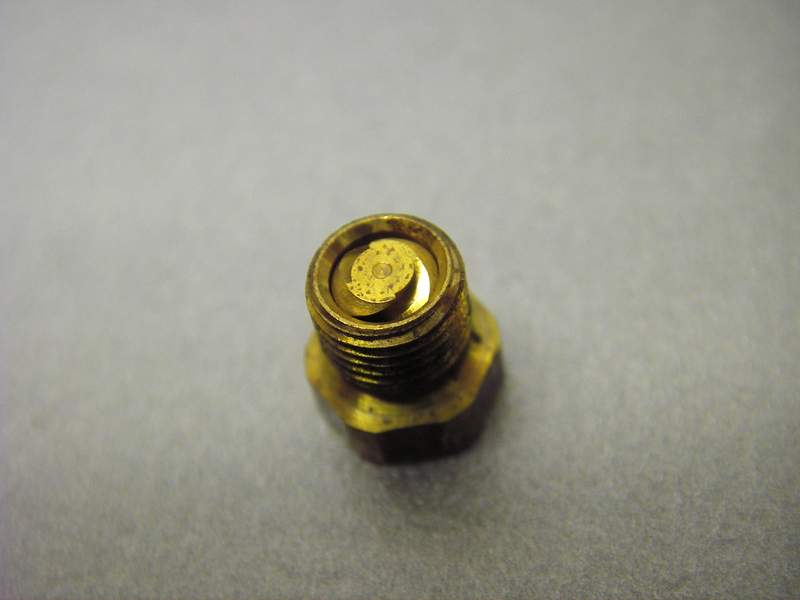

    Here's where the jet nipple goes, a fine brass gauze strainer in place. This view shows the air inlet openings too, enabling the air to scoot in past the jet, which seems an efficient way to go about things

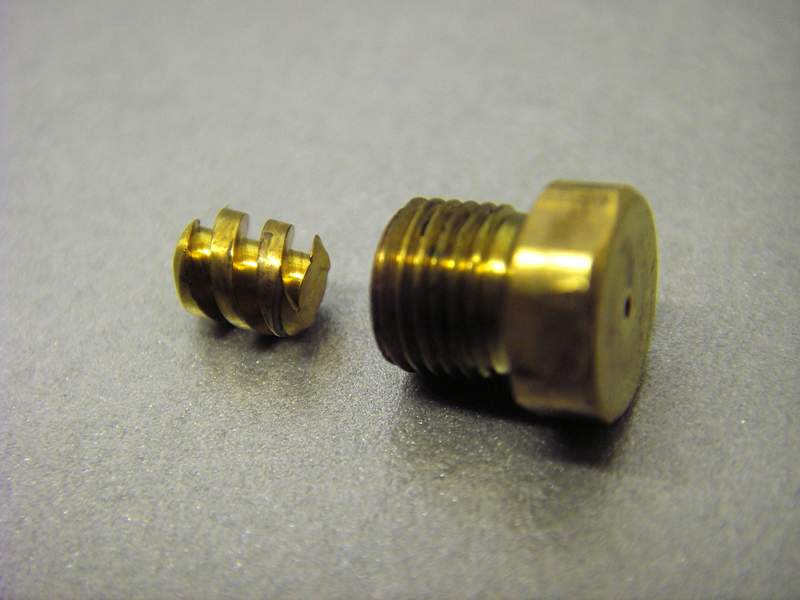

    There's a tiny component, an Archimedes Screw sort of thing, that fits inside the jet. At first sight I fancifully imagined it rotating at high speed, turbo-fashion, then realised it stays put and creates a whirlpool effect on the vapourised fuel stream, contributing to better mixing with the air and more consistent combustion - presumably.

    I thought of that dodge to empty water out of an up-ended bottle quicker than just letting it glug out, by giving the bottle a quick flick-twist to rotate the water in the bottle to create a whirlpool in the neck, speeding up the exit of the water considerably




    The vapouriser/generator has a coiled steel wire core

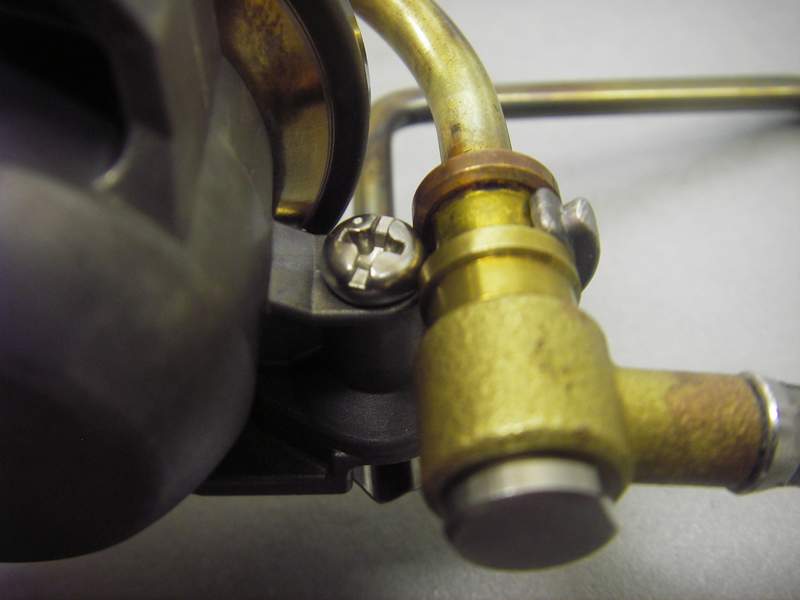

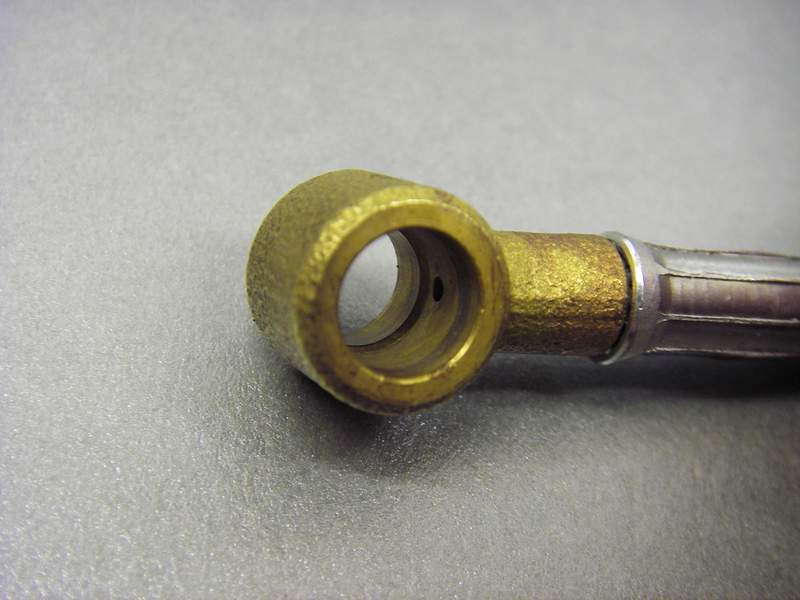

    Other end of the vapouriser is this component, which is a swivel joint ...



    ... fitting in this banjo connector on the flexi-hose

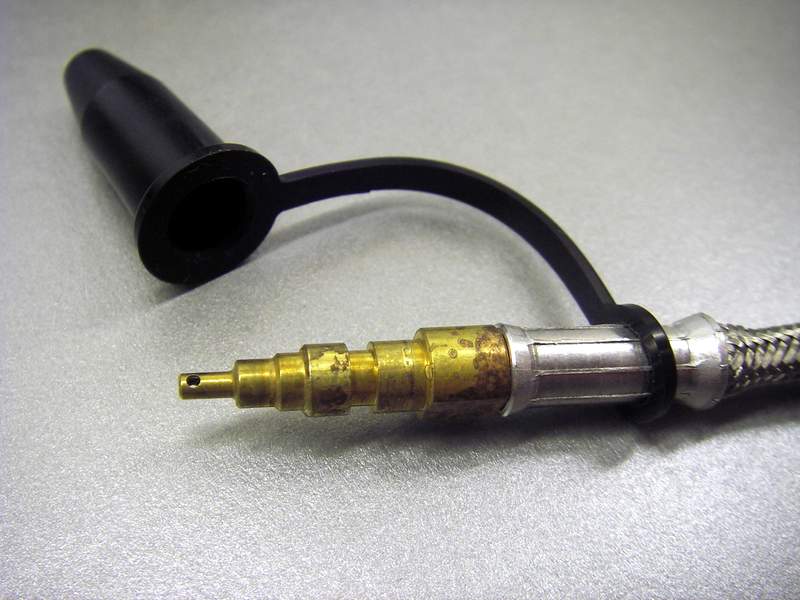

    On the other end of the flexi-hose is this connector ...

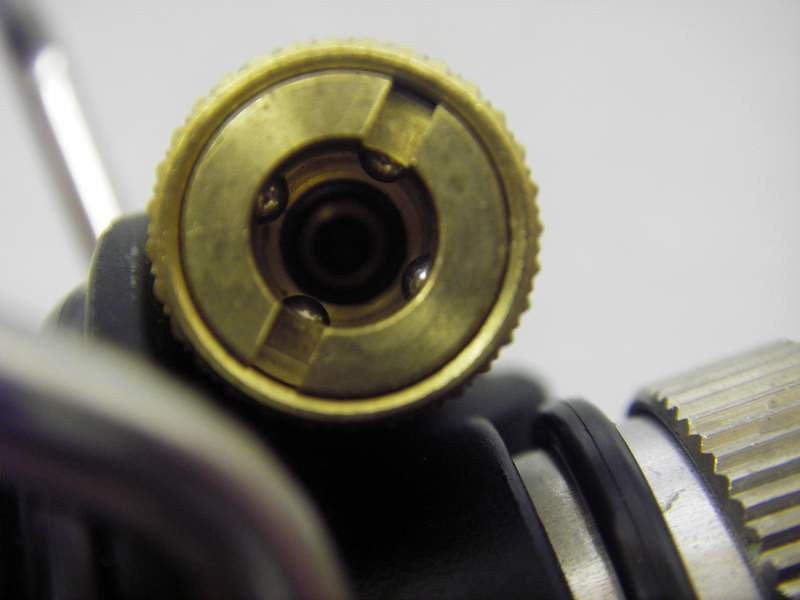

    ... which pokes into that connector on the fuel pump ...



    ... a quick-lock fitting arrangement. Very smooth action, very secure and - as long as the O-rings in there hold out - fuel tight





    Ah, the pump. More complex, by quite a degree, than a simple Ergo pump from Primus. But then, by means of a clever rotary valve arrangement (demonstrated on the Soto website HERE ) the pump creates a suitable fuel/air mixture for starting up the stove with minimum flare and offers an air purging setting to clear fuel out of the fuel line when the burner's been shut down. Additionally, the control knob pulls out on a click-stop to operate it and this provides a safety feature whereby pushing in the knob to its stowed setting, whatever the flame setting, shuts off the fuel



    The pump non-return valve and gauze filter in the pump housing for the valve




    I'm not too fond of pump cup washers that aren't oiled leather ones to be honest, but this is a big improvement on those Optimus 111T O-ring versions



    The control knob



    An indicator, here with the fuel bottle depressurised ...



    Emerges when the bottle's pressurised and reaches optimum pressure when the red line's reached




    Wide-mouthed fuel bottle



    MORE TO FOLLOW - AND FLAME SHOTS

    Last edited by a moderator: Jul 2, 2015
  2. presscall

    presscall United Kingdom SotM Winner SotY Winner Subscriber

    Offline
    Joined:
    Aug 25, 2009
    Messages:
    9,374
    With the vapouriser removed from the stove, these are the only remaining components

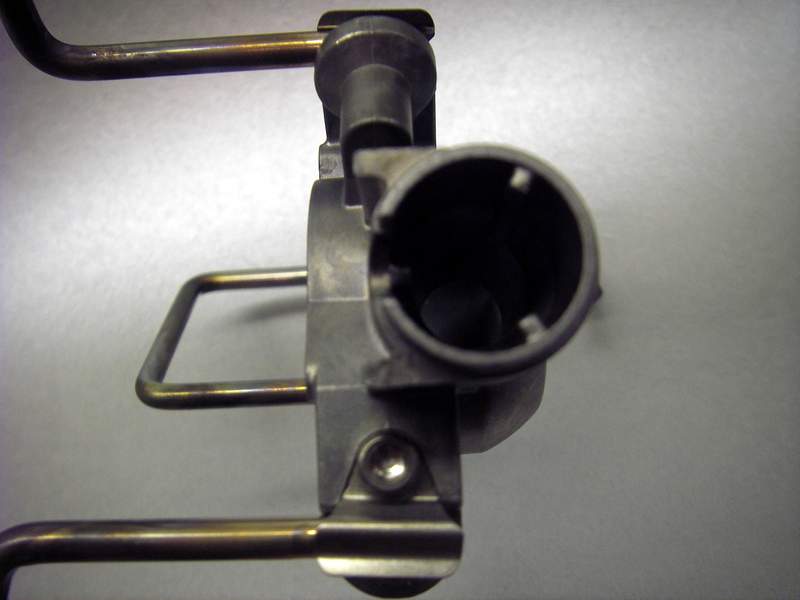

    Fuel/air inlet



    ... and outlet in the combustion chamber beneath the burner rose

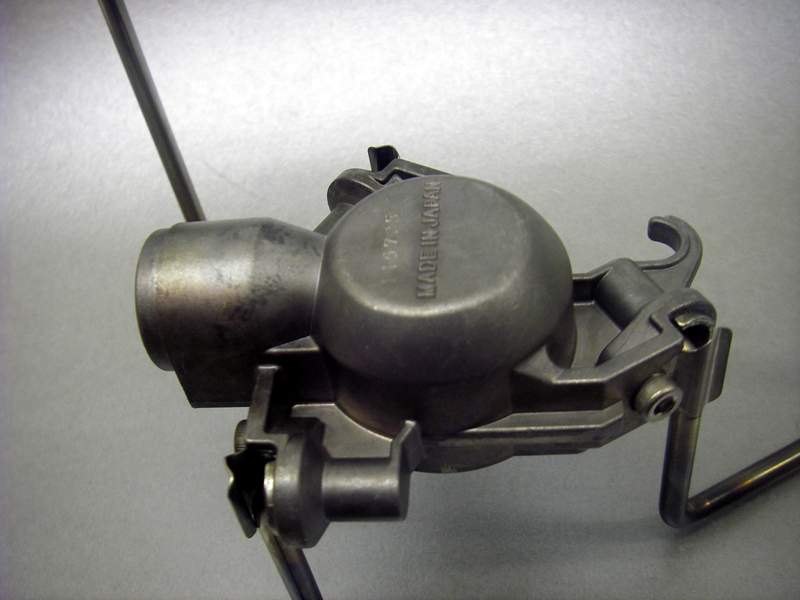

    It's an alloy casting, which gets warm in use but is sufficiently out of the burner blast so that there's no molten pool of ally during a firing, thankfully



    The burner rose and mounting arrangement





    With the jet and air inlet housing inserted into the inlet tract of the stove body, the vapouriser is clamped in place with just one set screw




    The instructions with the stove explain that though securely held in place, the clamping arrangement allows for a degree of movement to cater for thermal expansion of the vapouriser in relation to the stove housing




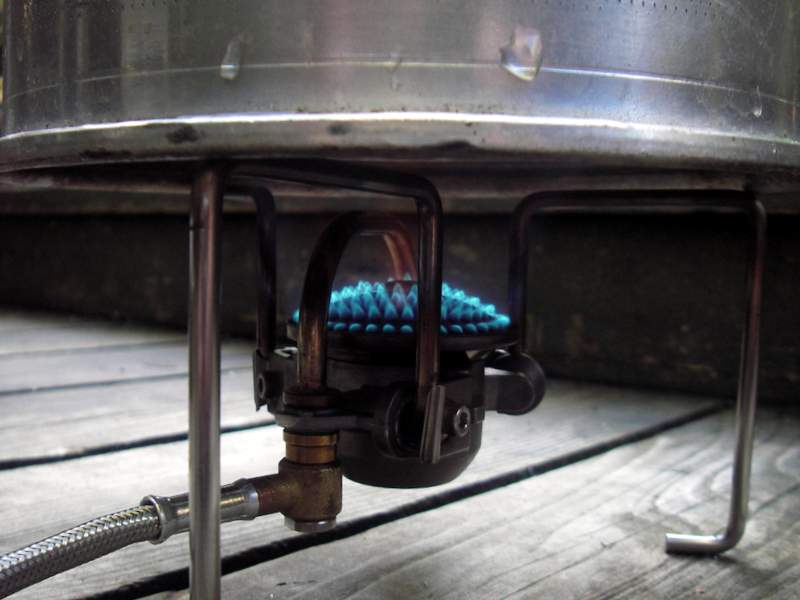

    A quick and easy start-up with no priming and maximum output is a scorcher, followed by a medium setting and what passes for a simmer





    I said, "... what passes for a simmer". Well, there is undoubtedly a wide range of output settings to be had with this stove but you've to bear in mind that the range is from excessively hot (do I need a litre of water to boil in half-a-minute? Don't think so) to a 'simmer' that's more like a moderate setting on another stove.

    In fact it's possible to tease out a simmer lower than the example I've pictured, but it's a bit of a fiddle to get it to stay stable.

    That might be a big no-no for some people, but the way I'll be using the Muka is as a water boiler on hikes and tended-to with regular stirring, heating up soup on the lowest setting.


    Cooled and stowed. The flexi-hose, helped by that pivot joint of hose to burner, is amazingly flexible. No spring in it at all. I'm reminded of those techie garden hoses that roll up to nothing compared with conventional hoses. Very effective



    John

    Last edited by a moderator: Jun 26, 2015
  3. theyellowdog

    Offline
    Joined:
    Mar 10, 2008
    Messages:
    2,011
    Fantastic post Presscall.

  4. snwcmpr

    snwcmpr Subscriber

    Offline
    Joined:
    Nov 16, 2011
    Messages:
    13,876
    Location:
    North Carolina
    Thank you John.
    Nice photos, as always, and a nice description.
    I got one when REI quit selling them, and it was priced way down.
    I think I will keep it in the box, unfired, for now.

    Ken in NC

  5. Doc Mark

    Doc Mark Subscriber

    Offline
    Joined:
    Dec 12, 2004
    Messages:
    17,257
    Hi, John,

    Excellent post and photos, as usual, and much appreciated! Like you, I found the Muka to be an excellent performer, and well designed in lots of ways. However, I was able to coax a simmer out of it, but as you say, it does require quite a bit of fiddling to make it happen. I've not had much time for stove testing, for quite a while, so I've not seen how that simmer will last in actual cooking situations. I am pretty sure your comments will ring very true, when I finally get to cook something on my own Muka. To me, this stove is WELL worth owning and using, and it's very light weight, and amazing power, should make it a favorite with the "gram weinies" out there. Don't know how easy it will be to get one, as it also seems to be in the "close-out" bins at REI, and other places. Thanks, again, for another of your top of the line reports, John!! Take care, and God Bless!

    Every Good Wish,
    Mark

  6. jbf

    jbf Subscriber

    Offline
    Joined:
    Mar 23, 2012
    Messages:
    252
    John
    great post and pictures. :thumbup:
    thank you,
    John

  7. kerry460

    kerry460 Australia Subscriber

    Offline
    Joined:
    Aug 20, 2010
    Messages:
    2,357
    G,,day John .
    I have never been a fan of this style of stove .
    for no obvious reason .

    this appears to have a lot of very well thought out features incorporated into it .

    very well detailed write up and photos .
    thanks .

    cheers,
    kerry

  8. mr optimus

    mr optimus Subscriber

    Offline
    Joined:
    Oct 4, 2007
    Messages:
    2,222
    Hi John outstanding, pictured tutorial of the Soto Muka stove.

    I have seen and Doc's video on youtube, which I was very impressed with through out, the performance quality and performance.

    The Soto Muka is a superbly engineered stove, with its many components. This is a fantastic post for all of us who acquire one and need to strip it down to service.
    Well done John as all ways

  9. presscall

    presscall United Kingdom SotM Winner SotY Winner Subscriber

    Offline
    Joined:
    Aug 25, 2009
    Messages:
    9,374
    Hi All, good to hear from you.

    I'll be using the Soto over the weekend, undoubtedly with the foil windshield and ground disc if the wind keeps up. I'll persevere with the simmering capability, with burnt food the penalty for failure!

    Back to that vaporiser/generator life issue flagged up in the instructions that I mentioned but didn't give my thoughts on. The manufacturer encourages the use of unleaded pump petrol (gasoline) as well as Coleman fuel or equivalents.

    It seems to me that in spite of the assurance that the stove is designed to take pump petrol, the generator's bound to suffer a reduced life due to the deposition of residue of fuel additives. I suspect that Soto have put that warning in with that in mind. I'll be using Aspen 4T exclusively and expect to get an extended life out of the generator, as has proved the case with my other gasoline stoves.

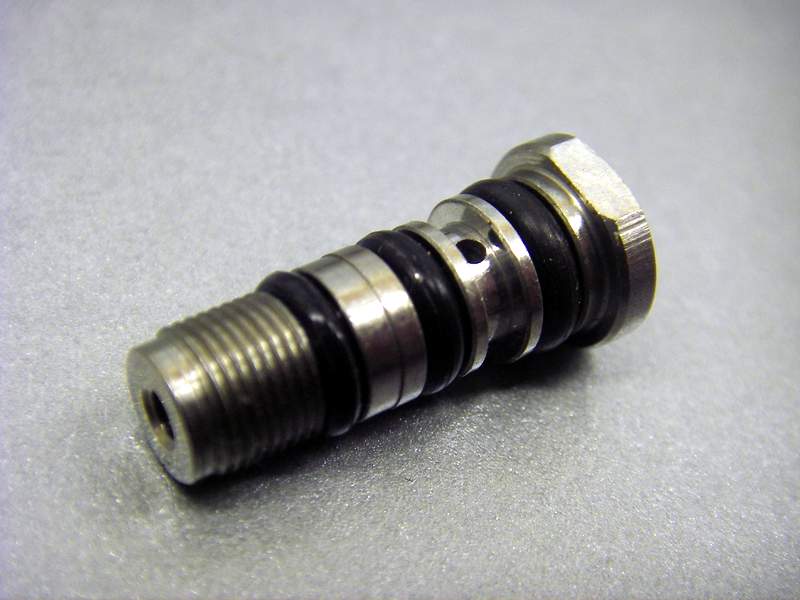

    Generator aside, I believe it's the profusion of O-rings in the design that will kill off the stove if genuine Soto spares sources dry up and equivalents can't be found, given that the stove relies on precision machining and approximations aren't likely to be good enough.
