The world's first Optimus No:9 silent burner

Discussion in 'Optimus No:9' started by Koi, Jun 21, 2021.

  1. Koi Taiwan

    Offline
    Joined:
    Feb 24, 2016
    Messages:
    16
    Location:
    Taiwan
    Just because i turned roarer it to silent burner. lol

    IMG_8228.JPG IMG_8243.JPG IMG_8246.JPG IMG_8246.JPG IMG_8247.JPG

    It’s impossible to buy these famous stoves from secondhand dealer in Taiwan.
    So I spent all my silly money on the holy grail from another CCS member.

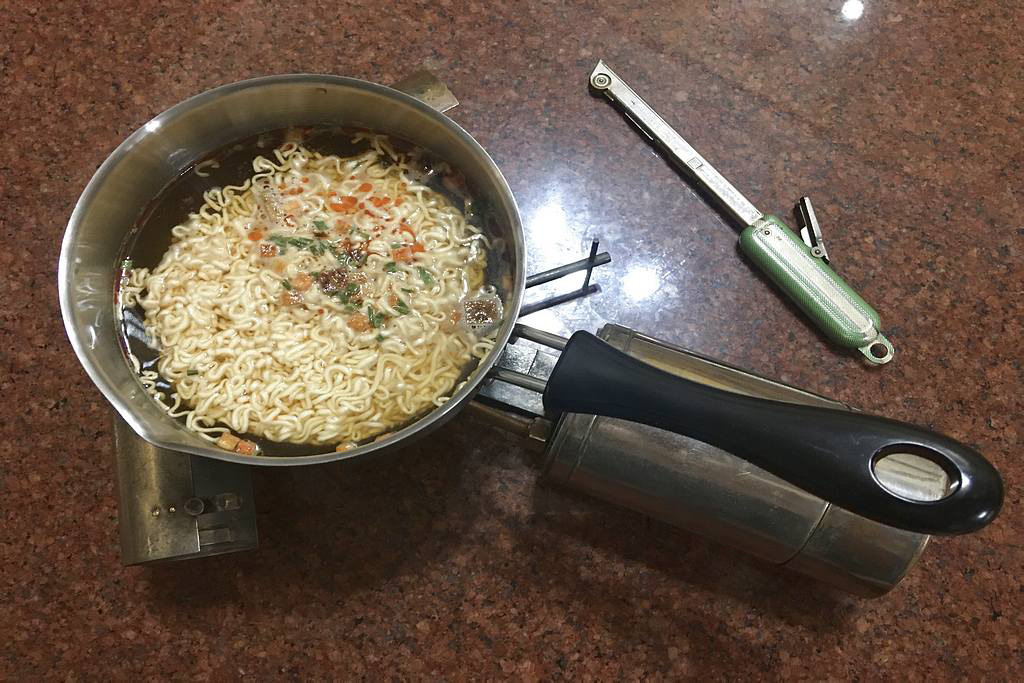

    I can only eat instant noodles now.
    IMG_E8187.JPG IMG_8191.JPG

    I don’t want to use white gas at home to cause a fire accident.
    IMG_8165.JPG IMG_8142.JPG

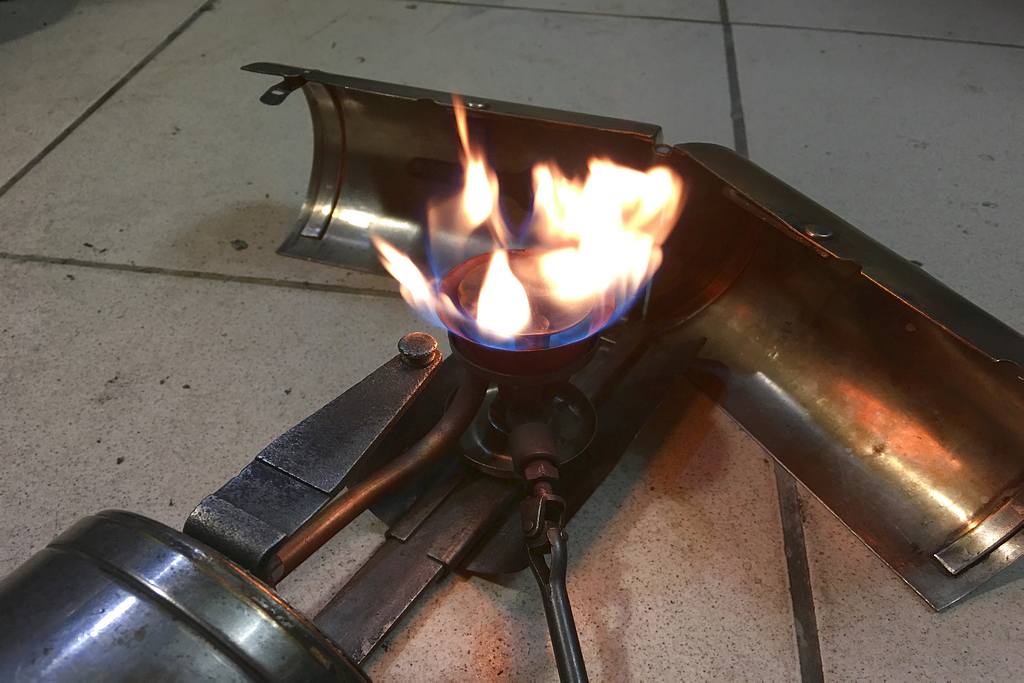

    When i try to use safe kerosene indoors. Damn, there is no pure blue flame.
    IMG_8095.JPG IMG_8109.JPG

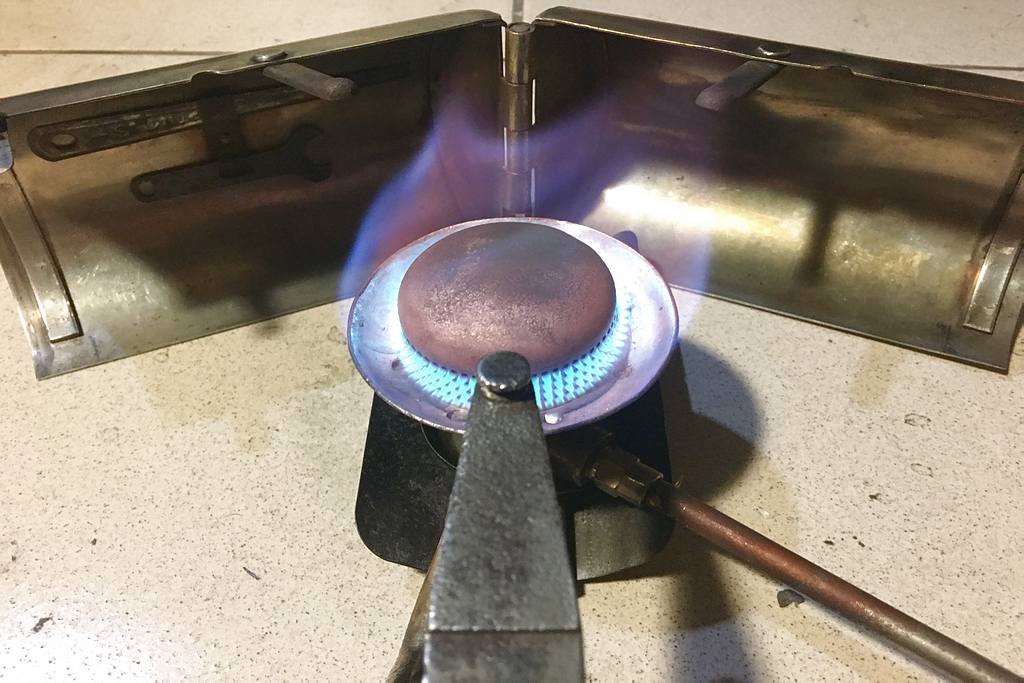

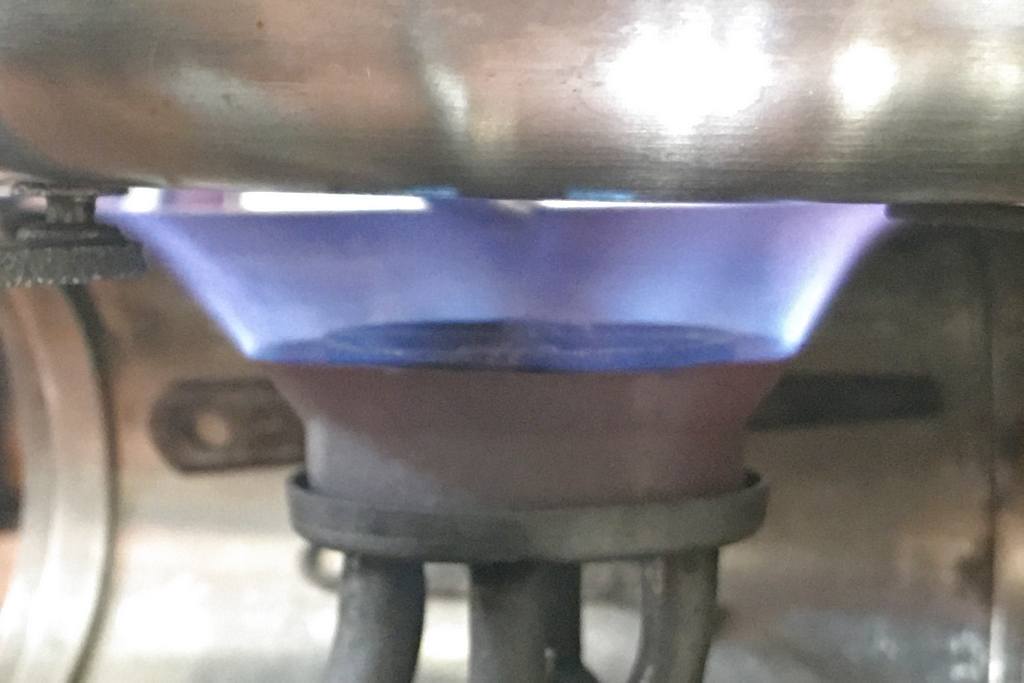

    I decided to use a silent burner.

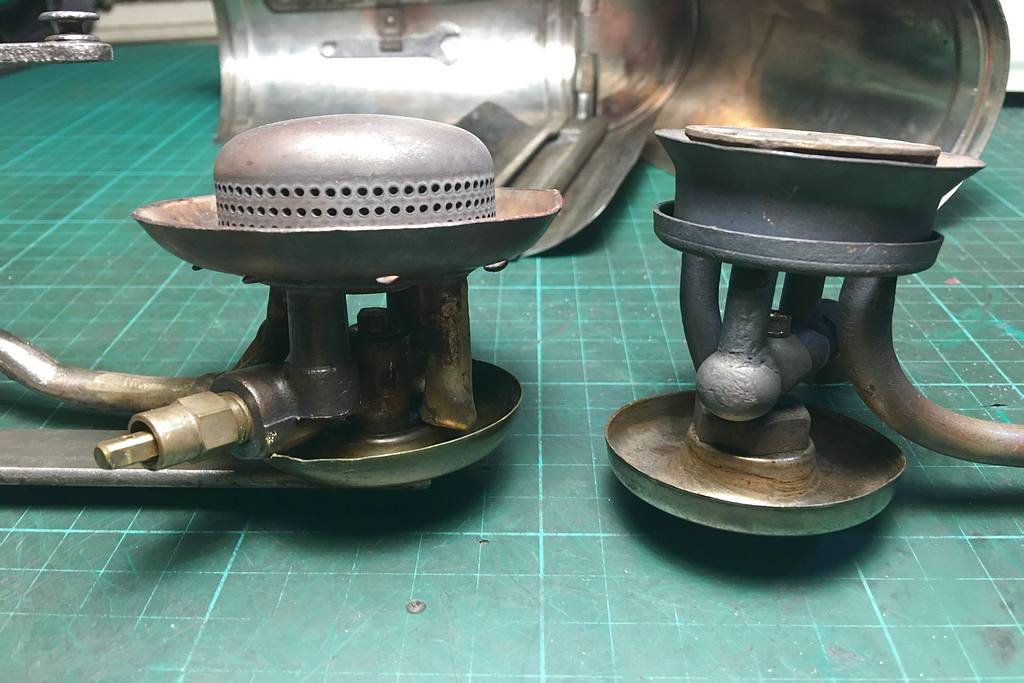

    Normal silent burner is too high. Radius 43 burner is ok.
    IMG_8168.JPG IMG_8169.JPG IMG_8170.JPG IMG_8179.JPG IMG_8176.JPG IMG_8171.JPG

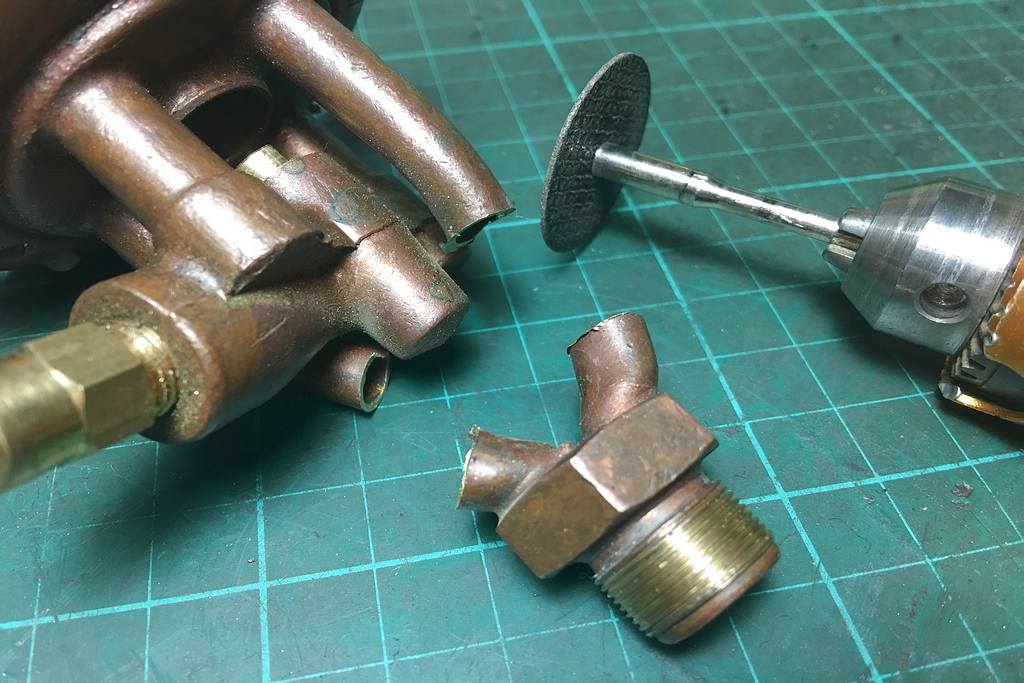

    I plan to cut down the normal silent burner.
    IMG_8213.JPG IMG_8215.JPG IMG_8216.JPG

    It is difficult to bend the angle of the copper pipe without tools.
    IMG_8218.JPG IMG_8220.JPG IMG_8237.JPG IMG_8238.JPG

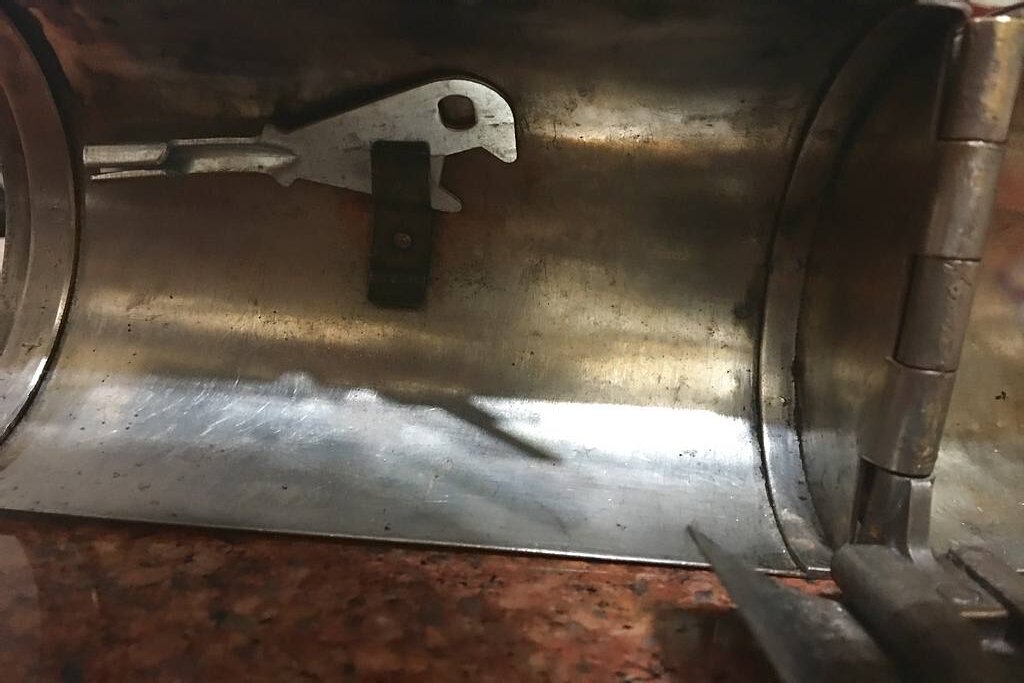

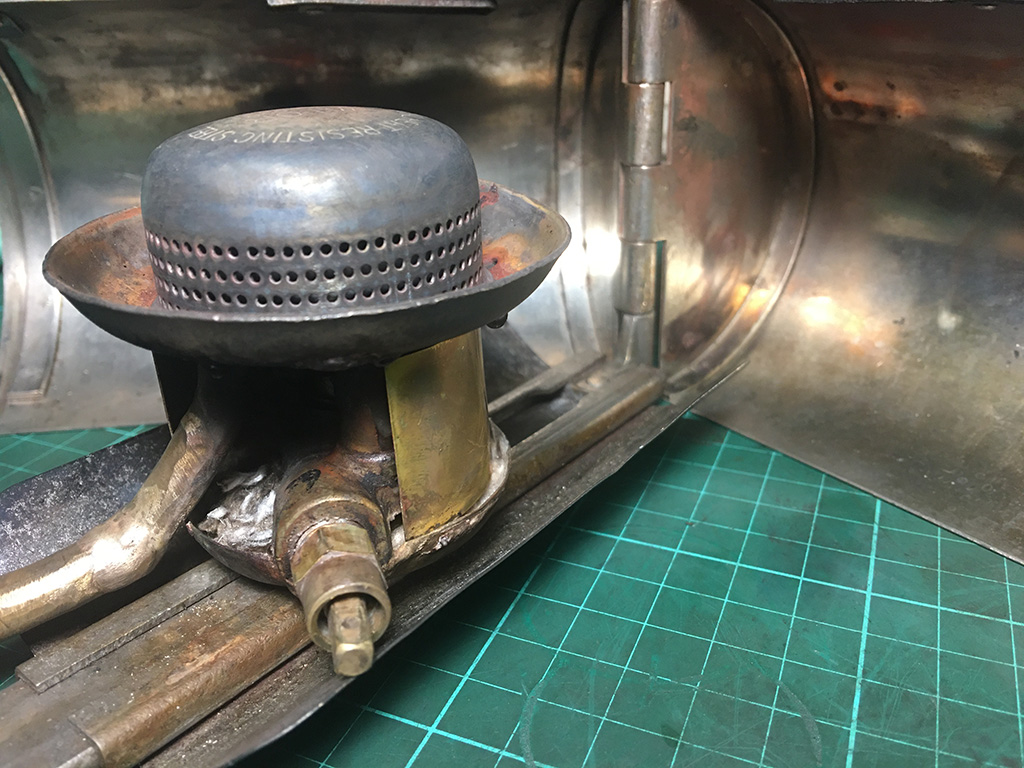

    A little interference when close the case.
    IMG_8221.JPG IMG_8254.JPG

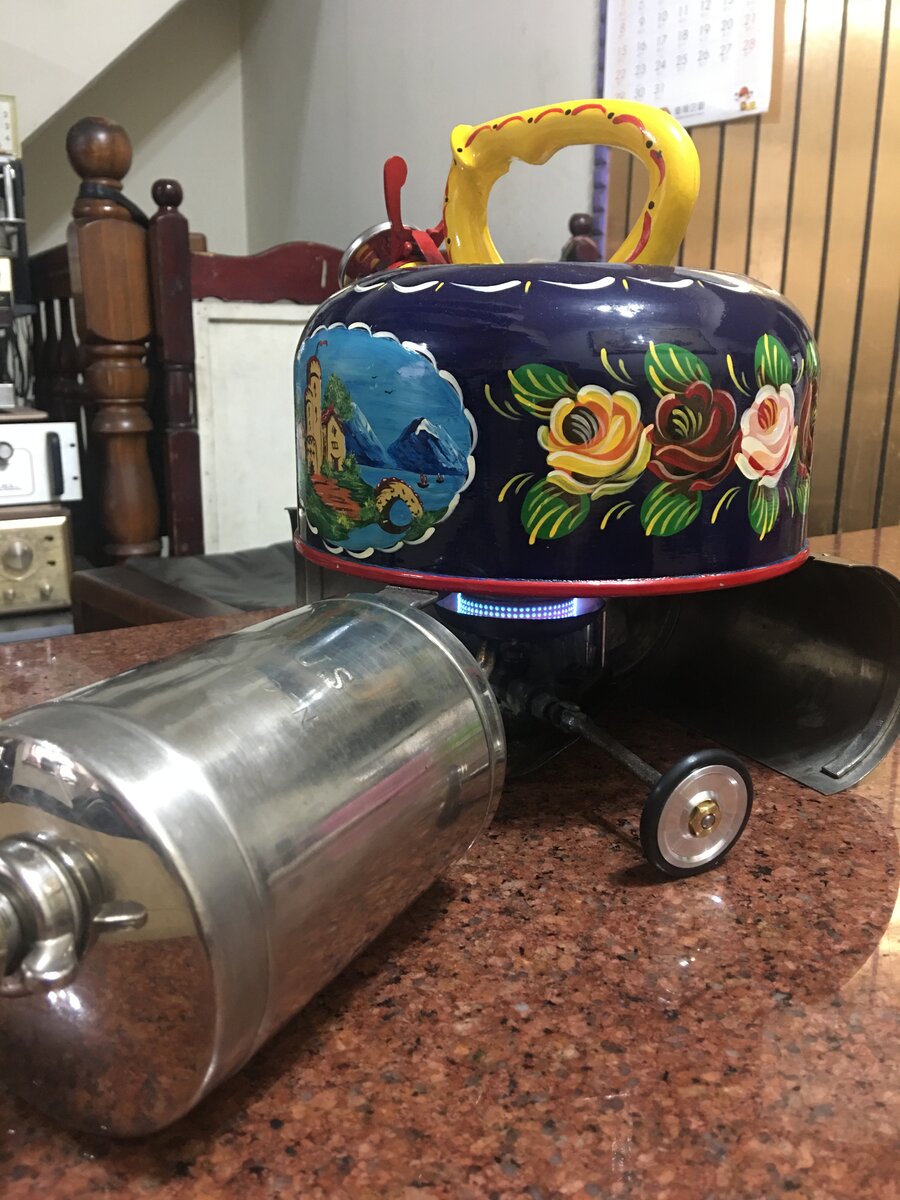

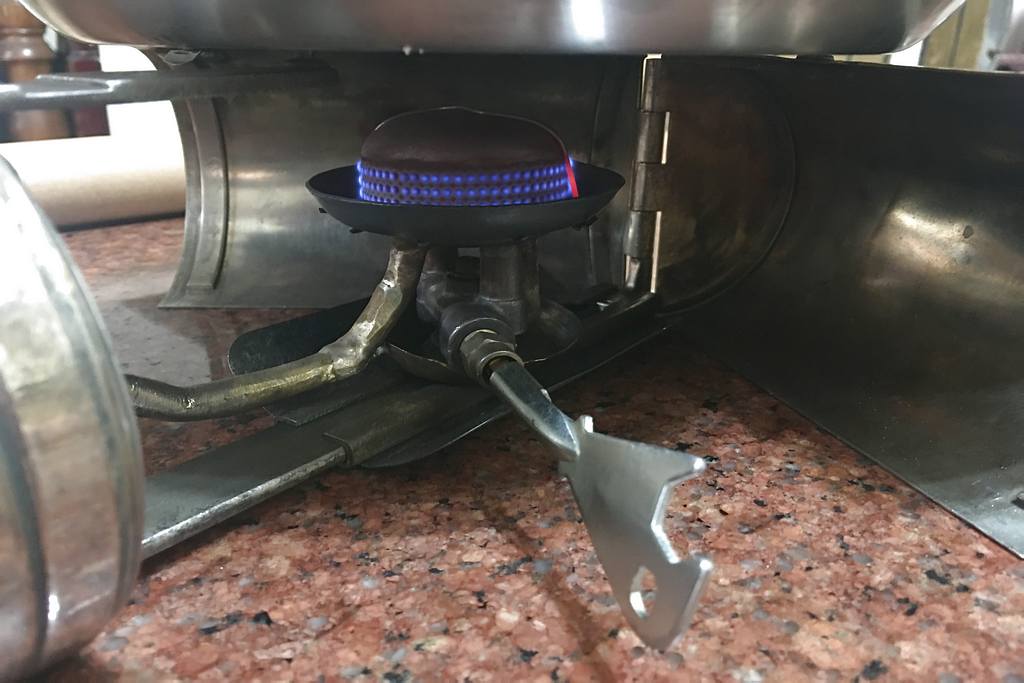

    No matter what, I'm finally done, I can switch between Silent Burner or Roarer at any time.
    IMG_8184.JPG IMG_8226.JPG

    PS: Episode in life

    Thanks God! Thanks Classic Camp Stoves!
    Blessing everyone to be free from Covid-19.

    Koi from Taiwan.

  2. Twoberth

    Twoberth United Kingdom Subscriber

    Offline
    Joined:
    Feb 21, 2017
    Messages:
    1,194
    Location:
    England
    Excellent work thanks for sharing.

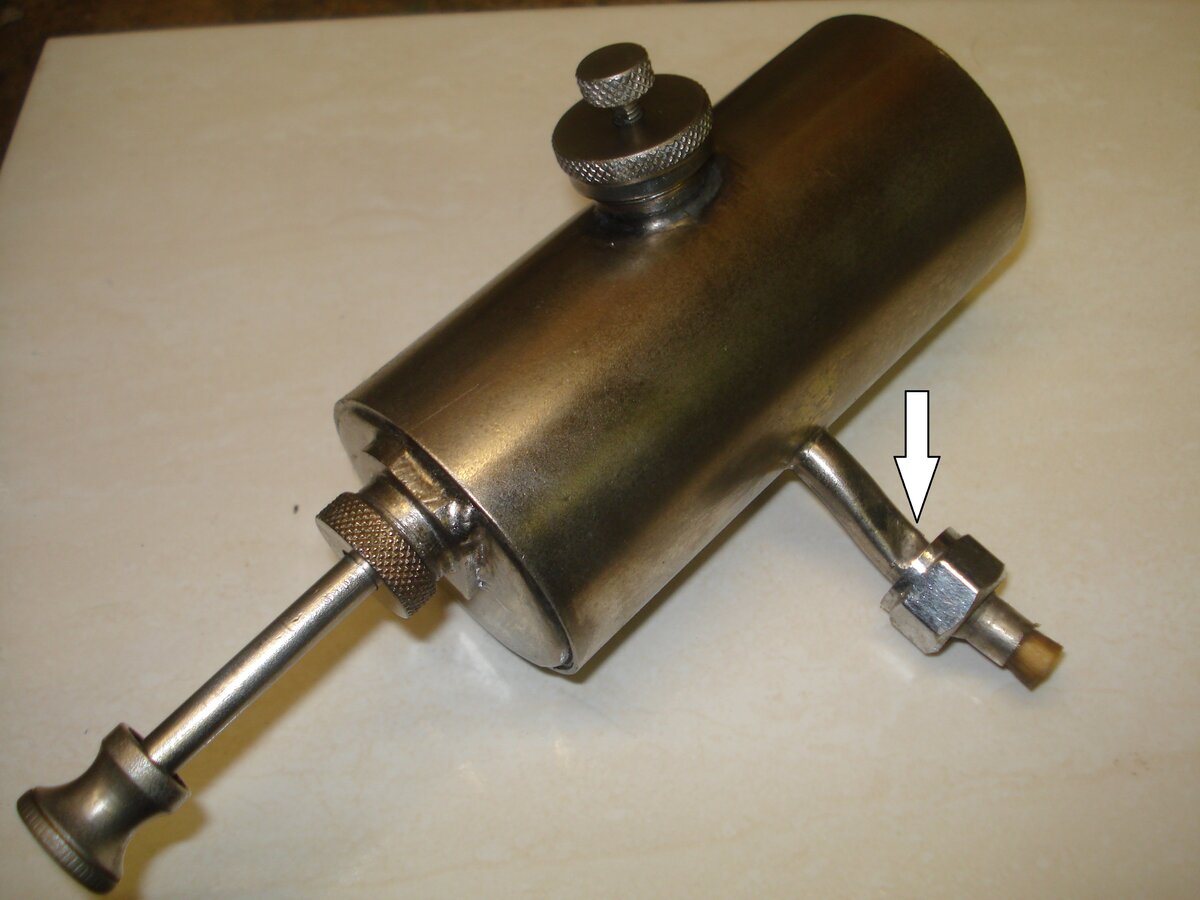

    I had the same trouble bending copper pipe, as shown here,

    DSC09169 - Copy.JPG

  3. Koi Taiwan

    Offline
    Joined:
    Feb 24, 2016
    Messages:
    16
    Location:
    Taiwan
    We should buy a pipe bender.

  4. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Jun 8, 2013
    Messages:
    7,624
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @Koi

    I have that kind of pipe bender. It works well.

    One of the thing you can do st stop the metal creasing, is to fill it with sand.


    Cheers

    Tony

  5. Koi Taiwan

    Offline
    Joined:
    Feb 24, 2016
    Messages:
    16
    Location:
    Taiwan
    @Tony Press
    Fill it with sand?
    Is fill sand in to the pipe hole?

  6. Twoberth

    Twoberth United Kingdom Subscriber

    Offline
    Joined:
    Feb 21, 2017
    Messages:
    1,194
    Location:
    England
    It’s on my Santa list.

  7. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Jun 8, 2013
    Messages:
    7,624
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @Koi

    Put sand or salt in the pipe before bending.


    Cheers

    Tony

  8. Koi Taiwan

    Offline
    Joined:
    Feb 24, 2016
    Messages:
    16
    Location:
    Taiwan
    @Tony Press
    Ok! Thanks.
    I will buy a pipe bender to practice put sand or salt in the pipe.

  9. snwcmpr

    snwcmpr SotM Winner Subscriber

    Offline
    Joined:
    Nov 16, 2011
    Messages:
    15,802
    Location:
    North Carolina
    Pack the sand tight and it works very well.

  10. cottage hill bill

    cottage hill bill Subscriber

    Offline
    Joined:
    Jan 8, 2011
    Messages:
    1,109
    Sand can sometimes be difficult to get out after the bend is made. Use salt, it can be removed by flushing with water.

  11. David Shouksmith

    David Shouksmith Subscriber

    Offline
    Joined:
    Jul 28, 2004
    Messages:
    7,129
    My father was a plumber and he had pipe-bending springs which went inside the pipe to be bent. I've also seen external springs for smaller diameter pipes:-

    How to use a pipe bending spring? - Wonkee Donkee Tools

    Scroll down to see how to use external springs for small diameter pipes...

  12. snwcmpr

    snwcmpr SotM Winner Subscriber

    Offline
    Joined:
    Nov 16, 2011
    Messages:
    15,802
    Location:
    North Carolina
    Great thread. Great information.

  13. hikerduane

    hikerduane Subscriber

    Offline
    Joined:
    Mar 1, 2010
    Messages:
    7,198
    Thank you for sharing.
    Duane

  14. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 27, 2014
    Messages:
    1,487
    Location:
    Somersby, New South Wales, Australia
    An excellent result, Koi. :thumbup:

  15. Koi Taiwan

    Offline
    Joined:
    Feb 24, 2016
    Messages:
    16
    Location:
    Taiwan
    @cottage hill bill
    It sounds like salt is best for small copper pipes. Thanks!

    @David Shouksmith
    This is the first time heard pipe-bending springs.
    Very good teaching website.


    Made a small wind shield today.

  16. Tantra

    Tantra Subscriber

    Offline
    Joined:
    Mar 4, 2018
    Messages:
    380
    Location:
    China
    Holy shit,it’s great investment

  17. Koi Taiwan

    Offline
    Joined:
    Feb 24, 2016
    Messages:
    16
    Location:
    Taiwan
    @Tantra
    I did not destroy the original design, I just made an extra burner set.
    I can switch between Silent Burner or Roarer at any time.

  18. Aaron1980

    Aaron1980 Subscriber

    Offline
    Joined:
    Dec 11, 2011
    Messages:
    87
    Looks very interested and a brave man to modify such a stove! It looks like you have done a good job of making the stove useable for the purpose you need!
    well done

  19. Koi Taiwan

    Offline
    Joined:
    Feb 24, 2016
    Messages:
    16
    Location:
    Taiwan
    @Aaron1980
    Thank you. I appreciate the compliment.
