Thermidor 2-pint, War Dept issue 1939

Discussion in 'Samuel Heath & Sons' started by presscall, Mar 4, 2018.

  1. presscall

    presscall United Kingdom SotM Winner SotY Winner Subscriber

    Offline
    Joined:
    Aug 25, 2009
    Messages:
    8,914


    Embossed lettering stands out (definition of ‘embossed’ after all) - I mean, it’s distinctive.




    War Dept broad arrow and the date, WWII issue.



    The burner’s right for the period with a deep ‘shroud’. Judging by the age-related pitting, the inner and outer caps are original. There is an oval hole in the burner shroud for a lighting torch, which I added. Clever design, using the burner shroud as a register at one end, torch base tucking into the priming cup, so no need for a fixing clip. The torch is longer than the usual 2-pint stove burner type and I’d to silbraze an extension tube onto the one I had in my spares box.



    A removable pump is a boon for servicing the non-return valve.



    Fuel filler cap incorporates a safety release valve, though there really is no danger of overpressurising a stove of this type - I don’t know about you, but if I really want the burner to put out the heat around thirty pumps (tank 2/3 full of fuel) is about right and getting any more air in tends to be a case of diminishing returns as pumping becomes more difficult.



    Nicely-formed foot.



    Priming.

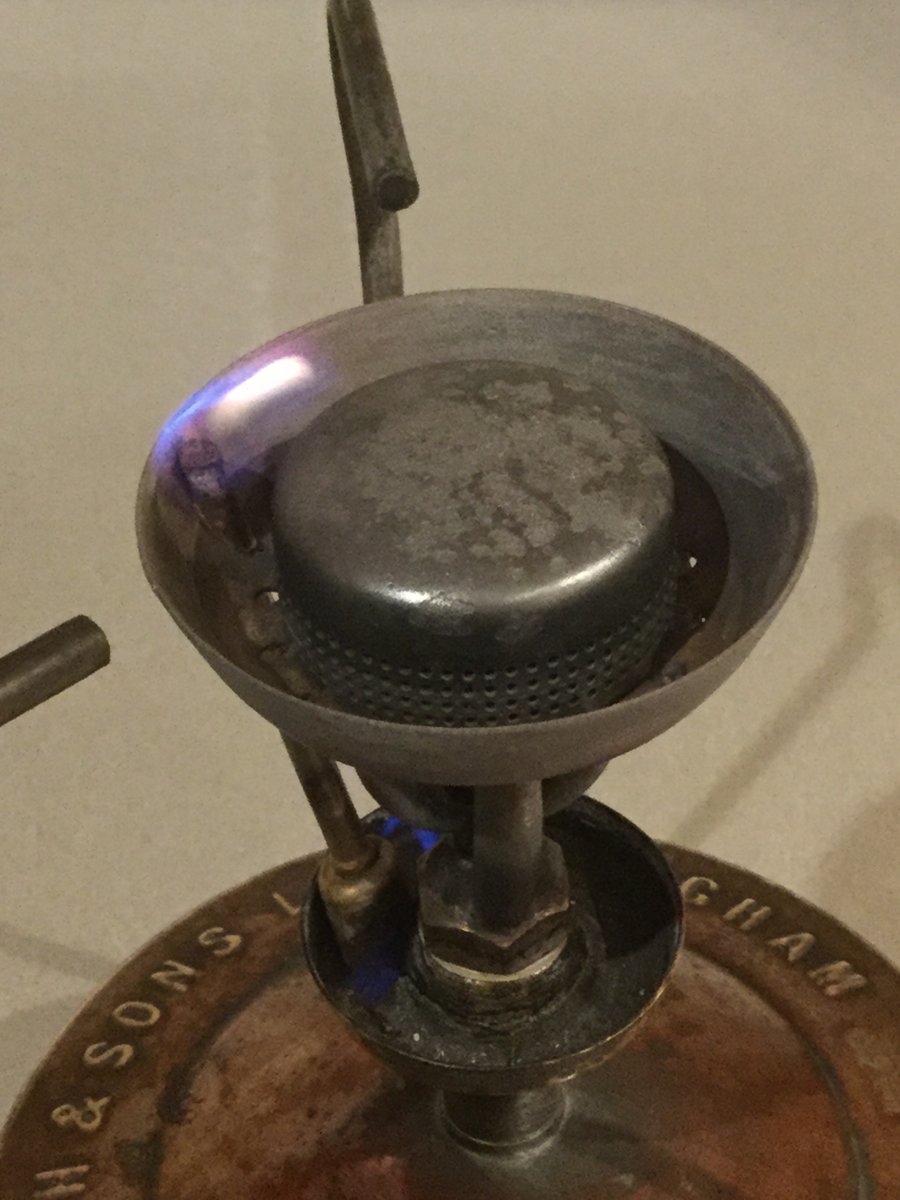

    Priming torch doing its job.

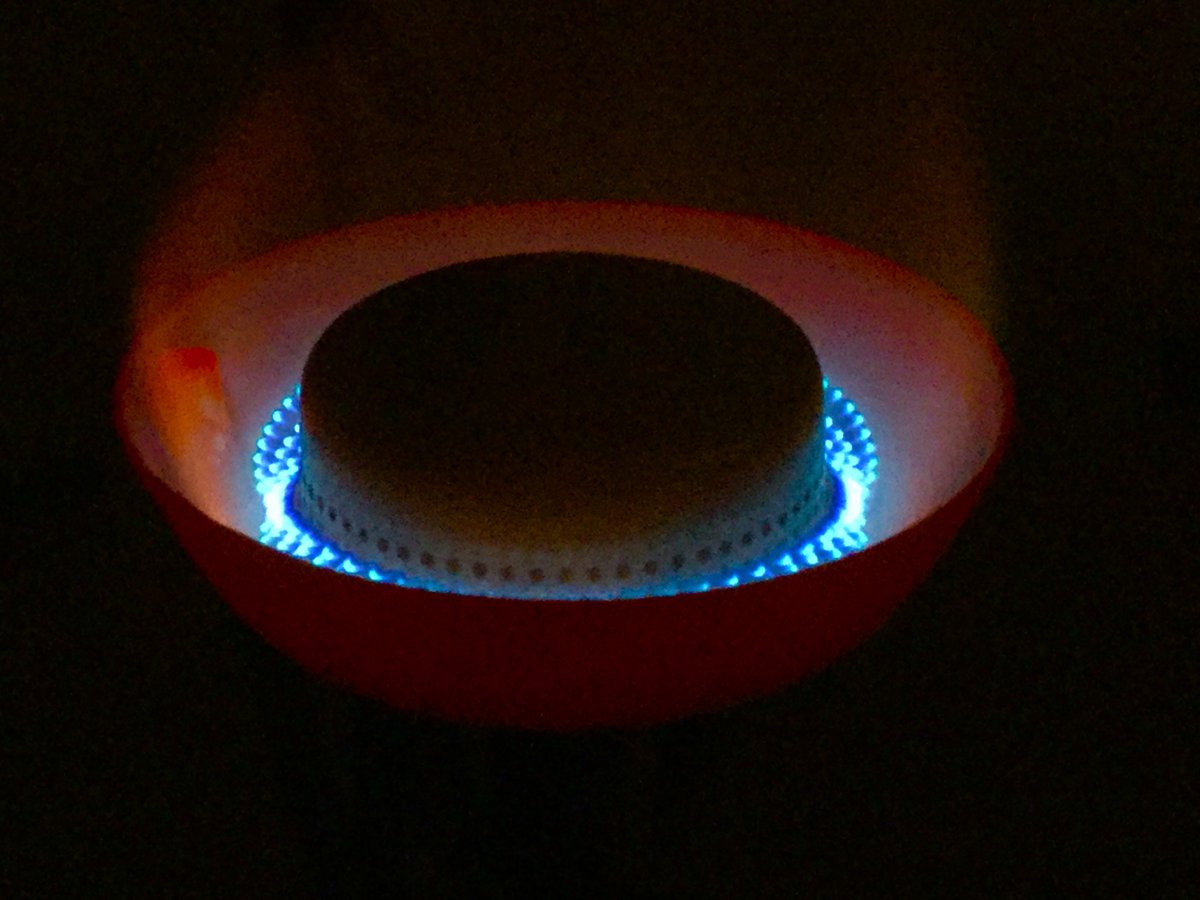

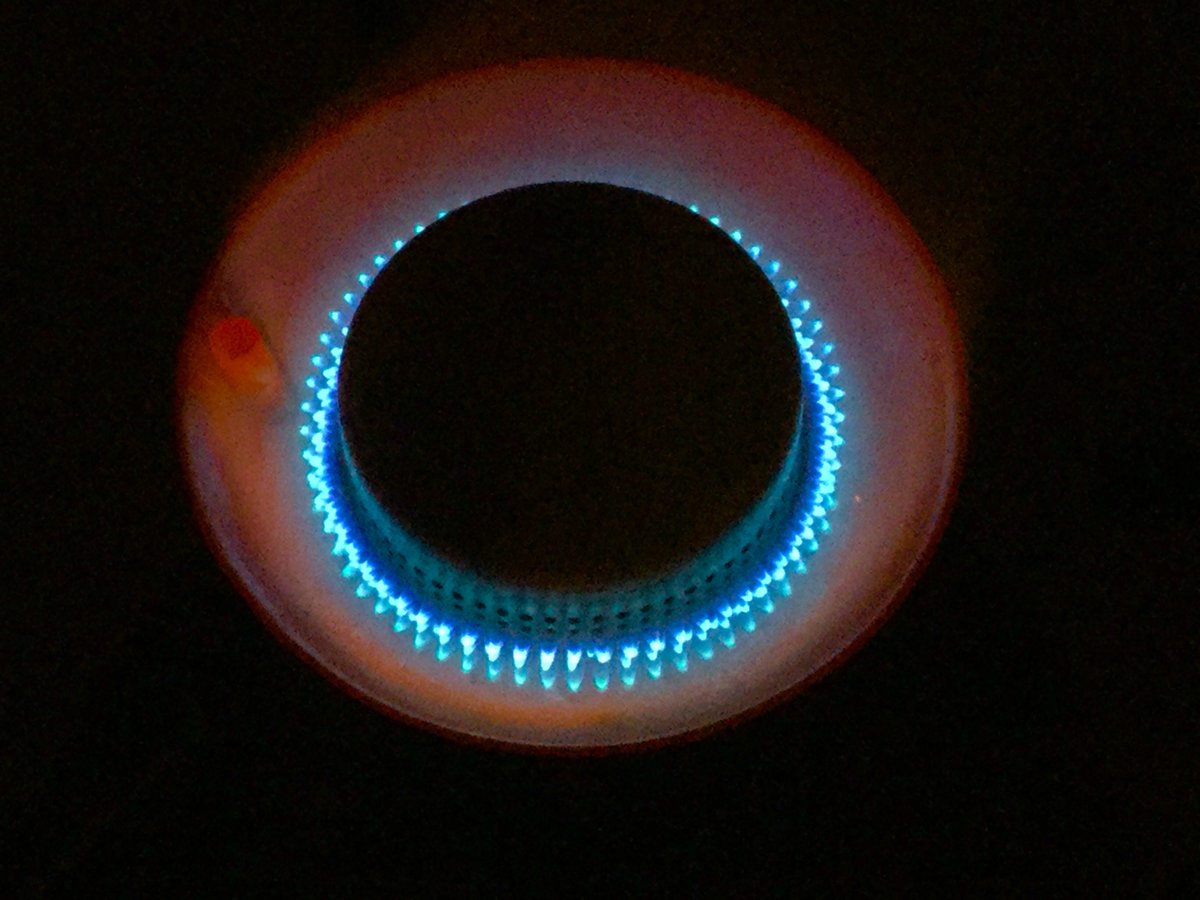

    Ignition.

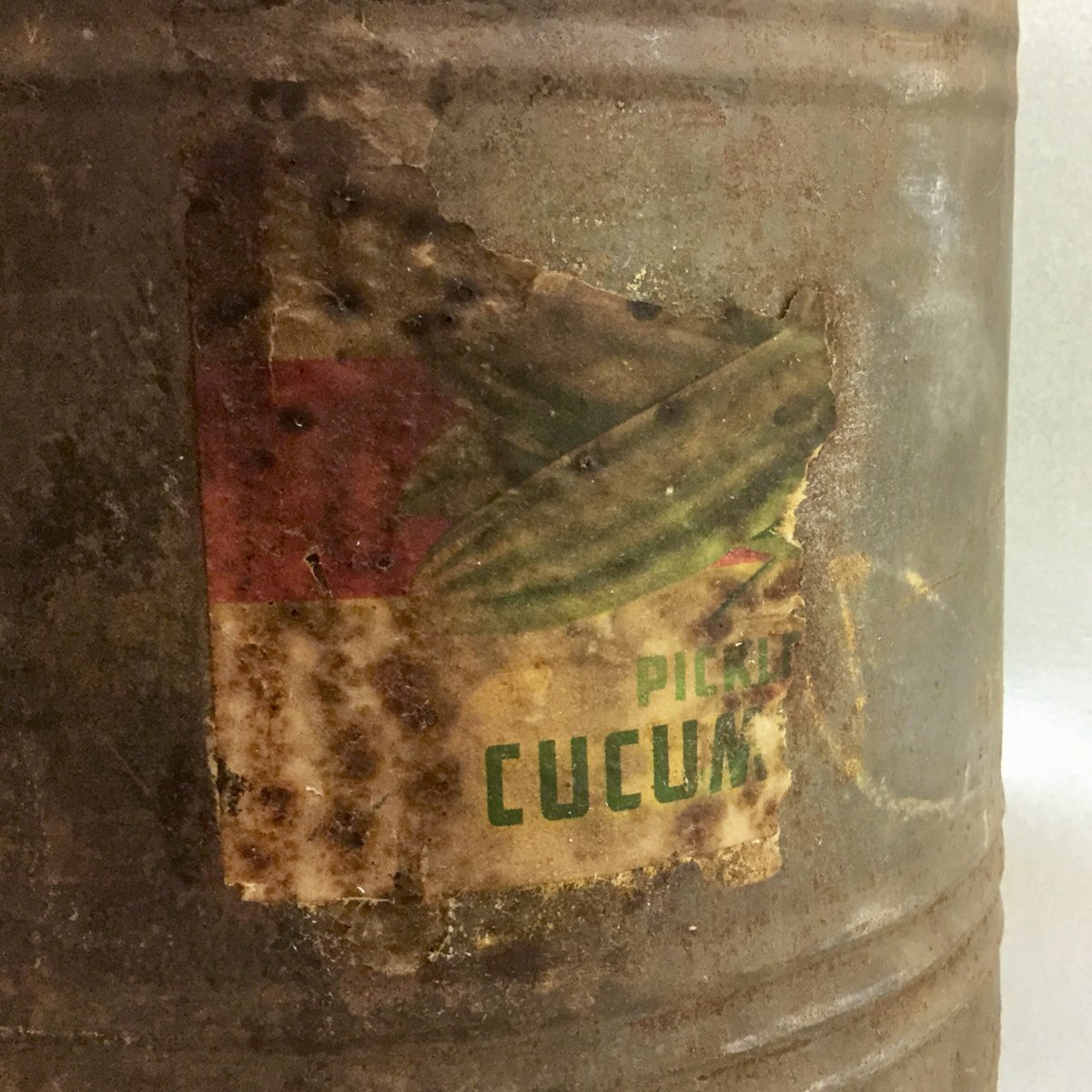

    The stove most probably dodged knocks and scrapes thanks to being used in this pickled cucumber tin. I’m guessing that was done post-war, since the label on the tin refers to the cucumbers being produced and packed by an Israeli company, which I assume was after the state of Israel was formed. Kibbutz produce, and judging by the size of the tin the contents would knock the spots off those dwarf varieties (gherkins) that pass as pickled cucumber these days.





    @gieorgijewski
    I relented and bought the stove.

    John

    Last edited: Mar 4, 2018
  2. shagratork

    shagratork United Kingdom Moderator, R.I.P. Subscriber

    Offline
    Joined:
    Aug 9, 2005
    Messages:
    9,641
    Location:
    Durham, N.E. England
    John, that is a truly beautiful stove.
    Such stoves are often very undervalued on eBay.
    In fact they are very well manufactured and burn well.

  3. ally

    ally Subscriber

    Offline
    Joined:
    Jun 3, 2014
    Messages:
    270
    I like that a lot

    :)

  4. kerophile

    kerophile United Kingdom SotM Winner Subscriber

    Online
    Joined:
    Sep 23, 2004
    Messages:
    11,562
    Location:
    Far North of Scotland
    Hi John, great presentation of a lovely stove.

    I have seen the neat trick of feeding an igniter through the shroud of a silent burner in 1950s Czech Meva stoves:

    https://classiccampstoves.com/threads/czech-meva-value.10229/#post-98339

    David pointed out the same feature on a much earlier Monitor 2 pint stove from WW II and provided a photo in the above thread.

    Best Regards,
    Kerophile.

  5. teckguy_58

    teckguy_58 United States Subscriber

    Offline
    Joined:
    Mar 20, 2011
    Messages:
    889
    Location:
    Washington USA
    I like the patina.
    Wonderful looking stove and it looks like it runs great.
    Thanks for sharing.

  6. presscall

    presscall United Kingdom SotM Winner SotY Winner Subscriber

    Offline
    Joined:
    Aug 25, 2009
    Messages:
    8,914

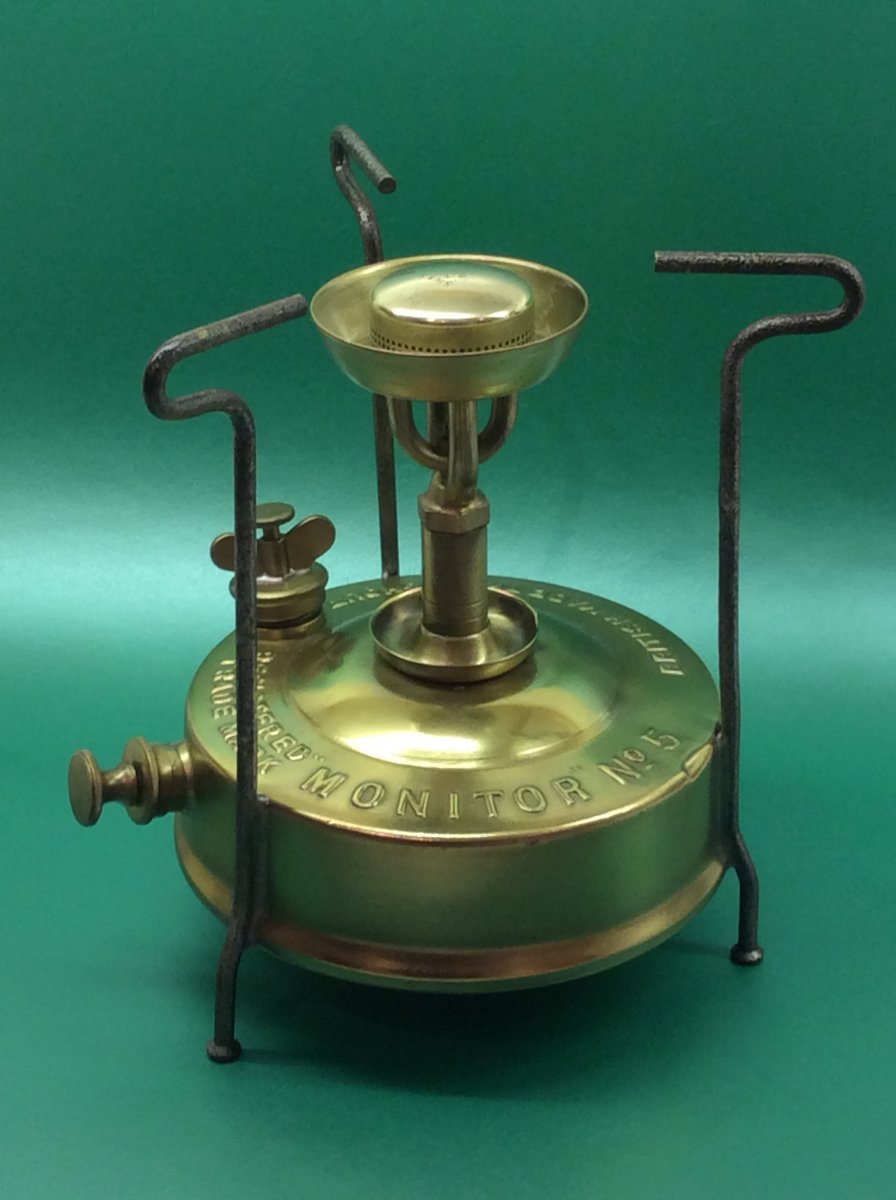

    I agree @shagratork , and yes, @teckguy_58 it has a patina that is more to my personal taste than the de-patinated look of THIS Monitor that shares many of the characteristics of the Thermidor - burner type, embossed lettering, solid build.


  7. presscall

    presscall United Kingdom SotM Winner SotY Winner Subscriber

    Offline
    Joined:
    Aug 25, 2009
    Messages:
    8,914
    So he did. I seem to remember Ian @igh371 posted about a burner with that feature not too long ago.

  8. MrAlexxx

    MrAlexxx Subscriber

    Offline
    Joined:
    Oct 21, 2015
    Messages:
    1,018
    Ahhhh the long lost older brother to my 1940. Mine has a few more tiny dings and dents probably because it never had the fancy pickle tin protector. That removable pump tub feature is surely the cat's meow for NRV maintenance isn't it? One of my favorite brassies. Outstanding!

  9. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Jun 8, 2013
    Messages:
    6,107
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @presscall

    Great stove, great presentation.:thumbup::thumbup::thumbup:

    Cheers

    Tony

  10. gieorgijewski

    gieorgijewski Subscriber

    Offline
    Joined:
    Apr 19, 2013
    Messages:
    2,245
    But why only this one?
    :)

  11. Simes

    Simes Subscriber

    Offline
    Joined:
    Jul 26, 2004
    Messages:
    4,309
    Location:
    I'm on the way....
    @presscall. John, is the colour more to do with the varnish/laquer used on British stoves do you think? Quite a number get that almost chocolate brown colour. Possibly a thin coating of electrical insulation varnish used in motor manufacture as protection possibly.

  12. presscall

    presscall United Kingdom SotM Winner SotY Winner Subscriber

    Offline
    Joined:
    Aug 25, 2009
    Messages:
    8,914
    @Simes. I can’t see any residue of varnish, but I follow your reasoning.

    John

  13. Simes

    Simes Subscriber

    Offline
    Joined:
    Jul 26, 2004
    Messages:
    4,309
    Location:
    I'm on the way....
    Just a curiosity at this point then. Possibly the brass quality and other quantities of metals present, although the storage conditions probably affect the patina. Only.from memory, but old stoves (No 5's generally) kicking about in the back of antique yards in the wet can get pretty dark.

  14. presscall

    presscall United Kingdom SotM Winner SotY Winner Subscriber

    Offline
    Joined:
    Aug 25, 2009
    Messages:
    8,914
    That’s true. The dust on this was dirty and ingrained. Warm soapy water got rid of the worst and then a gentle superficial polish with Autosol to ‘cut’ the ingrained dirt - I indulged in picking out the embossed lettering too. Finish with auto car wax.

  15. gieorgijewski

    gieorgijewski Subscriber

    Offline
    Joined:
    Apr 19, 2013
    Messages:
    2,245
    Don"t You have pictures with initial conditions of this stove?

  16. presscall

    presscall United Kingdom SotM Winner SotY Winner Subscriber

    Offline
    Joined:
    Aug 25, 2009
    Messages:
    8,914
    From the ebay listing - not any more.

  17. Metropolitantrout

    Metropolitantrout Subscriber

    Offline
    Joined:
    Feb 3, 2011
    Messages:
    1,027
    Location:
    Santa Cruz, CA
    So unique. The burner, embossing, pump and release valve hardware, date stamp and most of all that patina! That's a real beauty John and well presented as usual. Jerry

  18. presscall

    presscall United Kingdom SotM Winner SotY Winner Subscriber

    Offline
    Joined:
    Aug 25, 2009
    Messages:
    8,914
    Turns out I was able to retrieve the auction photos. Pretty grubby!

    s-l1600 (1).jpg


  19. gieorgijewski

    gieorgijewski Subscriber

    Offline
    Joined:
    Apr 19, 2013
    Messages:
    2,245
  20. Metropolitantrout

    Metropolitantrout Subscriber

    Offline
    Joined:
    Feb 3, 2011
    Messages:
    1,027
    Location:
    Santa Cruz, CA
    You brought that one back from the dead.
