Trangia Burner variants

Discussion in 'Trangia' started by lanevitt, Sep 2, 2018.

  1. lanevitt

    lanevitt Subscriber

    Offline
    Joined:
    Jun 27, 2009
    Messages:
    1,610

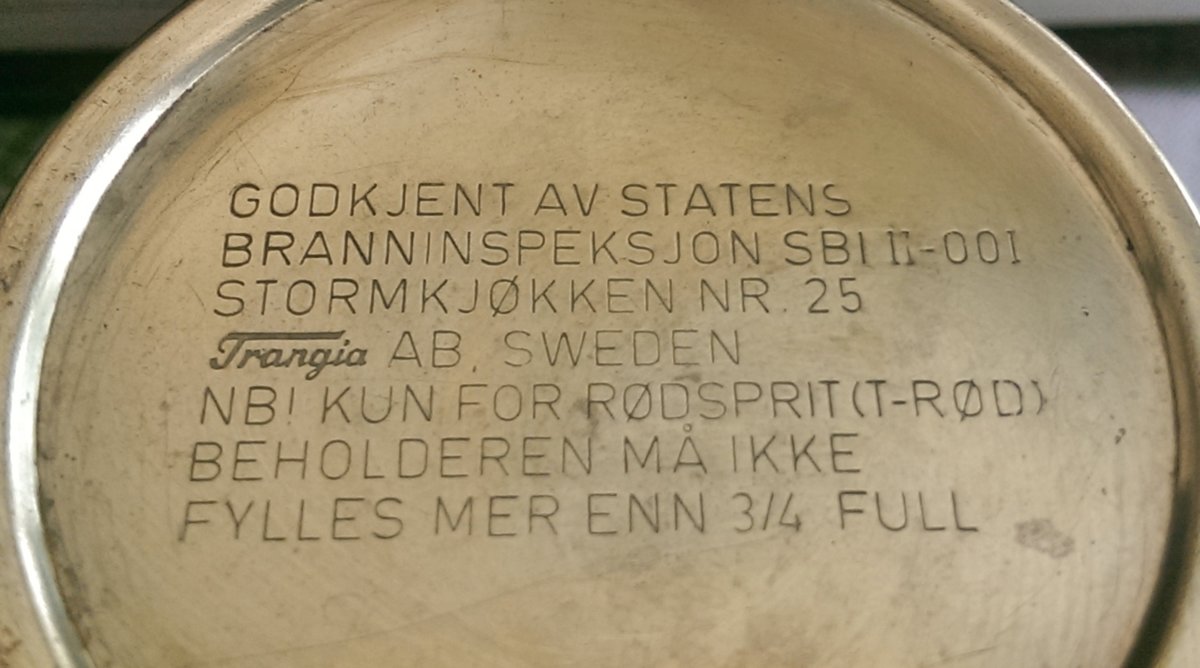

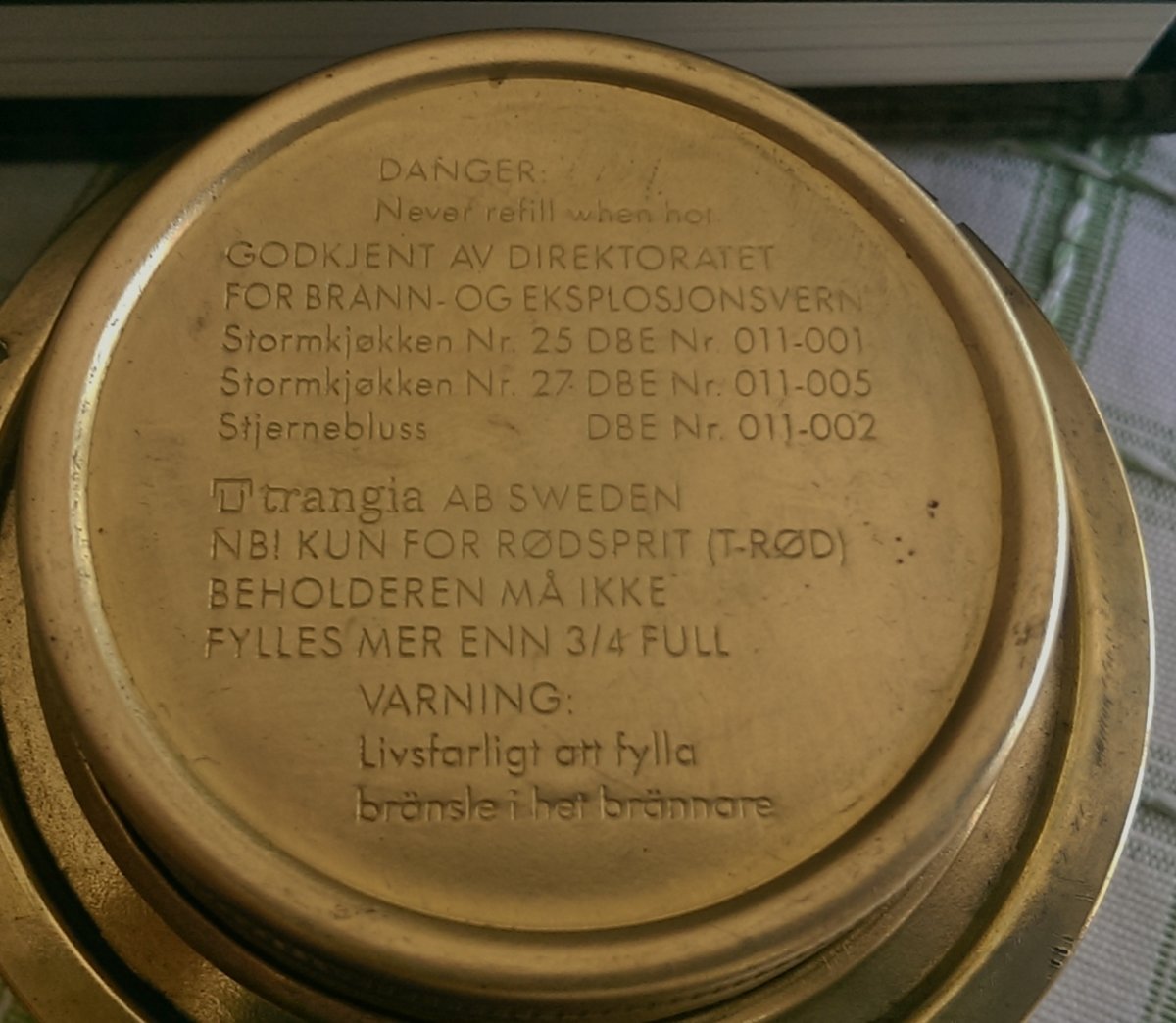

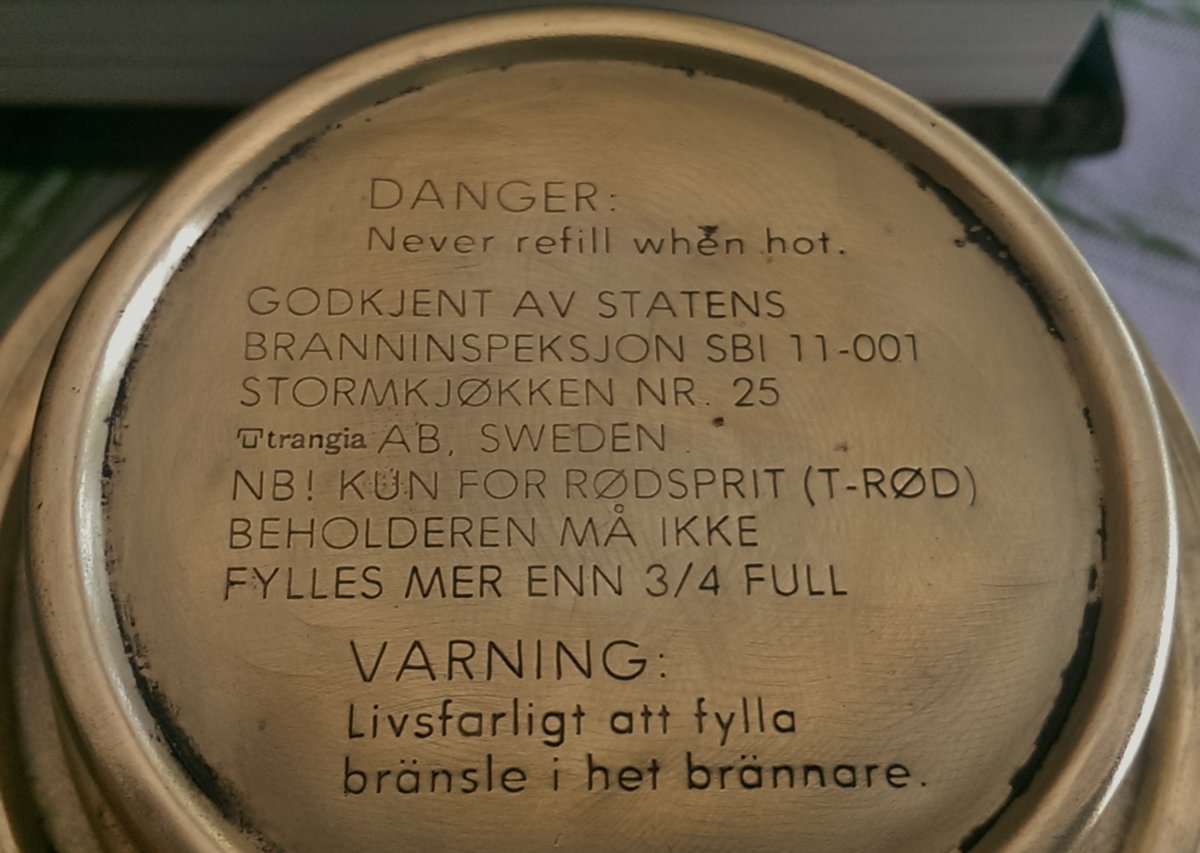

    After collecting up most of my Trangia burners so as to give then a good clean, I noticed quite a few variations to the screw cap warning information ...Out of the group I have there are five variants.. I thought I would take some pictures and add it to the forum.. It would be interesting if anyone can add to the five variations here...

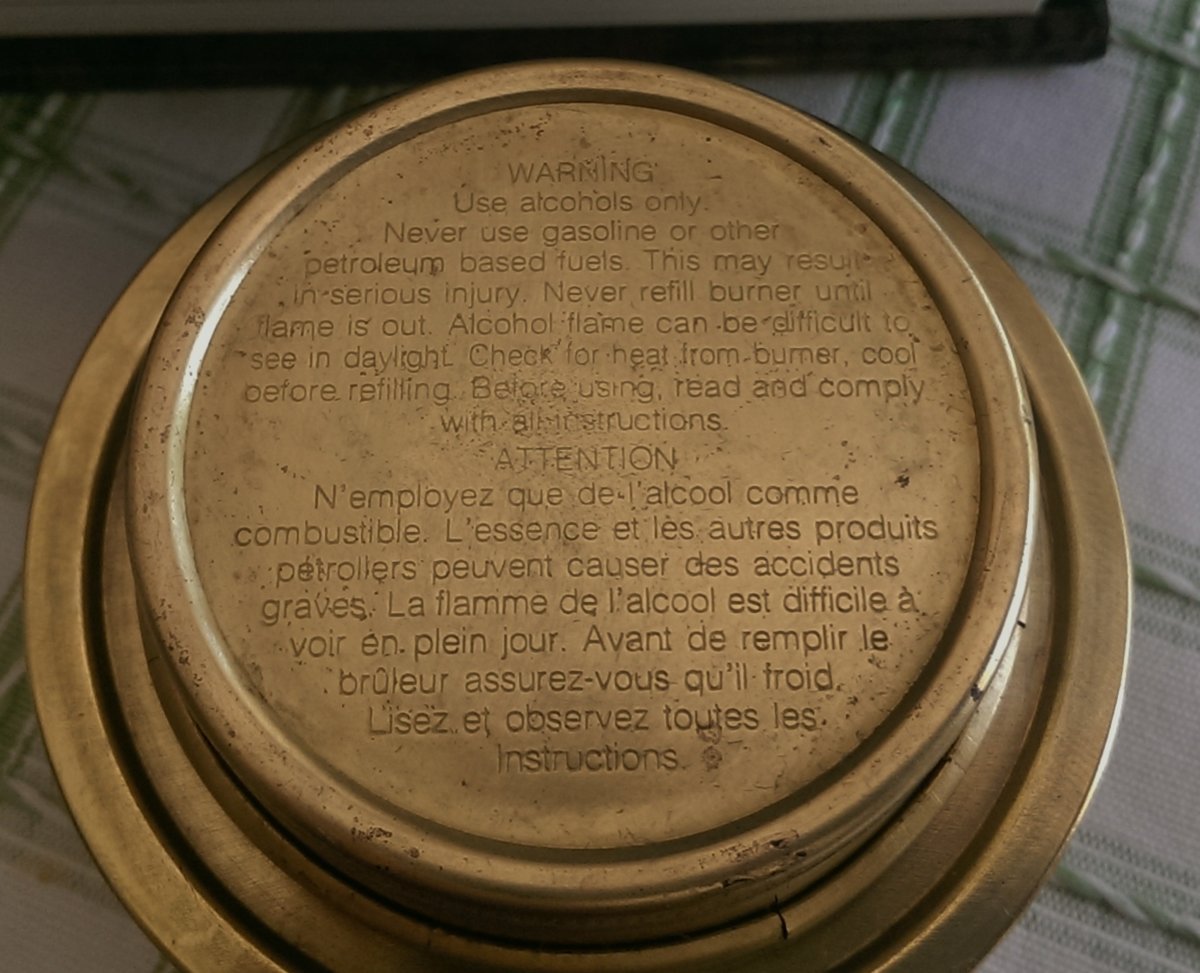

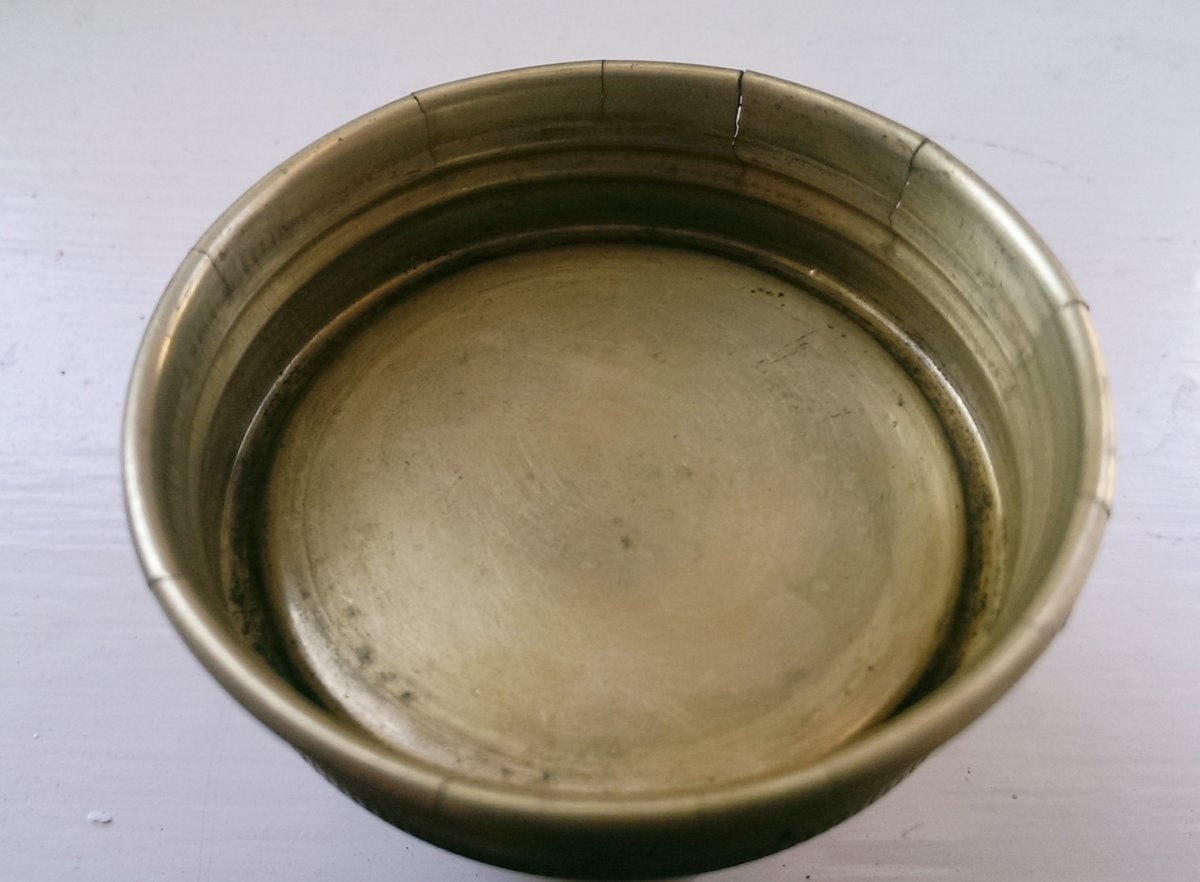

    Interesting to note, the fifth screw cap is the most common of my burners, and out of all the caps this style is the only type to feature cracks on the sides. No other screw cap design shows this. ( No, i'm not over tightening them..No, I'm not snuffing out the burner with them.)
    They do feel thinner than all the other type.

  2. lanevitt

    lanevitt Subscriber

    Offline
    Joined:
    Jun 27, 2009
    Messages:
    1,610

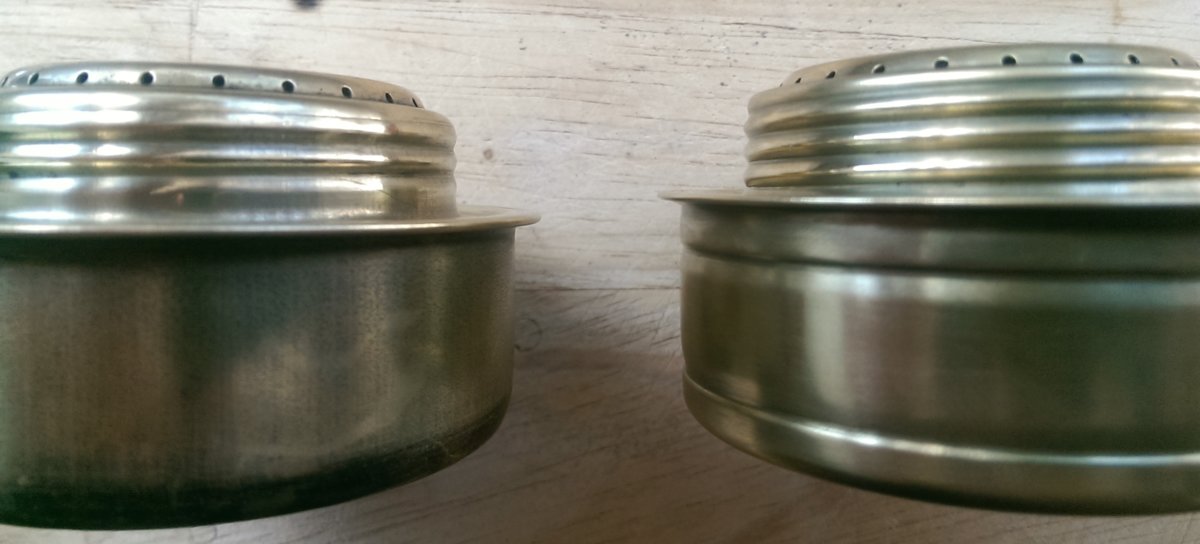

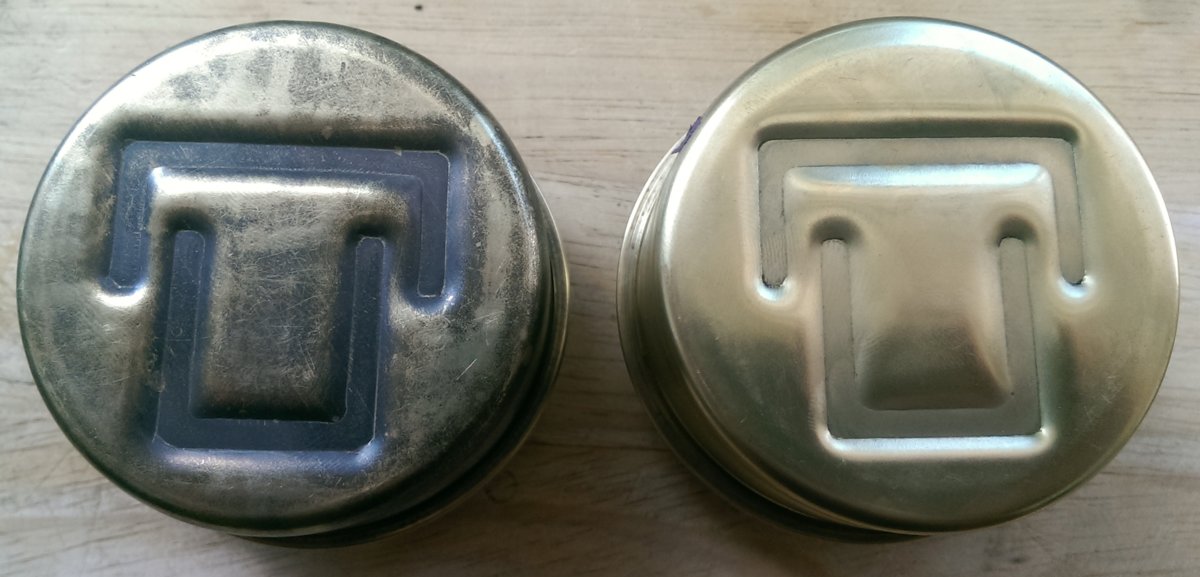

    Also noted there seems to be a rogue burner ...Genuine Trangia...showing no Trangia winter attachment groove at the base of the burner body, A slightly rounded edge at the base and different thread pitch for the burner cap..which means no mixing of screw caps...




    Also, the one on the left is sporting a darker base colour.

  3. Odd

    Offline
    Joined:
    Oct 4, 2013
    Messages:
    639
    Location:
    Östhammar, Sweden
    And to that - those first four lids seems to be aimed at the Norwegian market exclusively. I highly doubt a Swedish manufacturer would use Norwegian as a lingua franca for the entire Scandinavian market...

    I'll have to go out into the Man Cave and dig some (since long buried deep) of my old Trangia burners out. I'll be back with what I find...

  4. Odd

    Offline
    Joined:
    Oct 4, 2013
    Messages:
    639
    Location:
    Östhammar, Sweden
    Well, I found 4 burners down there. They match the first, second and fourth pictures.
    I haven't gotten any burner matching your third picture (or your last one for that matter).

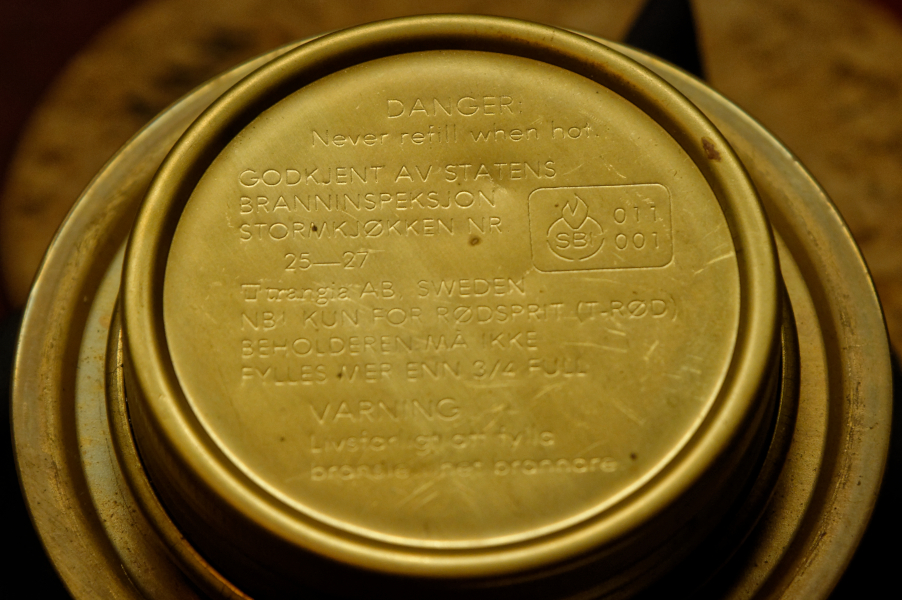

    BUT! I found yet another iteration!
    So my guess now is - Trangia is fulfilling a unique Norwegian testing regulation.

    Here's a picture of that one:

  5. lanevitt

    lanevitt Subscriber

    Offline
    Joined:
    Jun 27, 2009
    Messages:
    1,610
    Nice one Odd ... must be being made here there and everywhere.. Interesting to note that a few of mine denote using the burner with the model 25 and yours shows both the 25 and the 27 stoves.

  6. SveaSizzler

    SveaSizzler United States Subscriber

    Offline
    Joined:
    Jul 26, 2016
    Messages:
    1,101
    Location:
    Tucson, Arizona
    I have one with the first inscription, no English. Bought in 1980 from REI, as "REI Alcohol Burner", for about $3.95 USD, no brand name in catalog.

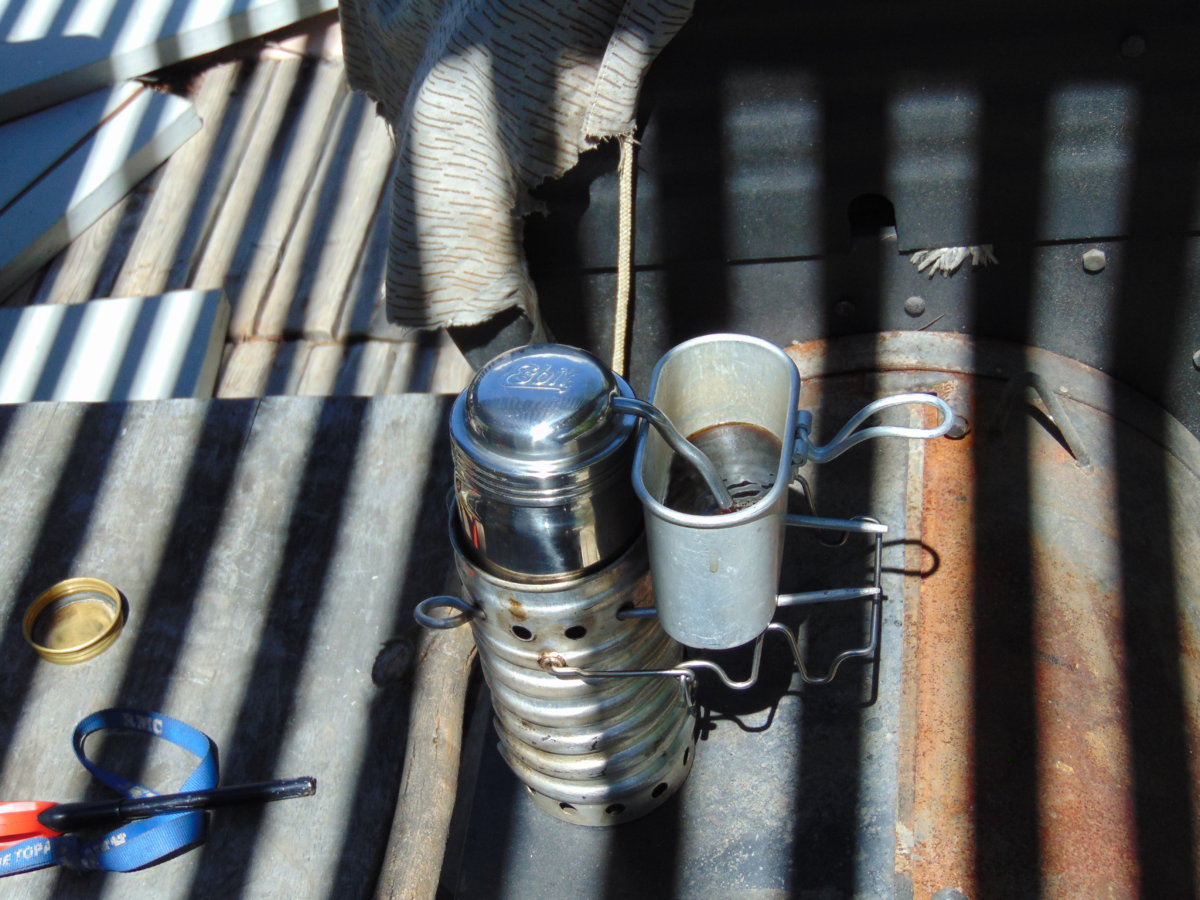

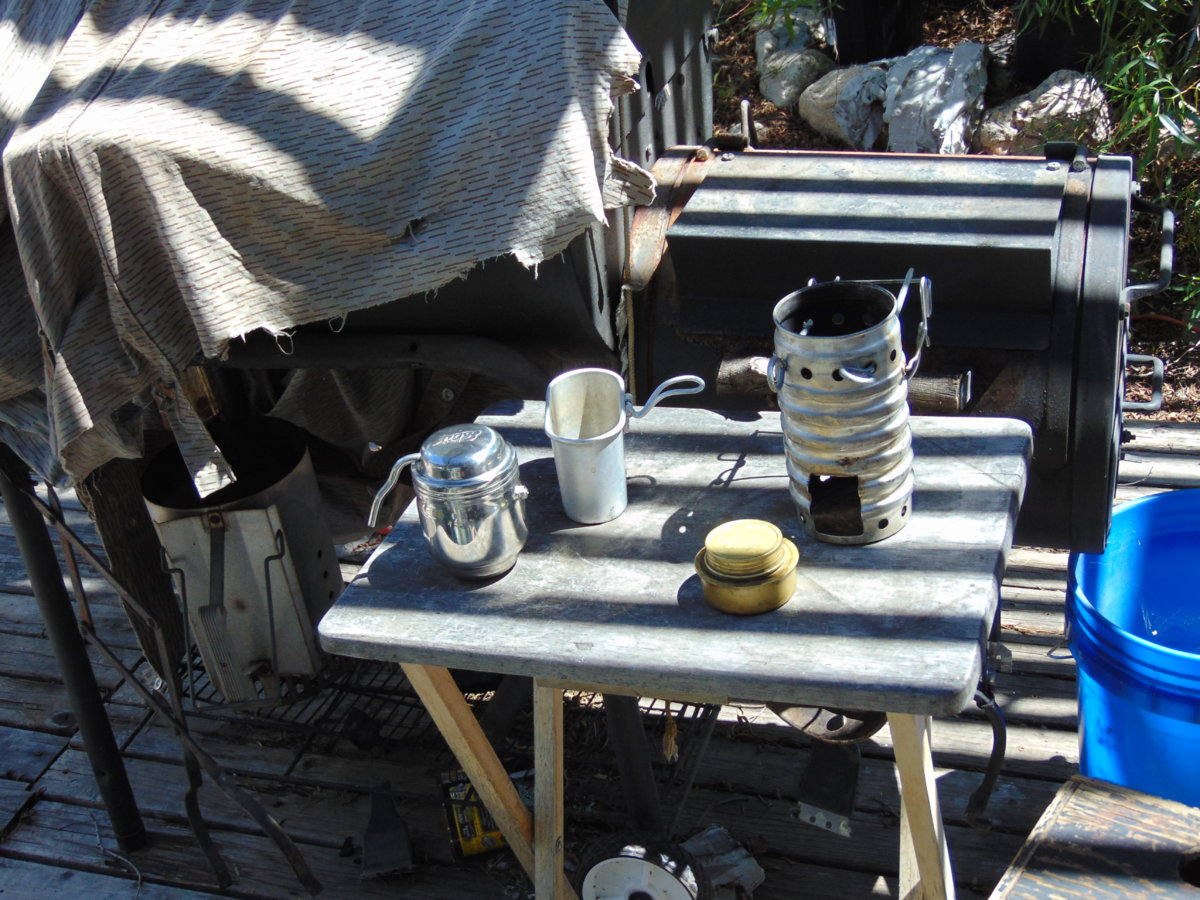

    I had fun with it today. I intended to fire up my Esbit Coffee Maker inside my Borde Flask Cooker with the Trangia as the heat source. Output went into an Italian Army surplus canteen cup, balanced on top of the bail on the far side, supported by some aluminum tent pegs to help the Esbit sit at the right height and angle in the Borde.
    All went swimmingly well, until physics intervened, and the contents of the pot [coffee] transfered its mass to the cantilevered cup, the burner had less fuel weight than its prelight state, and the pot became empty -- resulting in critical imbalance, a tumble, and no morning espresso for me. Good thing I did this test at home, not on the trail.

    DSC00233.JPG DSC00234.JPG DSC00235.JPG DSC00236.JPG DSC00237.JPG DSC00238.JPG DSC00239.JPG DSC00240.JPG

  7. Hazet

    Hazet Subscriber

    Offline
    Joined:
    Mar 25, 2007
    Messages:
    685
    Location:
    WNC USA
    I personally have examples of all of the caps shown above, so I will avoid posting duplicates.

    Here are some different variation caps I have:

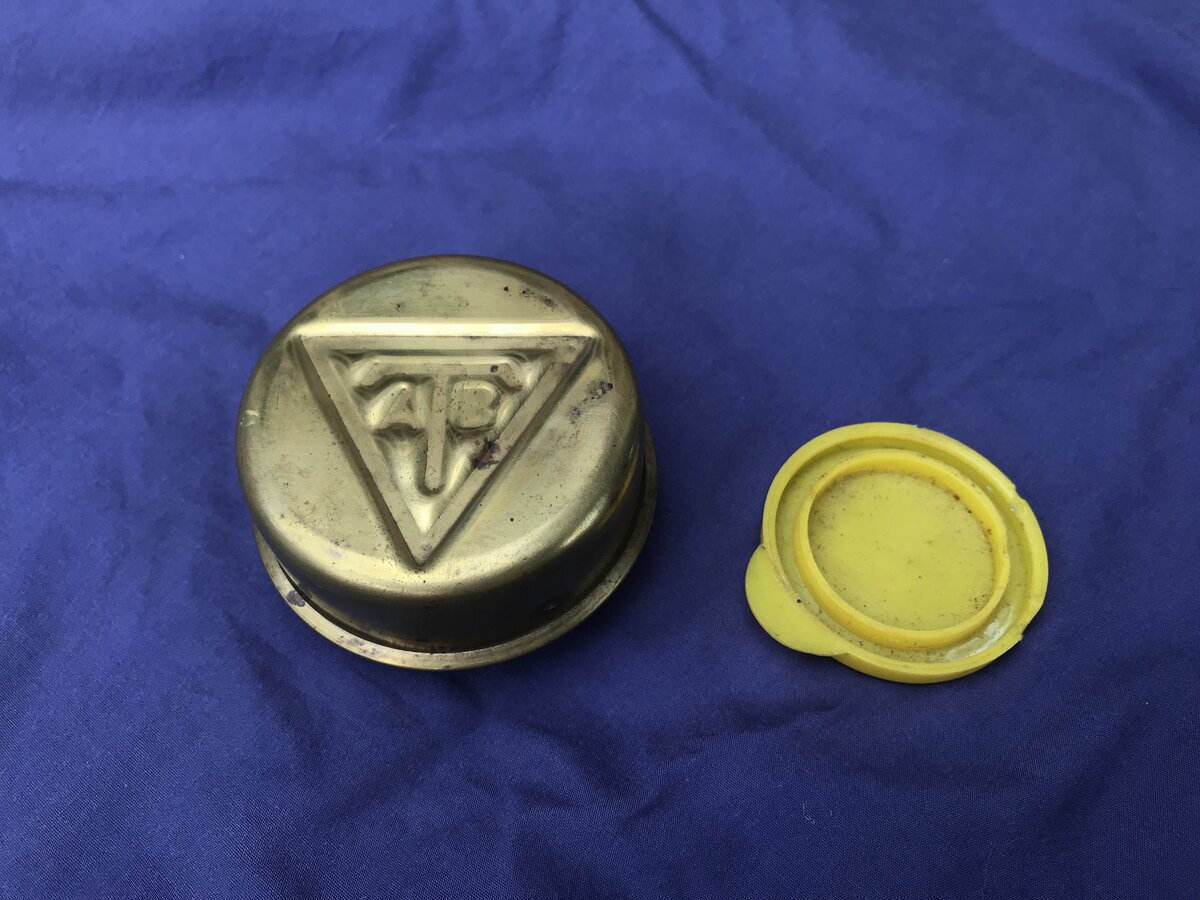

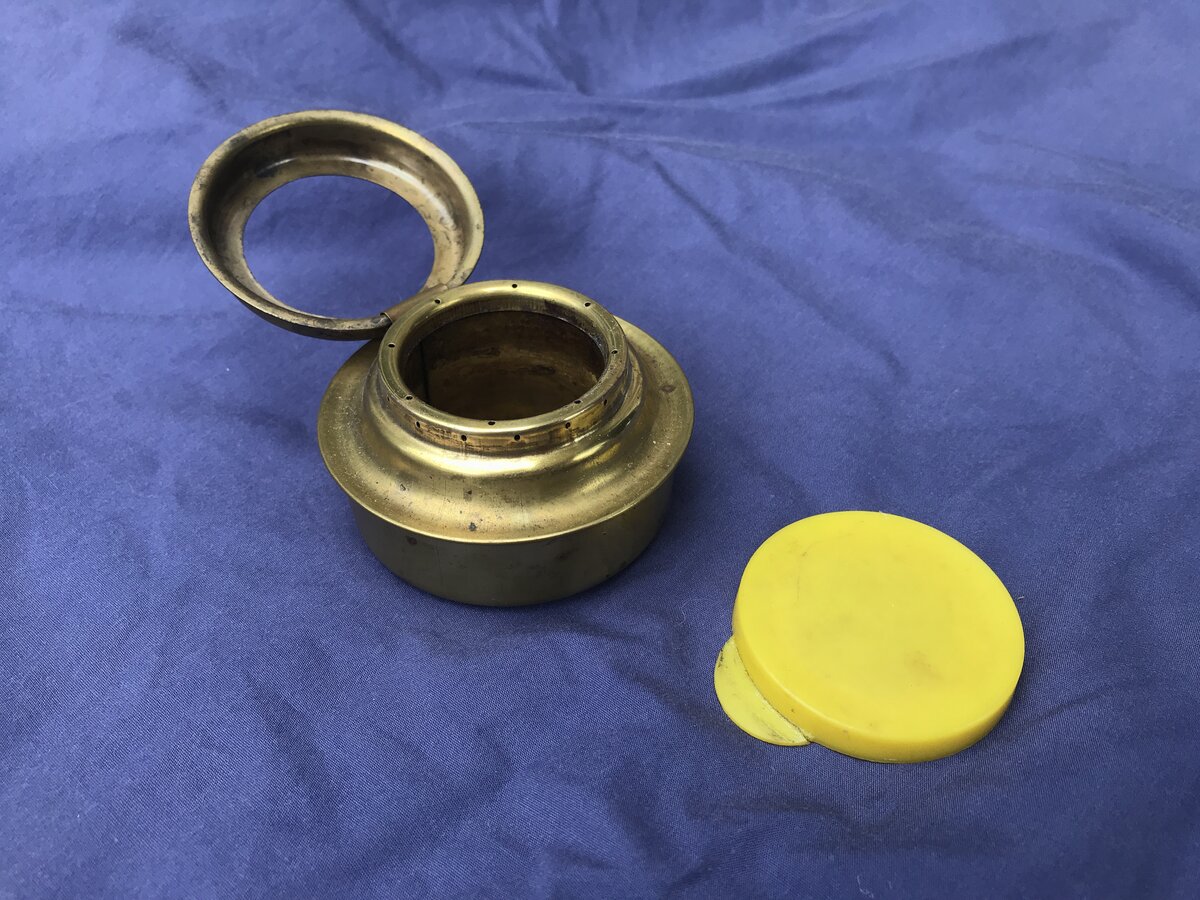

    As far as I know, this is the first "cap", or an attempt at after-use fuel retention, or at least to keep remaining fuel from evaporating until next use. Yellow plastic material, with a press fit on the squarely formed top of the burner. Circa early-mid 1960's. Burner has non-removable, attached, hinged simmer ring. TAB logo on bottom of burner. This style cap might allow for very short term storage of unburnt fuel in the burner. I have not tried to see if the cap is fuel-tight. The tab is prone to being broken off by the simmer ring. It certainly could not be used to extinguish the stove, it would melt.
    IMG_5476.JPG IMG_5477.JPG

    I think this could be the first style and markings for a screw on type cap. TAB markings on the bottom of the burner. Clip-on simmer ring. I have two examples of this cap. Knurling is very defined on these caps. Simple. Elegant.

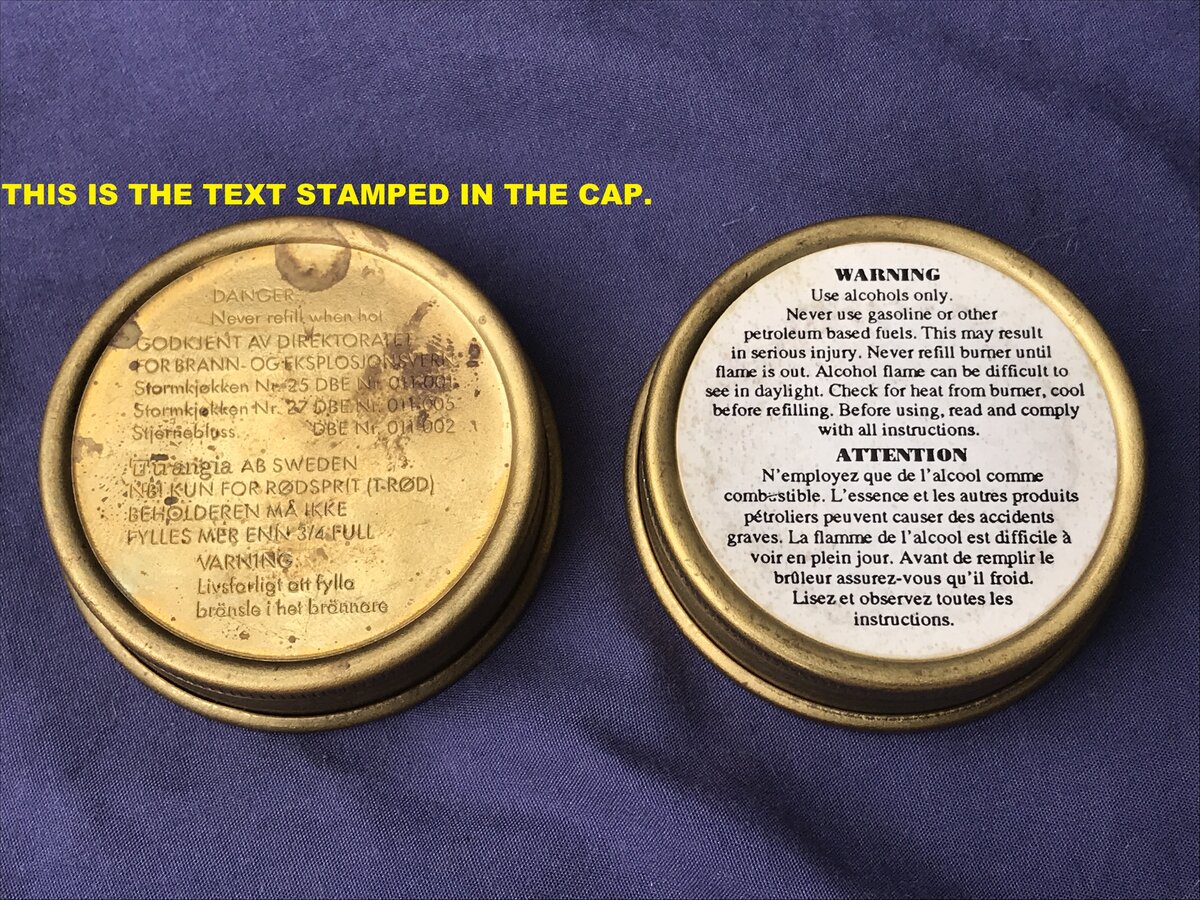

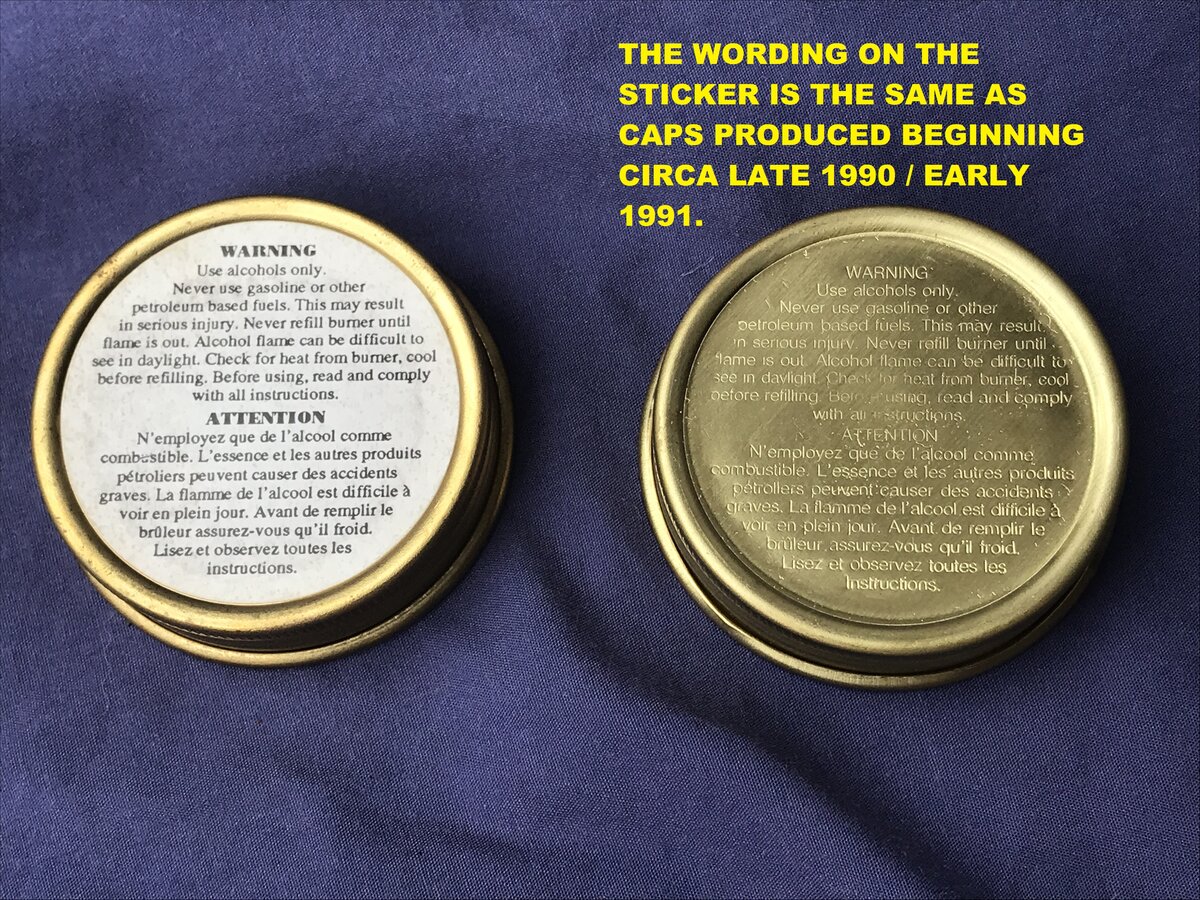

    I am calling the following a "Transition" cap. It has a sticker affixed to it.
    This cap is from an NOS late 1990 red non-stick 25 kit which was distributed through MSR. MSR paperwork included with the kit, date stamp of September 1990 (9009) on the plastic bag.

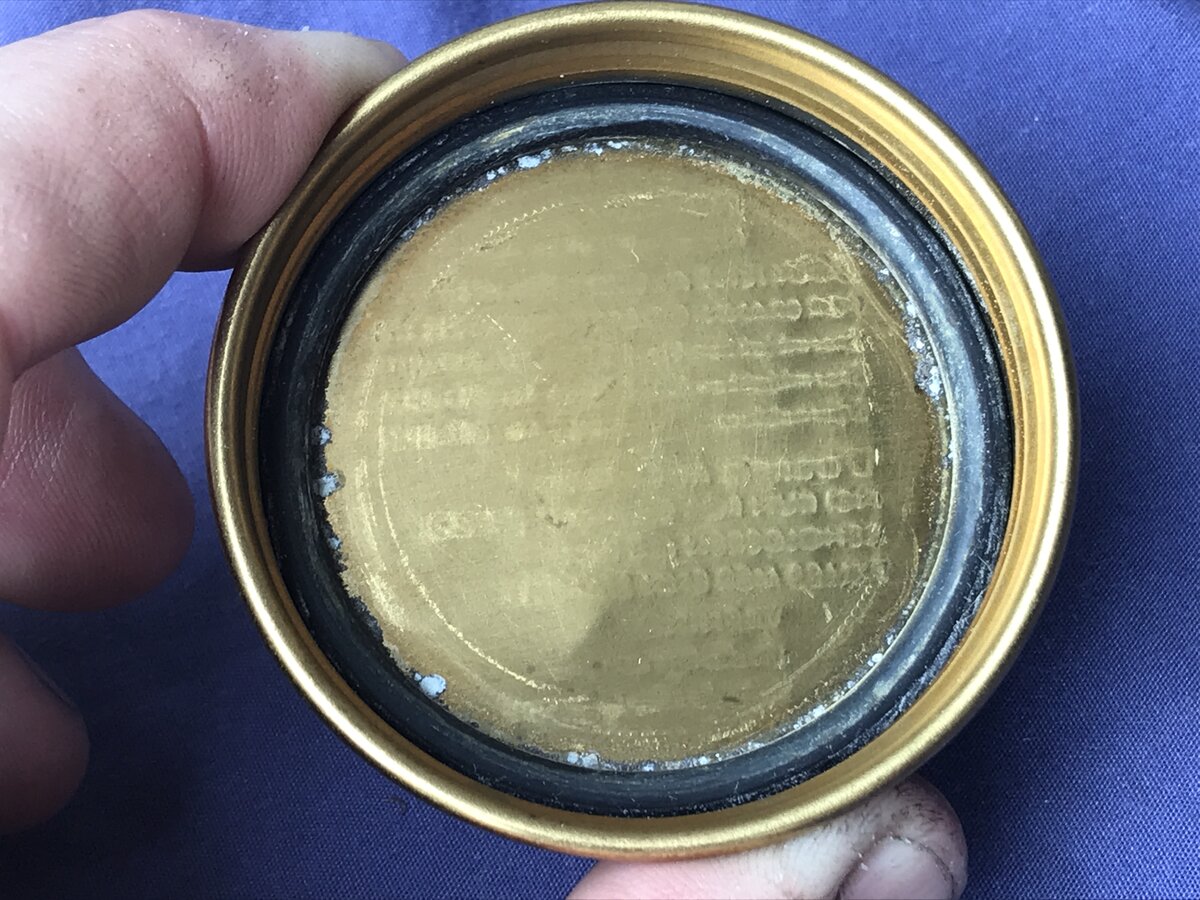

    There is a different stamping under the sticker, which can be seen and read (in reverse, of course) on the underside of the cap.
    The wording on the sticker is the "later" format and text which continues to this day (at least through 2019, which is the most modern cap/burner I own).
    I have not seen another example of this sticker, so I would have to speculate that it was only used for a very short period of time. My thought is that some kind of USA/North America, or perhaps international regulation required the wording change, and this was a way for "older production" stoves already on the market to be sold until the "updated" worded cap could be put into production and make their way through distribution channels. I have a couple other examples of early 1990's MSR distributed Trangia kits, and several newer kits, and they all have the "later" style wording on the caps.



    To me, it's a little bit of a bummer that this thread is buried in the paraffinalia section, rather than being in the Trangia stove/gallery section. :(

    Last edited: Sep 4, 2020
  8. Hazet

    Hazet Subscriber

    Offline
    Joined:
    Mar 25, 2007
    Messages:
    685
    Location:
    WNC USA
    As an addition to the "transition cap" pics above, and through the mystical powers of computer technology, I flipped the inside image, so the text is "readable" and comparable to the previous style stamping.

    IMG_5488 invert.jpg
