1939 Primus No.71

Discussion in 'Primus No:71' started by kerophile, Sep 24, 2010.

  1. lanevitt

    lanevitt Subscriber

    Offline
    Joined:
    Jun 27, 2009
    Messages:
    1,616


    I asked George if he had tried a BD cap on this Primuus 71's adjustable burner .....

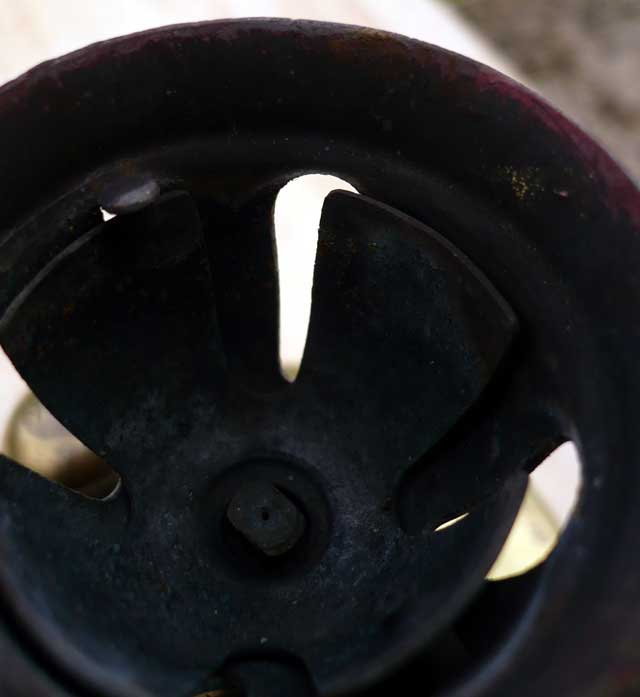

    Well, yesterday i recieved a 71e with the same adjustable burner. Sadly the little retaining tab that can be seen in the picture raises the cap from its seat, this allows the gases to escape from around the bottom rim. :cry:

    Last edited by a moderator: Jun 26, 2015
  2. Ian

    Ian Subscriber

    Offline
    Joined:
    Jul 26, 2004
    Messages:
    7,114
    Location:
    West Yorkshire
    Get the hammer...

  3. kerophile

    kerophile United Kingdom SotM Winner Subscriber

    Offline
    Joined:
    Sep 23, 2004
    Messages:
    14,339
    Location:
    Far North of Scotland

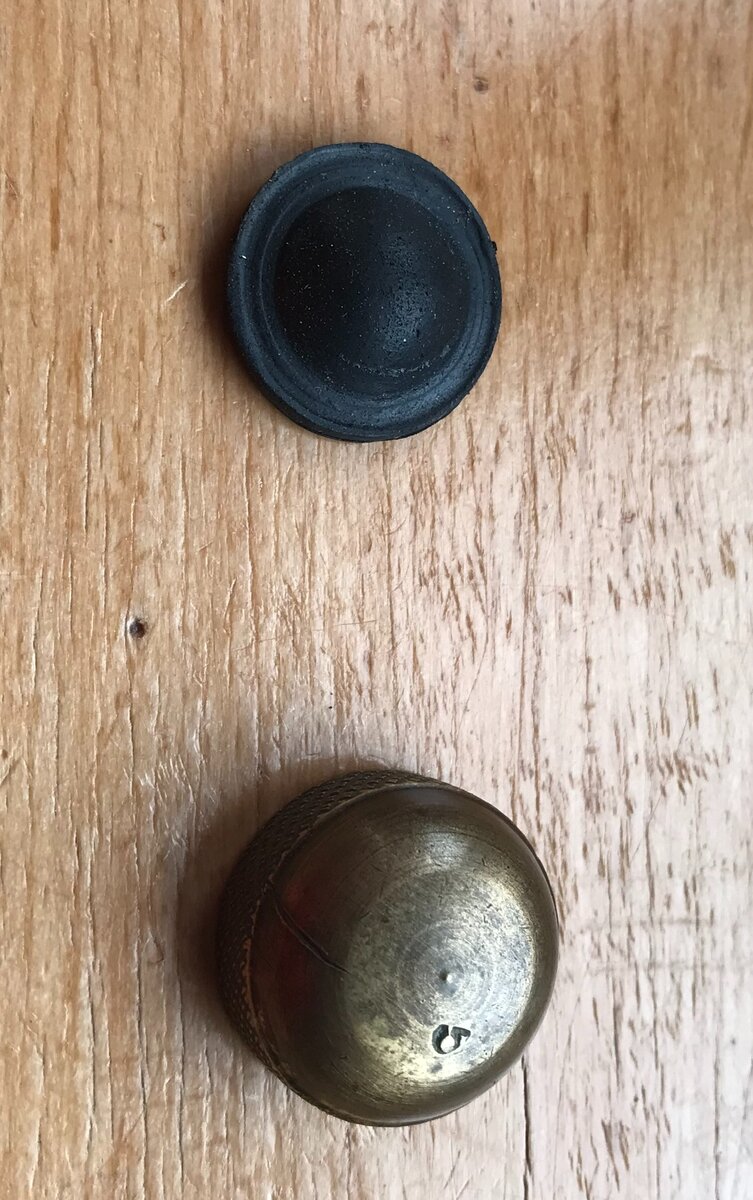

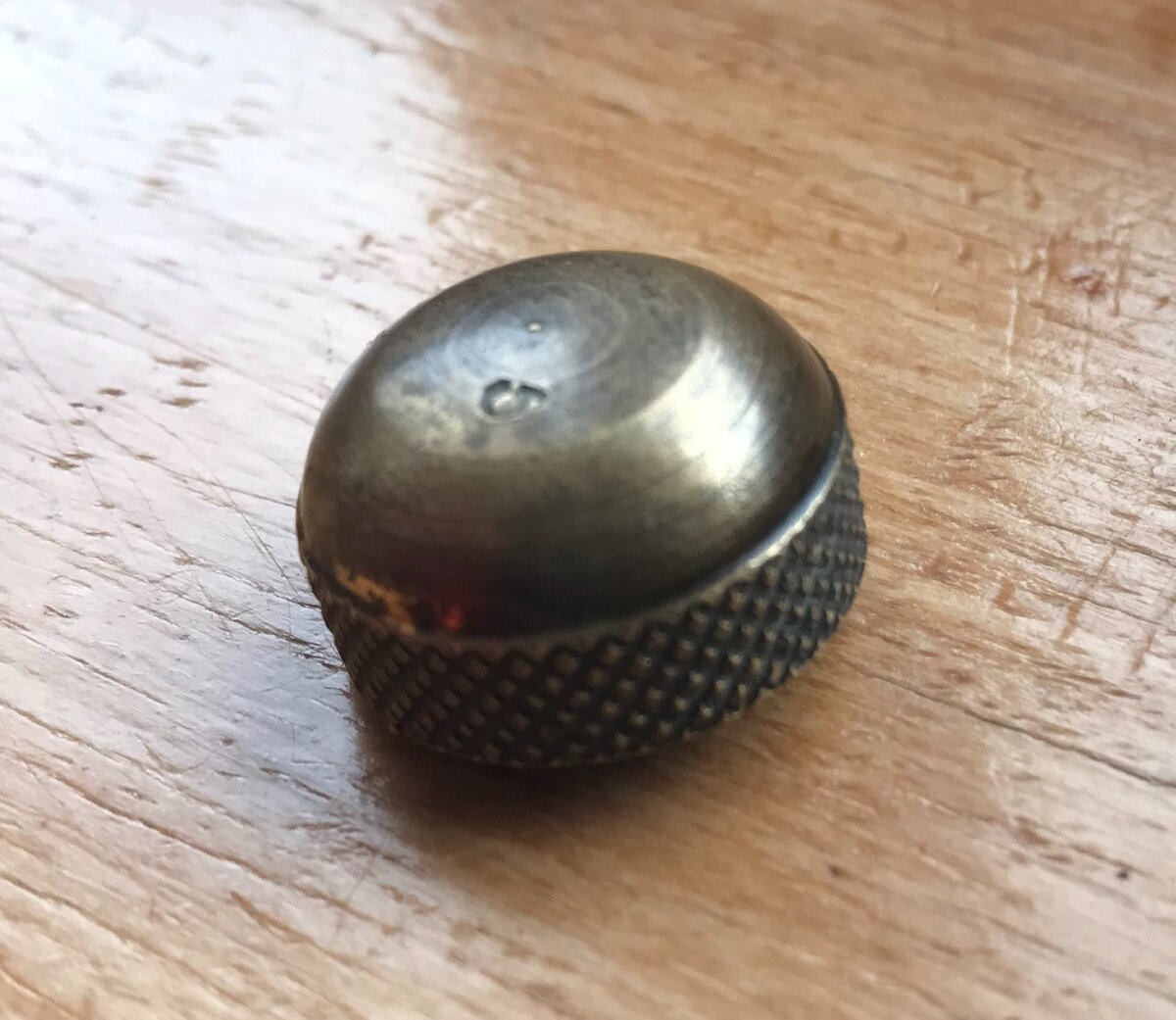

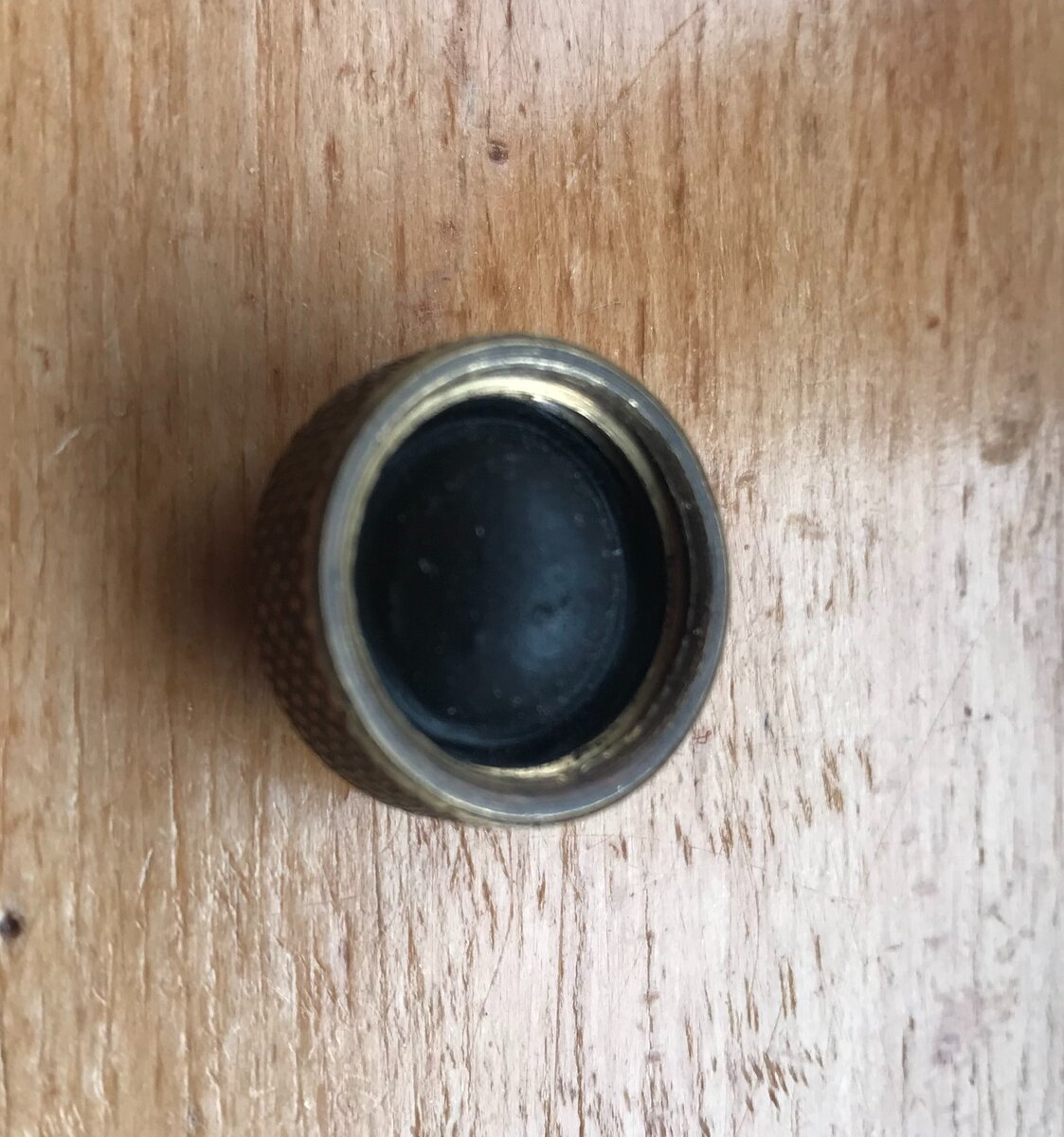

    BF2FB6FB-CD92-4DBD-9CF2-24F1158FA53B.jpeg F7731098-9C8D-4177-B873-7EB9D1BD18B8.jpeg F2FC0884-92C2-4427-82A9-4171EABDCBAC.jpeg AD99CEDB-906C-4B7F-B602-C405C03F981D.jpeg Here are some additional photo of the fuel filler cap of this stove:

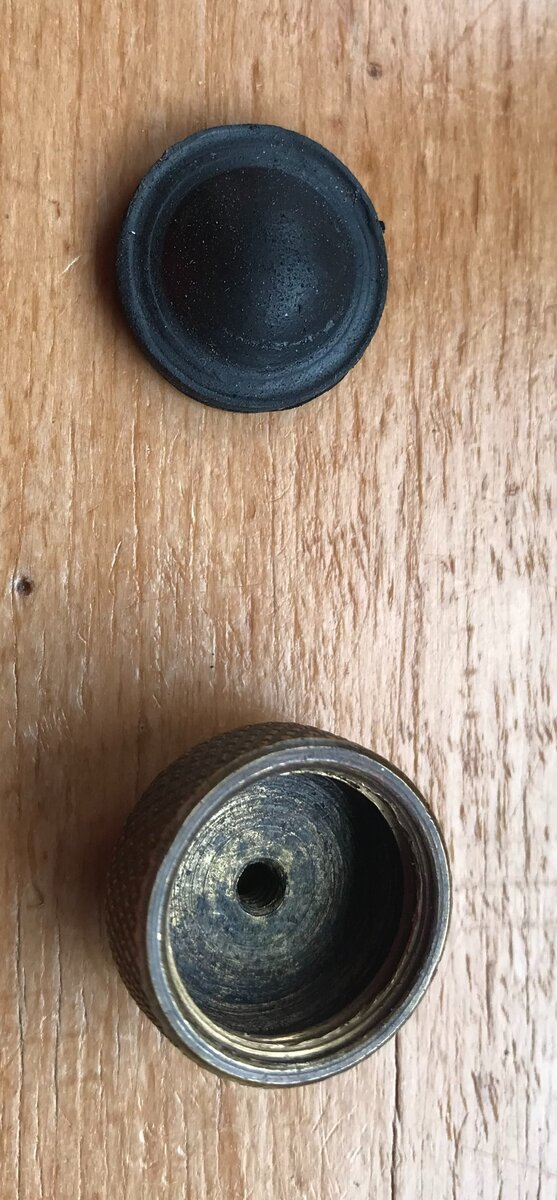

    Originally the threaded hole on the inside of the cap would have had a brass screw to secure a rubber washer/seal.
    This screw was missing on this stove but the stove still operates with a replacement washer.

    This washer has been exposed to gasoline vapour for many years and it has swollen, producing the convex domed cap you now see.
    It has no effect on performance and the stove still operates as intended.

    Best Regards,
    Kerophile.

    Last edited: Aug 4, 2021
