    So what can I do now, as I can't get this ventil ?
    I've seen this on ebay, shall I buy it ?


  2. presscall

    presscall United Kingdom Subscriber

    Online
    Joined:
    Aug 25, 2009
    Messages:
    6,630
    Location:
    UK
    If the price is reasonable, or wait until we locate the non-return valve components of spring, 'pip' cup and 'pip'.

  3. Mark Nash Germany

    Offline
    Joined:
    May 4, 2016
    Messages:
    39
    Location:
    Germany
    20 pounds
    If you or someone can get me the complete Ventil that would be fantastic
    Cheers

  4. Spiritburner

    Spiritburner United Kingdom Admin Subscriber

    Offline
    Joined:
    Jul 23, 2004
    Messages:
    9,553
    Location:
    N.E. England
  5. Mark Nash Germany

    Offline
    Joined:
    May 4, 2016
    Messages:
    39
    Location:
    Germany
    What the difference ? Does it make a difference ?

  6. Spiritburner

    Spiritburner United Kingdom Admin Subscriber

    Offline
    Joined:
    Jul 23, 2004
    Messages:
    9,553
    Location:
    N.E. England
    I do know the cylinder is a standard NRV size so should take the 4.5mm pip & holder. Just bigger than original & the lead washer is surplus in this application.

  7. Mark Nash Germany

    Offline
    Joined:
    May 4, 2016
    Messages:
    39
    Location:
    Germany
    do i send the order to you or from the website ?
    Thanks

  8. Mark Nash Germany

    Offline
    Joined:
    May 4, 2016
    Messages:
    39
    Location:
    Germany
    Many Thanks you two,
    ordered and paid.

    looking for a Military Lamp (90er jahre) Tilley or a Bialladin......

  9. Wim

    Wim Belgium Subscriber

    Offline
    Joined:
    May 12, 2009
    Messages:
    3,617
    Location:
    Dendermonde, Belgium
    Hi Mark @Mark Nash , if you want a military lamp from that era your search would be limited to the Vapalux/Bialladin M320 or maybe the slightly older 305. As far as I know, Tilley did not sell any mil spec lamps after the war.

    Grüss,

    Wim

  10. Mark Nash Germany

    Offline
    Joined:
    May 4, 2016
    Messages:
    39
    Location:
    Germany
    yes bialladin, thought i could get away with a tilley lamp but they are rarer as Bialladin !!

  11. Mark Nash Germany

    Offline
    Joined:
    May 4, 2016
    Messages:
    39
    Location:
    Germany

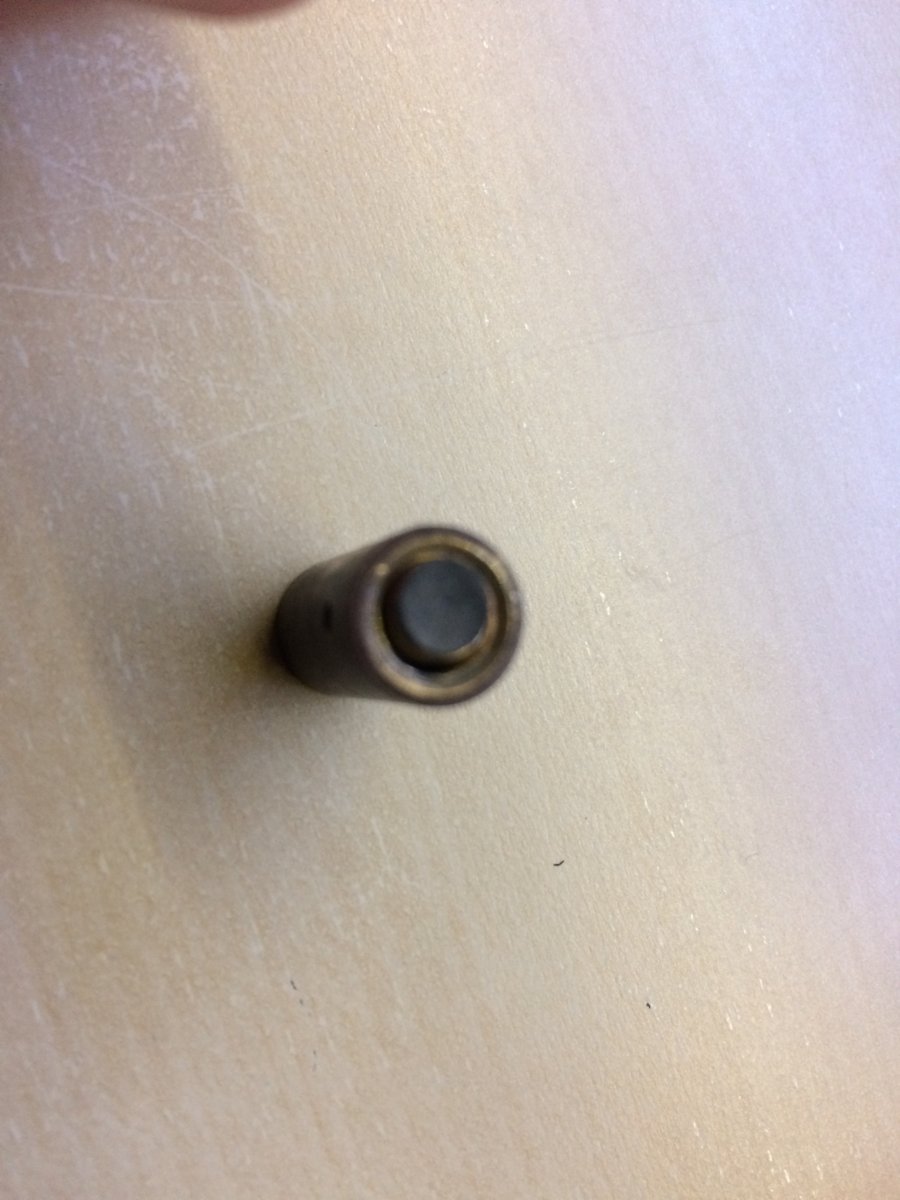

    Anhang 1(5).jpg Anhang 2(4).jpg so got the parts but somehow its not right.
    the first time i screwed it onto the end, pumped it but no differance, unscrewed it again and the pip was stuck at the end of the valve ?
    and it seems to have to much room at the top ?

  12. kerophile

    kerophile United Kingdom Subscriber

    Online
    Joined:
    Sep 23, 2004
    Messages:
    8,863
    Location:
    Far North of Scotland
  13. Mark Nash Germany

    Offline
    Joined:
    May 4, 2016
    Messages:
    39
    Location:
    Germany

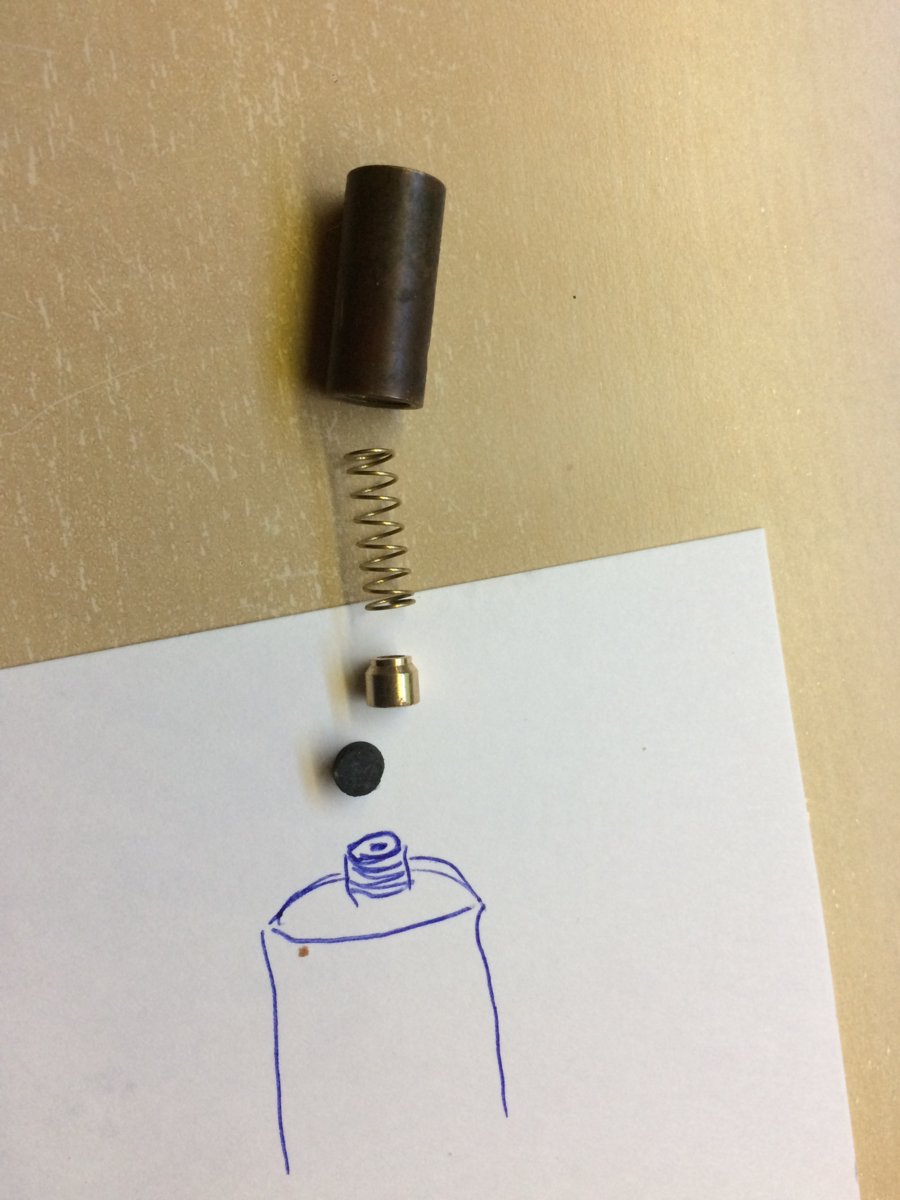

    that is !! where the pip is screws in at the bottom of the pump

    Anhang 1(6).jpg

  14. kerophile

    kerophile United Kingdom Subscriber

    Online
    Joined:
    Sep 23, 2004
    Messages:
    8,863
    Location:
    Far North of Scotland
    Hi @Mark Nash You have the parts in the correct orders so the NRV should work.
    Is the pip retained in the brass carrier, or is it loose and sticks to the nozzle on the base of the pump cylinder?
    Best Regards,
    Kerophile.

  15. Mark Nash Germany

    Offline
    Joined:
    May 4, 2016
    Messages:
    39
    Location:
    Germany
    pip is in the brass holder . no it gets stuck in the valve ?
    Today full of high hopes , got the service kit , had the jet cleaner wheel re soldered and was good to go.
    sadly no pressure , ive been sent 2 differant types of Cups , both seem wrong.
    and to top that petrol started dripping out of the jet cleaner wheel ? how do i seal that correctly ? and ive just seen this part that is over, that noone knows where it came from, could it have anything to do with the leek because its missing ?

    Last Question. is there anyone that i can send this too that could repair it for me (of course for money) i can repair most things but this is driving me nuts !!! Anhang 1(7).jpg Anhang 6.jpg Anhang 3(2).jpg Anhang 1.jpg Anhang 4.jpg Anhang 5.jpg

  16. kerophile

    kerophile United Kingdom Subscriber

    Online
    Joined:
    Sep 23, 2004
    Messages:
    8,863
    Location:
    Far North of Scotland
    Hi @Mark Nash you seem to have the pump assembled and it looks like a fairly basic design, similar to that used in the German/Dutch Heinze/Geniol Military stove:

    https://classiccampstoves.com/threads/heinze-geniol-military-stove-pump-fettling.31364/

    I do not undertand which extra part you are referring to. Is it a spare leather pump bucket shown in the last photo? If so it is a spare and not related to any leak

    Where does the jet cleaner leak? These cleaners generally operate through a packing gland containing graphite packing. If you turn the hexagonal nut on the packing gland it should compress the packing surrounding the shaft, stopping any leak. Do not over-tighten as you will stop the shaft turning.

    Are you able to take the pump out of the tank? If so you should assemble the pump away from the stove. Immerse the end in a glass of water and pump. You should see if the pump is working as bubbles should appear in the water. You will also test whether the valve seals on the backstoke, as water will be sucked into the pump cylinder if the pip fails to seal.

    I do not know anyone who would wish to work on a British Army No.3 stove....

    Best Regards,
    Kerophile.

    Last edited: Jan 21, 2017
  17. Mark Nash Germany

    Offline
    Joined:
    May 4, 2016
    Messages:
    39
    Location:
    Germany
    i tried that with the water test, water came in to the pump inbetween the pump handle schaft and the Screw top.

    i put brapphite in the thread but it still leaked , can i use another tape like Ptfe or loctite ?

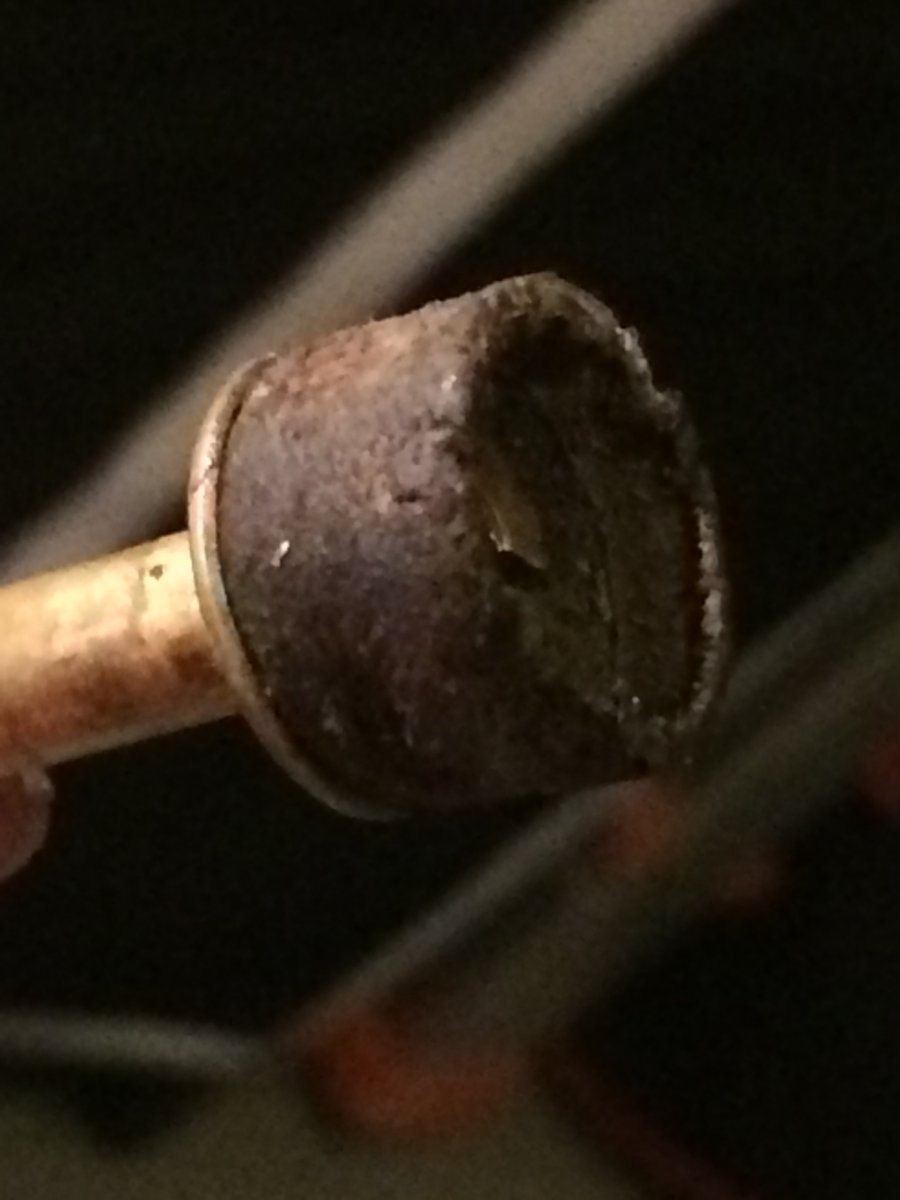

    pic 1 and 6 is the new cup but as you see it forms waves and of course cannot make pressure.

    No 5 is the first one i bought.
    Pic 2 is the 2 together.
    Pic 4 is this round part that does not seem to go anywhere ?

  18. kerophile

    kerophile United Kingdom Subscriber

    Online
    Joined:
    Sep 23, 2004
    Messages:
    8,863
    Location:
    Far North of Scotland
    Hi, This is a petrol/gasoline stove so DO NOT use it until you are sure that all leaks are cured.

    Both the old and new pump leathers look good to me and should seal and pump OK after a soak in oil.

    The NRV leaks and you should concentate in getting that fixed.

    Graphile tape, or pre-shaped graphite packing is the only approved sealant for control shafts in the service conditions experienced by these stoves.

    I do not recognise the extra component shown in photo 4.

    Best Regards,
    Kerophile.

  19. presscall

    presscall United Kingdom Subscriber

    Online
    Joined:
    Aug 25, 2009
    Messages:
    6,630
    Location:
    UK
    @Mark Nash
    I'm willing to offer whatever assistance I can but I suggest it should be by 'Conversation' (private message) or a separate post in the Fettling Forum rather than a series of exchanges in a Stove Reference Gallery entry.

    John

  20. Mark Nash Germany

    Offline
    Joined:
    May 4, 2016
    Messages:
    39
    Location:
    Germany
    if i start a new post now i will have to repeat the whole thing ?

    Oh and sorry for Hijacking your theme
