Ehrich & Graetz, 'Graezea' silent burner, late 1920s

Discussion in 'Petromax & Aida' started by igh371, Apr 30, 2026 at 9:04 PM.

  1. igh371

    igh371 SotM Winner Subscriber

    Online
    Joined:
    Jun 23, 2013
    Messages:
    2,851
    Location:
    Durham

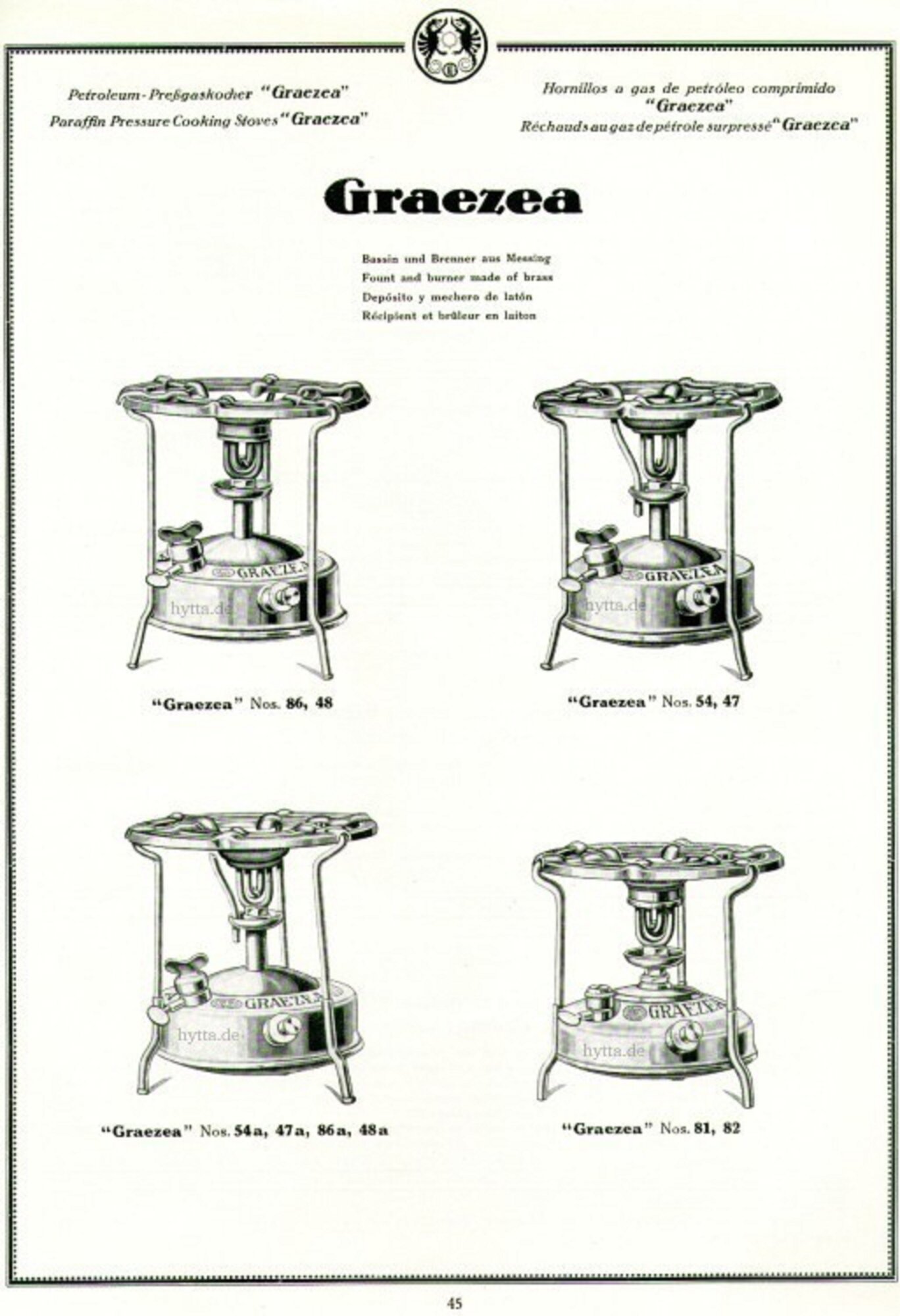

    This stove has posed many questions, not least whether to present it here, or under the name of Falk, Stadelmann & Co Ltd in Great Britain. It seems unquestionable that it was made in Germany by Ehrich & Graetz, but unlike the examples in Ehrich & Graetz's own catalogues, this example has no markings of any sort either on the tank or any of the components. As such it seems more in line with some stoves made by Ehrich & Graetz for sale in Britain through Falk, Stadelmann. The lack of markings hiding the country of origin. 1930s German catalogues also show the Graezea on sale there at that time with a different form of burner cap:

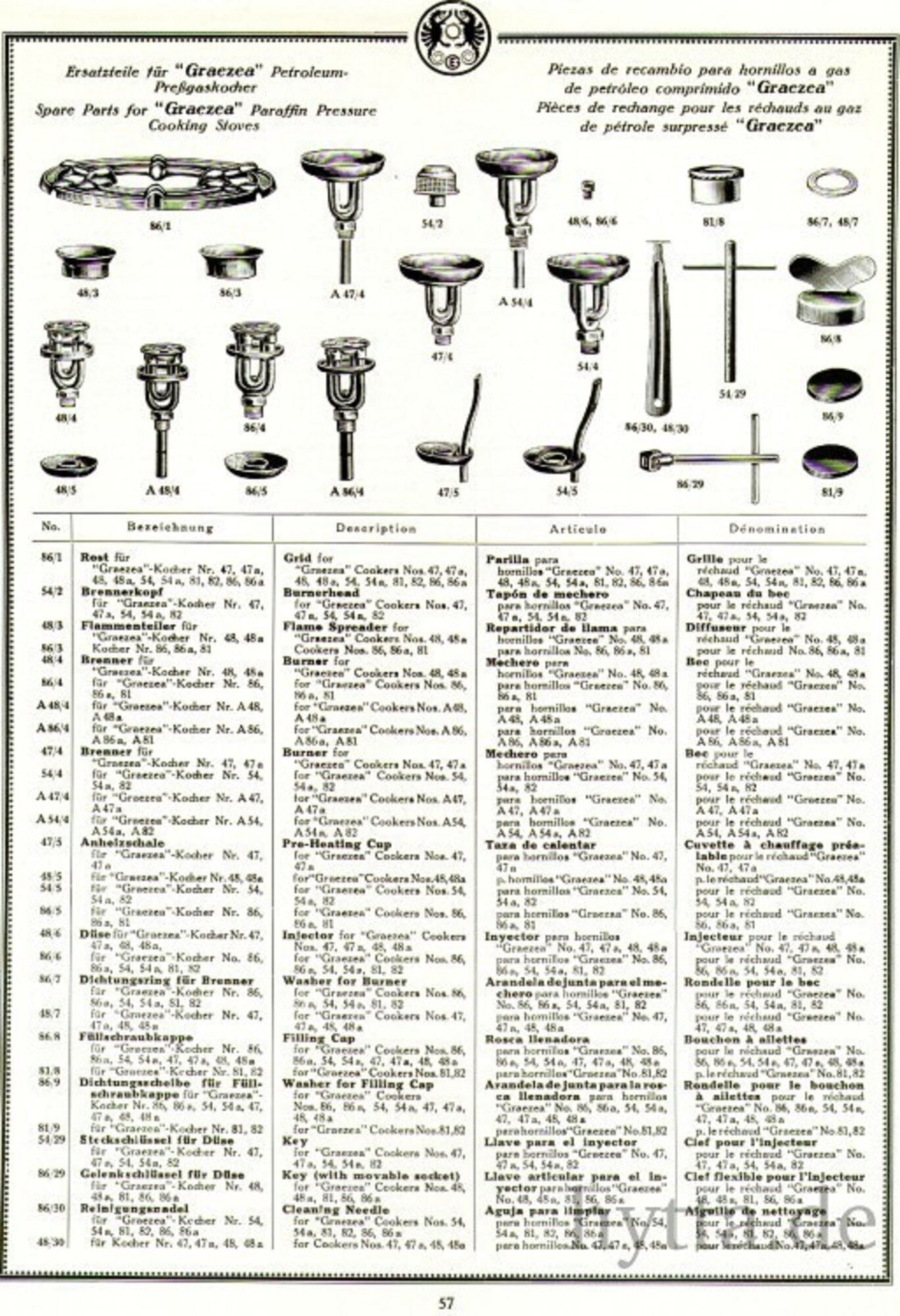

    Seite 45 Ehrich & Graetz Katalog, Berlin 1931.jpg Seite 57 Ehrich & Graetz Katalog, Berlin 1931.jpg

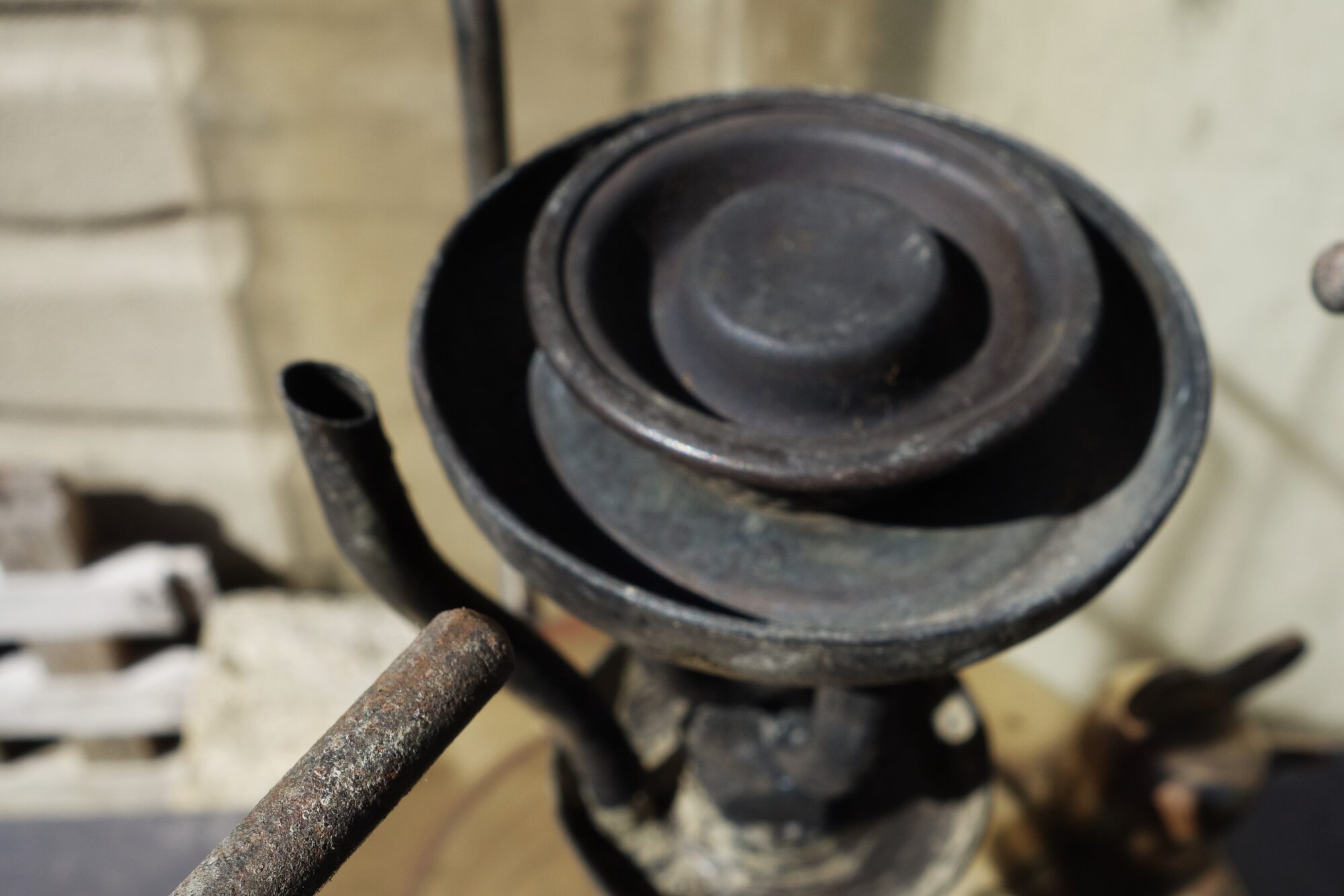

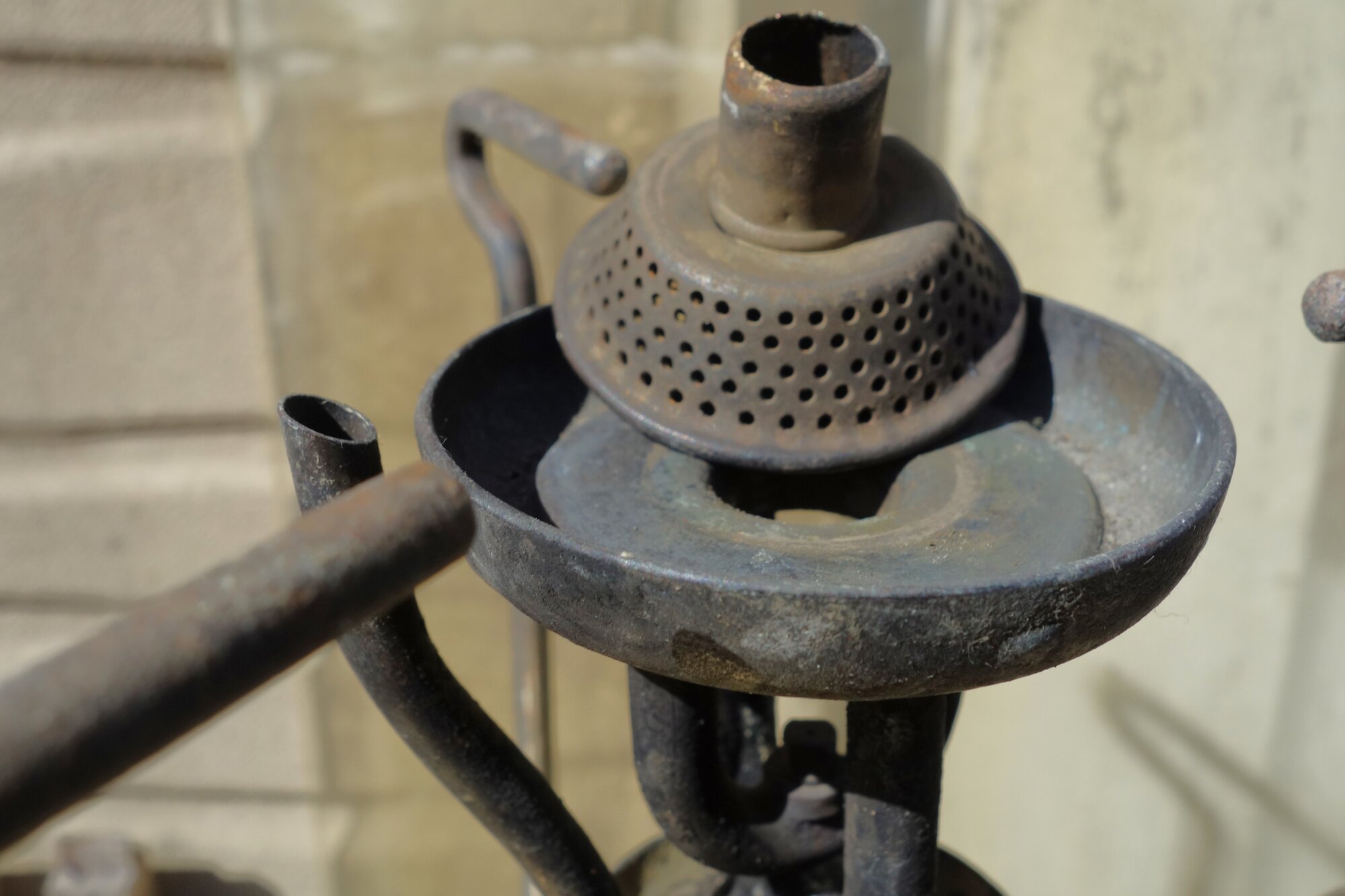

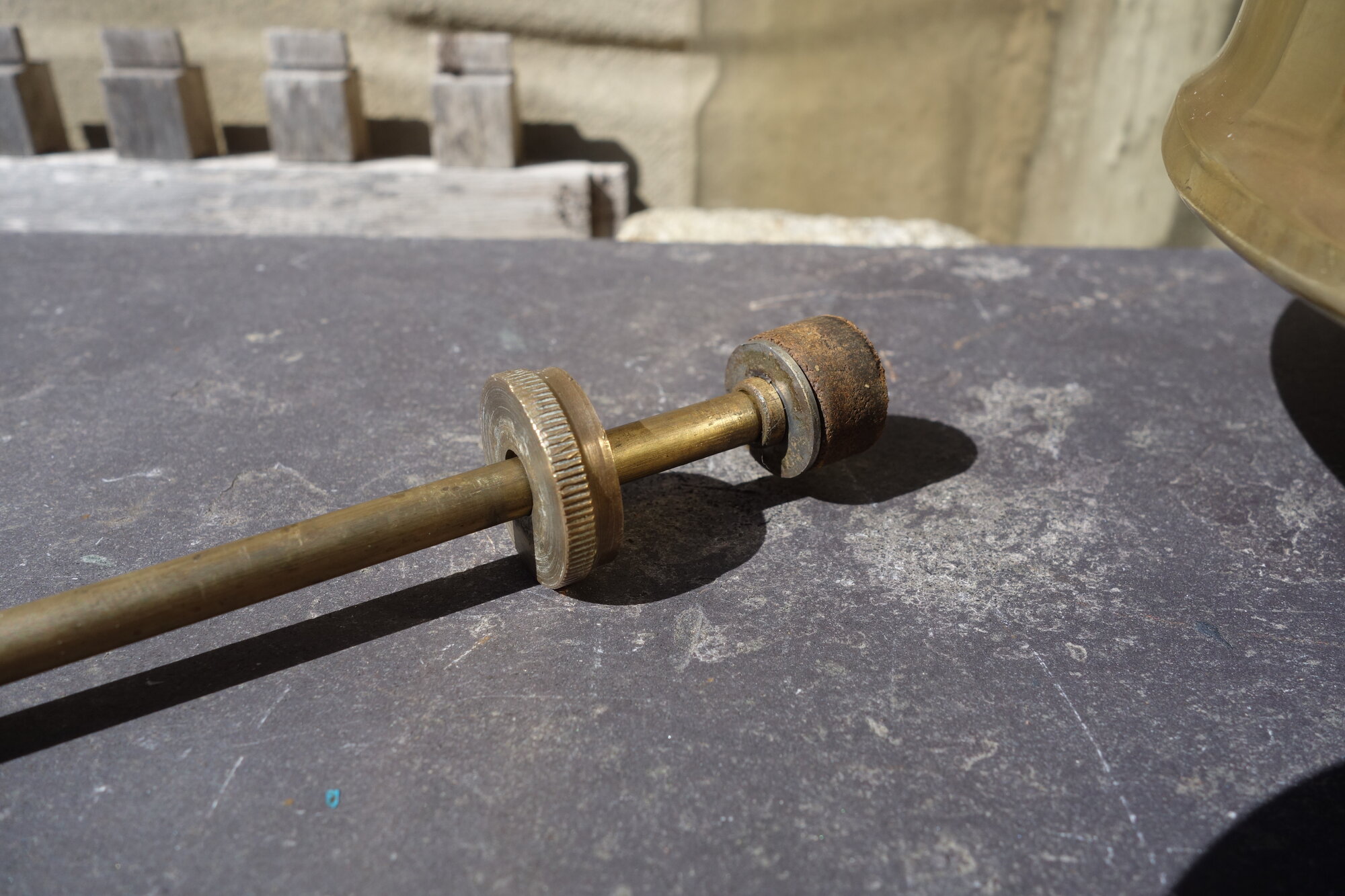

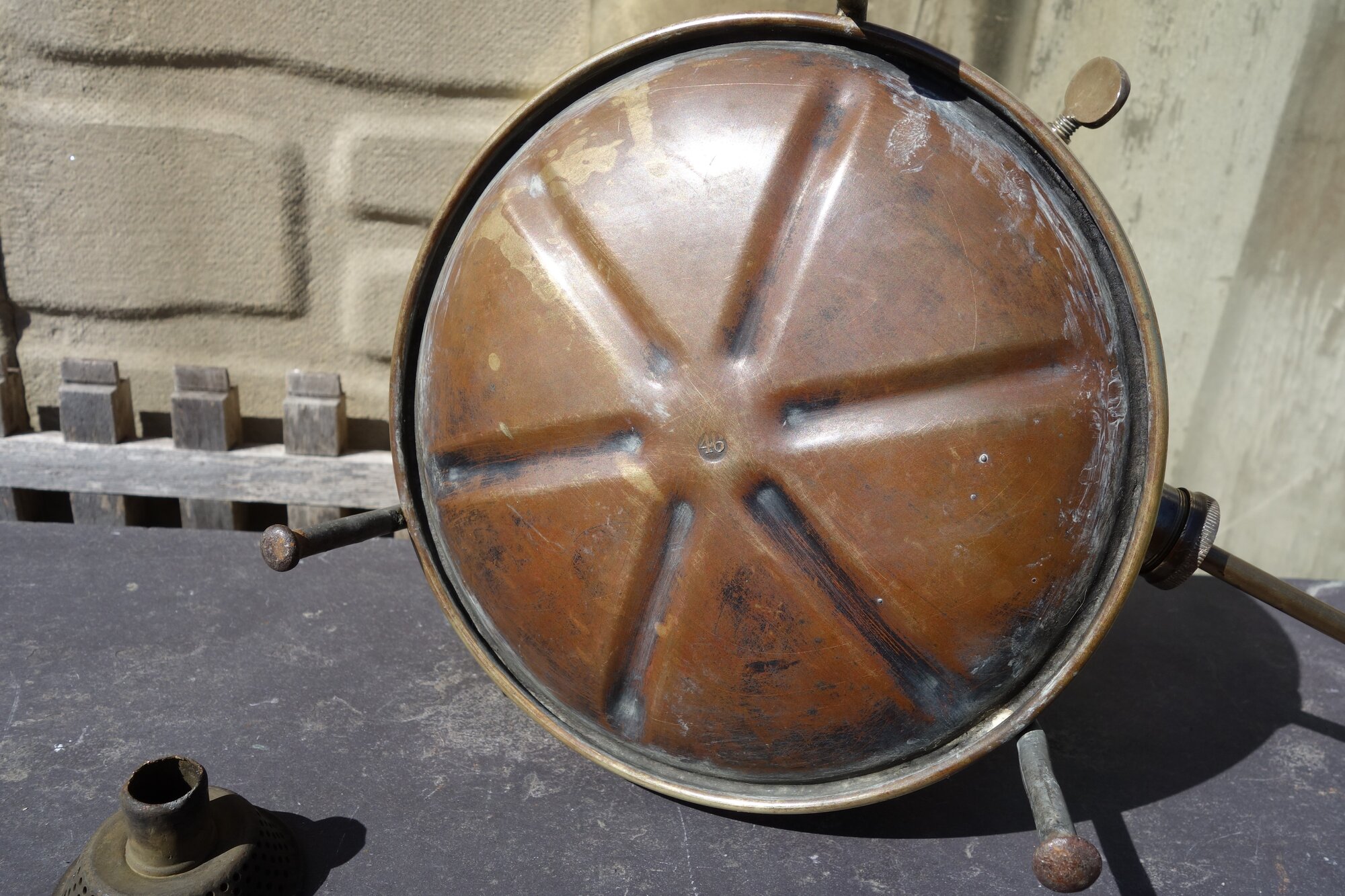

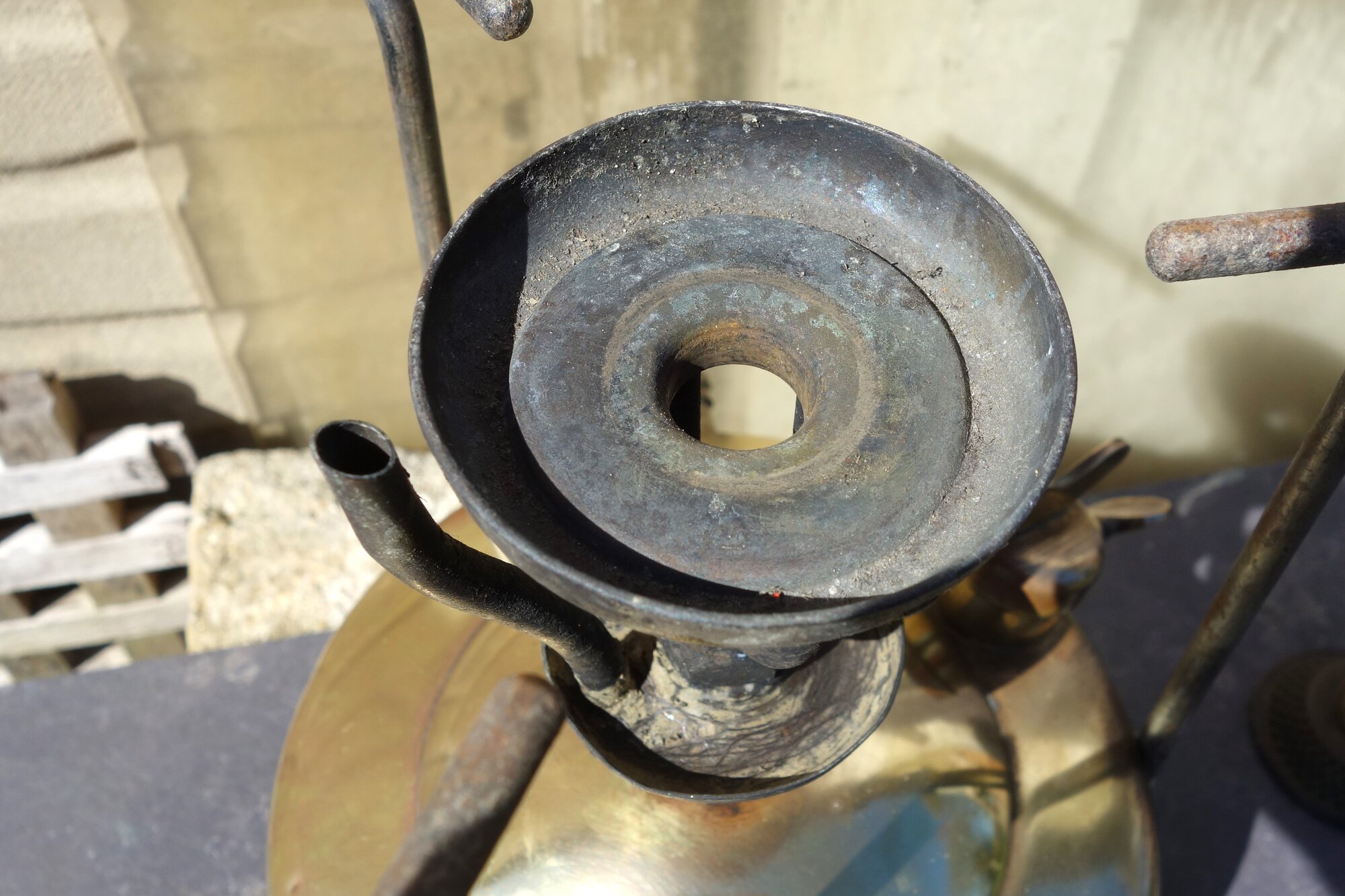

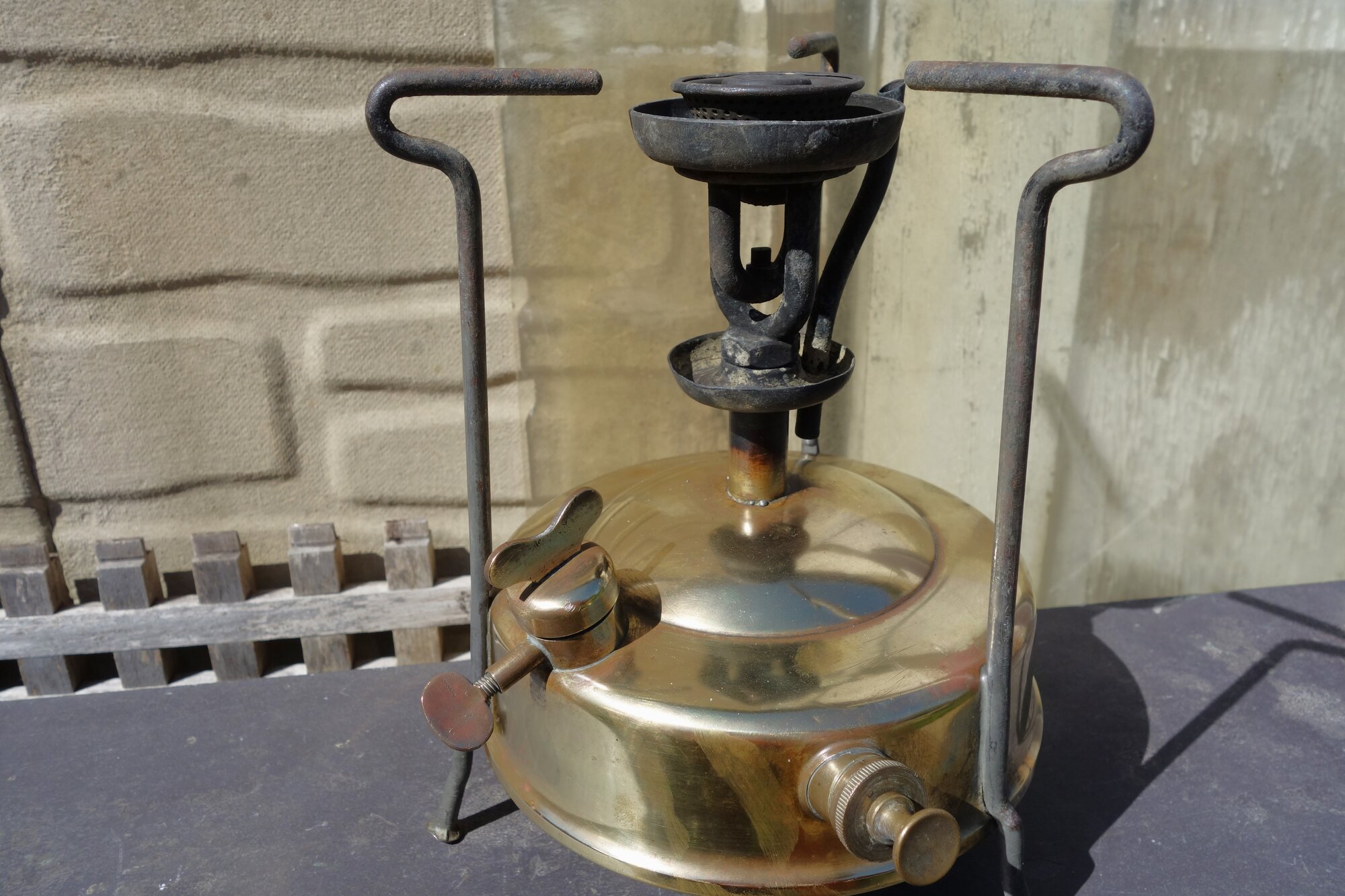

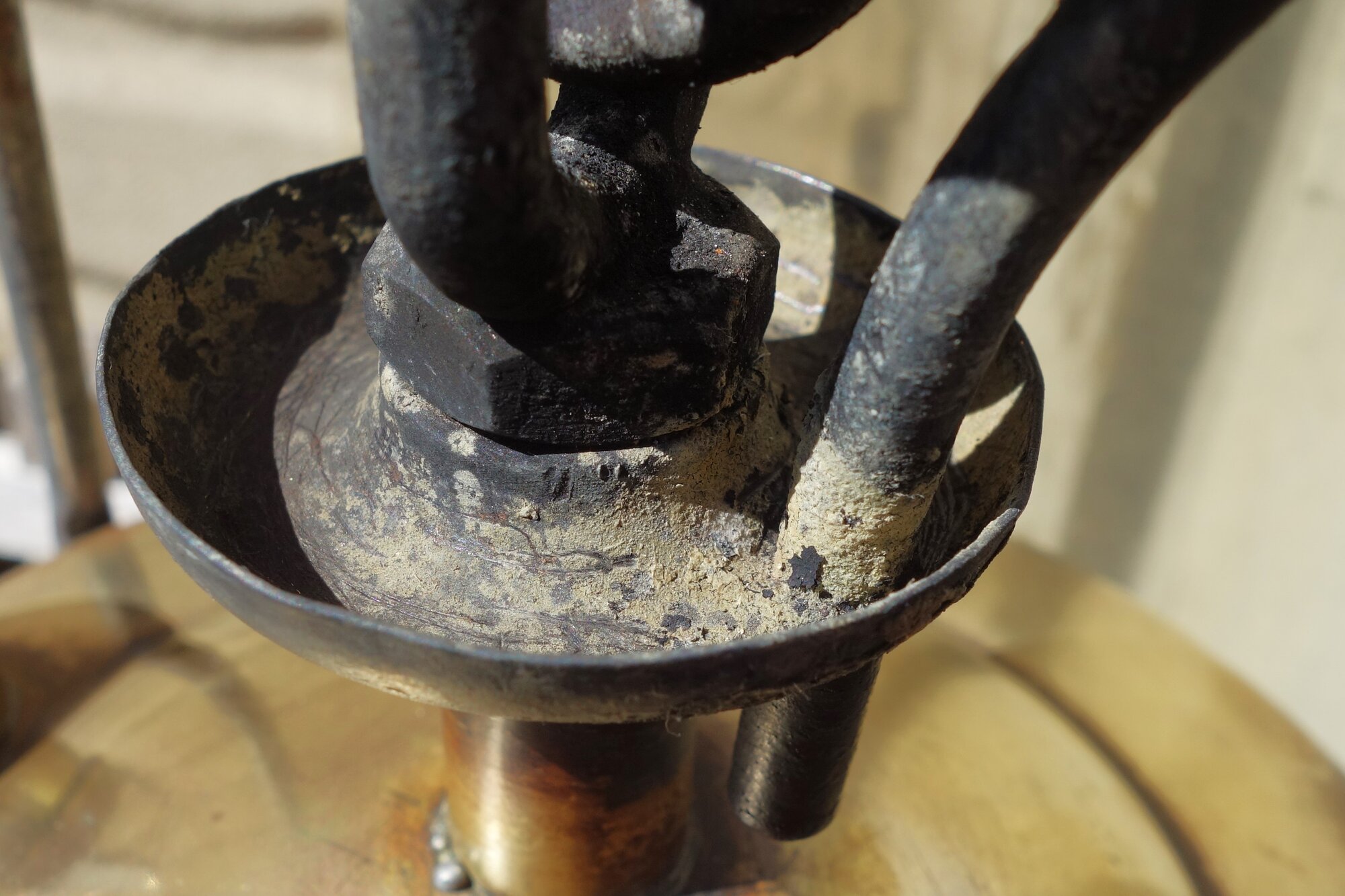

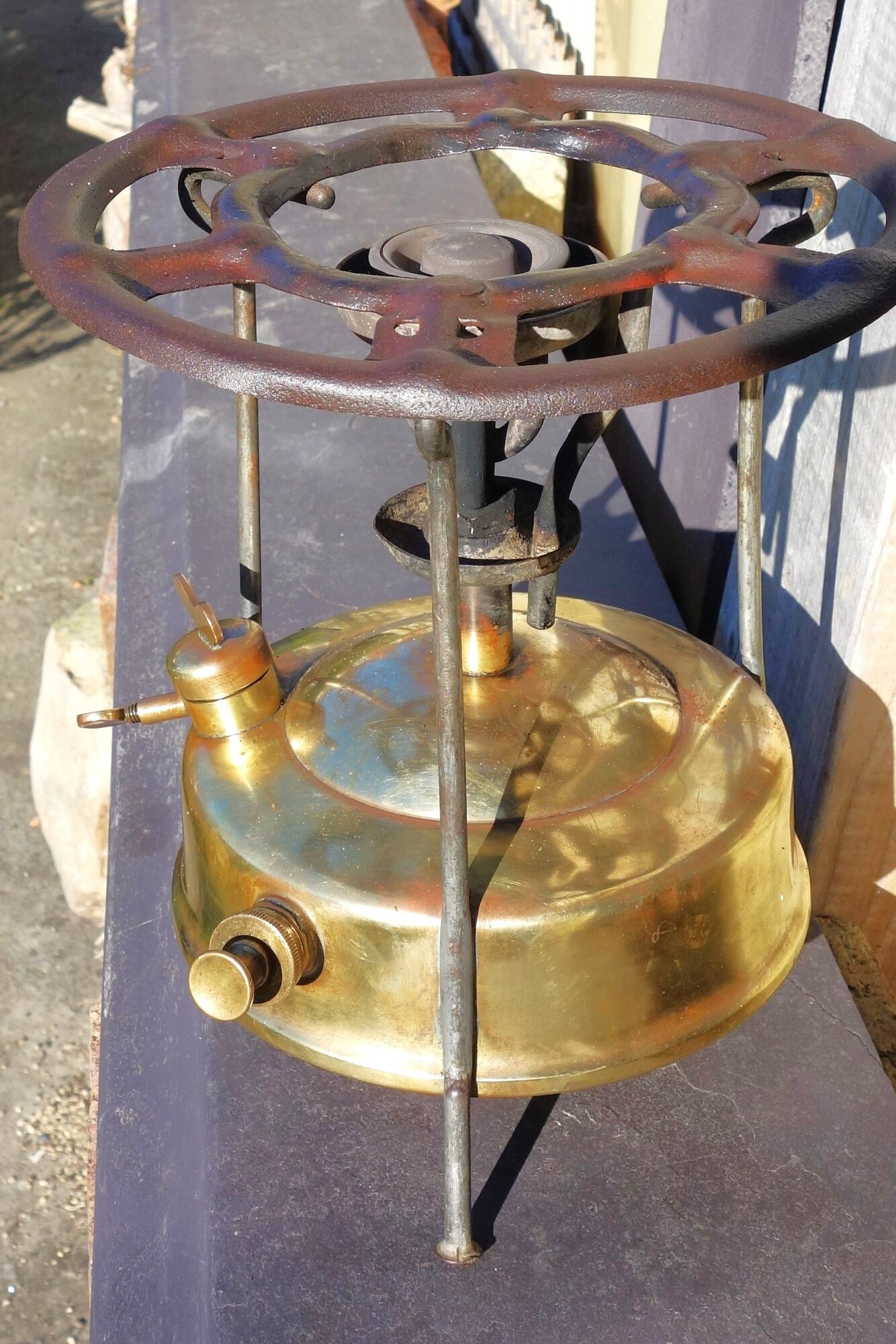

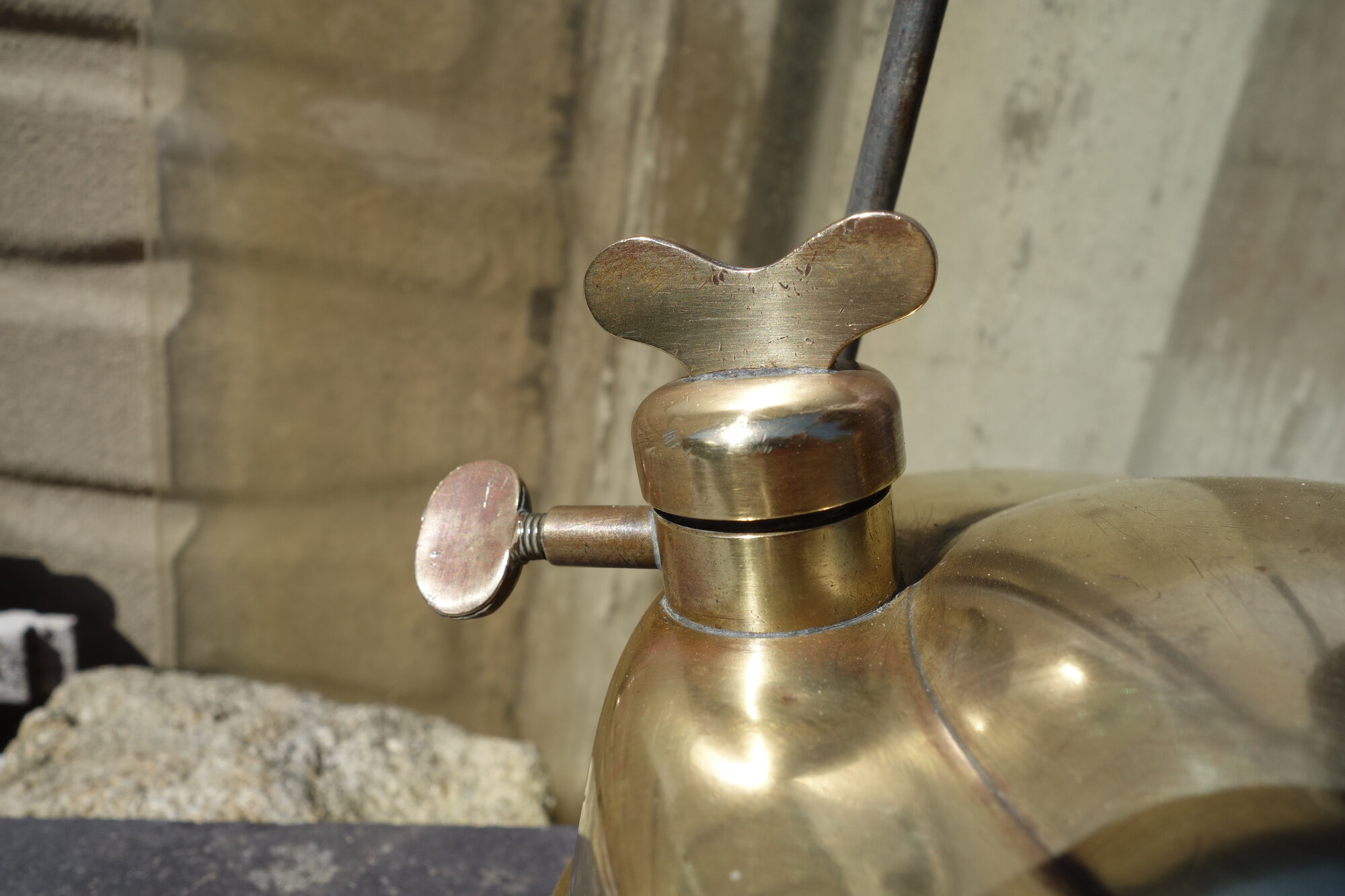

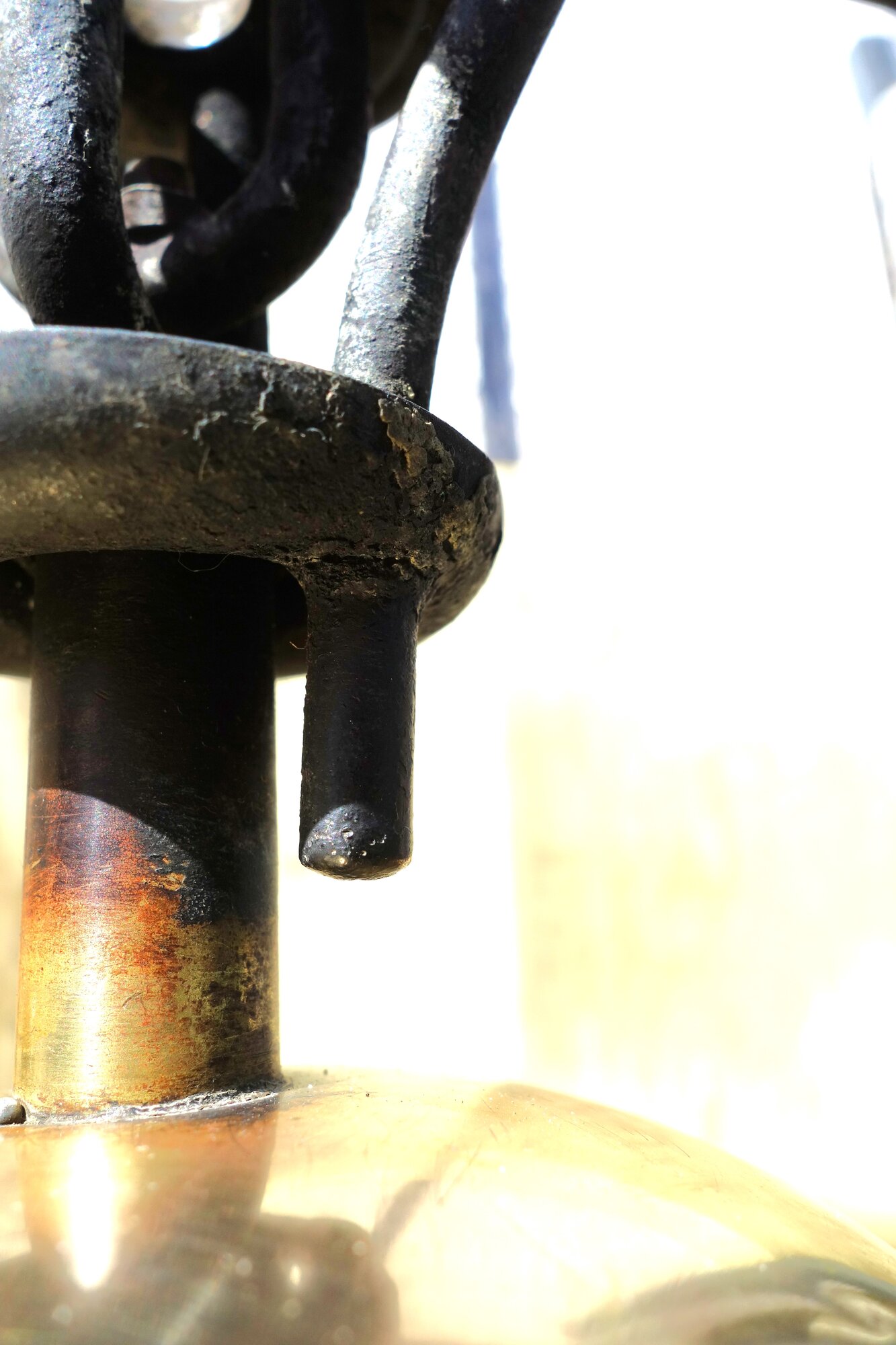

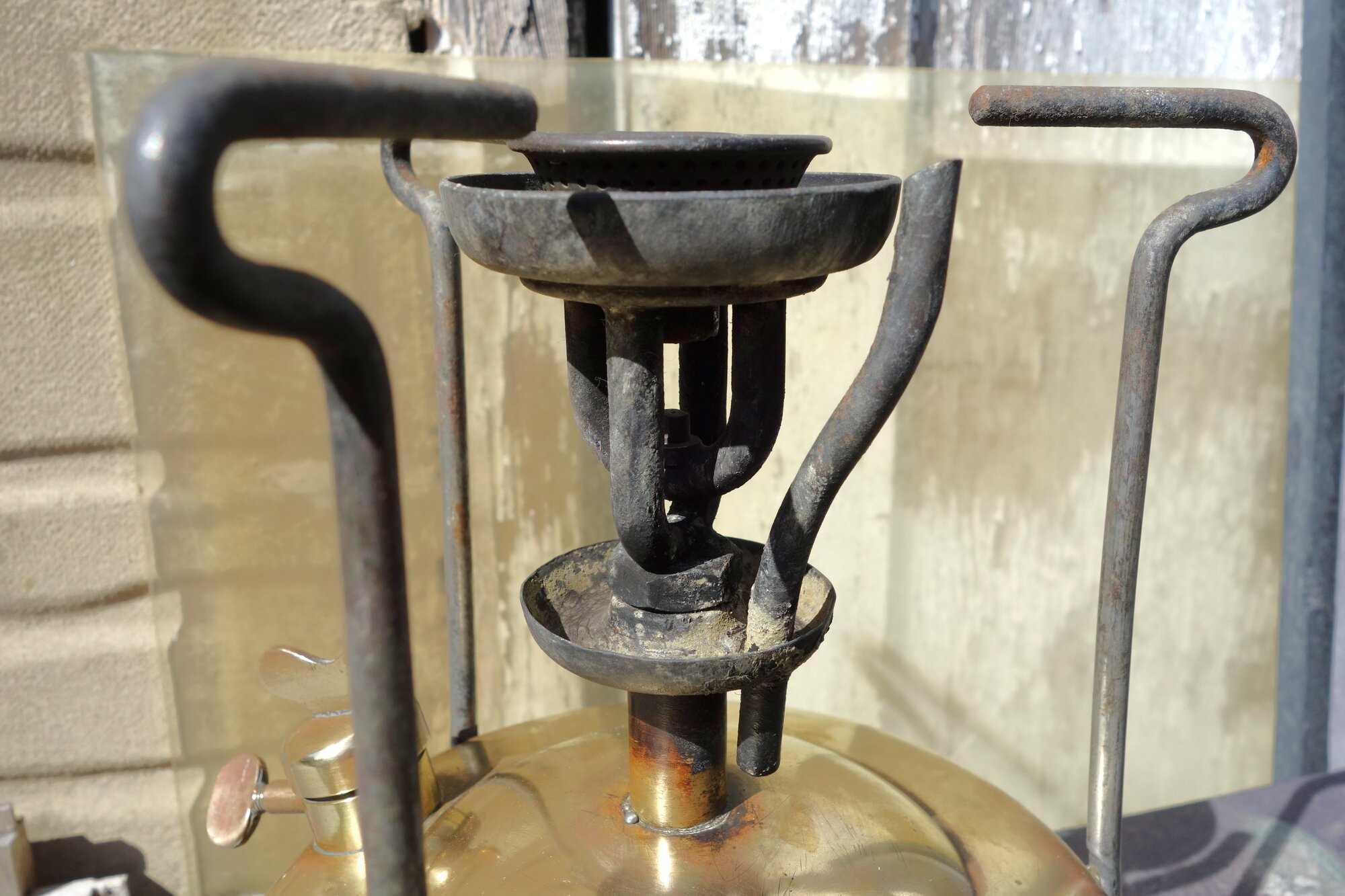

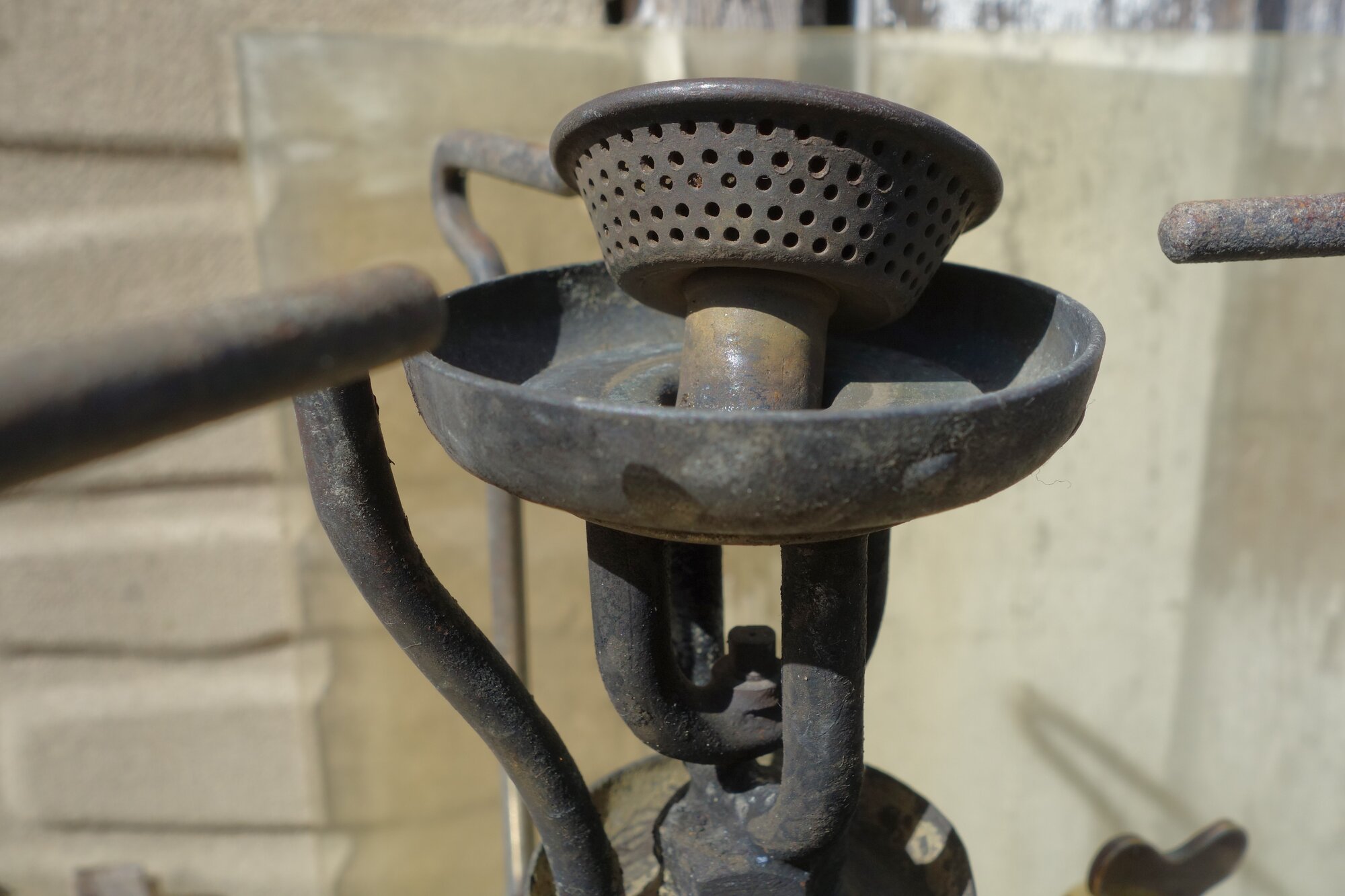

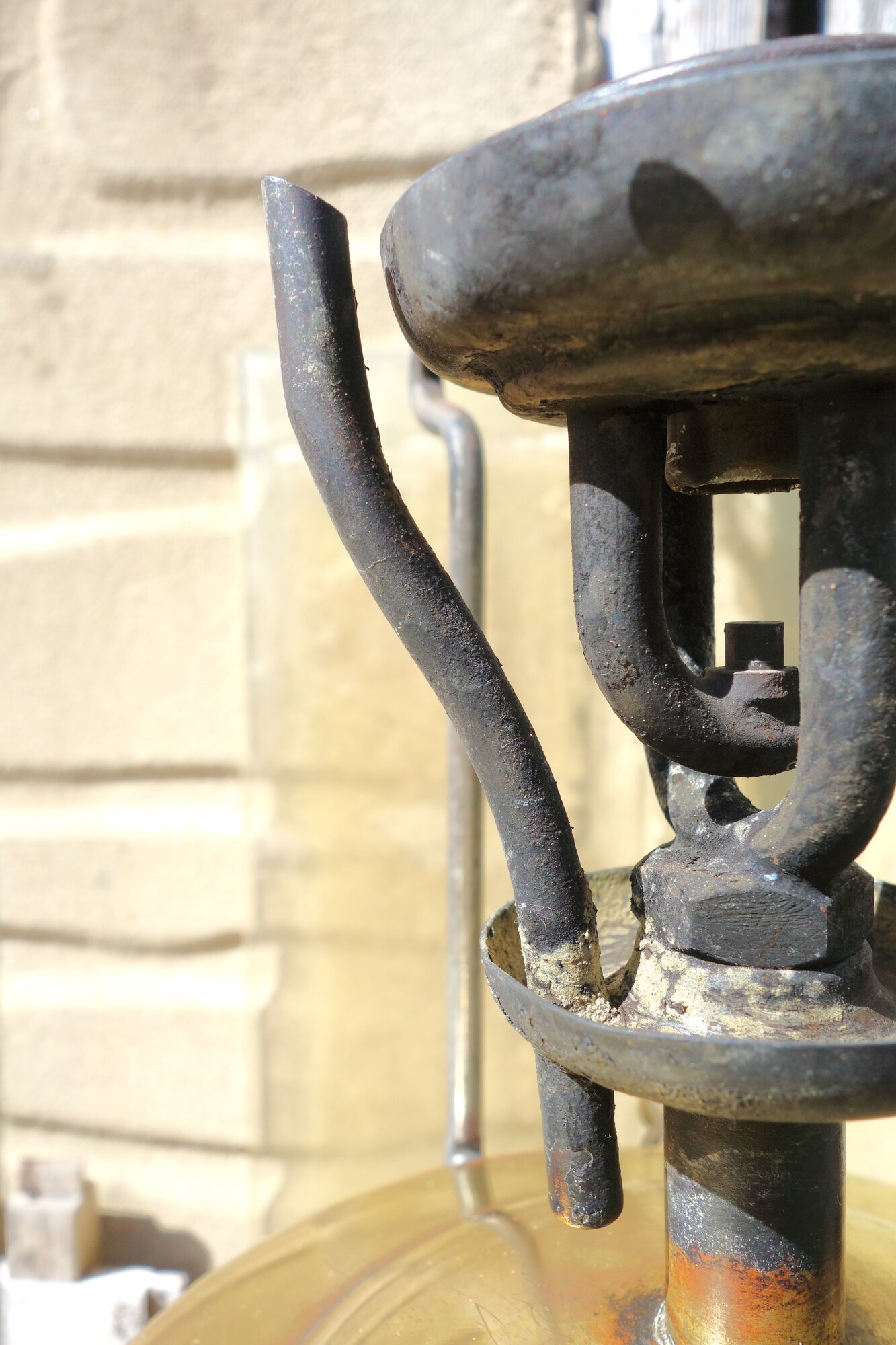

    This next sequence is what we have here, with the silent cap being a very distictive UFO clone, and noting too the equally distinctive lighting assist tube:
    DSC00703.JPG DSC00704.JPG DSC00696.JPG DSC00706.JPG DSC00698.JPG DSC00699.JPG DSC00700.JPG DSC00701.JPG DSC00697.JPG
    DSC00702.JPG DSC00705.JPG DSC00695.JPG

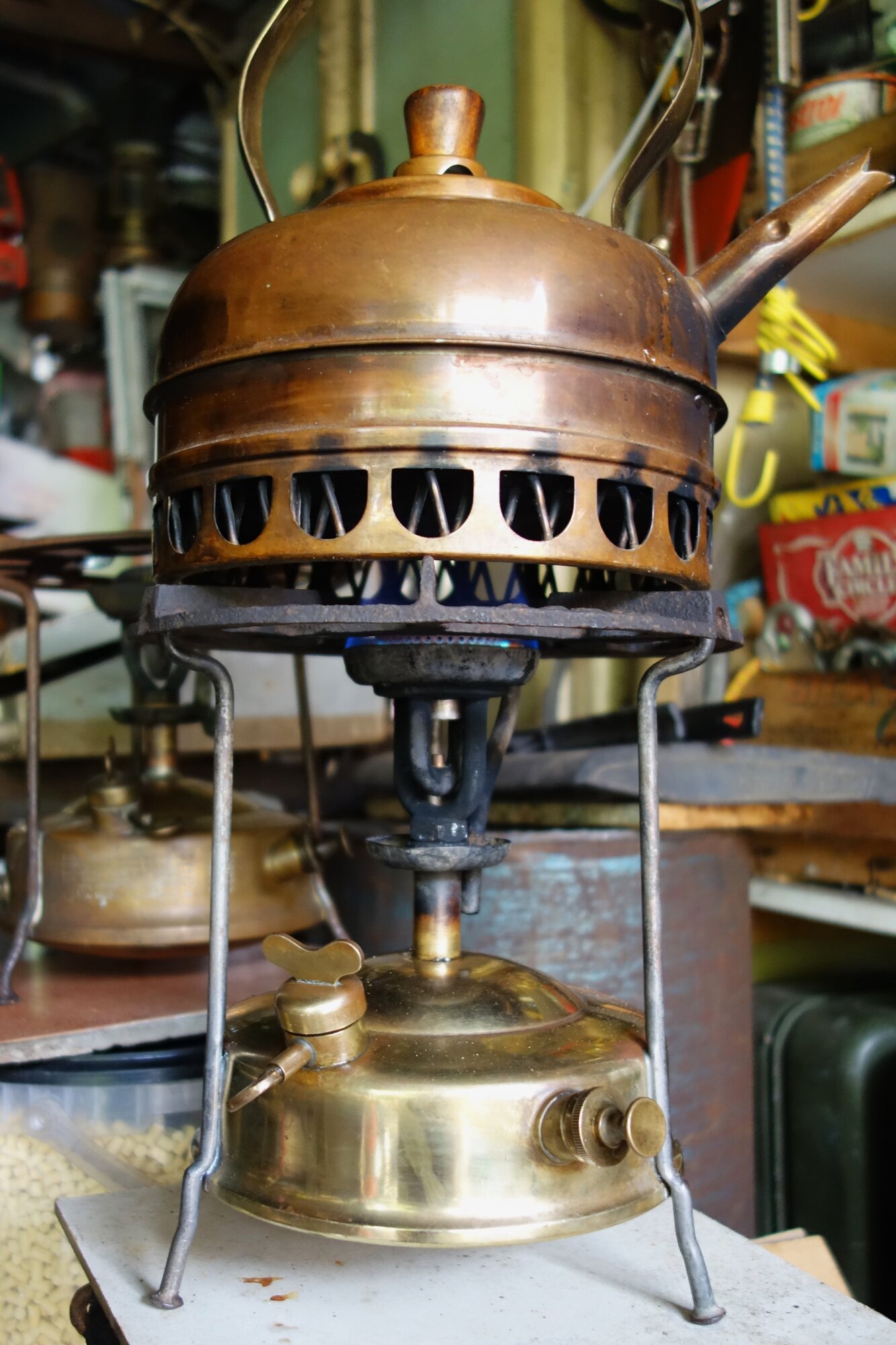

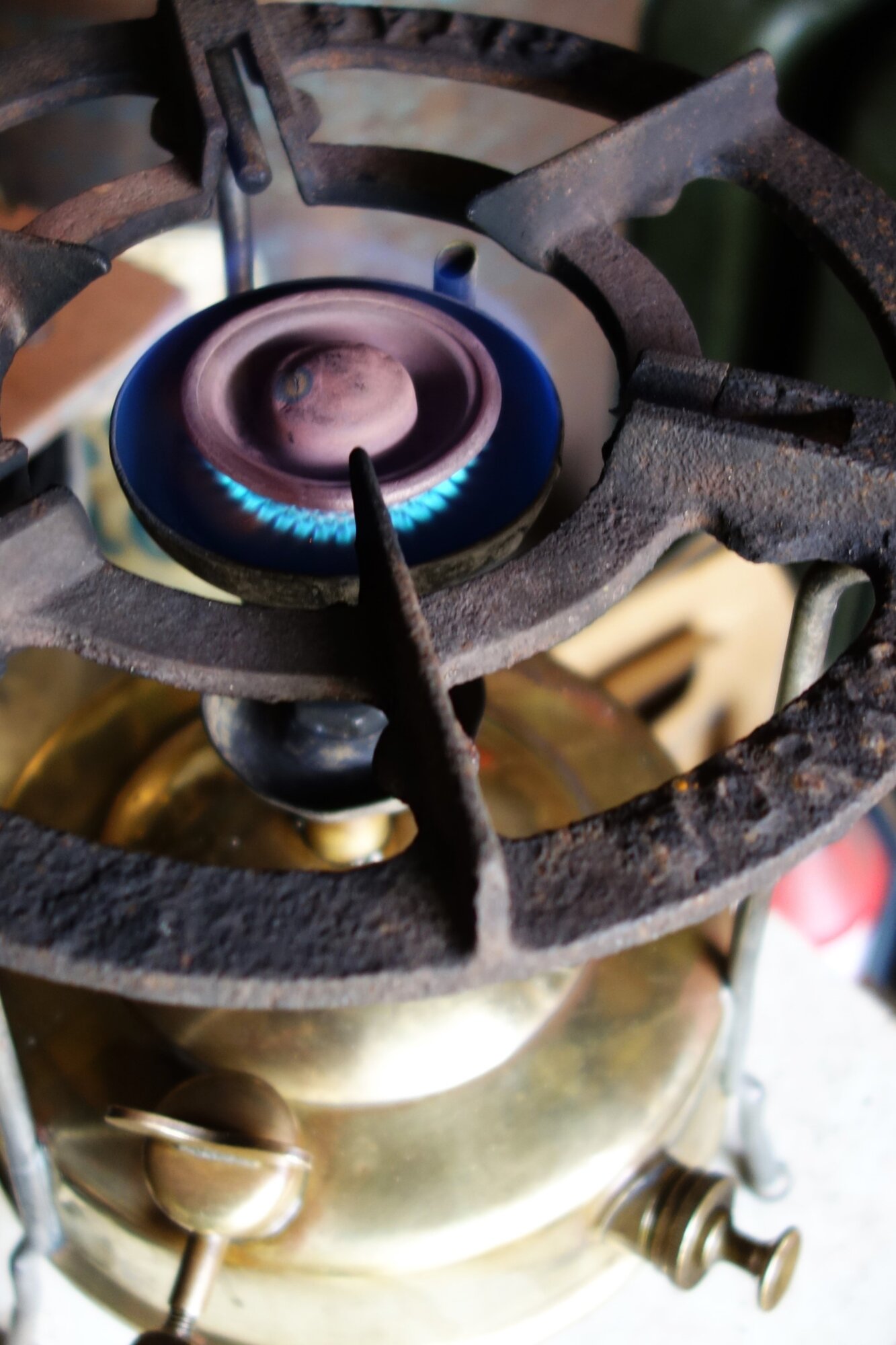

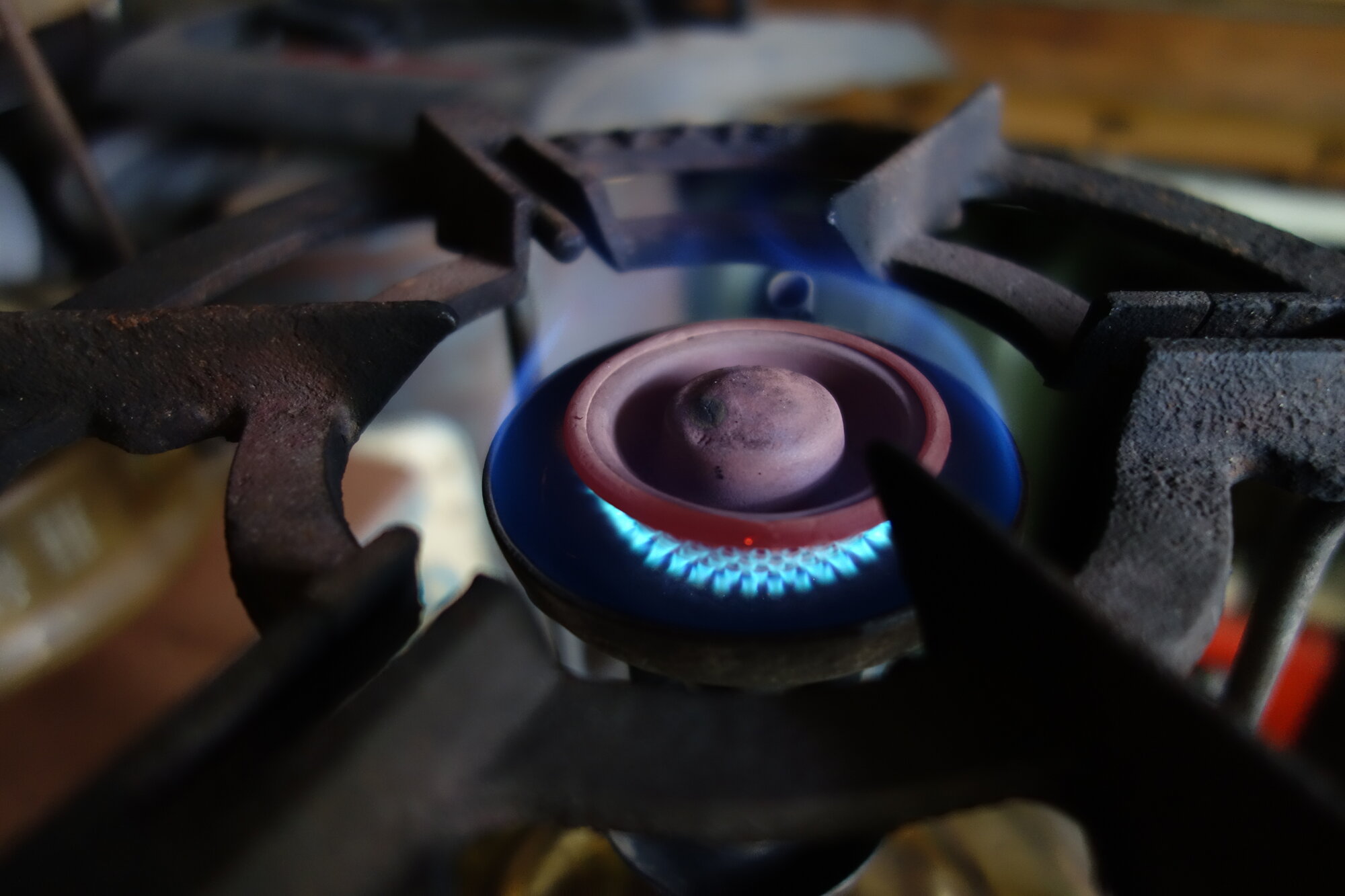

    The rather unique burner proved very effective once a bit of experimentation had narrowed down the best set up to be with a 0.23mm economy jet:
    DSC00732.JPG DSC00731.JPG DSC00728.JPG
