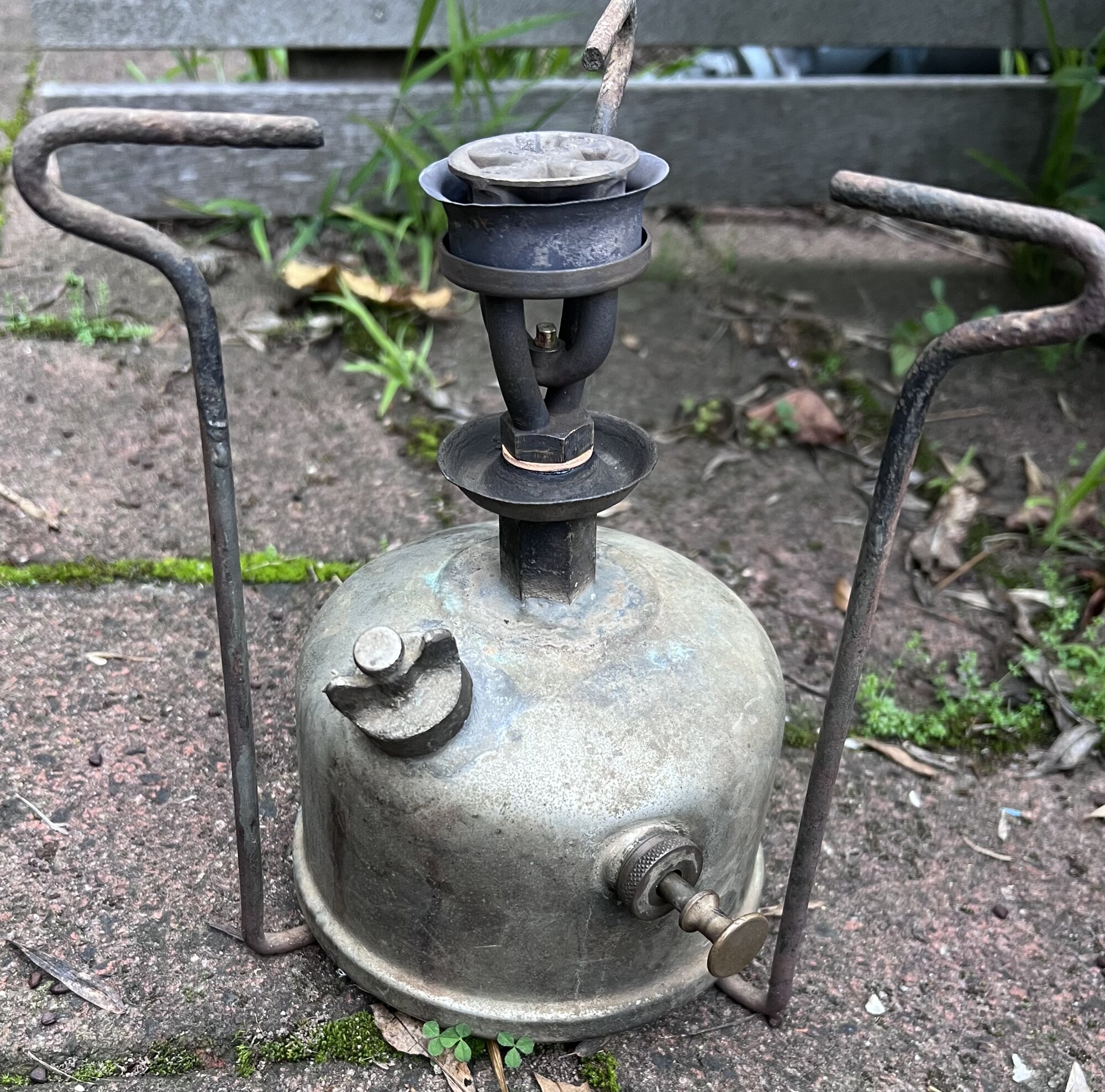

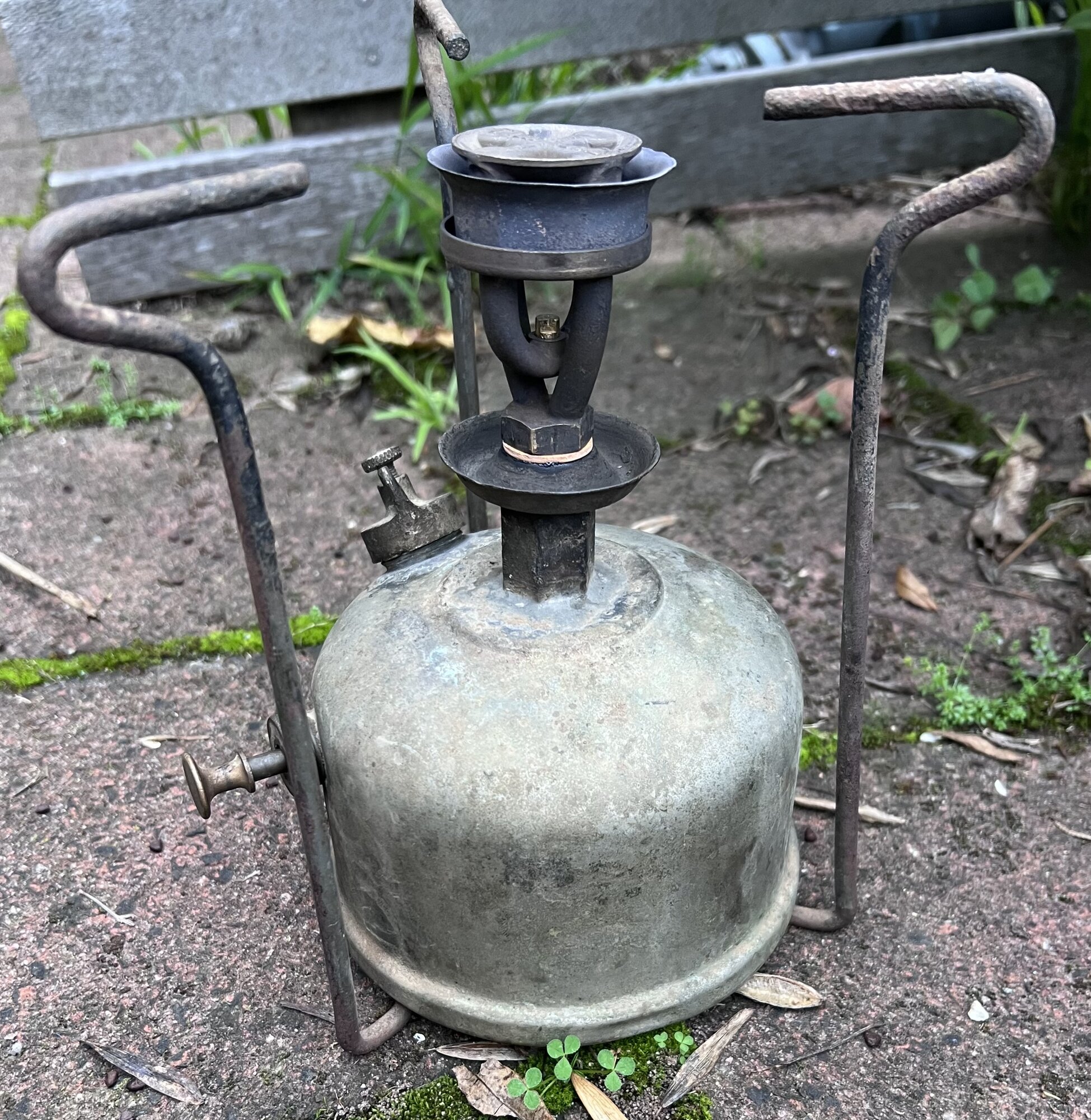

    I acquired this recently in Wagga Wagga, NSW.

    The tank appears to be nickel-plated brass.

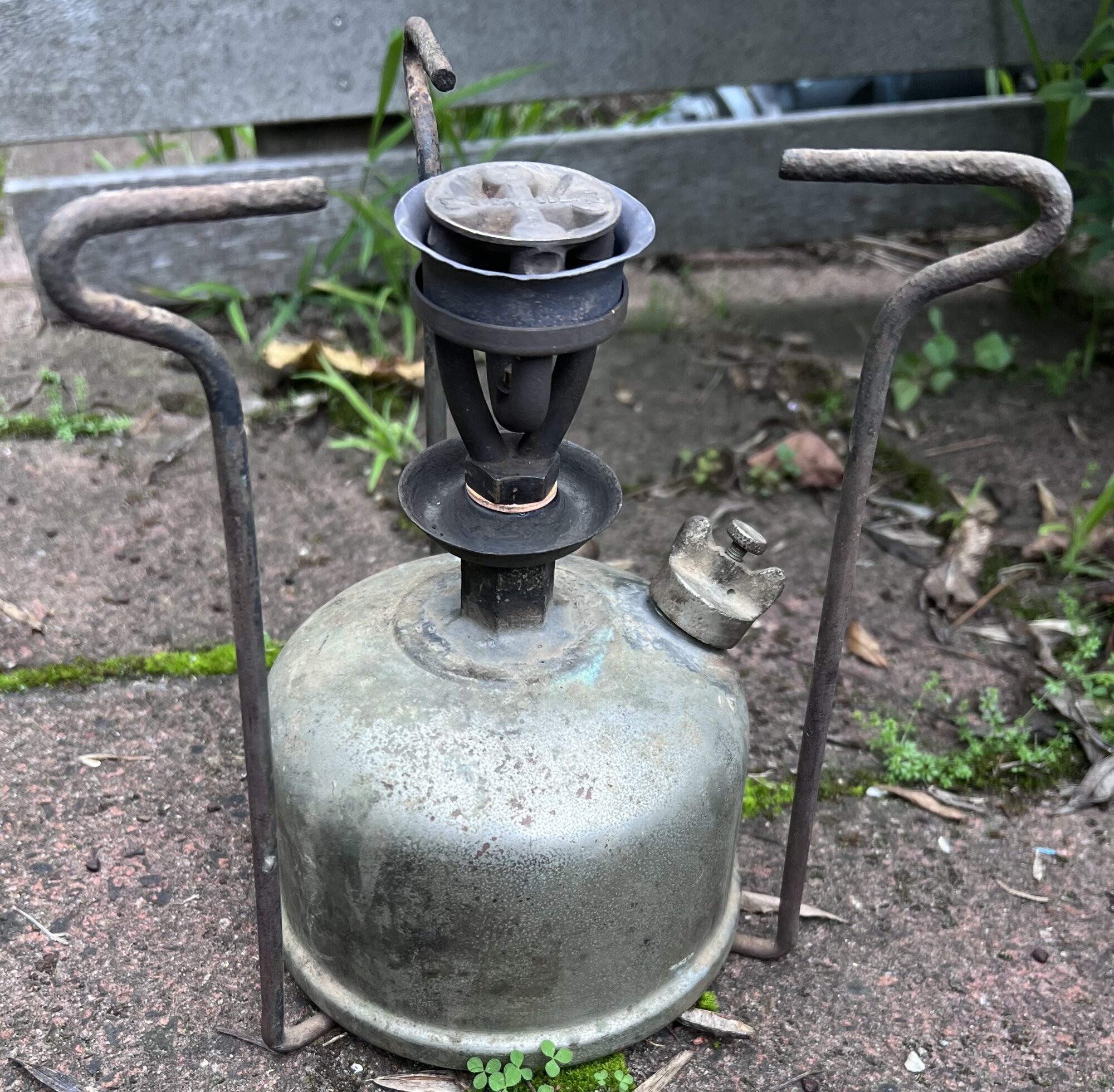

    There is some additional solder around the base of the angulated hexagonal riser:

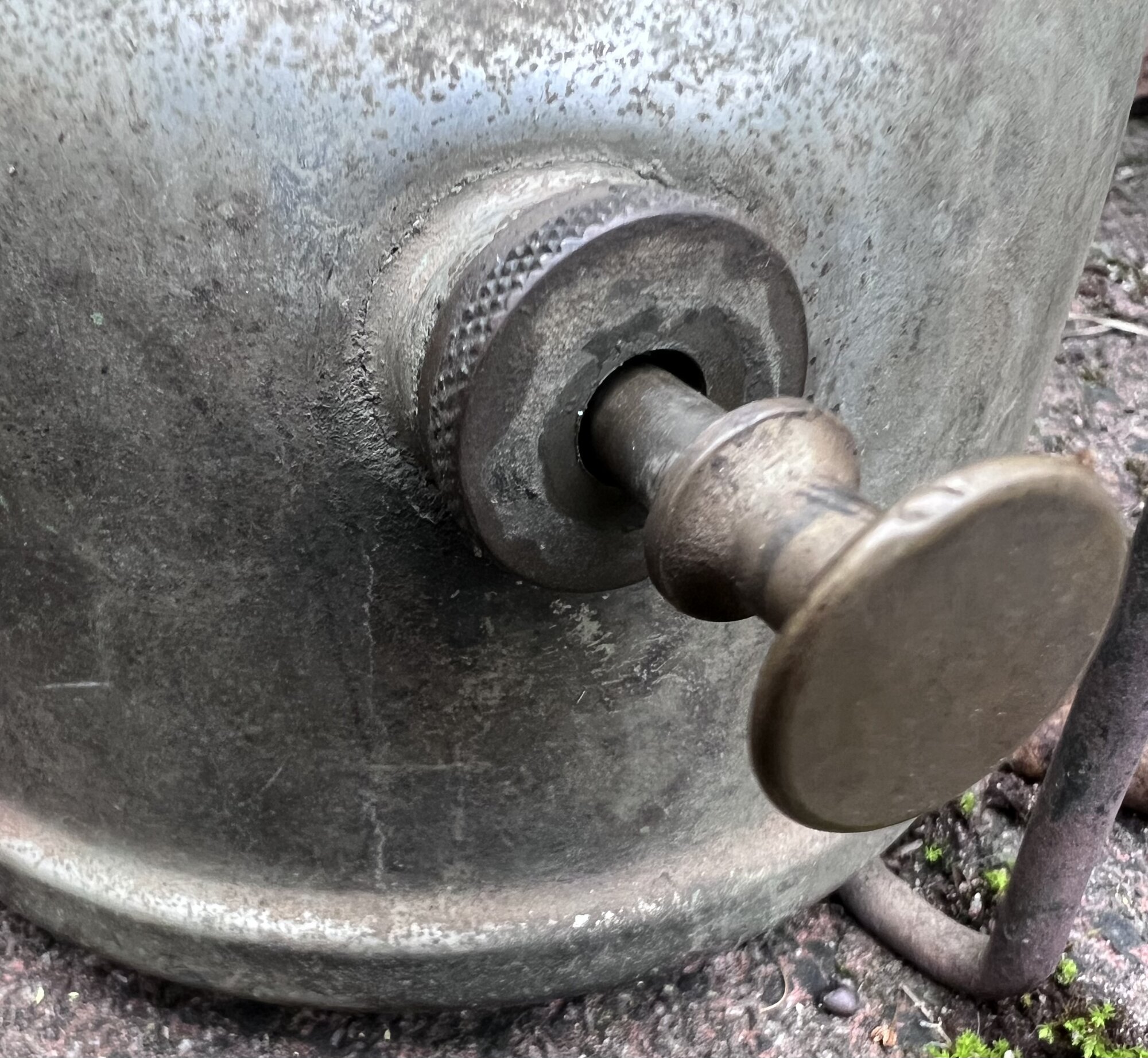

    The pump shaft has been replaced (by one too long):

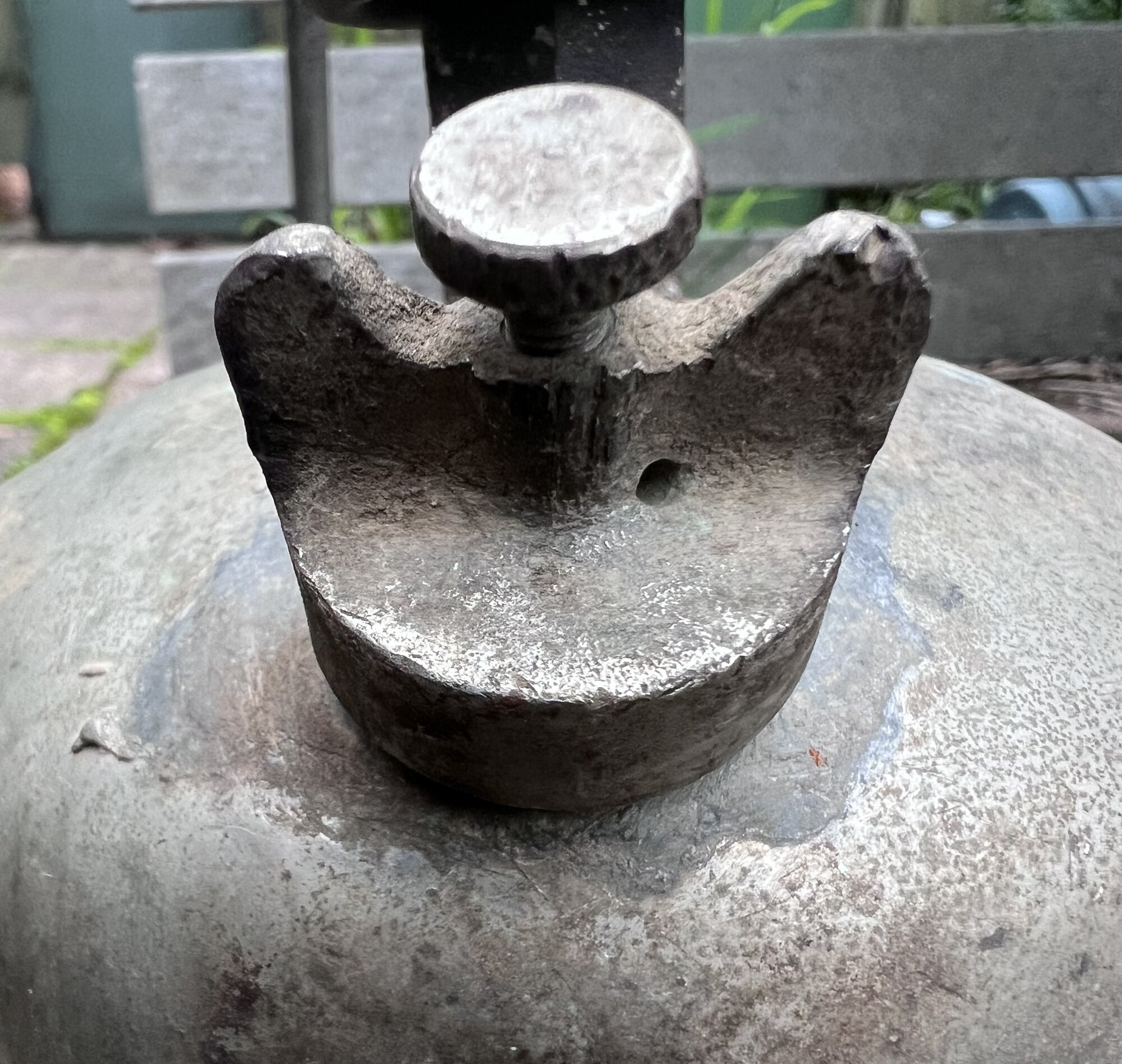

    The filler cap is cast brass and incorporates the air-bleed screw (with a little additional solder around the base of the filler):

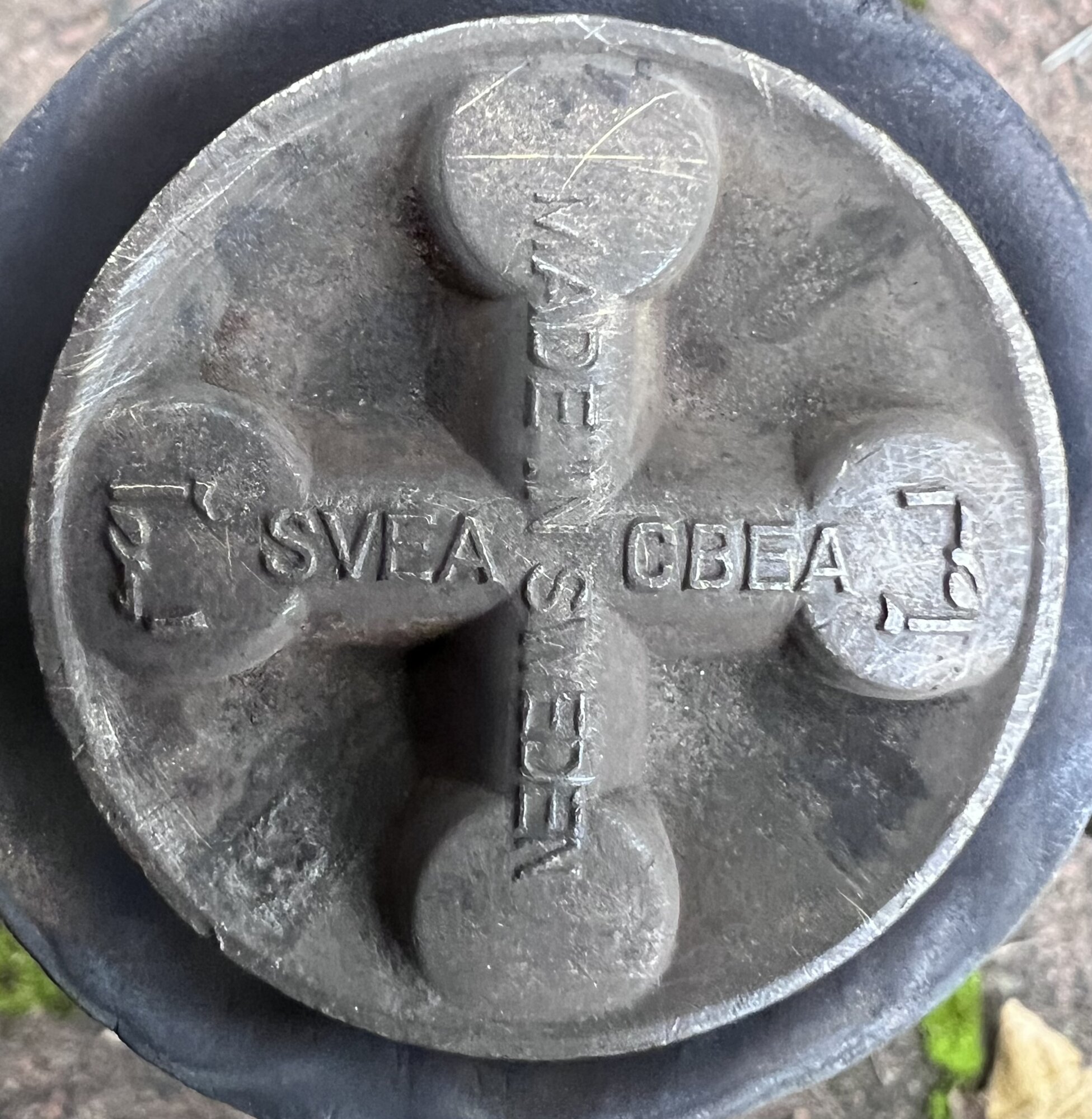

    It came with a SVEA roarer burner (which had a piece missing out of its side), that was completely occluded. I had also acquired another identical burner which I was able to de-coke:

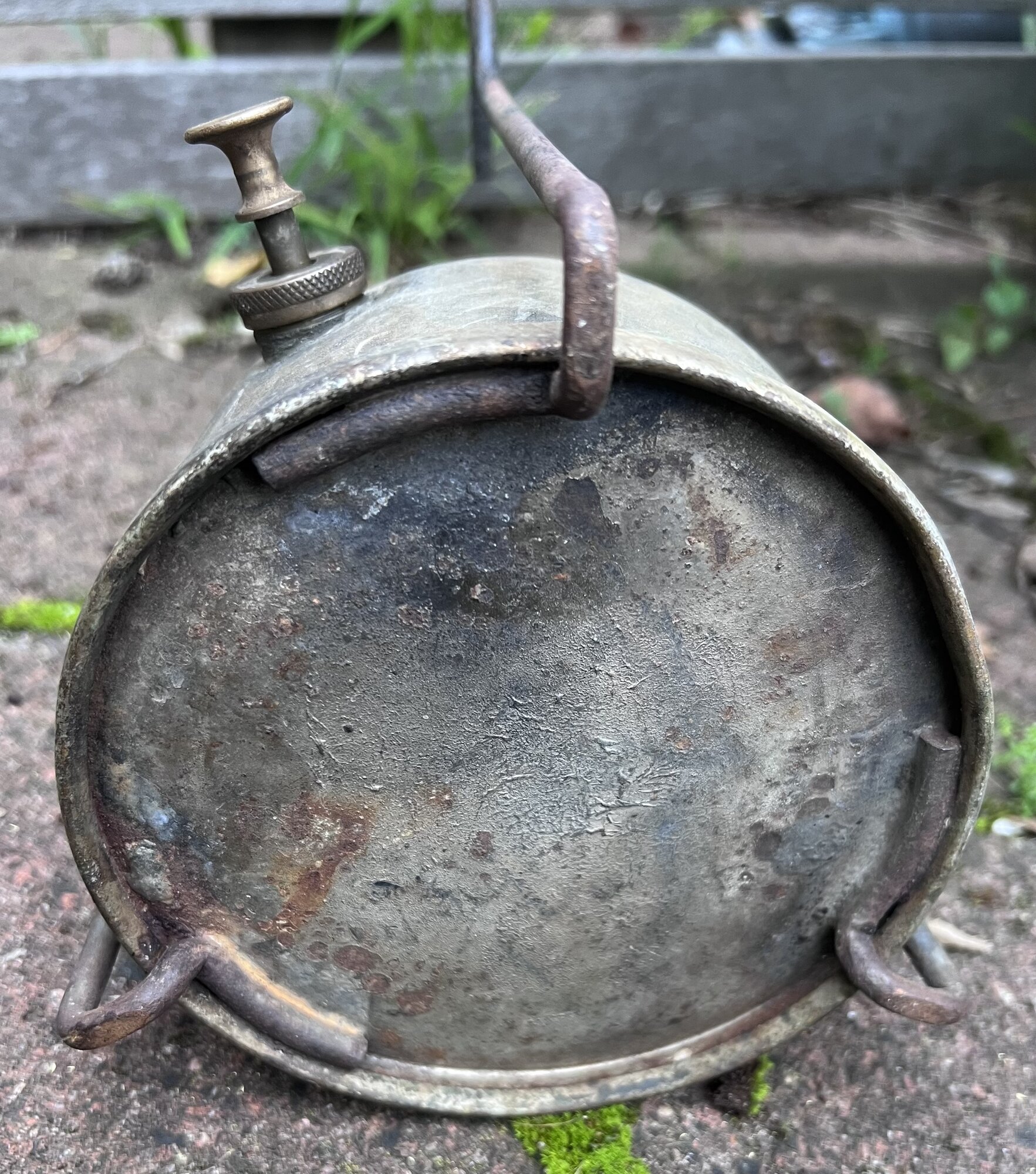

    No identification markings anywhere:

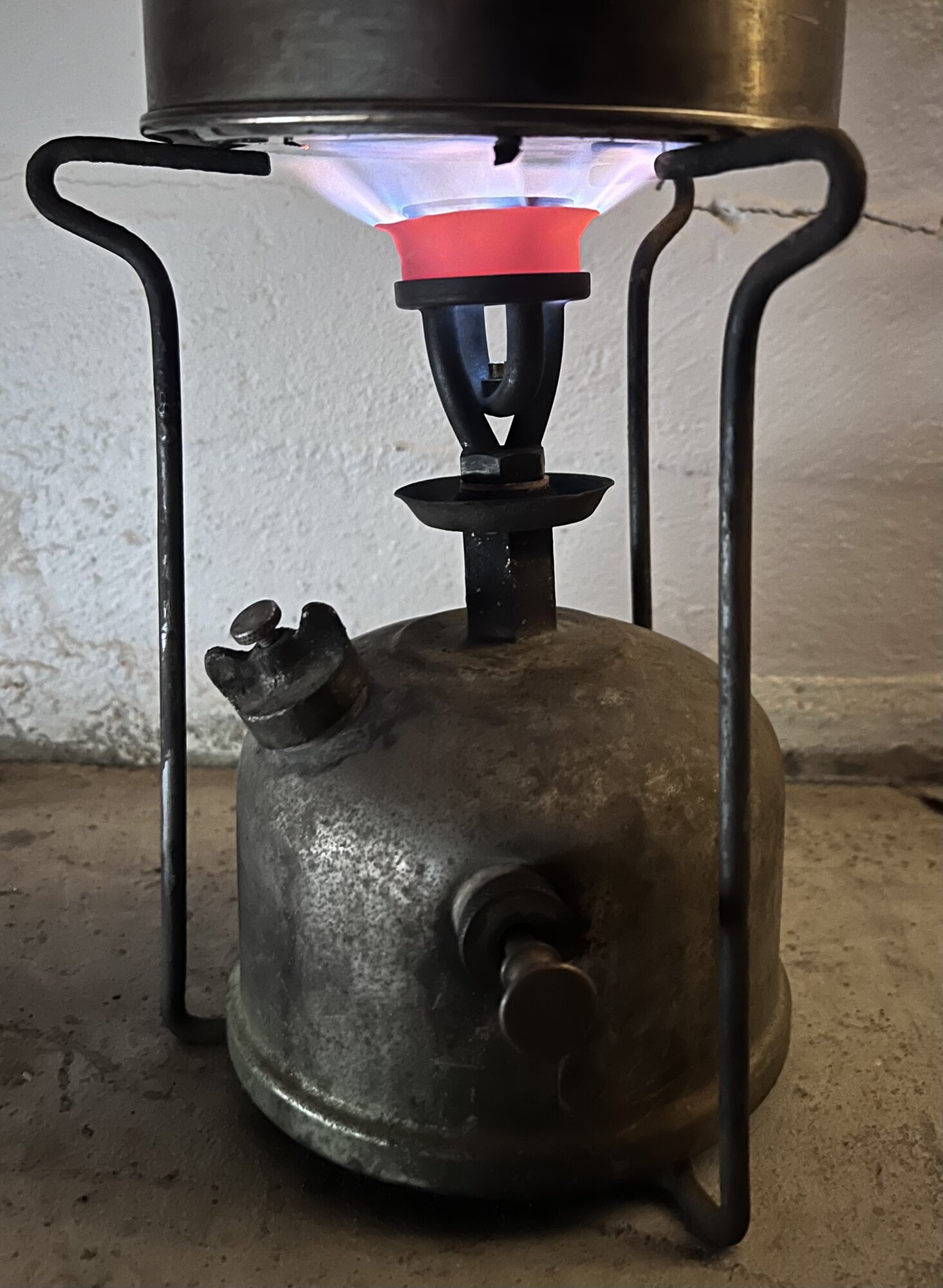

    The NRV (despite replacement of its pip with Viton material) still has a slow leak, but it didn’t prevent firing up:

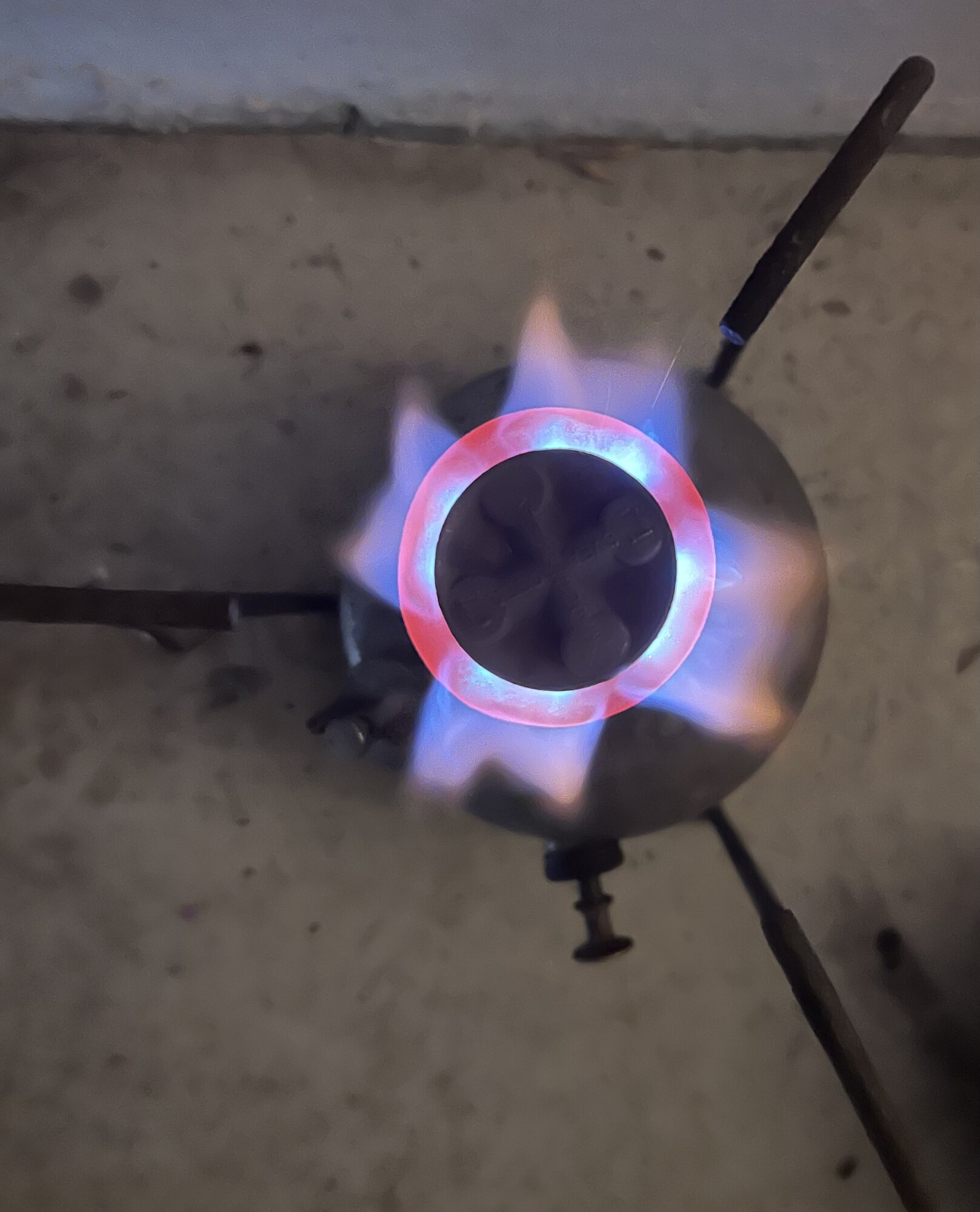

    A god flame after the nipple was replaced by a hypodermic-sleeved one:


    I thought that rather than double-posting (in Rusty but Running), I put it straight into the gallery…
    Thanks!

  2. Ed Winskill

    Ed Winskill United States Subscriber

    Offline
    Joined:
    Aug 20, 2004
    Messages:
    14,959
    Location:
    Tacoma, Washinghton, USA
    A really unique item.
