Hipolito burner. (207b copy)

Discussion in 'Stove Paraffinalia' started by Knight84, Mar 4, 2011.

  1. Knight84

    Offline
    Joined:
    Jan 21, 2009
    Messages:
    3,236

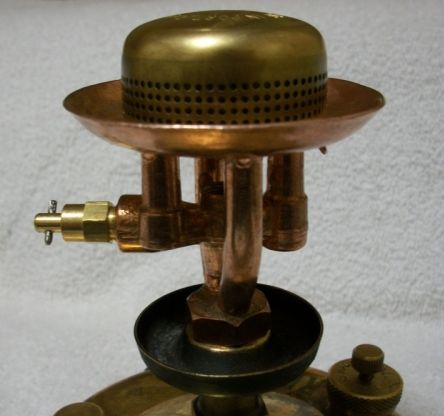

    Here are some pictures of a Hipolito adjustable burner I bought a few weeks ago from a dealer in the United States for 39.99 USD. It is made in Portugal. I am not 100% sure when the burner was made but I would guess around the 1980's.

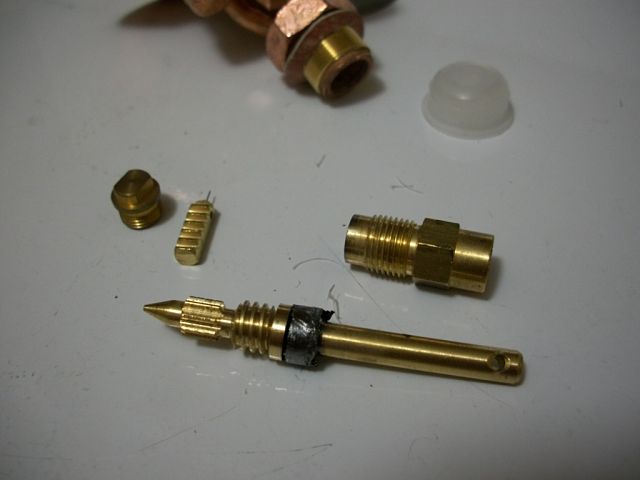

    The burner has a locking brass outer cap with a steel inter cap. The standard kerosene jet with a cleaning needle with 6 teeth. The spindle isn't square at the control knob end but round with a hole drilled through it. The heatproof packing is worthless. The burner is very well made and well worth the money.

    1299207946-100_1504_opt.jpg 1299207956-100_1502_opt__1_.jpg 1299207972-100_1422_opt.jpg 1299207980-100_1423_opt.jpg
    1299207986-100_1424_opt.jpg 1299207992-100_1425_opt.jpg 1299208010-100_1426_opt__1_.jpg 1299208020-100_1427_opt.jpg 1299208030-100_1432_opt.jpg

    Note: the spirit cup is an old stock from a Primus 5 and the riser is from a Svea 106.

    Jeff

    Last edited by a moderator: Jun 27, 2015
  2. hikin_jim

    Offline
    Joined:
    Apr 17, 2009
    Messages:
    4,519
    Nice one!

    HJ

  3. Doron Papo

    Doron Papo Subscriber

    Offline
    Joined:
    Aug 28, 2005
    Messages:
    754
    Location:
    The Holy Land
    Does he still has those?

  4. kerophile

    kerophile United Kingdom SotM Winner Subscriber

    Offline
    Joined:
    Sep 23, 2004
    Messages:
    14,337
    Location:
    Far North of Scotland
    Hi, These Portuguese burners can be very good.

    I have found that most of the regulated burners intended for No.5R stoves and Ranges have round section spindles, whereas those on Op.8 and 111 stoves have the square section spindles:

    https://classiccampstoves.com/threads/8449

    Best Regards,
    Kerophile.

    Last edited by a moderator: Jul 2, 2015
  5. Knight84

    Offline
    Joined:
    Jan 21, 2009
    Messages:
    3,236
    Hello Doron,

    Sorry I missed your post.

    I believe he still sells them. A supplier in North Carolina. Called Southern Lamp Supply. I don't think they ship to your side of the pond unfortunately.
    Link


    Cheers,
    Jeff
