    A little more information on the Safety Device and pressure release:

    I was reading through the documentation and found that this M2A actually has the Safety Device. (Hopefully, I have the metric conversions right, please correct if wrong.) To test for a safety device, there is a copper tube that comes out from the burner to the pressure gauge shown on the front. Behind the gauge is a pressure release valve that is released when the pressure reaches 60 PSI(4.22 Kg/cm2). Once released, the pressure is lowered to 25 PSI(1.76 Kg/cm2), which is normal operating pressure.

    I tested this operation out with my air compressor and filled the tank to 60 PSI. Immediately, the pressure released and fell back to 25 PSI, with a slight hissing and buzzing sound, like the documentation said it is supposed to do. It took around 30 seconds to complete the release.

    Still, 60 PSI (4.22 Kg/cm2), seems like a lot of pressure to build up to before the release, but then I suppose my SVEA 123 filler cap has something in the 40 PSI(2.81 Kg/cm2) range? Seems like I read that somewhere... Anyway, the danger zone on the gauge starts with 35 PSI (2.46 Kg/cm2)...

    Still haven't found a willing volunteer to come and wake the sleeping giant...

  2. idahostoveguy

    Offline
    Joined:
    Jun 15, 2009
    Messages:
    3,369
    I finally got the nerve up to light the M2A after seeing a post of one in operation:

    First a few precautions:

    I had the K-9/Police unit on stand-by...


    Then the fire department....


    Started up the pre-heat, by pre-heating it. Pre-heat stage was about 5 minutes...



    Lighting the main burner with air intake vent closed produces a yellow flame.


    Opening the vent, produces a blue flame...

    1253950603-m2a-burn-6.jpg 1253950615-m2a-burn-7.jpg

    Whew! Glad that's over. After shutting the system down, I checked my pulse and found that it was back to normal after about 30 minutes. K-9 unit was dimissed and fire department returned to the station...

    Last edited by a moderator: Jun 27, 2015
  3. lanevitt

    lanevitt Subscriber

    Offline
    Joined:
    Jun 27, 2009
    Messages:
    1,605
    Are you sure its not part of a space shuttle ??

    I would like to see a Trangia 27 kettle balanced on it..

  4. idahostoveguy

    Offline
    Joined:
    Jun 15, 2009
    Messages:
    3,369
    I think it is one of the pieces that fell off in a prior launch! :) ;)

  5. Bob M

    Offline
    Joined:
    Sep 19, 2009
    Messages:
    84
    I read an article about these once. They stopped using them because the cooks would walk away from them while they were running and something would go "amuck". I guess they were responsible for burning down many a mess tent.

  6. David Shouksmith

    David Shouksmith Subscriber

    Offline
    Joined:
    Jul 28, 2004
    Messages:
    6,917
    What are the dimensions of the stove?

    I'm guessing about 24" long, 18" wide and about 12" tall. Anywhere near..?

  7. idahostoveguy

    Offline
    Joined:
    Jun 15, 2009
    Messages:
    3,369
    Ok, I just did a measurement of mine. Here it is for the SRG record books:

    24" long
    19.5" wide
    9.5" tall

    Hope this helps!

    sam

  8. Knight84

    Offline
    Joined:
    Jan 21, 2009
    Messages:
    3,234
    What is the weight of this tank ... I am stove.

    Cheers,
    Jeff

  9. idahostoveguy

    Offline
    Joined:
    Jun 15, 2009
    Messages:
    3,369
    Well, when I weighed it empty the scale said 42 pounds. I put 2 gallons of fuel into it. With fuel weighing approximately 8 pounds per gallon, that would bump it up to around 58 pounds. So, yes, I need wheels on this thing, but I'm able to heft it around, but just barely.

    sam

  10. David Shouksmith

    David Shouksmith Subscriber

    Offline
    Joined:
    Jul 28, 2004
    Messages:
    6,917
    SMP is State Machine Products - a euphemism for the Kentucky State Prison System. Your stove was assembled by the, er, guests...

    Wyott also made these stoves so I'm presuming they were built to military specification by a number of manufacturers. That parallels the M1950 MilSpec stoves which were also made by several manufacturers including SMP and Wyott. Other manufacturers of that stove were Coleman, Fiesta and Bialaddin (Willis & Bates, Halifax, UK) plus a couple of others whose names escape me. I don't know if any of those also made the M2A.

    Last edited by a moderator: Jul 2, 2015
  11. David Shouksmith

    David Shouksmith Subscriber

    Offline
    Joined:
    Jul 28, 2004
    Messages:
    6,917
    Filling the fuel tank is positively not the problem with these stoves - observe the usual precautions and you'll be OK.

    You will, however, have a problem if you're American and expect it to take 30 seconds to prime. In fact, it will take about 30 MINUTES to prime this stove. Yes, honestly, THIRTY MINUTES!! - I kid ye not!! - impatient and/or ignorant people have died attempting to light these stoves - really... :doh: :cry: :-&

    OK, it has a stove in it's own right to pre-heat the generator and burner. However this is positioned at the fuel tank end of a generator about 18 inches long and around 2 inches in diameter. You will find that after 5 minutes pre-heating you have managed to preheat about half the length of the generator. Further pre-heating for however long you like will not increase that distance by one nanometre - trust me!

    Then, after the generator you haven't managed to pre-heat anywhere near sufficiently, there's a HUGE 6-armed cast iron burner that the pre-heater will never touch in a million years - again, trust me!

    So the only way to pre-heat the entire generator and burner is by what I call a 'strategic flare'. After pre-heating for 5-10 minutes, you have to open the valve by a tiny amount - the fuel initially vapourises but soon cools down in the far end of generator and burner and burns yellow. It will, however, slowly heat up the rest of the generator and eventually, the burner. As you reach 10, 15, 20, 25, 30 minutes, you can gently open the valve slowly and progressively until you achieve this condition:-

    HUZZAH!!

    Note that 2 arms (out of six) of the burner are dedicated to pre-heating the generator and maintaining it sufficiently hot to continue to vapourise the fuel. The thought of running this stove on anything less volatile than gasoline is absolutely mind-boggling!! :shock:

    OK, it's not exactly launching the space shuttle (i.e. rocket science) but 'T minus 30 minutes and counting' isn't too far off the mark...

    Last edited by a moderator: Jul 2, 2015
  12. 94Bravo

    Offline
    Joined:
    Dec 16, 2010
    Messages:
    1
    I was an US ARMY cook for several years. The M-2 burners are one of the better inventions. The M59 did not precede it, it was the field oven/range that the M-2 fit in to do anything from boiling to baking. I have seen one "blow up" The safety valve flew off and went through 2 thick canvas sidings. Canvas like Army tents. The burner lost pressure and went out. I wonder where I can get one. Thanks. 94B Pete

  13. hikin_jim

    Offline
    Joined:
    Apr 17, 2009
    Messages:
    4,519
    No, problem, Sam, the wife and I will be right up to help you out. ;)

    Actually, though, if we do have that inter-regional stove meet in Oregon that we've been talking about...

    Very cool stove. That oughta keep the Boy Scouts in beans and franks for a while. Thanks for posting it.

    HJ

    Last edited by a moderator: Jul 2, 2015
  14. idahostoveguy

    Offline
    Joined:
    Jun 15, 2009
    Messages:
    3,369
    HJ, if I can extricate myself from work, I might think about going to the Oregon meet. It would be fun.

    Now, I just want to relate this old topic to the old M2A light show topic since they are one and the same stove. The light show is the M2A lit up at full brilliance. Most of you have seen the topic before.

    Here it is: M2A Light Show

    sam

    Last edited by a moderator: Jul 1, 2015
  15. idahostoveguy

    Offline
    Joined:
    Jun 15, 2009
    Messages:
    3,369
    So here is a link to the complete instruction manual. It's a PDF document that 1.7 MB and 170 or so pages.

    TM-10-7360-204-13 and P (M2A and similar technical manual)

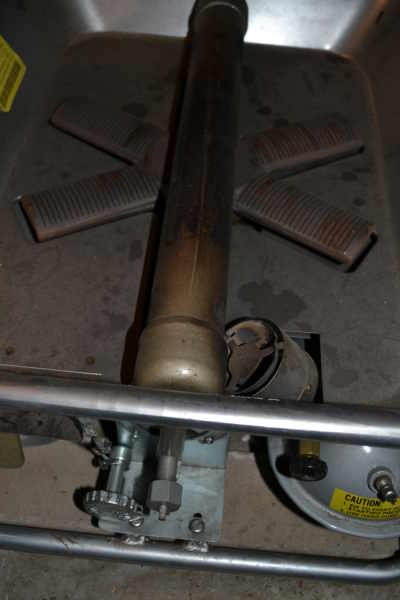

    As I was reading through this I found out a few more interesting things about this stove and variants. This one comes with a pre-heater shield that aids in the heating of the generator. That should decrease the pre-heat time since the heat is focused and directed over the generator rather than dispersed into the atmosphere.
