    Thanks Peter.

    The removable riser tube?

    You know, it doesn't seem to make a huge difference if raised or lowered five millimeters either way, though it would surely affect combustion badly if lowered to the extent that it was so close to the jet nipple that little air could get into the riser for the correct fuel/air mixture.

    I expect that without it there'd be 'underburn' with silent burner caps, when the fuel/air column ignites before reaching the combustion space.

    Of course, it's essential too to locate the silent burner caps centrally on the burner.

    The BernieDawg converter cap runs a little rich on this stove, which I think is because the cap's in-built riser tube has a smaller internal diameter than the removable one on the Pressgas. That said, the converter cap was custom-built for a British No.12 stove, on which it generates perfect combustion.

    John

  2. presscall

    presscall United Kingdom Subscriber

    Offline
    Joined:
    Aug 25, 2009
    Messages:
    7,123
    Location:
    UK
    A sequel.

    I've been using a borrowed Taylors stove gauge and got around to repairing the gauge that came with the stove.

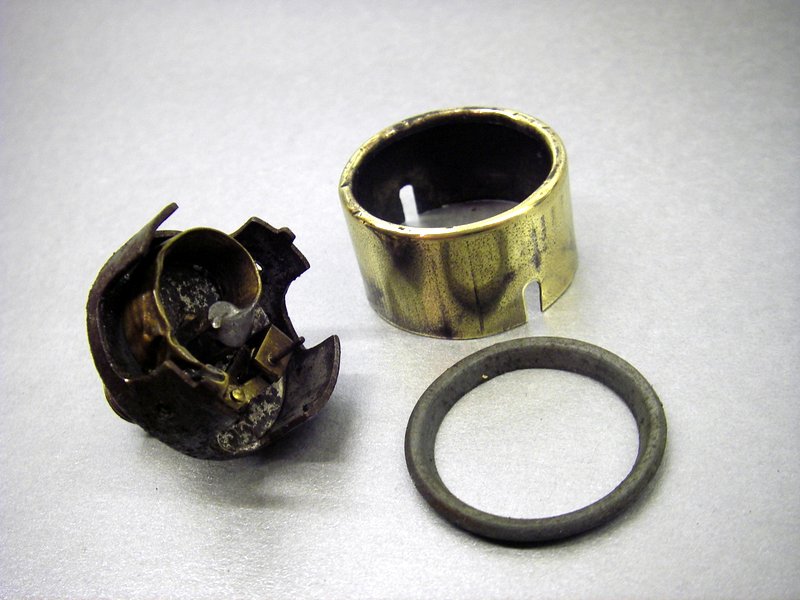

    This was the original you'll remember: no indicator needle, no glass, slightly mauled innards ...

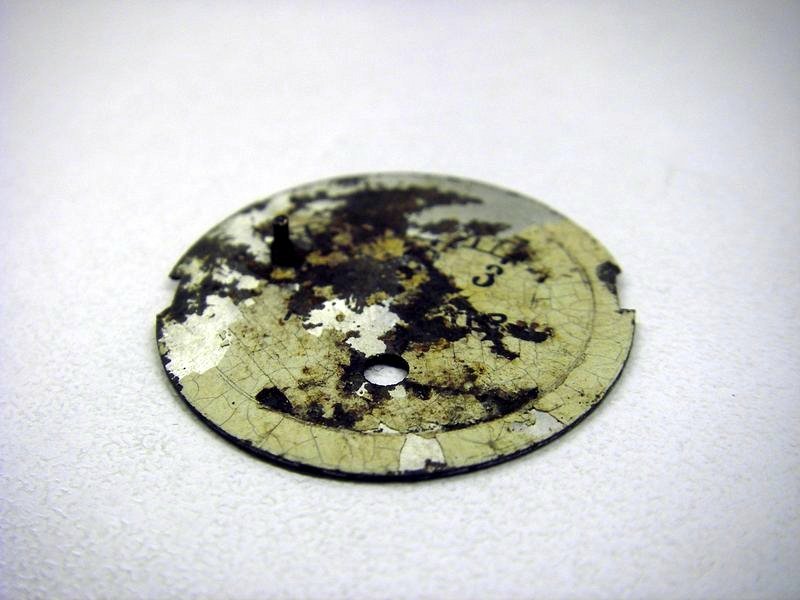

    ... and little remaining of the dial face



    There was just enough to go on. Some key clues from the traces of paint on the dial face: units of measurement were kg/sq cm, the dial carried the functional description 'Manometer' and the maximum reading was 3 kg/sq cm. - which approximates to 3 bars or around 45 psi.

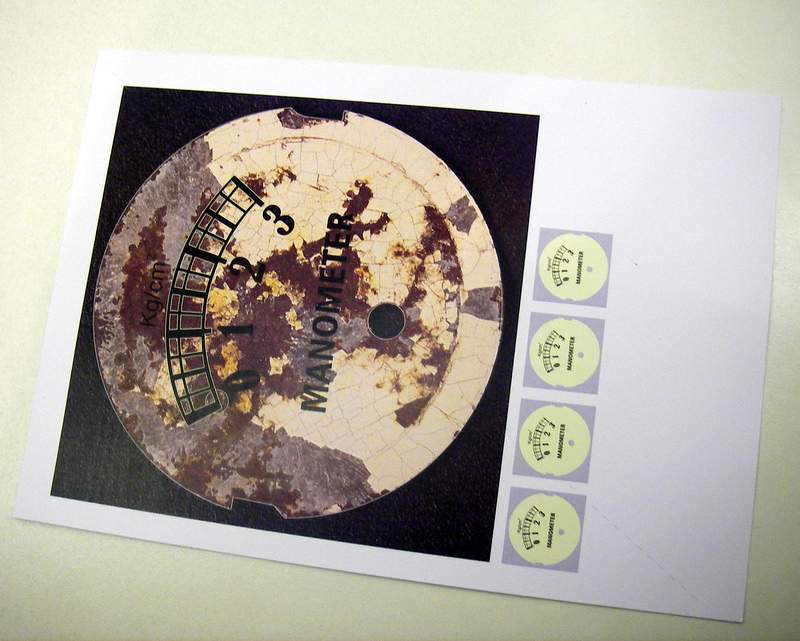

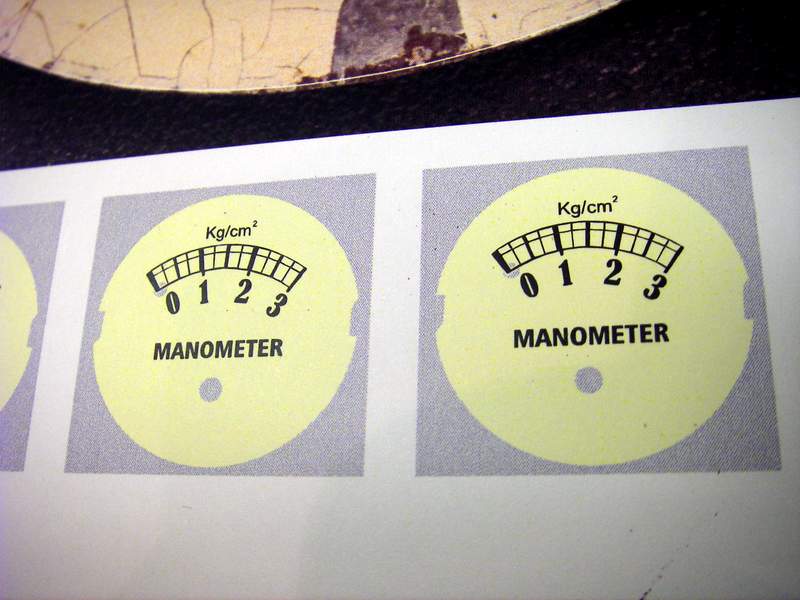

    I handed the task to a graphics artist friend who spent a half-hour on his Mac to produce these




    I asked him to print the dial faces on heavy-weight paper. I could have gone for laser decal paper but whereas a decal is essential for laying on a surface where the thinness of the decal is crucial, in this application that didn't matter and paper would be easier to apply to the metal dial plate, was cheaper and had the semi-matt finish I wanted rather than the glaze of the decal paper I have in stock.

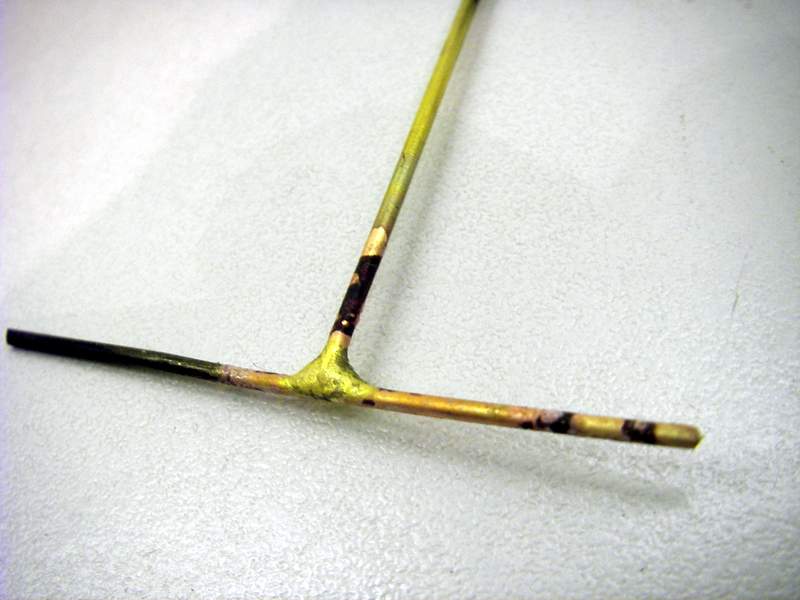

    Next job, making a new needle. I silbrazed a length of fine-bore brass tube (for the pivot shaft) to a length of fine-gauge brass rod (for the needle)

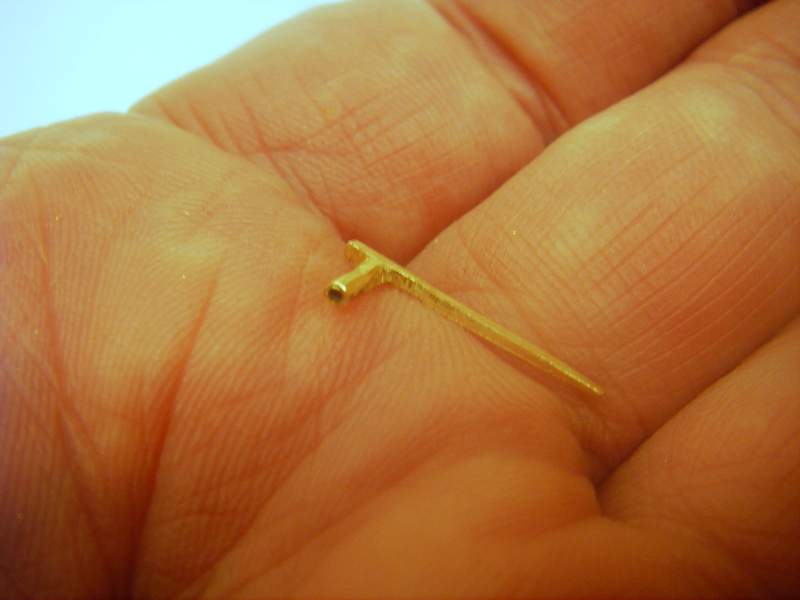

    Tricky work with a Dremel, but a needle and pivot shaft resulted

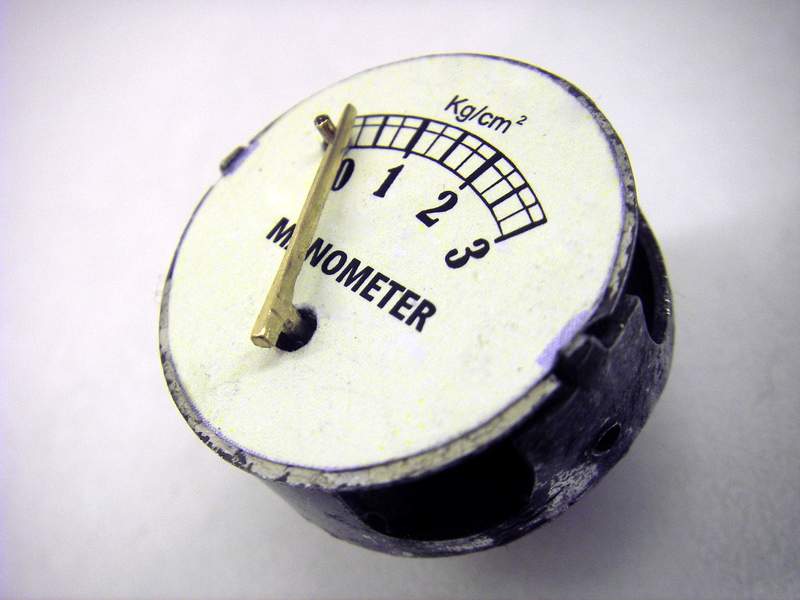

    I fitted it to the gauge and tweaked the bourdon tube mechanism to respond the right amount to a known level of pressure from an air compressor. I wouldn't claim this to amount to accurate calibration but then it didn't need to be, somewhere around 1 kg/sq cm of air pressure in the tank is enough for fierce maximum heat setting if required

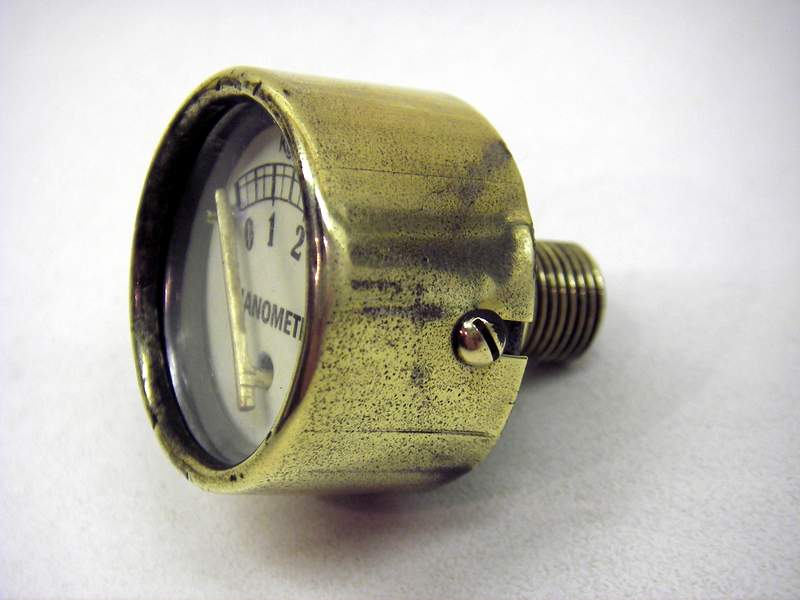

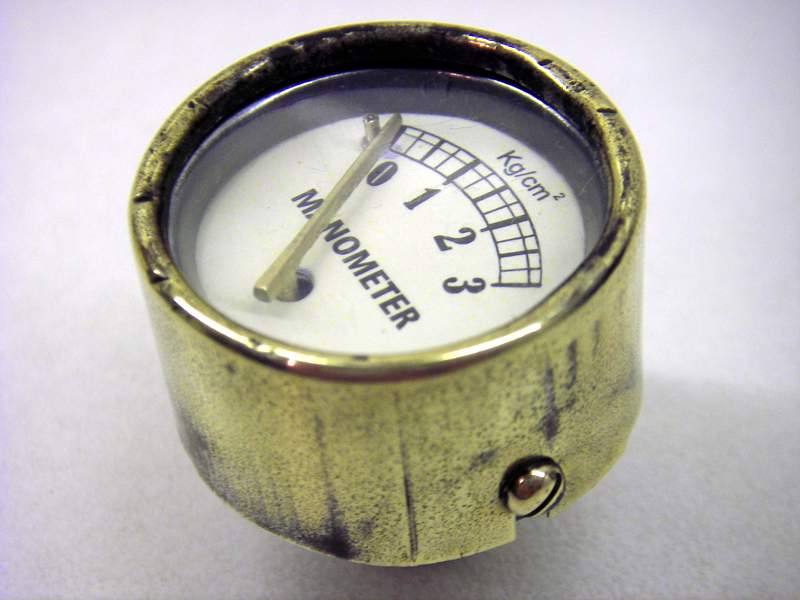

    Gauge reassembled with new sight glass and ready to reunite with the stove

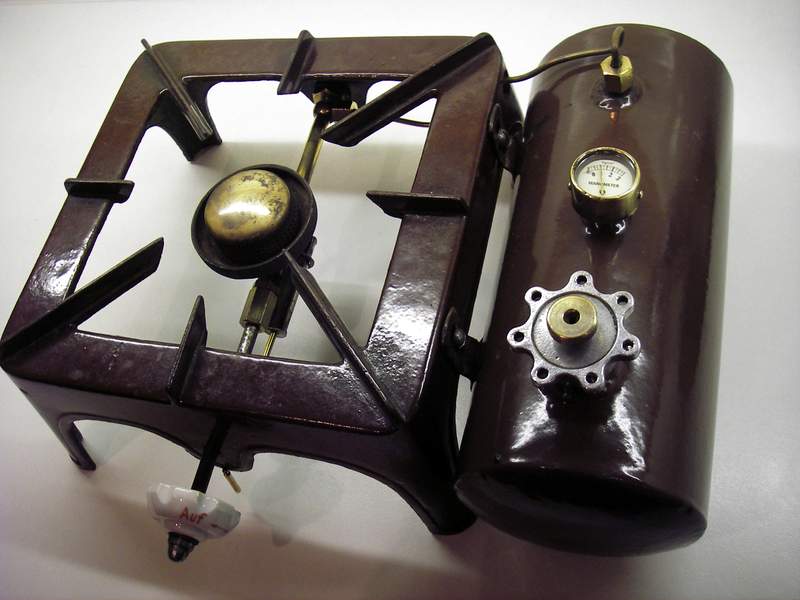

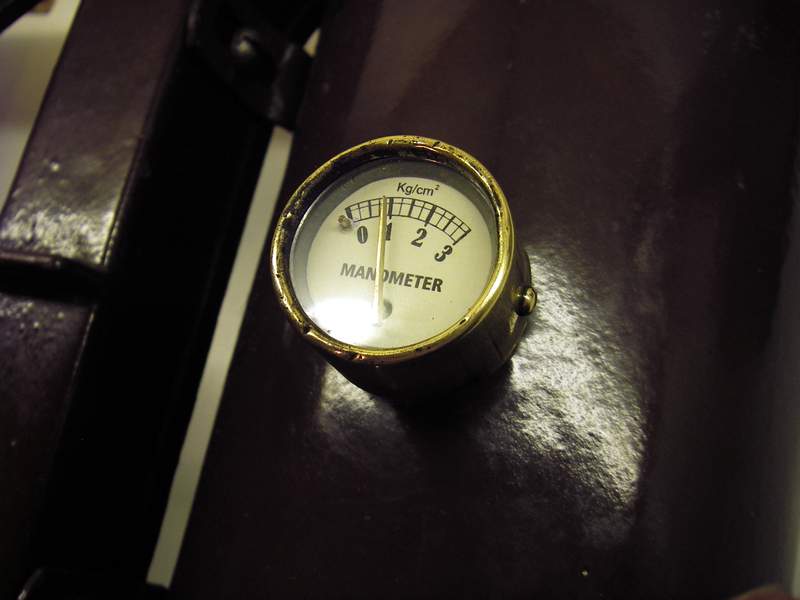

    Taylors gauge removed and put back into store, original gauge for the stove back in place



    Pressurised, ready to fire up for a celebratory brew, project finished


    Last edited by a moderator: Jun 26, 2015
  3. The Bird

    The Bird New Zealand Subscriber

    Offline
    Joined:
    Oct 28, 2009
    Messages:
    527
    John,

    I sooooo envy your abilities!!!

    Myself, I'm a natural bungler, and really shouldn't be permitted any interaction with anything combustible.

    Every post is a wonder to behold, many thanks for sharing.

    Best regards,

    Mike.

  4. kerophile

    kerophile United Kingdom Subscriber

    Offline
    Joined:
    Sep 23, 2004
    Messages:
    9,151
    Location:
    Far North of Scotland
    Hi John, Great work on this particular fiddly restoration.
    Best Regards,
    Kerophile.

  5. Longilily

    Longilily United Kingdom Subscriber

    Offline
    Joined:
    Sep 24, 2008
    Messages:
    651
    Location:
    Dungeness
  6. shagratork

    shagratork United Kingdom Moderator Subscriber

    Offline
    Joined:
    Aug 9, 2005
    Messages:
    8,558
    Location:
    Durham City, England
    As good as new. :D

  7. loco7stove

    loco7stove United Kingdom Subscriber

    Offline
    Joined:
    Sep 30, 2010
    Messages:
    1,395
    Location:
    Norfolk , UK
    Hi John

    I need say no more than "SUPERB" 8) :clap: :clap: :clap: :mrgreen: :thumbup:

    Stu :mrgreen:

  8. keeper_of_the_flame France

    Offline
    Joined:
    Jan 12, 2015
    Messages:
    142
    excellent work on the gauge, John. The stove looks better than new. :clap: :clap: :clap:

    Peter

  9. gieorgijewski

    gieorgijewski Turkey Subscriber

    Offline
    Joined:
    Apr 19, 2013
    Messages:
    1,392

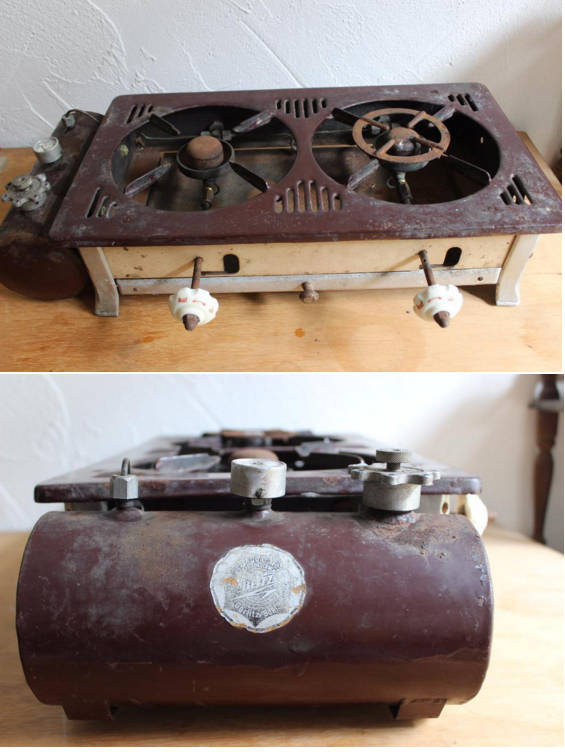

    PETROBLITZ

  10. presscall

    presscall United Kingdom Subscriber

    Offline
    Joined:
    Aug 25, 2009
    Messages:
    7,123
    Location:
    UK
    Good the decal's still intact on that one @gieorgijewski

    The double-burner example I provided THIS link for at the start of the thread appears not to have.

  11. gieorgijewski

    gieorgijewski Turkey Subscriber

    Offline
    Joined:
    Apr 19, 2013
    Messages:
    1,392
    I like decals...
    You like decals...
    ------------
    EVERYONE LIKES THE DECALS
    :))
